USER MANUAL Woodfire OG701EU NINJA
© 2023 SharzNinja Operating LLC. IRYK IT KINA
DEUTSCH
© 2023 SharNinja Operating LLC GEDRUCKT IN CHINA
ENGLISH
Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.
NINJA is a registered trademark in the European Union of SharkNinja Operating LLC.
© 2023 SharkNinja Operating LLC. PRINTED IN CHINA
ESPAÑOL
© 2013 SharkNinja Operating LLC. MFRSCCN OINA
FRANCAIS
© 2013 SharkNinja Operating LLC STAMPATO IN CINA
SharkNinja Europe Limited,
3150 Century Way,
Thorpe Park,
Leeds,
LS15 8ZB, UK
ninjakitchen.eu
OG70IFU_Series_IR_MP_221216_MVI
NEDERLANDS
© 2023 SparkNinja Operating LLC GEDRUKT IN CHINA
NORSK
Illustrasjonene kan avske fra det faktiske produktet. Vi streer kontinuering eller å forbetre prooxidene våre, derker kan generäom avsne, en forbetre avsne, på varre.
NINJA eret registrerit varemerkel Den europelske un on som tiharer SharkNina Operating L.C
© 2023 SharkNina Operating LLC | HKKL | KINA
PORTUGUESE
© 2023 SharkNinja Operating LLC IMPRESSO NA CHINA
SUOMI
NINJA or SparkNina Operating LLC -y-tion European unionisse
rlesicloily lavara-norkli
© 2023 SharkNinja Operating LLC PANETUKINASSA
SVENSKA
© 2023 SharkNinja Operating LLC TRYCK T KINA
SharkNinja Germany GmbH,
c/o Regus Management GmbH,
ninjakitchen.eu
TAK
fordi du købte vores Ninja ^x Woodfire Electric BBQ Grill & Smoker
REGISTRÉR DIT K∅B
ninjakitchen.eu/registerguarantee
Roast (Stegning)....11
Bake (Bagning) 11
Dehydrate (Dehydrering) 12
Reheat (Genopvarm) 12
I
K
O -
L (Fig. A)
Fig. E
FORLÄNGERLEDNING
WOODFIRE FLAVOUR TECHNOLOGY
ninjakitchen.eu/registerguarantee
I
K
O -
L (Abb. A)
Abb. E
VERLÄNGERUNGSKABEL
AIR FRY, BAKE, ROAST: 3 Minutes
for purchasing the Ninja® Woodfire Electric BBQ Grill & Smoker
REGISTER YOUR PURCHASE
ninjakitchen.eu/registerguarantee
n QR code using mobile device
Model Number:
Serial Number:
Date of Purchase:
(Keep receipt)
Store of Purchase:
TECHNICAL SPECIFICATIONS
Voltage: 220-240V-50-60Hz
Watts: 2400W
TIP: You can find the model and serial numbers on the QR code label on the back of the unit by the power cord.
This marking indicates this product should not be disposed of with other household waste. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.
CONTENTS
Important Safety Instructions .... 36
Parts & Accessories 38
Before First Use....38
Getting to Know the Woodfire Electric BBQ
Grill & Smoker 40
Function Buttons 40
Operating Buttons 40
Removable Smoke Box....41
Cooking Functions 41
Smoker....41
Grill 42
Air Fry 42
Roast 43
Bake 43
Dehydrate 44
Reheat 44
Cleaning Your Woodfire Electric BBQ Grill & Smoker ....45
Troubleshooting Guide....46
Product Registration 48

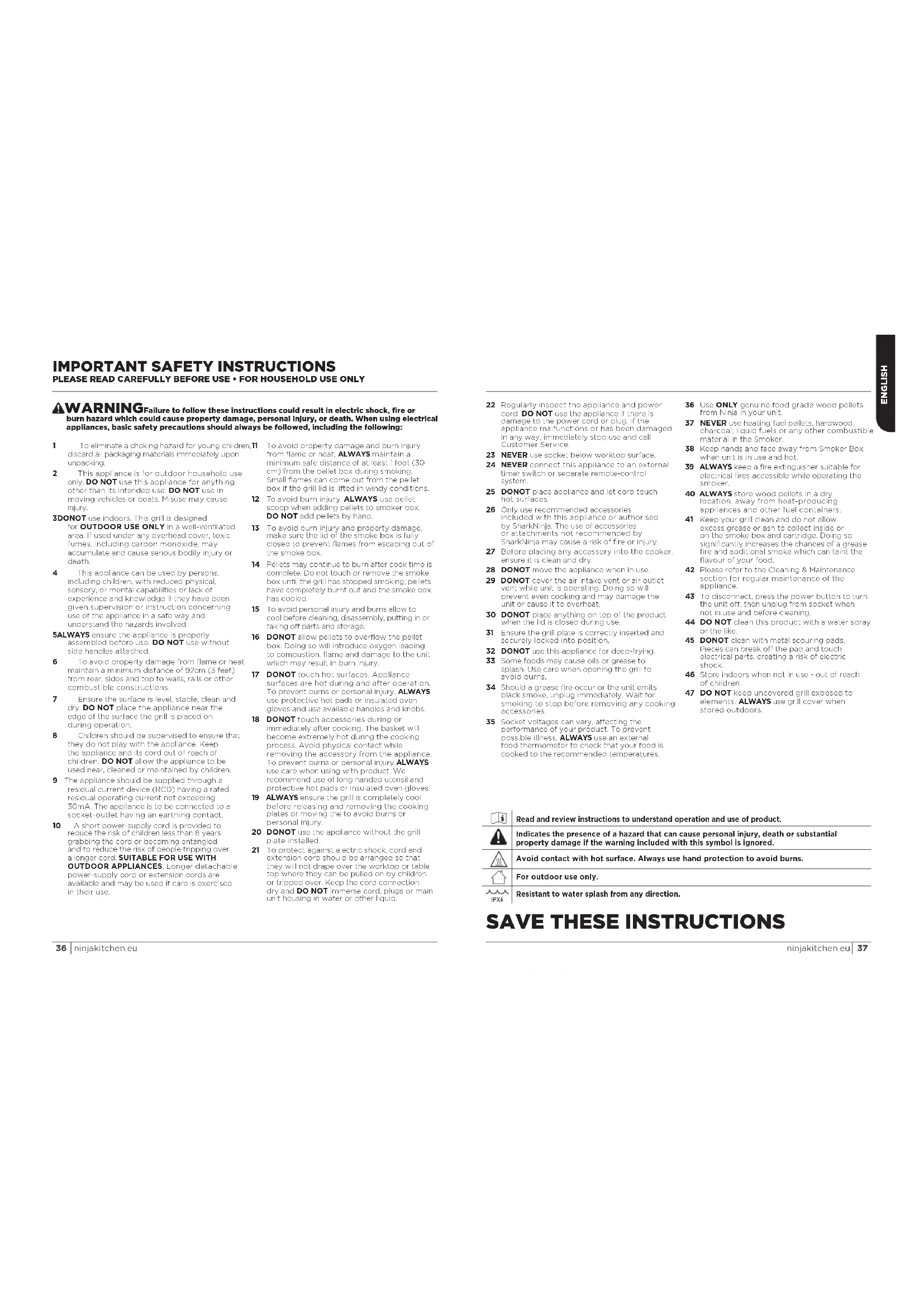

IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY
AWARNING
burn hazard which could cause property damage, personal injury, or death. When using electrical appliances, basic safety precautions should always be followed, including the following:
To eliminate a choking hazard for young children, 11 discard all packaging materials immediately upon unpacking.
2 This appliance is for outdoor household use only. DO NOT use this appliance for anything other than its intended use. DO NOT use in moving vehicles or boats. Misuse may cause injury.
3DONOT use indoors. This grill is designed for OUTDOOR USE ONLY in a well-vent-lated area, if used under any overhead cover, toxic fumes, including carbon monoxide, may accumulate and cause serious bodily injury or death.
4 This appliance can be used by persons, including children, with reduced physical sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5ALWAYS ensure the appliance is properly assembled before use. DO NOT use without side handles attached.
6 To avoid property damage from flame or heat maintain a minimum distance of 92cm (3 feet) from rear sides and top to walls, rails or other combustible constructions.
7 Ensure the surface is level, stable, clean and dry. DO NOT place the appliance near the edge of the surface the grill is placed on during operation.
8 Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children. DO NOT allow the appliance to be used near, cleaned or maintained by children.
9 The appliance should be supplied through a residual current device (RCD) having a rated residual operating current, not exceeding 30mA. The appliance is to be connected to a socket outlet having an earthing contact.
10 A short power-supply cord is provided to reduce the risk of children less than 8 years, grabbing the cord or becoming entangled and to reduce the risk of people tripping over a longer cord. SUITABLE FOR USE WITH OUTDOOR APPLIANCES. Longer detachable power-supply cord or extension cords are available and may be used if care is exercised in their use.
To avoid properly damage and burn injury from flame or heat, ALWAYS maintain a minimum safe distance of at least 1 foot (30 cm) from the pellet box during smoking. Small flames can come out from the pellet box if the grill lid is lifted in windy conditions.
12 To avoid burn injury, ALWAYS use pellet scoop when adding pellets to smoker box. DO NOT add pellets by hand.
13 To avoid burn injury and property damage, make sure the lid of the smoke box is fully closed to prevent flames from escaping out of the smoke box.
14 Pellets may continue to burn after cook time is complete. Do not touch or remove the smoke box until the grill has stopped smoking, pellets have completely burnt out and the smoke box has cooled.
15 To avoid personal injury and burns allow to cool before cleaning, disassembly, putting in or taking off parts and storage.
16 DONOT allow pellets to overflow the pellet box. Doing so will introduce oxygen leading to combustion, flame and damage to the unit which may result in burn injury.
17 DONOT touch hot surfaces. Appliance surfaces are hot during and alter operation. To prevent burns or personal injury, ALWAYS use protective hot pads or insulated oven gloves and use available hendles and knobs.
18 DONOT touch accessories during or immediately after cooking. The basket will become extremely hot during the cooking process. Avoid physical contact while removing the accessory from the appliance. To prevent burns or persona injury ALWAYS use care when using with product. We recommend use of long handed utensil and proactive hot pads or insulated oven gloves.
19 ALWAYS ensure the grill is completely cool before releasing and removing the cooking plates or moving the to avoid burns or personal injury.
20 DONOT use the appliance without the grill plate installed.
21 To protect against electric shock, cord and extension on cord should be arranged so that they will not drape over the worktop or table top where they can be pulled on by children or trapped over. Keep the cord connection dry and DO NOT immerse cord, plugs or main unit housing in water or other liquid.
22 Regularly Inspect the appliance and power cord. DO NOT use the appliance if there is damage to the power cord or plug. If the appliance ma functions or has been damaged in any way, Immediately stop use and call Customer Service.
23 NEVER use socket below worktop surface.
24 NEVER connect this appliance to an external timer switch or separate remote-control system.
25 DONOT place appliance and let cord touch hot surfaces.
26 Only use recommended accessories included with this appliance or authorised by SharkNinja. The use of accessories or attachments not recommended by SharkNinja may cause a risk of fire or injury.
27 Before placing any accessory into the cooker, ensure it is clean and dry.
28 DONOT move the appliance when in use.
29 DONOT cover the air intake vent or air outlet vent while unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat.
30 DONOT place anything on top of the product when the Id is closed during use.
31 Ensure the grill plate is correctly inserted and securely locked into position.
32 DONOT use this appliance for deep frying.
33 Some foods may cause oils or grease to splash. Use care when opening the grill to avoid burns.
34 Should a grease fire occur or the unit emits black smoke, unplug immediately. Wait for smoking to stop before removing any cooking accessories.
35 Socket voltages can vary, affecting the performance of your product. To prevent possible illness, ALWAYS use an external food thermometer to check that your food is cooked to the recommended temperatures.
36 Use ONLY genu ne food grade wood pellets from Ninja in your unit.
37 NEVER use heating fuel pellets, hardwood, charcoal, liquid fuels or any other combustible material in the Smoker.
38 Keep hands and face away from Smoker Box when unit is in use and hot.
39 ALWAYS keep a fire extinguisher suitable for electrical fires accessible while operating the smoker.
40 ALWAYS store wood beliefs in a dry
location, away from heat-producing appliances and other fuel containers
41 Keep your grill clean and do not allow excess grease or ash to collect inside or on the smoke box and cartridge. Doing so significantly increases the chances of a grease fire and additional smoke which can taint the flavour of your food.
42 Please refer to the Cleaning & Maintenance section for regular maintenance of the appliance.
43 To disconnect, press the power button to turn the unit off, then unplug from socket when not in use and before cleaning.
44 DO NOT clean this product with a water spray or the like.
45 DONOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
46 Store indoors when not in use - out of reach of children.
47 DO NOT keep uncovered grill exposed to elements. ALWAYS use grill cover when stored outdoors.
Read and review instructions to understand operation and use of product.
Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored.
Avoid contact with hot surface. Always use hand protection to avoid burns.
For outdoor use only.
Resistant to water splash from any direction.
SAVE THESE INSTRUCTIONS
PARTS & ACCESSORIES
A Grill Plate
B Crisper Basket
C Smoke Box (pre-installed)
D Grease Tray
E Left and Right Assembly Handles
F Socket Head Cap Screw 3.5mm x 16mm (4x) (pro-assembled on handles)
G Hox Key
H Pellet Scoop
I Assomoled Main Unit (power cord not shown)
J Lie
K Control Panel
L ON/OFF Press
I
K
O -
L (Fig. A)
To order replacement or additional parts and accessories, visit ninjakitchen.eu
BEFORE FIRST USE
1 Remove and discard any packaging material and tape from the unit. Some stickers are to be permanently kept on the unit, ONLY remove stickers with 'peel hers'
2 Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings and important safeguards to avoid any injury or property damage.
3 Wash the grill plate and crisper basket in warm, soapy water, then rinse and dry thoroughly. The grill plate, crisper basket and base unit are NOT dishwasher safe. NEVER clean the main unit in the dishwasher.
NOTE: The base liner underneath the bottom heading element may have some visible discoloration. This is a result of our normal manufacturing process. The unit has not been previously used.
4 DO NOT use abrasive brushes or sponges on the cooking surfaces, as they will cause damage to the coating.
5 Plug into electrical socket and press the switch located underneath the left side of the control panel to the CN position. (See Fig. A above).
6 To turn your product off, ensure the dial is rotated to the OFF position and the press switch is OFF.
NOTE: If unit won't turn on, check the residual current device (RCD) is fully plugged in and the reset button has been pressed.
We recommend placing all accessories inside the grill and running it on GRILL, temp set to HI for 20 minutes without adding food. This removes any residues. This is completely safe and not detrimental to the performance of the grill.
BEFORE FIRST USE - CONTINUED
HANDLE INSTALLATION
1 Ensure the correct handle is being used on the left and right side. (Refer to Fig. A and note that the handles have L and R stickers on the underside). A Hex key is labeled onto the left handle (see Fig. A).
2 Place unit at edge of table (Fig. B) OR with lid still taped down, carefully place grill upside down by holding the sides of the unit and the lid down. If tape has been removed, remove all accessories from the grill and holding the sides of the unit and the lid down, place grill on top of top pulp tray piece to protect unit (Fig. C).
3 Align each handle with tabs on base, then push up to set each handle in pace (Fig. D). Use included Hex key to tighten pre-assembled screws (2x) on each handle (Fig. D).
Fig. E
EXTENSION CORD
1 If using an extension cord, ensure it is suitable for use outdoors with outdoor appliances. Using the incorrect cord could lead to the cord overheating, melting and/or a drop in voltage. A drop in voltage can increase preheat times and impact cooking performance and/or cook times.
GETTING TO KNOW THE WOODFIRE ELECTRIC BBQ GRILL & SMOKER
OFF
GRILL
AIR FRY
ROAST
SAVE
DEHYDRATE
REHEAT
ROADFIRE FLAVOUR
TECHNOLOGY
250 4:00
— TEMP + — TIME +
START
— STOP
There are 2 ways to achieve authentic smokey BBQ flavours:
-
Dedicated SMOKER program for cocking over a longer period of time for deep flavours and tender results.
-
Add a quick burst of Woodfire Flavour to any of the other functions, except REHEAT, using the WOODFIRE FLAVOUR TECHNOLOGY button.
SMOKER: Create deep, smoky flavours while cooking low and slow to tenderise large cuts of meat.
GRILL: Closed-id cooking for top and bottom heat. Best when grilling large or thick cuts of meat or frozen food or for an all-around seat. Open the Id while grilling delicate foods or lean proteins to develop chargrilled textures without overcooking.
AIR FRY: Achieve crispness and crunch with little to no oil and higher tan speeds.
ROAST: Tenderse meats, roast vegetables and more.
BAKE: Bake breads, cakes and more with lower fan speeds.
DEHYDRATE: Great for drying fruits, vegetables and jerky.
REHEAT: local for reheating leftovers so nothing goes to waste.
WOODFIRE FLAVOUR TECHNOLOGY: Press after selecting your cooking function to add Woodfire Flavour using the Grill, Air Fry, Bake, Roast or Dehydrate functions. When pressed, flame icon will illuminate on the display screen.
DIAL: To power on the unit and select a cooking function, rotate the dial clockwise until desired function is selected. To power off the unit, rotate the dial anti-clockwise to the OFF position.
NOTE: When the unit is powered on, the display will be illuminated.
TEMP: The default temperature setting will display, to adjust temperature if desired, use the - and + buttons next to TEMP.
TIME: To adjust cook time, use the - and + buttons next to TIME.
START/STOP: Press to start or stop the current cook function or press and hold for 3 seconds to skip preheat
PREHEAT FOR BETTER RESULTS
For best grilling results, let the unit fully preheat before adding food. Adding food before preheating is complete may lead to overcooking, smoke and longer preheat time.
After you set function, time and temperature then press START, the unit will automatically begin preheating (except if using the Smoker function or the Reheat/Denoyrate functions) without enabling Woodline Flavour Technology.
REMOVABLE SMOKE BOX
The smoke box comes fully installed in the unit and is located on the right side of the lid. Always ensure the removable smoke box is inserted into place before adding pellets. Review all warnings before proceeding.
Installing the smoke box:
To install, hold the smoke box id open with one hand and insert the removable smoke box so it sits into place.
Adding Ninja Woodfire Pellets:
Fill the pellet scoop to the top and level off to avoid spilling. While holding the smoke box lid open, pour pellets into the smoke box until filled to the top, then close the smoke box lid. Ensure the lid is properly closed before cooking.
Use only Ninja Woodfire Pellets for best results, performance and flavour.
Removing the smoke box and cleaning:
To avoid burns, allow pellets to completely burn and smoke box to cool completely, then remove smoke box and safely discard all contents.
COOKING FUNCTIONS
Plug in the unit and press the switch located underneath the left side of the control panel to the ON position.
IMPORTANT: Review all important safety instructions before use.
Smoker
NOTE: The temperature is preset to 120°C.
1 Place grill on a flat level surface.
2 Open the lid and install the grill plate by positioning it flat on top of the heating element so it sits into place.
3 install the grease tray by sliding it into place at the back of the grill.
4 Lift the smoke box lid and using the pellet scoop, fill the smoke box with pellets to the top, then close the lid. DO NOT overfill smoke box.
5 Open the lid and place ingredients on the grill plate. Close the lid.
6 Make sure the grill is plugged in and rotate the dial clockwise from the OFF position to select the SMOKER function.
7 The default temperature setting will display. Use the - and + buttons next to TEMP to choose a temperature from 120°C to 210°C in 10 degree increments.
8 Use the - and + buttons next to TIME to adjust cook time from 1 minute to 30 minutes, in 1 minute increments and from 30 minutes to 12 hours in 15 minute increments.
9 Press START to begin cooking. There is no proheat time for the Smoker function.
10 When cook time reaches zero, the unit will beep and END will appear on the display.
11 Remove food from the grill plate.
COOKING FUNCTIONS - CONTINUED
IMPORTANT: Review all important safety instructions before use.
Grill
NOTE: The temperature is preset to -I.
1 Place grill or a flat, level surface.
2 Open the lid and install the grill plate by positioning it. flat on top of the heating element so it sits into place.
3 Install the grease tray by sliding it into place at the back of the grill.
4 If you plan to use the Woodfire Flavour technology, lift the smoke box lid and using the pallet scoop, lift the smoke box with po lots to the top, then close the lid. DO NOT over'll smoke box.
5 Make sure the grill is plugged in and rotate the dial clockwise from the OFF position to select the GRILL function.
6 If adding Woodfire Flavour technology, press the WOODFIRE FLAVOUR technology button.
7 The default temperature setting will display. Use the - and + buttons next to TEMP to choose a temperature from LO to HI.
8 Use the - and + buttons next to TIME to adjust cook time in 1 minute increments up to 1 hour.
9 Press START to begin proheating. If using Woodfire Flavour Technology, the pellets will go through an ignition cycle (IGN), then the grill will begin preheating (PRE).
NOTE: While prohoating is strongly recommended for best results, you can skip it by crossing and holding the START/STOP button for 4 seconds. "ADD FOOD" will flash across the screen. Open the lid and place ingredients on the grill pale. Once the lid is closed, cooking will begin and the timer will start counting down. Skip to step 11 for further instructors.
10 When prehealing is complete, the unit will beep and ADD FOOD will appear on the display.
11 Open the lid and place ingredients on the grill plate. Once the lid is closed, cooking will begin and the timer will begin counting down.
12 When cook time reaches zero, the grill will beep and DONE will appear on the display.
13 Remove food from the grill plate.
Air Fry
NOTE: The temperature is preset to 200°C
1 Place grill on a flat level surface
2 Open the lid and install the grill plate by posit on ing it flat on too of the heading element so if sits into place.
3 Place the crispor basket on the grill plate and position on the basket level into the designated indentations on the grill plate surface.
4 Install the grease tray by sliding it into place at the back of the grill.
5 If you plan to add Woodfire Flavour, I'll the smoke box lid and using the pel at scoop, I'll the smoke box with pelle:s to the top, then close the lid. DO NOT overfill smoke box.
6 Make sure the grill is plugged in and rotate the dial clockwise from the OFF position to select the AIR FRY function.
7 Adding Woodfire Flavour, press the WOODFIRE FLAVOUR technology button.
8 The default temperature setting will display. Use the - and + buttons next to TEMP to choose a temperature from 150°C to 240°C in 10 doored increments.
9 Use the - and + buttons next to TIME to adjust cook time in 1 minute increments up to 1 hour.
10 Press START to begin preheating, if using Woodfire Flavour technology, the pellets will go through an ignition cycle (IGN), then the grill will begin preheating (PRE).
NOTE: While proheating is strongly recommended for best results, you can skip it by pressing and holding the START/STOP button for 4 seconds. "ADD FOOD" will flash across the screen. Open the lid and place ingredients in the crispor basket. Once the lid is closed cooking will begin and the timer will start counting down. Skip to step 12 for further instructions.
11 When preheating is complete, the unit will beep and ADD FOOD will appear on the display
12 Open the lid and place ingredients on the grill plate. Once the lid is closed, cooking will begin and the timer will begin counting down.
13 When cook time reaches zero, the unit will beep and END will appear on the display
14 Remove food from the crisper basket.
IMPORTANT: Review all important safety instructions before use.
Roast
NOTE: The temperature is preset to 180°C.
1 Place grill on a flat, level surface.
2 Open the lid and install the grill plate by positioning it flat on too of the heating element so it sits into place.
3 Install the grease tray by sliding it into place at the back of the grill.
4 If you plan to add Woodfire Flavour, lift the smoke box lid and using the pellet scoop, lift the smoke box with pellets to the top, then close the lid. DO NOT overfill smoke box.
5 Make sure the grill is plugged in and rotate the dial clockwise from the OFF position to select the ROAST function.
6 If adding Woodfire Flavour press the WOODFIRE FLAVOUR technology button.
7 The default temperature setting will display. Use the - and + buttons next to TEMP to choose a temperature from 160°C to 220°C in '0 degree increments.
8 Use the - and - buttons next to TIME to adjust cook time from 1 minute to 1 hour, in 1 minute increments and from 1 hour to 2 hours in 5 minute increments.
9 Press START to begin preheating. If using Woodfire Flavour technology, the pellets will go through an ignition cycle (IGN), then the grill will begin preheating (PRE).
10 When preheating is complete, the unit will beep and ADD FOOD will appear on the display.
NOTE: While preheating is strongly recommended for best results, you can skip it by pressing and holding the START/STOP button for 4 seconds. "ADD FOOD" will flash across the screen. Oper the lid and place ingredients in the crisper basket. Once the lid is closed cooking will begin and the timer will start counting down. Skip to step '12 for further instructions.
11 Open the lid and place ingredients on the grill plate. Once the lid is closed, cooking will begin and the timer will begin counting down
12 When cook time reaches zero, the unit will beep and END will appear on the display.
13 Remove food from grill plate.
Bake
NOTE: The temperature is preset to 160°C
1 Place grill on a flat, level surface.
2 Open the lid and install the grill plate by positioning it flat on top of the heating element so it sits into pace.
3 Install the grease tray by sliding it into place at the back of the grill.
4 If you plan to add Woodfire Flavour, lift the smoke box lid and fill the smoke box with pellets to the top, then close the lid. DO NOT overfill smoke box.
5 Make sure the grill is plugged in and rotate the cial clockwise from the OFF position to select the BAKE function.
6 If adding Woodfire Flavour, press the WOODFIRE FLAVOUR technology button.
7 The default temperature setting will display. Use the - and + buttons next to TEMP to choose a temperature from 120°C to 210°C in 10 degree increments.
8 Use the - and + buttons next to TIME to adjust cook time from 1 minute to 1 hour, in 1 minute increments and from 1 hour to 4 hours in 5 minute increments.
9 Press START to begin preheating. If using Woodfire Flavour technology, the pellets will go through an ignition cycle (IGN), then the grill will begin preheating (PRE).
10 When preheating is complete, the unit will beep and ADD FOOD will appear on the display.
NOTE: While preneating is strongly recommended for best results, you can skip it by pressing and holding the START/STOP button for 4 seconds, "ADD FOOD" will flash across the screen. Open the lid and place ingredients in the crispor basket. Once the lid is closed cooking will begin and the timer will start counting down. Skip to stop 12 for further instructions.
11 Open the lid and place ingredients on the plate or place bake pan on the plate. Once the lid is closed, cooking will begin and the timer will start: counting down.
12 When cook time reaches zero, the unit will beep and END will appear on the display.
13 Remove food from the grill plate.
NOTE: When using the Bake function, make sure to use the proper accessory. For well or battered Ingredients, use a baking dish. For loose items such as bread, pastries or biscuits, use the crispoor basket.
COOKING FUNCTIONS - CONTINUED
IMPORTANT: Review all important safety instructions before use.
Dehydrate
NOTE: The temperature is preset to 60°C.
1 Place grill on a flat, level surface.
2 Open the lid and install the grill plate by positioning it flat on top of the heating element so it sits into place
3 Install the grease tray by sliding it into place at the back of the grill.
4 Open the lid and place ingredients on the grill plate. Close the lid. There is no preheat.
5Make sure the unit is plugged in and rotate the dial clockwise from the OFF position to select the DEHYDRATE function.
6 The default temperature setting will display. Use the - and + buttons next to TEMP to choose a temperature from 40°C to 90°C in 10 degree increments.
7. Use the - and + buttons next to TIME to adjust cook time from 1 minute to 30 minutes, in 1 minute increments and from 30 minutes to 12 hours in 15 minute increments.
8 Press START to begin cooking.
9 When cook time reaches zero, the unit will beep and END will appear on the display.
10 Remove food from the grill.
USING WOODFIRE FLAVOUR TECHNOLOGY WITH DEHYDRATE
• To add Woodfre Flavour, after step 3. Lift the smoke box lid and fill the smoke box with pellets to the top, then close the lid. DO NOT overfill smoke box
- Skip step 4, follow steps 5-7 for programming.
*Press the WOODFIRE FLAVOUR button after you select DEHYDRATE in step 4.
• After step 7, press START to begin preheating. The pellets will go through an ignition cycle (IGN).
- When preheating is complete, the unit will beep and ADD FOOD will appear on the display.
- Open the lid and place ingredients on the grill plate. Once the lid is closed, cooking will begin and the timer will begin counting down.
- When cook time reaches zero, the unit will beep and END will appear on the display.
- Remove food from the grill plate.
Reheat
NOTE: The temperature is preset to 170°C.
1 Place grill on a flat, level surface.
2 If required, place the crisp basket on the grill plate and position the basket feet into the designated indentations on the grill plate surface. Add ingredients, then close the lid.
3 Install the grease tray by sliding it into place at the back of the grill.
4 Make sure the grill is plugged in and rotate the dial clockwise from the OFF position to select the REHEAT function.
5 The default temperature setting will display. Use the - and + buttons next to TEMP to choose a temperature from 130°C to 210°C in 10 degree increments.
6 Use the - and + buttons next to TIME to adjust cook time in 1 minute increments up to 1 hour.
7 Press START to begin cooking (the unit does not preheat in Reheat mode).
8 Cooking will begin and the timer will begin counting down.
9 When cook time reaches zero, the unit will beep and END will appear on the display.
10 Remove food from the grill
CLEANING YOUR WOODFIRE ELECTRIC BBQ GRILL & SMOKER
The unit should be cleared thoroughly after each use. ALWAYS lot the appliance and accessories cool before cleaning.
- Unplug the unit from power source before cleaning. Keep the Id open after removing your food to allow the unit to cool quicker.
- Remove smoke box and safely discard cooled ash contents after every use.
- The pellet scoop is dishwasher safe. The grill plate, crisper basket, grease tray and smoke box are NOT dishwasher safe.
- Carefully remove cooled grease tray from the back of the unit. Safely discard grease contents and hand-wash grease tray in warm, soapy water.
- Cleaning of the smoke box is not required. However if desired, a wire brush can be used to remove extra creosote.
NOTE: DO NOT use liquid cleaning solution on the smoke box.
- If food residue or grease is stuck on the grill plate or any other removable part, soak in warm, soapy water before cleaning.
- Remove non-stick grill plate and crispor basket (if used) after each use and hand-wash with warm, soapy water.
NOTE: NEVER use a porous tools or cleaners. NEVER immerse the main unit in water or any other liquid. DO NOT place in dishwasher.
- When slacking the coated accessories to store, place a cloth or paper towel between each piece to protect the coated surfaces.
CLEANING THE LID
- The inner lid should be wiped down with a damp towel or cloth after each use to deodorise the unit and remove any grease.
- Gently wipe down the inside of the lid with a damp cloth.
TROUBLESHOOTING GUIDE
WARNING: To reduce the risk of shock and unintended operation, turn power off and unplug unit before troubleshooting.
- "Add Grill" appears on the control panel display.
The grill plate needs to be installed. Once installed, close the lid and press the start button to begin.
- "Add Food" appears on the control panel display.
The unit has completed preheating and it is now time to add your ingredients.
- "Shut Lid" appears on the control panel display.
The Id is open and needs to be closed for the selected function to start.
• "E" appears on the control panel display.
The unit is not functioning properly. Please contact Customer Service at 0800 000 9063. So we may better assist you, please register your product online at ninjakitchen.eu and have the product on hand when you call.
• My unit won't turn on?
1 Check the residual current device (RCD) is fully plugged in and the reset button has been pressed.
2 Ensure the press switch is turned to the ON position.
3 Make sure the dial is not in the OFT position.
If your unit doesn't turn on after taking the steps above, please contact Customer Service at 0800 000 9063.
- Should I add my ingredients before or after preheating?
For best results, let the unit preheat before adding ingredients.
- Do I need to completely fill the smoke box with pellets?
Yes, always fill the smoke box to the top. We've perfected the amount of pellets needed for each smoke session, regardless of the function or food load, the unit will burn through them appropriately.
• When do I press the Woodfire Flavour technology button?
Press the Woodfire Flavour technology button before pressing start when wanting to ade smoke using the Grill, Air Fry, Roast, Bake or Dehydrate. You do not need to press the Woodfire Flavour technology button when using the Smoker function. We don't advise to use Woodfire Technology with rainear, as your food is already full of flavour.
• Why are flames coming out from the pellet box?
Small flames can come out from the pellet box if the grill lid is filled in windy conditions.
• Where should I keep my pellets stored?
Always store pellets in a dry area. Any moisture in the pellets can compromise ignition and quality of smoke flavour.
• Should I use any oils or non-stick sprays when smoking?
No, we do not recommend using any oils or non-stick sprays when smoking because smoke will not adhere to the food as well.
• How do I dispose of burnt pellets after a cook cycle?
Pellets may continue to burn after cook time is complete. Do not touch or remove the smoke box until the grill has stopped smoking, pellets have completely burnt out and the smoke box has cooled. Then, remove the smoke box and safely discard cooled ash contents.
• Why is preheat taking so long?
Preheat times vary by function and unit temperature.
GRILL: approx. HI 8-12 | MED 6-11 | LO 5-9mins.
A R FRY, BAKE, ROAS: 3 minutes
SMOKER, DEHYDRATE, REHEAT: No preheat.
If adding Woodfire Flavour, ignition time will add an additional 2-4 minutes.
Using the unit in inclement weather with heavy rain could cause longer preheat times.
If using an extension cord, ensure it is suitable for use outdoors with outdoor appliances. Using the incorrect cord could lead to the cord overheating, melting and/or a crop in voltage.
TROUBLESHOOTING GUIDE
While preheating is strongly recommended for best results, you can skip it by pressing and holding the START/STOP button for 3 seconds. "ADD FOOD" will flash across the screen. Open the lid and place ingredients in unit. Once the lid is closed, cooking will begin and the timer will start counting down.
• Can I turn off Woodfire Flavour technology?
If you pressed Woodfire Flavour technology and already started your cooking function by pressing START, you can press the Woodfire Flavour technology button again to turn it off if the ignition cycle is less than 75% complete (indicated by the progress bar on the display screen), if pellets have fully ignited and the grill has transitioned to the preheat cycle (indicated on the display screen), you cannot turn Woodfire Flavour technology off.
• Can I add more pellets during a cook cycle?
When using the SMOKTR function, you can add more pellets once the first batch has fully burned. Press and hold the Woodfire Flavour technology button for 4 seconds to ignite new full box of pellets, if running back-to-back smoking sessions, we recommend refiling the smoke box using the pellet scoop when half the pellets have burned. DO NOT refill more than 2 times. DO NOT re-ignite pellets.
PRODUCT REGISTRATION
TWO (2) YEAR LIMITED GUARANTEE
When you buy a product in Europe as a consumer, you get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these statutory rights against your retailer. However, at Ninja we are so confident about the quality of our products (the "Products") that we give you a manufacturer's guarantee of two years. This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only - your statutory rights as a buyer are unaffected. Please note that the 2 year guarantee is available in all EU countries.
The conditions below describe the prerequisites and scope of our guarantees which are issued by SharkNinja Germany GmbH, c/o Regus Management GmbH, Excellent Business Center 10. + II. Stock, Westhafenplatz I, 60327 Frankfurt am Main (Germany) ("us", "our" or "we"). They do not affect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Ninja.
Ninja® Guarantees
A household kitchen appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.
You'll find online support at www.ninjakitchen.eu.
How do I register my guarantee?
You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:
- Model no.
- Serial Number (only if available)
• Date of purchase of the Product (receipt or delivery note)
To register online, please visit www.ninjakitchen.eu
IMPORTANT
- The guarantee covers your Product for 2 years starting on the date of purchase.
- Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee.
What are the benefits of registering my guarantee?
When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. Hear the latest news about new Ninja technology and launches. If you register your guarantee online, you'll get instant confirmation that we've received your details.
For details of our privacy policy please visit www.ninjakitchen.eu
How long are our Products guaranteed for?
Our confidence in our design and quality control means that your Product is guaranteed for two years.
PRODUCT REGISTRATION
What is covered by the guarantee?
Repair or replacement (at Ninja's discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer.
What is not covered by the guarantee?
• Normal wear and tear.
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the kitchen appliance which is not in accordance with the Ninja® Instruction Manual supplied with your machine.
- Use of the kitchen appliance for anything other than normal domestic household purposes.
- Use of parts not assembled or installed in accordance with the operating instructions.
- Use of parts and accessories which are not Ninja® Genuine Components.
- Faulty installation (except where installed by Ninja®).
- Repairs or alterations carried out by parties other than Ninja or its agents, unless you can show that the repairs or alterations carried out by others are not related to the defect for which you exercise the guarantee.
Where can I buy genuine Ninja spares and accessories?
Ninja spares and accessories are developed by the same engineers who developed your Ninja kitchen appliance. You'll find a full range of Ninja spares, replacement parts and accessories for all Ninja machines at www.ninjakitchen.eu
Please remember that using non-Ninja spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.
GRACIAS
ninjakitchen.eu/registerguarantee
Bake (Hornear)....59
Dehydrate (Deshidratar) 60
Reheat (Recalentar) 60
K
L (Fig. A)
Fig. E
CABLE ALARGADOR
Dehydrate (Deshldratar)
NOTA: la temperatura viene preestablecida a 60 °C
ninjakitchen.eu/registerguarantee
I
K
O -
L (Fig. A)
Fig. A
Fig. B
Fig. C
Fig. D
Fig. E
RALLONGE
ninjakitchen.eu/registerguarantee
WOODFIRE FLAVOUR TECHNOLOGY (TECNOLOGIA WOODFIRE FLAVOUR): Premiere
ninjakitchen.eu/registerguarantee
Roast (Braden)....107
Bake (Bakken) 107
Dehydrate (Drogen)....108
Reheat (Opwarmen)....108
VERLENGSNOER
WOODFIRE FLAVOUR TECHNOLOGY (WOODFIRE
AIR FRY, BAKF, ROAST: 3 minutes
ninjakitchen.eu/registerguarantee
Roast (Steking) 123
Baking/steking 123
Dehydrate 124
Reheat (Oppvarming) 124
Rengjøre din Woodfire Electric BBQ Grill & Smoker.....125
I
K
L (Fig. A)
Fig. E
SKJ∅TELEDNING
Tilsette Ninja Woodfire-pellets:
LUFTFRITYR, BAKST, STEKING: 3 minutter
R∅YKING, DEHYDRERUNG, OPPVARMING: Ingen fornåndsvarming nødvendig.
ninjakitchen.eu/registerguarantee
Reheat (Reaquecer) 140
I
K
O -
L (fig. A)
[Non-Text]
Fig. B
Fig. C
Fig. D
Fig. E
CABO DE EXTENSÃO
Dehydrate (Desidratar)
AIR FRY, BAKE, ROAST: 3 minutes
SMCKER, DEHYDRATE, REHEAT: sem pré-aquecimento.
ninjakitchen.eu/registerguarantee
Kuva E
JATKOJOHTO
KYPSENNYSTOIMINNOT - JATKUU
KYPSENNYSTOIMINNOT - JATKUU
ninjakitchen.eu/registerguarantee
Reheat (Uppvarning) 172
Bild E
FÖRLÄNGNINGSSLADD
