USER MANUAL PRO-OF 1255 Toolson

Close-up of a mechanical assembly with two springs and a central component labeled '23' (no readable text or symbols beyond the number)

10 12 10

11 12 22

12 5 4

13 11 3 2 1 - + -

Close-up of a medical or laboratory device with a mechanical component and labeled parts (no readable text or symbols)

15 17 0 19

16 17 25 25 25 14

14 16 19 25

18 18 17

Two diagrams showing mechanical turning process with arrows indicating direction (no text or symbols)

20 a c b c

-5-

D

Danger! - Read the operating instructions to reduce the risk of inquiry

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. Extractor adapter

2. Routing shoe

3. Wing screw

4. ON/OFF switch

5. Safety lock-off

6. Power cable

7. Handle

8. Motor casing

9. Fixing handle

10. Clamp nut

11. Speed control

12. Spindle lock

13. Compass point

14. Revolver end stop

15. Precision adjustment device

16. Wing screw

17. Pointer

18. Scale

19. Depth stop

20. Guide sleeve

21. Parallel stop

22. Open-ended wrench

23. Clamp

24. Safety guard

25. End stop

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Electricrouter
- Extractoradapter
- Compasspoint
Guidesleeve
- Parallelstop
• Open-endedwrench
- Clamp
- Safety guard
• Original operating instructions
- Safetyinstructions

3. Proper use

The router is ideal for machining wood and plastic and also for cutting out knots, cutting grooves, removing recesses, copying curves and logos, etc. The router must not be used for machining metal, stone, etc.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

GB

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 230 V \~ 50 Hz Power input: 1200 W Idling speed: 11,000 – 30,000 rpm Stroke height: 55 mm (cutting depth) Clamp ∅ 8 and ∅ 6 mm Max. for shaping router: 30 mm Protection class: II Weight: 3.3 kg

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

L_pA sound pressure level .... 89,5 dB(A) K_pA uncertainty .... 3 dB L_WA sound power level .... 100,5 dB(A) K_WA uncertainty .... 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Handles

Vibration emission value a_h = 5.739 m/s^2 K uncertainty = 1.5 m/s ^2

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
- Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
• Wear protective gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

All covers and safety devices have to be properly fitted before the machine is switched on.

5.1 Extraction port assembly (Fig. 2/Item 1)

⚠ Caution! For health and safety reasons it is imperative that you use a dust extractor.

• Connect your router to the extraction port (1) of a vacuum cleaner or a dust extraction device. This will provide excellent dust extraction on the workpiece. The benefits are that you will protect both the equipment and your own health. Your work area will also be cleaner and safer.
• Dust created when working may be dangerous. Refer to the section entitled "Safety instructions".

GB

• The vacuum cleaner you use for the extraction work must be suitable for the workpiece material. Use a special vacuum cleaner if you are handling harmful materials.
• Secure the extraction port (1) to the routing shoe (2) using the two countersunk screws (f).
• The extraction port can be connected to extractor units (vacuum cleaners) with a suction hose.
• The internal diameter of the suction port is 36 mm. Now fit a suction hose of the appropriate size to the suction port.

5.2 Safety guard port assembly (Fig. 3/Item 24)

Fit the safety guard (24) as shown in Fig. 3.

5.3 Parallel stop assembly (Fig. 4/Item 21)

• Push the guide shafts (a) of the parallel stop (21) into the holes (b) on the routing shoe (2).
• Set the parallel stop (21) to the required dimension and secure it in place with the wing screws (3).

5.4 Fitting the compass point (Fig. 5/Item 13)

• You can cut circular areas using the compass point (13).
• Secure the compass point (13) to the parallel stop (21) as shown in the figure. Now fit the parallel stop (21) with the compass point (13) to the router. The assembly work is to be carried out as described in point 5.3, but the parallel stop (21) must be fitted at an angle of 180^ so that the compass point (13) points downwards (Fig. 5).
• Set the required radius between the compass point (13) and cutter.
• Position the compass point (13) in the center of the circle you wish to route.

5.5 Guide sleeve assembly (Fig. 6-7/Item 20)

• Secure the guide sleeve (20) to the routing shoe (2) using the two countersunk screws (f).
• The guide sleeve (20) is guided along the template (c) using the guide ring (b).
• The workpiece (d) must be larger by the difference of "external edge of guide ring" and "external edge of router" (e) to obtain a precise copy.

5.6 Fitting / Removing the cutting tool (Fig. 8-11)

⚠ Warning! Pull out the power plug first.
⚠ Caution! After working with the router, the cutting tool will remain very hot for a relatively long time.
⚠ Caution! Cutters are very sharp. Wear protective gloves at all times when handling cutting tools.

• Cutters with a shaft diameter of 6 mm and 8 mm may be fitted to this router. Most cutters are available in both sizes.
• You can use cutters made of the following materials:
• HSS - suitable for cutting softwood
• TCT - suitable for cutting hardwood, particle board and plastic.
• Select the appropriate cutting tool for the job in hand.
• When using the cutters for the first time: Remove the plastic packaging from the cutter heads.
• Clean the nut, clamp and shaft of the cutter before fitting it.

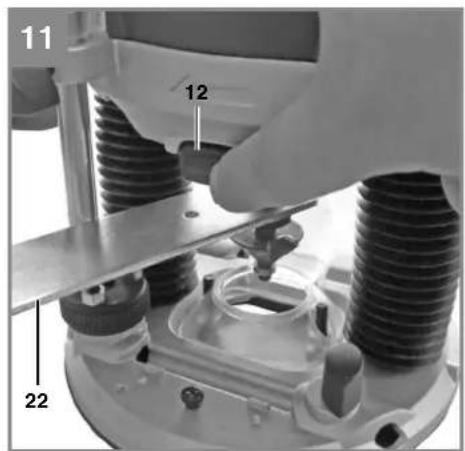

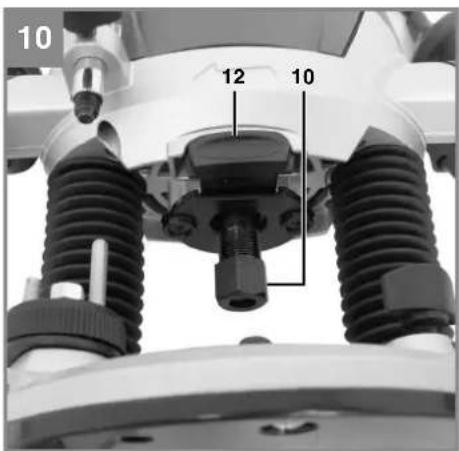

• Press the spindle lock (12) and allow the spindle to engage by turning it at the same time.
• Undo the clamp nut (10) using the open-ended spanner (22).
• If necessary take the cutter you wish to remove out of the clamp (23).
• Select the appropriate cutting tool for the job in hand.
• Select the appropriate clamp for the cutter (23).
  • Now fit the clamp (23) and nut (10) into the cutting spindle.
  • Guide the cutter shaft into the clamp.
  • Press and hold the spindle lock (12).
• Tighten the clamp nut (10) using the open-ended spanner (22).
• The cutter must be inserted at least 20 mm into the clamp (23).
• Before you start the electric router, check to ensure that the cutting tool is secure and runs smoothly.

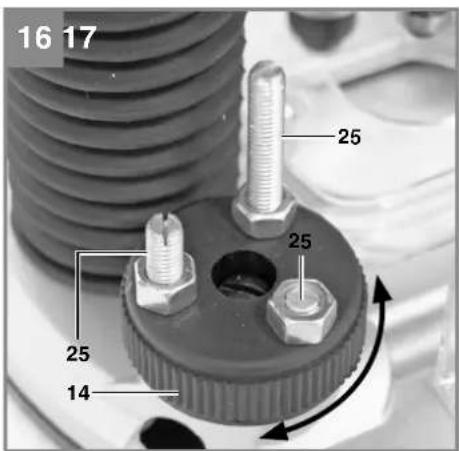

5.7 Adjusting the end stops (Fig. 16/Item 25) The height of the end stops (25) can be adjusted as required. To do this, undo the lock nut on the end stop (25) and turn it to the required stop height using a screwdriver.

GB

⚠ Warning! Remove the setting and assembly tools before starting the machine

6. Operation

• Never use a low quality or damaged cutter. Use only cutting tools with a shaft diameter of 6 mm or 8 mm. The cutters must also be designed for the appropriate idling speed.
• Secure the workpiece so that it cannot be thrown through the air as you work on it. Use clamps or a vise.
  • Always guide the power cable away from the back of the tool.
  • Never cut over metal parts, screws, nails etc.

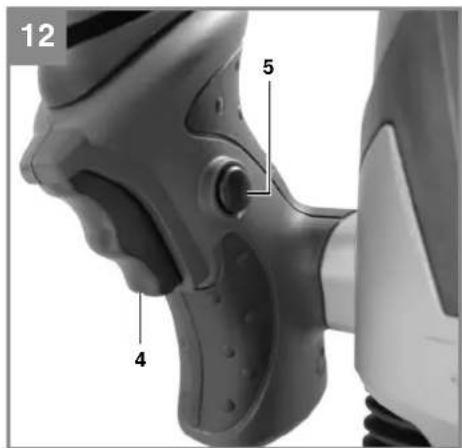

6.1 ON/OFF switch (Fig. 12/Item 4)

Press the safety lock-off (5) and then press the ON/OFF switch (4) to switch on the machine.

Release the ON/OFF switch (4) to switch off the machine.

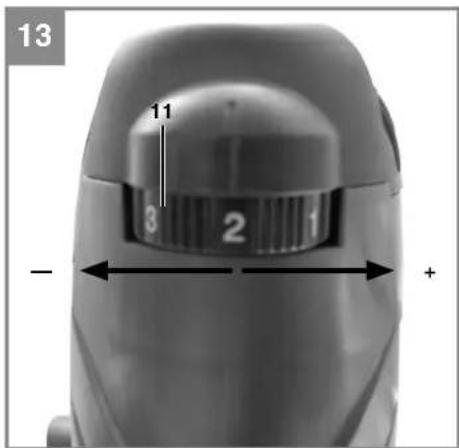

6.2 Speed control (Fig. 13 - Item 11)

The best speed depends on the material and the diameter of the cutter. Select a speed between 11,000 and 30,000 rpm using the speed control switch (11). You can choose from 6 different switch positions. The speeds in the various switch positions are as follows:

Switch position 1: approx. 11,000 rpm (minimum speed)

Switch position 2: approx. 16,000 rpm

Switch position 3: approx. 21,000 rpm

Switch position 4: approx. 25,000 rpm

Switch position 5: approx. 29,000 rpm

Switch position 6: approx. 30,000 rpm (maximum speed)

To increase the speed:

Move the speed control switch (11) in the plus direction.

To reduce the speed:

Move the speed control switch (11) in the minus direction.

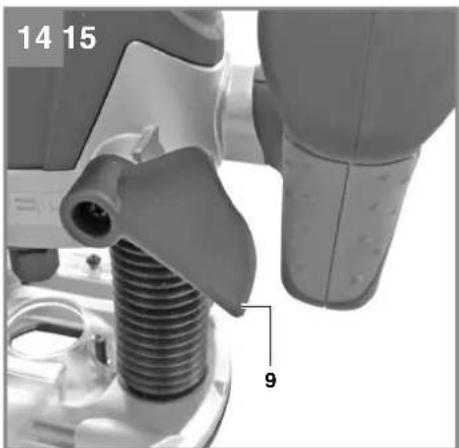

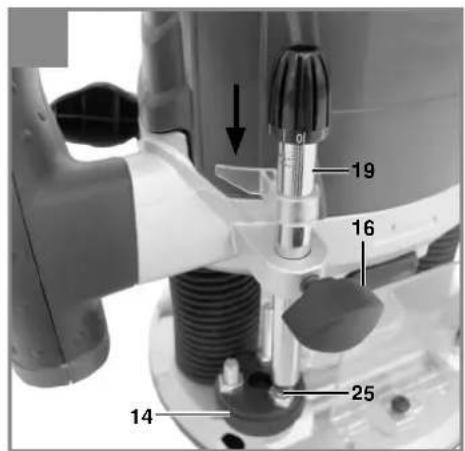

6.3 Adjusting the routing depth (Fig. 14 - 18)

- Place the machine on the workpiece.

• Undo the wing screw (16) and fixing handle (9).
• Slowly move the machine downwards until the cutter makes contact with the workpiece.

• Tighten the fixing handle (9).

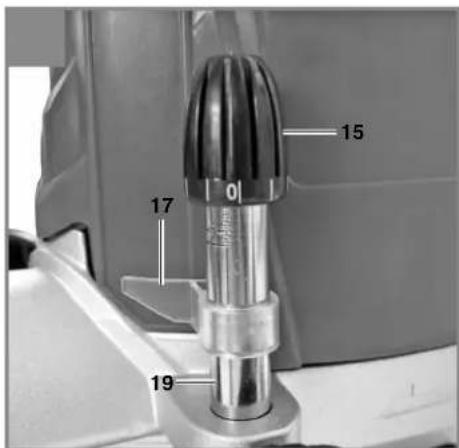

- Set the fine adjuster (15) to 0 as shown in Fig. 15.

- Adjust the revolver end stop (14) so that the depth stop (19) is above the end stop (25) set to the lowest height.

- Lower the depth stop (19) until it touches the end stop (25). Then tighten the wing screw (16).

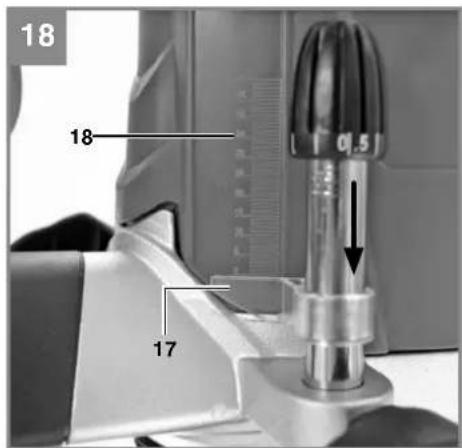

- Set the pointer (17) to the zero point on the scale (18).

- Undo the wing screw (16). Push the depth stop (19) upwards until the pointer (17) points at the required cutting depth on the scale (18). Tighten the wing screw again.

- Test the setting by completing a test cut on a waste piece.

- Now you can carry out the final adjustment of the cutting depth. To do this turn the fine adjuster (15) to the required dimension.

Turn the fine adjuster (15) counter-clockwise: greater cutting depth

Turn the fine adjuster (15) clockwise: lower cutting depth

Turning the fine adjuster (15) through one division corresponds to a change of cutting depth of 0.1 mm, one whole turn corresponds to 1 mm.

6.4 Routing

• To avoid damage to the router, make sure there are no foreign objects attached to the workpiece.
• Connect the mains plug to a suitable socket.
  • Hold the tool using both of its handles (7).
• Place the router on the workpiece.
• Set the cutting depth as described in point 6.3.
• Select the speed as described in point 6.2 and switch the machine on (see point 6.1).
• Test the machine settings using a piece of waste.
• Operate the tool at full speed. Only then should you lower the router to its working height and lock the machine with the locking grip (9).

GB

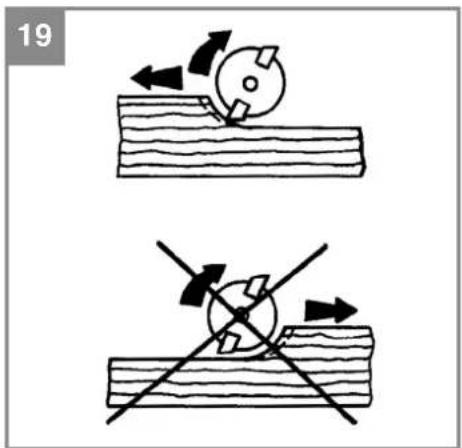

Cutting direction: The cutting tool turns clockwise. To avoid accidents you must always cut against the direction in which the tool turns (Fig. 19).

Feed speed: It is very important to machine the workpiece at the correct feed speed. We recommend that before you machine the actual workpiece, you carry out several trial cuts on a waste piece of the same type. This will enable you to find the best working speed for the workpiece very easily.

Feed speed too low:

The cutter could heat up excessively. If you are cutting infl ammable material such as wood, the workpiece could ignite.

Feed speed too high:

The cutter could be damaged. Cutting quality: Rough and uneven.

Allow the cutter to come to a complete standstill before removing the workpiece or putting down the router.

6.5 Routing in stages

Depending on the hardness of the material you wish to cut and the cutting depth, it may be a good idea to proceed in stages.

• Adjust the end stops as described in point 5.7.
• If you wish to route in several stages, turn the end stop revolver (14) after you have set the cutting depth as described in point 6.3 so that the depth stop (19) is over the highest end stop (25).
• Now route in this setting. After completing the first routing operation, adjust the end stop revolver (14) so that the depth stop (19) is above middle end stop (25). Now complete a routing operation in this setting as well.
• Now set the lowest end stop (25) and finish the routing.

6.6 Routing circles with the compass point (13)

Proceed as follows to route circles around a centre point:

• Fit and adjust the compass point (13) as described in point 5.4.
- Place the compass point (13) on the centre point of the circle you wish to route and apply pressure to it.
- Complete the routing operation as described in point 6.4.

6.7 Routing with the parallel stop (21)

Proceed as follows to route along a straight outer edge of a workpiece:

• Fit the parallel stop (21) as described in point 5.3.
  • Guide the parallel stop (21) along the outer edge of the workpiece.
• Complete the routing operation as described in point 6.4.

6.8 Free-hand routing

The router can also be operated without any guide rods. You can use it for freehand routing for creative work such as the production of logos.

• Use a very flat cutter setting for this purpose.
- Check the direction in which the cutter is turning as you machine the workpiece (Fig. 19).

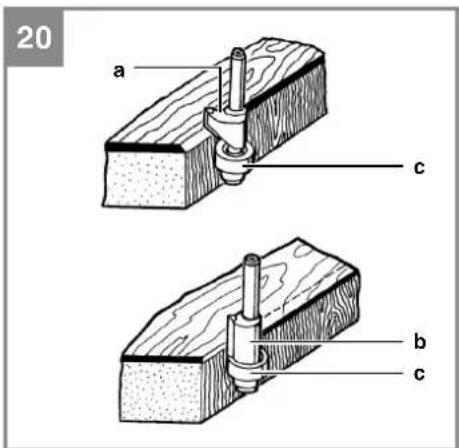

6.9 Shape and edge cutting (Fig. 20)

• Special cutters with a guide ring may be used for cutting shapes (a) and edges (b).
  Fit the cutter.
• Carefully guide the machine on to the workpiece.
  • Guide the guide journal or ball bearing (c) along the workpiece with gentle pressure.

Warning!

For deep cuts, carry out the work in several steps according to the material in question. Hold the router in two hands when carrying out all cutting work.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

GB

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

Danger! The carbon brushes should not be replaced by anyone but a qualified electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes
Consumables* Cutter
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion.

Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

1. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

1. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

2. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Negotovost K_WA .....3 dB

Utrošak snage: 1200 W

Sapma K _WA ....3dB

Kulaklık takın.

X 2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.
□ 2000/14/EC_2005/88/EC
□ Annex V
Annex VI
P = KW; L/∅ = cm
Notified Body:
□2004/26/EC
Emission No.:

Noise: measured L_ = dB(A) ; guaranteed L_ = dB(A)

Standard references: EN 60745-1; EN 60745-2-17; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Niyed Yang Yang/Product-ManagementWeichselgartner/General-Manager

First CE: 09

Art.-No.: 43.504.95 I.-No.: 11013

Subject to change without notice

Archive-File/Record: NAPR010011

Documents registrar: Georg Riedel

Wiesenweg 22, D-94405 Landau/Isar

EH 02/2014 (01)
