USER MANUAL ProAdvanced E1 CASO

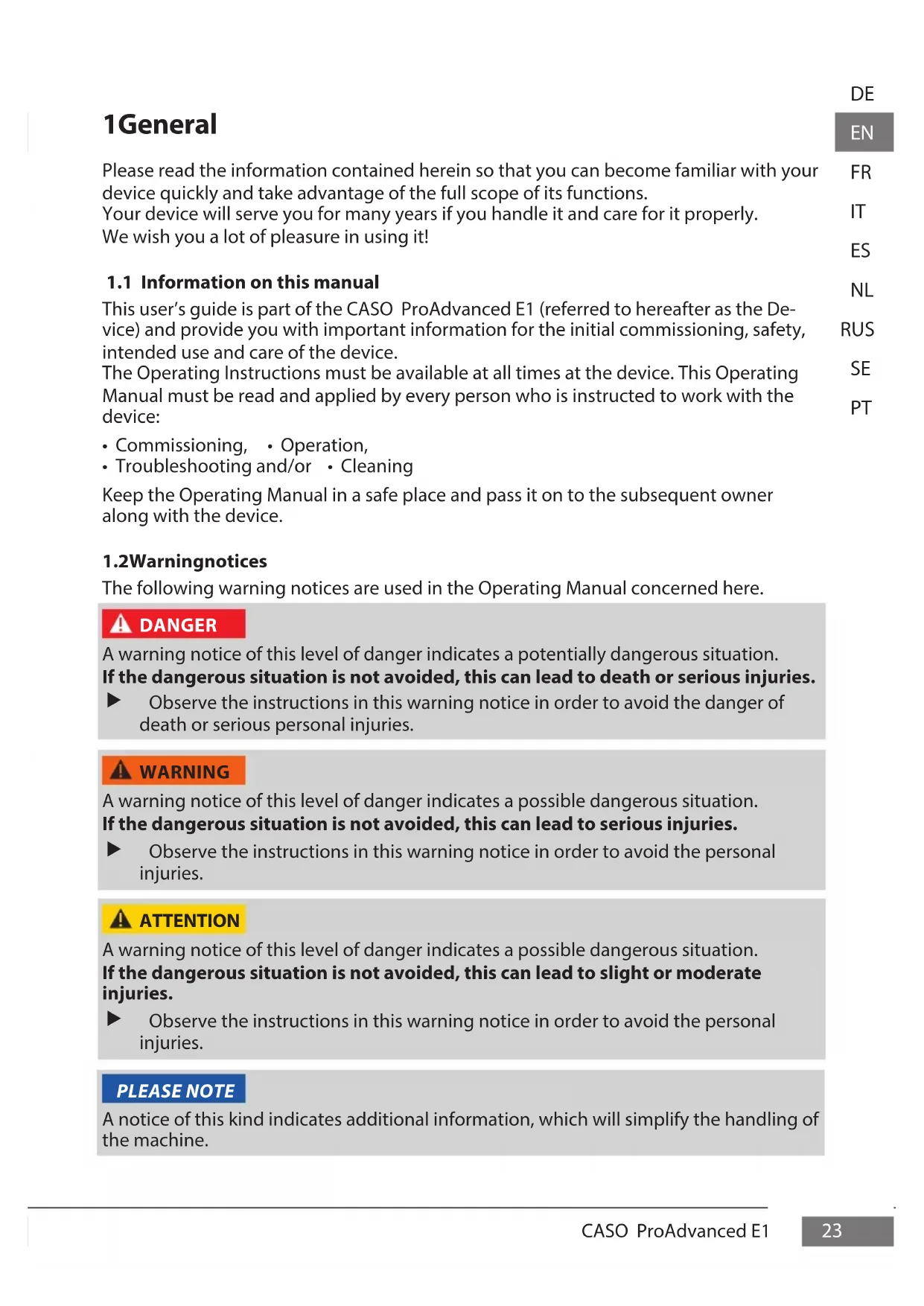

RUS 1 General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your device will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

1.1 Information on this manual

This user’s guide is part of the CASO ProAdvanced E1 (referred to hereafter as the De- vice) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, • Operation,

• Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

The following warning notices are used in the Operating Manual concerned here. A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. Observe the instructions in this warning notice in order to avoid the personal injuries. A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. Observe the instructions in this warning notice in order to avoid the personal injuries. A notice of this kind indicates additional information, which will simplify the handling of the machine. DANGER WARNING ATTENTION PLEASE NOTECASO ProAdvanced E1

1.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and ndings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

• Technical alterations, modi cations of the device

• Use of unauthorized spare parts Modi cations of the device are not recommended and are not covered by the guaran- tee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.4 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical repro- duction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 2 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for warming up, cooking and roasting foods. The cooking pots used for the induction hob surface must be suitable for induction cooking. The unit is designed for both free-standing and built-in use. This appliance is intended to be used in household and similar applications, such as:

• in kitchens, for employees in shops, offi ces and other commercial areas,

• by customers in hotels, motels and other similar residential environments,

• in bed and breakfast establishments. Uses for a di erent purpose or for a purpose which exceeds this description are conside- red incompatible with the intended or designated use. Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a di erent kind of use. WARNINGCASO ProAdvanced E1

RUS WARNING Use the device exclusively for its intended use. Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

2.2 General Safety information

PLEASE NOTE Please observe the following general safety notices with regard to the safe handling of the device: Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. This unit may be used by children as of 8 years old and anyone with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in connection with the safe use of the appli- ance and the dangers resulting from it. Cleaning and maintenance by the user must not be perfor- med by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device. The device and its connecting cable must be kept away from children who are less than 8 years old. Do not make any modi cations to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions. Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are ful lled. Use the appliance only as described in the user’s guide to avo- id possible injury from misuse.CASO ProAdvanced E1

RUS PLEASE NOTE Do not operate the appliance unattended. Do not use the appliance:

• if the appliance itself or parts are damaged,

• if the power cord or plug is damaged,

• if the appliance has been dropped. Always unwind the power cord completely before use. When doing so, ensure the power cord is not damaged by sharp edges or hot objects. Pull the plug out of the socket:

• when you are not using the appliance,

• before cleaning the appliance or putting it away,

• if there is an obvious malfunction during operation,

• during a thunderstorm. Do not operate the unit with an external timer or a separate remote-control system. Do not place metal objects, such as knives, forks, spoons, lids, on the hob as they may become hot. WARNING! The surfaces of the unit may become hot during use. Take special care not to touch the glass ceramic surface until it has cooled down completely. A room of 270 mm x 340 mm size must be provided for the installation of the unit (Illustration: Dimensioning).

WARNING The magnetic elds generated during operation of the ap- pliance may lead to adverse eff ects. Adhere to the following safety instructions:CASO ProAdvanced E1

RUS WARNING People with elevated electrical sensitivity should not remain in the immediate vicinity of the appliance for longer than is necessary. Do not place any magnetisable objects, e.g. credit cards, data carriers or cassettes on or in the immediate vicinity of the appliance. Scienti c tests have proven that induction hotplates do not pose a risk. However, persons with a pacemaker should keep a minimum distance of 60 cm to the device while it is in opera- tion. In addition, persons with a pacemaker should clear with their doctor whether to take care of some special handling advises. Place cooking utensils in the middle of the hob, so that the base of the pot covers as much of the electromagnetic eld as possible. Do not remove any coverings on the appliance.

2.3.2 Danger of Burning

WARNING The items cooked on this appliance as well as the cooking utensils used and the surface of the appliance can become very hot. Adhere to the following safety instructions in order to avoid burning or scalding yourself or others: Do not place any metal cooking utensils, pot or pan lids, kni- ves or other metal objects on the hob. When the appliance is switched on, these items can become very hot. Do not touch the hot surface of the hob.CASO ProAdvanced E1

WARNING Incorrect use of the appliance incurs a danger of explosion due to the overpressure produced. Adhere to the following safety instructions in order to prevent a danger of explosion: Never heat food or liquids in sealed containers such as, for example, cans. The container can burst due to the overpressu- re generated.

2.3.4 Danger of Fire

WARNING There is a risk of re if the appliance is used incorrectly. Adhere to the following safety instructions in order to avoid a risk of re: During operation remove all easily in ammable items (e.g. de- tergents, aerosol cans, oven, cloths and dishcloths, etc.) from the immediate vicinity of the appliance. Avoid overheating oils and fats for extended periods. Over- heated oil and fat can ignite rapidly. Do not place any empty cookware on the cooking area. If a re should occur on the cooking hob, proceed as follows:

• Switch the appliance o (if necessary, switch o the fuse).

• Smother the ames with a large pot lid, plate or a moist dish cloth.

• NEVER EXTINGUISH WITH WATER!

• After the re has been extinguished allow cooking utensils and the appliance to cool down and ensure that there is a suffi cient ow of fresh air.CASO ProAdvanced E1

2.3.5 Dangers due to electrical power

DANGER Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: The installation may only be carried out by quali ed personnel (electricians)! If the surface is cracked, switch o the appliance and switch o the fuse to avoid the possibility of electric shock. If the power cord of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a simi- larly quali ed person in order to avoid hazards. Do not open the housing on the device under any circumstan- ces. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is alte- red. In addition, functional faults on the device can also occur. Do not touch the appliance or the mains plug with wet hands. Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher. Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage-carry- ing connections. Do not connect the device to the same outlet with other de- vices. 3 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

3.1 Packaging safety information

WARNING Packaging materials may not be used for playing. There is a danger of su ocation.CASO ProAdvanced E1

3.2 Delivery scope and transport inspection

The device includes the following components:

• Single built-in induction hob ProAdvanced E1

• Self-adhesive sealing tape on one side

• Operating manual PLEASE NOTE Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage. Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

Carefully remove the packaging material and unit from the carton. Remove the protective lm from the unit. If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

3.4 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must ful l the following prerequisites:

• The unit is intended for free-standing use and installation.

• If the unit is used free-standing, it must be placed on a solid, at, level and heat-re- sistant surface with suffi cient load-bearing capacity for the unit and the expected heaviest food to be cooked.

• The induction hob must not be operated on a base containing iron or steel as this can become very hot.

• Select an installation location where children cannot reach the appliance’s hot surface.

• The wall behind the appliance and the zone above the appliance must be heat-resis- tant. The distance between the hob and the cabinets above it must be at least 760 mm.

• Do not set up the device in a hot, wet or extremely damp environment or near am- mable material.

• Do not set up the induction cooktop in the vicinity of appliance and objects which react sensitively to magnetic elds (e.g.: Radios, televisions, cassette recorders, etc.).

• To operate correctly, the appliance requires a suffi cient ow of air.

• The cool air is drawn in by the underside of the appliance. Do not cover or block any of the appliance’s openings.

• The electrical socket must be easily accessible so that the power lead can be discon- nected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device. PLEASE NOTECASO ProAdvanced E1

3.5 Preventing Radio interference

The appliance can cause interference to radios, televisions or similar devices. Interference can be removed or reduced using the following measures:

• Place the radio, television etc. as far away from the appliance as possible.

• Connect the appliance to a di erent socket, so that di erent electric circuits are being used for the appliance and the receiver experiencing interference.

• Use a correctly installed aerial for the receiver in order to ensure good reception.

3.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instruc- tions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequen- cy) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your quali ed electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of re that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installati- on checked over by a quali ed electrician. The manufacturer cannot be made respon- sible for damages that are caused by a missing or damaged protective conductor. 4 Design and Function This chapter provides you with important information of the design and function of the device.

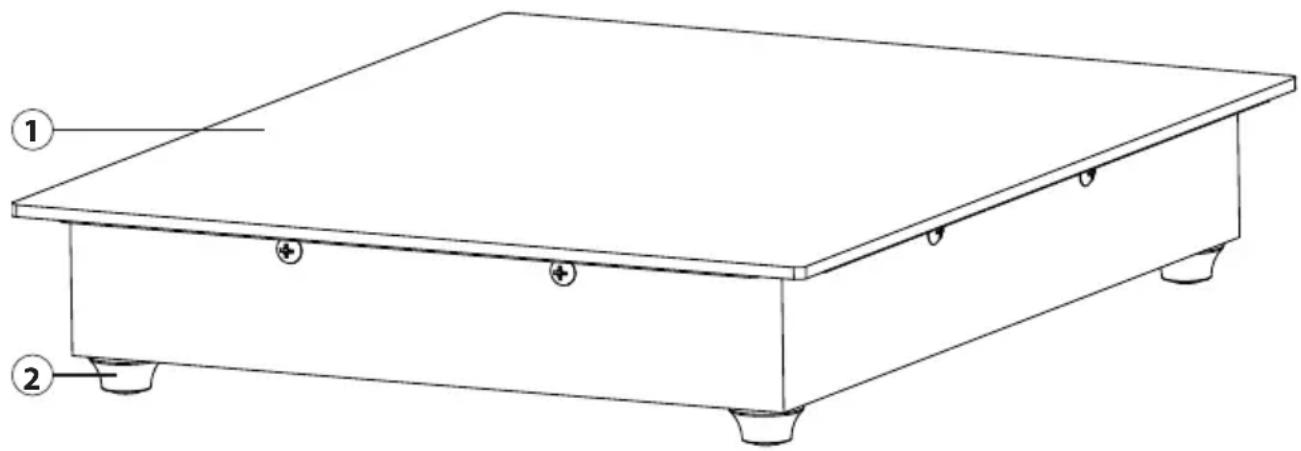

Glass-ceramic surface Adjustable feet

PLEASE NOTE Cut the sealing tape to the appropriate length for the unit and stick the tape to the underside of the glass-ceramic glass plate. The cable length of the appliance is approx. 1.2 m. 290 mm 260 mm270 mm360 mm330 mm340 mm 65 mm 55 mm 30 mm 20 mm 50 mm 70 mm 50 mm 5 mm 48 mm 53 mm 65 mm ReferenceCASO ProAdvanced E1

4.4 Details on the device

This instruction and when “H” is displayed, is to warn that the ceramic hob may still be hot. Although the induction cooker itself does not generate any heat during the cooking process, the temperature of the cooking utensil does heat the hob! ATTENTION Adhere to the following safety instructions in order to avoid being burnt by the hot appliance: Risk of burning due to hot surface! Do not touch the surface of the ceramic hob while it is still hot (“H” is displayed) Do not place any objects on the hot ceramic hob.

4.4.1 Overheating Protection Facility

The appliance is equipped with an overheating protection facility. If the temperature of the appliance exceeds the critical limit the appropriate error message “E05” is displayed. For safety reasons the appliance shuts o further power supply. After the cooling phase, the unit can be switched on again. PLEASE NOTE You will nd more detailed information on error messages in the chapter entitled „Fault indications“.

The rating plate with the connection and performance data can be founded beneath the device.

RUS 5 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

5.1 Functioning and Advantages of Induction cooktops

With an induction cooktop the heat is not transferred by a heating element via the cooking utensil to the food to be cooked, but rather the necessary heat is generated directly in the cooking pot with the aid of induction currents. Advantages of the Induction Hob

• Energy-saving cooking due to direct energy transfer to the pot.

• Enhanced safety since energy is only transferred when a pot is placed on the hob.

• Energy transfer between the induction cooking zone and the base of the pot with high degree of effi ciency.

• Low risk of burning, since the cooking surface is only heated by the base of the pot.

• Boiling over pot contents does not burn onto the hob.

• Rapid, ne-tuned control of the input power.

5.2 Instructions on Cookware

The cooking pot used for the induction cooking surface must be made of metal, have magnetic characteristics and have a suffi cient, at bottom surface. Here is how to decide if the pot is suitable: Ensure that the pot bears an inscription stating its suitability for co- oking with induction current, or perform the following magnet test: Place a magnet (e.g. a magnet from a magnetic board) close to the base of your cooking pot. If it is strongly attracted then you can use the cooking pot on the induction cooktop. The table below serves as a guide to help you choose the correct cooking utensils: Suitable Cookware Unsuitable Cookware Cookware with magnetic bottom (ferreous). Pots made of copper, aluminium, heat-re- sistant glass and other non-metallic pots. Enamel-coated steel pots with thick bases. Pots made of stainless steel without a magnet iron core. Cast-iron pots with enamel-coated bases. Pots that do not sit at on the hob. Pots made of stainless steel, multi-layered steel, stainless steel ferrite steel or alumi- nium with special base. Pots with a base diameter of less than 12 cm or more than 24 cm.CASO ProAdvanced E1

RUS PLEASE NOTE Using the induction-compatible pots of some manufacturers can lead to the occur- rence of noises that are due to the design of these pots. Please also adhere to the following instructions for using suitable cookware: PLEASE NOTE Only use pots with an induction-compatible base. The maximum permissible weight of the pot plus its contents must not exceed 6 kg. Be careful when using hollow-walled simmer pots. Pots of this type can boil dry unnoticed. This leads to damage to the pot and hob.

5.3 Safety Instructions

WARNING Do not leave the appliance unattended during operation. Do not move the appliance during operation or with hot cookware on the hot plate. Ensure that the cookware is properly centred on the hob. It must not be positioned on the control panel or on the frame. In order to prevent overheating do not place any aluminium foil or metal panels on the appliance surface. Do not touch the hot surface of the ceramic hob. Although the induction cooktop itself does not produce any heat during the co- oking process, the temperature of the cookware does heat up the hob. Keep the hob and the underside of the pot clean and dry at all times. If liquid gets between the base of the pot and the hob, this liquid can vaporise and the resulting pressure can cause the pot to jump into the air, with a resulting risk of injury. Switch the appliance o after use. This avoids unnecessary use of energy, and ensu- res your safety.

2. An acoustic signal sounds, and the unit is in standby mode. The temperature of the

cooker plate surface displayed: is the temperature of the surface of the induction cooker lower than 50 °C, the display shows „L“. When the temperature of the cooker plate surface is over 50 °C, it is displaying „H“.

3. Place suitable cookware with the food to be cooked/fried centred on the hob (Ø

4. Press the “On/Standby” button to switch on the unit. An acoustic signal sounds, and

the “Level” and “Temp” indicator lights ash.CASO ProAdvanced E1

1. Press the “Level” key.

2. The preset power level “8” is selected, and the unit starts to work.

3. You can change the setting in the range of 1 – 12 with the + / – selection buttons.

PLEASE NOTE We recommend to select the function “Power Mode” in case of steaming food or boiling water for example. So the overheating protection “E05” will not be activated.

2. The preset temperature of 120 °C appears in the display, and the unit starts to work.

3. Use the + / - selector buttons to change the setting in the range of 60 – 240 °C.

PLEASE NOTE You can work either with the power mode or temperature mode. The most recently selected function is active. The temperature is measured by a sensor below the glass ceramic plate, therefore the displayed temperature can deviate from the temperature in the pot. In case of grilling or cooking deep fry food we would advise you to use the func- tion “Temperature” as in this case you can use temperatures up to 240 °C. Other- wise the overheating protection “E05” will be activated.

You can set the unit to switch o automatically after the desired time. The timer can be set within a range of 1 – 180 minutes.

1. Press the “Timer” button while the unit is operating.

2. The display shows “000”.

3. With the +/- keys, you can now select the operating time in 1-minute intervals (up

to max. 180 minutes). Keeping the key pressed allows the timer time to be set in 10-second increments.

4. The display alternates between the remaining timer time and the set temperature

5. Once the time is up, an acoustic signal sounds and the device automatically goes

RUS PLEASE NOTE During timer operation, you can change the duration at any time with the +/- keys. Select the timer function beforehand. Due to the memory function of the unit, the temperature or level setting remains unchanged. The unit runs continuously if you have not set a timer.

1. Switch o the unit after use by pressing the “On/Standby” button.

2. When the temperature of the cooker plate surface is lower than 50 °C, the display

shows „L“. When the temperature of the cooker plate surface is over 50 °C, it is displaying „H“. PLEASE NOTE Do not place any empty cookware on the ceramic eld. Heating an empty pot or pan activates the overheating protection and the device turns o . Do not operate the device if it is damaged in any way or does not function properly. The use of accessories and spare parts not recommended by the manufacturer may lead to damage on the device and injuries. 6 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

6.1 Safety information

ATTENTION Please observe the safety instructions, before cleaning your device The device must be cleaned and food residues must be removed at regular inter- vals. If the device is not maintained in a clean condition, this will have a detrimental e ect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. Switch the device o prior to cleaning it and unplug the plug from the wall power outlet. The hob can be hot after use. There is a danger of burning! Wait until the appliance has cooled down. Clean the hob after use as soon as it has cooled down. Extended waiting unneces- sarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. If dampness penetrates into the device, this can damage the electronic compo- nents. Please ensure that no liquid can enter the interior of the device through the ventilation slots. Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher. Do not use any aggressive or abrasive cleaning agents or solvents. Do not scrape o stubborn dirt with hard items.CASO ProAdvanced E1

ATTENTION Repairs of electrical appliances must be carried out by quali ed person who are trained by the manufacturer. Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

7.2 Troubleshooting table

The table below will help you to locate and solve small problems. Display Description No display Mains plug not plugged in or fuse not switched on. Plug in the mains plug or switch on the fuse. –– There is no pot on the hob, or the pot size/material is not suitable. E01 / E02 The overvoltage or undervoltage protection has tripped. Connect the unit to a suitable power supply. E05 Overheating Protection This means that the temperature had increased to a temperature of 270 °C. In this case the device turns o automatically in order to avoid damages. In case of “E05” please pull the power plug in order to reset the device. After this you can use it again as usual. PLEASE NOTE If you cannot solve the problem by carrying out the steps described above, our Cus- tomer Service will help you free of charge. Clean the device before you send it to customer service.CASO ProAdvanced E1

RUS 8 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. Ensure that your old device is stored safely away from children until it is taken away.

8.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packa- ging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer requi- red to “Green Dot” recycling collection points for disposal. 9 Guarantee We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 . German Civil Code (BGB) will remain una ec- ted by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product’s functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its perfor- mance is designed to meet the corresponding needs. The guarantee only covers commer- cial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be noti ed to us within 14 days of the product’s delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details (“Guarantor”) are provided at the begin- ning of this instruction manual. PLEASE NOTECASO ProAdvanced E1
