Product Type	Induction Cooktop
Brand	Caso
Model	2365
Number of Cooking Zones	4 induction zones
Dimensions (W x D x H)	59 x 52 x 5 cm
Net Weight	8 kg
Power Supply	220-240 V ~ 50/60 Hz
Total Power	7200 W
Power per Zone	Up to 2300 W (depending on zone)
Main Functions	Touch control, timer, child lock, auto shut-off, pan detection, boost
Care and Cleaning	Clean with a damp cloth and mild detergent. Do not use abrasive products.
Safety	Child lock, safety shut-off, pan detection, overheating
Spare Parts and Repairability	Available through Caso after-sales service. Repairability index: 8/10
General Information	Energy class A, built-in installation, compatible with all ferromagnetic cookware

Frequently Asked Questions - 2365 CASO

What types of pots and pans to use on the Caso 2365 induction cooktop?

Only use ferromagnetic cookware (steel, cast iron, enameled). To check, a magnet should stick to the bottom of the pan.

How to activate the child lock?

Press the lock key (often a padlock) for 3 seconds until a symbol appears. To deactivate, repeat the operation.

What to do if the cooktop does not heat?

Check that the pan is induction-compatible, the bottom is flat and centered on the zone. Ensure the cooktop is on and the zone shows no error.

How to clean the induction cooktop?

Wait for the cooktop to cool down, then wipe with a damp cloth and mild detergent. Use a special scraper for burnt residues. Avoid abrasive sponges.

Why does the zone turn off after a few seconds?

This is the safety shut-off function. It activates if no pan is detected or if heat is excessive. Check that the pan is properly positioned.

What is the maximum power per zone?

The power varies by zone: the front left zone can reach 2300 W in boost mode, the others up to 1800 W. Refer to the manual for details.

How to set the timer?

Select the cooking zone, then press the timer key. Use the + and - arrows to set the time (from 1 minute to 99 minutes). The zone will turn off automatically.

Can I use a ceramic glass hob on the induction cooktop?

No, ceramic glass hob plates are not compatible. Only use cookware designed for induction.

Where to find the user manual for the Caso 2365?

The manual is available for free download in PDF format on notice-facile.com. You can also request a translation by email.

How to install the cooktop?

Installation must be carried out by a qualified professional. Respect the built-in dimensions (W 56 cm, D 49 cm) and allow sufficient ventilation under the appliance.

USER MANUAL 2365 CASO

Exterior view of a stainless steel industrial appliance with control panel and digital display (no visible text or symbols)

Inhalt

Seiten

Vorwort 2

Operating Instructions

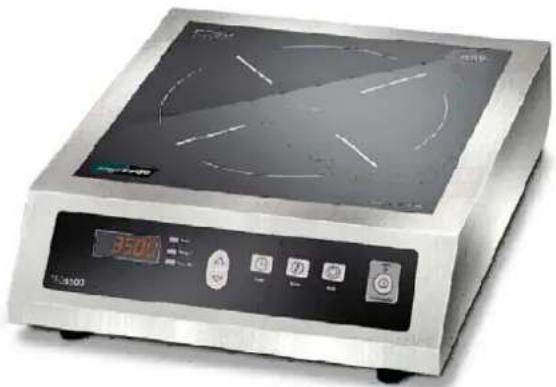

Induction Hotplate PRO3500

Model No. 2365

Exterior view of a stainless steel industrial appliance with control panel and digital display (no visible text or symbols)

Content

Page

Foreword 12

12

The Function Mode and Product Advantages of Induction Hotplates

Prior to Commissioning 12

General Safety Regulations 13

Installing the Device 13

Commissioning the Device 14

Suitable and Unsuitable Cookware

Operating Panel 15

Operating the Device 16

Cleaning and Maintenance 17

Problems and Solution 17

Disposal 18

Technical Data 18

Guarantee 19

CE Declaration of Conformity 38

15

CE

Foreword

Dear Customer,

please read these operating instructions carefully before commissioning the induction hotplate.

Please especially observe the safety notices on the following pages.

Keep these instructions for future reference and pass them on if you give the hotplate away to someone else.

The Function Mode and Product Advantages of Induction Hotplates

With induction hotplates, an electric voltage is applied on a conductor spool beneath the glass ceramics. This creates magnetic fields, which directly heat up the bottom of the cookware through a physical effect.

This means saving time and energy, because contrary to common hotplates, the cookware is heated up, not the heating element and the glass ceramics. Due to the technical characteristics described above, another advantage is the very short start-up cooking time.

In addition, the heat supply promptly adapts to changed settings and can be controlled in small steps. The induction hotplate reacts to changed settings just as fast as a gas stove, as the energy reaches the pot immediately without having to heat up other materials first. The induction technology combines this fast reaction with the basic advantage of electricity, meaning being able to exactly adjust the heat supply.

Additional advantages of an induction hotplate:

• As the hotplate is only heated up indirectly via the bottom of the cookware, over spilling food cannot stick and burn and there is hardly any danger of burns for the user. The glass ceramics is only heated up by the hot cookware.
• Once you take the cookware off the hotplate, the device automatically switches to standby mode.
• The device detects whether suitable cookware is placed on the hotplate. If this is not the case, no energy is transmitted.

Prior to commissioning

Check the device for visible damage.

The power connections and the plug may not show any damages. If you detect damage, have the device checked by a qualified technician prior to putting it into operation in order to avoid any danger.

General safety regulations

The product you have purchased corresponds to the latest state of technology and the accepted safety regulations, still there are potential risks. Only operate the induction hotplate in an immaculate condition and observe these operating instructions!

Only use the device for its intended purpose.

Attention:

In order to prevent possible injuries or electric shock, please observe the following:

• Never touch the device and the power plug with wet hands.
• Do not connect the device to the same outlet with other devices. Connect the device to a suitable outlet.
• Never move the device by pulling on the power cable.
• Do not move the induction hotplate during cooking or with hot cookware on top of it.
• Do not place any empty containers on the device.
• Do not place any metal objects on the device.

- Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. If the mains connection cable shows defects, let a qualified electrician exchange it.

- Never use the device when it does not function properly, shows damage or in case it was dropped.

- Do not leave the device unsupervised during operation. Keep children and other incompetent persons as well as persons under influence of drugs or alcohol away from the device.

- WARNING: Children should be supervised to ensure that they do not play with the appliance.

- WARNING: This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or who lack the necessary experience and/or skills unless these persons act under the supervision of a person responsible for their safety or they were instructed by such a person on how to use the appliance.

- Do not submerge the device in water or other liquids and do not wash it in the dishwasher.

- WARNING: The appliances are not intended to be operated by means of an external timer or separate remote-control system.

- Only qualified experts may perform repair and maintenance work on the device using original replacement and accessory parts. Never attempt to repair the device yourself!

- Scientific tests have proven that induction hotplates do not pose a risk. However, persons with a pacemaker should clear with their doctor wether to take care of some special handling advises.

Installing the device

• Place the device on a stable and level surface.
• Never place the device on a flammable surface (e.g. table cloth, carpet, etc.).
• The induction cooker is not suitable to be built in.

CQSO®

GERMANY

• Do not block the ventilation slots of the device. This may overheat the device. Keep a minimum distance of 5 to 10 cm to walls or other items.
• Do not place the induction hotplate next to devices or objects, which react sensitively to magnetic fields (e.g. radios, TVs, cassette recorders, etc.).
• Do not place induction hotplates next to open fires, heaters or other sources of heat.
• Make sure that the mains connection cable is not damaged or squashed beneath the device.
• Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces.
• The device should be connected to a rolled-out extension cable with a maximum length of 3 m and a cross-section of 2 mm. If an intermediate switch is used, it must be rated at min.
  • 16 A.
• "The appliance is not intended to be operated by means of an external timer or separate remote control system."
• Do not operate the device on top of any other electric appliances such as ceramic hob or electronic oven etc.
• Do not operate the device on any metallic surface which is too thin and easy to become deformed.

Commissioning the device

• Prior to connecting the device, check whether the voltage indicated on the type plate corresponds to the voltage supply in your home. A wrong connection may lead to grave damage on the device and injury to persons.
• The two hotplate surfaces consist of temperature-resistant ceramics. In case of damage, even if this concern only a small tear, disconnect the device from the power supply immediately and contact the customer service.
• We recommend not placing any metal kitchen utensils, cookware or pan lids, knives or other metal objects on the hotplate. These may heat up when the device is turned on.
• Place the hot pans in the hob area only. Never place them on the control panel or the frame.
• Do not place any magnetically objects like credit cards, cassettes etc. on the glass surface while the device is in operation.
• On order to avoid overheating, do not place any aluminium foil or metal plates on the device. Warning: Please do not put the induction cooker on an iron/steel board, while operating. Due to electromagnetic reason, the iron/steel board may heat and damage the bottom of the induction cooker.
• Do not insert any objects like wires or tools into the ventilation slots. Attention: this may cause electric shocks.
• WARNING: The temperature of accessible surfaces may be high when the appliance is operating.
• Do not touch the hot surface of the ceramic field. Please note: the induction hotplate does not heat up itself during cooking, but the temperature of the cookware heats up the hotplate!
• Do not heat up any unopened tins on the induction hotplate. A heated tin could explode; therefore remove the lid under all circumstances beforehand.
• If you do not use the device for an extended period, we recommend you disconnect it from

the electric outlet.

Suitable and unsuitable cookware

Suitable Cookware

• pots and pans with magnetic bottom, as stainless steel pots with iron bottom, cast iron, enamelled pans
• Flat-bottom pans and pots with a recommended diameter of 14 to 26 cm with magnetic bottom
  • Max. weight pot and content 10 kg

Unsuitable Cookware

• Pots/pans with a diameter of less than 14 cm
  • Ceramic pots, heat-proof glass
  • Copper pots and pans, aluminium pots and ans
  • Cookware with feet
• Containers with a curved bottom

Operting panel

4 5 2 6 7 3 1

1	On/Stand-by button
2	Display
3	Display of selected function
4	Arrow buttons for setting time / temperature / power level
5	Timer function button
6	Temperature function button
7	Watt function button

Operating the device

- Plug the power plug into a suitable outlet.

The temperature of the cooker plate surface displayed: is the temperature of the surface of the induction cooker lower than 50^ C, the display shows "-L-" . When the temperature of the cooker plate surface is over 50^ C, it is displaying "-H-" . An acoustic signal sounds. Now the device is in standby mode.

• Place suitable cookware in the centre of the induction cooking field and press the ON/Standby button once. When you have done that, the "ON/Standby" light starts to blink and an audible signal sounds.
• Note: If no further input occurs within 30 seconds of the device switching on, the light in the display is turned off and the device goes into stand-by mode. To restart the device, press the ON/Standby button once more.
• You can select one of 10 power levels with the WATT function button. The level selected with the arrow keys is shown in the display. The first 3 power levels are for keeping food and liquids warm without cooking.
• The temperature function button (TEMP.) allows you to select the temperature level which will then be shown in the display. The preset temperature level is 120^ C. You can set temperatures between 60^ C and 240^ C using the arrow buttons.
• You can set the different cooking times with the TIMER function button. After pressing this button the display shows the digit 0. You can set the desired time (max. 180 minutes) in 1-minute intervals using the arrow buttons. When the set time has elapsed an audible signal sounds and the device automatically switches to stand-by mode.
• After a short time the display returns from the timer setting back to the set temperature or power level. The timer runs in the background and can be called up by pressing the timer button.
• Note: You can always change the set time using the arrow buttons. The previously set temperature and power level remain unchanged. If the power or temperature level is reset, the selected time remains unchanged.
• Disconnect the power plug from the power outlet as soon as the cooking process has ended.
• In power mode the maximum temperature is limited to 170^ C. Higher temperatures trigger the overheat protection. You should use this mode for cooking food and heating water.
• In temperature mode the maximum temperature is limited to 240^ C. Higher temperatures trigger the overheat protection. You should use this mode for roasting food when fat needs to be heated to a high temperature.
• When you switch off the device via "On/Standby" and the temperature of the cooker plate surface is lower than 50°C, the display shows "-L-" . When the temperature of the cooker plate surface is over 50 °C, it is displaying "-H-" .

Cleaning and maintenance

• Pull the power plug prior to cleaning the device. Do not use any caustic cleaning agents and make sure that no water penetrates the device.
• To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.
• Wipe off the ceramic field with a damp cloth or use a mild, non-abrasive soap solution.
• Wipe off the casing and the operating panel with a soft cloth or a mild detergent.
• Do not use any petrol products to not damage the plastic parts and the casing/operating panel.
• Do not use any flammable, acidity or alkaline materials or substances near the device, as this may reduce the service life of the device and lead to deflagration when the device is turned on.
• Make sure that the bottom of the cookware does not scrape across the surface of the ceramic field, although a scratched surface does not impair the use of the device.
  • Make sure that the device was properly cleaned before storing it in a dry place.

Problem and Solution

Error Code Cause Solution
E01 Supply voltage too low	(< 160 V)	Ensure that the supply voltage matches the voltage shown on the type plate of the device.
E02 Supply voltage too high	(>270 V)	Ensure that the supply voltage matches the voltage shown on the type plate of the device.
E03	Possible short circuit	Please send the device to customer service.
E05 Overheat protection (in power mode)		Remove the cookware and allow the device to cool down. Then turn the device off and on again.
E06 Temperature sensor	defective	Please send the device to customer service.
E07 Overheat protection (in temperature mode)		Remove the cookware and allow the device to cool down. Then turn the device off and on again.
E08 Temperature sensor	malfunction	Please send the device to customer service.

Disposal

Dispose of the packaging in the proper manner.

If at any time in the future you should need to dispose of this product please note that

Waste electrical products should not be disposed of with household waste. Please

recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

Technical data

Name	Induction Hotplate PRO3500
Model C35A
Item no. 2365
Temperature range: 60° bis 240°C
Power: 3500 Watt
Stand-by 1-2 Watt
The workplace related noise emission of this appliance	lower than 70 dB(A)
Connection: 220-240 V / 50 Hz
Dimensions w/h/d : 355 x 120 x 440 mm

Changes reserved

For the caso Induction PRO3500 we grant a

Guarantee of 12 months

for commercial use, starting with the date of sale. In case of an exclusively private use the warranty period is extended to 24 months. We grant this guarantee regarding defects due to faulty manufacture or material.

Your legal warranty claims according to §439 ff. BGB-E are not affected by this.

This guarantee does not accept defects due to inappropriate treatment or use as well as defects which do not influence the function or the value of the induction hotplate essentially. Furtheron we do not grant a guarantee for wear parts or damage in transit as well as for defects due to repairs which have not been effected by us.

In case of legitimate claims we will decide wether to repair the device or to send you a new one.

Apparent defects have to be indicated within 14 days after delivery. Additional claims will not be accepted.

Please always contact us for requesting a return number in order to validate any warranty claim. Please have your purchase receipt and the specific device designation ready.

CQSO®

GERMANY

Repairs beyond any guarantee claim will be charged as low as possible.
