USER MANUAL Mission Nano 600 KR101E KRESS

Users can view the electronic instructions at https://www.kress.com/en/. Product safety General safety warnings

WARNING: Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the appliance. - This appliance contains batteries that are only replaceable by skilled persons.

WARNING: For the purposes of recharging

the battery, only use the detachable supply unit provided with this appliance. IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

Safe operation practices Training a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance. b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator. c) The operator or user is responsible for accidents or hazards occurring to other people or their property. Preparation a) Ensure the correct installation of boundary wire as instructed. b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects. c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate. e) WARNING! The lawnmower shall not be operated without the guard in place. Operation

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place. b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. c) Never pick up or carry an appliance while the motor is running. d) Operate the disabling device from the appliance - Before clearing a blockage; - Before checking, cleaning or working on the appliance; - After striking a foreign object to inspect the machine for damage; - If the machine starts to vibrate abnormally, and to check for damage before restarting. e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk. f) Start robotic lawnmower according to the instructions. When the power is on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower. g) Never lift up robotic lawnmower or carry it when the power is on. h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.

i) Do not put anything on top of robotic

lawnmower or its charging station. j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables. k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power is on and the correct PIN code has been entered. l) Keep your hands and feet away from the5

rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation. m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning. n) Not to touch moving hazardous parts before these have come to a complete stop. o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text: Warning! Automatic lawnmower! Keep away from the machine! Supervise children!

2. Additionally when the appliance is

operating automatically a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity. Maintenance and storage WARNING! When the mower is turned upside down the power must always be off. The power should be off during all work on the mower’s under frame, such as cleaning or replacing the blades. a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition. b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety. c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced. d) Ensure that only replacement cutting means of the right type are used. e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc. g) Servicing of the appliance should be according to manufacturers’ instructions. Recommendation To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA. Residual risks To avoid injuries, wear protective gloves when replacing the blades. Transport The original packaging should be used when transporting robotic lawnmower over long distances. To safely move form or within the working area: a) Press the STOP button to stop the mower. You select the four digit PIN code when you start the mower for the first time. b) Always switch off robotic lawnmower if you intend to carry the mower. c) Carry the mower by the handle at the rear under the mower. Carry the mower with the blade disc away from the body. RF exposure requirements To satisfy RF exposure requirements, a separation distance of 200mm or more should be maintained between this device and persons during device operation. To ensure compliance, operatons at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. This is a class III appliances and it must only be supplied at safety extra low voltage corresponding to the marking on the appliance. Safety Warnings for battery pack inside the tool a) Do not dismantle, open or shred battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short- circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock.6

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Keep battery pack clean and dry. g) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment. h) Do not use any battery pack which is not designed for use with the equipment.

i) Keep battery pack out of the reach of

children. j) Retain the original product literature for future reference. k) Dispose of properly. l) Do not mix cells of different manufacture, capacity, size or type within a device. m)Keep the battery away from microwaves and high pressure. n) Warning! Do not use non-rechargeable batteries. User manual requirements for wireless product a) Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help.7

Symbols WARNING – robotic lawnmower can be dangerous if incorrectly used. Read through the Operator’s manual carefully and understand the content before using your robotic lawnmower. WARNING - Keep a safe distance from the machine when operating. WARNING – Operate the disabling device before working on or lifting the machine. WARNING – Do not ride on the machine. Class III appliance Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Do not burn. Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Do not wash the machine with a high pressure washer Read operator's manual Detachable supply unit8

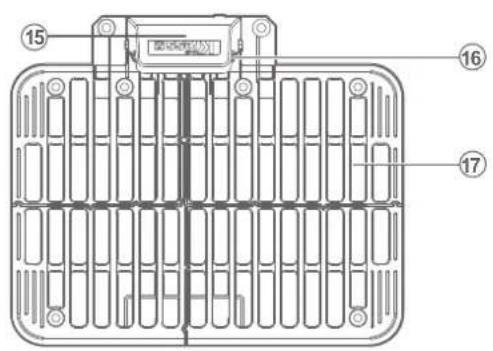

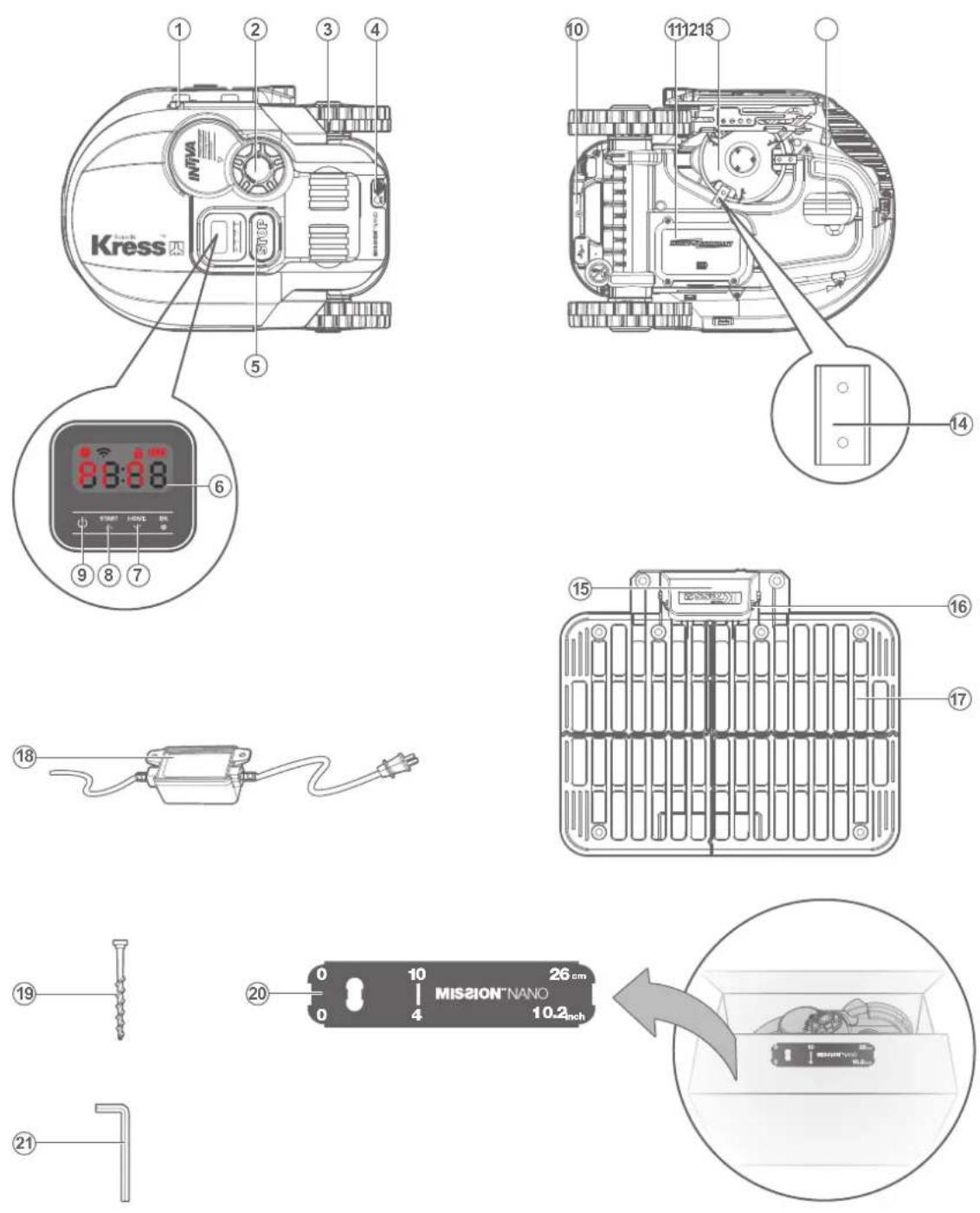

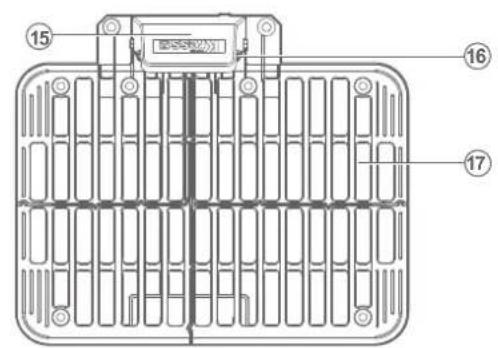

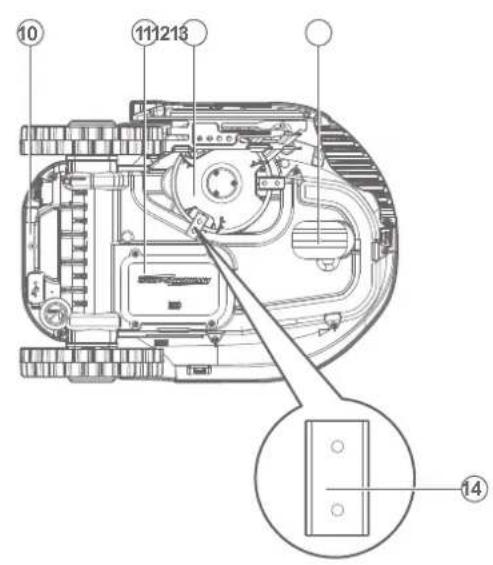

2. Cutting Height Adjustment Knob 13. Front Wheel

3. Rear Driving Wheel 14. Cutting Blade

Technical data Type KR101E (100-199 - designation of machinery, representative of Robotic Lawnmower) Rated voltage 20 V Max.* No load speed 2800 /min Cutting area 600 m

Cutting diameter 18 cm Cutting height 30-60 mm Cutting height positions 4 Battery type Lithium-ion Battery model KA3022 Charging time approx. 105 min Charger model KA0200 / KA0201 Charger rating Input: 100-240 V~50/60 Hz, 38 W, Output: 20 V, 1.5 A Machinery weight 8.95 kg Protection degree III App Y Maximum slope within the work surface 35% Frequency bands for Bluetooth (MHz) 2400-2483.5 MHz Maximum Transmitted Power for Bluetooth (dBm) 8 dBm Frequency bands for WIFI (MHz) 2400-2483.5 MHz Maximum Transmitted Power for WIFI (dBm) 20 dBm Frequency band of inductive loop systems 77 Hz Max. radio-frequency power of inductive loop systems 82 dBµA/m

• Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.10

Noise data A weighted sound pressure L

= 0.6 dB(A) A weighted sound power L

= 0.6 dB(A) Wear ear protection when sound pressure is over 80 dB(A) A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn. Accessories Screw 9 Charging base 1 Charging base fixing nails 8 Hex key 1 Boundary wire distance gauge 2 Blade 9 Battery pack (KA3022) 1 Charger (KA0200 / KA0201) 1 We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Intended Use The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, Mission

NANO may be programmed to operate at any time or frequency. It is not intended for digging, sweeping or snow cleaning. Maintenance Your Mission

NANO works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Mission

NANO with defective main switch. Switch off the machine before carrying out any service or maintenance. Here's how to take care of your Mission

Usually your Mission

NANO's blades need to be reversed each month and replaced each 2 months. When replacing the blades, make sure to replace all of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Mission

NANO. Before attempting to replace your Mission

NANO’s blades, turn the power off and put on protective gloves and follow these steps:

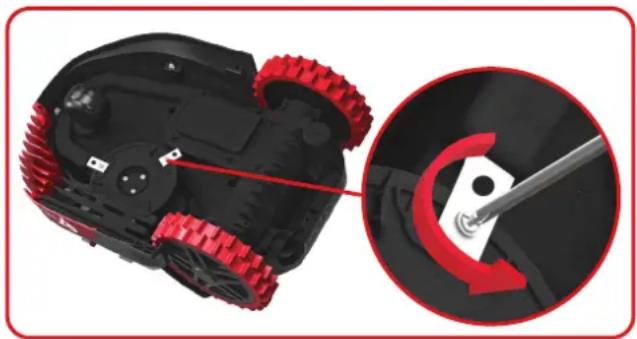

1. Gently flip the Mission

2. Remove the battery cover and remove the

3. Take the screws off the blades with a

4. Firmly screw on the new blades.

5. Refit the battery and the battery cover.

Important: After screwing the blade to the blade disc, make sure the blade is able to spin freely. A. Replace the blades The Mission

NANO does not cut grass like other mowers. Its cutting blades are razor sharp on 4 edges and rotate in both directions for maximum cutting capacity. Each blade of your Mission

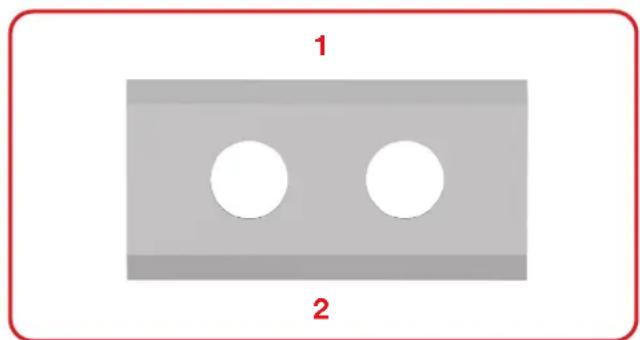

NANO has 4 cutting edges. The blade turning disc will make forward and reverse rotation at random to use 4 cutting edges and minimize the frequency of replacing the blades. Each cutting blade will last up to 3 months when it is programmed to mow every day. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Mission

NANO . Spare blades are also available at your nearest Kress retailer.

WARNING: Before cleaning, adjusting, or replacing the blades, turn your

NANO OFF and put on protective gloves.

WARNING: When fitting new blades, make sure you replace ALL the blades. Always use new

screws when fitting blades. This is important to ensure blade retention and balance the blade turning disc. Failure to use new screws could cause serious injury. Keep it Sharp

WARNING: Before cleaning, turn your

NANO OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water. Keep it Clean

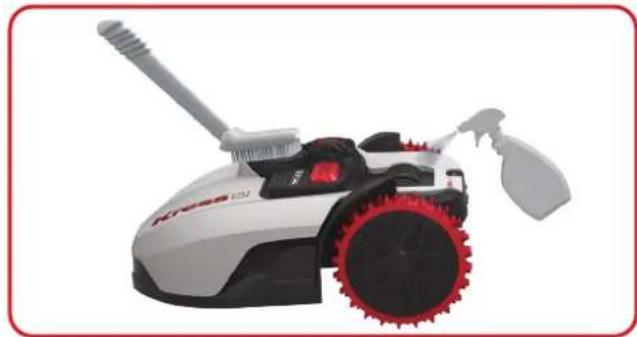

NANO will live a much happier and longer life if it is cleaned regularly. Since your Mission

NANO is an electric machine, you will need to take care when cleaning. DO NOT use a hose, high pressure washers or otherwise pour running water on your Mission

NANO. It is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes. Lastly, remove all build up of grass clippings and debris. Clean the contact pins located on the charging base and the charging strips located on the Mission

NANO using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure the Mission

NANO successfully charges each time. Again, it is important that you power the Mission

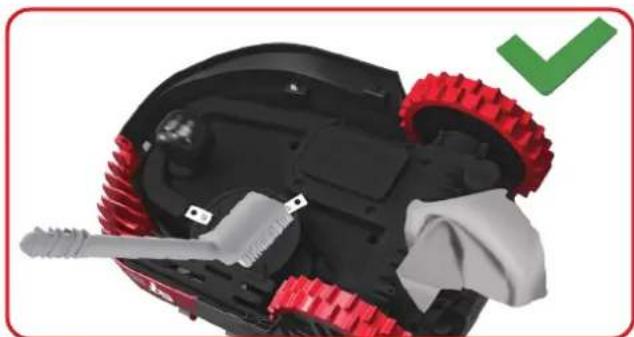

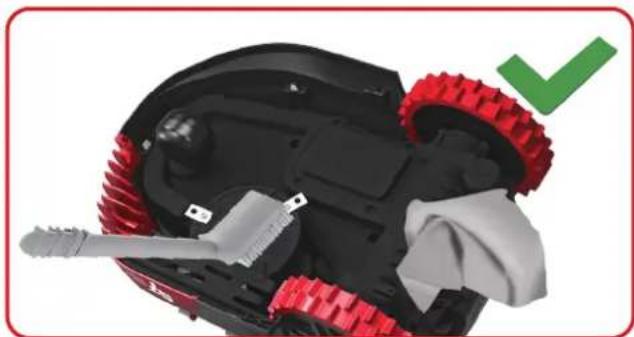

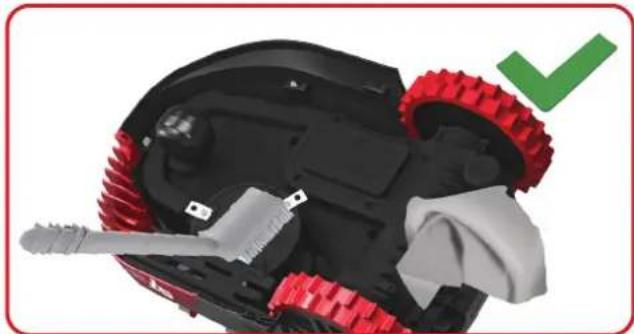

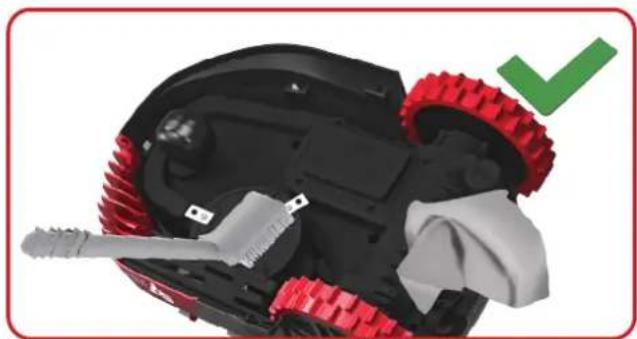

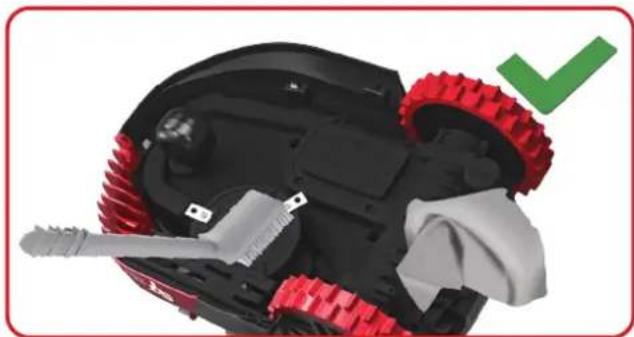

NANO OFF and wear protective gloves before touching the blade turning disc. First, flip your Mission

NANO upside down to expose its underside. Here you will see the blade disc, the chassis, and the front wheel and driving wheels. Clean everything thoroughly with a soft brush or moist rag.

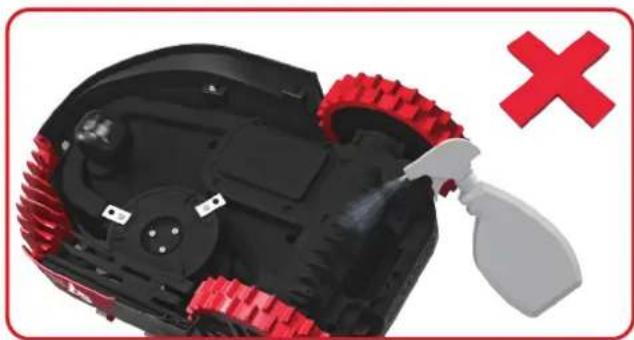

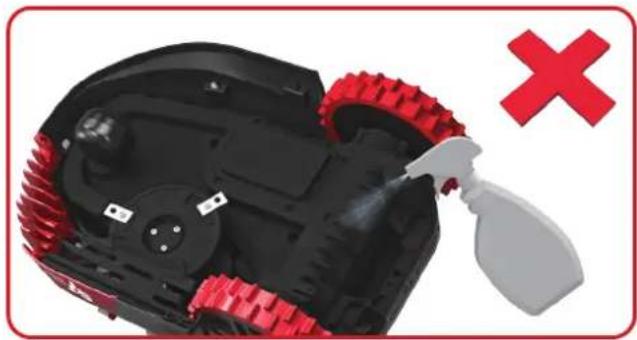

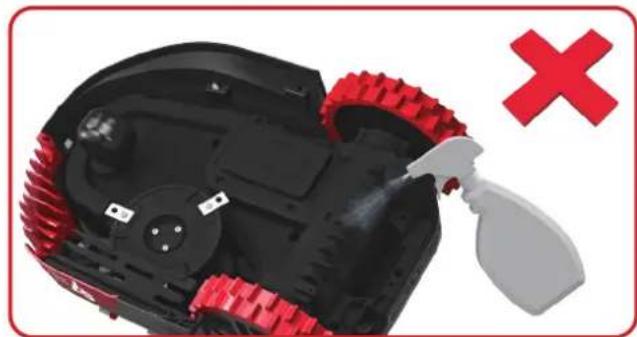

WARNING: NEVER clean the underside of

NANO with running water. Component damage can occur. Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions. IMPORTANT: Remove any lodged debris so that it does not cause a crack in the blade disc. Even the tiniest crack can decrease your Mission

NANO's mowing output. A. Cleaning the Body C. Clean the contact pins and the charging strips B. Cleaning the underside The heart of the Mission

NANO is its 20V Li-Ion Battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place between (20°C ± 5°C). NOTE: The recommend Mission

NANO operation temperature is between 0ºC - 45ºC. The life-span of the Mission

NANO’s battery depends on various factors, such as:

• The length of the mowing season in your region

• Amount of hours the Mission

• Battery maintenance during storage Battery Life

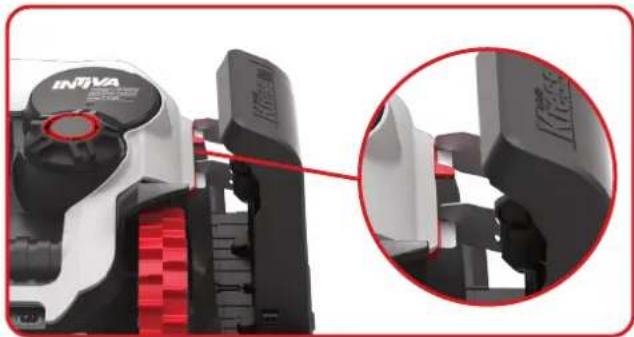

1. Connect the charging base to a suitable power

supply. The green light on the charging base will turn on.

2. Manually dock the Mission

NANO into the charging base while the Mission

NANO is powered off.

3. The green light on the charging base will be

NANO will begin to charge.

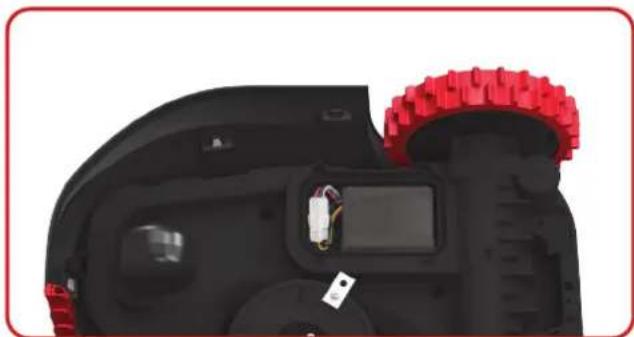

1. Gently turn your Mission

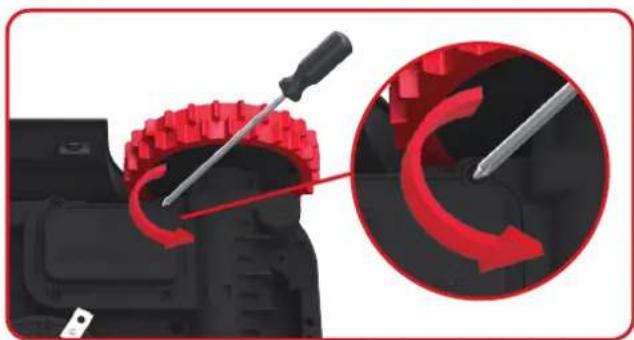

2. Remove the screws on the battery cover.

Remove the battery cover. Mission

NANO can be charged manually without the boundary wire. If you need to replace the battery, follow these steps: Your Mission

NANO will live longer and healthier if it is allowed to hibernate. So even though it is tough, we recommend storing your Mission

NANO in your shed or garage during the winter. Before you prepare your Mission

NANO for winter hibernation, we recommend you:

• Thoroughly clean your Mission

• Fully charge the battery

• Turn the power off To maximize the battery life, fully charge the battery before storage during winter.

WARNING: Protect the underside of Mission

NANO from water. NEVER store Mission

NANO upside down outdoors. The boundary wire can be left in the ground although its ends should be protected, such as placed in a tin can with grease. If the charging base is left outside for the winter, leave the boundary wire connected. NOTE: When bringing the Mission

NANO back to work after winter hibernation, make sure the charging strips and contact pins are clean. We recommend using a fine grade emery cloth to clean the contacts. Using the app, make sure the date and time are correct and send Mission

NANO back to what it loves doing: mowing. Winter Hibernation

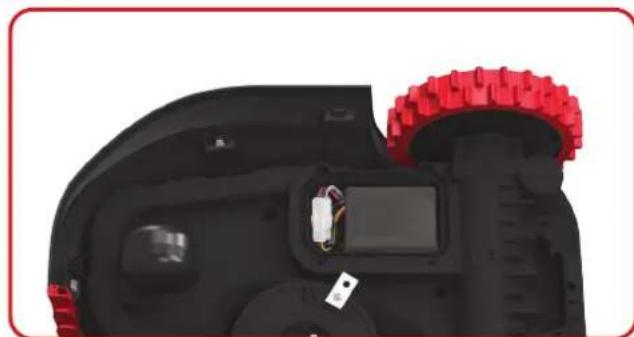

WARNING: Power off before attempting any adjustment, replacement or repair.Before

replacing the blades, turn your Mission

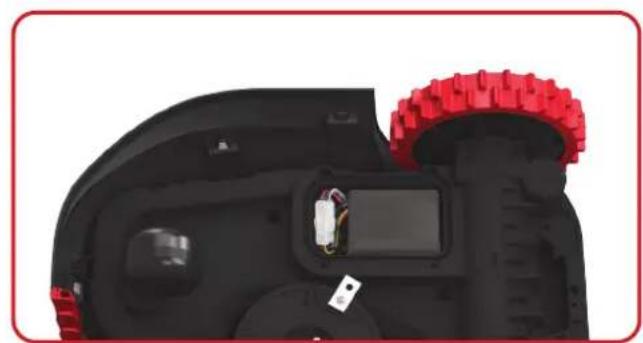

NANO OFF and put on protective gloves. Replacing the battery

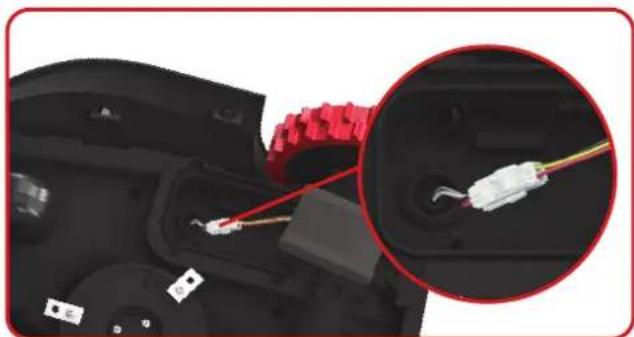

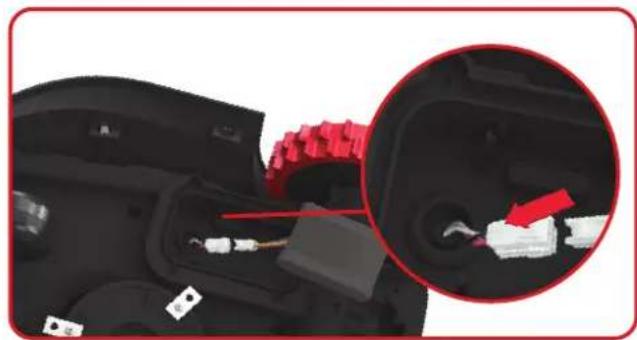

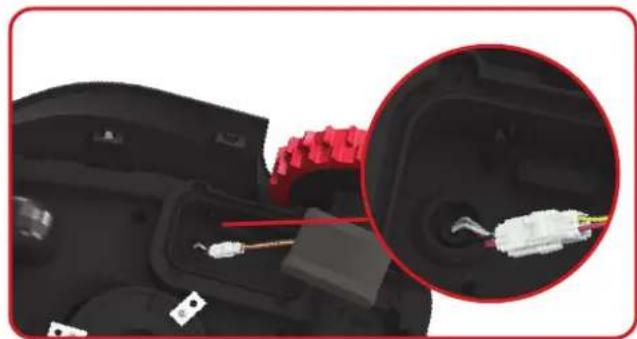

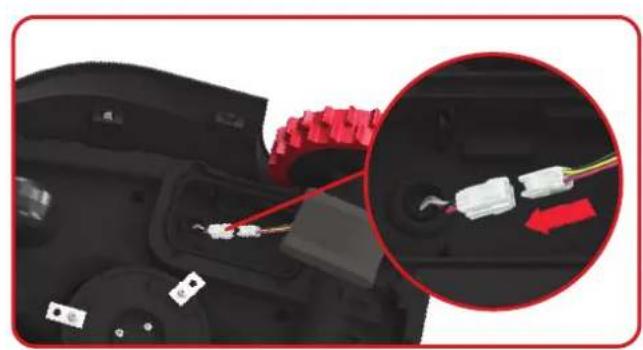

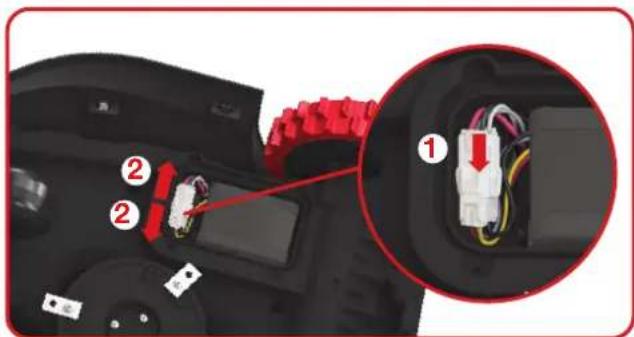

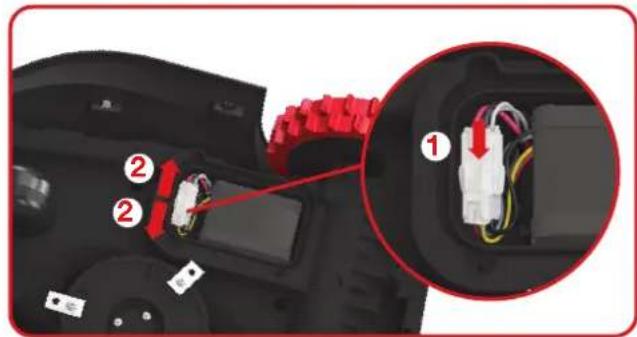

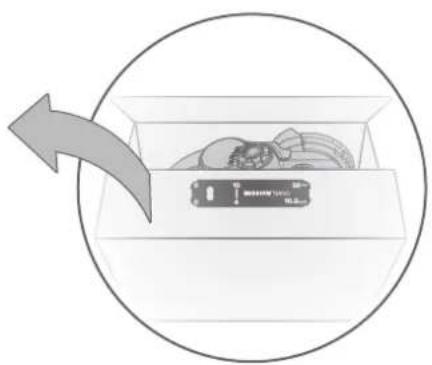

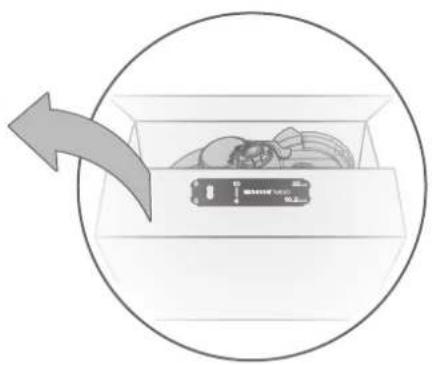

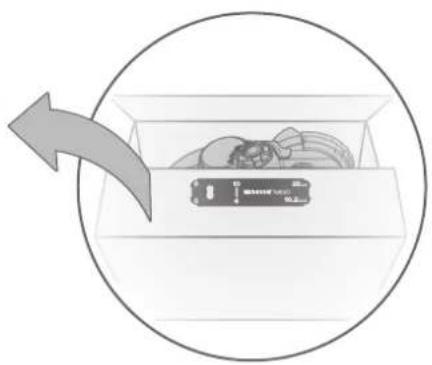

Lift out the old battery carefully. Press the latch and release the connectors. NOTE: Do not pull by the cables. Hold the connectors and release the latch.

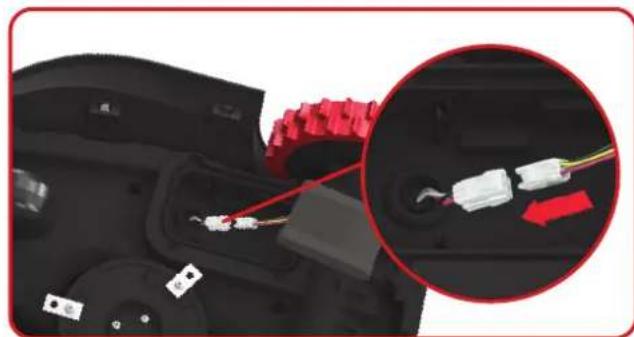

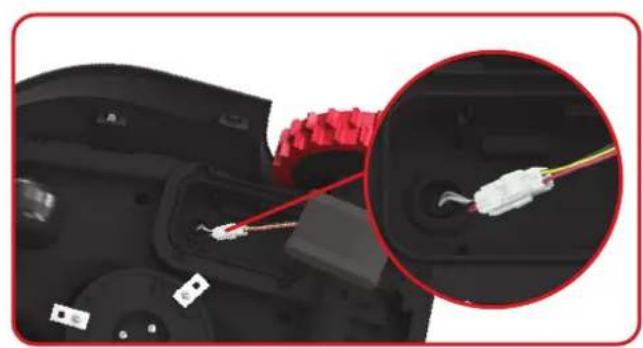

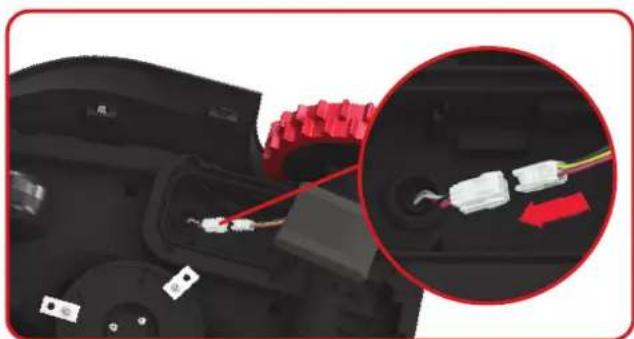

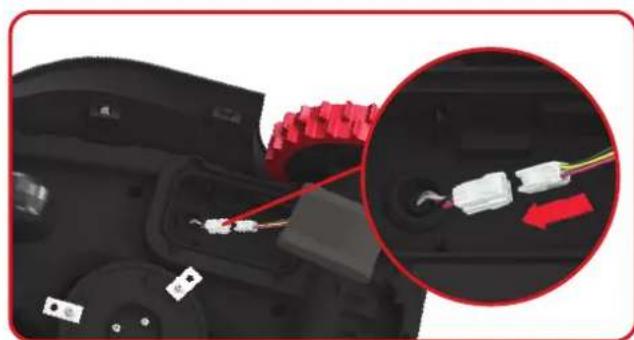

4. Connect a new original battery by attaching

the connectors until they click into position.

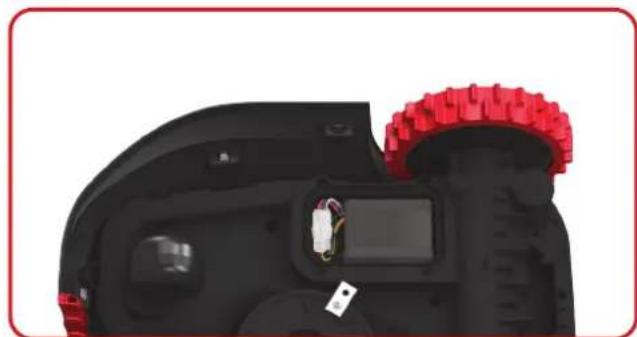

5. Fit the battery as shown. Place the cover

back in its position and tighten the screws.

Error Messages Sometimes things can go wrong. Fortunately Mission

NANO is smart enough to tell you if it is encountering an issue, so you can fix it. If in doubt, please visit our website where you will find useful videos and further support. Message Cause Action Error unknown. Please contact Customer Services. Rain delay. Your Mission

NANO will start after the rain stops and the rain delay has expired. Boundary wire missing or Mission

NANO is actually outside its working area: turn power off, take Mission

NANO inside its working area. Turn power on. Press START.

NANO is inside its working area, check if the LED on the charging base is green. If not, verify that the charging base is properly connected to the charger and that the charger is connected to a suitable power supply. If they are properly connected, the boundary wires are clamped incorrectly and must be reversed.

3. Reverse the boundary wire ends.

Motor wheels fault. Turn power off and take Mission

NANO to an area free from obstacles. Turn power on. Press START. If the error message is still displayed, turn power off. Turn Mission

NANO upside-down and check if there’s anything preventing the wheels from rotating. Remove any obstruction, turn Mission

NANO upright, turn power on. Motor blade fault. Turn power off. Turn Mission

NANO upside down, put on safety gloves to prevent injury and check if there’s anything preventing the blade disc to rotate. Remove any obstruction. Turn Mission

NANO upright and take it to an area with short grass or adjust the cutting height; Turn power on. Press START. Error trapped. Turn power off. Take Mission

NANO to an area in your lawn free of obstacles, turn power on. Press START. If the error message is still displayed: turn power off, turn Mission

NANO upside-down. Check if there is anything preventing the wheels from rotating. Remove any obstruction, turn the Mission

NANO upright, turn power on. Error lifted. Turn power off. Take Mission

NANO to a lawn area clear of obstacles, turn power on. Press START. If the error message is still displayed: turn power off, turn Mission

NANO upside-down and check there’s anything that can cause Mission

NANO to be lifted up. Remove any possible object, turn Mission

1) Battery’s temperature is too high (more than 550C) when charging.

Place the charging base in a shady area or wait until the temperature has cooled down.

2) Battery’s temperature is too low. The outside temperature doesn’t

NANO to work. It’s time to recover it for winter time.

3) Poor connection: check the connection between the contact pins

located on the charging base and the charging strip and that the charging base is on a perfect flat ground.

4) Power supply is broken: please contact Customer Services.

Error find home timeout.

1) Charging base is badly placed (not on a flat ground),

NANO doesn’t find pins and doesn’t stop. Check the base.

NANO runs out of battery before reaching the charging base. The extended boundary wire should not exceed 350 meters. With the ‘Lock Function’ enabled, if your Mission

NANO does not receive a signal from your Wi-Fi router for 3 days, then it gets locked as a security measure. This could be because your router lost its power or because you changed your Wi-Fi router or network provider. Please reconnect Mission

NANO to the Wi-Fi network it has been originally paired with. If this is not possible, contact Customer Service. Module software update failure occurs. Please check that the module is correctly connected. Check that the file copied in the USB stick is not damaged. Turn power off, then turn it on and try the software update again. Software update failure occurs. Please try the software update again or contact Customer Service. NOTES

• Before turning power on, always check Mission

NANO is inside its working area.

• If for any reason—i.e. a party, children playing...—you want to park your Mission

NANO will go to its base and stay there. Please note Mission

NANO will now wait until the next scheduled mowing session. If you want to re-start it at anytime, press START then OK to start your Mission

• If an error repeatedly occurs in the same area of your lawn, you might have a problem with the boundary wire so please refer to the installation instructions and check your set up is correct with its help.

• If your lawn is divided in two separated areas, connected by a corridor less than 1m wide, one of which is not provided with the charging base: when Mission

NANO runs out of charge, take it manually to the charging base.

NANO runs abnormally once in a while, please reset it by turning it off and removing the battery for 30 seconds, then restart it. If the problem cannot be solved, please contact our Customer Service for help.17

NANO does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your dealer. Symptom Cause Action The LED light on the charging base does not turn on. There is no power. Check the charging base is connected properly to the charger and the charger is connected to a suitable power supply. Red light turns on the charging base. The boundary wire isn’t connected. Check that the boundary wire has been connected correctly to the charging base. Check there are no breaks in the boundary wire,especially in the wire ends. Your Mission

NANO is inside its territory and the boundary wire is connected. And “– –“ is displayed. The boundary wire ends are clamped incorrectly. Reverse the boundary wire ends. Mission

NANO cannot correctly dock with the Charging base. Environmental influences. Restart Mission

NANO. Poor connection caused by debris on the charging strip. Clean the contact pins located on the charging base and the charging strip on Mission

NANO using a cloth. Mission

NANO runs outside the boundary wire. Mission

NANO does not mow an area within a boundary wire zone. Mission

NANO reverses or rotates erratically near the boundary wire. The boundary wire of another Mission

NANO or another branded robotic mower is positioned too closely. Ensure your Mission

NANO boundary wire has at least 1m of spacing between the neighboring boundary wire. The boundary wire has been installed with acute angles. Check the boundary wire to ensure the angles are smooth. In wet conditions, the boundary wire electric signal may leak where wire has been joined or repaired. Check boundary wire joints. Insulate to provide a fully waterproof connection. There is boundary wire electric signal leakage due to broken insulation. Repair damaged boundary wire insulation with insulation tape. The cutting area is larger than the allowable cutting area for Mission

NANO. Decrease the cutting area. Mission

NANO exits the boundary wire due to high speed when going down a hill. The boundary wire is placed on a slope steeper than 17% (10°). Reposition the boundary wire away from slopes that are steeper than 17% (10°). Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.18
