Product type	Robotic lawnmower
Brand	Kress
Model	Mission 2000 KR123E
Maximum cutting area	2000 m²
Cutting diameter	22 cm
Cutting height	30-60 mm (4 positions)
Battery type	Lithium 20 V max (18 V nominal)
Battery model	KA3025
Charging time	Approximately 105 minutes
Charger model	KA3710/KA3711
Charger power supply	100-240 V ~ 50/60 Hz, 90 W
Machine weight	12.1 kg
Idle speed	2200 rpm
Maximum slope	35 %
Acoustic pressure level	47.72 dB(A) (K=2.06 dB(A))
Acoustic power level	58.72 dB(A) (K=2.06 dB(A))
Protection class	III (very low voltage)
Main functions	Programming, rain sensor, ultrasonic sensor, Bluetooth, Wi-Fi
Maintenance	Regular cleaning, blade reversal every month, replacement every 2 months
Safety	PIN code, emergency stop, child protection
Spare parts	Blades, battery, charger, boundary wire, charging base
Repairability	Battery replaceable by a professional, blades and screws replaceable by user

Frequently Asked Questions - Mission 2000 KR123E KRESS

How to program the mowing?

Use the mobile app or the keypad on the robot to set the schedules and mowing frequency. Refer to the manual for detailed instructions.

What is the battery life?

Battery life depends on the area and grass. A full charge takes approximately 105 minutes with the KA3710/KA3711 charger. The battery generally lasts an entire season with proper maintenance.

How to change the blades?

Turn off the robot, turn it over, remove the battery cover then the battery. Unscrew the blade screws, replace all blades at the same time, screw back tightly, and reassemble the battery. Wear protective gloves.

What to do if the robot does not charge?

Check that the charger is plugged in and the boundary wire is connected. Clean the contact pins of the base and robot with a cloth. Make sure the robot is properly aligned on the base.

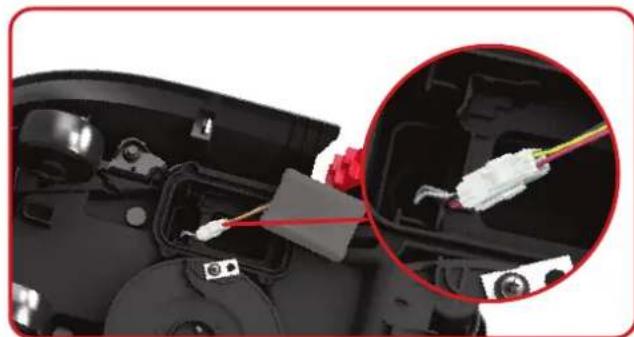

How to store the robot for winter?

Clean the robot thoroughly, fully charge the battery, turn it off, and store it in a dry, cool place (20°C ±5°C). Never store the robot upside down outdoors.

Can the robot mow in the rain?

The robot is equipped with a rain sensor that automatically returns it to the charging base in case of rain. It is not recommended to mow in the rain to avoid damage and ensure safety.

How to install the boundary wire?

Follow the manual instructions to outline the working area. Avoid right angles and slopes greater than 17%. Secure the wire with the provided staples and connect it to the charging base.

What to do if the robot leaves the bounded area?

Check that the boundary wire is not broken and the ends are properly connected. Ensure there is no signal leak due to damaged insulation. Readjust the wire if necessary.

What is the noise level of the robot?

The acoustic pressure level is 47.72 dB(A) and the acoustic power level is 58.72 dB(A). It is quiet enough for residential use.

Can I use the robot without the app?

Yes, the robot can be programmed directly via the keypad on the screen. The app offers additional features such as advanced programming and remote tracking.

USER MANUAL Mission 2000 KR123E KRESS

White and black robotic lawn mower with red and black wheels, no visible text or symbols on the device itself.

En Original instructions

Users can view the electronic instructions at https://www.kress.com/en/.

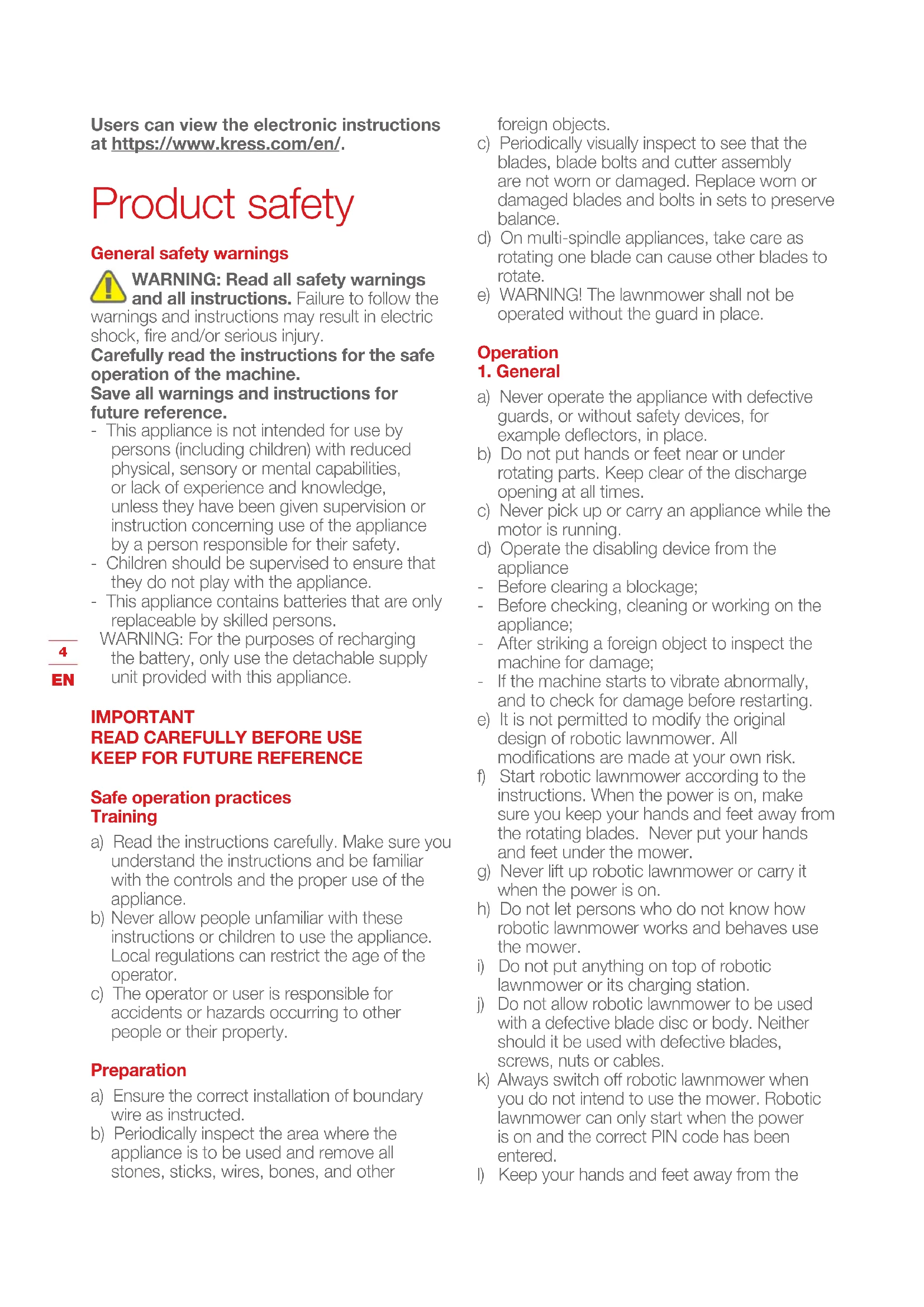

Product safety

General safety warnings

WARNING: Read all safety warnings and all instructions. Failure to follow th

warnings and instructions may result in electric shock, fire and/or serious injury.

Carefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance contains batteries that are only replaceable by skilled persons.
  WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

IMPORTANT

READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE

Safe operation practices Training

a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance.
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator.
c) The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

a) Ensure the correct installation of boundary wire as instructed.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other

foreign objects.

c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.

Operation

1. General

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
c) Never pick up or carry an appliance while the motor is running.
d) Operate the disabling device from the appliance
- Before clearing a blockage;
- Before checking, cleaning or working on the appliance;
- After striking a foreign object to inspect the machine for damage;
- If the machine starts to vibrate abnormally, and to check for damage before restarting.
e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
f) Start robotic lawnmower according to the instructions. When the power is on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.
g) Never lift up robotic lawnmower or carry it when the power is on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic lawnmower or its charging station.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.
k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power is on and the correct PIN code has been entered.
I) Keep your hands and feet away from the

rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.

m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.
n) Not to touch moving hazardous parts before these have come to a complete stop.
o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text:
Warning! Automatic lawnmower! Keep away from the machine! Supervise children!

2. Additionally when the appliance is operating automatically

a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

Maintenance and storage

WARNING! When the mower is turned upside down the power must always off.

The power should be off during all work on the mower's under frame, such as cleaning or replacing the blades.

a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.
c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc.
g) Servicing of the appliance should be according to manufacturers' instructions.

Recommendation

To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA.

Residual risks

To avoid injuries, wear protective gloves when replacing the blades.

Transport

The original packaging should be used when transporting robotic lawnmower over long distances.

To safely move form or within the working area:

a) Press the STOP button to stop the mower. You select the four digit PIN code when you start the mower for the first time.
b) Always switch off robotic lawnmower if you intend to carry the mower.
c) Carry the mower by the handle at the rear under the mower. Carry the mower with the blade disc away from the body.

RF exposure requirements

To satisfy RF exposure requirements, a separation distance of 200mm or more should be maintained between this device and persons during device operation.

To ensure compliance, operators at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

This is a class III appliances and it must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

Safety Warnings for battery pack inside the tool

a) Do not dismantle, open or shred battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not

allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
i) Do not use any battery pack which is not designed for use with the equipment.
j) Keep battery pack out of the reach of children.
k) Retain the original product literature for future reference.
I) Dispose of properly.
m) Do not mix cells of different manufacture, capacity, size or type within a device.
n) Warning! Do not use non-rechargeable batteries.

User manual requirements for wireless product

a) Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Symbols

WARNING – robotic lawnmower can be dangerous if incorrectly used. Read through the Operator's manual carefully and understand the content before using your robotic lawnmower.

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

WARNING - Keep a safe distance from the machine when operating.

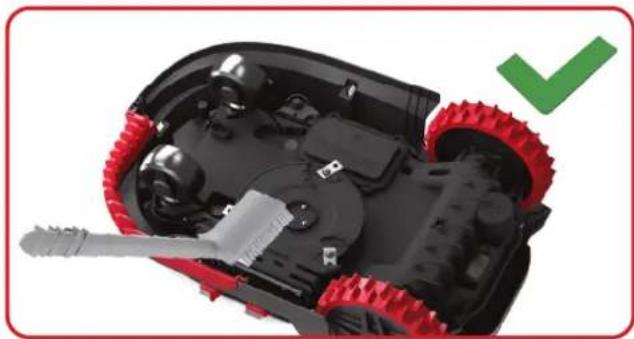

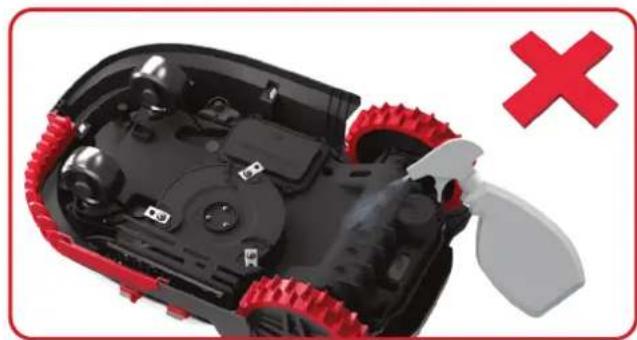

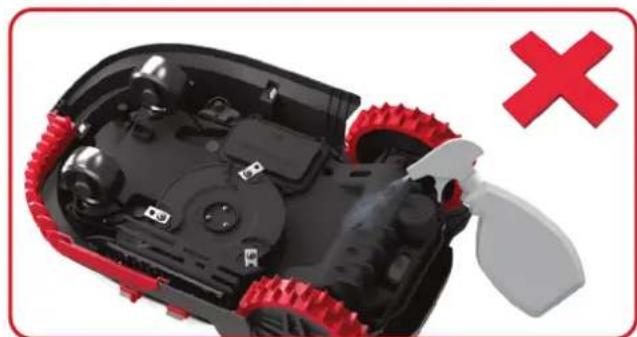

Do not wash the machine with a high pressure washer

WARNING – Operate the disabling device before working on or lifting the machine.

Read operator's manual

WARNING – Do not ride on the machine.

Detachable supply unit

Class III appliance

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

Do not burn.

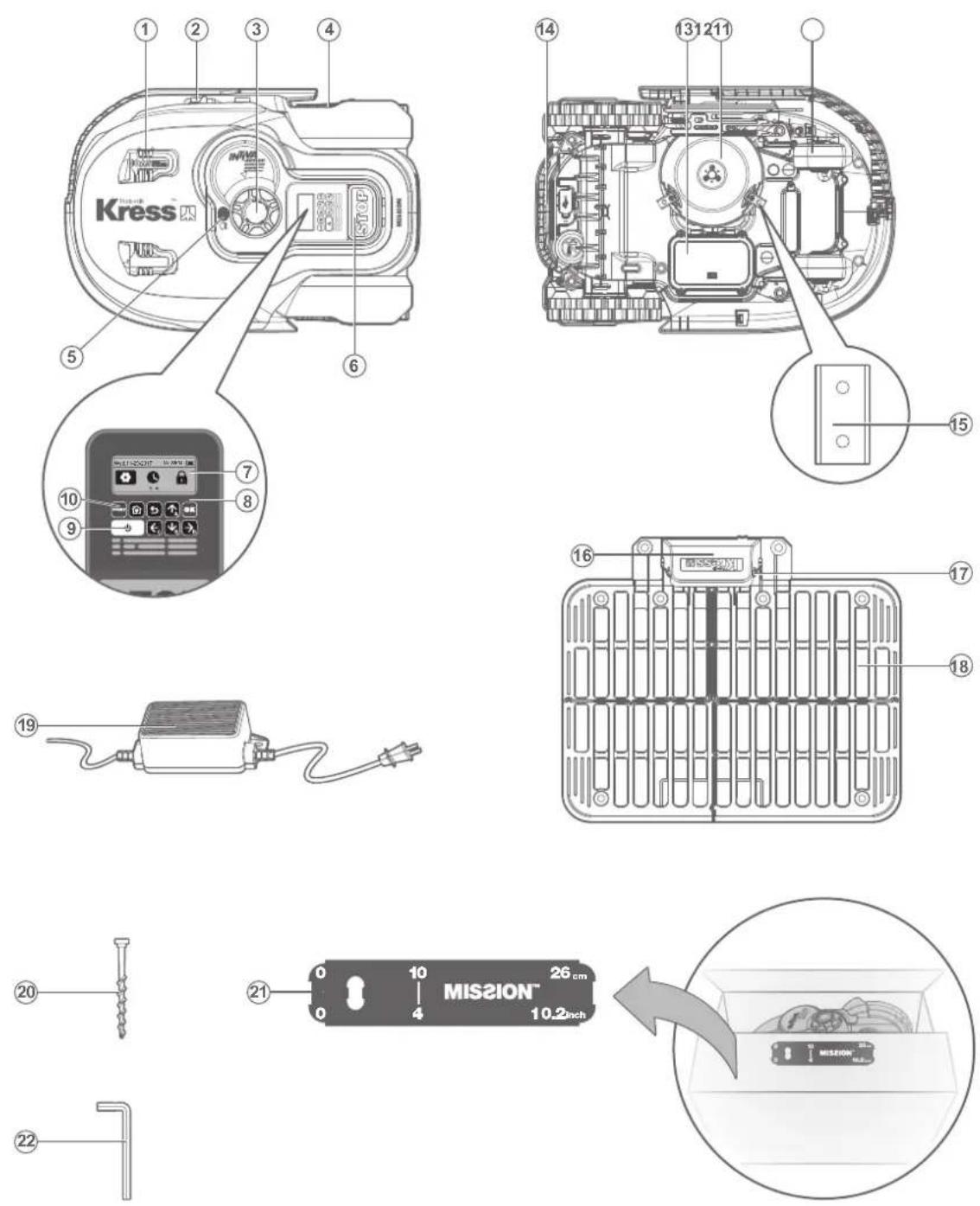

Component list

1. Ultrasonic sensor 12. Blade Turning Disc
2. Charging Strips
3. Battery Pack
4. Cutting Height Adjustment Knob 14. Handle
5. Rear Driving Wheel 15. Cutting Blade
6. Rain Sensor 16. Protective Cover
7. STOP Button 17. Contact Pins
8. Display 18. Charging Base
9. Keypad 19. Power Adapter
10. ON/OFF key
11. Charging Base Fixing Nails
12. START key 21. Boundary Wire Distance Gauge
13. Front Wheel 22. Hex Key

Technical data

Type KR121E KR122E KR123E (100-199 - designation of machinery, representative of Robotic Lawnmower)

	KR121E	KR122E	KR123E
Rated voltage	20V = Max.*
No load speed	2200/min
Cutting area	1000m^2	1500m^2	2000m^2
Cutting diameter	22cm
Cutting height	30-60mm
Cutting height positions	4
Battery type	Lithium-ion
Battery model	KA0102/KA3024	KA0102/KA3024	KA3025
Charging time approx.	160 min	90 min	105 min
Charger model	KA0200 / KA0201	KA3710/KA3711
Charger rating	Input: 100-240V~50/60Hz, 38W, Output: 20V, 1.5A	Input: 100-240V~50/60Hz, 90W, Output: 20V, 3.0A
Machinery weight	11.8kg	12kg	12.1kg
Protection degree	III
App	Y
Maximum slope within the work surface	35%
Frequency bands for Bluetooth (MHz)	2400-2483.5 MHz
Maximum Transmitted Power for Bluetooth (dBm)	8 dBm
Frequency bands for WIFI (MHz)	2400-2483.5 MHz
Maximum Transmitted Power for WIFI (dBm)	20 dBm

Frequency band of inductive loop systems 77 Hz
Max. radio-frequency power of inductive loop systems	82 dBμA/m

* Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

Noise data

A weighted sound pressure L	_pA = 47.72 dB (A), K_pA = 2.06 dB(A)
A weighted sound power L	_wA = 58.72 dB (A), K_wA = 2.06 dB(A)
Wear ear protection when sound pressure is over	80dB(A)

A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn.

Accessories

	KR121E	KR122E	KR123E
Screw 9		9	9
Charging base 1		1	1
Charging base fixing nails 8		8	8
Hex key 1		1	1
Boundary wire distance gauge 2		2	2
Blade 9		9	9
Battery pack (KA0102 / KA3024 / KA3025) 1		1	1
Charger (KA0200/KA0201) 1 //
Charger (KA3710/KA3711)	/	1	1

We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

Intended Use

The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, Mission™ may be programmed to operate at any time or frequency. It is not intended for digging, sweeping or snow cleaning.

Maintenance

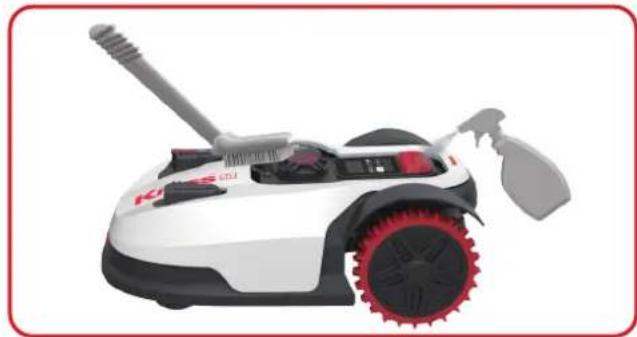

Your Mission ^™ works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Mission ^™ with defective on/off switch.

Switch off the machine before carrying out any service or maintenance.

Here's how to take care of your Mission™.

1

Keep it Sharp

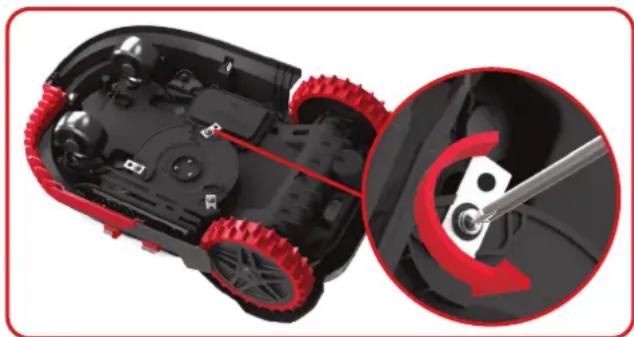

WARNING: Before cleaning, adjusting, or replacing the blades, turn your Mission™ OFF and put on protective gloves.

WARNING: When fitting new blades, make sure you replace ALL the blades. Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade ring disc. Failure to use new screws could cause serious injury.

The Mission™ does not cut grass like other mowers. Its cutting blades are razor sharp on 4 edges and rotate in both directions for maximum cutting capacity. Each blade of your Mission™ has 4 cutting edges. The blade turning disc will make forward and reverse rotation at random to use 4 cutting edges and minimize the frequency of replacing the blades. And with new material, the service life of each cutting blade will be 3 times longer than that of other brands' when it is programmed to mow every day. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Mission™. Spare blades are also available at your nearest Kress retailer.

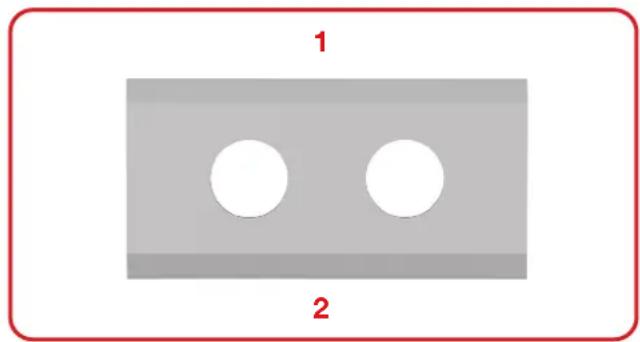

Simple diagram of a rectangular block with two circular holes, labeled 1 and 2 (no text or symbols on the main structure)

A. Replace the blades

Usually your Mission™'s blades need to be reversed each month and replaced each 2 months. When replacing the blades, make sure to replace all of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Mission™.

Before attempting to replace your Mission™'s blades, turn the power off and put on protective gloves and follow these steps:

1. Gently flip the Mission ^TM over.
2. Remove the battery cover and remove the battery.
3. Take the screws off the blades with a screwdriver.
4. Firmly screw on the new blades.
5. Refit the battery and the battery cover.

Close-up of a robotic car with red and black tires, showing internal components and a close-up of the wheel assembly (no text or symbols visible)

Important: After screwing the blade to the blade disc, make sure the blade is able to spin freely.

2

Keep it Clean

WARNING: Before cleaning, turn your Mission™ OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water.

A. Cleaning the Body

Your Mission™ will live a much happier and longer life if it is cleaned regularly. Since your Mission™ is an electric machine, you will need to take care when cleaning. DO NOT use a hose, high pressure washers or otherwise pour running water on your Mission™. It is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes. Lastly, remove all build up of grass clippings and debris.

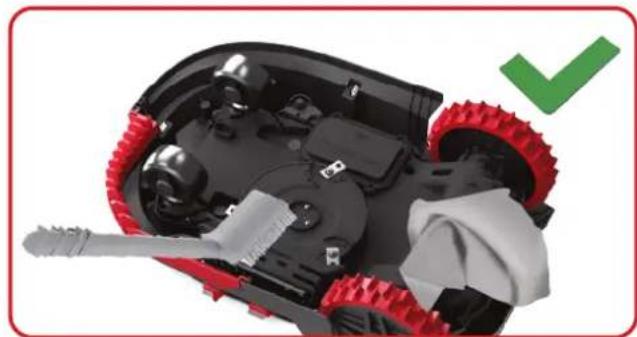

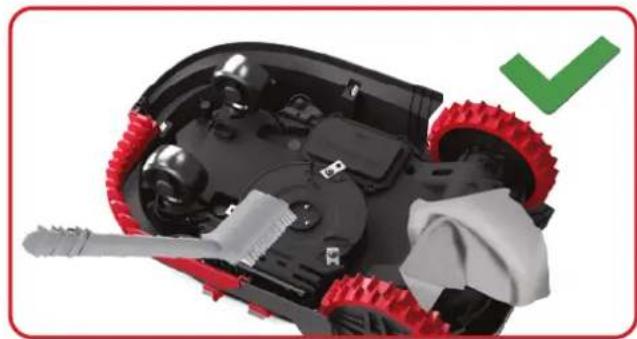

B. Cleaning the underside

Again, it is important that you power the Mission™ OFF and wear protective gloves before touching the blade turning disc. First, flip your Mission™ upside down to expose its underside. Here you will see the blade disc, the chassis, and the front wheel and driving wheels. Clean everything thoroughly with a soft brush or moist rag.

WARNING: NEVER clean the underside of Mission™ with running water. Component damage can occur.

Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions.

IMPORTANT: Remove any lodged debris so that it does not cause a crack in the blade disc. Even the tiniest crack can decrease your Mission™'s mowing output.

C. Clean the contact pins and the charging strips

Clean the contact pins located on the charging base and the charging strips located on the Mission ^™ using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure the Mission ^™ successfully charges each time.

White and black robotic vacuum cleaner with red wheels and a brush (no visible text or symbols)

Close-up of a robotic robot with red and black wheels and a white propeller, marked with a red X (no text or symbols)

Top-down view of a robotic car with red and black tires, showing mechanical components and a green checkmark indicating inspection (no text or symbols)

3

Battery Life

The heart of the Mission ^™ is its 20V Li-Ion Battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place between (20^ ± 5^) .

NOTE: The recommend Mission™ operation temperature is between 0°C - 45°C.

The life-span of the Mission™'s battery depends on various factors, such as:

• The length of the mowing season in your region
• Amount of hours the Mission ^TM mows per day
- Battery maintenance during storage

Mission ^™ can be charged manually without the boundary wire.

1. Connect the charging base to a suitable power supply. The green light on the charging base will turn on.

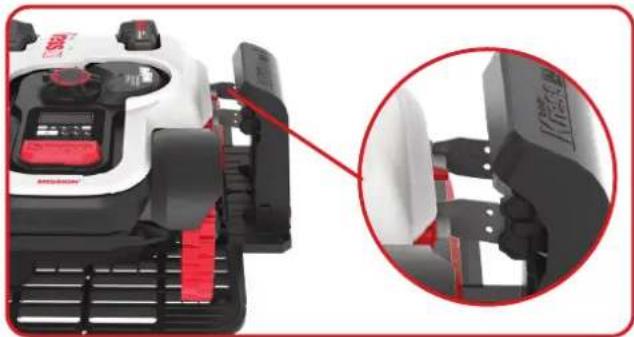

2. Manually dock the Mission ^TM into the charging base while the Mission ^TM is powered off.

3. The green light on the charging base will be flashing and Mission™ will begin to charge.

Close-up of a white and black robotic device with red buttons and a magnified inset showing its side profile (no visible text or symbols)

4

Winter Hibernation

Your Mission ^™ will live longer and healthier if it is allowed to hibernate. So even though it is tough, we recommend storing your Mission ^™ in your shed or garage during the winter.

Before you prepare your Mission™ for winter hibernation, we recommend you:

• Thoroughly clean your Mission™
• Fully charge the battery
- Turn the power off

To maximize the battery life, fully charge the battery before storage during winter.

WARNING: Protect the underside of Mission™ from water. NEVER store Mission™ upside down outdoors.

The boundary wire can be left in the ground although its ends should be protected, such as placed in a tin can with grease. If the charging base is left outside for the winter, leave the boundary wire connected.

NOTE: When bringing the Mission™ back to work after winter hibernation, make sure the charging strips and contact pins are clean. We recommend using a fine grade emery cloth to clean the contacts. Using the app, make sure the date and time are correct and send Mission™ back to what it loves doing: mowing.

5

Replacing the battery

WARNING: Power off before attempting any adjustment, replacement or repair. Before replacing the blades, turn your Mission™ OFF and put on protective gloves.

If you need to replace the battery, follow these steps:

1. Gently turn your Mission™ upside down.

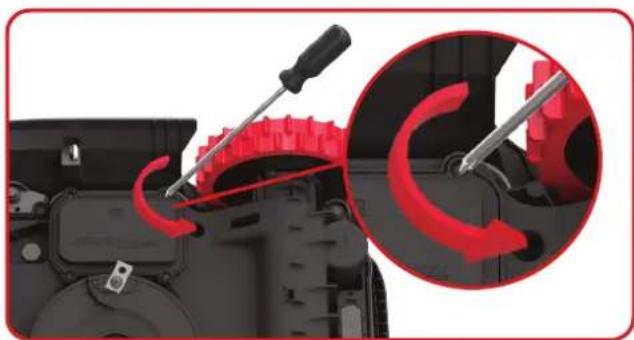

2. Remove the screws on the battery cover. Remove the battery cover.

Close-up of a red-handled tool interacting with a mechanical component, showing a curved red arrow indicating rotation or adjustment (no text or symbols visible)

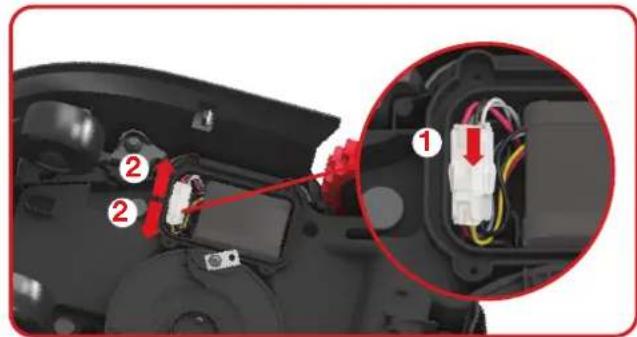

1. Lift out the old battery carefully. Press the latch and release the connectors.

NOTE: Do not pull by the cables. Hold the connectors and release the latch.

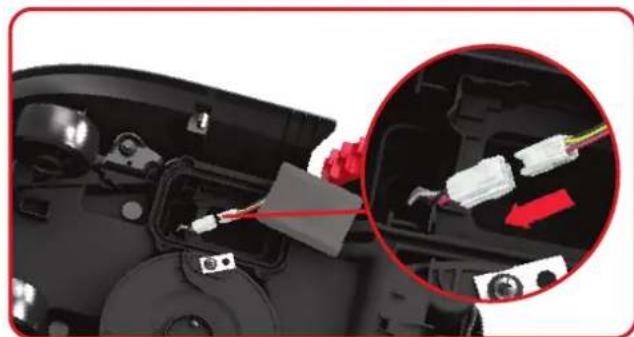

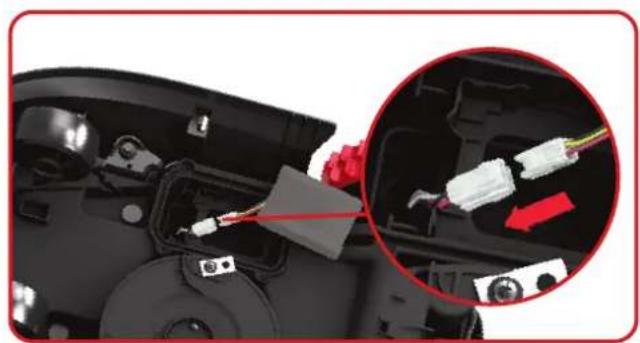

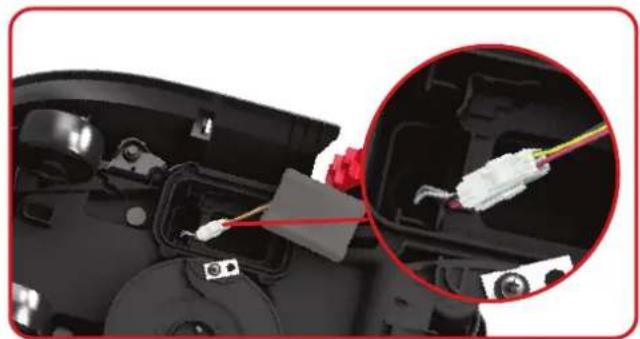

1. Connect a new original battery by attaching the connectors until they click into position.

Diagram of a car engine showing internal components with numbered labels and a magnified inset highlighting wiring connections.

Close-up of a car's internal components with wiring and a magnified inset showing wiring details (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the plug (no text or symbols visible)

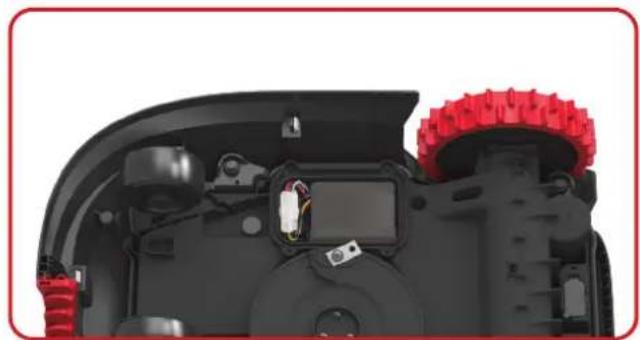

1. Fit the battery as shown. Place the cover back in its position and tighten the screws.

Close-up of a robotic vacuum cleaner's head and torso showing internal components including red tire, battery, and control panel (no text or symbols visible)

Troubleshooting

If your Mission™ does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your dealer.

Symptom Cause Solution
The LED light on the charging base does not turn on.	There is no power.	Check the charging base is connected properly to the charger and the charger is connected to a suitable power supply.
Red light turns on the charging base.	The boundary wire isn't connected.	Check that the boundary wire has been connected correctly to the charging base. Check there are no breaks in the boundary wire, especially in the wire ends.
Your MissionTM is inside its working area but the display says “outside working area” and the LED is green.	The boundary wire ends are clamped incorrectly.	Reverse the boundary wire ends.
MissionTM cannot correctly dock with the Charging base.	Environmental influences. Restart	Mission TM.
	Poor connection caused by debris on the charging strip.	Clean the contact pins located on the charging base and the charging strip on MissionTM using a cloth.
MissionTM runs outside the boundary wire. MissionTM does not mow an area within a boundary wire zone. MissionTM reverses or rotates erratically near the boundary wire.	The boundary wire of another MissionTM or another branded robotic mower is positioned too closely.	Ensure your MissionTM boundary wire has at least 1m of spacing between the neighboring boundary wire.
	The boundary wire has been installed with acute angles.	Check the boundary wire to ensure the angles are smooth.
	In wet conditions, the boundary wire electric signal may leak where wire has been joined or repaired.	Check boundary wire joints. Insulate to provide a fully waterproof connection.
	There is boundary wire electric signal leakage due to broken insulation.	Repair damaged boundary wire insulation with insulation tape.
	The cutting area is larger than the allowable cutting area for MissionTM.	Decrease the cutting area.
MissionTM exits the boundary wire due to high speed when going down a hill.	The boundary wire is placed on a slope steeper than 17% (10°).	Reposition the boundary wire away from slopes that are steeper than 17% (10°).

Environmental protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

Declaration of conformity

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product

Description Robotic Lawnmower

Type KR121E KR122E KR123E (100-199- designation of machinery, representative of Robotic Lawnmower) (Year, article number and month of serial number are placed on the back page. The complete serial number is clearly stated on the enclosure of lawnmower) with battery charger KA0200/KA0201/ KA3710/KA3711 and charging base KA0071

Function Cutting grass

Complies with the following Directives,

2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC, 2014/53/EU

2000/14/EC amended by 2005/88/EC

• Conformity Assessment Procedure as per Annex V
• Measured Sound Power Level 58.72 dB (A)
• Declared Guaranteed Sound Power Level 61 dB (A)

The notified body Intertek, Semko AB, NB-No. 0413 has carried out an EU type examination according to Directive 2014/53/EU and issued the following EU type examination certificate: SE-RED-2200106

Standards conform to,

For Lawn mower: EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN IEC 62311:2020, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

For Induction loop system: EN 303 447 V1.1.1

For Ultrasonic module: EN 55011:2016+A11:2020

For Bluetooth & WIFI module (2.4G): EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 300 328 V2.2.2

For charger: EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 60335-2-29:2021+A1:2021, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN 62233:2008

For Noise: EN ISO 3744:2005

For RoHS: EN IEC 63000:2018

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany

H201 CE

2023/09/19

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple diagram of two white circles inside a gray rectangular block, labeled 1 and 2 (no text or symbols within the diagram itself)

Close-up of a robotic car showing red and black wheels, with a magnified inset highlighting the mechanical component (no text or symbols visible)

Illustration of a white and black robotic vacuum cleaner with a brush and spray bottle (no text or symbols)

Close-up of a robotic car with red and black tires and a white propeller, marked with a red X (no text or symbols)

Close-up of a robotic robot with red and black tires, showing mechanical components and a green checkmark (no text or symbols)

3

Close-up of a white and black robotic device with red buttons and a magnified inset showing its side profile (no visible text or symbols)

4

Überwintern

Close-up of a mechanical component with red tool and screwdriver, showing a close-up of a red curved arrow (no text or symbols)

Diagram of a car engine showing internal components with numbered labels and a magnified inset highlighting wiring connections.

Close-up of an automotive engine bay with wiring and a magnified inset showing internal components (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the component (no text or symbols visible)

Close-up of a robotic vacuum cleaner's head and side, showing internal components like gears and motors (no text or symbols visible)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple diagram of a rectangular block with two circular holes, labeled 1 and 2 (no text or symbols on the main structure)

Close-up of a robotic car showing red and black wheels, with a magnified inset highlighting the mechanical component (no text or symbols visible)

2

Nettoyage

White and black robotic vacuum cleaner with red wheels and a brush (no visible text or symbols)

Close-up of a robotic robot with red and black textured legs and a white propeller, marked with a red 'X' symbol (no text or symbols on the robot itself)

Close-up of a robotic car with red and black tires, showing mechanical components and a person cleaning the wheel (no text or symbols visible)

3

Close-up of a white and black robotic device with red buttons and a magnified inset showing its side profile (no visible text or symbols)

4

Hibernation

Close-up of a mechanical assembly with red tool and gear, showing a red curved component being inserted (no text or symbols visible)

Diagram of an automotive engine showing internal components with numbered labels and a magnified inset highlighting wiring connections.

Close-up of a car's internal components with wiring and a magnified inset showing wiring details (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the plug (no text or symbols visible)

Close-up of a robotic vacuum cleaner's head and torso showing internal components including red tire, battery, and control panel (no text or symbols visible)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

MISEON® MILK

Simple diagram of two white circles inside a gray rectangle, labeled 1 and 2 (no text or symbols within the diagram itself)

Close-up of a robotic car with red and black tires, showing mechanical components and a close-up of the wheel assembly (no text or symbols visible)

Illustration of a white and black robotic vacuum cleaner with red wheels and a brush (no text or symbols)

Close-up of a robotic robot with red and black wheels and a white propeller, marked with a red X (no text or symbols on the robot itself)

Close-up of a robotic car with red and black tires, showing mechanical components and a person adjusting the wheel (no text or symbols visible)

3

Close-up of a white and black robotic device with red buttons and a magnified inset showing its side profile (no visible text or symbols)

4

Close-up of a red-handled tool interacting with a mechanical component, showing a curved red arrow indicating rotation or adjustment (no text or symbols present)

Diagram of car engine rear panel showing wiring and component labels, with inset highlighting internal wiring connections.

Close-up of a car engine bay with wiring and a magnified inset showing internal components (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the component (no text or symbols visible)

Close-up of a robotic vacuum cleaner's head and interior showing internal components like sensors, motors, and wiring (no text or symbols visible)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple diagram of a rectangular block with two circular holes, labeled 1 and 2 (no text or symbols on the main structure)

Close-up of a robotic lawn mower with red and black tires, showing mechanical components and a close-up of the gear shift (no text or symbols visible)

Illustration of a white and black robotic vacuum cleaner with red wheels and a brush (no text or symbols)

Close-up of a robotic car with red and black tires and a white propeller, marked with a red X (no text or symbols)

Close-up of a robotic robot with red and black tires, showing mechanical components and a green checkmark indicating inspection (no text or symbols)

3

Close-up of a white and black robotic device with red buttons and a magnified inset showing its side profile (no visible text or symbols)

4

Hibernación

Close-up of a mechanical component with red tool and magnified inset showing a red curved component (no text or symbols visible)

Diagram of an automotive engine showing internal components with numbered labels and a magnified inset highlighting wiring connections.

Close-up of a car's internal components with wiring and a magnified inset showing wiring details (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the plug (no text or symbols visible)

Close-up of a robotic device showing red and black components with no visible text or symbols

Para RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple diagram of a rectangular block with two circular holes, labeled 1 and 2 (no text or symbols on the main structure)

Close-up of a robotic car showing red and black wheels, with a close-up inset illustrating the mechanical component (no text or symbols visible)

Illustration of a robotic vacuum cleaner with a brush and spray bottle (no text or symbols)

Close-up of a robotic robot with red and black textured body, showing mechanical components and a white propeller (no text or symbols visible)

Close-up of a robotic arm with red and black tires, showing mechanical components and a green checkmark (no text or symbols)

3

Close-up of a white and black robotic device with red control buttons, showing a close-up inset (no text or symbols visible)

4

Winteropslag

Close-up of a red-handled tool interacting with a mechanical component, showing a curved red arrow indicating rotation or adjustment (no text or symbols present)

Diagram of a car's internal components with numbered labels and a magnified inset showing wiring connections

Close-up of an automotive engine bay with wiring and a magnified inset showing internal components (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the component (no text or symbols visible)

Close-up of a robotic vacuum cleaner's head and side, showing internal components like gears and motors (no text or symbols visible)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple diagram of a rectangular block with two circular holes, labeled 1 and 2 (no text or symbols on the main structure)

A. Wymiana ostrzy

Close-up of a robotic lawn mower with red and black tires, showing mechanical components and a close-up of the gear shift (no text or symbols visible)

Illustration of a white and black robotic vacuum cleaner with red wheels and a brush (no text or symbols)

Close-up of a robotic robot with red and black textured legs, showing internal components and a white propeller (no text or symbols visible)

Top-down view of a robotic vehicle with red and black tires, showing mechanical components and a person adjusting a tool (no text or symbols visible)

3

Close-up of a white robotic device with red control panel and black handle, showing a close-up inset (no text or symbols visible)

4

Close-up of a red-handled tool applying red tubing to a mechanical component, with an inset showing the same tool (no text or symbols visible)

Diagram of car engine rear panel showing wiring and component labels, with inset highlighting internal wiring connections.

Close-up of a car engine bay with wiring and a magnified inset showing internal components (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the connector (no text or symbols visible)

Close-up of a robotic car's interior showing red tire, battery, and wiring (no text or symbols visible)

Dla RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEHOLD TIL SENERE BRUG

To safely move form or within the working area:

Simple diagram of two white circles inside a gray rectangle, labeled 1 and 2 (no text or symbols within the diagram itself)

Close-up of a robotic car with red and black tires, showing mechanical components and a close-up inset of the gear mechanism (no text or symbols visible)

2

Hold den ren

White and black robotic lawn mower with red and black wheels, no visible text or symbols

Close-up of a robotic robot with red and black textured legs, showing internal components and a white propeller (no text or symbols visible)

Close-up of a robotic robot with red and black wheels and a worker adjusting the gear (no text or symbols visible)

Close-up of a white and black robotic device with red buttons and a magnified inset showing its side profile (no visible text or symbols)

4

Opbevarelse om vinteren

Close-up of a red-handled tool interacting with a mechanical component, showing a curved red arrow indicating rotation or adjustment (no text or symbols visible)

Diagram of an automotive engine showing internal components with numbered labels and a magnified inset highlighting wiring connections.

Close-up of a car engine bay with wiring and a magnified inset showing internal components (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the component (no text or symbols visible)

Interior view of a robotic vacuum cleaner with red and black components (no visible text or symbols)

105 DK

Fejlfinding

Til RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple diagram of two white circles inside a gray rectangle, labeled 1 and 2 (no text or symbols within the diagram itself)

A. Erstatt bladene

Close-up of a robotic car with red and black tires, showing internal components and a close-up of the wheel assembly (no text or symbols visible)

2

Hold den ren

White and black robotic lawn mower with red and black wheels, no visible text or symbols

Close-up of a robotic robot with red and black textured legs, showing internal components and a white propeller (no text or symbols visible)

Top-down view of a robotic car with red and black tires, showing internal components and a green checkmark (no text or symbols)

3

Batterilevetid

Close-up of a white and black robotic device with red control buttons, showing a close-up inset (no text or symbols visible)

4

Vinterdvale

Mission™ får lengre levetid og fungerer bedre hvis den får gå i dvale om vinteren. Så selv om det er tøft, anbefaler vi at du lagrer Mission™ i uteboden eller garasjen om vinteren.

Close-up of a red-handled tool interacting with a mechanical component, showing a curved red arrow indicating rotation or adjustment (no text or symbols present)

Diagram of a car engine showing internal components with numbered labels and a magnified inset highlighting wiring connections.

Close-up of a car's engine compartment showing wiring and components, with an inset close-up highlighting wires (no text or symbols visible)

Close-up of an open automotive engine compartment showing internal wiring and a close-up of a plug inserted into a housing (no text or symbols visible)

NOR

Close-up of a robotic device's internal components, showing red and black parts with no visible text or symbols

Feilsøking

Hvis Mission™ ikke fungerer som den skal, kan du bruke veiviseren for feilsøking nedenfor. Hvis problemet ikke løses, tar du kontakt med forhandleren.

For RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple diagram of a rectangular block with two circular holes, labeled 1 and 2 (no text or symbols on the main structure)

A. Byta ut bladen

128 SV

Close-up of a robotic car with red and black tires, showing internal components and a close-up of the wheel assembly (no text or symbols visible)

Illustration of a white and black robotic vacuum cleaner with red wheels and a brush (no text or symbols)

Close-up of a robotic robot with red and black textured parts, showing mechanical components and a white propeller (no text or symbols visible)

Close-up of a robotic arm with red and black tires, showing mechanical components and a green checkmark (no text or symbols)

3

Batterilivstid

The life-span of the Mission™'s battery depends on various factors, such as:

Close-up of a white and black robotic device with red buttons and a magnified inset showing its side profile (no visible text or symbols)

4

Vinterförvaring

Close-up of a mechanical component with red tool and magnified view showing internal red curved arrows (no text or symbols)

Diagram of an automotive engine showing internal components with numbered labels and a magnified inset highlighting wiring connections.

Close-up of a car engine bay with wiring and a magnified inset showing internal components (no text or symbols visible)

Close-up of an automotive engine compartment showing internal wiring and a close-up of the component (no text or symbols visible)

Interior view of a robotic vacuum cleaner with red and black components (no visible text or symbols)

Felsymptom

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

White Kress-branded robotic vacuum cleaner with control panel and buttons (no visible text or symbols)

MIS2ION™

www.kress-robotik.com
