| Product type | Robotic lawnmower |
| Brand | Kress |
| Model | Mission Mega 6000 KR136E |
| Nominal voltage | 20 V max (18 V nominal) |
| Battery type | Lithium-ion (Li-ion) |
| Recommended cutting capacity | 6000 m² |
| Maximum cutting capacity | 6500 m² |
| Cutting diameter | 35 cm |
| Cutting height | 30 to 60 mm |
| Step cutting height | 5 mm |
| Weight | 19.5 kg |
| Sound power level (LwA) | 57.5 dB(A) |
| Maximum slope | 45% |
| Charging time | 77 minutes |
| Wireless technology | Wi-Fi and Bluetooth |
| Location system | GeoTrace (GPS + GSM) |
| Sensors | Rain sensor, ultrasonic sensor |
| Protection class | III |
| Power supply | Power adapter 100-240 V~50/60 Hz, 230 W |
| Included accessories | Charging base, boundary wire, spare blades, Allen key, battery KA3010, charger KA3717/KA3817 |
Frequently Asked Questions - Mission Mega 6000 KR136E KRESS
User questions about Mission Mega 6000 KR136E KRESS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Robot mower in PDF format for free! Find your manual Mission Mega 6000 KR136E - KRESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Mission Mega 6000 KR136E by KRESS.
USER MANUAL Mission Mega 6000 KR136E KRESS
Users can view the electronic instructions at https://www.kress.com/en/.

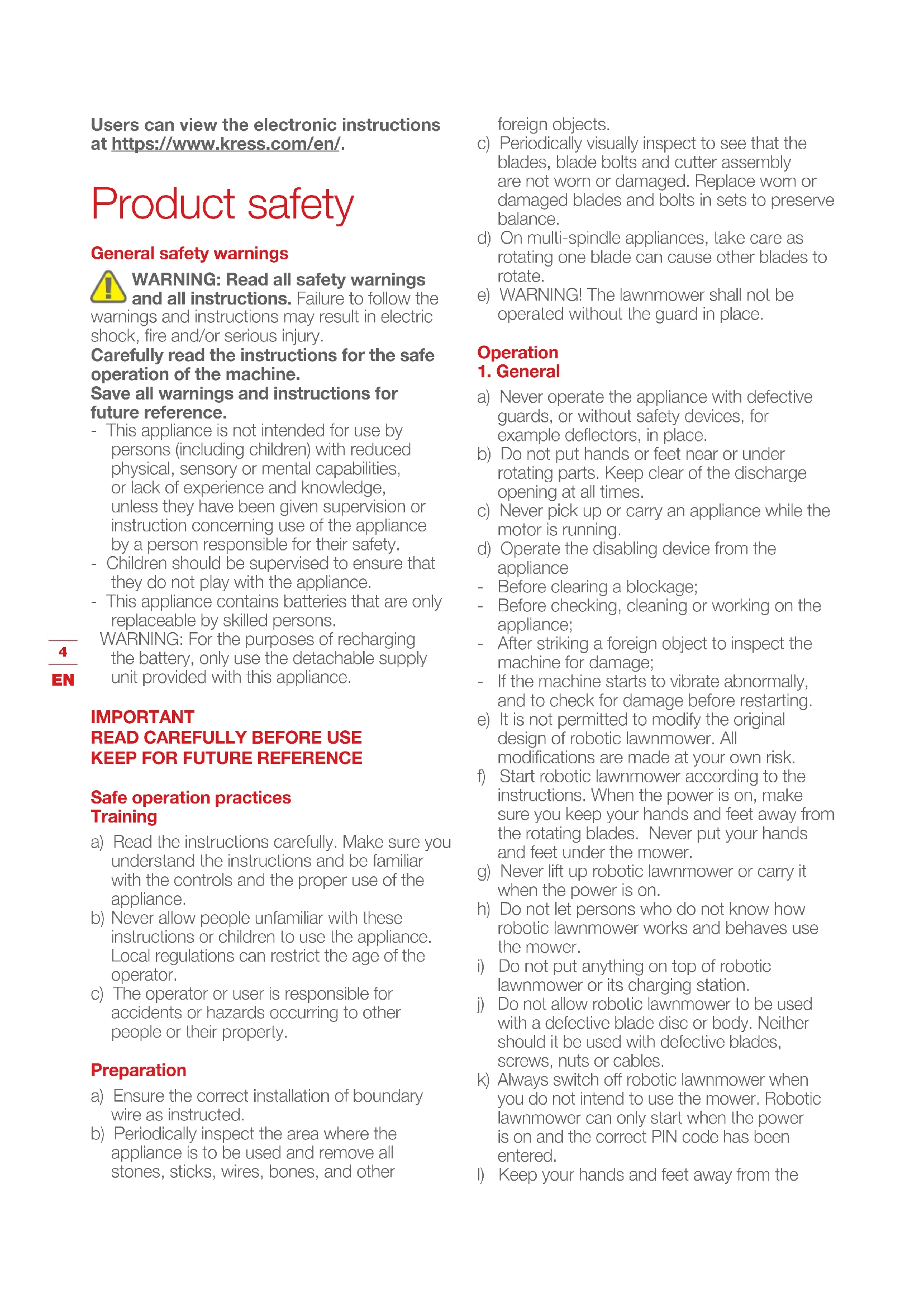

Product safety
General safety warnings
WARNING: Read all safety warnings and all instructions. Failure to follow th
warnings and instructions may result in electric shock, fire and/or serious injury.
Carefully read the instructions for the safe operation of the machine.
Save all warnings and instructions for future reference.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- This appliance contains batteries that are only replaceable by skilled persons.
WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
IMPORTANT
READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE
Safe operation practices Training
a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance.
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator.
c) The operator or user is responsible for accidents or hazards occurring to other people or their property.
Preparation
a) Ensure the correct installation of boundary wire as instructed.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other
foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.
Operation
1. General
a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
c) Never pick up or carry an appliance while the motor is running.
d) Operate the disabling device from the appliance
- Before clearing a blockage;
- Before checking, cleaning or working on the appliance;
- After striking a foreign object to inspect the machine for damage;
- If the machine starts to vibrate abnormally, and to check for damage before restarting.
e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
f) Start robotic lawnmower according to the instructions. When the power is on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.
g) Never lift up robotic lawnmower or carry it when the power is on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic lawnmower or its charging station.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.
k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power is on and the correct PIN code has been entered.
I) Keep your hands and feet away from the
rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.
m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.
n) Not to touch moving hazardous parts before these have come to a complete stop.
o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text:
Warning! Automatic lawnmower! Keep away from the machine! Supervise children!
2. Additionally when the appliance is operating automatically
a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.
Maintenance and storage
WARNING! When the mower is turned upside down the power must always off.
The power should be off during all work on the mower's under frame, such as cleaning or replacing the blades.
a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.
c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc.
g) Servicing of the appliance should be according to manufacturers' instructions.
Recommendation
To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA.
Residual risks
To avoid injuries, wear protective gloves when replacing the blades.
Transport
The original packaging should be used when transporting robotic lawnmower over long distances.
To safely move form or within the working area:
a) Press the STOP button to stop the mower. You select the four digit PIN code when you start the mower for the first time.
b) Always switch off robotic lawnmower if you intend to carry the mower.
c) Carry the mower by the handle at the rear under the mower. Carry the mower with the blade disc away from the body.
RF exposure requirements
To satisfy RF exposure requirements, a separation distance of 200mm or more should be maintained between this device and persons during device operation.
To ensure compliance, operators at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.
This is a class III appliances and it must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
Maintenance
1) Have your equipment serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the equipment is maintained.
2) Never service damaged battery. Service of the battery should only be performed by the manufacturer or authorized service providers.
Safety Warnings for battery pack inside the tool
a) Do not dismantle, open or shred battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery
pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
i) Do not use any battery pack which is not designed for use with the equipment.
j) Keep battery pack out of the reach of children.
k) Retain the original product literature for future reference.
I) Dispose of properly.
m) Do not mix cells of different manufacture, capacity, size or type within a device.
n) Warning! Do not use non-rechargeable batteries.
User manual requirements for wireless product
a) Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Symbols
WARNING – robotic lawnmower can be dangerous if incorrectly used. Read through the Operator's manual carefully and understand the content before using your robotic lawnmower.
Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
WARNING - Keep a safe distance from the machine when operating.
Do not wash the machine with a high pressure washer
WARNING – Operate the disabling device before working on or lifting the machine.
Read operator's manual
Detachable supply unit
WARNING – Do not ride on the machine.
Prohibit disassembling the machine without authorization
Class III appliance
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
Li-Ion battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
Do not burn.

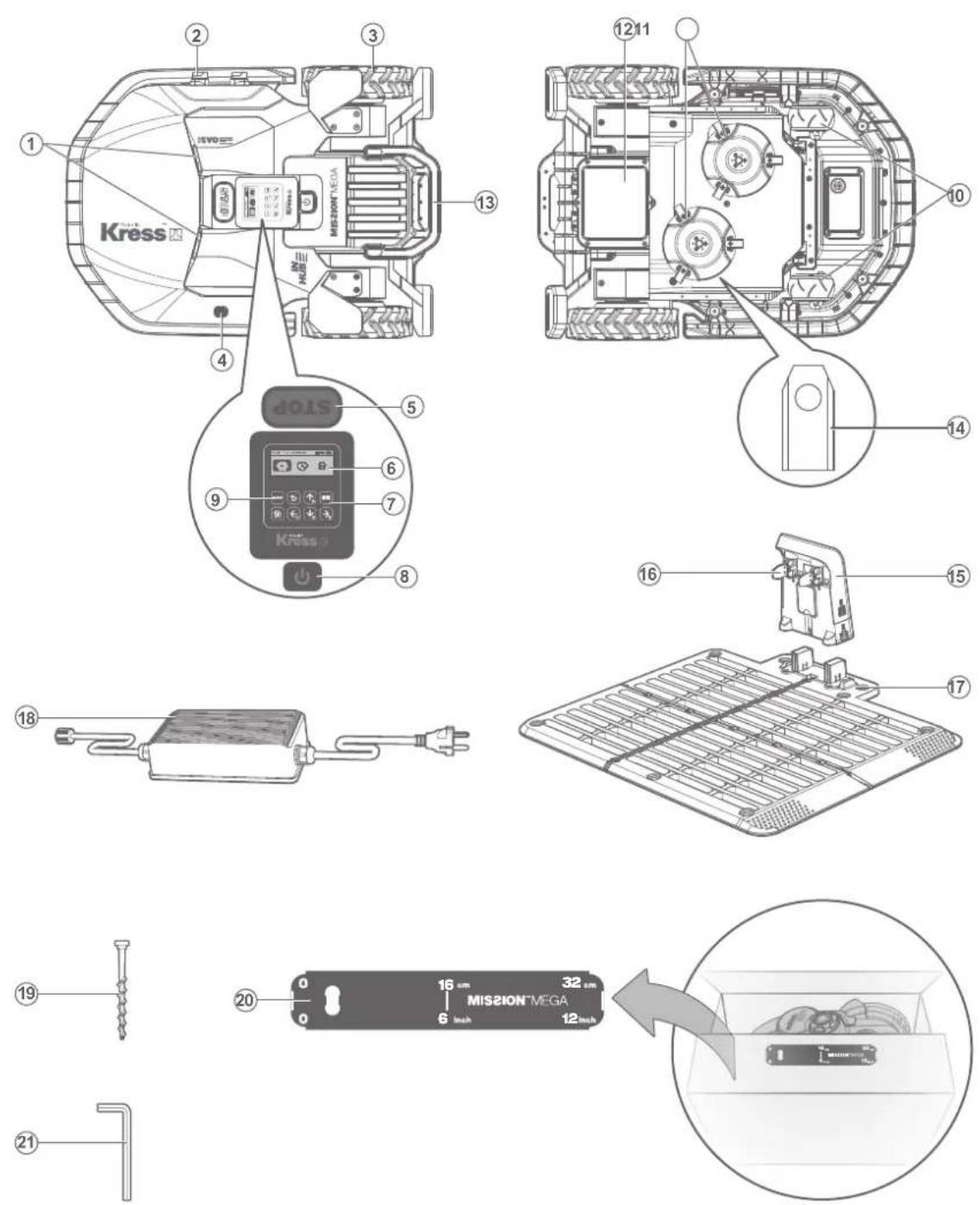

Component list
- Ultrasonic sensor 12. Battery Pack*
- Charging Strips
- Handle
- Rear Driving Wheel 14. Cutting Blade
- Rain Sensor 15. Charging pile
- STOP Button 16. Contact Pins
- Display 17. Charging Base
- Keypad 18. Power Adapter
- ON/OFF key
- Charging Base Fixing Nails
- START key 20. Boundary Wire Distance Gauge
- Front Wheel
- Hex Key
- Blade Turning Disc
*Not all the accessories illustrated or described are included in standard delivery.
Technical Data For Mower
Type KR133E KR136E (100-199 - designation of machinery, representative of Robotic Lawnmower)
| KR133E | KR136E | |
| Rated voltage | 20V = Max.* | |
| No load speed | 2800/min | 3200/min |
| Cutting area | Rec. / max. area performance: 3000 m2/ 4400 m2 | Rec. / max. area performance: 6000 m2/ 6500 m2 |
| Cutting diameter | 35 cm | |
| Cutting height | 30-60 mm | |
| Cutting high steps | 5 mm | |
| Battery type | Lithium-ion | |
| Battery model | KA3006 | KA3010 |
| Charging time approx. | 46 min. | 77 min. |
| Charger model | KA3717 / KA3817 | |
| Charger rating | Input: 100-240V~50/60Hz, 230W, Output: 28V, 7.0A | |
| Machinery weight | 19 kg | 19.5 kg |
| Protection degree | III | |
| App(Wi-Fi/Bluetooth) | Y | |
| Maximum slope within the work surface | 45% | |
| Frequency bands for Bluetooth (MHz) | 2400-2483.5 MHz | |
| Maximum Transmitted Power for Bluetooth (dBm) | 8 dBm | |
| Frequency bands for WIFI (MHz) | 2400-2483.5 MHz | |
| Maximum Transmitted Power for WIFI (dBm) | 20 dBm | |
| Frequency band of inductive loop systems 77 Hz | |
| Max. radio-frequency power of inductive loop systems | 82 dBμA/m |
* Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
Technical Data For GeoTrace
| Rated Voltage 5V±5% | |
| Operating temperature -10 | °C ~ +72°C |
| Storage temperature -20 | °C ~ +75°C |
| Band | Tx (MHz) | Rx (MHz) | The Maximum (EIRP) Transmitted Power (dBm) |
| EGPRS 900MHZ 880~915 | 925~960 30 | ||
| EGPRS 1800MHZ 1710~1785 | 1805~1880 30 | ||
| NB-IOT Band3 1710~1785 | 1805~1880 24 | ||
| NB-IOT Band8 | 880~915 | 925~960 | 24 |
| NB-IOT B20 | 832~862 | 791~821 | 24 |
Noise data
| KR133E | KR136E | |
| A weighted sound pressure | L_pA = 46.72 dB (A), K_pA = 0.39 dB(A) | L_pA = 46.5 dB (A), K_pA = 1.75 dB(A) |
| A weighted sound power | L_wA = 57.72 dB (A), K_wA = 0.39 dB(A) | L_wA = 57.5 dB (A), K_wA = 1.75 dB(A) |
| Wear ear protection when sound pressure is over | 80dB(A) [IMAGE] | |
A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn.
Accessories
| Screw 18 | |
| Charging station 1 | |
| Charging base fixing nails 8 | |
| Hex key 1 | |
| Boundary wire distance gauge 1 | |
| Blade 18 | |
| Battery pack (KA3006/KA3010) 1 | |
| Charger (KA3717/KA3817) 1 |
We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
Intended Use
The garden product is intended for lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, Mission™ may be programmed to operate at any time or frequency. It is not intended for digging, sweeping or snow cleaning.
Maintenance

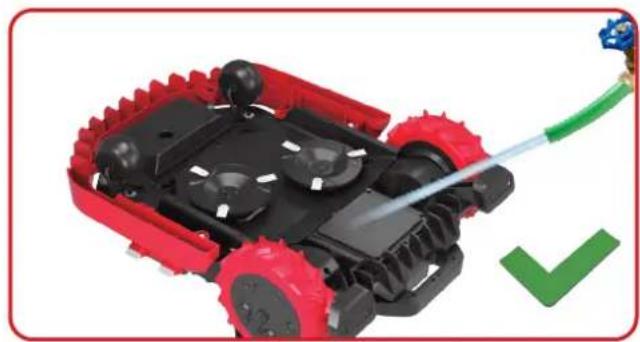

Your Mission ^™ works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Mission ^™ with defective on/off switch.
Switch off the machine before carrying out any service or maintenance.
Here's how to take care of your Mission™.
1
Keep it Sharp

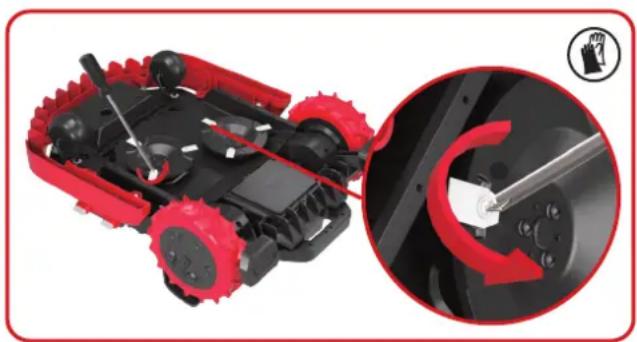

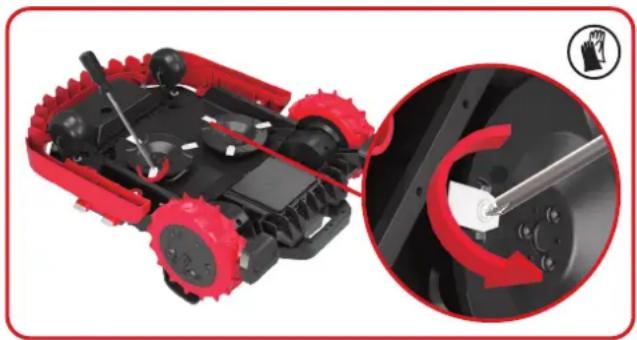

WARNING: Before cleaning, adjusting, or replacing the blades, turn your Mission™ OFF and put on protective gloves.

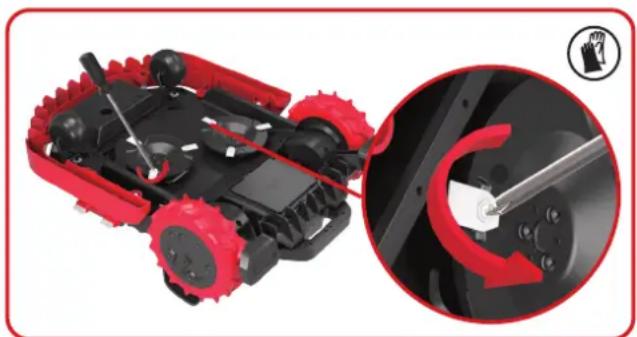

WARNING: When fitting new blades, make sure you replace ALL the blades. Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade ring disc. Failure to use new screws could cause serious injury.

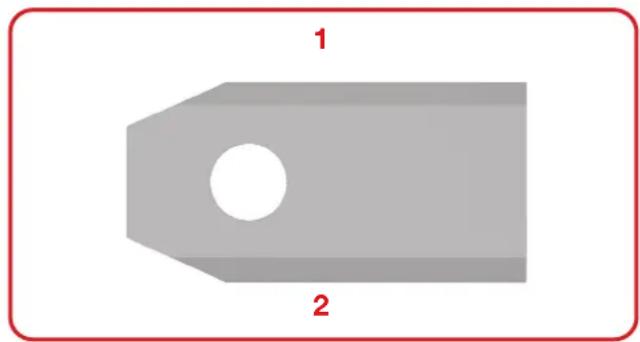

The Mission™ does not cut grass like other mowers. Its cutting blades are razor sharp on 4 edges and rotate in both directions for maximum cutting capacity. Each blade of your Mission™ has 4 cutting edges. The blade turning disc will make forward and reverse rotation at random to use 4 cutting edges and minimize the frequency of replacing the blades. And with new material, the service life of each cutting blade will be 3 times longer than that of other brands' when it is programmed to mow every day. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Mission™. Spare blades are also available at your nearest Kress retailer.


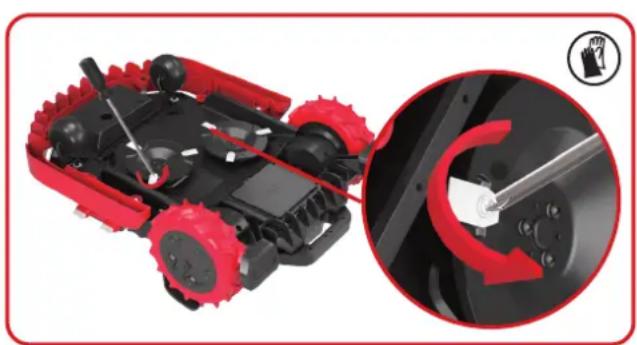

Usually your Mission™'s blades need to be reversed each month and replaced each 2 months. When replacing the blades, make sure to replace all of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Mission™.
Before attempting to replace your Mission™'s blades, turn the power off and put on protective gloves and follow these steps:
- Gently flip the Mission ^TM over.
- Remove the battery cover and remove the battery.
- Take the screws off the blades with a screwdriver.
- Firmly screw on the new blades.
- Refit the battery and the battery cover.
2
Keep it Clean
WARNING: Before cleaning, turn your Mission™ OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water.

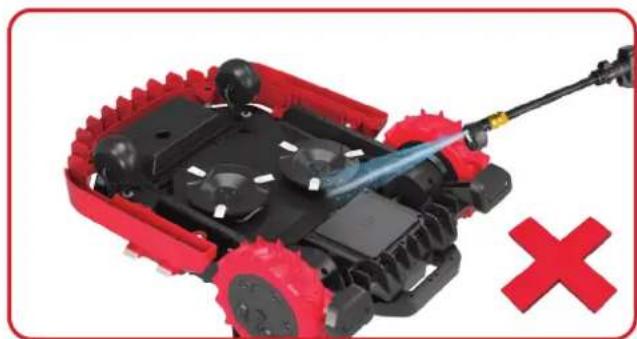

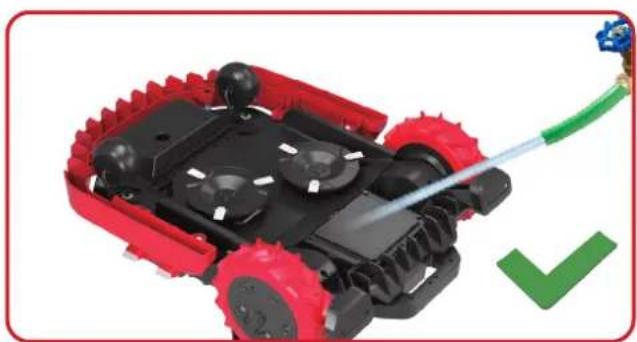

WARNING! YOUR Mission™ can only be washed by using a hose! DO NOT use high pressure washer on your Mission™. High pressure water can go inside the sealings and damage ronic and mechanical parts.
A. Cleaning the Body
Your Mission™ will live a much happier and longer life if it is cleaned regularly. Since your Mission™ is an electric machine, you will need to take care when cleaning. Hose water clean is supported. It is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes. Lastly, remove all build up of grass clippings and debris.
B. Cleaning the underside
Again, it is important that you power the Mission™ OFF and wear protective gloves before touching the blade turning disc. First, flip your Mission™ upside down to expose its underside. Here you will see the blade disc, the chassis, and the front wheel and driving wheels. Clean everything thoroughly with a soft brush or moist rag. Hose water clean is supported.
Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions.
IMPORTANT: Remove any lodged debris so that it does not cause a crack in the blade disc. Even the tiniest crack can decrease your Mission™'s mowing output.
C. Clean the contact pins and the charging strips
Clean the contact pins located on the charging station and the charging strips located on the Mission™ using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure the Mission™ successfully charges each time.
Battery Life
The heart of the Mission ^™ is its 20V Li-Ion Battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place between (20^ ± 5^) .
NOTE: The recommend Mission™ operation temperature is between 0°C - 45°C.
The life-span of the MissionTM's battery depends on various factors, such as:
• The length of the mowing season in your region
- Amount of hours the Mission ^TM mows per day
• Battery maintenance during storage

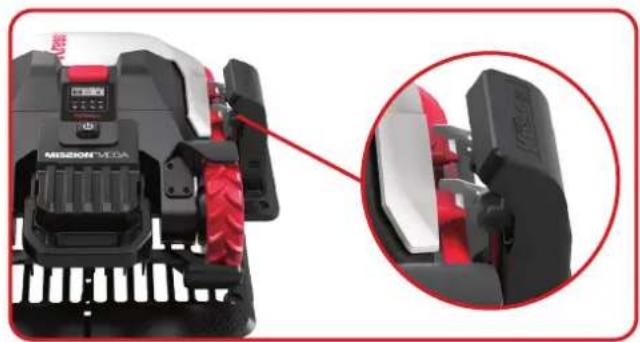

Mission ^™ can be charged manually without the boundary wire.
- Connect the charging station to a suitable power supply. The green light on the charging station will turn on.
- Manually dock the Mission ^TM into the charging station while the Mission ^TM is powered off.
- The green light on the charging station will be flashing and Mission™ will begin to charge.
Winter Hibernation
Your Mission™ will live longer and healthier if it is allowed to hibernate. So even though it is tough, we recommend storing your Mission™ in your shed or garage during the winter.
Before you prepare your Mission™ for winter hibernation, we recommend you:
• Thoroughly clean your Mission™
• Fully charge the battery
- Turn the power off
To maximize the battery life, fully charge the battery before storage during winter.
WARNING: Protect the underside of Mission™ from water. NEVER store Mission™ upside down outdoors.
The boundary wire can be left in the ground although its ends should be protected, such as placed in a tin can with grease. If the charging station is left outside for the winter, leave the boundary wire connected.
NOTE: When bringing the Mission™ back to work after winter hibernation, make sure the charging strips and contact pins are clean. We recommend using a fine grade emery cloth to clean the contacts. Using the app, make sure the date and time are correct and send Mission™ back to what it loves doing: mowing.
5

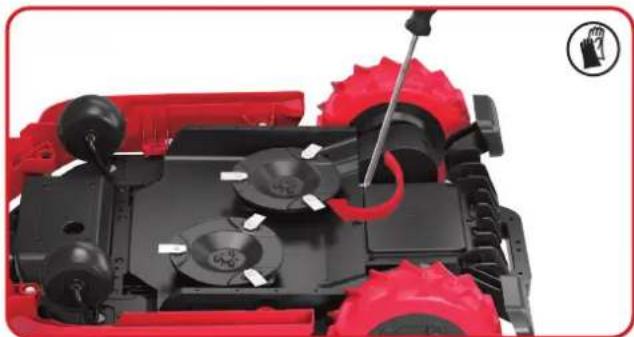

Replacing the battery
WARNING: Power off before attempting any adjustment, replacement or repair. Before replacing the blades, turn your Mission™ OFF and put on protective gloves.
If you need to replace the battery, follow these steps:

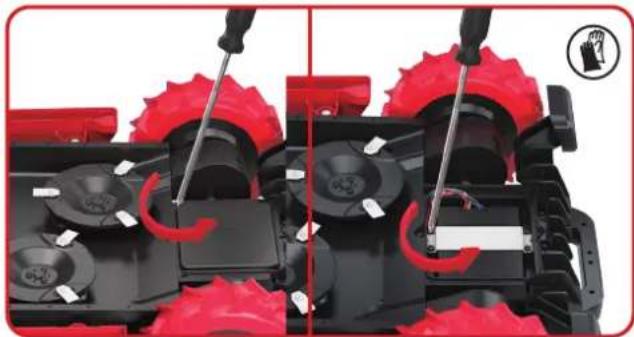

- Gently turn your Mission™ upside down.
-
Remove the screws on the battery cover. Remove the battery cover.
-

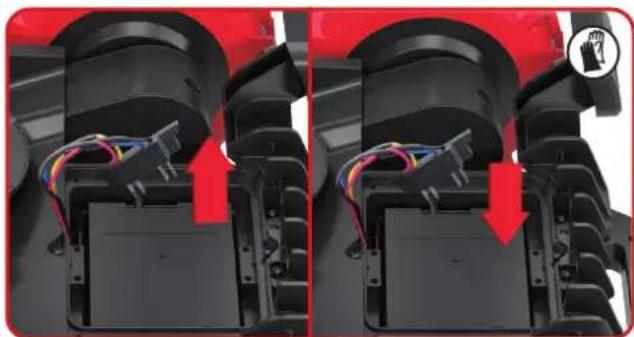

Unplug the connector. Replace the old battery with the new one. Then plug the connector.
-
Place the cover back in its position and tighten the screws.
If your Mission™ does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your dealer.
| Symptom Cause Solution | ||
| The LED light on the charging station does not turn on. | There is no power. | Check the charging station is connected properly to the charger and the charger is connected to a suitable power supply. |
| Red light turns on the charging station. | The boundary wire isn't connected. | Check that the boundary wire has been connected correctly to the charging station. Check there are no breaks in the boundary wire, especially in the wire ends. |
| Your MissionTM is inside its working area but the display says “outside working area” and the LED is green. | The boundary wire ends are clamped incorrectly. | Reverse the boundary wire ends. |
| MissionTM cannot correctly dock with the Charging station. | Environmental influences. Restart Mission TM. | |
| Poor connection caused by debris on the charging strip. | Clean the contact pins located on the charging station and the charging strip on MissionTM using a cloth. | |
| MissionTM runs outside the boundary wire. MissionTM does not mow an area within a boundary wire zone. MissionTM reverses or rotates erratically near the boundary wire. | The boundary wire of another MissionTM or another branded robotic mower is positioned too closely. | Ensure your MissionTM boundary wire has at least 1m of spacing between the neighboring boundary wire. |
| The boundary wire has been installed with acute angles. | Check the boundary wire to ensure the angles are smooth. | |
| In wet conditions, the boundary wire electric signal may leak where wire has been joined or repaired. | Check boundary wire joints. Insulate to provide a fully waterproof connection. | |
| There is boundary wire electric signal leakage due to broken insulation. | Repair damaged boundary wire insulation with insulation tape. | |
| The cutting area is larger than the allowable cutting area for MissionTM. | Decrease the cutting area. | |
| MissionTM exits the boundary wire due to high speed when going down a hill. | The boundary wire is placed on a slope steeper than 17% (10°). | Reposition the boundary wire away from slopes that are steeper than 17% (10°). |
| The position of MissionTM cannot be shown precisely on the App, or its position cannot be detected. | The GPS signal is affected by the weather or some interference. | 1. Check and make sure: MissionTM is not upside down or on its side; MissionTM is not covered by some metal objects.2. Take MissionTM to an open area where it can obtain a mobile signal. |
| You are not using the latest version of the MissionTM App. | Please update the MissionTM App to the latest version. | |
| MissionTM does not give an alarm when it is outside the Geo fence. | The software of MissionTM itself is not the latest. | Update the software of the MissionTM before using the GeoTrace. |
| There is a small tolerance area immediately outside the perimeter set for GeoTrace. | Bring MissionTM outside of the tolerance area (approximately 30m from the Geo fence) to verify that GeoTrace is working. | |
| The GeoTrace is powered off. | Turn on MissionTM and if necessary recharge it. If it doesn't need to be recharged, Find My MissionTM GeoTrace will be recharged by the MissionTM battery.(GeoTrace has an inner battery that lasts a week after the machine is turned off). | |
| Geo Fence is not set, or radius of Geo Fence is not set. | Use the MissionTM App to set it properly. | |
| MissionTM is powered off. | In this case, the alarm will be sent 10mins after the MissionTM is brought outside of the Geo fence. | |
| MissionTM still works when it is outside the Geo fence. | Geo Fence is not set, or radius of Geo Fence is not set. | Use the MissionTM App to set it properly. |
| Geo Fence is not enabled. | ||
| MissionTM works normally but the communication between MissionTM and smartphone does not work properly. | The cellular network coverage of GeoTrace is weak. | Check if it has a weak signal. If yes move to an area with a good signal. |
| The GeoTrace is damaged. Contact a | dealer and get it checked properly. | |
| The software of MissionTM is not the latest. | Update the software of MissionTM. | |
| The MissionTM App needs to be updated. | Update your MissionTM App before using the GeoTrace. | |
| The SIM of the GeoTrace is not activated. | Before first use, make sure you have activated the SIM by following the procedure in the App. | |
| The GeoTrace is not well connected to MissionTM | Contacting dealer. Check that the GeoTrace connector is correctly inserted with a click. | |
| MissionTM has no power. | Check if the screen of MissionTM is illuminated. If not, send MissionTM back to the charging base for charging or start emergency procedure to charge it. | |
| The SIM subscription fee has expired. | Once expired it must be renewed. | |
| MissionTM is unable to achieve real time positioning or the location of MissionTM cannot be updated in real-time. | The GeoTrace is designed to update the positioning every 10 minutes for power economy. When MissionTM has low power battery capacity, the time interval of positioning update will be longer. | This is normal. No action is needed. |
| If MissionTM has been switched off for more than 24 hours in the Geo fence for storage, the GeoTrace is auto powered off with no GPS signal. | ||
NOTE:
- The battery of GeoTrace must be replaced by the service agent.
- Make sure Mission™ is regularly charged during storage, once every half year is recommended.
- The GeoTrace needs be renewed once SIM subscription fee expired.
Environmental protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
Declaration of conformity
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product,
Description Robotic Lawnmower
Type KR133E KR136E (100-199- designation of machinery, representative of Robotic Lawnmower) (Year, article number and month of serial number are placed on the back page. The complete serial number is clearly stated on the enclosure of lawnmower) with battery charger KA3717/KA3817 and charging station KA0072/KA0073
Function Cutting grass
Complies with the following Directives,
2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863,
2000/14/EC amended by 2005/88/EC, 2014/53/EU
2000/14/EC amended by 2005/88/EC
KR133E
KR136E
- Conformity Assessment Procedure as per Annex V
Annex V
- Measured Sound Power Level 57.72 dB (A)
57.5 dB (A)
- Declared Guaranteed Sound Power Level 59 dB (A)
59.3 dB (A)
The notified body Intertek, Semko AB, NB-No. 0413 has carried out an EU type examination according to Directive 2014/53/EU and issued the following EU type examination certificate: SE-RED-2200106
GeoTrace:
The notified body involved
Name: TIMCO ENGINEERING, Inc (notified body CE1177)
Address: 849 NW State Road 45, Newberry, Florida 32669, USA
Standards conform to,
For Lawn mower: EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN IEC 62311:2020, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
For Induction loop system: EN 303 447 V1.1.1
For Ultrasonic module: EN 55011:2016+A11:2020
For Bluetooth & WIFI module (2.4G): EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 300 328 V2.2.2
For 4G+GPS module: EN 301 489-1 V2.2.3, EN 301 489-19 V2.1.1, EN 301 489-52 V1.2.1, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1
For charger: EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 60335-2-29:2021+A1:2021, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN 62233:2008
For Noise: EN ISO 3744:2005
For RoHS: EN IEC 63000:2018
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany
2023/09/20
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Close-up of a red and black robotic vehicle with visible wheels and a hand gesture indicator (no text or symbols)natural_image
Red and black robotic vehicle with water spray, no visible text or symbols
Close-up of a red and black mission vehicle with a close-up inset showing its internal components (no visible text or symbols)4
Überwintern
Close-up of a mechanical assembly showing internal components with wiring and a red arrow indicating a downward motion (no text or symbols visible)natural_image
Red and black mechanical device with visible gears and a wrench, no text or symbols present18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Red and black robotic vehicle with gear and wrench, showing mechanical assembly and hand gesture (no text or symbols)2
Nettoyage
Close-up of a Mission VLA device showing internal components and a close-up inset (no text or symbols visible)4
Hibernation
Close-up of a mechanical assembly showing internal components with wires and a red arrow indicating a downward motion (no text or symbols visible)46 Fr
50
Fr
Et conforme aux normes,
Pour tondeuse à gazon: EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-1:2012+A11:20
14+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN IEC 62311:2020, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Pulizia
Close-up of a mechanical assembly showing internal components with wires and a red arrow indicating a downward motion (no text or symbols visible)natural_image
Close-up of a red and black robotic vehicle with visible gears and a wrench (no text or symbols)18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Manténgalo limpio
Hibernación
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Mechanical robot with red and black wheels and a close-up inset showing a tool interacting with a component (no text or symbols visible)natural_image
Red and black robotic vehicle with water spray, marked with a red X (no text or symbols on the vehicle itself)
Winteropslag
Close-up of a mechanical assembly showing internal components with wires and a red arrow indicating a downward motion (no text or symbols visible)94 NL
Standaards in overeenstemming met,
Voor grasmaaier: EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN IEC 62311:2020, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Hold den ren
Batteriets levetid
Opbevarelse om vinteren
Adresse:849 NW State Road 45, Newberry, Florida 32669, USA
Standarderne er i overensstemmelse med,
Til plæneklipper: EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-1:2012+A11:2014+A
13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN IEC 62311:2020, EN IEC 55014-1:2021, EN IEC
55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Til induktionsloopsystem: EN 303 447 V1.1.1
Til ultrasonisk modul: EN 55011:2016+A11:2020
Til Bluetooth- og wifi-modul (2,4 G): EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 300 328 V2.2.2
Til 4G- + GPS-modul: EN 301 489-1 V2.2.3, EN 301 489-19 V2.1.1, EN 301 489-52 V1.2.1, EN 301 511
V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1
Til oplader: EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN
61000-3-3:2013+A1:2019+A2:2021, EN IEC 60335-2-29:2021+A1:2021, EN 60335-1:2012+A11:2014+A
13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN 62233:2008
Til støj: EN ISO 3744:2005
Til RoHS: EN IEC 63000:2018
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Red and black robotic vehicle with water spray, marked with a red X (no text or symbols on the vehicle itself)139 Nor
Batterilevetid
Vinterdvale
Mission™ får lengre levetid og fungerer bedre hvis den får gå i dvale om vinteren. Så selv om det er tøft, anbefaler vi at du lagrer Mission™ i uteboden eller garasjen om vinteren.
Hvis Mission™ ikke fungerer som den skal, kan du bruke veiviseren for feilsøking nedenfor. Hvis problemet ikke løses, tar du kontakt med forhandleren.
Adresse:849 NW State Road 45, Newberry, Florida 32669, USA
Standardene samsvarer med,
For gressklipper: EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN IEC 62311:2020, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
For RoHS: EN IEC 63000:2018
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Håll den ren
Batteritid
Vinterdvala
Adress: 849 NW State Road 45, Newberry, Florida 32669, USA
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
www.kress-robotik.com
