USER MANUAL KUC60.2 KRESS

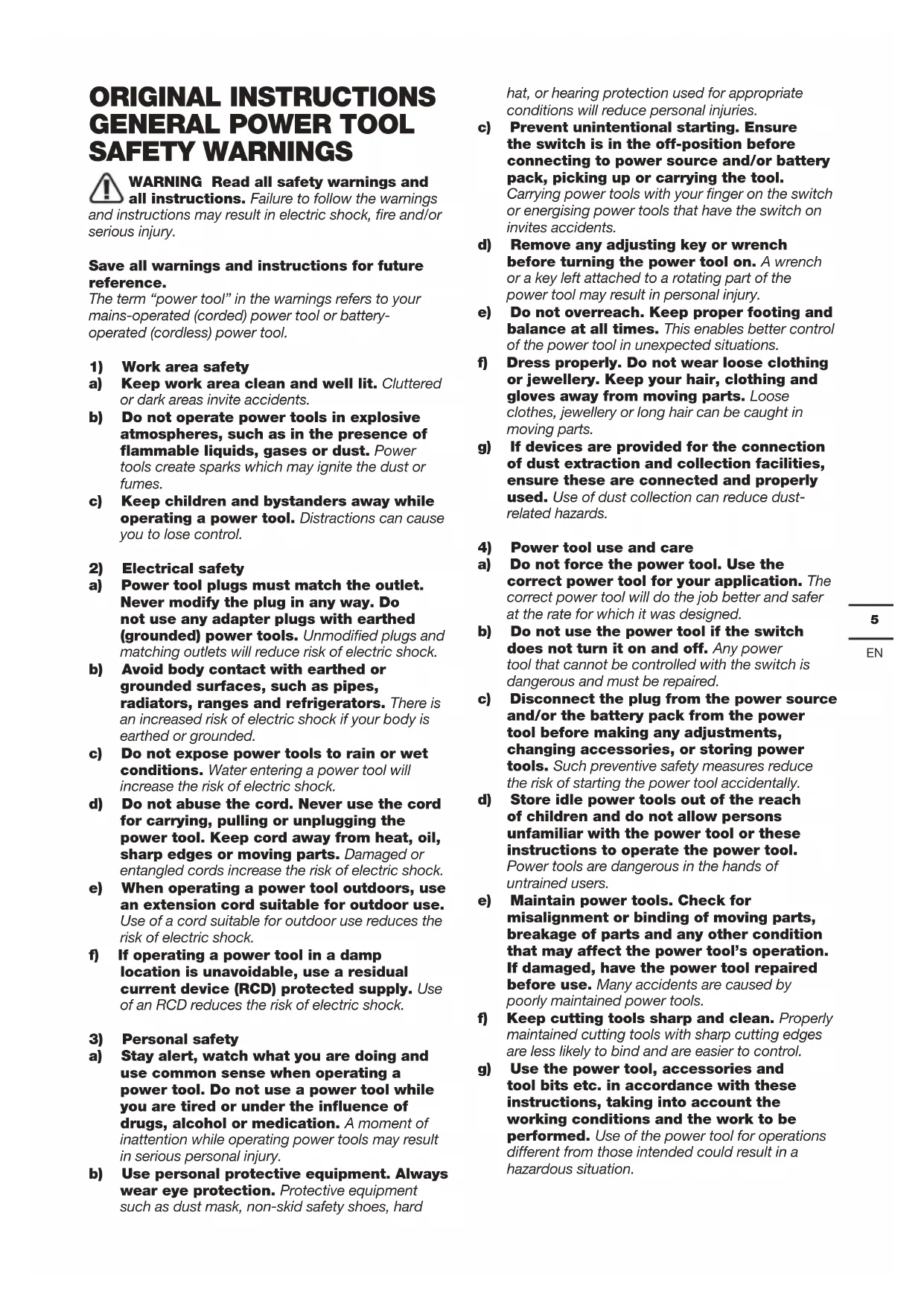

SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.6

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. HAMMER SAFETY WARNINGS

1. Wear ear protectors. Exposure to noise can

2. Use auxiliary handle(s), if supplied with the

tool. Loss of control can cause personal injury.

3. Hold power tool by insulated gripping

surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Seek medical advice immediately if a cell or battery pack has been swallowed. g) Keep battery pack clean and dry. h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

i) Battery pack needs to be charged before

use. Always refer to this instruction and use the correct charging procedure. j) Do not maintain battery pack on charge when not in use. k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. l) Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C). m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. n) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. o) Do not use any battery pack which is not designed for use with the equipment. p) Keep battery pack out of the reach of children. q) Retain the original product literature for future reference. r) Remove the battery from the equipment when not in use. s) Dispose of properly. t) Do not mix cells of different manufacture, capacity, size or type within a device. u) Do not remove battery pack from its original packaging until required for use.

v) Observe the plus (+) and minus (–) marks on

the battery and ensure correct use.7

SYMBOLS To reduce the risk of injury, user must read instruction manual Wear ear protection Wear eye protection Wear dust mask Warning Li-Ion Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. COMPONENT LIST

*Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type Designation: KUC60 KUC60.2 KUC60.4 KUC60.91 (C60-designation of machinery, representative of hammer KUC60 KUC60.2 KUC60.4 KUC60.91 Rated voltage 20V No load speed 0-1350/min Impact rate 0-4700bpm Impact energy 2.0J Battery capacity 4.0Ah / Charging time 45min / Max. drilling capacity Steel 13mm Wood 28mm Masonry 22mm Machine weight 2.8kg 3.1kg 2.1kg ACCESSORIES KUC60 KUC60.2 KUC60.4 KUC60.91 Auxiliary handle 1 1 1 Depth gauge 1 1 1 Battery Pack(KAB21) 2 2 /8

Charger(KAC21) 1 1 / We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. NOISE INFORMATION A weighted sound pressure L

3dB(A) Wear ear protection. VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Hammer drilling into concrete Vibration emission value

Uncertainty K K = 1.5 m/s² Chiseling Vibration emission value

Uncertainty K K = 1.5 m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during

actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained Using the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days. OPERATION GUIDELINES NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for hammer drilling and chiseling in concrete, brick. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.

The battery pack charger supplied is matched to the Li-ion battery installed in the machine. Do not use another battery charger. The Li-ion battery pack is protected against deep discharging. When the battery pack is empty, the machine is switched off by means of a protective circuit: The chuck no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery pack to cool down before recharging. When the battery pack is charged for the rst time and after prolonged storage. The battery pack will accept a 100% charge after several charge and discharge cycles. B) TO REMOVE OR INSTALL BATTERY PACK (SEE FIG. A) Depress the battery pack release button to release and slide the battery pack out from your tool. After recharge, slide it back into your tool. A simple push and slight pressure will be sufcient. OPERATION

1. INSERTING AND REMOVING DRILL BIT IN SDS

Take care that the dust protection cap (2) is not damaged when changing tools. — INSERTING Clean and lightly oil the bit before inserting. Insert the dust-free bit into the bit holder with a twisting motion until it latches. The bit locks itself. Check the locking by pulling on the tool. — REMOVING Retract back the bit holder locking sleeve (3) and pull out the bit.9

WARNING! Your new Kress Rotary Hammer Drill generates powerful forces to get your job done quickly and effectively. These forces may cause inferior quality SDS bits to break and jam in the chuck, We therefore recommend that only high quality SDS bits be used with this tool.

2. AUXILIARY HANDLE (SEE FIG. B)

Slide the handle onto the hammer and rotate to the desired working position. To clamp the auxiliary handle rotates the handle clockwise. To loosen the auxiliary handle, rotate the handle counter-clockwise.

Warning: Always use the auxiliary handle.

3. ADJUSTABLE DEPTH GAUGE(SEE FIG. B)

Loosen the depth gauge by rotating the handle counter-clockwise. Slide the depth gauge until the distance between the depth gauge end and the drill bit end is equal to the depth of hole/screw you wish to make. Then clamp the depth gauge by rotating the handle clockwise.

4. ON/OFF SWITCH (SEE FIG. C)

Depress the On/Off switch (5) to start and release it to stop your tool.

— ON/OFF SWITCH WITH VARIABLE SPEED

CONTROL Depress the On/Off switch to start and release it to stop your tool. This tool has a variable speed switch (5) that delivers higher speeds with increased trigger pressure or delivers lower speeds with reduced trigger pressure - speed is controlled by varying the pressure applied to the switch.

5. SWITCH LOCK (SEE FIG. C)

The switch trigger can be locked in the OFF position. This helps to reduce the possibility of accidental starting when not in use. To lock the switch trigger, place the direction of rotation control (6) in the center position.

6. FORWARD AND REVERSE ROTATION CONTROL

(SEE FIG. C) Forward rotation: Push the forward and reverse rotation control to the left “ “, for drilling Reverse rotation: Push the forward and reverse rotation control to the right ” “ , for removing the drill bits.

WARNING: Never change the direction of

rotation while the tool is rotating, wait until it has stopped.

7. FUNCTION MODE SELECTION (SEE FIG. D)

The operation of the gearbox for each application is set with the function selector dial (4). To change between functions, depress the unlocking button (a) and rotate the selector to the desired operating mode. Mode for simultaneous drilling and impacting of concrete, Masonry Mode for or drilling into steel, wood and plastics Mode for or chiseling Mode for adjust the chuck angle of chiseling Note：Select this function mode rst , adjust the chuck angle to desired direction. Then select the function mode to “ ” , operate the chiseling work.

WARNING: The operating mode selector

switch may be actuated only at a standstill.

9. OVERLOAD PROTECTION

When overloaded, the motor comes to a stop. Relieve the load on the machine immediately and allow cooling for approx. 30 seconds at the highest no-load speed.

10. TEMPERATURE DEPENDENT OVERLOAD

PROTECTION When using as intended for, the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 75 °C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

11. PROTECTION AGAINST DEEP DISCHARGING

The Li-ion battery is protected against deep discharging by the “Discharging Protection System”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

YOUR TOOL If your power tool becomes over heated, set the speed to maximum and run no load for 2-3 minutes to cool the motor. SDS-plus tungsten carbide drill bits should always be used for concrete and masonry. When drilling in metal, only use HSS drill bits in good condition. Where possible use a pilot hole before drilling a large diameter hole.10

Your charge time can be affected by many reasons which are not defects in your product. If the battery pack is only partly discharged it may be re-charged in less than 1 hour. If the battery pack and ambient temperature are very cold then re-charging may take 1-1.5 hours. If the battery pack is very hot it will not re- charge because the internal temperature safety cutout will prevent it. If the battery pack is very hot you must remove your battery pack from the charger and allow your battery pack to cool rst to ambient temperature and then recharging can be started. If you charge a second battery pack immediately after the rst then the charger can be overheated. Always allow at least 15 minutes rest between battery pack charging.

2. REASONS FOR DIFFERENT BATTERY PACK

WORKING TIMES Charging time problems, having not used a battery pack for a prolonged time will reduce the battery pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the battery pack energy faster than lighter working conditions. Do not re-charge your battery pack below 0

as this will affect performance. MAINTENANCE Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. DECLARATION OF CONFORMITY We, POSITEC Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany Declare that the product, Description Lithium-Ion Brushless Rotary Hammer Type KUC60 KUC60.2 KUC60.4 KUC60.91 (C60-designation of machinery, representative of hammer) Function Hammering various materials Complies with the following Directives, 2006/42/EC, 2011/65/EU&(EU)2015/863, 2014/30/EU Standards conform to: EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-6 The person authorized to compile the technical le, Name: Marcel Filz Address: POSITEC Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany 2022/06/06 Allen Ding Deputy Chief Engineer,Testing & Certication Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China11
