| Product type | Cordless lawn mower |
| Brand | Parkside |
| Model | PRMHA 20-Li A1 |
| Rated voltage | 20 V (DC) |
| Idle speed | 6000 min⁻¹ |
| Cutting diameter | 220 mm |
| Cutting height | 30 - 50 mm (3 positions) |
| Weight | 5.5 kg |
| Protection class | III (Extra-low voltage) |
| Protection type | IPX1 (protected against water drops) |
| Sound pressure level (LpA) | 73.5 dB(A) (KpA=2.31 dB) |
| Measured sound power level (LWA) | 83.5 dB(A) (KWA=2.31 dB) |
| Guaranteed sound power level | 88 dB(A) |
| Vibrations (total value) | ≤ 2.5 m/s² |
| Power supply | Lithium-ion battery 20 V from the Parkside X 20 V TEAM range (not included) |
| Main functions | Mowing with mulching, 3 cutting heights, safety contact key |
| Mulching capability | Yes (without collection bag) |
| Cutting height adjustment | Mechanical lever, 3 notches (30, 40, 50 mm) |
| Starting | Double safety: lock button + start button, contact key |
| Maintenance and cleaning | Cleaning spatula included, do not spray with water, clean after each use |
| Blade change | Unscrew the blade screw (13 mm wrench), wear gloves, use an identical blade (ref. 13700460) |
| Storage | Parking position (P), dry place, out of reach of children, remove battery for winter storage |
| Warranty | 3 years (France and Belgium), wear parts (blade) excluded |
| Battery compatibility | PAP 20 B1, PAP 20 B3, Smart PAPS 20 A1, Smart PAPS 208 A1 (recommended) |
Frequently Asked Questions - PRMHA 20-Li A1 PARKSIDE
User questions about PRMHA 20-Li A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual PRMHA 20-Li A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PRMHA 20-Li A1 by PARKSIDE.
USER MANUAL PRMHA 20-Li A1 PARKSIDE
Translation of the original instructions
NL BE
Accu-grasmaaier 20 V
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE

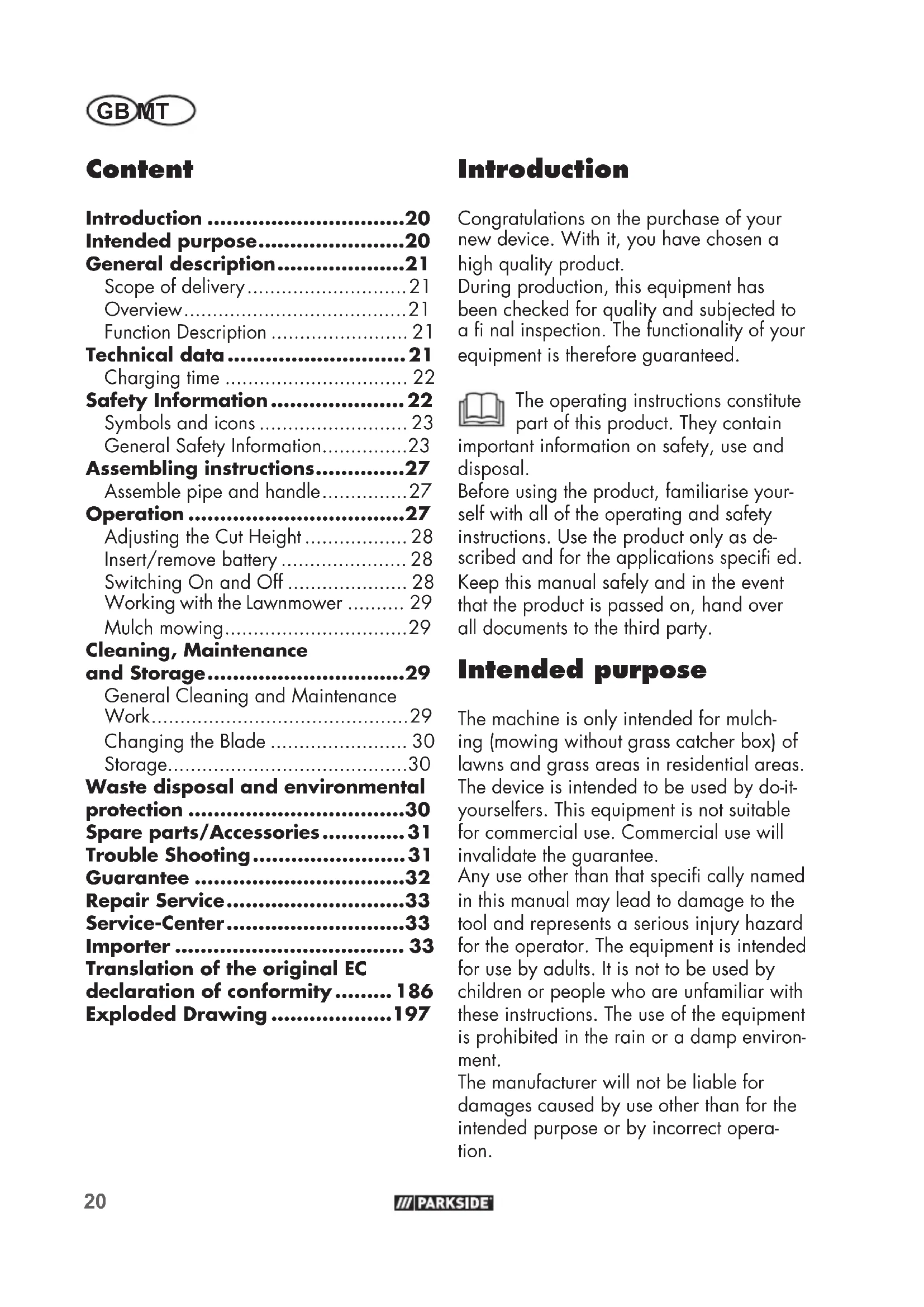

GB / MT Translation of the original instructions Page
Service-Center....19
Importeur 19
Original-
General description......21
Scope of delivery 21
Overview....21
Function Description 21
Technical data....21
Charging time 22
Safety Information......22
Symbols and icons 23
General Safety Information......23
Assembling instructions......27
Assemble pipe and handle......27
Operation 27
Adjusting the Cut Height 28
Insert/remove battery 28
Switching On and Off 28
Working with the Lawnmower 29
Mulch mowing....29
Cleaning, Maintenance and Storage....29
General Cleaning and Maintenance Work....29
Changing the Blade 30
Storage....30
Waste disposal and environmental protection ....30
Spare parts/Accessories......31
Trouble Shooting....31
Guarantee 32
Repair Service....33
Service-Center....33
Importer 33
Translation of the original EC declaration of conformity ...... 186
Exploded Drawing ......197
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Intended purpose
The machine is only intended for mulching (mowing without grass catcher box) of lawns and grass areas in residential areas. The device is intended to be used by do-it-yourselfers. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.
Any use other than that specifically named in this manual may lead to damage to the tool and represents a serious injury hazard for the operator. The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment.
The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.
The device is part of the Parkside X 20 V TEAM series and can be operated using Parkside X 20 V TEAM series batteries. The batteries may only be charged using chargers from the Parkside X 20 V TEAM series.
General description
An illustration of the most important functional components can be found on the fold-out page.
Scope of delivery
Carefully remove the tool from the packaging and check that the following parts are complete:
- Device
- Ignition key
- Cleaning spatula
- Instruction manual
The rechargeable battery and charger are not included in delivery!
Dispose of the packaging material properly.
Overview
1 Handle
2 Start button
3 Coupling nut
4 Pipe
5 Fork
6 Cover
7 Lever for height adjustment
8 Housing
9 Device cable
10 Release button
11 Ignition key
12 Release button
13 Rechargeable battery
14 Cleaning spatula
B 15 Blade
B 16 Blade bolt
Function Description
The agile cordless lawnmower has a rotating cutting tool parallel to the cutting plane. The machine can be adjusted to 3 heights. Please refer to the following descriptions for the function of the controls.
Technical data
Cordless Lawn
Mower 20V......PRMHA 20-Li A1
Rated voltage U 20 V=
Idling speed n....6000 min ^-1
Cutting circle 220 mm
Cut height 30 - 50 mm
Protection class ....III
Protection type....IPX1
Weight 5.5 kg
Sound pressure specifi cation
(L_pA) 73.5 dB(A); K_pA = 2.31 dB
Noise level specifi cation (LWA)
measured.....83.5 dB(A); K_WA=2.31 dB
guaranteed 88 dB(A)
Vibration (q_n) ......≤2.5 m/s²
Temperature......max. 50 °C
Charging process....4-40 °C
Operation....-20 - 50 °C
Storage....0 - 45 °C
The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.
The stated vibration emission value may also be used for a preliminary exposure assessment.
Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.
Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).
Noise and vibration values were determined according to the standards and stipulations mentioned in the declaration of conformity.
Charging time
The device is part of the Parkside X 20 V TEAM series and can be operated with batteries of the Parkside X 20 V TEAM series. Batteries of the Parkside X 20 V TEAM series may only be charged using chargers of the Parkside X 20 V TEAM series.
We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3, Smart PAPS 20 A1, Smart PAPS 208 A1 We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C2, PLG 20 C3, PDSLG 20 A1, Smart PLGS 2012 A1
An up-to-date list of battery compatibility can be found at: www.lidl.de/akku
| Charging time (min) | PAP 20 A1 PAP 20 B1 | PAP 20 A2 | PAP 20 A3 PAP 20 B3 | Smart PAPS 204 A1 | Smart PAPS 208 A1 |
| PLG 20 A1 PLG 20 A4 PLG 20 C1 | 60 90 1 | 20 120 210 | |||
| PLG 20 A2 45 60 | 80 80 165 | ||||
| PLG 20 A3 PLG 20 C3 | 35 45 60 | 50 120 | |||
| PDSLG 20 A1 35 | 45 60 50 120 | ||||
| Smart PLGS 2012 A1 | 35 40 40 | 40 50 |
Safety Information
This section describes the basic safety rules when working with the machine.
In the case of an accident or malfunction during operation, the machine must be switched off immediately.
Injuries must be properly treated or medical assistance sought. Read the "Troubleshooting" section to correct any malfunctions or contact our Service Centre.
Symbols and icons
Symbols on the device:
Attention!
Read the instruction manual carefully.
Danger of electric shock!
Risk of injury due to ejected parts
Keep persons in the vicinity away from the device
Caution – sharp cutting blade! Keep feet and hands away. Risk of injury.
Switch off the motor and disconnect the ignition key before adjustment or repair work or if the power cable is caught or damaged.
Caution! The lawnmower blade continues to run after switching off.
Noise level specification L_WA in dB
Do not dispose of electrical equipment in domestic waste.
Do not work in the rain and do not cut wet grass.
Wear eye protection. ear ear protection.
Cutting diameter
DC
Resting position
Operating position
Resting and operating positions
This machine is part of the Parkside
X 20 V TEAM series.
Symbols used in the instructions:
Hazard symbols with information on prevention of personal injury and property damage.
Precaution symbol with information on prevention of harm / damage.
Wear gloves.
Notice symbol with information on how to handle the device properly.
General Safety Information
IMPORTANT READ THE OPERATING IN- STRUCTIONS CAREFULLY. STORE THE OPERATING INSTRUCTIONS FOR LATER REFERRAL.
GBMT
This device may cause serious injury if used improperly. To avoid personal injury and damage to property, read and comply with the following safety instructions and familiarise yourself with all control elements.
- Read the operating instructions carefully.
- This device must not be used by children. Children must be supervised to ensure that they do not play with the device. Cleaning and maintenance must not be carried out by children.
- This device can be used by individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the resulting hazards.
Preparation:
- Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
- Do not use the equipment when people and particularly children or pets are nearby. Children must not play with the device.
- The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
- Check the terrain on which the equipment is to be used and
remove stones, sticks, wires and other foreign objects that could become caught and thrown up.
- Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Avoid wearing loose clothing or clothing with hanging cords or belts.
- Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets.
- Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.
- Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.
- Worn or damaged information signs must be replaced.
Working with the Equipment:
Do not place feet or hands near or under rotating parts when working. Risk of injury!
- Switch on the motor according to the instructions and only when your feet are at a safe
distance from the cutting tools.
- Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
- Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.
- When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.
- Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.
- Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades.
- Do not tilt the equipment when starting other than if it is necessary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.
- Do not work without the grass box or collision guard. Keep away from the ejection hole at
all times.
- Do not start the motor when standing in front of the discharge chute.
Caution! Danger! The blade continues to run after switching off. There is a risk of injury.
- The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.
- Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.
- Do not leave the equipment un-attended in the workplace.
- Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.
- Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.
- Do not use the equipment near infl ammable liquids or gases.
GBMT
Non-observance will result in a risk of fire or explosion.
- Switch the device off, remove the safety key and take out the battery. Make sure that all movable parts are stationary:
- whenever you leave the apparatus unattended and when it is not being used,
- before removing obstructions or loosening blockages from the discharge chute,
- before checking or cleaning the apparatus or performing any work on it,
- when a foreign object has been hit by the apparatus. Check for damage to the apparatus and carry out the necessary repairs before switching it on again and working with it,
- if the apparatus starts to vibrate excessively, an immediate check is required.
- make sure that all nuts, bolts and screws are properly tightened.
- inspect the apparatus for any damage.
- have any necessary repairs carried out to damaged parts.
- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sickle mowing.
- Always pull the circuit breaker/ignition key if:
- you leave the apparatus unattended, before clearing blockages,
- if you check or clean the apparatus or work on it,
- after a collision with a foreign object. Immediately
examine the device for damage and, if necessary, have it repaired,
- if the apparatus starts to vibrate in an unusual way (check immediately!).
- When starting or turning the motor on, the lawnmower must not be tilted, unless it is required to lift the lawnmower in the process. In this event, tilt it only as far as absolutely necessary and lift it only on the side facing away from the user.
Maintenance and Storage:
- Allow the motor to cool before storing the equipment in a confined space.
- During maintenance of the cutting blades, be aware of the fact that even if the power supply is switched off, the cutting blades can be set into motion.
- Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
- Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.
- Keep the equipment in a dry location and out of reach of children.
- Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the
maintenance instructions.
- Wear protective gloves when changing the cutting device.
- Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.
- Check that only replacement tools authorised by the manufacturer are used.
Electrical Safety:
- The plug of the charger must fit into the socket. The plug must not be modified in any way. Do not use any adapter plugs together with electric tools that have a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
- Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
- Do not expose electric tools to rain or wet conditions. The penetration of water into an electric tool increases the risk of electric shock.
- Do not use any accessories that are not recommended by PARK-SIDE. This can result in electric shock or fire
Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 20 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.
Assembling instructions
Assemble pipe and handle
- Push the pipe (4) onto the fork (5) on the housing (8).
The lug on the pipe must be inserted into the groove on the thread.
Make sure that the machine cable (9) is not squashed. - Screw the coupling nut (3) hand-tight.
- Put the pipe with gripper (1) onto the pipe (4).
The lug on the pipe must be inserted into the groove on the thread.
Make sure that the machine cable (9) is not squashed. - Screw the coupling nut (3) hand-tight.
Operation
The mower must only be set when the motor is switched off and the blades are shut-down. There is a risk of personal injury.
Switch of the device, pull the ignition key (11) and wait for the blades to come to a stop.
Adjusting the Cut Height
There are 5 different cutting heights:
3 - 50 mm - large cutting height 2 - 40 mm - medium cutting height 1 - 30 mm - low cutting height
- Push the cutting height adjustment lever (7) away from the machine.
- Set the desired cutting height.
- Put the cutting height adjustment lever (7) back on the machine.
The correct height is around 25 – 45 mm for a decorative lawn and around 45 – 65 mm for a used lawn.
A higher cut height should be selected for the first cut of the season.
Observe noise control and local regulations.
Insert/remove battery
Switch off the device, pull the ignition key (11) and wait for the blades to come to a stop. There is a risk of personal injury.
- Lift the cover (6) on the machine housing.
- To insert the battery (13) into the device, push the battery along the guide rail into the device. It locks into place audibly.
- To remove the battery (13) from the device, press the release button (12) on the battery and pull the battery out.
Switching On and Off
- Place the mower on a level surface and ensure that the machine does not touch any objects before switching it on.
- Lift the cover (6) on the machine housing.
- Slide the charged battery (13) along the guide rail into the machine. You will hear it click into place.
- Insert the contact key (11) in the corresponding opening provided.
- Turn the contact key (11) C.
- Take the gripper (1) in your hand and fold it towards you to move the fork (5) from the resting position (P) to the operating position.
The positions are displayed on the housing (8) next to the fork (5) - To switch on, press the release button (10) and hold it while pressing the start button (2) towards the gripper (1).
- Let go of the release button (10).
- To switch off, release the start button (2).
After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.
Working with the Lawnmower
Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn. The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.
- Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
- Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.
- On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
- Clean the equipment after each use, as described in the chapter on "Cleaning, Maintenance and Storage".
Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.
Mulch mowing
With mulch mowing, the grass cuttings are not collected in a catcher box, but are shredded and distributed on the lawn. The nutrients contained in the clippings are thus left to be broken down by soil organisms and form a nutrient cycle. Mulched lawns therefore need to be fertilised much less frequently.
As a basic rule, the lawn has to be mowed relatively often so that only small amounts of mulch remain on the lawn.
It is therefore best to mulch the lawn at least once a week and to adjust the mower so that only about 40% of the total height of the lawn is left as mulch.
Cleaning, Maintenance and Storage
Have work that is not de- scribed in these instructions carried out by a customer service centre that we have authorised. Use only original parts.
Wear gloves when handling the blade
Switch off the device, pull the ignition key (11) and wait for the blades to come to a stop. There is a risk of personal injury.
General Cleaning and Maintenance Work
Do not hose down the lawn-mower with water. Electric shock hazard
- Use the cleaning spatula (14) to remove grass residues from the underside of the mower on the blade and around the blade. To do this, carefully lay the machine on its side. It is best to clean the mower directly after use.
The cleaning spatula (14) can be clipped to the mower's pipe
for quick access.
GBMT
- Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
- After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes and blade area. Do not use hard or pointed objects, as these may damage the blade.
- Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
- Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary
B Changing the Blade
If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced
- Remove the ignition key (11) or remove the battery (13) from the device..
- Turn the equipment over.
- Use fi rm gloves and keep hold of the blade (15). Use a spanner (width across flats 13) to turn the blade bolt (16) counter-clockwise from the motor spindle.
- Reinstall the blade in reverse order. Make sure that the blade is positioned correctly and that the blade screw is tightened.
Storage
- Store the mower in resting position (P).
- Keep the equipment dry and out of reach of children.
- Allow the motor to cool before storing
the equipment in a confined space.
- Before a longer period of storage (e.g. over winter), remove the battery from the equipment.
We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.
Waste disposal and environmental protection
Remove the battery from the device and recycle the device, accessories and packaging in an environmentally-friendly manner. Instruction on how to dispose of the rechargeable battery can be found in the separate instruction manual for your battery and charger.
Machines do not belong with domestic waste.
• Take the device to a recycling plant.
- Throw the cut grass on the compost. Do not throw it in the normal household waste.
- In accordance with the EU directive 2012/19/EU on waste electrical and electronic equipment and its implementation in national law, used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.
Alternative to returning the machine: If not sending back the electrical device, its owner is instead obliged to cooperate with its proper recycling in the event of a change in ownership. The old device can be handed over to a collection facility which will dispose
of it in compliance with the national circular economy and waste legislation. This does not affect accessories enclosed with the old devices or tools without any electrical components.
Spare parts/Accessories
Spare parts and accessories can be obtained at www.grizzlytools.shop
If you have issues ordering, please use the contact form.
If you have any other questions, contact the "Service-Center" (see page 33).
Blade 13700460
Trouble Shooting
| Problem Possible Cause Fault Fixing | ||
| Equipment does not start | Battery is empty or not inserted | Check charge level, have repairs carried out by a qualified electrician, if necessary |
| Release button (10) or start button (2) defective | Repair by customer services | |
| Defective motor | ||
| Grass too long | Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar. | |
| Motor stops Blockage by | foreign object Remove the foreign object | |
| Result unsatisfactory or motor labours | Cut height too low Set a higher cut height | |
| Blade (B 14) blunt | Have the blade sharpened or replace it | |
| Blade area blocked Clean the equipment | ||
| Blade (B 14) assembled incorrectly | Install the blade correctly | |
| Blade fails to turn | Blade blocked by grass Remove the grass | |
| Blade screw (B 15) loose Tighten the blade screw | ||
| Strange noises, rattling or vibrations | Blade screw (B 15) loose Tighten the blade screw | |
| Blade (B 14) damaged Replace the blade | ||
Guarantee
Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. blade, blade bolt) or to cover damage to breakable parts (e.g. switches).
This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.
The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue, please follow the following directions:
- Please have the receipt and identification number (IAN 376665_2104) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you,
with the proof of purchase (receipt) and specifi cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB Service Great Britain Tel.: 0800 404 7657
E-Mail: grizzly@lidl.co.uk
IAN 376665_2104
MT Service Malta
Tel.: 80062230
E-Mail: grizzly@lidl.com.mt
IAN 376665_2104
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Service-Center....50
Importateur 50
Importeur 66
Service-Center......82
Importer 82
Dovozce....96
Dovozca....109
Vyhládávaniechýb .....110
Importør 124
Importador 139
Importatore ....154
Simple line drawing of a circular frame enclosing a semi-circular sector with radial lines and labeled points (no text or symbols)Pooblaščeni serviser:
Tel.: 01 888 92 73
E-Mail: grizzly@lidl.si
(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)
Garancijski list
 | Translation of the original EC declaration of conformity |
| We hereby confirm that the Cordless Lawn Mower 20V model PRMHA 20-Li A1 Serial number 000001 - 052000 conforms with the following applicable relevant version of the EU guidelines: | |
| 2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC 2011/65/EU* & (EU) 2015/863 | |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | |
| EN 60335-1:2012/A2:2019 • EN 60335-2-77:2010 • EN 62233:2008 EN 55014-1:2017/A11:2020 • EN IEC 55014-1:2021 EN 55014-2:1997/A2:2008 • EN IEC 55014-2:2021 EN IEC 63000:2018 | |
| We confirm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: guaranteed: 88 dB(A) measured: 83.5 dB(A) Compliance evaluation process carried out in accordance with Appendix VI / 2000/14/EC Registered Office: Notified Body 0036 · TÜV SÜD Industrie Service GmbH · Westendsstrasse 199 · 80686 München · Deutschland | |
| This declaration of conformity is issued under the sole responsibility of the manufacturer: | |
| CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim GERMANY 01.02.2022 |  Christian Frank Documentation Representative |
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

