USER MANUAL CA-510Pro Clean Air Optima

Read these instructions carefully before you start using the Air Purifier and keep the manual for later usage. Clean Air Optima Intelligent Air Purifier CA-510Pro Smart © Copyright: Clean Air Optima

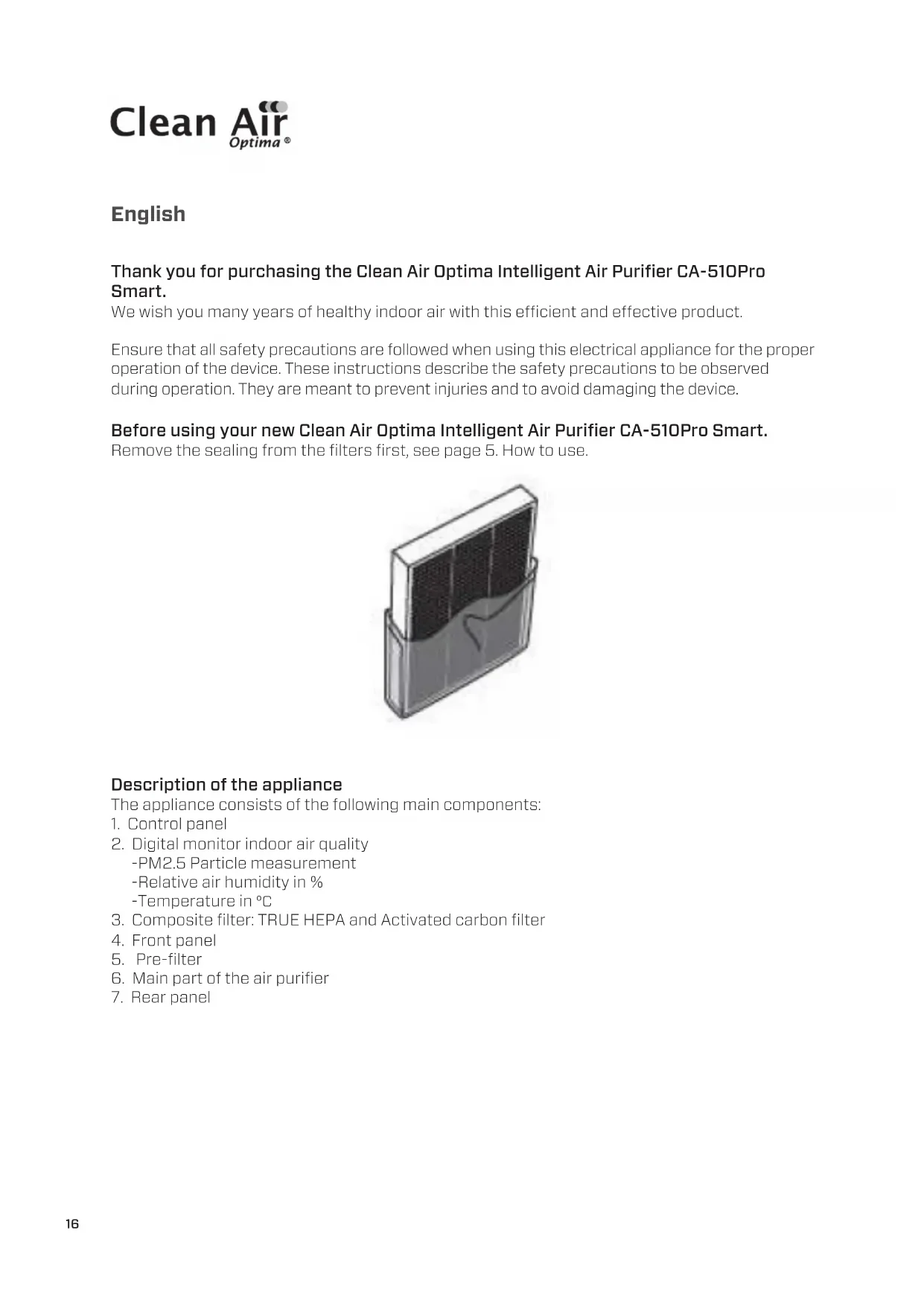

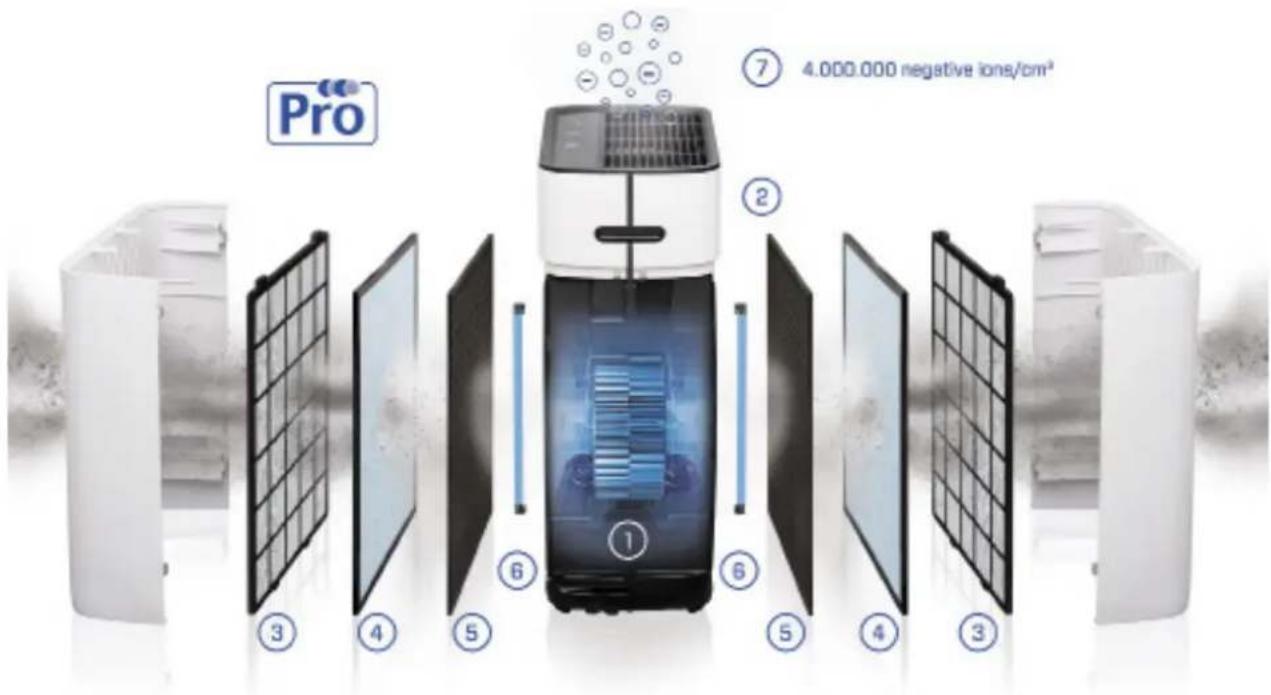

CA-510Pro Smart Parts / Main unit16 English Thank you for purchasing the Clean Air Optima Intelligent Air Purifier CA-510Pro Smart. We wish you many years of healthy indoor air with this ecient and eective product. Ensure that all safety precautions are followed when using this electrical appliance for the proper operation of the device. These instructions describe the safety precautions to be observed during operation. They are meant to prevent injuries and to avoid damaging the device. Before using your new Clean Air Optima Intelligent Air Purifier CA-510Pro Smart. Remove the sealing from the filters first, see page 5. How to use. Description of the appliance The appliance consists of the following main components:

6. Main part of the air purifier

Safety warnings This device may only be used in accordance with this safety instructions. Take the following steps to minimize the risk of personal injury caused by for example electric shocks or fire.

1. Only for indoor use. Do not use or store outdoors.

2. The appliance is not intended to be used by children or persons with reduced physical,

sensory or mental capabilities, unless they are supervised by a person responsible fortheirsafety.

3. Do not use the device when there is visible damage on the electrical cord or on the device

itself. Donot repair the device yourself in case of damage. Never pull the device by its cord. If the power cord is damaged, then it must be replaced by an authorized service person toprevent electric shock or fire.

4. Repairs may only performed by authorized service personal. Do not try to repair the device

yourself to prevent electric shock or fire.

5. Always remove the plug from the cord when the device is not being used.

6. Only use power cords provided.

7. Pull the plug when you do not use the device or when you clean internal or external parts of it.

8. For safety use put the device in a steady, horizontal position. Do not move while using.

9. Do not use the device in rooms where inflammable liquids or gases are stored, close to

heat sources or in particulary humid rooms like the bathroom.

10. Never insert any other object into the body to avoid breakdown.

11. Never cover the air inlet and air outlet grid.

12. Never dissemble or replace the device’s inner parts.

13. When the device is running, do not touch the air inlet and outlet grilles, and do not insert

thehandle or any object into the air outlet to avoid injury or damage to the air purifier.

14. To keep the inlet and outlet air grille of the air purifier unimpeded, do not place objects

above or near the front cover of the air purifier.

15. Do not put heavy objects on the unit.

16. Please avoid places with direct sunlight. There is a risk that the device discolors.

17. Never immerse the unit in water or other liquids.

18. Do not touch the power cord with wet hands.

19. Clean the Pre-filter regularly, if the Pre-filter is saturated with dust, it will lead to poor

purifying eect. The power consumption will increase, it can cause failure.

20. The normal operating environment of the device is 0 °C to 40 °C degrees.

21. Use, maintain and clean the device as described in this manual.18

How to use (Filter installation for the front and the back) The device needs to be positioned at least 30 cm from walls and furniture to obtain a good airflow. Make sure that the air in-and outlets are not blocked.

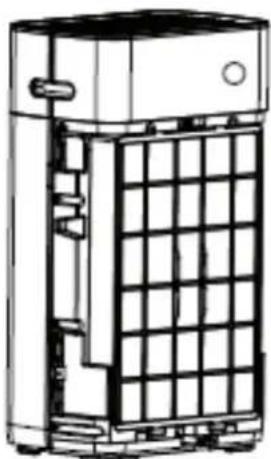

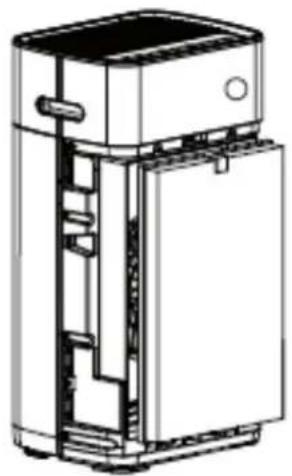

1. Disassemble the panel

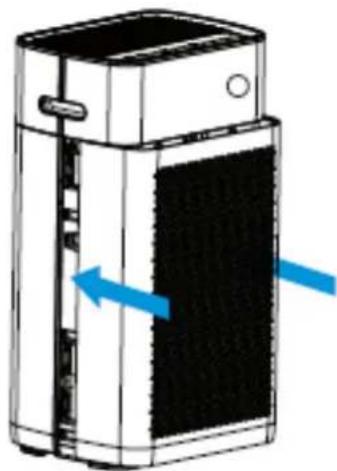

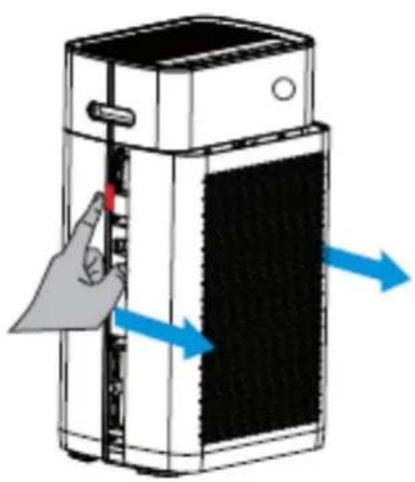

Press on the red indicated icon on the left and right side on the air purifier with both fingers, see figure. Pull the panel towards you like indicated by the blue arrows.

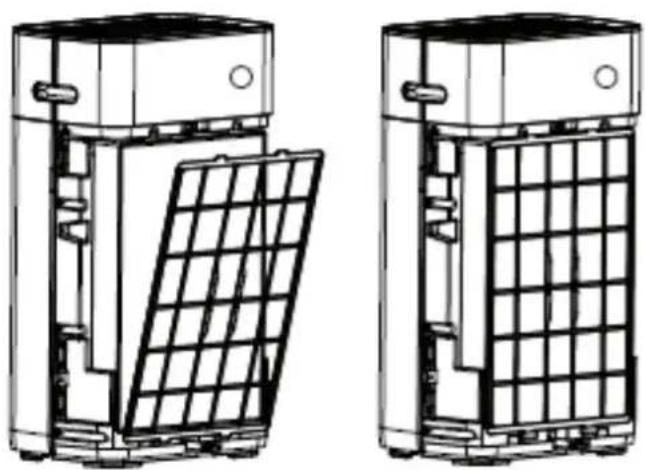

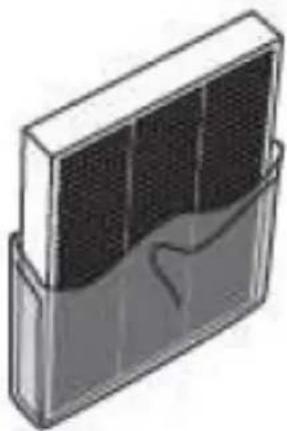

2. Install the composite filter

Remove the sealing from thefilters. Place the filters back into the device. The tap onthebottum and the top must be visible at the front (The HEPA side from the filter is visible).

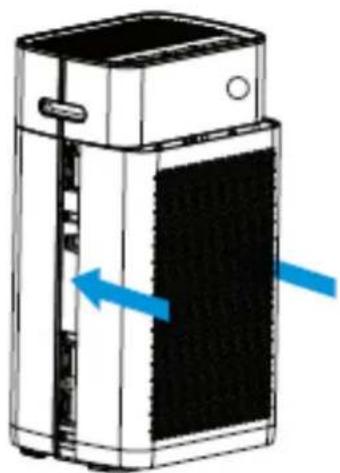

3. Install the Pre-filter

Install the Pre-filter with the black bulge outward. Put its lower part into the bottom slot and push thetop (with the arrows on it) gently into the upper slot.

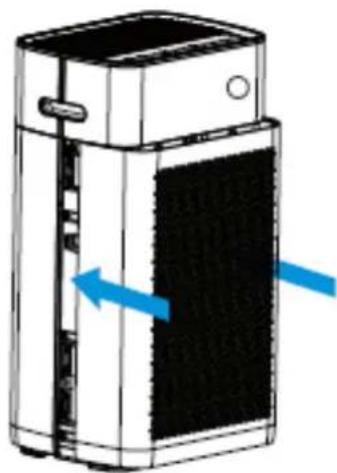

4. Install the panel

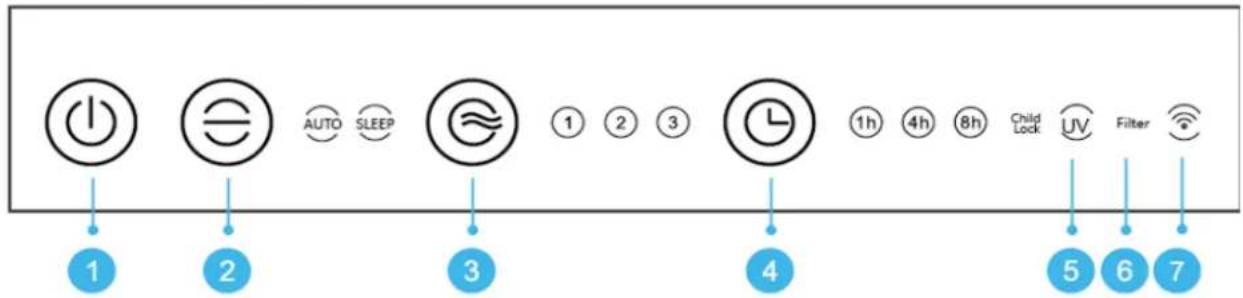

Push the front panel parallel along the upper and lower edges in the direction shown in blue, see figure. When you are hearing a click, thenthe panel is installed.19 Control Panel / Operation Instruction 1 Power Button Pressing the Power button you turn the device on and o. (Default is Auto mode after turning on the device). 2 Mode Pressing the Mode button for Auto and Sleep function. In the setting Auto the integrated smart sensor (Intelligent Particle Sensor™) measures and regulates air quality automatically. The fan, controlled by a sensor anticipates automatically to what extent indoor air is polluted by particles size PM2.5 and adapting to the 3 dierent speeds accordingly. In the setting Sleep the indicator light is bright. The indicator light including the digital display will go o after 5 seconds. Press any key to restart the indicator light and the digital display. The indicator light and digital monitor will goes out again after 5 seconds. (The fan is running inthe lowest speed level). 3 Speed By pressing the Speed button, you can change the speed level. The 3 fan speeds oer individual air flow. (1-2-3 means the wind speed increases). 4 Timer Press on the Timer button to set the timer to “switch of automatically” in a range between 1,4and 8 hours. The number of hours selected can be read on the display of the timer. 5 UV LED lamp The UV lamps should be replaced after 8,000 hours of operation, or if the indicator light (UV) on the display goes out. 6 Filter If the indicator light flashes, the composite filter (HEPA and Activated Carbon Filter) must be replaced. The composite filter has a lifespan of 2.000 hours. 7 WiFi WiFi indicator. 2 + 3 Child Lock Child lock protects from unwanted use of the device. The child lock is switched on / o by pressing simultaneously both Mode and Speed buttons. The indicator light child lock will be bright. 3 + 4 Filter Reset Reset the timer for the composite filter by pressing and holding the button Speed and Timer (for about 3 seconds). If the indicator light goes out, the timer has been successfully reset.20 Digital Monitor The digital monitor on the front side of the air purifier CA-510Pro Smart indicates automatically andexactly current air quality by measuring the level of Particle measurement PM2.5, indoorhumidity and temperature. Green - Good: 0-80ug/m³ Blue - Average: 80-150ug/m³ Red - Bad: 150 ug/m³ or more Particulate matter of 10um (PM10) and smaller 2,5 um (PM2.5) can get into the lungs and belongs to the top 10 threats for human health. These small particles develop through typical indoor processes such as cooking, baking, frying, smoking, as well as heating or are also transported in big quantities into indoor air because of transportation, industry, construction, biological material (pollen, bacteria, mites, and viruses), imported particles from other regains such as (airplane) exhaust gases and volcano eruptions. Allergens such as pollen and dust cause serious and long-term health threats to millions ofpersons each spring: the numbers are increasing constantly. Measurement of relative humidity and temperature Important aspects for eective air purification: relative humidity between 45 - 60% and room temperature of about 20 - 23 °C Power Cord

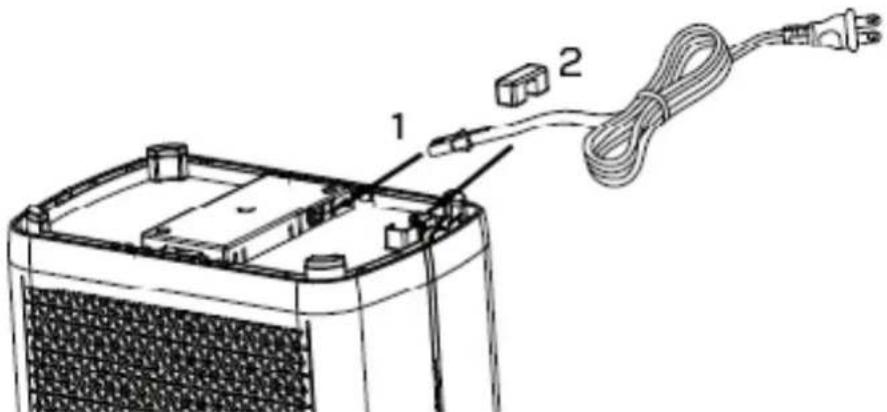

1. Remove the power cord glue from the bottom of the device and insert the end of the power

cord into the socket at the bottom of the device (as shown in figure 1).

2. Put the power line into the wire slot and fix it with the wire pressing adhesive (as shown

Connectivity Compatibility with smartphone and tablet: iPhone, iPad and Android devices Device connets via WiFi with App: CleanAirOptima

About the Clean Air Optima® App Set up WiFi connection

1. Download and install the Clean Air Optima® App in

the App Store or Google Play Store.

2. Make an account and log in.

3. Plug the device into the power socket and switch it on. The WiFi indicator will blink.

4. Make sure that your smartphone or tablet is successfully connected to your WiFi network.

5. Open the Clean Air Optima® App and click on ‘Add device’ . Your device is listed and you

can select it. If not choose ‘Auto Scan’. Follow the on-screen instructions to connect the device to your network.

6. Choose to add the Clean Air Optima® device on the App, follow the instructions in the App.

7. When the device is paired, the WiFi indicator light stays on constantly.

8. After the configuration is successful, you can use the Clean Air Optima® App to operate the

• If your default network has changed, reset the WiFi connection, follow step 3 to 8 in the ‘Set up WiFi connection’ section.

• If you want to pair multiple devices to your smartphone or tablet, you have to do this one after the other.

• Make sure that the distance between your smartphone or tablet and the device is less than 5 meters and there are no obstacles. Also make sure you are in the same room as the device. Reset the WiFi function: - Reset the WiFi by pressing the ‘Mode’ and ‘Timer’ button for 3 seconds, the indicator light of the WiFi will blink rapidly.22 Connect devices to multiple phones Note: First the other person needs to install the Clean Air Optima® App on his/her phone and create a new account. Share the device with limited access: You can choose to share 1 device with several persons. This person will then have access, but will not be able to manage all the settings. Follow the instructions below to share the device with several persons:

1. Go to the relevant device.

2. Go to the pencil or three dots in the top right.

5. Choose the sharing method e.g. via email, whatsapp, sms etc. and continue.

6 The device will automatically appear in the Clean Air Optima® App with the other account. Share device with full access: You can add a person or several persons to your home management. That person will then have access to all your devices that are already linked and has full rights and permissions. You will always remain the main administrator. Follow the instructions below to add someone to your home management:

1. Open the Clean Air Optima® App and go to ‘Me’.

2. Then choose ‘Home Management’.

5. Choose the sharing method e.g. via email, whatsapp, sms etc. and continue.

6 The corresponding ‘Home‘ will automatically appear in the Clean Air Optima® App of the person with whom you have shared your ‘Home‘.

5. On the other account:

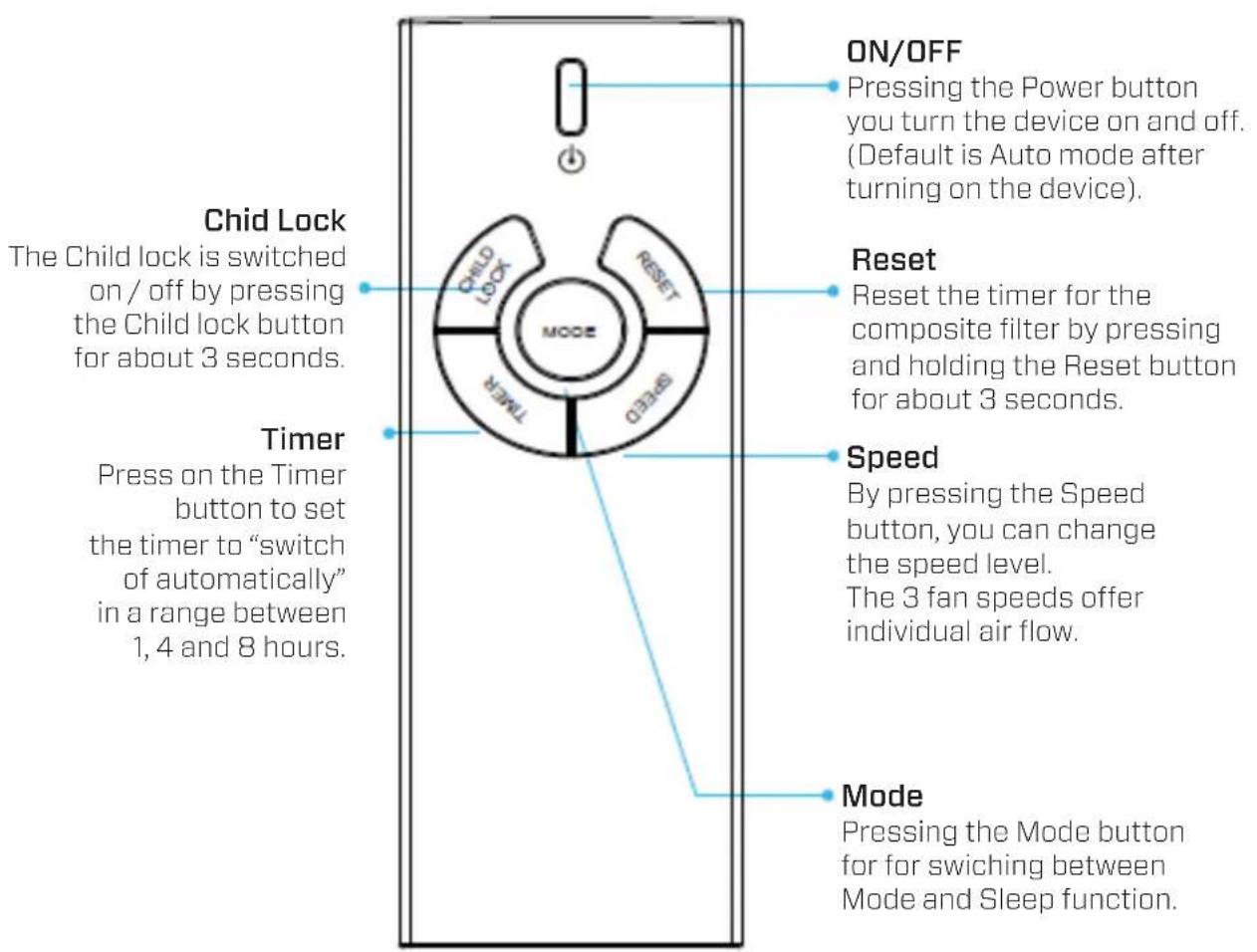

Go to the home screen from the Clean Air Optima® App. Go to the top left and select the ‘Home‘.23 Remote Control ON/OFF Pressing the Power button you turn the device on and o. (Default is Auto mode after turning on the device). Chid Lock The Child lock is switched on/ o by pressing theChildlock button forabout 3 seconds. Reset Reset the timer for the composite filter by pressing and holding the Reset button for about 3 seconds. Speed By pressing theSpeed button, you can change the speed level. The3fan speeds oer individual air flow. Mode Pressing the Mode button forfor swiching between Modeand Sleep function. Timer Press on the Timer button to set thetimer to“switch of automatically” inarangebetween 1,4and 8 hours.24 Battery Replacement

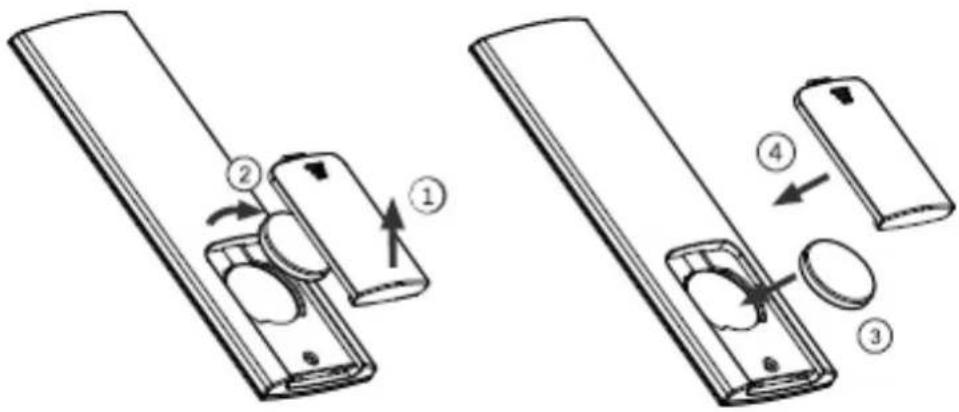

1. Open the remote control battery cover (figure 1)

2. Remove the old battery (figure 2)

3. Replace one button battery (specification CR2032.3V) (figure 3)

4. Close the remote control battery cover (figure 4)

1. If you do not use the remote control for a long time, please take out the battery to prevent

itfrom leaking and damaging the remote control.

2. Operate the remote control within the scope of the air purifier

3. If the remote control does not work properly, please remove the battery and place it back

after 30seconds. If it still doesn’t work properly, replace the battery.25 Maintenance Cleaning the outside of the air purifier

1. Switch o the device and pull the plug.

2. Use a soft and humid piece of cloth to clean the device from dust and dirt.

3. Make sure that no water gets into the device.

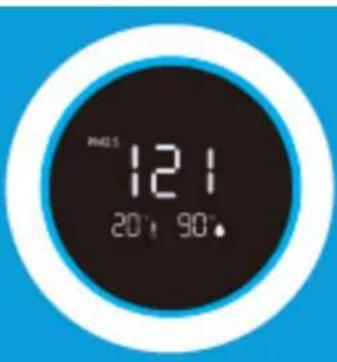

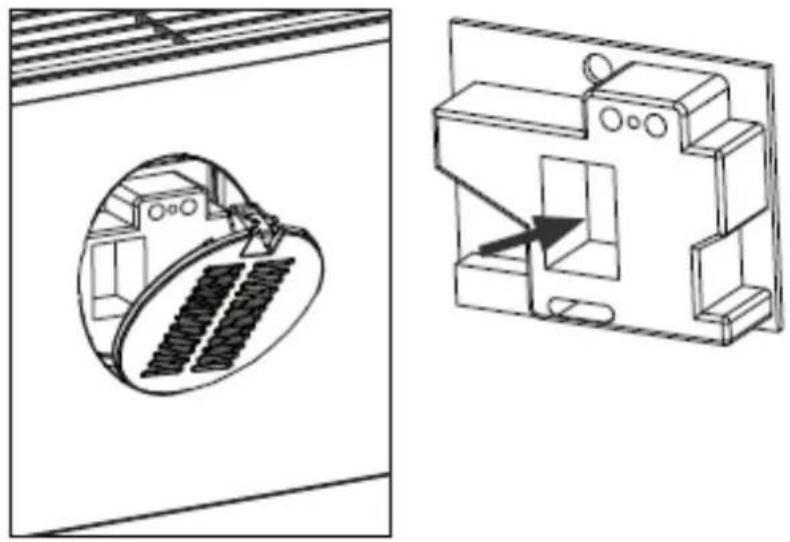

Cleaning of the Intelligent Particle Sensor™ Clean the air quality sensor every 6 to 8 weeks. When the value of PM 2.5 is displayed incorrectly, a cotton swab can be used to clean thesensor lens.

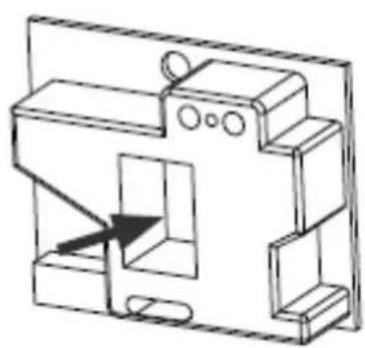

1. Remove the cover of sensor.

2. Clean the sensor lens with a cotton swab and water as indicated by the arrow.

Thendrythelens with a clean cotton swab.

3. Install the cover of sensor.

4. Do not wipe the sensor lens with alcohol or other organic solvent.

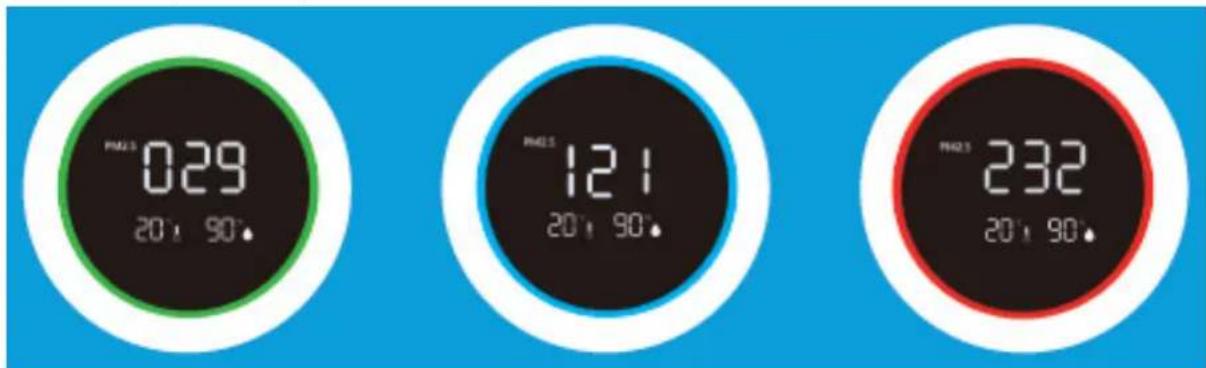

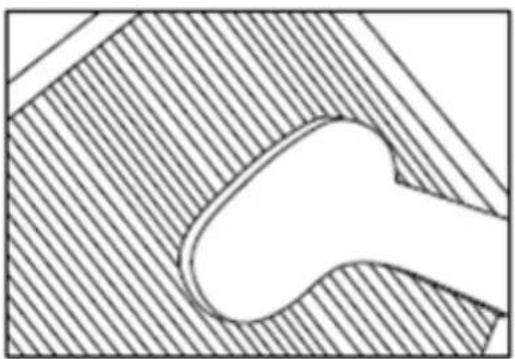

Attention! If the humidity in the room is very high, there is a risk of condensation on the air quality sensor. This may cause the air quality indicator (Digital Display - Particle Measurement) toindicate that the air quality is poor, while this should not be the case. In this case, werecommend that you clean the air quality sensor or do not use the air purifier in automatic mode.26 Replacing of filters The Clean Air Optima Intelligent Air Purifier CA-510Pro Smart is equipped with a filter lifespan surveillance mechanism that signals that the filters have to be replaced after 2.000 working hours. To show that the composite filters (HEPA + Activated Carbon Filter) need to be replaced, the air purifier emits a flashing indicator light. Reset the timer for the composite filter by pressing and holding the button Speed and Timer (for about 3 seconds). If the indicator light goes out, the timer has been successfully reset. Depending on the use, the composite filters (HEPA + Activated Carbon Filter) has a lifespan of approx. 6-8months. Filter cleaning The best eect is reached by cleaning the filters once a month. If indoor air is extremely polluted, more cleaning can be required. Clean the Pre-filter and the HEPA filter with a brush or your vacuum cleaner. That way bigger dust particles like lint, hair and dander of pets can be removed from the filter. Warning! Do never wet or rinse the composite filters (HEPA + Activated Carbon Filter) withwater. Signs for used up filters Increased sound, reduced air flow, congested filters, rising presence of smells. The filter needs to be replaced by a new one when the HEPA filter changes its color from white to grey or black. If the HEPA filter remains white, there is NO need to replace the filter. How to order filters: Contact Clean Air Optima Customer Service tel. + 31 (0) 742670145 or visit our webshop: https://www.cleanairoptima.com/accessoires/mg/44/27 Replacing UV lamps (on the front and rear of the unit) Both UV lamps of the Clean Air Optima CA-510Pro Smart air purifier have a service life of 8,000 operating hours = 1 year of 24/7 operation. The UV lamps should be replaced after 8,000 hours of operation, or if the indicator light (UV) on the display goes out.

1. Switch o the device and pull the plug out of the socket.

2. Press the release buttons with both fingers and remove the front and rear covers.

3. Remove the filters (front and rear).

4. Use a Philips-head screwdriver and remove the screws from the metal guard of both UV

lamps (front and rear).

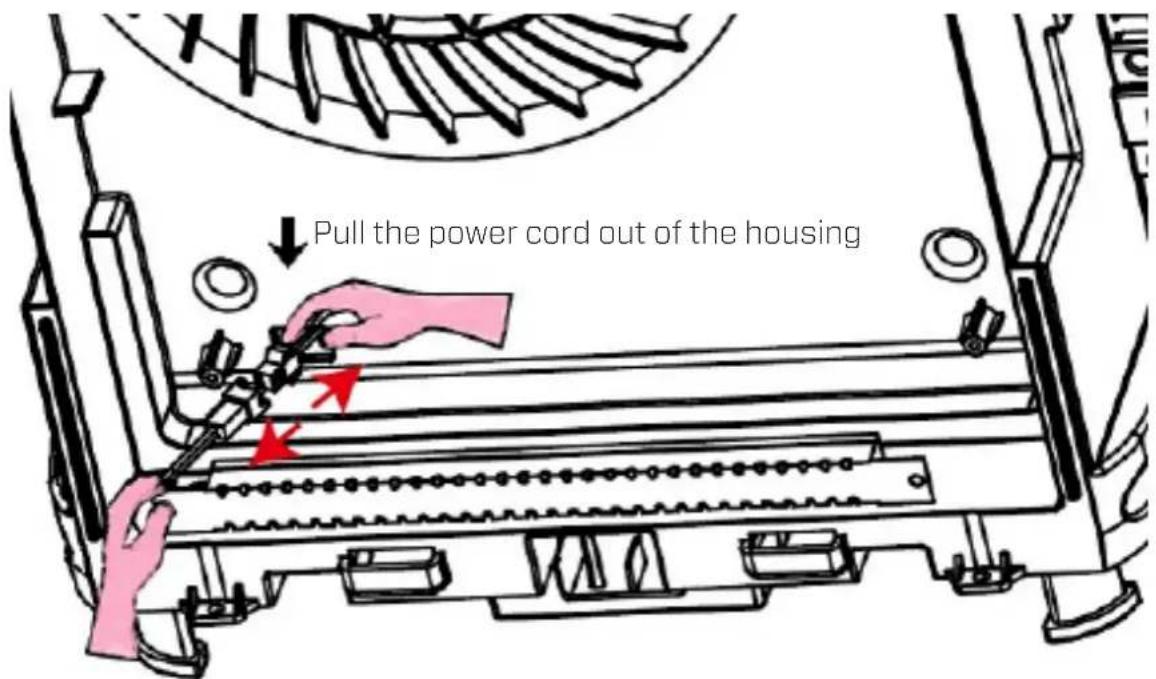

5. Pull the power cord out of the housing towards you until you see the plug connectors.

Unlock the plug connectors, see figure.

6. You can now fit the new UV lamps. After the UV lamps have been fitted, the indicator light

(UV) will light up again. How to order UV lamps: Contact Clean Air Optima customer service on + 31 (0) 742670145 or visit our webshop: https://www.cleanairoptima.com/accessoires/mg/44/ Pull the power cord out of the housing28 Troubleshooting The following is a troubling shooting guide to help you solve any issues that you may have us- ing the Clean Air Optima Intelligent Air Purifier CA-510Pro Smart. Problem Possible Cause Solution Device does not switchon The power cord does not connect correctly The power cord is broken The front or back panel is not installed correctly Connect the power plug andpower socket correctly Replace the power cord Install the panel correctly. See chapter: How to use The air outlet smellsfoul The filter traps too much odor ordust The lifetime of the filters hasexpired Replace the composite filters Replace the composite filters Poor purification eect Check if the humidity intheroomis too dry The device is placed in an unventilated room or surrounded by obstacles Increase the humidity Remove the obstacles No air is blowing out of the device The airinlet or airoutlet isbeing blocked Remove the obstacles The remote control does not work Check if the battery isinstalled Check if the battey is in- stalled correctly Check the capacity of the battery Check the remote control distance exceeds the range Install the battery Install the battery correctly Replace te battery Range is within 5 meters from the front-side of the device WARNING! If the above recommended solutions do not work, please contact Clean Air Optima technical support at the telephone number for your region. Do not attempt to disassemble, reassemble, or repair the device as this may void the warranty.29 Specifications Model CA-510Pro Smart For rooms up to 110m² / 275m³ / 1180ft² Rated voltage 220V - 240V, 50Hz/60Hz Rated power Max. 30W Fan capacity (CADR) 468 m³/h (solid particles) - 100 m³/h (formaldehyde) Filter performance 99,97% Sterilization rate 99.9% Negative ion 2.000.000 ions/cm² Sound level Silent fan < 20dB(A) Low 1 / 35dB(A) Middle 2 / 55dB(A) Turbo 3 Dimensions 560 x 320 x 210mm Weight 7.5kg Colour Living white Complies with EU regulations CE / WEEE / RoHS Ask your retailer or your municipality for updated information regarding the disposal of the packaging and of the device.30 Service Warranty Certificate for the Clean Air Optima Intelligent Air Purifier CA-510Pro Smart. Date of purchase: .................................................................................................................. Customers name: ................................................................................................................. Address: ....................................................................................................................................... Telephone: .................................................................................................................................. Email: ............................................................................................................................................. Seller’s name: .......................................................................................................................... Address: .......................................................................................................................................

1. Please fill in completely this Warranty Certificate. Send it with the invoice and the unit,

postage pre-paid and using the original packing box, to your distributor. Make sure to include the appropriate return postage for the package.

2. Please enclose a short description of the damage, fault or malfunction, and the circum-

, All rights reserved, Made in P.R.C.
