USER MANUAL CA-503T Compact Smart Clean Air Optima

Clean Air Optima Air Purifier CA-503T Compact Smart

(EN) User manual
(DE) Gebrauchsanweisung
(NL) Gebruiksaanwijzing
(FR) Mode d'emploi
(ES) Manual del usuario
(PL) Instrukcja obsługi
(CZ) Uživatelská příručka
(RO) Manual de utilizare
(LT) Naudotojo vadovas
(EE) Kasutusjuhend
(LV) Lietošanas pamācība

Find more languages on: www.cleanairoptima.com/info/manuals

Modern air purifier with digital display and 'Clean Air System' branding (no text-heavy elements)

Read these instructions carefully before you start using the Air Purifier and keep the manual for future reference.

Clean Air Optima®

Table of contents Page

English	3
German	17
Dutch		31
French		45
Spanish		59
Polish		73
Czech		87
Romanian		101
Lithuanian		115
Estonian	129
Latvian	143
Russian	157
Macedonian	171

English

Thank you for purchasing the Clean Air Optima Air Purifier CA-503T Compact Smart.

We wish you many years of healthy indoor air with this efficient and effective product.

Ensure that all safety precautions are followed when using this electrical appliance for the proper operation of the device. These instructions describe the safety precautions to be observed during operation. They are meant to prevent injuries and to avoid damaging the device.

Before using your new Clean Air Optima Air Purifier CA-503T Compact Smart.

Remove the sealing from the filters first, see page 17. How to use.

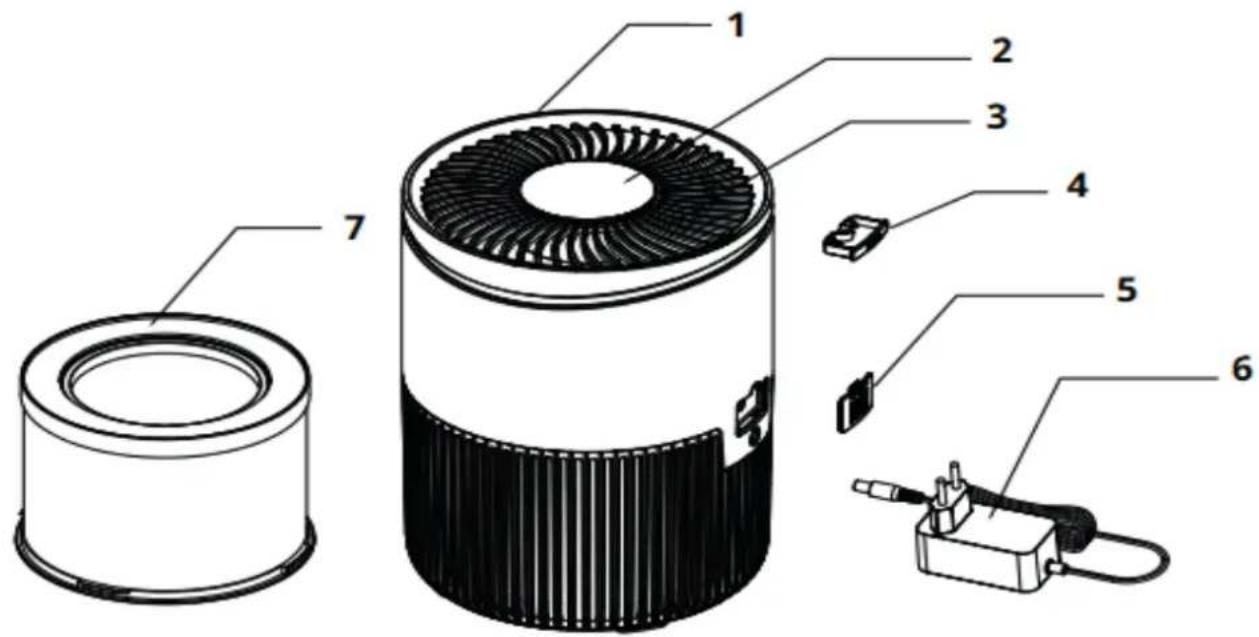

CA-503T Compact Smart / Description of the appliance

Technical diagram of a vacuum fan with labeled parts including a cylindrical housing, fan blade, and electrical connector.

1. Main part of the air purifier
2. Control panel
3. Air Outlet
4. Aroma box
5. Protective plate PM sensor
6. Power adapter
7. True HEPA H13 filter, active carbon filter, photocatalytic filter and pré filter

Clean Air Optima®

Safety warnings

This device may only be used in accordance with this safety instructions. Take the following steps to minimize the risk of personal injury caused by for example electric shocks or fire.

1. Only for indoor use. Do not use or store outdoors.
2. The appliance is not intended to be used by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety.
3. Do not use the device when there is visible damage on the electrical cord or on the device itself. Do not repair the device yourself in case of damage. Never pull the device by its cord. If the power cord is damaged, then it must be replaced by an authorized service person to prevent electric shock or fire.
4. Repairs may only performed by authorized service personal. Do not try to repair the device yourself to prevent electric shock or fire.
5. Always remove the plug from the cord when the device is not being used.
6. Only use power power adapters and cords provided. Check if adapter voltage matches local voltage.
7. Pull the plug when you do not use the device or when you clean internal or external parts of it.
8. For safety use put the device in a steady, horizontal position. Do not move while using.
9. Do not use the device in rooms where inflammable liquids or gases are stored, close to heat sources or in particular humid rooms like the bathroom.
10. Never insert any other object into the body to avoid breakdown.
11. Never cover the air inlet and air outlet grid.
12. Never dissemble or replace the device's inner parts.
13. When the device is running, do not touch the air inlet and outlet grilles, and do not insert the handle or any object into the air outlet to avoid injury or damage to the air purifier.
14. To keep the inlet and outlet air grille of the air purifier unimpeded, do not place objects above or near the front cover of the air purifier.
15. Do not put heavy objects on the unit.
16. Please avoid places with direct sunlight. There is a risk that the device discolors.
17. Never immerse the unit in water or other liquids.
18. Do not touch the power cord with wet hands.
19. Clean the Pre-filter regularly, if the Pre-filter is saturated with dust, it will lead to poor purifying effect. The power consumption will increase, it can cause failure.
20. The normal operating environment of the device is 10 °C to 45 °C degrees.
21. Use, maintain and clean the device as described in this manual.

How to use

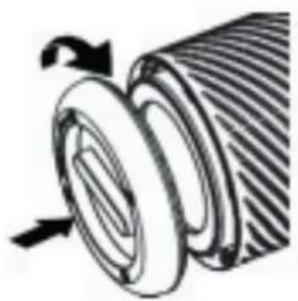

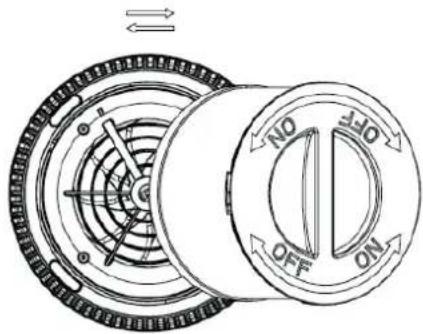

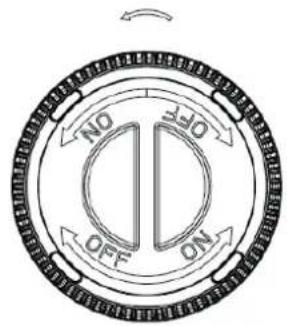

1. Turn open the bottom plate.

2. Remove the HEPA filter.

NO OFF DEF NO

NO OFF ON

1. Remove the packaging from the filter.

2. Place the filter back in the device.

Simple line drawing of a container with scissors above it, no text or symbols present

Mechanical component diagram showing a cylindrical shaft with internal grooves and directional arrows (no text or symbols)

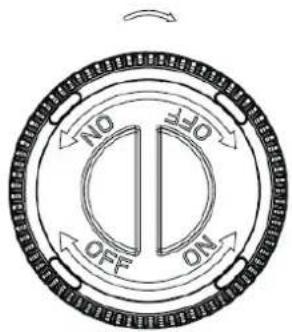

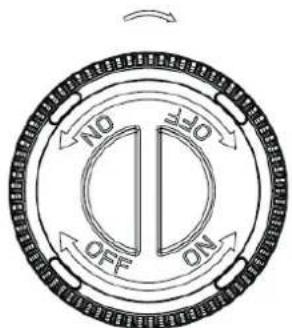

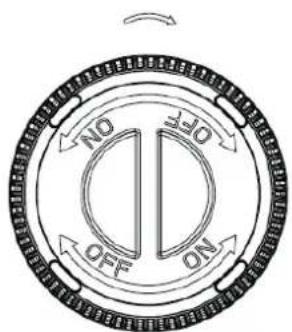

1. Tighten the bottom plate.

NO OFF ON

Do not use the device with the filter removed.

The device needs to be positioned at least 30 cm from walls and furniture to obtain a good air flow. Make sure that the air in-and outlets are not blocked.

Control Panel / Operation Instruction

HEPA 8:00 UV

bwer Button

sing the Power button you turn the device on and off.

ault is Auto mode after turning on the device).

The PM2.5 value "000" flashes at the beginning and 10 seconds later the display shows the actual PM value.

beed mode

By pressing the Speed button, you can change the speed level. There are several fan speeds available. You can choose the auto mode, speed 1, 2 or 3. Touch the fan speed button repeatedly to select the mode.

In the setting Auto ☑ the integrated smart sensor (Intelligent Particle Sensor™) measures and regulates air quality automatically. The fan, controlled by a sensor anticipates automatically to what extent indoor air is polluted by particles size PM2.5 and adapting to the 3 different speeds accordingly.

V and ION

After pressing once, the ION function is switched on.

After pressing twice, the ION and UV functions are switched on.

After pressing three times, the UV function is switched on.

After pressing four times, the UV and ION functions are switched off.

UV sterilization technology is accepted for more than fifty years and it has been proven that it can considerably reduce the number of bacteria and polluting substances in the air safely.

imer

Pressing the Timer Button sets the timer. The timer function determines how many Hours the air purifier will operate. You can set the timer simply by pressing it once for each hour that you would like to run the device.

The timer can be set from 1 hour to 12 hours. As time passes, the time value decreases until it goes to 00:00 and the device shuts off.

To turn off the timer function, press and hold the Timer Button for 3 seconds.

leep

When the sleep mode is activated, the display will turn off. Only the sleep mode light is on. The fan speed goes to the lowest setting. Touch any button to illuminate the display, after which you can operate other functions. Touch the sleep button twice for full operation.

filter replacement

If the indicator light is on, the composite filter (HEPA and Activated Carbon Filter) must be replaced. The composite filter has a lifespan of 1700 hours. Press the filter change button after the filter is replaced. The filter change timer will be reset in this way.

The display will light up for 1 second and the device will then go into stand-by mode. Pressing the Power button turns the device back on.

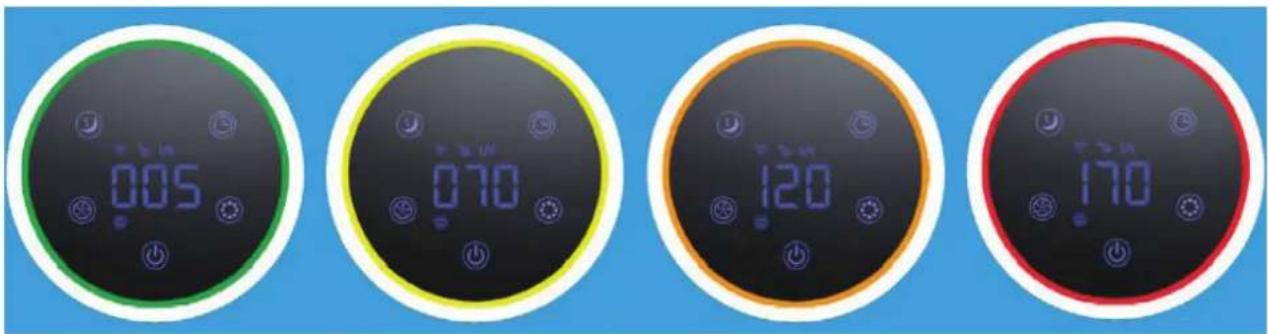

Digital Monitor

The digital monitor on the top of the air purifier CA-503T Compact Smart indicates automatically and exactly current air quality by measuring the level of Particle measurement PM2.5.

005 070 120 170

Green - Good: 0-50ug/m³

Yellow - Average: 51-100ug/m³

Orange - Bad: 101-150ug/m³

Red - Very bad: 150 ug/m³ or more

Particulate matter of 10um (PM10) and smaller 2,5 um (PM2.5) can get into the lungs and belongs to the top 10 threats for human health. These small particles develop through typical indoor processes such as cooking, baking, frying, smoking, as well as heating or are also transported in big quantities into indoor air because of transportation, industry, construction, biological material (pollen, bacteria, mites, and viruses), imported particles from other regains such as (airplane) exhaust gases and volcano eruptions.

Allergens such as pollen and dust cause serious and long-term health threats to millions of persons each spring: the numbers are increasing constantly.

Measurement of relative humidity and temperature

Important aspects for effective air purification: relative humidity between 45 - 60% and room temperature of about 20 - 23 °C.

Operation with Clean Air Optima® App

Connectivity

Compatibility with smartphone and tablet:

iPhone, iPad and Android devices

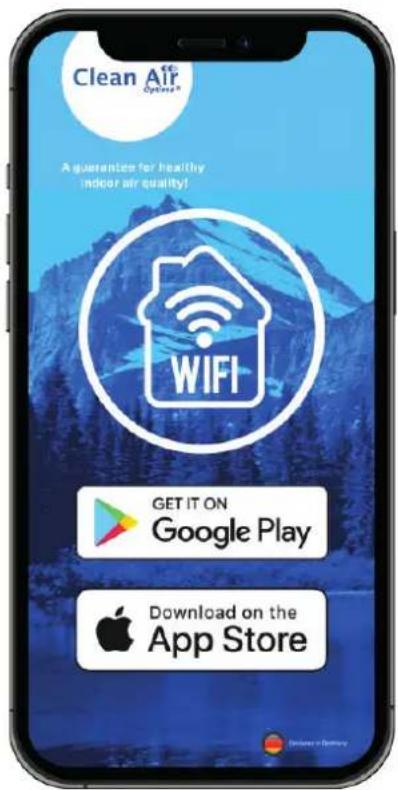

Device connets via WiFi with App:

CleanAirOptima

Attention: The router must be set to the 2.4 GHz broadband. If the router is set to the 5.0 GHz, it is impossible to establish a connection.

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Set up WiFi connection

1. Download and install the Clean Air Optima® App in the App Store or Google Play Store.
2. Make an account and log in.
3. Plug the device into the power socket and switch it on. The WiFi indicator will blink.
4. The router must be set to the 2.4 GHz broadband. If the router is set to the 5.0 GHz, no connection can be established.
5. Make sure Bluetooth is enabled on your smartphone.
6. Make sure that your smartphone or tablet is successfully connected to your WiFi network.
7. Open the Clean Air Optima® App and click on 'Add device' + . Your device is listed and you can select it. If not choose 'Auto Scan'. Follow the on-screen instructions to connect the device to your network.
8. Choose to add the Clean Air Optima® device on the App, follow the instructions in the App.
9. When the device is paired, the WiFi indicator light stays on constantly.
10. After the configuration is successful, you can use the Clean Air Optima® App to operate the device.

Note:

• If your default network has changed, reset the WiFi connection, follow step 3 to 8 in the 'Set up WiFi connection' section.
• If you want to pair multiple devices to your smartphone or tablet, you have to do this one after the other.
• Make sure that the distance between your smartphone or tablet and the device is less than 5 meters and there are no obstacles. Also make sure you are in the same room as the device.

Reset the WiFi function:

- Reset the WiFi by pressing the 'Power' button for 10 seconds, the indicator light of the WiFi will blink rapidly.

Connect devices to multiple phones

Note: First the other person needs to install the Clean Air Optima® App on his/her phone and create a new account.

Share the device with limited access:

You can choose to share 1 device with several persons.

This person will then have access, but will not be able to manage all the settings.

Follow the instructions below to share the device with several persons:

1. Go to the relevant device.
2. Go to the pencil or three dots in the top right.
3. Select 'Share device.'
4. Choose 'Add sharing'.
5. Choose the sharing method e.g. via email, whatsapp, sms etc. and continue.
6. The device will automatically appear in the Clean Air Optima® App with the other account.

Share device with full access:

You can add a person or several persons to your home management.

That person will then have access to all your devices that are already linked and has full rights and permissions. You will always remain the main administrator.

Follow the instructions below to add someone to your home management:

1. Open the Clean Air Optima® App and go to 'Me'.
2. Then choose 'Home Management'.
3. Choose 'Create a home'.
4. Select the relevant 'Home' and 'Add member'.
5. Choose the sharing method e.g. via email, whatsapp, sms etc. and continue.
6. The corresponding 'Home' will automatically appear in the Clean Air Optima® App of the person with whom you have shared your 'Home'.
7. On the other account:
   Go to the home screen from the Clean Air Optima® App. Go to the top left and select the 'Home'.

Clean Air Optima®

Maintenance

Cleaning the outside of the air purifier

1. Switch off the device and pull the plug.
2. Use a soft and humid piece of cloth to clean the device from dust and dirt.
3. Make sure that no water gets into the device.

Cleaning of the Intelligent Particle Sensor™

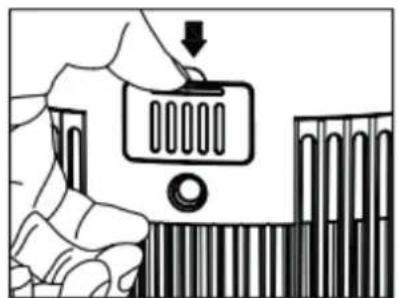

Clean the air quality sensor every 6 to 8 weeks.

When the value of PM 2.5 is displayed incorrectly, a cotton swab can be used to clean the sensor lens.

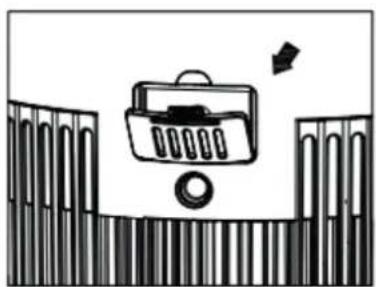

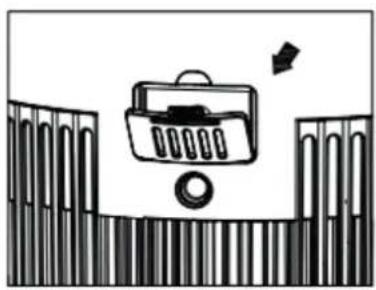

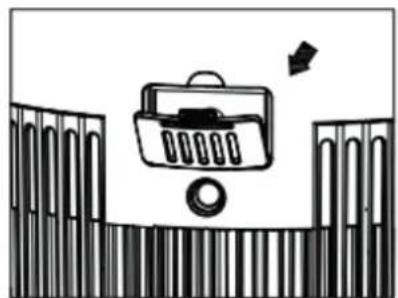

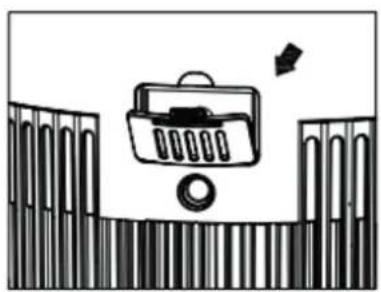

1. Remove the cover of sensor.

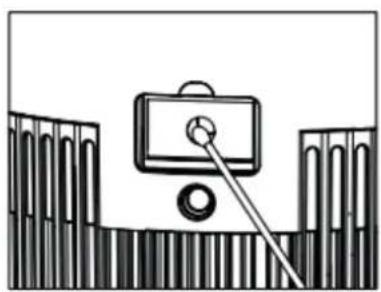

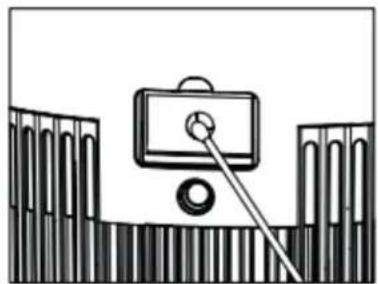

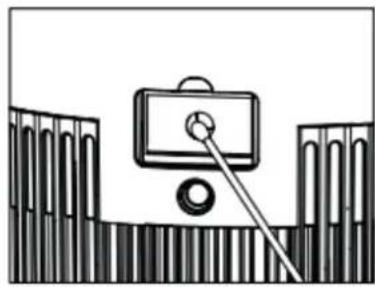

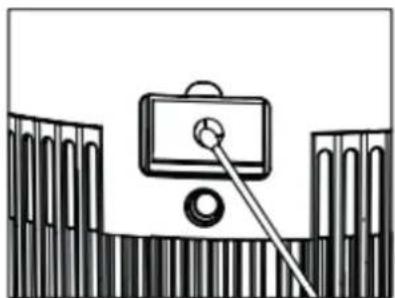

2. Clean the sensor lens with a cotton swab and water as indicated by the arrow. Then dry the lens with a clean cotton swab.
3. Install the cover of sensor.
4. Do not wipe the sensor lens with alcohol or other organic solvent.

Attention! If the humidity in the room is very high, there is a risk of condensation on the air quality sensor. This may cause the air quality indicator (Digital Display - Particle Measurement) to indicate that the air quality is poor, while this should not be the case. In this case, we recommend that you clean the air quality sensor or do not use the air purifier in automatic mode.

Illustration of a hand holding a barcode scanner with a downward arrow, next to a stack of books (no text or symbols visible)

Illustration of a wallet with a coin and arrow, placed over a patterned barbed (no text or symbols)

Illustration of a camera mounted on a screen with a string, surrounded by vertical bars (no text or symbols)

Replacing of filters

The Clean Air Optima Air Purifier CA-503T Compact Smart is equipped with a filter lifespan surveillance mechanism that signals that the filters have to be replaced after 1700 working hours. To show that the composite filters (HEPA + Activated Carbon Filter) need to be replaced, the indicator light will light up. Press the filter change button after the filter is replaced. The filter change timer will be reset in this way.

The display will light up for 1 second and the device will then go into stand-by mode. Pressing the Power button turns the device back on.

Depending on the use, the composite filters (HEPA + Activated Carbon Filter) has a lifespan of approx. 4-5 months.

Filter cleaning

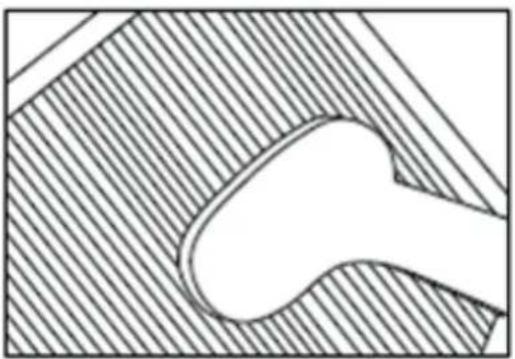

The best effect is reached by cleaning the filters once a month. If indoor air is extremely polluted, more cleaning can be required.

Pure technical diagram of a mechanical component with hatched background and no visible text or symbols

Clean the Pre-filter and the HEPA filter with a brush or your vacuum cleaner. That way bigger dust particles like lint, hair and dander of pets can be removed from the filter.

Warning! Do never wet or rinse the composite filters (HEPA + Activated Carbon Filter) with water.

Signs for used up filters

Increased sound, reduced air flow, congested filters, rising presence of smells. The filter needs to be replaced by a new one when the HEPA filter changes its color from white to grey or black. If the HEPA filter remains white, there is NO need to replace the filter.

How to order filters:

Contact Clean Air Optima Customer Service tel. + 31 (0) 742670145 or visit our webshop: https://www.cleanairoptima.com/accessoires/mg/44/

Clean Air Optima®

Aromatherapy

Activating the aroma function:

• Pull the aroma box out of the top part (top ring).
• Pour 5-10 drops of Clean Air Optima® essential oil onto the sponge.
• Put the aroma tray back into the bracket.
• When you turn on your air purifier, the aroma function will be activated.
• If you want to deactivate the aroma function, or should the device not be in use for extended periods of time, remove the aroma sponge from the compartment and wash it with a little of mild soap water. Let it dry completely before placing it back in the aroma compartment. Basically the aroma sponge is reusable.

Close-up of a hand holding a small fan blade next to a black fan blade (no visible text or symbols)

Important

In order to reach the best results and to enjoy your air purifier as much as possible, we advise to read carefully the following instructions regarding the use of essential oils in the air purifier CA-503T Compact Smart.

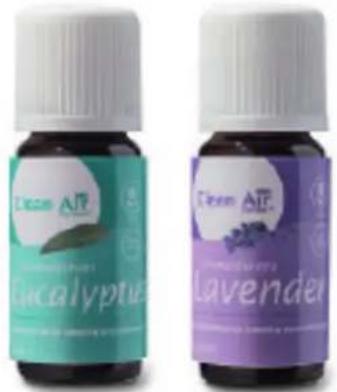

Use of essential oils in the CA-503T Compact Smart

Use our high quality essential oils and enjoy your personal aromatherapy! A scent sensation at its highest level!

You can find high quality essential oils with many different scents in our assortment. They perfectly fit to the air purifier CA-503T Compact Smart and have been specially developed for the use with this air purifier:

You can order the Essential Oils in our online store at www.cleanairoptima.com.

Lecalyptus Coca ATR Lavender

Warning!

The use of other essential oils not made for this air purifier or other additives (for example: fragrances and water purification products) can damage the air purifier and must NOT be used!

Devices that are damaged through additives are excluded from the guarantee.

Troubleshooting

The following is a troubling shooting guide to help you solve any issues that you may have using the Clean Air Optima Air Purifier CA-503T Compact Smart.

Problem Possible Cause Solution
Device does not switch on	The power cord does not connect correctly	Connect the power plug and power socket correctly
	The power cord is broken	Replace the power cord
	The front or back panel is not installed correctly	Install the panel correctly. See chapter: How to use
The air outlet smells foul	The filter traps too much odor or dust	Replace the composite filters
	The lifetime of the filters has expired	Replace the composite filters
Poor purification effect	Check if the humidity in the room is too dry	Increase the humidity
	The device is placed in an unventilated room or surrounded by obstacles	Remove the obstacles
No air is blowing out of the device	The airinlet or airoutlet is being blocked	Remove the obstacles

WARNING!

If the above recommended solutions do not work, please contact Clean Air Optima technical support at the telephone number for your region. Do not attempt to disassemble, reassemble, or repair the device as this may void the warranty.

Clean Air Optima®

Specifications

Model CA-503T Compact Smart

For rooms up to 30m²/75m³/322ft²

Adapter rated voltage 220V - 240V, 50Hz/60Hz

Rated power Max. 22W

Fan capacity (CADR) 140 m³/h

Filter performance 99,97%

Sterilization rate 99.9%

Negative ion 3.000.000 ions/cm³

Sound level 10dB(A) Silent Sleepmode/15dB(A) Low 1/25dB(A) Middle 2/50dB(A) High 3

Dimensions 206 x 206 x 274mm

Weight 1.89kg

Colour Black

Complies with EU

regulations CE/WEEE/RoHS

Ask your retailer or your municipality for updated information regarding the disposal of the packaging and of the device.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Service

Warranty Certificate for the Clean Air Optima Air Purifier CA-503T Compact Smart.

Date of purchase: ..... Customers name: ..... Address: ..... Telephone: ..... Email: ..... Seller's name: ..... Address: ....

1. Please fill in completely this Warranty Certificate. Send it with the invoice and the unit, postage pre-paid and using the original packing box, to your distributor. Make sure to include the appropriate return postage for the package.
2. Please enclose a short description of the damage, fault or malfunction, and the circumstances under which these problems arose.

The Clean Air Optima Air Purifier CA-503T Compact Smart is subjected to strict testing procedures before leaving the factory. If within 2 years from the date of purchase the product does not perform according to the specifications, because of factory defects, the purchaser is entitled to free repairs or replacement of parts upon presentation of this warranty (provided that the malfunction or damage to the device and/or parts occurred under normal operating conditions). What is covered: All parts defective in material and workmanship. For how long: two years from purchase date. What we will do: Repair or replace any defective parts. Exclusions: Regular replacement filters.

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.

Thank you for reading!

Share your feedback about the Clean Air Optima Air Purifier CA-503T Compact Smart on: www.cleanairoptima.com

For frequently asked questions about the CA-503T Compact Smart go to: www.cleanairoptima.com and search for the CA-503T Compact Smart.

Download PDF instruction manual on: www.cleanairoptima.com/info/manuals

Watch all Clean Air Optima Product animation video's on: www.youtube.com

Clean Air Optima International B.V. | David Ricardostraat 9-7 / 9-9 | 7559 SH Hengelo (ov) The Netherlands | Phone: +31 (0) 74 - 2670145

Clean Air Optima Germany GmbH | Enschedestraße 14 | 48529 Nordhorn | Germany Phone: [phone]

E-mail: [e-mail] Internet: www.cleanairoptima.com

Deutsch

Technical diagram of a vacuum fan with labeled parts including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors above it, no text or symbols present

Close-up of a mechanical component with threaded ends and a curved arrow indicating direction (no text or symbols)

HEPA 8:00 UV

/Aus

Clean Air Options® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Reset the WiFi function:

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen with a pointer, surrounded by books (no text or symbols)

Abstract geometric diagram with diagonal hatching and a central oval shape (no text or symbols)

Close-up of a fan blade with visible blades and a small object inserted into the air (no text or symbols)

Wichtig

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Service

Garantiezertifikat für Luftreiniger Clean Air Optima CA-503T Compact Smart.

Technical diagram of a vacuum fan with numbered parts for identification

Simple line drawing of a container with scissors placed on top (no text or symbols)

Diagram of a mechanical component with threaded ends and directional arrows (no text or symbols)

Clean Air Open® A guarantee for healthy Indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Reset the WiFi function:

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a patterned bookshelf (no text or symbols)

Filters vervangen

Abstract geometric diagram with diagonal hatching and a central oval shape (no text or symbols)

Close-up of a jet fan blade with mesh blades, partially visible against a wooden background (no text or symbols)

Belangrijk

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Service

Technical diagram of a vacuum fan with numbered parts for identification

Simple line drawing of a container with scissors cutting into it (no text or symbols)

Diagram of a cylindrical mechanical component with internal threading and directional arrows (no text or symbols)

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Configurer la connexion wifi

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a striped notebook (no text or symbols)

Pure technical diagram of a mechanical component with hatched background and no visible text or symbols

Close-up of a fan blade with mesh blades, partially visible against a wooden background (no text or symbols)

Important

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Service après-vente

Technical diagram of a vacuum fan with labeled parts including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors above it, no text or symbols present

1. Apriete la placa inferior.

Diagram of a cylindrical mechanical component with internal threading and directional arrows (no text or symbols)

NO OFF OFF ON

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a mechanical device with a circular component and directional arrow, surrounded by vertical bars (no text or symbols)

Illustration of a smartphone mounted on a screen with a stick, placed over a bookshelf (no text or symbols visible)

Abstract geometric diagram with diagonal hatching and a central oval shape (no text or symbols)

Close-up of a jet fan blade being held by a camera (no visible text or symbols)

Importante

Technical diagram of a portable air conditioner with labeled parts including fan, cooling unit, and electrical connector

Simple line drawing of a container with scissors above it, no text or symbols present

Diagram of a cylindrical mechanical component with internal threading and directional arrows (no text or symbols)

1. Dokreć dolną płytę.

NO OFF ON

Clean Air Optics® A guaranteed for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a striped notebook (no text or symbols)

Wymiana filtrów

Abstract geometric diagram with diagonal hatching and a central oval shape (no text or symbols)

Close-up of a jet engine fan blade with visible blades and internal blades, being handled by a camera (no text or symbols)

Ważne

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Obstuga serwisowa

Technical diagram of a vacuum fan with labeled parts including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors above it, no text or symbols present

Diagram of a cylindrical mechanical component with internal threading and directional arrows (no text or symbols)

HEPA 8:00 UV

ačítko napájení

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a patterned bookshelf (no text or symbols)

Výměna filtrů

Abstract geometric diagram with diagonal hatching and a central oval shape (no text or symbols)

Close-up of a hand holding a small fan blade next to a black fan blade (no visible text or symbols)

Důležité

Technical diagram of a vacuum fan with labeled parts including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors above it (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a striped notebook (no text or symbols)

Pure technical diagram of a mechanical component with hatched background (no text or symbols)

Close-up of a jet engine fan blade with a mounted propeller (no visible text or symbols)

Important

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Service

Technical diagram of a vacuum fan with labeled components including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors above it, no text or symbols present

NO OFF ON

1. Idèkite filtrà atgal i jrenginj.

Diagram of a cylindrical mechanical component with internal threading and directional arrows (no text or symbols)

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen with a pointer, surrounded by vertical bars (no text or symbols)

Filtrų keitimas

Abstract geometric diagram with diagonal hatching and a central oval shape (no text or symbols)

Close-up of a hand holding a small fan blade next to a metallic fan blade (no visible text or symbols)

Svarbu

Technical diagram of a vacuum fan with labeled parts including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors above it, no text or symbols present

Diagram of a mechanical component with threaded ends and directional arrows (no text or symbols)

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Seadistage WiFi-ühendus

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a patterned bookshelf (no text or symbols)

Filtrite vahetamine

Pure technical diagram of a mechanical component with hatched background and no visible text or symbols

Close-up of a jet engine fan blade with visible blades and internal blades, being handled by a camera (no text or symbols)

Oluline

Technical diagram of a portable air conditioner with labeled parts including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors placed on top (no text or symbols)

Diagram of a cylindrical mechanical component with internal threading and directional arrows (no text or symbols)

Clean Air Optics® A guarantee for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

WiFi savienojuma izveide

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a stylized object with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a patterned bookshelf (no text or symbols)

Filtru nomaina

Abstract geometric diagram with diagonal hatching and a central oval shape (no text or symbols)

Close-up of a jet fan blade being held by a camera (no visible text or symbols)

Svarīgi

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a solid black rectangle below (no text or labels)

Apkope

Technical diagram of a vacuum fan with numbered parts for identification

Simple line drawing of a container with scissors above it, no text or symbols present

Diagram of a mechanical component with threaded ends and a curved arrow indicating direction (no text or symbols)

Clean Air Options® A guarantee for healthy interior air quality! WIFI GET IT ON Google Play Download on the App Store

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a briefcase with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a striped notebook (no text or symbols)

Замена фильтров

Pure technical diagram of a mechanical component with hatched background (no text or symbols)

Close-up of a jet engine fan blade with visible blades and internal blades, partially held by a camera (no text or symbols)

Важно!

Divea AFT Eucalyptur Divea AFT Lavender

Technical diagram of a vacuum fan with labeled parts including a cylindrical housing, fan blade, and electrical connector.

Simple line drawing of a container with scissors above it, no text or symbols present

Diagram of a mechanical component with threaded ends and directional arrows (no text or symbols)

Clean Air Optics® A guaranteed for healthy indoor air quality! WIFI GET IT ON Google Play Download on the App Store

Illustration of a hand holding a barcode scanner with a download icon (no text or symbols)

Illustration of a briefcase with a circular base and arrow, placed on a striped surface (no text or symbols)

Illustration of a camera mounted on a screen above a striped notebook (no text or symbols)

Замена на филтри

Pure technical diagram of a mechanical component with hatched background (no text or symbols)

Close-up of a fan blade with visible blades and a small inset image showing a magnified view (no text or symbols)

Важно

A guarantee for healthy indoor air quality!
