USER MANUAL CA-502 Desktop Smart Clean Air Optima

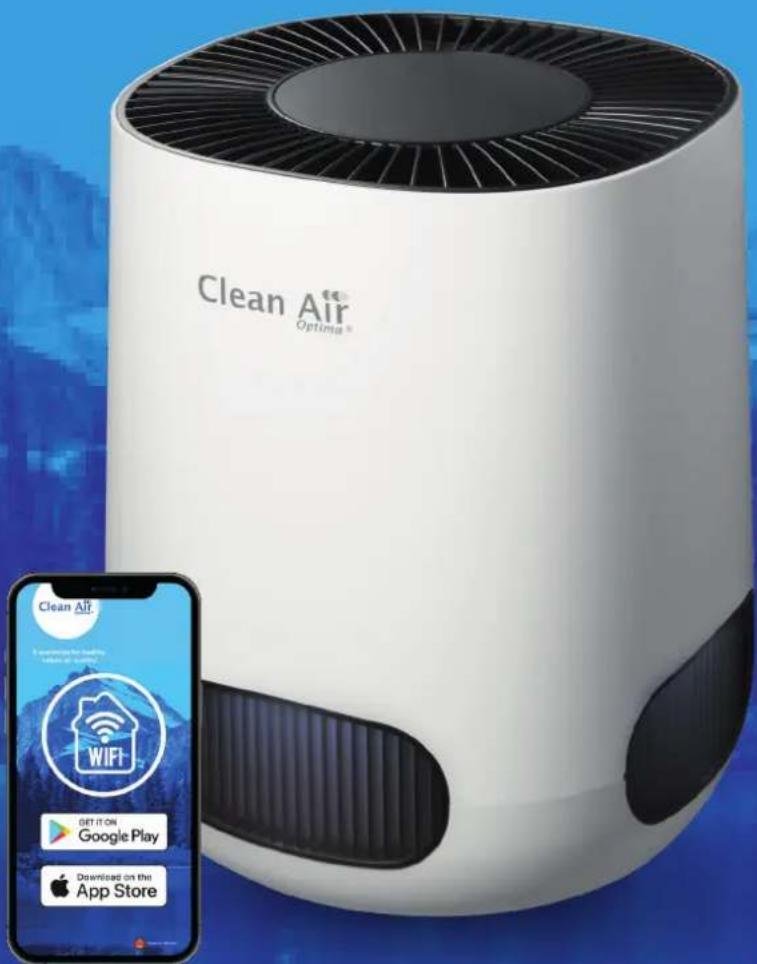

Clean Air Optima Air Purifier CA-502 Desktop Smart

(EN) User manual
(DE) Gebrauchsanweisung
(NL) Gebruiksaanwijzing
(FR) Moded'emploi
(ES) Manual del usuario
(PL) Instrukcja obstugi
(CZ) Uživatelská prífručka
(RO) Manual de utiliser
(LT) Naudotojo vadovas
(EE) Kasutusjuhend
(LV) Lietosanas pamacita

Find more languages on: www.cleanairoptima.com/ info/manuals

(RU)PyKOBoAcCTBO NOIb3OBAteJIa

(MK)Пирачнк 3aКористeьe

Read these instructions carefully before you start using the Air Purifier and keep the manual for future reference

Clean Air Optima

Table of contents

English 3

German 15

Dutch 27

French 39

Spanish 51

Polish 63

Czech 75

Romanian 87

Lithuanian 99

Estonian 111

Latvian 123

English

Thank you for purchasing the Clean Air Optima Air Purifier CA-502 Desktop Smart. We wish you many years of healthy indoor air with this efficient and effective product.

Ensure that all safety precautions are followed when using this electrical appliance for the proper operation of the device. These instructions describe the safety precautions to be observed during operation. They are meant to prevent injuries and to avoid damaging the device.

Before using your new Clean Air Optima Air Purifier CA-502 Desktop Smart. Remove the sealing from the filters first, see page 4. How to use.

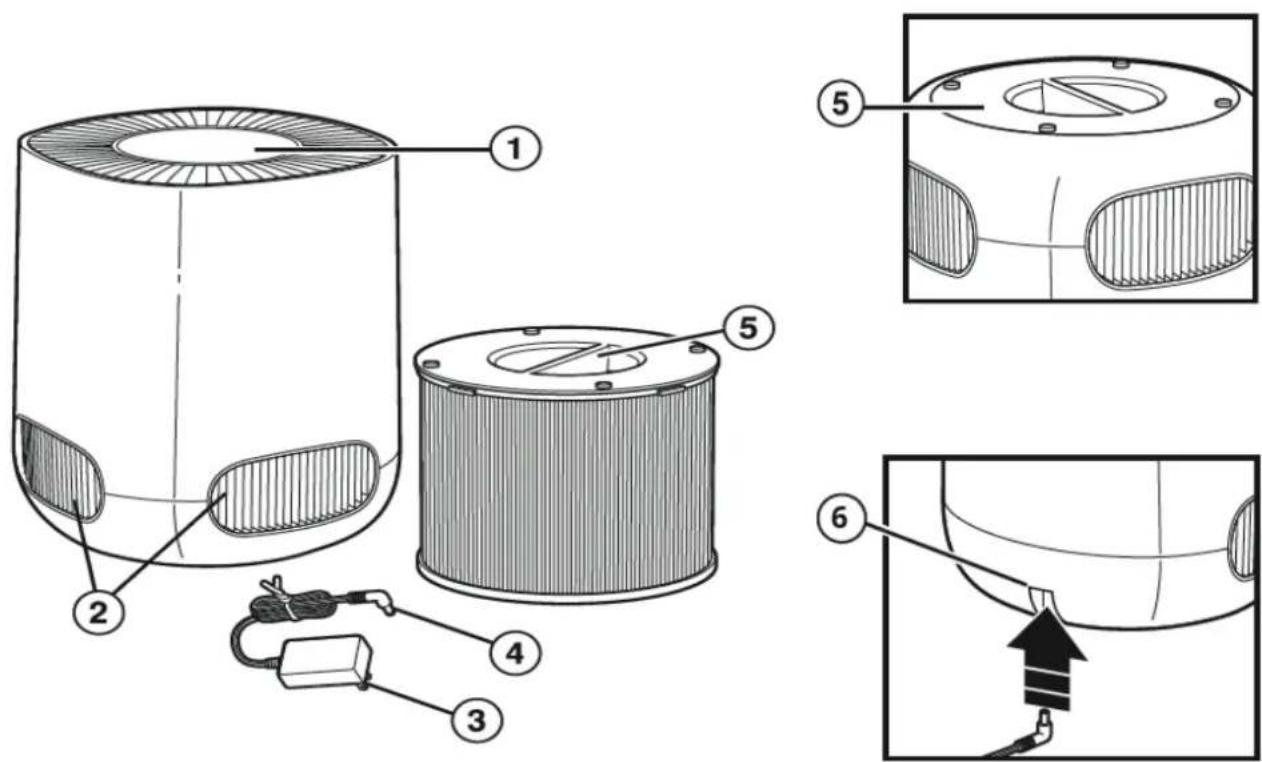

CA-502 Desktop Smart / Description of the device

1. Control panel
2. Lighting (on 3 sides)
3. Power cord
4. Power adapter
5. True HEPA H13 filter and pré filter
6. Adapter opening

Clean Air Optima

Safety warnings

This device may only be used in accordance with this safety instructions. Take the following steps to minimize the risk of personal injury caused by for example electric shocks or fire.

1. Only for indoor use. Do not use or store outdoors.
2. This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
3. Do not use the device when there is visible damage on the electrical cord or on the device itself. Do not repair the device yourself in case of damage. Never pull the device by its cord. If the power cord is damaged, then it must be replaced by an authorized service person to prevent electric shock or fire.
4. Repairs may only be performed by authorized service personal. Do not try to repair the device yourself to prevent electric shock or fire.
5. Always remove the plug from the cord when the device is not being used.
6. Only use power power adapters and cords provided. Check if adapter voltage matches local voltage.
7. Pull the plug when you do not use the device or when you clean internal or external parts of it.
8. For safety use put the device in a steady, horizontal position. Do not move while using.
9. Do not use the device in rooms where inflammable liquids or gases are stored, close to heat sources or in particular humid rooms like the bathroom.
10. Never insert any other object into the body to avoid breakdown.
11. Never cover the air inlet and air outlet grid.
12. Never disassemble or replace the device's inner parts.
13. When the device is running, do not touch the air inlet and outlet grilles, and do not insert the handle or any object into the air outlet to avoid injury or damage to the air purifier.
14. To keep the inlet and outlet air grille of the air purifier unimpeded, do not place objects above or near the front cover of the air purifier.
15. Do not put heavy objects on the unit.
16. Please avoid places with direct sunlight. There is a risk that the device discolors.
17. Never immerse the unit in water or other liquids.
18. Do not touch the power cord with wet hands.
19. Clean the Pre-filter regularly, if the Pre-filter is saturated with dust, it will lead to poor purifying effect. The power consumption will increase, it can cause failure.
20. The normal operating environment of the device is 10^ to 45^ degrees.
21. Use, maintain and clean the device as described in this manual.

How to use

Do not use the device with the filter removed.

Insert the adapter into the adapter opening on the back of the air purifier and plug it into the wall socket. You will hear one beep and the air quality indicator light will go on and then go off.

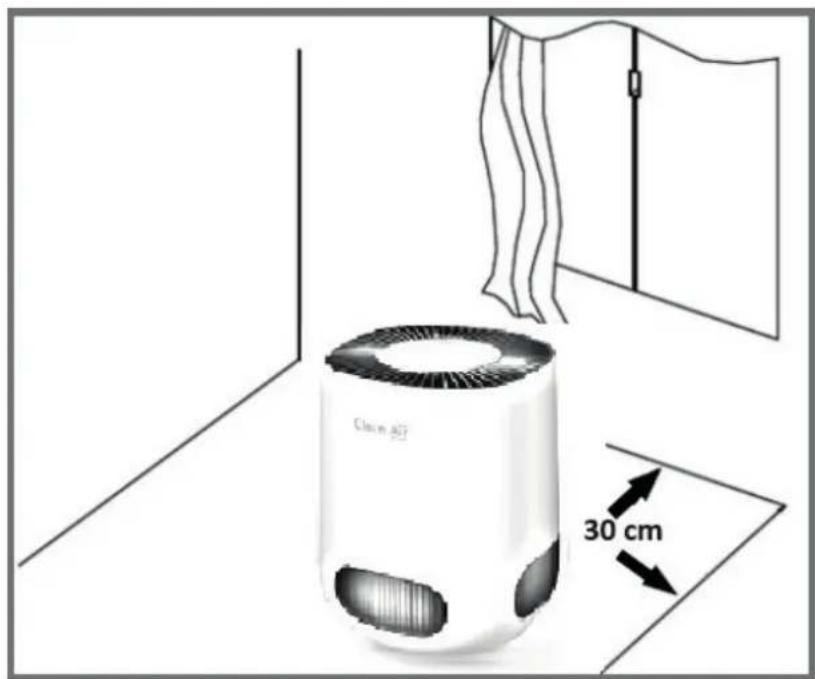

The device needs to be positioned at least 30~cm from walls and furniture to obtain a good air flow. Make sure that the air in-and outlets are not blocked.

Clean Air Optima

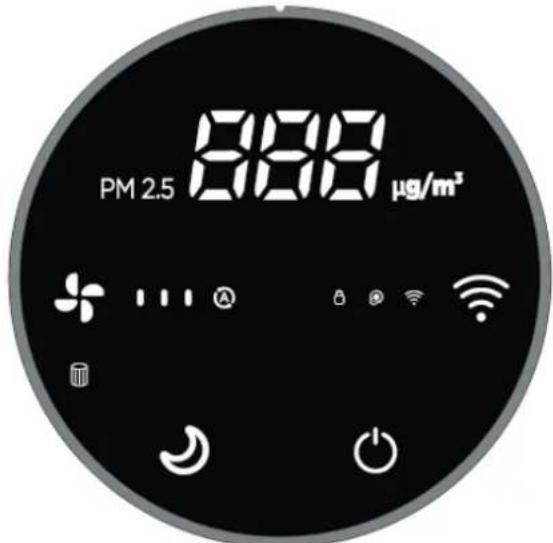

Control Panel / Operation Instruction

Power Button

Using the Power button you turn the device on and off.

ault is Auto mode after turning on the device).

Air Quality Indicator Light on front of Air Purifier will illuminate different colors as PM2.5 sensor evaluates air quality. Once complete, color will reflect current air quality. See chart for air quality levels.

feed mode

essing the Speed button, you can change the speed level. There are several fan

lds available. You can choose the auto mode, speed 1, 2 or 3. Touch the fan speed

button repeatedly to select the mode.

In the setting Auto the integrated smart sensor (Intelligent Particle Sensor™) measures and regulates air quality automatically. The fan, controlled by a sensor anticipates automatically to what extent indoor air is polluted by particles size PM2.5 and adapting to the 3 different speeds accordingly.

The similarity to automatic mode is shown as follows:

If the PM2.5 value is between 0 and 35, the speed indicator light will show a 1.

If the PM2.5 value is between 36 and 55, the speed indicator light will show a 2.

If the PM2.5 value is between 56 and 999, the speed indicator light will show a 3.

leep

When the sleep mode is activated, the display will turn off. Only the sleep mode light is

is on. The fan speed goes to the lowest setting.

Child Locks

d lock protects from unwanted use of the device.

child lock is switched on/off by pressing and holding the sleep button for 3

seconds until a beep sounds.

hion function

The anion function is switched on when the device starts up and switched off once the device is switched off. The anion function can be turned on/ off on the APP.

filter replacement

The Clean Air Optima Air Purifier CA-502 Desktop Smart is equipped with a filter lifespan surveillance mechanism that signals that the filter have to be replaced after 1400 working hours. To show that the True Hepa H13 filter need to be replaced, the indicator

light will light up, and the device emits a double zero indicator light. Reset the timer for the filter by pressing and holding the power button for about 3 seconds. If the indicator light goes out, the timer has been successfully reset.

【IFI】

indicator.

Digital Monitor

The digital monitor on the top of the air purifier CA-502 Desktop Smart indicates automatically and exactly current air quality by measuring the level of Particle measurement PM2.5

Particle measurement (PM 2.5)	Air quality
0-35	Green - Good
36-55	Yellow - Moderate
56-999	Red - Bad

Particulate matter of 10um (PM10) and smaller 2,5 um (PM2.5) can get into the lungs and belongs to the top 10 threats for human health. These small particles develop through typical indoor processes such as cooking, baking, frying, smoking, as well as heating or are also transported in big quantities into indoor air because of transportation, industry, construction, biological material (pollen, bacteria, mites, and viruses), imported particles from other regains such as (airplane) exhaust gases and volcano eruptions.

Allergens such as pollen and dust cause serious and long-term health threats to millions of persons each spring: the numbers are increasing constantly.

Measurement of relative humidity and temperature

Important aspects for effective air purification: relative humidity between 45 - 60% and room temperature of about 20 - 23 °C.

Clean Air Optima

Operation with Clean Air Optima® App

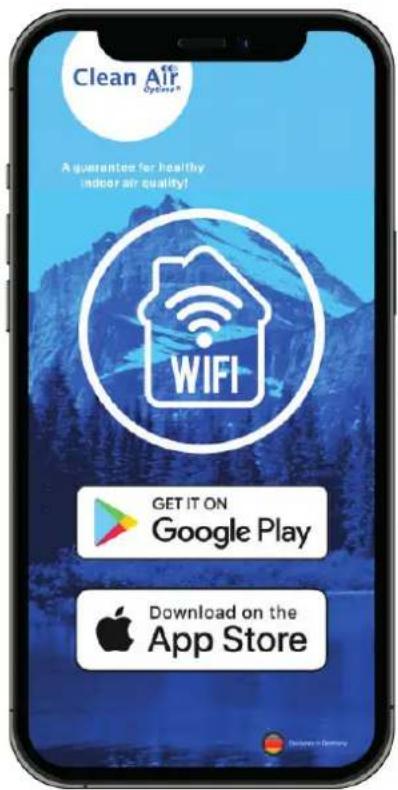

Connectivity

Compatibility with smartphone and tablet:

iPhone, iPad and Android devices

Device connets via WiFi with App:

CleanAirOptima

Attention: The router must be set to the 2.4 GHz broadband. If the router is set to the 5.0 GHz, it is impossible to establish a connection.

SetupWiFiconnection

1. Download and install the Clean Air Optima App in the App Store or Google Play Store.
2. Make an account and log in.
3. Plug the device into the power socket and switch it on. After power on, long press the WIFI button for 3 seconds, the WIFI indicator light will flash quickly. The connection can be started, only when the WIFI indicator light flashes. The red circled light should flash.

1. The router must be set to the 2.4 GHz broadband. If the router is set to the 5.0 GHz, no connection can be established.
2. Make sure Bluetooth is enabled on your smartphone.
3. Make sure that your smartphone or tablet is successfully connected to your WiFi network.
4. Open the Clean Air Optima App and click on 'Add device'. Your device is listed and you can select it. If not choose 'Auto Scan'. Follow the on-screen instructions to connect the device to your network.
5. Choose to add the Clean Air Optima device on the App, follow the instructions in the App.
6. When the device is paired, the WiFi indicator right stays on constantly.
7. After the configuration is successful, you can use the Clean Air Optima® App to operate the device.

Note:

• If your default network has changed, reset the WiFi connection, follow step 3 to 8 in the 'Set up WiFi connection' section.
  If you want to pair multiple devices to your smartphone or tablet, you have to do this one after the other.
• Make sure that the distance between your smartphone or tablet and the device is less than 5 meters and there are no obstacles. Also make sure you are in the same room as the device.

Reset the WiFi function:

• Reset the WiFi by pressing the 'WiFi' button for 3 seconds, the indicator light of the WiFi will blink rapidly.

Connect devices to multiple phones

Note: First the other person needs to install the Clean Air Optima® App on his/her phone and create a new account.

Share the device with limited access:

You can choose to share 1 device with several persons.

This person will then have access, but will not be able to manage all the settings.

Follow the instructions below to share the device with several persons:

1. Go to the relevant device.
2. Go to the pencil or three dots in the top right.
3. Select 'Share device.'
4. Choose 'Add sharing'.
5. Choose the sharing method e.g. via email, Whatsapp, sms etc. and continue.
6. The device will automatically appear in the Clean Air Optima App with the other account.

Share device with full access:

You can add a person or several persons to your home management.

That person will then have access to all your devices that are already linked and has full rights and permissions. You will always remain the main administrator.

Follow the instructions below to add someone to your home management:

1. Open the Clean Air Optima App and go to 'Me'.
2. Then choose 'Home Management'.
3. Choose 'Create a home'
4. Select the relevant 'Home' and 'Add member'.
5. Choose the sharing method e.g. via email, Whatsapp, sms etc. and continue.
6. The corresponding 'Home' will automatically appear in the Clean Air Optima® App of the person with whom you have shared your 'Home'.
7. On the other account:

Go to the home screen from the Clean Air Optima App. Go to the top left and select the 'Home'.

Clean Air Optima

Maintenance

Cleaning the outside of the air purifier

1. Switch off the device and pull the plug.
2. Use a soft and humid piece of cloth to clean the device from dust and dirt.
3. Make sure that no water gets into the device.

Clean Air Optima® air purifier storage

1. Unplug the device and fold up the power supply cord.
2. Remove and clean the filters. After cleaning reinstall the filters back into the device.
3. It is recommended to wrap the Filter and the unit in a plastic bag and place in a cool, dry area.

Avoid moisture as it can damage the True HEPA filter.

Replacing of filters

The Clean Air Optima Air Purifier CA-502 Desktop Smart is equipped with a filter lifespan surveillance mechanism that signals that the filters have to be replaced after 1400 working hours. To show that the True Hepa H13 filter need to be replaced, the indicator light will light

up, and the device emits a double zero indicator light. Reset the timer for the filter by pressing and holding the power button for about 3 seconds. If the indicator light goes out, the timer has been successfully reset.

Depending on the use, the True HEPA H13 filter has a lifespan of approx. 4-5 months.

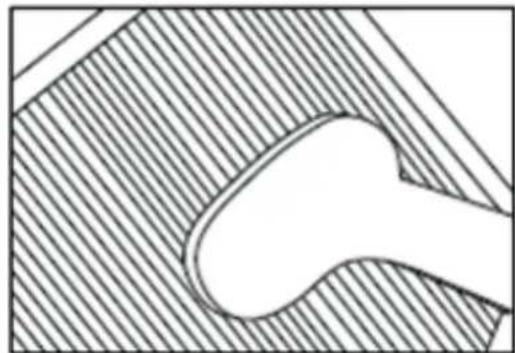

Filter cleaning

The best effect is reached by cleaning the filters once a month. If indoor air is extremely polluted, more cleaning can be required.

Clean the Pre-filter and the HEPA filter with a brush or your vacuum cleaner. That way bigger dust particles like lint, hair and dander of pets can be removed from the filter.

Warning! Do never wet or rinse the filter with water.

Signs for used up filters

Increased sound, reduced air flow, congested filters, rising presence of smells. The filter needs to be replaced by a new one when the HEPA filter changes its color from white to grey or black. If the HEPA filter remains white, there is NO need to replace the filter.

How to order filters:

Contact Clean Air Optima Customer Service tel. + 31 (0) 742670145 or visit our webshop: https://www.cleanairoptima.com/-accessoires

Troubleshooting

The following is a troubling shooting guide to help you solve any issues that you may have using the Clean Air Optima Air Purifier CA-502 Desktop Smart.

Problem Possible	Cause Solution
Device does not switch on.	The power cord does not connect correctly.	Connect the power plug and power socket correctly.
	The power cord is broken.	Replace the power cord.
	The filter is not installed correctly.	Install the filter correctly. See chapter: How to use.
The air outlet smells foul.	The filter traps too much odor or dust.	Replace the composite filters.
	The lifetime of the filters has expired.	Replace the composite filters.
Poor purification effect.	Check if the humidity in the room is too dry.	Increase the humidity.
	The device is placed in an unventilated room or surrounded by obstacles.	Remove the obstacles.
No air is blowing out of the device.	The airinlet or airoutlet is being blocked.	Remove the obstacles.
Operation with Clean Air Optima® App does not work.	Smartphone or tablet is not connected to WiFi network.	Turn on the device and reset the WiFi on the device by pressing the WIFI button for 3 seconds, the indicator light of the WiFi will blink.
	The device has no connection to the network.	Than follow step 3 to 10 from chapter Operation with Clean Air Optima® App.
Code EO is shown on the display.	PM2.5 Sensor not working.	Switch off the device and pull the plug from the socket. Connect the plug to the socket and switch the device on again.
Code FFF is shown on the display.	Motor is blocked or stopped.	Switch off the device and pull the plug from the socket. Connect the plug to the socket and switch the device on again.
Code EEE is shown on the display.	PM2.5 Sensor and motor not working.	Switch off the device and pull the plug from the socket. Connect the plug to the socket and switch the device on again.

WARNING!

If the above recommended solutions do not work, please contact Clean Air Optima technical support at the telephone number for your region. Do not attempt to disassemble, reassemble, or repair the device as this may void the warranty.

Clean Air Optima

Specifications

Model CA-502 Desktop Smart

For rooms up to 20m^2 /50m^3 /215ft^2

Adapter rated voltage Input: 100V - 240V~, 50/60Hz, 0.4A or 1.0A Output: 12V, 1.5A

Device rated power 10W, 12V

Fan capacity (CADR) 110 m³/h

Filter performance 99,97%

Sound level 10dB(A) Silent Sleepmode/ 15dB(A) Low 1/25dB(A)

Middle 2/50dB(A) High 3

Dimensions 190x190x235mm

Weight 1.5kg

Colour Light gray/white

Complies with EU regulations CE/WEEE/RoHS

Ask your retailer or your municipality for updated information regarding the disposal of the packaging and of the device.

Service

Warranty Certificate for the Clean Air Optima Air Purifier CA-502 Desktop Smart.

Date of purchase:

Customers name:

Address:

Telephone:

Email:

Seller's name:

Address:

1. Please fill in completely this Warranty Certificate. Send it with the invoice and the unit, postage pre-paid and using the original packing box, to your distributor. Make sure to include the appropriate return postage for the package.
2. Please enclose a short description of the damage, fault or malfunction, and the circumstances under which these problems arose.

The Clean Air Optima Air Purifier CA-502 Desktop Smart is subjected to strict testing procedures before leaving the factory. If within 2 years from the date of purchase the product does not perform according to the specifications, because of factory defects, the purchaser is entitled to free repairs or replacement of parts upon presentation of this warranty (provided that the malfunction or damage to the device and/or parts occurred under normal operating conditions). What is covered: All parts defective in material and workmanship. For how long: two years from purchase date. What we will do: Repair or replace any defective parts.

Exclusions: Regular replacement filters.

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.

Thank you for reading!

Share your feedback about the Clean Air Optima Air Purifier CA-502 Desktop Smart on: www.cleanairoptima.com

For frequently asked questions about the CA-502 Desktop Smart go to: www.cleanairoptima.com and search for the CA-502 Desktop Smart.

Download PDF instruction manual on: www.cleanairoptima.com/info/manuals

Watch all Clean Air Optima Product animation video's on: www.youtube.com

Clean Air Optima International B.V. | David Ricardostraat 9-7 / 9-9 | 7559 SH Hengelo (ov) The Netherlands | Phone: +31 (0) 74 - 2670145

Clean Air Optima Germany GmbH | Enschedestraße 14 | 48529 Nordhorn | Germany
Phone: [phone]

E-mail: [e-mail] Internet: www.cleanairoptima.com
