USER MANUAL SJW 300 CASO

CASO® DESIGN

Black and silver CosO design brush unit with clear glass interior (no text or symbols visible on device body)

(Garantiegeber)

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

4.2 Typenschild....20

11.3 Warning notices....32

12 Safety 33

12.1 Intended use....33

12.2 General Safety information 33

12.3 Danger of injury 34

12.4 Dangers due to electrical power....35

12.5 Limitation of liability 36

12.6 Copyright protection 36

13 Commissioning....36

13.1 Safety information 36

13.2 Delivery scope and transport inspection....36

13.3 Unpacking....37

13.4 Disposal of the packaging....37

13.5 Setup location requirements....37

13.6 Electrical connection....37

14 Design and Function 38

14.1 Overview....38

14.2 Rating plate 38

14.3 Assembling....39

14.4 Switch 41

14.5 REV-function 41

15 Operation and Handling 41

15.1 Before first use....42

15.2 Preparing the food....42

15.3 Hints for making of juice 42

15.4 Operation....43

15.5 Making sorbet....43

15.6 If the device stops during operation 44

15.7 Recipes 44

15.7.1 Recipe for ginger shots 44

15.7.2 Recipe for multivitamin drink 44

15.7.3 Recipe for strawberry-raspberry sorbet....44

16 Cleaning and Maintenance....45

16.1 Safety information 45

16.2 Cleaning....45

17 Troubleshooting....45

17.1 Security advices....45

17.2 Troubleshooting....46

18 Disposal of the Old Device....46

19 Guarantee ....47

20 Technical Data....47

64.4 Montering....133

64.5 Strömbrytare 135

66.2 Rengöring....139

84.4 Interruptor....173

Technical diagram of a food blender with 12 labeled parts, showing exploded view and assembly steps.

4.3 Zusammenbau

7a 12 7 8

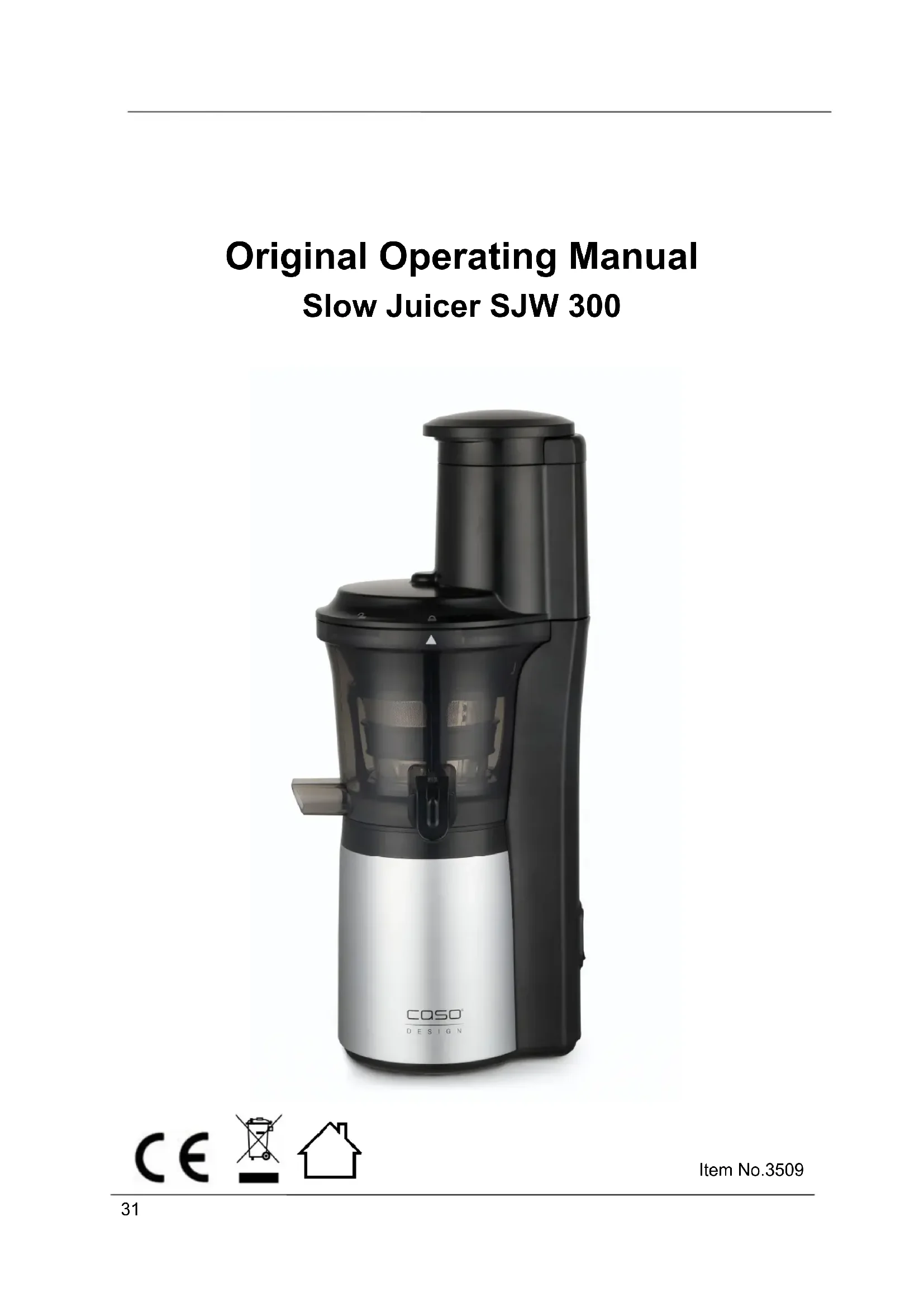

Original Operating Manual Slow Juicer SJW 300

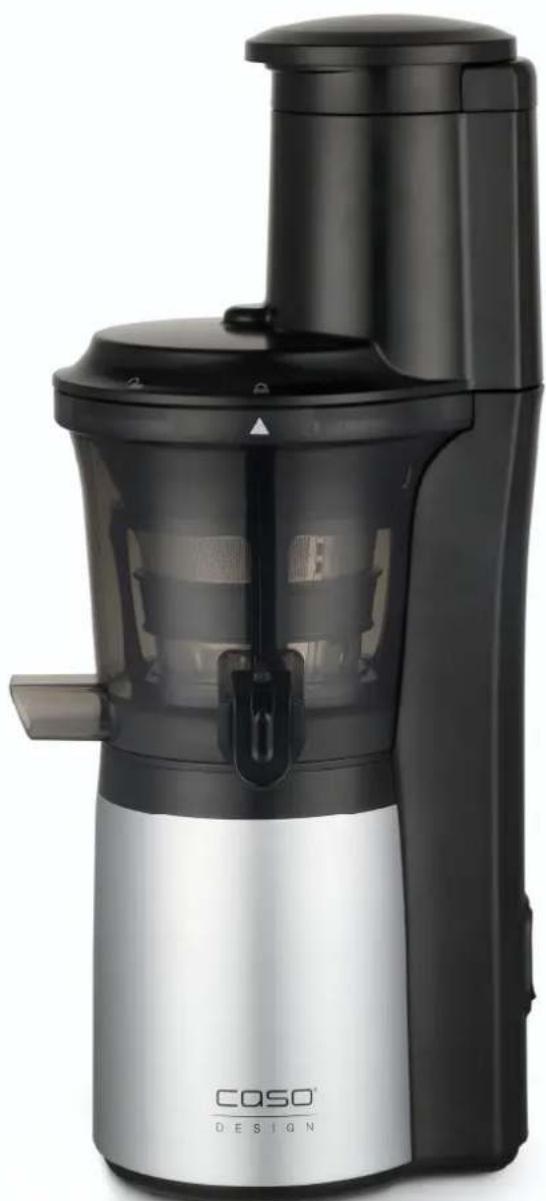

Exterior view of a black and silver Coso design brush unit (no text or symbols visible on the device itself)

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your juicer SJW 300 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the juicer SJW 300 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning
• Operation
• Troubleshooting and/or
• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

Danger

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

Warning

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

Attention

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

Please note

A notice of this kind indicates additional information, which will simplify the handling of the machine.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Extracting juice from vegetables and/or fruit
• Making sorbet

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas;
• in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ This appliance must not be used by children. Keep the appliance and its connecting cable away from children.
This device can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved.
▶ Children are not allowed to use this device.

HINWEIS

Please note

▶ Never reach into the device. Keep other kitchen utensils, such as spoons, away from the rotating parts.
▶ Always disconnect the device from the mains when it is not supervised and before assembling it, changing accessories, disassembling or cleaning it.
▶ Do not operate the appliance unattended.
▶ Do not use the appliance:
- if the appliance itself or parts are damaged,
- if the power cord or plug is damaged,
- if the appliance has been dropped.
▶ Always unwind the power cord completely before use. When doing so, ensure the power cord is not damaged by sharp edges or hot objects.
▶ Do not make any modifications to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions.
▶ Only use the device with original accessories.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
The device is not suitable for continuous operation. Do not operate the device for more than 15 minutes without interruption. Do not operate the device for more than 5 minutes without interruption when making sorbet.

12.3 Danger of injury

⚠️WARNUNG

Warning

Careless use of the device may result in injury.

Observe the following warnings to avoid injury

▶ If you misuse the device this can lead to injuries.
▶ The juicing or sorbet strainer may be sharp. Be careful with it.

⚠️WARNUNG

Warning

▶ Do not use any accessories not recommended by the product manufacturer to avoid danger.
▶ Avoid contacting moving parts.
▶ Always make sure that the device is correctly assembled before switching it on.
▶ Be sure to turn switch to OFF position after each use of your device.
▶ Switch the device off, make sure the motor stops completely and unplug the plug before changing parts, touching parts that move or before you clean it.
▶ Do not put your fingers or other objects into the feeding tube during operation. If there is food stuck in the feeding tube, only use the pusher or another piece of fruit/vegetable to push it down or use the REV-function to release the blockade.
▶ Do not use the device if the rotating juicing strainer or sorbet strainer are damaged.

12.4 Dangers due to electrical power

⚠GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

- Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.

▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

⚠GEFAHR

Danger

▶ Never immerse the motor unit, cable or plug in water or other liquids and do not place in the dishwasher.

12.5 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Use of unauthorized spare parts
- Technical alterations, modifications of the device

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.6 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

⚠️WARNUNG

Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the SJW 300 is delivered with the following components:

• Operating manual
• Motor unit
• Pusher

• Filling aid

• Lid

• Auger
• Strainer insert

• Holder

• Juice container

• Sorbet insert
• Residue container
• Cleaning brush

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

Remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

13.5 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.
• Do not operate the product near hot gas or hot stove.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

In this chapter, you'll find important information on the design and function of the device.

14.1 Overview

1 pusher

2 feeding tube with 2a lid

3 Feed auger

4a juicing strainer or 4b sorbet strainer

5 Strainer frame

6 cleaning brush

7 Strainer container with 7a outlet for residue and 7b outlet for juice with a cap

8 motor unit

9 ON/OFF/REV switch

10 residue container

11 juice container

HINWEIS

Please note

▶ When you lift the lid of the feed tube, the device stops for your safety.

14.2 Rating plate

The rating plate with the connection and performance data is beneath the device.

Exploded diagram of a food cleaning machine with numbered parts for identification

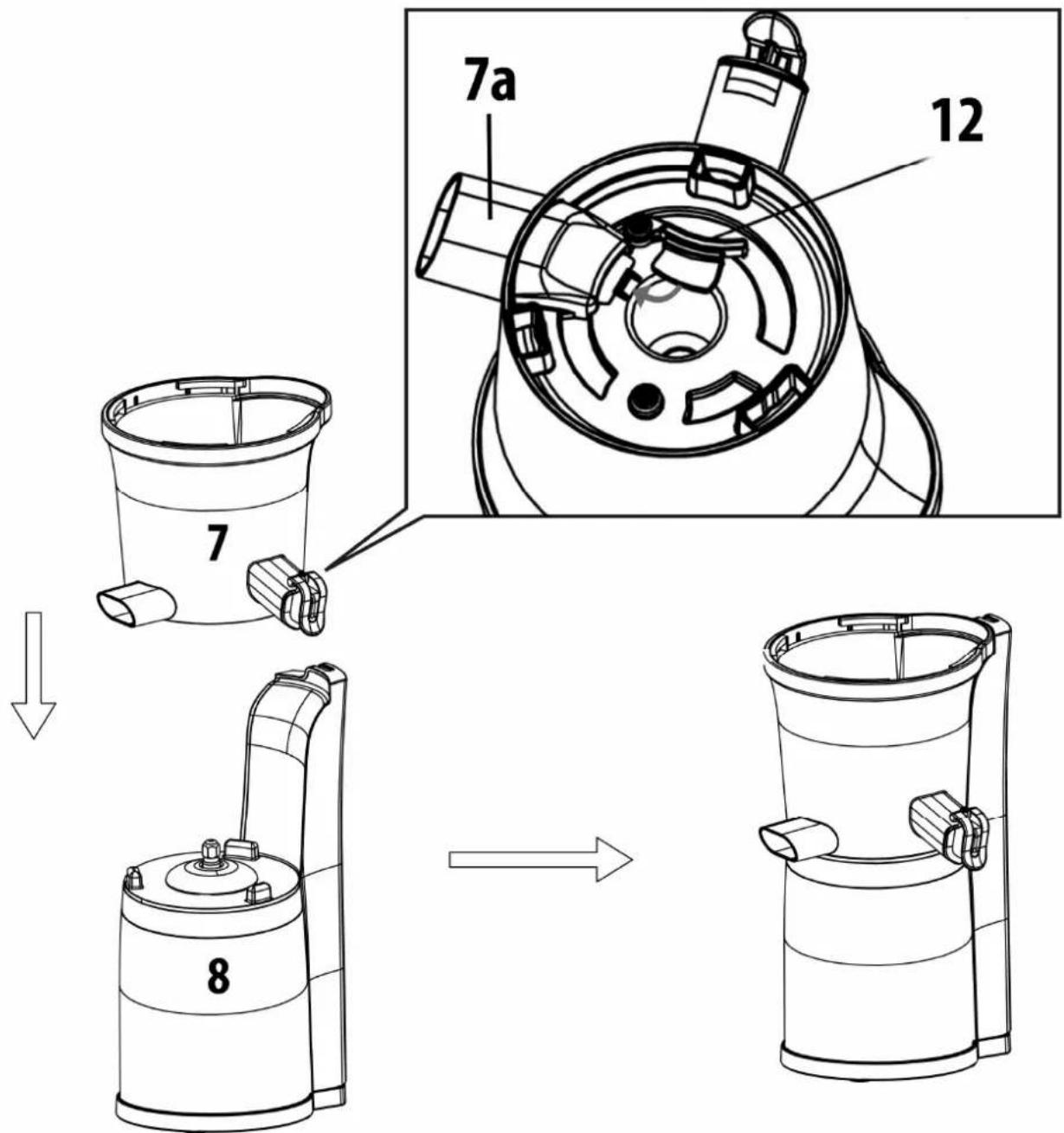

14.3 Assembling

7a 12 7 8

Ensure that the silicone plug (12) is placed in the residue outlet (7a); see the underside of the strainer compartment with outlets (7). Place the strainer compartment with outlets (7) on the motor unit (8).

For making of juice: Insert juice strainer (4) into strainer frame (5) and turn slightly until the strainer frame engages. Then place the juice strainer with the strainer frame into the strainer compartment (7).

For making of sorbet: Instead of the juice strainer, place the sorbet insert directly into the strainer compartment.

3 7 8

Then place the feed auger (3) in the already installed juice strainer / sorbet insert, press it down and turn it until it engages.

Place the feeding tube (2) so that the symbol ☐ on the feeding tube will be place above the symbol ▲ on the strainer container (7). Press it down and rotate clockwise, so that the symbol 🔒 on the feeding tube (2) is above the symbol ▲ on the strainer container (7).

Place the pusher (1) into the lid with feeding tube (2). Place the residue container (10) under the outlet for residues (7a) and the juice container (11) under the outlet for juice (7b).

To disassemble, proceed in the reverse order. However, you can lift up the strainer compartment with the juice strainer or sorbet insert, strainer frame and feed auger together and only then disassemble them.

HINWEIS Please note

▶ The juice could leak out if the juice outlet cap is not properly closed.
▶ Device will not operate if parts are not assembled properly.
▶ The feed auger must be engaged so that the feed tube with the lid can be closed.

14.4 Switch

ON: Starts the feed auger

OFF: Stops the operation

REV: Pushes the food back up

1 2 7 10 11

14.5 REV-function

If the feed auger is blocked, use the REV function. The REV function removes blocked food by moving it back up.

15 Operation and Handling

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Before first use

Clean the device, look at chapter "cleaning".

15.2 Preparing the food

• Remove stones and seeds (for example: apricots).
• Remove hard inedible peel (for example: melons). Peel citrus fruits and remove the bitter white skin.
• Beans and cereals must first be soaked overnight or be cooked.
• Frozen fruits must be completely thawed for juicing. For the production of sorbet let frozen fruits thaw 5-20 minutes.
• Extremely hard foods, such as nuts or sugarcane, or oily foods should not be used.
• Foods with low juice, e.g. bananas can be used for sorbet. When juicing these fruits they should be mixed with foods with plenty of juice.
• Cut fibrous foods (for example: celery) into small pieces and roll leaves (for example: spinach) into spirals before juicing them. It is better to mix fibrous foods with foods with plenty of juice.
  • We recommend to cut the food into pieces.

15.3 Hints for making of juice

HINWEIS

Please note

▶ If you want to extract for example a whole apple or pear then lift the lid, put the fruit into the feeding tube and then close the lid again.
It is recommended that the extracted juice is consumed within 48 hours after extracting. With vacuuming you can prolong the shelf-life.
There can be different layers in the juice. If there is any excessive amount of foam, use a mesh strainer to separate it from the juice.
▶ Do not apply pressure when filling in the food, otherwise the pressure auger could be blocked.
▶ To make mixed juices, close the cap of the juice outlet; then, the juices will remain in the strainer compartment and mix.
▶ You can make different juices fast after each other when you let one glass of water (with closed lock of juice outlet) run through the device. So you can flush away residues and aromas.
▶ Leave lock open when juicing ingredients that create excessive foam during extraction (e.g. apples, celery).
▶ When the cap is closed, ensure the juice does not rise too high in the strainer compartment; otherwise, the juice may overflow.

15.4 Operation

⚠️WARNUNG

Warning

▶ Do not remove the feed tube from the strainer compartment during use.
▶ Do not put hand or any object into the device or feeding tube, danger of injury exists or the device may be damaged.
▶ Do not touch the power cord with wet hands. It may cause electrical shock, short-circuit or fire.

1. Switch to OFF position. Plug the device in, after you have properly installed the device.
2. Prepare the food.
3. Switch to ON position, to start the operation.
4. Insert the prepared ingredients one piece at a time into the feeding tube.

HINWEIS

Please note

▶ After inserting ingredients, use the pusher when it is necessary.
▶ Do not reinsert the extracted pulp into the juicer.

After making of juice

Let the device operate as long as all food needs to be juiced completely. Place an empty container under the juice spout and run the device with a little water to rinse it first. Switch to OFF and unplug the device. Empty the water/juice residue and disassemble the device (as described under "Cleaning"). If you cannot disassemble the feeding tube, then use the REV-function.

⚠️WARNUNG

Warning

▶ Do not overload the device and do not use it without food. It could be damaged.
▶ Do not continuously use the device for 15 minutes.
▶ After use for 15 minutes, let the device rest for 30 minutes to cool down before starting another session.
▶ Do not put your fingers or other objects into the feeding tube during operation. If there is food stuck in the feeding tube, only use the pusher or another piece of fruit/vegetable to push it down. If other objects are inserted into the feeding tube during operation, such materials can get stuck and damage the juicer parts and/or cause injury.

15.5 Making sorbet

Instead of the juice strainer, insert the sorbet insert into the strainer part.

HINWEIS

Please note

▶ Use frozen fruit. Let them thaw 5-20 minutes depending on the amount of fruits.
▶ The sorbet strainer is only for frozen/thawed fruits.
▶ Slowly process a smaller amount per batch.
▶ Do not use ice cubes.

15.6 If the device stops during operation

If the device stops during operation, the safety switch for overheating protection has been triggered. This happens if, for example, pieces of food get stuck and the motor is blocked. Proceed as follows:

Switch to position OFF to switch the device off. Press the reset buton (13) which is located on the underside of the device. Use REV-function, so that the food can be released.

HINWEIS Please note

▶ If the device does not work after these steps, disassemble and clean the parts before operating the device again.

13

15.7 Recipes

15.7.1 Recipe for ginger shots

70 g organic ginger 1 lemon

30 g organic turmeric 1 tablespoon honey

2 large oranges

1. Wash ginger & turmeric well (does not need to be peeled if organic). If necessary, turmeric powder can also be stirred into the juice at the end.
2. Peel the lemon and oranges. Remove the white residue because it is bitter.
3. Put the ingredients into the juicer one after the other. Finally, stir some honey into the juice to sweeten it according to taste.

15.7.2 Recipe for multivitamin drink

12	mango	3	carrots
1	pear	1	orange

1 apple 1 tbsp wheat germ oil

1. Wash the fruit, cut the mango in half and scoop out the pulp.
2. Peel the orange. Remove the white residue because it is bitter.
3. Put the fruit into the juicer.
4. Add the wheat germ oil to the finished juice and stir well.

15.7.3 Recipe for strawberry-raspberry sorbet

300 g fresh raspberries 1 tbsp freshly squeezed lemon juice

250 g ripened strawberries 1 tbsp icing sugar

1. Cut the strawberries in half and spread them out on a baking tray with the raspberries.
2. Cover the fruit with icing sugar and lemon juice and place it in the freezer for 24 hours.
3. Allow the fruit to thaw briefly and put it into the juicer.
4. Sweeten a little more if necessary and serve.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT Attention

Please observe the safety instructions, before cleaning your device

▶ Unplug the device when not in use and before any cleaning.
▶ Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher.
▶ Do not use iron brush, abradant kitchen cleaner, or sharp cleaning tool for cleaning.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ The juicing strainer or the sorbet strainer can be sharp, be careful during cleaning.

16.2 Cleaning

HINWEIS Please note

▶ You can use the provided cleaning brush.
▶ Motor unit and cable should not come into contact with water. Wipe the motor unit only with a damp soft cloth.
▶ Immediately clean the device after each use. If remaining residue in the device dries up, it can make disassembling and cleaning difficult. The residues may affect performance in future uses.

1. You can clean all components except the motor unit (8) in the dishwasher. Alternatively: Rinse all parts, except motor unit, thoroughly under running water and clean with water and a mild cleaning detergent.

2. Use the cleaning brush, to clean the juice strainer and sorbet strainer thoroughly.

3. Rinse the feed auger under running water and clean the underside of the auger thoroughly.

4. Then thoroughly clean the residue outlet, the juice outlet and lock with the cleaning brush and remove all residues.

5. After cleaning, use a dry cloth to dry all parts thoroughly. Assemble the device completely and store it at a dry, safe place.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

17.1 Security advices

▲VORSICHT Attention

▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

17.2 Troubleshooting

Problem	Solution
The device does not start.	·Please check whether the plug is properly plugged in.·Please check whether the device is assembled correctly and lid is closed.
The amount of juice is very little and residues are still damp.	·The device must not be used for very hard fruits or vegetables.·Different ingredients hold different amounts of fluid that will yield different amounts of juice.·Check if all parts were assembled correctly.·If juicing ingredients with small seeds, after a few servings, it may reduce the juice yield. For best result, disassemble and wash the top-set (without motor block) in between juicing.
The device stops during operation.	·Use REV-function and follow the instructions in “If the device stops during operation”
There is too much pulp in the juice.	·Use a mesh strainer and put the juice through it to collect the unwanted pulp.·If too many ingredients are inserted at the same time, it may cause the juicer to stop frequently. This can lead to pulpy juice. Insert the ingredients slowly and few at a time.
The feeding tube will not close.	·Make sure that the feed auger is engaged properly so the feed tube closes properly.
Dying of the plastic parts.	·After juicing, if the juicer is not cleaned right away, the remaining pulp inside the top-set can dry up which can make disassembling and cleaning hard. This can also affect the juicer’s performance and color.·Ingredients which are rich in colorants, for example carrots or spinach, may dye the plastic parts. The dying does not affect the device.

HINWEIS

Please note

▶ If above mentioned steps don't solve the problem, please contact your customer service.
▶ Please clean the device before sending it to customer service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the

environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

20 Technical Data

Device SJW 300
Item No.: 3509
Mains data 220 V - 240 V; 50 Hz - 60 Hz
Power consumption 300W
External measurements (W x H x D): 210 x 425 x 205 mm
Net weight 3,2 kg

Mode d'emploi

Extracteur de jus „Slow Juicer“

SJW 300

Black and silver COSO design brush unit with clear glass and handle (no text or symbols visible on device body)

N°. d'article 3509

21 Mode d'emploi

21.1 Généralités

Simple line drawing of a cylindrical object with a circular label marked '1' pointing to its side (no text or symbols on the object itself)

2a 2

Line drawing of a mechanical component with a numbered label (3) pointing to its edge, no text or symbols present.

4a 4b

7 7a 7b

Simple line drawing of a container with a label pointing to the number 10 (no text or symbols on the container itself)

8 9

11

HINWEIS

REMARQUE

Exterior view of a black and silver CosO design brush unit (no text or symbols on the device itself)

31 Istruzione d'uso

31.1 In generale

Exploded diagram of a food blender with numbered parts for identification and assembly reference.

34.3 Assemblaggio

7a 12 7 8

Black and silver CosO design brush unit with clear glass interior (no text or symbols visible on device body)

9 interruptor ON/OFF/REV

Exploded diagram of a kitchen appliance with numbered parts for identification

44.3 Ensamblaje

7a 12 7 8

Black and silver CO2O design brush unit with clear glass interior (no text or symbols visible on body)

Technical diagram of a food blender with numbered parts for identification and assembly reference.

54.3 Montage

7a 12 7 8

Black and silver CosO design brush unit with clear glass interior (no text or symbols on body)

Technical diagram of a kitchen brush and filter unit with numbered parts for identification

64.4 Montering

7a 12 7 8

Black and silver CosO design brush unit with clear glass interior (no text or symbols on device body)

Exploded diagram of a food cleaning machine with numbered parts for identification

74.3 Сборка

7a 12 7 8

Black and silver CosO design brush unit with clear glass interior (no text or symbols visible on device body)

CE

Artikel-Nr.3509

9 interruptor ON/OFF/REV

10 recipiente de restos

Technical diagram of a kitchen blender with numbered parts for identification

84.3 Montagem

7a 12 7 8

