C 330 Pro - Juicer CASO - Free user manual and instructions

Product Type	Juicer
Brand	CASO
Model	C 330 Pro
Power Consumption	800 W
Voltage	220-240 V
Frequency	50/60 Hz
Juice Container Capacity	1.5 L
Pulp Container Capacity	2 L
Speed Settings	2 (Low/High)
Material	Stainless steel filter, BPA-free plastic
Dimensions (W x D x H)	30 x 25 x 40 cm
Weight	4.5 kg
Cord Length	1.2 m
Safety Features	Safety lock, overload protection
Dishwasher Safe Parts	Juice container, pulp container, filter
Functions	Whole fruit juicing, soft and hard produce
Warranty	2 years
Accessories Included	Cleaning brush, pulp container

Frequently Asked Questions - C 330 Pro CASO

How do I assemble the juicer correctly?

Ensure all parts are clean. Place the motor unit on a flat surface, attach the pulp container, then the filter basket. Lock the lid until you hear a click. Place the juice container under the spout.

Can I juice leafy greens like spinach or kale?

Yes, use low speed for leafy greens. For best results, wrap them around harder vegetables like celery to help push them through.

What is the overload protection feature?

If the motor overheats or jams, safety circuitry will automatically shut off the juicer. Unplug and let it cool for 15 minutes before resuming.

How do I clean the juicer after use?

Disassemble and rinse parts immediately. The filter, juice container, and pulp container are dishwasher safe. Use the included brush to clean the filter mesh thoroughly.

Is the juicer suitable for frozen fruits?

No, do not juice frozen fruits as they can damage the filter and motor. Only use fresh, ripe produce.

What is the warranty period?

The CASO C 330 Pro comes with a 2-year warranty covering manufacturing defects. Keep your purchase receipt for validation.

Can I replace the filter or other parts?

Yes, replacement parts such as filters, jugs, and pulp containers are available. Contact CASO customer service or check their website for ordering.

Why is the juicer not starting?

Make sure the locking arm is properly engaged; the safety lock prevents operation if not secured. Check power connection and ensure the overload protector hasn't tripped.

What is the noise level?

The juicer operates at approximately 80 dB during normal use, which is typical for centrifugal juicers.

How should I store the juicer when not in use?

Clean and dry all parts thoroughly. Store the assembled device in a dry place, away from direct sunlight. Keep the cord wrapped neatly.

USER MANUAL C 330 Pro CASO

Exterior view of a modern stainless steel coffee maker with a black lid and white base (no visible text or symbols)

Artikel-Nº 3560

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

11 Operating Manual....20

11.1 General....20

11.2 Information on this manual....20

11.3 Warning notices....20

12 Safety 21

12.1 Intended use....21

12.2 General Safety information 21

12.3 Dangers due to electrical power....23

12.4 Limitation of liability 23

12.5 Copyright protection 23

13 Commissioning....24

13.1 Safety information 24

13.2 Delivery scope and transport inspection....24

13.3 Unpacking....24

13.4 Disposal of the packaging....24

13.5 Setup location requirements....24

13.6 Electrical connection....25

14 Design and Function 25

14.1 Overview....25

14.2 Assembling....26

14.3 Rating plate 26

15 Operation and Handling 26

15.1 Before first use....26

15.2 Operation....26

16 Cleaning and Maintenance....27

16.1 Safety information ....27

16.2 Cleaning....27

17 Troubleshooting....27

17.1 Security advices....27

17.2 Troubleshooting....27

18 Disposal of the Old Device....28

19 Guarantee 28

20 Technical Data....28

54.2 Montering....69

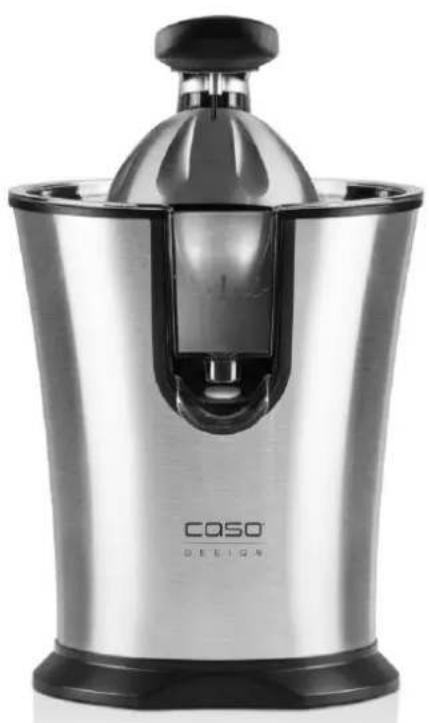

Original Operating Manual Citrus juicer CP 330 Pro

Exterior view of a modern stainless steel coffee maker with a black lid and white base (no visible text or symbols)

CE

Item No.3560

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Citrus juicer CP 330 Pro will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the Citrus juicer CP 330 Pro (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning - Operation

Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

Danger

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

Warning

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

Attention

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

Please note

A notice of this kind indicates additional information, which will simplify the handling of the machine.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for squeezing halved citrus fruits (oranges, lemons, limes, and smaller grapefruits) This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas;
  • in agricultural estates; • in B&Bs;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.

HINWEIS

Please note

▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Do not leave the device unsupervised when it is in operation.
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Never immerse the main body, cord or plug in water or other liquids and do not place in the dishwasher.
▶ Do not overload the device and do not let it operate unloaded. Do not use the device for longer than 10 minutes without interruption.
▶ Do not use any accessories not recommended by the product manufacturer to avoid danger.
▶ Always pull the power plug before removing pulp from the filter insert, remove /assemble parts or move the device.
▶ Before replacing and / or touching accessories or attachments that are moved during operation, the device must be switched off and disconnected from the mains.

12.3 Dangers due to electrical power

⚠️GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

12.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
• Improper repairs
• Technical alterations, modifications of the device
• Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

▲WARNUNG Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the CP 330 Pro is delivered with the following components:

- CP 330 Pro

- filter insert

- 1 cone

- Juice tray

- operation manual

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

13.5 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the device outdoors.
• Do not operate the product near hot gas or hot stove.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
• If you do not use the device very often, store it in a dry and well-circulated location to avoid that the motor getting damp and moldy.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

In this chapter, you will find important information on the design and function of the device.

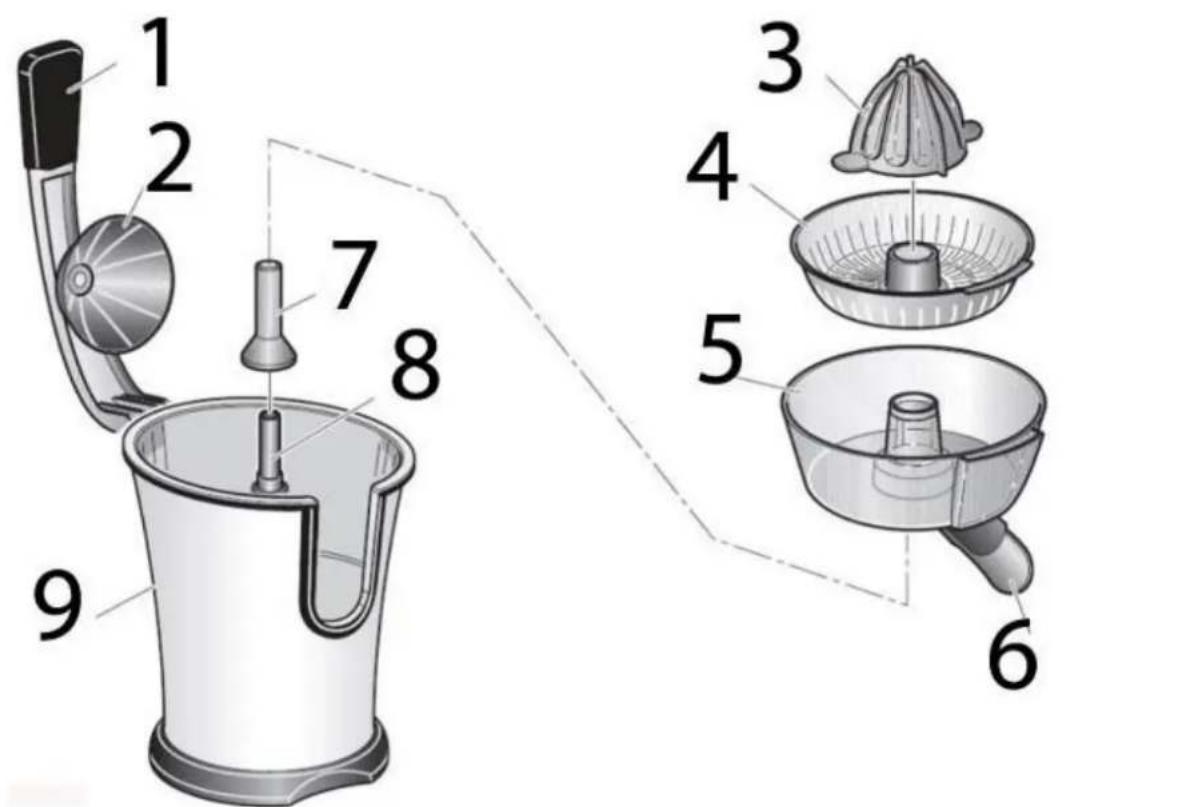

14.1 Overview

1 handle

2 lid of cone

3 cone

4 filter insert

5 juice tray

6 spout

7 driver

8 attachment of driver

9 main body with motor

14.2 Assembling

Place the juice tray with spout on the main body.

Place the filterinsert. Put the cone in the middle of filterinsert on the motor shaft.

Place the lid of the cone in the opening of the handle.

14.3 Rating plate

The rating plate with the connection and performance data can be found beneath the device.

15 Operation and Handling

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Before first use

Clean the device, see chapter "cleaning".

15.2 Operation

1. Insert the plug into the socket. Press down the spout.
2. Place a sufficient container under the spout.
3. Halve the citrus fruit and put the half with the cut surface in the middle of the cone. Press slightly down the half of the fruit.
4. Close the handle. The device will start working and squeezing the fruit evenly. Let the device work for 15 seconds and open the handle. Repeate the process once you have desired amount of juice.
5. Pull the power plug once you have finished.
6. Push the spout upward to close it.

HINWEIS

Please note

▶ If you want to squeeze an irregularly shaped fruit then let the handle open and press the half of fruit evenly with your hand on the cone.
▶ Remove the pulp regularly from the filter insert, so that the juice can flow. Pull the plug before this.

⚠️WARNUNG

Warning

▶ Do not press too hard with the half of fruit on the cone, the motor could be damaged. Pay attention to your fingers. Risk of injury!
▶ Pull the plug if the main contact was in contact with liquid during the operation and dry the main body immediately with a soft cloth.
▶ Keep loose clothing, long hair and power cord away from moving parts.
▶ When the device is operating: Do not touch the filterinsert with your hand, do not touch the cone.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT Attention

Please observe the safety instructions, before cleaning your device

▶ Unplug the device when not in use and before any cleaning.
▶ Never immerse the main body, cord or plug in water or other liquids and do not place in the dishwasher.
▶ Do not use iron brush, abradant, kitchen cleaner, or sharp cleaning tool for cleaning.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Clean the device directly after each use.

16.2 Cleaning

Pull the plug of the device. Wipe the main body and the handle with a soft cloth.

Press on the lock of the lid of the cone and detract it. You can clean the lid of the cone, the cone, filterinsert and juice tray with warm water and a bit of detergent. Rinse them with water after this thoroughly and dry them. As an alternative you can clean these parts in the dishwasher. Reassemble the device.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Security advices

▲VORSICHT Attention

▶ Repairs of electrical devices must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

17.2 Troubleshooting

Problem	Solution
The device does not start.	Please check whether the power plug is properly plugged.Please check whether the assembly is done according to assembly methods.

HINWEIS Please note

▶ If above mentioned steps don't solve the problem, please contact your customer service.
▶ Please clean the device before sending it to customer service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device	CP 330 Pro
Item No.:	3560
Mains data	220 V - 240 V; 50 Hz / 60 Hz
Power consumption	160 W
External measurements (W x H x D):	205 x 320 x 320 mm
Net weight	2,7 kg

Istruzione d'uso

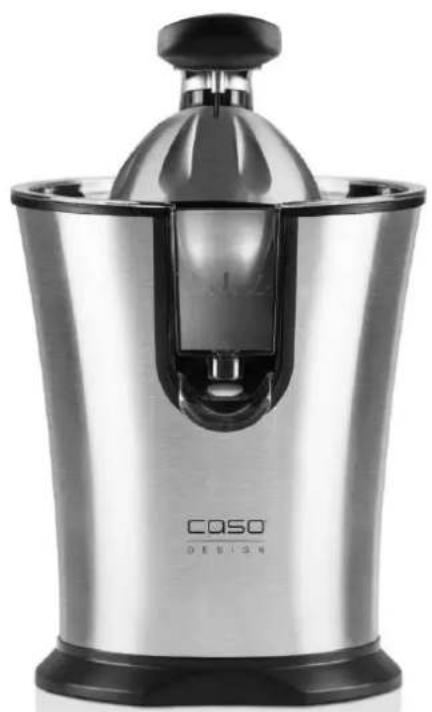

Spremiagrumi CP 330 Pro

Exterior view of a modern stainless steel coffee maker with a black lid and white base (no visible text or symbols)

Articolo-N. 3560

21 Istruzione d'uso

21.1 In generale

Exterior view of a modern stainless steel coffee maker with a black lid and white base (no visible text or symbols)

Ref. 3560

1 palanca 2 tapa de cono 3 cono

4 filtro 5 recipiente de zumo 6 expulsor

7 leva 8 supporto de leva 9 aparato principal con motor

34.2 Ensamblaje

Exterior view of a modern stainless steel coffee maker with a black lid and white base (no visible text or symbols)

Artikelnr.3560

1 hefboom 2 perskegeldeksel 3 perskegel

4 filterelement 5 sapkom 6 schenker

Exterior view of a modern stainless steel coffee maker with a black lid and white base (no visible text or symbols)

Artikel-Nº 3560

1 Spak

2 Koniska lock

3 Koner

4 Filterinsats

5 Juicebehållare

6 Pip

7 Förare
