USER MANUAL SJW 600 XL CASO

CASO® DESIGN

Original-Bedienungsanleitung | Instruction Manual | Mode d'emploi Istruzione d'uso | Manual del usuario | Gebruiksaanwijzing Руководство по эксплуатации | Bruksanvisning

Entsafter „Slow Juicer“ SJW 600 XL Slow Juicer SJW 600 XL

Extracteur de jus „Slow Juicer“ SJW 600 XL Estrattore di succo „Slow Juicer“ SJW 600 XL Exprimidor „Slow Juicer“ SJW 600 XL

Black COSO design brush unit with clear glass and handle, no visible text or symbols on the device itself.

Technische Daten / Technical Data / Caractéristiques techniques / Dati tecnici / Datos técnicos / Technische gegevens / Технические характеристики / Tekniska data

Gerät / Device / Appareil /Apparecchio / Aparato / Apparaat / Прибор / Apparat	Entsafter, Slow Juicer, Extracteur de jus, Estrattore di succo,Exprimidor,Sapcentrifuge,Соковыжималка,Saftpress
Name / Name / Nom / Nome / Denominación / Name / Наименовани / Namn	CASO SJW 600 XL
Artikel-Nr. / Item No. / N°. d'article / N. Articolo / N° de art / Artikelnr. / N° артикула / Artikel-nr.	03511
Anschlussdaten / Mains data / Données de raccordement / Dati connessione / Conexión / Aansluitgegevens / Параметры подключения / Anslutnings-data	220- 240V~; 50Hz/60Hz
Leistungsaufnahme / Power consumption / Puissance consommée / Potenza assorbita / Consumo de potencia / Vermogens / Мощность / Eff ektbehov	250 W
Außenabmessungen (B/H/T) / External measurements (W/H/D) / Dimensions extérieures (l/h/p) / Misure esterne (L/H/P) / Dimensiones exteriores (An/H/P) / Afmetingen (B/H/D) / Габаритные размеры (Ш/В/Г) / Yttermått (BxHxD)	220 mm x 435 mm x 200 mm
Außenabmessungen mit Stopfer (B/H/T) / External measurements with pusher (W/H/D) / Dimensions extérieures avec poussoir (l/h/p) / Misure esterne con pressino (L/H/P) / Dimensiones exteriores con empujador (An/H/P) / Afmetingen met knoeier (B/H/D) / Габаритные размеры с уминателем (Ш/В/Г) / Yttermått med påmatare (BxHxD)	220 mm x 500 mm x 200 mm
Nettogewicht / Net weight / Poids net / Peso netto / Peso net / Nettogewicht / Bec / Nettovikt	4,7 kg

Technical line drawing of a mechanical component with a central bore and side ports (no text or symbols)

7Störungsbehebung

1 General 20
1.1 Information on this manual....20
1.2 Warning notices ....20
1.3 Limitation of liability 21
1.4 Copyright protection....21
2 Safety....21
2.1 Intended use....21
2.2 General Safety information....22
2.3 Sources of danger 23
2.3.1 Danger of injury 23
2.3.2 Dangers due to electrical power 24
3 Commissioning 24
3.1 Packaging safety information 24
3.2 Delivery scope and transport inspection....24
3.3 Unpacking 25
3.4 Setup location requirements....25
3.5 Electrical connection....25
4 Design and Function....26
4.1 Overview....26
4.2 Controlelements....27
4.3 Assembling....27
4.4 Rating plate....27
5 Operation and Handing....28
5.1 Before first use....28
5.2 Preparing the food....28
5.3 Hints for making of juice 28
5.4 Juicing food items....29
5.5 R function 29
5.6 After making juice....29
6 Cleaning and Maintenance 30
6.1 Safety information....30
6.2 Cleaning....30
7 Troubleshooting ....31
7.1 Safety notices ....31
7.2 Troubleshooting table 31
8 Disposal of the Old Device 32
8.1 Disposal of the packaging....32
9 Guarantee....33

1General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your device will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

1.1 Information on this manual

These operating instructions are a component of the juicer SJW 600 XL (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, - Operation,
• Troubleshooting and/or • Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

1.2 Warningnotices

The following warning notices are used in the Operating Manual concerned here.

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

1.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifi cations of the device are not recommended and are not covered by the guaran- tee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.4 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

2Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

2.1 Intendeduse

This device is intended for use in the household and for similar applications such as:

- Extracting juice from vegetables and/or fruit

This device is intended for use in the household and for similar applications such as:

- in kitchens for employees in shops, offices, and other commercial areas;

- in B&Bs,

• in agricultural estates;

- by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

WARNING

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

2.2 General Safety information

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

Children must not use this appliance. Keep the appliance and its power supply unit away from children.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Children shall not play with the appliance.
Use the appliance only as described in the user's guide to avoid possible injury from misuse.
▶ Operate the appliance only in dry indoor areas.
▶ Do not operate the appliance unattended.
▶ Do not use the appliance:
- if the appliance itself or parts are damaged,
- if the power cord or plug is damaged,
- if the appliance has been dropped.
▶ Make sure that the power socket is easily accessible so that you can quickly unplug the device if required.
Do not make any modifications to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions.
▶ Only use the device with original accessories.
Place the appliance on a stable, level surface. Ensure sufficient distance between the appliance and strong heat sources such as hotplates, heating pipes, etc.

PLEASE NOTE

▶ Do not clean the appliance with hard, scratchy or abrasive cleaning agents such as steel wool or similar.
▶ Cleaning and user maintenance shall not be made by children.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
Carefully clean all components that will come in contact with food before first use.
▶ Use the device continuously for a maximum of 20 minutes. Then let the device could down for 10 minutes.
Do not immerse the appliance in water or other liquids. Do not put it in the dishwasher.
▶ Do not overload the device and do not let it operate un-loaded.
Be sure the parts are properly assembled to original base and in place.

2.3 Sources of danger

2.3.1 Danger of injury

WARNING

Careless use of the appliance may result in injury. Note the following warnings to avoid injury.

▶ Never use your finger os tools to push ingredients deeper while the device is running. Always use the pusher for this purpose.
▶ Disconnect the device from mains power if it is unsupervised; before assembling it; when changing over accessories and when disassembling or cleaning it.
▶ Turn the device off and disconnect it from mains power before changing over accessories or installing spare parts which move during operation.
▶ Stop processing of food immediately if rotating accessories no longer turn or only turn with difficulty and unplug the device.
▶ Be sure to turn switch to OFF position after each use of your device.

WARNING

Do not put your fingers or other objects into the feeding tube during operation. If there is food stuck in the feeding tube, only use the pusher or another piece of fruit/vegetable to push it down or use the R-function to release the blockade.

2.3.2 Dangers due to electrical power

DANGER

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

If the power cord of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.
Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not immerse the appliance in water for cleaning.

3Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

3.1 Packaging safety information

WARNING

Packaging materials may not be used for playing. There is a danger of suffocation.

3.2 Delivery scope and transport inspection

The device includes the following components:

• feeding tube
• pusher
• pressure auger
• juicing container
• residue container • juice container
• motor unit
• cleaning brush
• operating manual

PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

3.3 Unpacking

Carefully remove the packaging material and unit from the carton.

PLEASE NOTE

If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

3.4 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not use the device outdoors.
• The device requires adequate air circulation (minimum distance 15 cm).
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

3.5 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

- The electrical outlet must be protected by a 16A safety cut-out switch.

- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

4 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

4.1 Overview

①

Illustration of a chess knight piece with a numbered label (2) pointing to its side (no text or symbols on the piece itself)

3 4 5 6 7

8 9 10 11 32 1000 30 800 28 600 25 400 20 200 15 100 10 50 0 25 0 CZ mL

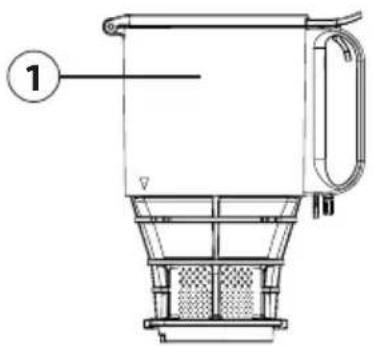

① feeding tube with lid
② pressure auger
③ juicing container
④ pulp outlet
⑤ juice outlet with lock
⑥ motor unit

⑦ ON/OFF/R-switch
⑧ residue container
⑨ juice container
10 pusher
11 cleaning brush

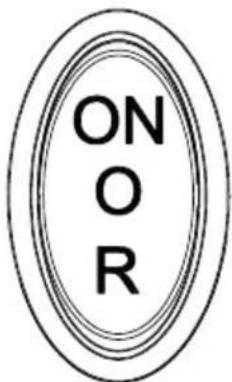

4.2 Controlelements

ON OR

ON = Juicing auger will start and push food down.

0 = Stops operation.

R = Pushes food back up.

4.3Assembling

1. Place the motor unit (6) on a fl at surface.

2. Check that the silicone plug (12) is placed in the pulp outlet (4) (see the underside of the juicing container (3)).

3. Place the juicing container (3) on the motor unit (6), ensuring that the pulp outlet and juice outlet are both located in the openings.

4. Place the juicing auger in the juicing container, press it down and rotate until it clicks into place.

5. Place the feeding tube on the appliance. The arrow symbol on the juicing container.

6. Turn the feeding tube until the arrow ▼ points to the symbol. The lid must be open so that the feeding tube can click into place correctly.

7. Place the pulp container under the pulp outlet and the juice container under the juice outlet.

4.4 Ratingplate

The rating plate with the connection and performance data can be founded beneath the device.

5 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

PLEASE NOTE

The device will stop for your safety when you lift the lid during operation.
▶ Device will not operate if parts are not assembled properly.

5.1 Before first use

Clean the device, see "cleaning".

5.2Preparingthefood

• Remove stones and seeds (for example: apricots).
• Remove hard inedible peel (for example: melons). Peel citrus fruits and remove the bitter white skin.
• Beans and cereals must first be soaked overnight or be cooked.
• Frozen fruit must be thawed for approx. 15 minutes.
  • Extremely hard foods, such as nuts or sugarcane, or oily foods should not be used.
• Foods with low juice, e.g. bananas can be used for sorbet. When juicing these fruits they should be mixed with foods with plenty of juice.
• Cut fibrous foods (for example: celery) into small pieces and roll leaves (for example: spinach) into spirals before juicing them. It is better to mix fibrous foods with foods with plenty of juice.

5.3 Hints for making of juice

PLEASE NOTE

If you want to extract for example a whole apple or pear then lift the lid, put the fruit into the feeding tube and then close the lid again.
It is recommended that the extracted juice is consumed within 48 hours after extracting. With vacuuming you can prolong the shelf-life.
There can be different layers in the juice. If there is any excessive amount of foam, use a mesh strainer to separate it from the juice.
Do not apply pressure when fi lling in the food, otherwise the pressure auger could be blocked.
For production of mixed jucie close the juice oulet so that the juice remains in the middle part and intermix.
You can make different juices fast after each other when you let one glass of water (with closed lock of juice outlet) run through the device. So you can flush away residues and aromas.

PLEASE NOTE

Leave lock open when juicing ingredients that create excessive foam during extraction (e.g. apples, celery).
Pay close attention when operating with the lock of juice outlet closed. Juice may overflow if the there is too much juice collected in the middle part.

5.4 Juicing food items

WARNING

▶ Do not dissolve feeding tube with lid during use.
Do not put hand or any object into the device or feeding tube, danger of injury exists or the device may be damaged.
Do not touch the power cord with wet hands. It may cause electrical shock, short-circuit or fire.
If necessary, use the pusher to gently feed food into the juicing auger.
Do not reinsert the extracted pulp into the juicer.
Do not overload the device and do not use it without food. It could be damaged.
Do not use the appliance continuously for more than 20 minutes. After use for 20 minutes, let the appliance cool down for 10 minutes before using it again.
If food gets stuck in the feeding tube, use the pusher or another piece of fruit/vegetable to push it down.

1. Make sure that the On/Off switch is turned to "O".
2. Plug the device in, after you have properly installed the device.
3. Prepare the food.
4. Insert the food items into the feeding tube and close the lid.
5. Switch to ON position, to start the operation.
6. Open the juice outlet.

5.5Rfunction

Use the R switch if the juicing auger gets blocked or the feeding tube cannot be removed when taking the appliance apart. The R switch turns the juicing auger in the opposite direction, loosening food which has got blocked by pushing it back up the tube.

5.6 After making juice

1. Let the device operate as long as all food needs to be juiced completely.
2. Place an empty container under the juice outlet and operate the device with a little water to rinse it.
3. Close the juice outlet to prevent dripping.
4. Turn the appliance off ("O") and remove the plug from the socket.
5. Disassemble the device and proceed as described under "cleaning".
6. If you cannot disassemble the feeding tube immediately, then use the "R" function.

6 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

6.1 Safetyinformation

ATTENTION

Please observe the safety instructions, before cleaning your device:

▶ Unplug the device when not in use and before any cleaning.
▶ Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher.
Do not use iron brush, abradant kitchen cleaner, or sharp cleaning tool for cleaning.
Do not use any aggressive or abrasive cleaning agents or solvents.

6.2Cleaning

PLEASE NOTE

You can use the provided cleaning brush.
▶ Motor unit and cable should not come into contact with water. Wipe the motor unit and the cable only with a damp soft cloth.
Immediately clean the device after each use. If remaining residue in the device dries up, it can make disassembling and cleaning difficult. The residues may affect performance in future uses.

1. Empty the residue container.
2. Remove the silicone plug (12) from the pulp outlet on the underside of the juicing container.
3. Remove any food residues from all the parts and rinse everything, except the motor unit, thoroughly under running water.
4. Use the cleaning brush and a mild washing-up liquid for thorough cleaning.
5. In particular, make sure to clean the underside of the juicing auger thoroughly.
6. After cleaning, use a dry cloth to dry all parts thoroughly. Completely reassemble the appliance and store it in a dry, safe place.

PLEASE NOTE

If necessary, remove the silicone ring from the centre of the press container for cleaning.

Technical line drawing of a mechanical component with a central hub and mounting features (no text or symbols)

7Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

7.1 Safetynotices

ATTENTION

Repairs of electrical appliances must be carried out by qualified person who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

7.2 Troubleshootingtable

Problem Solution

The device does not start.	Please check whether the plug is properly plugged in.
	Please check whether the device is assembled correctly and lid is closed.
Very little juice and pulp is still very wet.	Check whether stale food is used.
	Food must be fresh. Prepared / chopped food which has been stored in the fridge for a long time must be soaked in water for at least 10 minutes before it is juiced.
	Different ingredients hold different amounts of fluid that will yield different amounts of juice.
	Check if the appliance has been assembled correctly and that the silicone plug on the underside of the juicing container has been inserted into the pulp outlet correctly.
	If juicing ingredients with small seeds, after a few servings, it may reduce the juice yield. For best result, disassemble and wash the top-set (without motor block) in between juicing.
Strange noises during juicing.	Food is rubbing against the juicing auger and the side of the juicing container during operation. Cracking and squeaking noises are normal.
The device stops during operation.	Check whether too much food is used.
	Check whether the food contains hard cores.
	Use the R switch to loosen any blockage which may have occurred.
There is too much pulp in the juice.	When continuously juicing, and depending on the ingredient, the juice may contain a lot of fine pulp.
	Strain the juice through a sieve to remove unwanted pulp.
	If too much food is put into the juicer at once, then this can make the appliance stop during operation and result in a lot of pulp in the juice. Put food into the juicer gradually.
The feeding tube cannot be attached correctly.	Make sure that the juicing auger has clicked into place fully. If hasn't, then you will not be able to attach the feeding tube correctly.
Dying of the plastic parts.	After juicing, if the juicer is not cleaned right away, the remaining pulp inside the top-set can dry up which can make disassembling and cleaning hard. This can also affect the juicer's performance and color.
	Ingredients which are rich in colorants, for example carrots or spinach, may dye the plastic parts. Discolouration will not affect the appliance's functioning and is normal.

PLEASE NOTE

If you cannot solve the problem by carrying out the steps described above, our Customer Service will help you free of charge.
Clean the device before you send it to customer service.

8 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

8.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

9Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff . German Civil Code (BGB) will remain unaff ected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

DE

EN

FR

IT

ES

NL

RU

SV

Table des matières

Technical line drawing of a mechanical component with a central hub and internal parts (no text or symbols)

Technical diagram of a coffee maker with numbered parts and measurement scales for cleaning and inspection.

DE

EN

FR

IT

ES

NL

RU

SV

Technical line drawing of a mechanical component with a central bore and mounting base (no text or symbols)

1.2 Advertencias....67

Technical diagram of a coffee maker with numbered parts and corresponding measurement scales for measuring and testing.

Technical line drawing of a mechanical component with a central bore and mounting base (no text or symbols)

Technical line drawing of a mechanical component with a central bore and side ports (no text or symbols)

7Storingenverhelpen

Technical line drawing of a mechanical component with a central bore and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a central bore and side ports (no text or symbols)
