USER MANUAL YT-82800 Yato

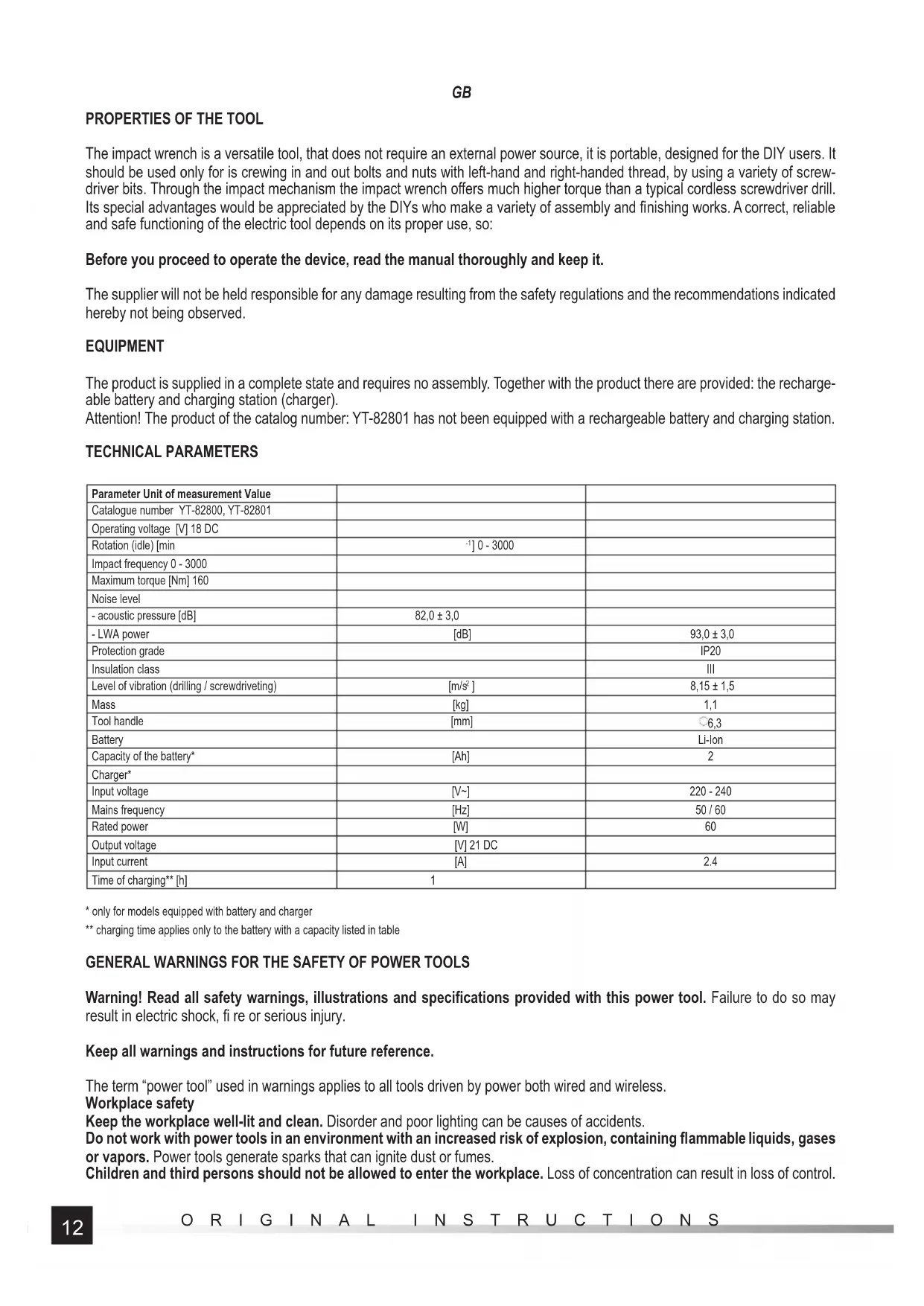

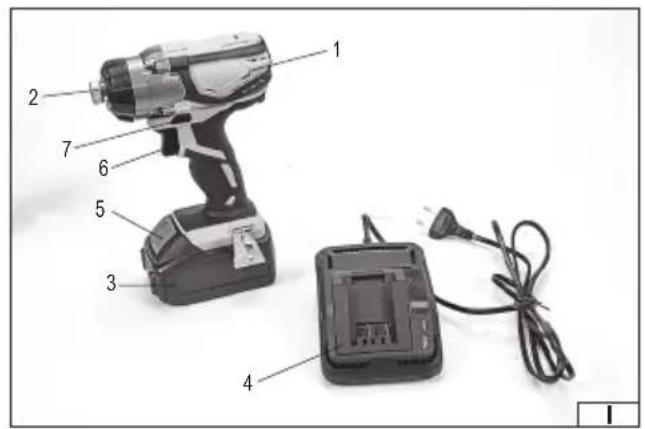

The impact wrench is a versatile tool, that does not require an external power source, it is portable, designed for the DIY users. It should be used only for is crewing in and out bolts and nuts with left-hand and right-handed thread, by using a variety of screw- driver bits. Through the impact mechanism the impact wrench off ers much higher torque than a typical cordless screwdriver drill. Its special advantages would be appreciated by the DIYs who make a variety of assembly and fi nishing works. A correct, reliable and safe functioning of the electric tool depends on its proper use, so: Before you proceed to operate the device, read the manual thoroughly and keep it. The supplier will not be held responsible for any damage resulting from the safety regulations and the recommendations indicated hereby not being observed. EQUIPMENT The product is supplied in a complete state and requires no assembly. Together with the product there are provided: the recharge- able battery and charging station (charger). Attention! The product of the catalog number: YT-82801 has not been equipped with a rechargeable battery and charging station. TECHNICAL PARAMETERS Parameter Unit of measurement Value Catalogue number YT-82800, YT-82801 Operating voltage [V] 18 DC Rotation (idle) [min

] 0 - 3000 Impact frequency 0 - 3000 Maximum torque [Nm] 160 Noise level - acoustic pressure [dB] 82,0 ± 3,0 - LWA power [dB] 93,0 ± 3,0 Protection grade IP20 Insulation class III Level of vibration (drilling / screwdriveting) [m/s

• only for models equipped with battery and charger ** charging time applies only to the battery with a capacity listed in table GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS Warning! Read all safety warnings, illustrations and specifi cations provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury. Keep all warnings and instructions for future reference. The term “power tool” used in warnings applies to all tools driven by power both wired and wireless. Workplace safety Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents. Do not work with power tools in an environment with an increased risk of explosion, containing fl ammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes. Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.13

ORIGINAL INSTRUCTIONS Electrical safety The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodifi ed plug that fi ts the outlet reduces the risk of electric shock. Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock. Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock. Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet. Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock. In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock. When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock. Personal safety Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the infl uence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury. Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury. Prevent accidental operation. Make sure that the electric switch is in the “off ” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the fi nger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries. Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries. Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations. Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts. If the devices are fi tted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards. Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules. Carefree action can cause serious injuries in a fraction of a second. Use and care of the power tool Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will pro- vide a better and safer job if used according to the designed load. Do not use the power tool, if the electric switch does not allow switching on and off . Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair. Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool. Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may aff ect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working. Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation. Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations. Repairs Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

SCREWDRIVERS SAFETY WARNINGS

Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.14

ATTENTION! All the operations mentioned in this point must be realised with the power supply off . - the battery must be disconnected from the tool! Safety recommendations for battery loading Attention! Before loading may start make sure the body of the charger, the cable and the plug are not broken or damaged. It is prohibited to use a damaged loading dock and charger! For the purpose of loading batteries only the charging dock and the charger provided may be used. Using another charger may be a cause of fi re or damage the tool. Batteries may be charged only in a dry room, protected from unauthorised persons, particularly children. Do not use the charging dock and the charger without permanent supervision of an adult! If it is necessary to leave the room where loading is taking place, it is required to disconnect the charger from the mains, removing the charger from the mains socket. In case when smoke comes out of the charger, or a strange smell is emitted, etc., it is required to immediately remove the plug of the charger from the mains socket! The drill and automatic return screwdriver is provided with an unloaded battery, so before work may commence, it is required to charge it following the procedure below, using the charger and charging dock provided. Li-ION batteries do not show the so called “memory eff ect”, so it is allowed to charge them at any moment. However, it is recommended to discharge them during normal work, and then load them to their full capacity. If due to the nature of the task it is not possible to do so each time, then it is required to do it at least from time to time. Under no circumstances is it allowed to discharge the batteries short-circuiting the electrodes, since this would cause irreversible damage! It is also prohibited to check the load of the batteries, short-circuiting the electrodes for sparking. Storage of the battery In order to prolong the life of the battery, it is required to provide adequate storage conditions. The batteries can go through ap- proximately 500 „loading - discharging” cycles. The battery must be stored between 0 and 30°C, at the relative humidity of 50%. In order to store the battery for a prolonged period, it is required to charge it to approximately 70% of its capacity. In case of prolonged storage, it is required to recharge the battery once a year. Do not permit excessive discharging of the battery, since this would reduce its life and may cause irreversible damage. During storage, the battery will be gradually unloading due to leakage conductance. The process of automatic unloading depends on the temperature of storage, since the higher the temperature, the fastest the process. In case of incorrect storage of batteries, there is a danger of electrolyte leakage. In case of leakage, it is required protect the leakage with neutralizing agent. In case of contact of electrolyte with the eyes, it is required to rinse the eyes abundantly, and then immediately seek medical assistance. It is prohibited to use a tool with a damaged battery. In case the battery is completely worn out, it is required to deposit it at a special point dedicated to disposal of such waste. Transport of the batteries Lithium-ion batteries are in accordance with legal regulations treated as dangerous waste. The user of the tool may transport the tool with the battery or only batteries by land. Then no additional conditions must be complied with. In transport is realised by third parties (for example dispatch through courier service), then it is required to proceed in accordance with regulations for transport of dangerous materials. Before shipment, contact an authorised person. It is prohibited to transport damaged batteries. During transport the battery must be removed from the tool, and the exposed contacts protected, e.g. with insulating tape. Protect the batteries so that they do not move inside the package during transport. It is also required comply with the national regulations for transport of dangerous materials. Charging the battery Attention! Before charging you should disconnect the charger from the mains by unplugging the power supply plug from the mains. In addition, you should clean the battery and its terminals of dirt and dust with a soft, dry cloth. The battery has a built-in charge indicator. When you press the button, LEDs will light up (II), the more LEDs will light up, the more fully the battery pack is charged. If the button is pressed and the LEDs are off it means that the battery is discharged. Disconnect the battery from the tool. Push the battery in the charger socket (II). Plug the charger into a mains socket. When the red LED lights up, it means the loading process. When charging is complete, the red LED goes off , and green LED lights up, indicating a full charge of the battery. Unplug the charger from the mains outlet. Remove the battery from the charging station, by pressing the battery latch button. Attention! If, when the charger is connected to the power supply, the green LED is on, this indicates a fully charged battery. In this case, the charger does not start charging. Fixing the screwdriver tips in drill holder (III) Attention! Due to the presence of impact mechanism you should use only the tips, which are designed for operation with impact15

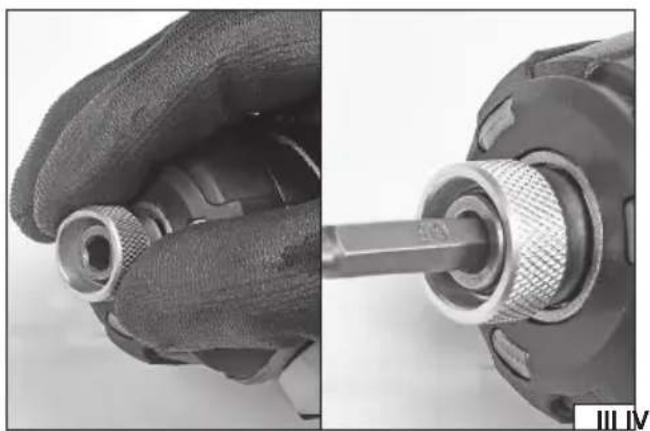

ORIGINAL INSTRUCTIONS tools of greater or equal than torque than the torque of tool. Attention! Due to the presence of impact mechanism It is forbidden to mount the drill bits and work with them. If the drill bit is locked in hole its impact mechanism may result in rupture of the drill bit, what could be the cause of injuries. Attention! Fixing must be carried out when the battery disconnected, this will prevent accidental activation of the tool. The handle of the wrench is designed to be used with the hexagonal. “long” bits and adapters with a length of at least 50 mm and fi tted with a groove. to ensure the blocking of the tip in its holder. It is forbidden to use bits shorter than 50 mm and such that do not feature the groove. Pull forward the ring tof ool holder, and then enter the the tip into holder and release the ring, which should return to its starting position. Check whether the tip is properly locked in its holder, If you cannot pull it out, this means the proper mounting. The tip removal should be carried out in reverse order. Setting the direction of rotation (IV) Set the switch to the desired position. The direction of screws movement is marked on the switch by arrows with the most popular right-hand thread. In the case of screws with left-hand thread the movement of the screw will be opposite to the direction indicated by the arrow. Preparatory steps to work Before starting the work: Clamp the workpiece in a vise or with carpentry clamps. Use the tools which are appropriate for the work to be done. Choose the right type of tip to the screw socket. Wear work clothing and protection for sight and hearing. Grasp the tool with both hands (V). Adopt a stable stand. Turn on the tool by fi nger pressing the switch. Attention! If you notice any suspicious noise during operation, cracks, stench, etc. you should immediately turn off the tool and remove battery pack from it.

OPERATING OF THE TOOL

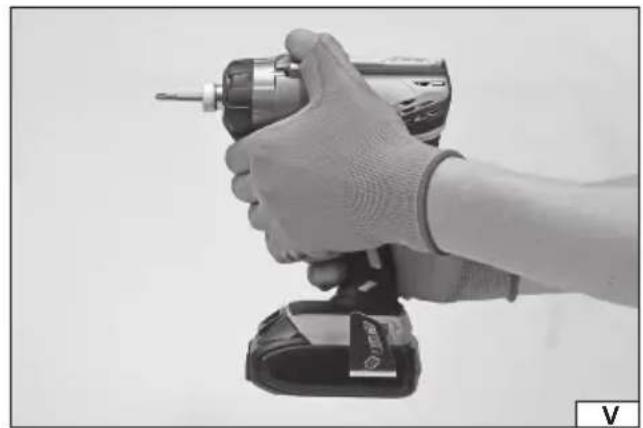

The depth of switch push determines the revs speed and torque. The tool does not have option to set the preset speed and torque. You should enter the tip in socket screw or impose on the nut, and then swithc on the device. This will prevent damage to the fasteners or to the tip. It will also reduce the risk of injuries. In the case of screwing bolts in the surface, it is recommended that you perform a pilot hole with a diameter of core screws. This will prevent the destruction of the material during screwing. It is also possible to screw without a pilot hole. During both types of screwing in you should begin with a small revs speed and possibly increase it in the course of work. In the case of screw connections, for example, when screwing in the coated screws in threaded holes or when you screw on the nuts on the threaded pins you should perfor the fi rst few turns by hand, key or a screwdriver. Only after ensuring the correct screw- ing in of one element in the second, you may ready to work a screw impact wrench. In the case of screwing the threaded elements it is not recommended to exert too much pressure on the impact wrench. This can lead to the destruction of the thread. After tightening the elements, it will start the hammer mechanism, what will be indicated by “bumps” the revving mechanism, in this case, you should release your pressure on the switch and cease further tightening the components. Continuing to tighten can lead to the destruction of connecting elements. Using attachments The tool must not be used to power working attachments. Additional information During work do not exert excessive pressure on the processed material and do not make violent moves, so as to avoid any dam- age to the working tool and the drill. Make regular breaks during work. Do not overstress the tool. The temperature of the external surfaces must not exceed 60

Once the work has been concluded, turn the drill off , remove the battery and carry out maintenance tasks and inspection.16

ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been fi nished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and defl ection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.17 ORIGINALANLEITUNG

DECLARATION OF CONFORMITY

(Name and signature of authorized person) (Place and date of issue) We declare and guarantee with full responsibility that the following products: meet requirements of the following European Standards / Technical Specifications: and fulfill requirements of the following European Directives: 2006/42/EC Machinery and safety elements 2014/30/EU Electromagnetic compatibility (EMC) Directive 2011/65/EU Restriction of the Use of Certain Hazardous Substances Serial number: concern all serials numbers of item(s) mentioned in this declaration The last two digits of the year in which the CE marking was affixed: 17 Year of production: 2020 The person authorized to compile the technical file: Tomasz Zych TOYA S.A., ul. Sołtysowicka 13 - 15, 51-168 Wrocław, Polska Cordless impact screwdriver 18 V d.c., 6,3 mm, 0 - 3000 min
