USER MANUAL B660M-HDVP/D5 ASROCK

Published March 2022

Copyright©2022 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^® and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.

LICENSE. Licensee has a license under Intel's copyrights to reproduce Intel's Software only in its unmodified and binary form, (with the accompanying documentation, the "Software") for Licensee's personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions:

(a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree to prevent unauthorized copying of the Software.
(b) Licensee may not reverse engineer, decompile, or disassemble the Software.
(c) Licensee may not sublicense the Software.
(d) The Software may contain the software and other intellectual property of third party suppliers, some of which may be identified in, and licensed in accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.

OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its licensors or suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. Licensee may not remove any copyright notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. Transfer of the license terminates Licensee's right to use the Software.

DISCLAIMER OF WARRANTY. The Software is provided “AS IS” without warranty of any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.

LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG

ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide, perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Licensee's intellectual property rights, to incorporate or otherwise utilize those comments and suggestions.

TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license at any time if Licensee is in breach of any of its terms or conditions. Upon termination, Licensee will immediately destroy or return to Intel all copies of the Software.

THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.

U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S. Government. Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95054.

EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee's subsidiaries will export/re-export the Software, directly or indirectly, to any country for which the U.S. Department of Commerce or any other agency or department of the U.S. Government or the foreign government from where it is shipping requires an export license, or other governmental approval, without first obtaining any such required license or approval. In the event the Software is exported from the U.S.A. or re-exported from a foreign destination by Licensee, Licensee will ensure that the distribution and export/re-export or import of the Software complies with all laws, regulations, orders, or other restrictions of the U.S. Export Administration Regulations and the appropriate foreign government.

APPLICABLE LAWS. This Agreement and any dispute arising out of or relating to it will be governed by the laws of the U.S.A. and Delaware, without regard to conflict of laws principles. The Parties to this Agreement exclude the application of the United Nations Convention on Contracts for the International Sale of Goods (1980). The state and federal courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising out of or relating to this Agreement. The Parties consent to personal jurisdiction and venue in those courts. A Party that obtains a judgment against the other Party in the courts identified in this section may enforce that judgment in any court that has jurisdiction over the Parties.

Licensee's specific rights may vary from country to country.

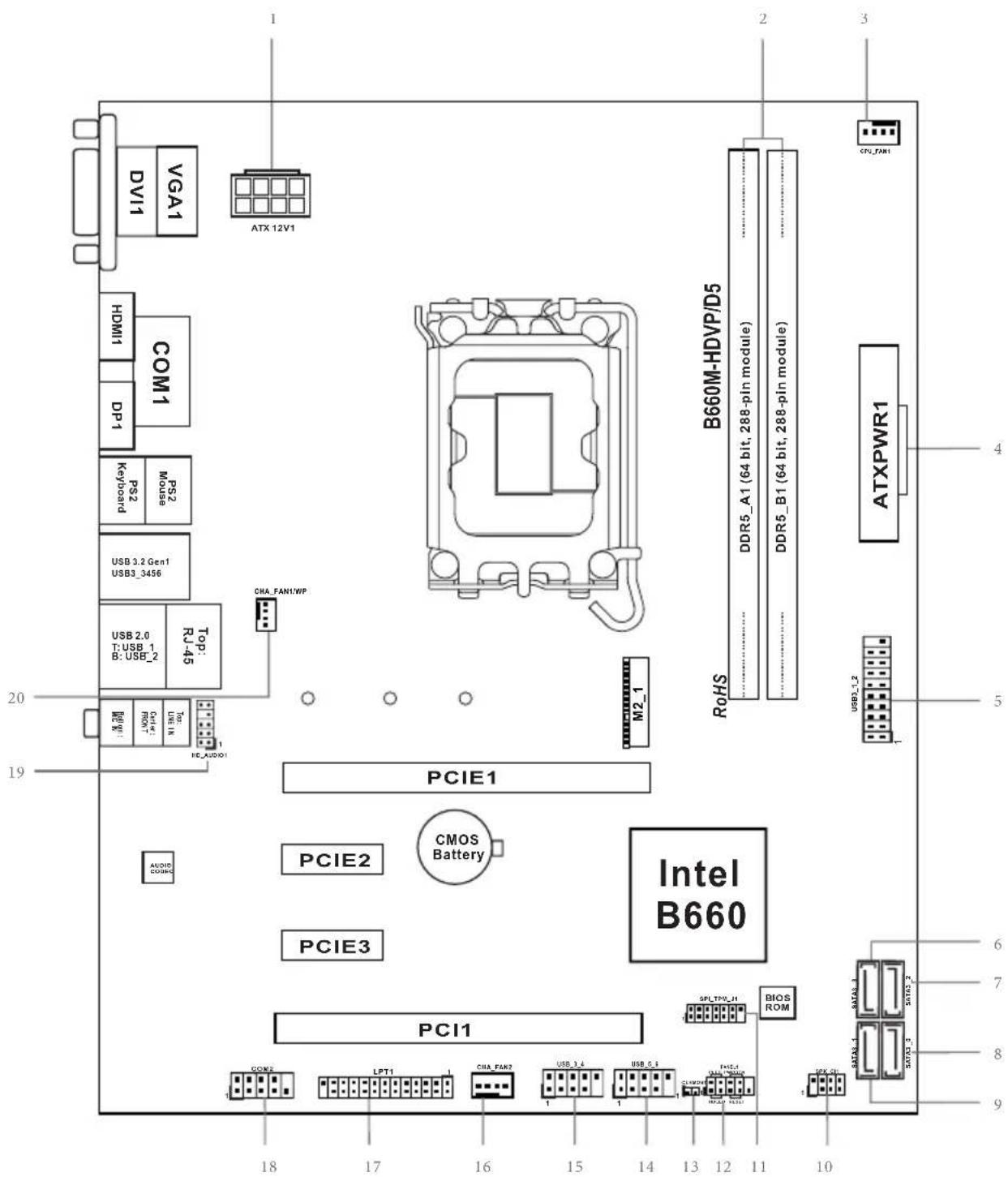

Motherboard Layout

B660M-HDVP/D5 R2.0

19 20 PC11 PC12 PC13 PC14 PC15 PC16 PC17 PC18 PC19 PC20 PC21 PC22 PC23 PC24 PC25 PC26 PC27 PC28 PC29 PC30 PC31 PC32 PC33 PC34 PC35 PC36 PC37 PC38 PC39 PC40 PC41 PC42 PC43 PC44 PC45 PC46 PC47 PC48 PC49 PC50 PC51 PC52 PC53 PC54 PC55 PC56 PC57 PC58 PC59 PC60 PCI1 PCI2 PCI3 PCI4 PCI5 PCI6 PCI7 PCI8 PCI9 PCI10 PCI11 PCI12 PCI13 PCI14 PCI15 PCI16 PCI17 PCI18 PCI19 PCI20 PCI21 PCI22 PCI23 PCI24 PCI25 PCI26 PCI27 PCI28 PCI29 PCI30 PCI31 PCI32 PCI33 PCI34 PCI35 PCI36 PCI37 PCI38 PCI39 PCI40 PCI41 PCI42 PCI43 PCI44 PCI45 PCI46 PCI47 PCI48 PCI49 PCI50 PCI51 PCI52 PCI53 PCI54 PCI55 PCI56 PCI57 PCI58 PCI59 PCI60 B660M-HDVP/D5 DDR5_A1 (64 bit, 288-pin module) DDR5_B1 (64 bit, 288-pin module) USB3_1_2 ATXPWR1

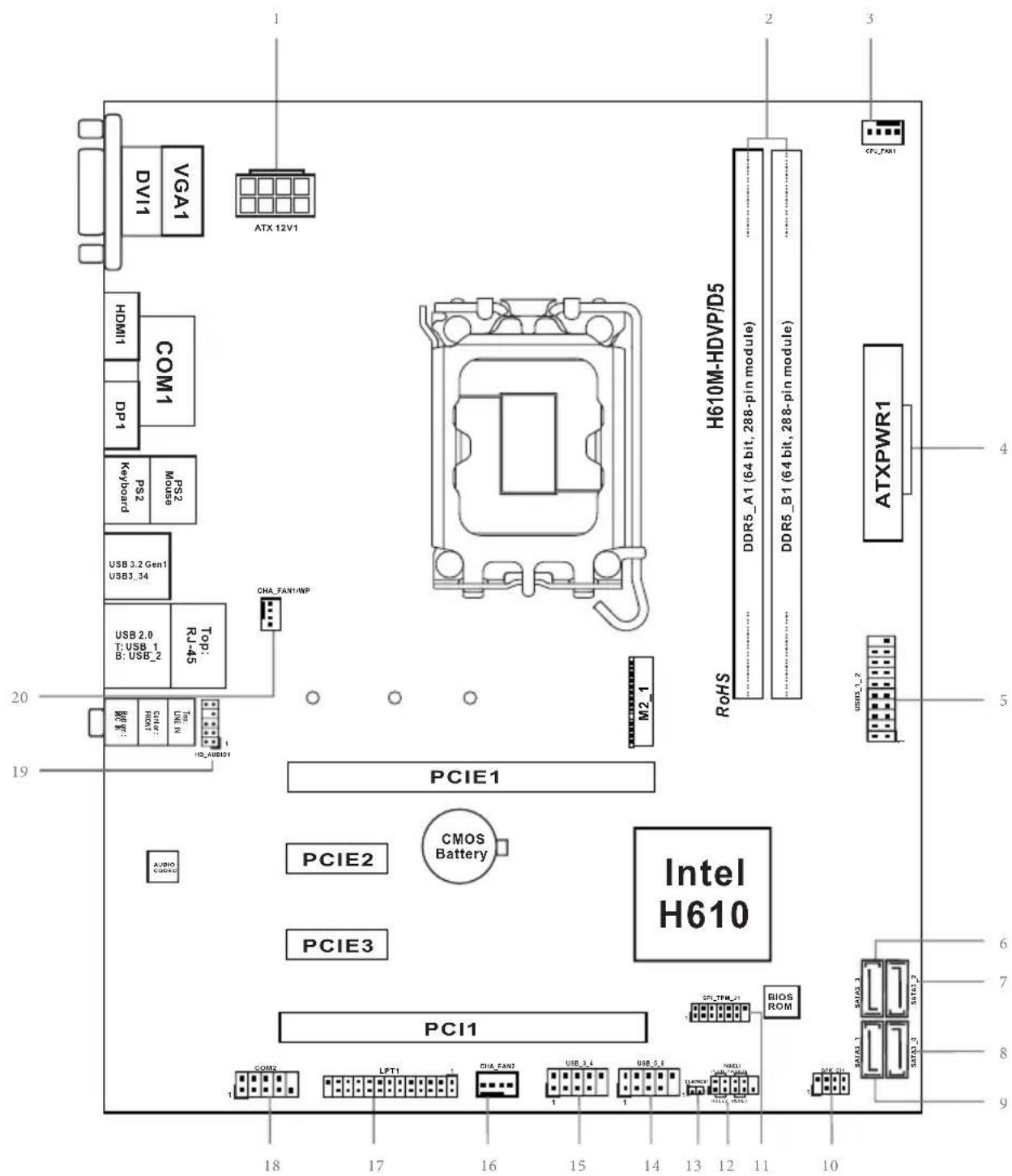

H610M-HDVP/D5 R2.0

PC1 PCIE3 PCIE2 PCIE1 CMOS Battery PCI1 Intel H610 M2_1 ATXPWR1 ATX 12V1 VGA1 DVI1 COM1 HDMI DPI DOP USB3.2 Cam1 USB3.2 B USB2.0 T USB2 Top: RJ-45 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.0 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.1 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.2 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.3 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.4 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USB2.5 USITS_1_2 ATXPWR1

No. Description

1 ATX 12V Power Connector (ATX12V1)
2 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
3 CPU Fan Connector (CPU_FAN1)
4 ATX Power Connector (ATXPWR1)
5 USB 3.2 Gen1 Header (USB3_1_2)
6 SATA3 Connector (SATA3_3)
7 SATA3 Connector (SATA3_2)
8 SATA3 Connector (SATA3_0)
9 SATA3 Connector (SATA3_1)
10 Chassis Intrusion and Speaker Header (SPK_CI1)

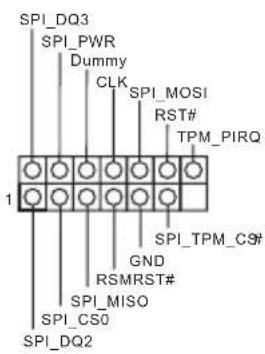

11 SPI TPM Header (SPI_TPM_J1)
12 System Panel Header (PANEL1)
13 Clear CMOS Jumper (CLRMOS1)
14 USB 2.0 Header (USB_5_6)
15 USB 2.0 Header (USB_3_4)
16 Chassis Fan Connector (CHA_FAN2)
17 Print Port Header (LPT1)
18 COM Port Header (COM2)
19 Front Panel Audio Header (HD_AUDIO1)
20 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

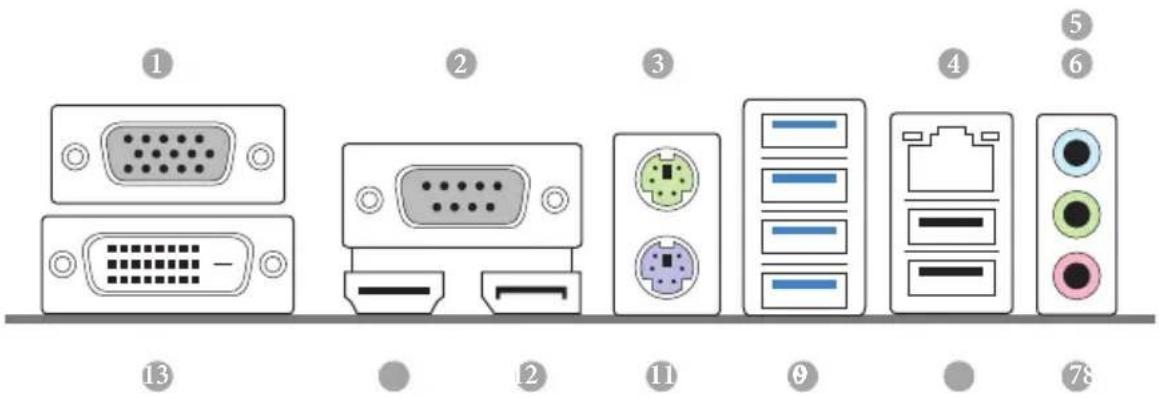

I/O Panel

B660M-HDVP/D5 R2.0

Diagram showing labeled components of a network device with connectors and ports

No. Description No. Description

1 D-Sub Port 8 USB 2.0 Ports (USB_12)
2 Serial Port: COM1 9 USB 3.2 Gen1 Ports (USB3_3456)
3 PS/2 Mouse Port 10 PS/2 Keyboard Port
4 LAN RJ-45 Port* 11 DisplayPort 1.4
5 Line In (Light Blue)** 12 HDMI Port
6 Front Speaker (Lime) ^** 13 DVI-D Port
7 Microphone (Pink)**

H610M-HDVP/D5 R2.0

Diagram showing labeled components of a computer interface with numbered connectors and ports

No. Description No. Description

1 D-Sub Port 8 USB 2.0 Ports (USB_12)
2 Serial Port: COM1 9 USB 3.2 Gen1 Ports (USB3_34)
3 PS/2 Mouse Port 10 PS/2 Keyboard Port
4 LAN RJ-45 Port* 11 DisplayPort 1.4
5 Line In (Light Blue)** 12 HDMI Port
6 Front Speaker (Lime) ^** 13 DVI-D Port
7 Microphone (Pink)**

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED Speed LED
Status	Description	Status	Description
Off	No Link	Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

** Function of the Audio Ports in 7.1-channel Configuration:

Port	Function
Light Blue (Rear panel)	Rear Speaker Out
Lime (Rear panel)	Front Speaker Out
Pink (Rear panel)	Central /Subwoofer Speaker Out
Lime (Front panel)	Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock B660M-HDVP/D5 R2.0 / H610M-HDVP/D5 R2.0 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock B660M-HDVP/D5 R2.0 / H610M-HDVP/D5 R2.0 Motherboard (Micro ATX Form Factor)
  • ASRock B660M-HDVP/D5 R2.0 / H610M-HDVP/D5 R2.0 Quick Installation Guide
  • ASRock B660M-HDVP/D5 R2.0 / H610M-HDVP/D5 R2.0 Support CD
  • 2 x Serial ATA (SATA) Data Cables (Optional)
  • 1 x Screw for M.2 Socket
• 1 x I/O Panel Shield

1.2 Specifications

Platform

• Micro ATX Form Factor
  • Solid Capacitor design

CPU

• Supports 12 ^th Gen Intel ^ Core ^TM Processors (LGA1700)
• 5 Power Phase design
• Supports Intel® Hybrid Technology
• Supports Intel ^® Turbo Boost Max 3.0 Technology

Chipset

B660M-HDVP/D5 R2.0:

- Intel® B660

H610M-HDVP/D5 R2.0:

- Intel® H610

Memory

• 2 x DDR5 DIMM Slots
• Max. capacity of system memory: 64GB
• Supports Intel ^® Extreme Memory Profile (XMP) 3.0

B660M-HDVP/D5 R2.0:

• Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)*
  1DPC 1R Up to 6200+ MHz (OC), 4800 MHz Natively.
  1DPC 2R Up to 5800+ MHz (OC), 4800 MHz Natively.

* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

H610M-HDVP/D5 R2.0:

• Supports DDR5 non-ECC, un-buffered memory up to 5600*
* Actual support may vary by CPU
* Supports DDR5 4800 (1DPC) natively.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

Expansion

CPU:

Slot

• 1 x PCIe 4.0 x16 (PCIE1), supports x16 mode*
Chipset:
• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
ASMedia ASM1083:
- 1 x PCI Slot

* Supports NVMe SSD as boot disks

Graphics

- Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

- Intel® X ^e Graphics Architecture (Gen 12)

- Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.4

*Supports up to 3 displays simultaneously (for H610M-HDVP/D5 R2.0 only)

• Supports Quad Monitor (for B660M-HDVP/D5 R2.0 only)

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• Supports Surge Protection

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Rear Panel

• 1 x PS/2 Keyboard Port

I/O

• 1 x PS/2 Mouse Port

• 1 x Serial Port: COM1

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone

B660M-HDVP/D5 R2.0:

• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

H610M-HDVP/D5 R2.0:

• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

Storage

B660M-HDVP/D5 R2.0:

Chipset:

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors

* Supports Intel* Optane™ Technology
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit

H610M-HDVP/D5 R2.0:

Chipset:

• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  • 4 x SATA3 6.0 Gb/s Connectors**
  * Supports NVMe SSD as boot disks
  * Supports ASRock U.2 Kit
  ** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

RAID (for

B660M-

HDVP/D5

R2.0 only)

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Connector

• 1 x Print Port Header
• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header

• 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

• 1 x Chassis Fan Connector (4-pin)

* The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.

- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

BIOS

Feature

• AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, VDD_CPU, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Hardware

Monitor

• Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans

- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans

- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans

- CASE OPEN detection

- Voltage monitoring: CPU Vcore, +1.05V_PCH, VDD_CPU, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V, VCCSA

OS

• Microsoft® Windows® 10 64-bit / 11 64-bit

Certifica-

tions

• FCC, CE
  • ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.
• In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

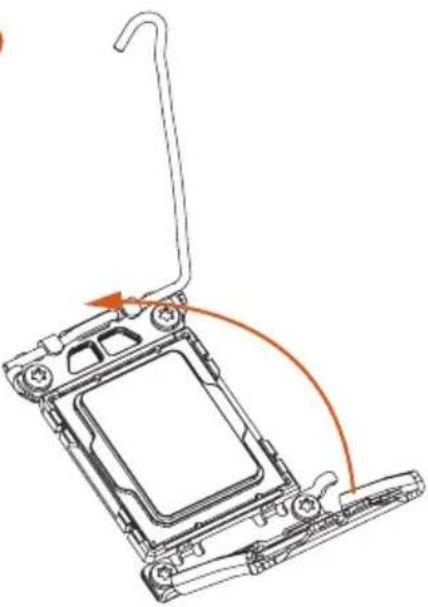

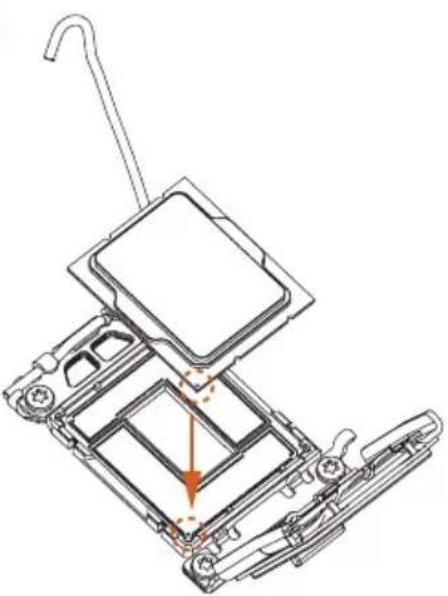

2.1 Installing the CPU

1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

2. Unplug all power cables before installing the CPU.

1

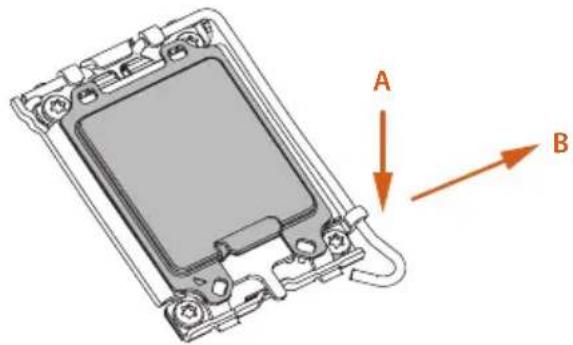

3D diagram of a device casing with labeled arrows A and B indicating directional components (no text or symbols beyond labels)

2

Diagram of a mechanical component with an arrow indicating rotational motion (no text or symbols present)

3

Technical line drawing of a mechanical device with a hook and orange arrow indicating motion (no text or symbols)

4

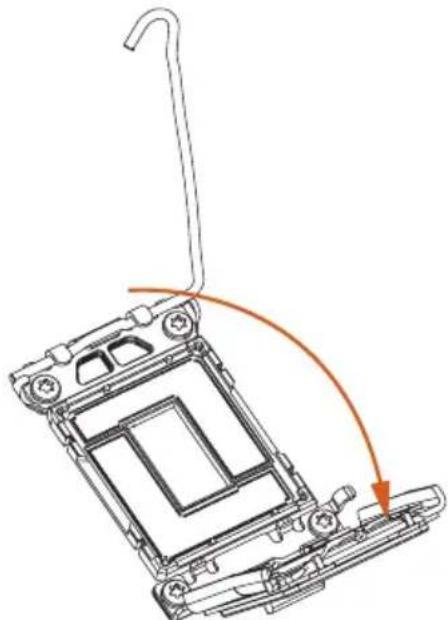

Technical line drawing of a mechanical assembly with no visible text or symbols

5

Technical line drawing of a mechanical device with a hook and orange curved arrow indicating motion (no text or symbols)

6

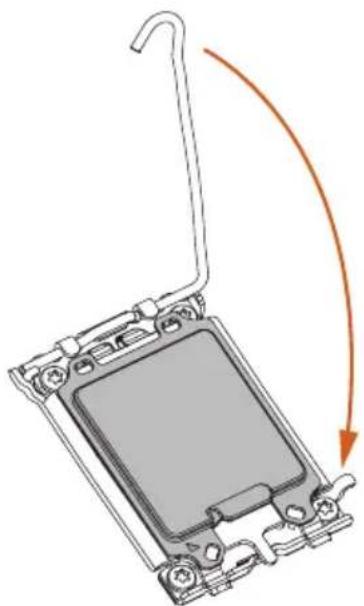

Diagram of a mechanical component with an arrow indicating rotation or movement, no text or symbols present

7

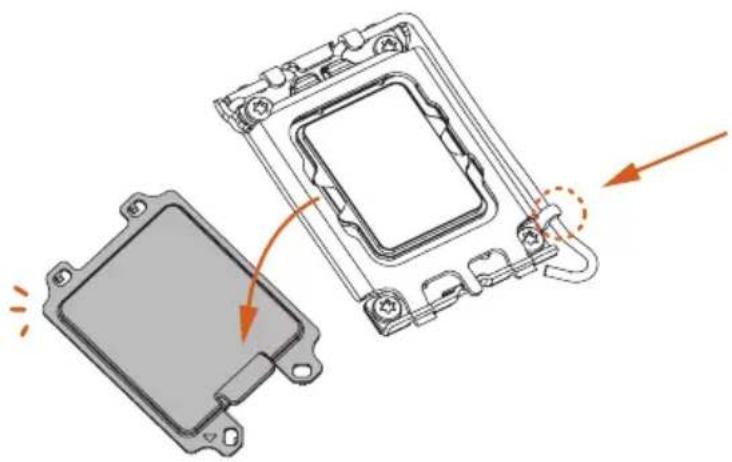

Technical illustration of a dual-chamber electronic component with arrows indicating assembly or connection (no text or symbols)

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

2.2 Installing the CPU Fan and Heatsink

Technical line drawing of a pipette inserted into a microchip (no text or symbols)

1

Technical diagram of a CPU fan assembly with labeled components and directional arrows indicating motion or assembly.

2

CP-1.794

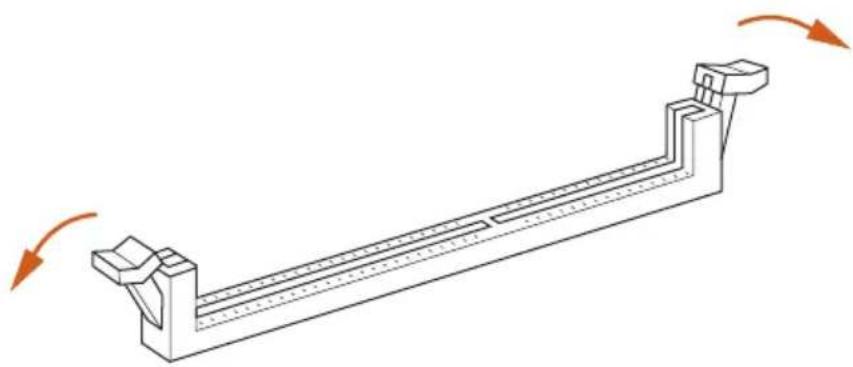

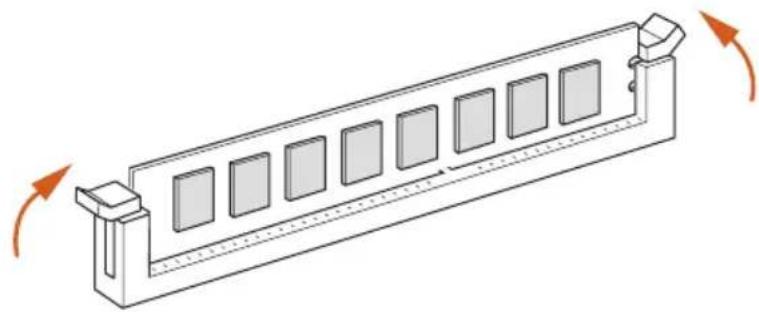

2.3 Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR5 (Double Data Rate 5) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2, DDR3 or DDR4 memory module into a DDR5 slot; otherwise, this motherboard and DIMM may be damaged.

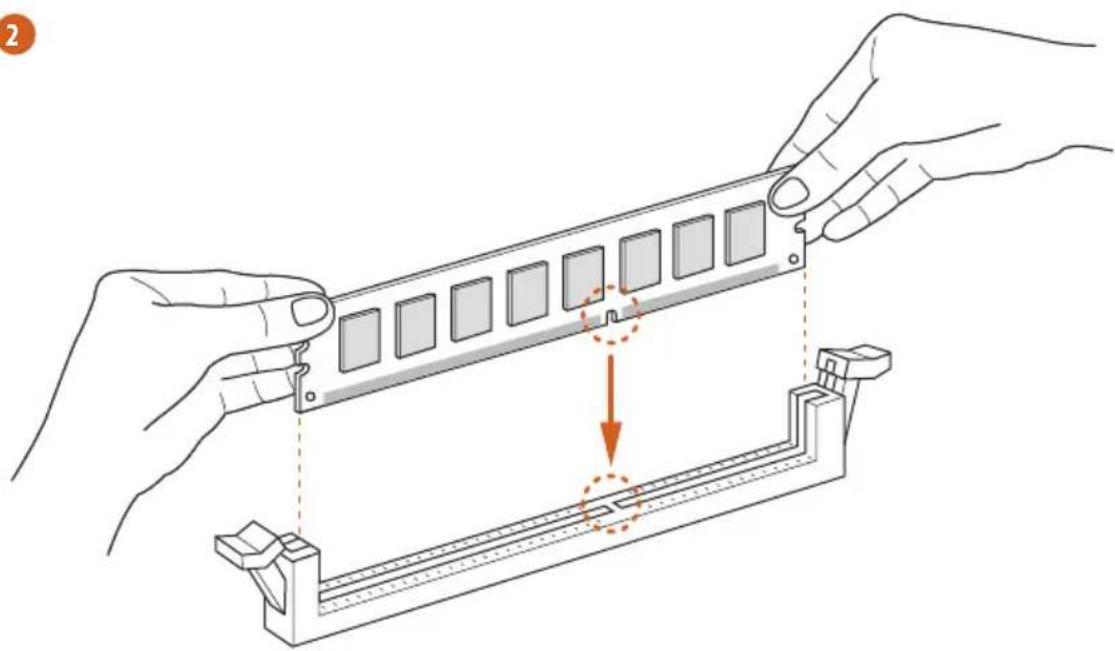

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical support structure with rotational arrows indicating motion (no text or symbols)

2

Illustration of hands assembling a mechanical component with a highlighted section (no text or symbols)

3

Isometric line drawing of a rectangular mechanical component with multiple square cutouts and directional arrows indicating rotation (no text or symbols)

2.4 Expansion Slots (PCI and PCIe Slots)

There are 1 PCI slot and 3 PCIe slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCI slots:

The PCI1 slot is used to install expansion card that have 32-bit PCI interface.

PCIe slots:

PCIE1 (PCIe 4.0 x16 slot) is used for PCIe x16 lane width graphics cards.

PCIE2 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”.

Short

Open

Clear CMOS Jumper (CLRMOS1)

(see p.1, 2, No. 13)

2-pin Jumper

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember to remove the jumper cap after clearing the CMOS.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, 2, No. 12)

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and

Speaker Header

(7-pin SPK_CI1)

(see p.1, 2, No. 10)

chassis intrusion and the

chassis speaker to this header.

Serial ATA3 Connectors

Vertical:

(SATA3_0:

see p.1, 2, No. 8)

(SATA3_1:

see p.1, 2, No. 9)

(SATA3_2:

see p.1, 2, No. 7)

(SATA3_3:

see p.1, 2, No. 6)

SATA3_1 SATA3_3 SATA3_0 SATA3_2

These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled (for H610M-HDVP/D5 R2.0 only).

USB 2.0 Headers

(9-pin USB_3_4)

(see p.1, 2, No. 15)

(9-pin USB_5_6)

(see p.1, 2, No. 14)

USB_PWR P- P+ GND DUMMY 1 P+ GND P- USB_PWR

There are two USB 2.0 headers on this motherboard. Each USB 2.0 header can support two ports.

USB 3.2 Gen1 Header

(19-pin USB3_1_2)

(see p.1, 2, No. 5)

Vbus/Vbus Vbus IntA_PB_SSRX- IntA_PB_SSRX+ GND IntA_PB_SSTX- IntA_PB_SSTX+ GND IntA_PB_D- IntA_PB_D+ Dummy 1

There is one USB 3.2 Gen1 header on this motherboard.

This USB 3.2 Gen1 header can support two ports.

Front Panel Audio Header

(9-pin HD_AUDIO1)

(see p.1, 2, No. 19)

OUT_RET OUT2_L MIC_RED J_SENSE OUT2_R PRESENCE# MIC2_R GND MIC2_L 1

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Fan Connector

(4-pin CHA_FAN2)

(see p.1, 2, No. 16)

GND +12V CHA_FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

Please connect fan cable to the fan connector and match the black wire to the ground pin.

Chassis/Water Pump Fan

Connector

(4-pin CHA_FAN1/WP)

(see p.1, 2, No. 20)

This motherboard provides a 4-Pin water cooling chassis fan connector. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.1, 2, No. 3)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector

(24-pin ATXPWR1)

(see p.1, 2, No. 4)

This motherboard provides a 24-pin ATX power connector.

To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.1, 2, No. 1)

This motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

*Warning: Please make sure that the power cable connected is for the CPU and not the graphics card.

Do not plug the PCIe power cable to this connector.

SPI TPM Header

(13-pin SPI_TPM_J1)

(see p.1, 2, No. 11)

SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ 1 SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2

This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Serial Port Header

(9-pin COM2)

(see p.1, 2, No. 18)

This COM header supports serial port module.

Print Port Header (25-pin LPT1)

(see p.1, 2, No. 17)

SLCT PE BUSY ACK# SPD6 SPD7 GND SPD3 SPD4 SPD2 SPD3 SPD1 SIB# SPD0 SLIN# PINIT# ERROR# AFD#

This is an interface for print port cable that allows convenient connection of printer devices.

2.7 M.2\_SSD (NGFF) Module Installation Guide (M2\_1)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA.

B660M-HDVP/D5 R2.0:

The Hyper M.2 Socket (M2_1, Key M) supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode.

H610M-HDVP/D5 R2.0:

The Ultra M.2 Socket (M2_1, Key M) supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes.*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

Installing the M.2\_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with a small screw and a separate screw-like feature (no text or symbols)

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

C B A 1 2 3

Step 2

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.123

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type Type2242 Type2260 Type 2280

Step 3

Move the standoff based on the module type and length.

The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.

Otherwise, release the standoff by hand.

Step 4

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and directional arrow (no text or symbols beyond labels)

Step 5

Align and gently insert the M.2

(NGFF) SSD module into the M.2 slot. Please be aware that the M.2

(NGFF) SSD module only fits in one orientation.

B A 20°

Pure technical diagram showing a mechanical setup with a screw and spring, no text or symbols present

Step 6

Tighten the screw with a screwdriver to secure the module into place.

Please do not overtighten the screw as this might damage the module.

M.2_SSD (NGFF) Module Support List (for B660M-HDVP/D5 R2.0)

Vendor Interface Length P/N
ADATA	PCIe3 x4	2280	ASX7000NP-128GT-C
ADATA	PCIe3 x4	2280	ASX8000NP-256GM-C
ADATA	PCIe3 x4	2280	ASX7000NP-256GT-C
ADATA	PCIe3 x4	2280	ASX7000NP-512GT-C
ADATA	PCIe3 x4	2280	ASX8000NP-512GM-C
Corsair	PCIe3 x4	2280	CSSD-F240GBMP500
Intel PCIe3 x4 2280 SSDPEKKF256G7
Intel PCIe3 x4 2280 SSDPEKKF512G7
Kingston	PCIe2 x4	2280	SH2280S3/480G
OCZ PCIe3 x4 2280 RVD400 -M2280-512G (NVME)
Plextor	PCIe3 x4	2280	PX-128M8PeG
Plextor	PCIe3 x4	2280	PX-1TM8PeG
Plextor	PCIe3 x4	2280	PX-256M8PeG
Plextor	PCIe3 x4	2280	PX-512M8PeG
Plextor PCIe 2280 PX-G256M6e
Plextor PCIe 2280 PX-G512M6e
Samsung	PCIe3 x4	2280	SM961 MZVPW128HEGM (NVM)
Samsung	PCIe3 x4	2280	PM961 MZVLW128HEGR (NVME)
Samsung	PCIe3 x4	2280	960 EVO (MZ-V6E250) (NVME)
Samsung	PCIe3 x4	2280	960 EVO (MZ-V6E250BW) (NVME)
Samsung	PCIe3 x4	2280	SM951 (NVME)
Samsung	PCIe3 x4	2280	SM951 (MZHPV256HDGL)
Samsung	PCIe3 x4	2280	SM951 (MZHPV512HDGL)
Samsung	PCIe3 x4	2280	SM951 (NVME)
Samsung	PCIe x4	2280	XP941-512G (MZHPU512HCGL)
SanDisk	PCIe	2260	SD6PP4M-128G
SanDisk	PCIe	2260	SD6PP4M-256G
TEAM	PCIe3 x4	2280	TM8FP2240G0C101
TEAM	PCIe3 x4	2280	TM8FP2480GC110
WD	PCIe3 x4	2280	WDS256G1X0C-00ENX0 (NVME)
WD	PCIe3 x4	2280	WDS512G1X0C-00ENX0 (NVME)

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

M.2\_SSD (NGFF) Module Support List (for H610M-HDVP/D5 R2.0)

Vendor Interface P/N

ADATA SATA3 AXNS330E-32GM-B

ADATA SATA3 AXNS381E-128GM-B

ADATA SATA3 AXNS381E-256GM-B

ADATA SATA3 ASU800NS38-256GT-C

ADATA SATA3 ASU800NS38-512GT-C

ADATA PCIe3 x4 ASX7000NP-128GT-C

ADATA PCIe3 x4 ASX8000NP-256GM-C

ADATA PCIe3 x4 ASX7000NP-256GT-C

ADATA PCIe3 x4 ASX8000NP-512GM-C

ADATA PCIe3 x4 ASX7000NP-512GT-C

Apacer PCIe3 x4 AP240GZ280

Corsair PCIe3 x4 CSSD-F240GBMP500

Crucial SATA3 CT120M500SSD4

Crucial SATA3 CT240M500SSD4

Intel SATA3 Intel SSDSCKGW080A401/80G

Intel PCIe3 x4 SSDPEKKF256G7

Intel PCIe3 x4 SSDPEKKF512G7

Kingston SATA3 SM2280S3

Kingston PCIe3 x4 SKC1000/480G

Kingston PCIe2 x4 SH2280S3/480G

OCZ PCIe3 x4 RVD400 -M2280-512G (NVME)

PATRIOT PCIe3 x4 PH240GPM280SSDR NVME

Plextor PCIe3 x4 PX-128M8PeG

Plextor PCIe3 x4 PX-1TM8PeG

Plextor PCIe3 x4 PX-256M8PeG

Plextor PCIe3 x4 PX-512M8PeG

Plextor PCIe PX-G256M6e

Plextor PCIe PX-G512M6e

Samsung PCIe3 x4 SM961 MZVPW128HEGM (NVM)

Samsung PCIe3 x4 PM961 MZVLW128HEGR (NVME)

Samsung PCIe3 x4 960 EVO (MZ-V6E250) (NVME)

Samsung PCIe3 x4 960 EVO (MZ-V6E250BW) (NVME)

Samsung PCIe3 x4 SM951 (NVME)

Samsung PCIe3 x4 SM951 (MZHPV256HDGL)

Samsung PCIe3 x4 SM951 (MZHPV512HDGL)

Samsung PCIe3 x4 SM951 (NVME)

Samsung PCIe x4 XP941-512G (MZHPU512HCGL)

SanDisk PCIe SD6PP4M-128G

SanDisk PCIe SD6PP4M-256G

Team SATA3 TM4PS4128GMC105

Team SATA3 TM4PS4256GMC105

Team SATA3 TM8PS4128GMC105

Team SATA3 TM8PS4256GMC105

TEAM PCIe3 x4 TM8FP2240G0C101
TEAM PCIe3 x4 TM8FP2480GC110
Transcend SATA3 TS256GMTS400
Transcend SATA3 TS512GMTS600
Transcend SATA3 TS512GMTS800
V-Color SATA3 VLM100-120G-2280B-RD
V-Color SATA3 VLM100-240G-2280RGB
V-Color SATA3 VSM100-240G-2280
V-Color SATA3 VLM100-240G-2280B-RD
WD SATA3 WDS100T1B0B-00AS40
WD SATA3 WDS240G1G0B-00RC30
WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME)
WD PCIe3 x4 WDS512G1X0C-00ENX0 (NVME)

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

1 Einleitung

(4-polig, CHA_FAN1/WP)

USB_PWR P- P+ GND DUMMY 1 P- GND USB_PWR P-

(CHA_FAN1/WP a 4 pin)

USB_PWR P- P+ GND DUMMY 1 P- GND USB_PWR P-

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax N o: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : B660M-HDVP/D5 R2.0 / H610M-HDVP/D5 R2.0

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: Jason

Signature :

Date : May 12, 2017

EU Declaration of Conformity

ASRock®

For the following equipment:

Motherboard

(Product Name)

B660M-HDVP/D5 R2.0 / H610M-HDVP/D5 R2.0 / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

EMC Directive - 2014/30/EU

EN 55032: 2015 / A11: 2020, EN 55035: 2017 / A11: 2020

EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013

RoHS Directive - 2011/65/EU

2015/863/EU, EN IEC 63000:2018

(EU conformity marking)

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

Jason Chen

(Name, Surname)

A.V.P

(Position / Title)

April 11, 2022

(Date)

Product:

Product Motherboard

Model / Brand / SN. B660M-HDVP/D5 R2.0 / H610M-HDVP/D5 R2.0 / ASRock

Authorized Representative (UK-GB):

Name: Gary Tsui

Address: Bijsterhuizen 11-11, 6546 AR Nijmegen, The Netherlands

Contact person: Gary Tsui

This declaration is issued under the sole responsibility of the mentioned Manufacturer. The subject equipment under declaration is in conformity with the UK-GB Regulation(s) below:

The Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091)

EN 55032: 2015 / A11: 2020, EN 55035: 2017 / A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

2015/863/EU, EN IEC 63000:2018

The following manufacturer outside the UK-GB is responsible for this declaration:

ASRock Incorporation

(Company Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Company Address)

Person responsible for making this declaration:

Jason Chou

(Name, Surname)

A.V.P

(Position / Title)

Taipei April 11, 2022

(Place) (Date)

Jason Chen

( Legal Signature )

P/N: 15G062351000AK V1.0
