KHP 4 - Pressure washer Kärcher - Free user manual and instructions
Find the device manual for free KHP 4 Kärcher in PDF.
| Product type | High-pressure cleaner |
| Brand | Kärcher |
| Model | KHP 4 |
| Dimensions (L × W × H) | 333 × 405 × 870 mm |
| Operating weight | 9.1 kg |
| Rated voltage | 220-240 V ~ 50-60 Hz |
| Power input | 1.7 kW |
| Operating pressure | 10 MPa |
| Maximum permissible pressure | 13 MPa |
| Nominal water flow rate | 5.5 l/min |
| Maximum water flow rate | 7.0 l/min |
| Detergent flow rate | 0.3 l/min |
| Max. supply temperature | 40 °C |
| Max. supply pressure | 1.2 MPa |
| Protection class | II |
| Protection rating | IP X5 |
| Sound pressure level (LpA) | 73 dB(A) |
| Sound power level (LWA) | 89 dB(A) |
| Hand-arm vibration | <2.5 m/s² |
| High-pressure hose length | Approx. 8 m (on hose reel) |
| Lances supplied | Rotary nozzle + Vario Power (adjustable) |
| Detergent tank | Yes, integrated |
| Safety devices | Main switch, handle lock, pressure relief valve with pressure switch |
| Warranty | According to country conditions (see manual) |
Frequently Asked Questions - KHP 4 Kärcher
User questions about KHP 4 Kärcher
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual KHP 4 - Kärcher and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KHP 4 by Kärcher.
USER MANUAL KHP 4 Kärcher
English 9
Français 14
Italiano 19
Nederlands 24
Español 29
Português 34
Dansk 39
Norsk 44
Svenska 49
Suomi 54
Ελληνικά 59
Türkçe 64
Русский 69
Magyar 74
Čeština 79
Slovenščina 84
Polski 89
Românește 94
Slovenčina 99
Hrvatski 104
Srpski 109
Български 114
Eesti 119
Latviešu 124
Lietuviškai 129
Українська 134
Қазақша 139
Sicherheit D
www.kaercher.com/dealersearch
Technische Daten
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Contents
Safety ...... EN 4
Proper use.....EN 4
Environmental protection....EN 4
Description of the Appliance ..... EN 5
Assembly.....EN 5
Start up....EN 5
Operation. E N
Transport E N
Storage....EN 6
Care and maintenance ..... EN 7
Troubleshooting.....EN 7
Accessories and Spare Parts ..... EN 7
Warranty E N
Technical specifications.....EN 8
EU Declaration of Conformity ..... EN 8
Safety
Please read these original operating instructions and the enclosed safety in-
structions prior to the initial use of your device. Proceed accordingly. Keep both booklets for future reference or subsequent owners.
Symbols on the machine
The high pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.
Protect the appliance against frost.
The appliance must not be directly connected to the public drinking water network.
Safety Devices
⚠ CAUTION
■ Safety installations serve the protection of the user and may not be modified or bypassed.
Appliance switch
The appliance switch prevents unintentional operation of the appliance.
Lock trigger gun
This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.
Overflow valve with pressure switch
The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.
Proper use
This high pressure cleaner is designed for domestic use only.
– for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).
– with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the information accompanying the cleaning agents.
Environmental protection
Notes about the ingredients (REACH)
You will find current information about the ingredients at:
7 www.kaercher.com/REACH
The packaging material can be recycled. Please arrange for the environmentally appropriate disposal of the packaging.
Old appliances contain valuable recyclable materials that should be recycled properly. Please arrange for the environmentally appropriate disposal of the old devices.
Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.
Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.
Work with detergents must only be performed on liquid-tight work surfaces with a connection to the sewer system. Do not let release detergent into waters or earth.
Description of the Appliance
The scope of delivery of the device (depending on the model) is illustrated on the packaging. These operating instructions describe all possible options.
Illustrations on Page 2
1 Coupling element for water connection
2 Water connection with integrated sieve
3 Appliance switch „0/OFF“ / „I/ON“
4 High pressure hose
5 High-pressure hose drum
6 Storage for trigger gun
7 Transport handle
8 Hand crank for hose drum
9 Net for accessory compartment
10 Mains cable with mains plug
11 Detergent Tank
12 Bearing wheel
13 Trigger gun
14 Lock trigger gun
15 Key to detach the high pressure hose from the trigger gun
16 Spray lance with Dirtblaster For strong contaminations.
17 Spray lance with pressure regulation (Vario Power) Carrying out the most common cleaning tasks. The working pressure can be continuously increased from "SOFT" to "HARD". To adjust the working pressure, release the trigger gun lever and turn the spray lance to the desired position. Suitable for use with detergents.
Additionally required
Fabric-reinforced water hose with commercially available coupling.
- Minimum diameter, 1/2 inches (13 mm).
– Minimum length 7.5 m.
Assembly
Mount loose parts delivered with appliance prior to start-up.
Illustrations on Page 3

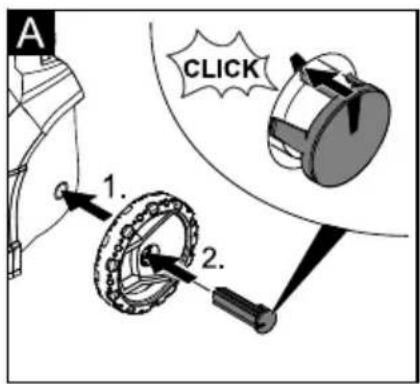

Illustration A
→ Push the wheels into the intake.
→ Secure the wheels using the included plug. Align the plug properly!

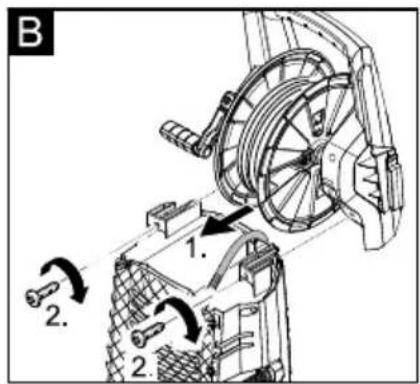

Illustration B
→ Insert the transport handle and screw in.
Illustration C

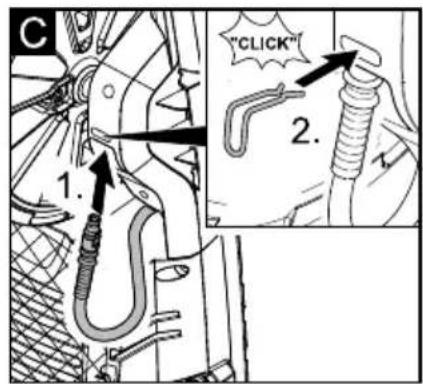

→ Press the connecting fitting from the short high pressure hose into the brass intake, secure with clamps.
Note: Make sure the connection nipple is aligned correctly.
Check the secure connection by pulling on the high pressure hose.
Illustration D

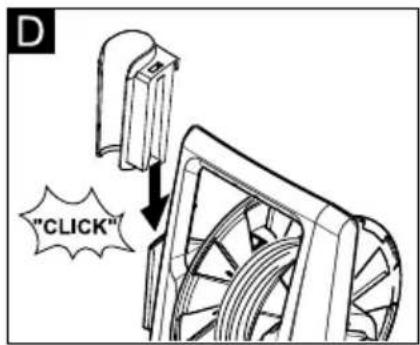

→ Insert holder for trigger gun.
Illustration E

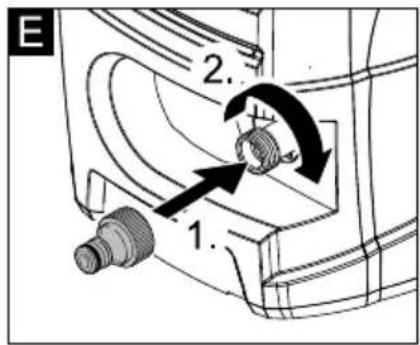

→ Screw the coupling element to the water connection on the appliance.

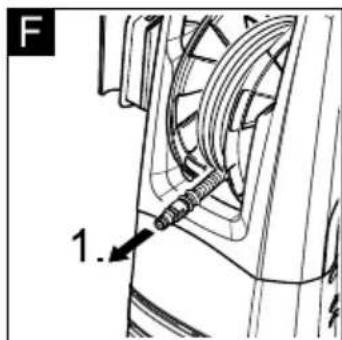

Illustration F

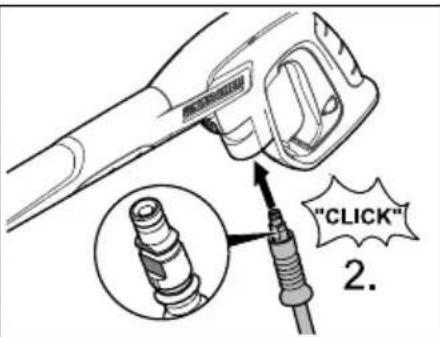

→ Push the high pressure hose into the trigger gun until it locks audibly.
Note: Make sure the connection nipple is aligned correctly.
→ Check the secure connection by pulling on the high pressure hose.
Start up
→ Park the appliance on an even surface.
→ Insert the mains plug into the socket.
Water supply
For connection values, see type plate/technical data. Observe regulations of water supplier.
ATTENTION
Impurities in the water can damage the high-pressure pump and the accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.

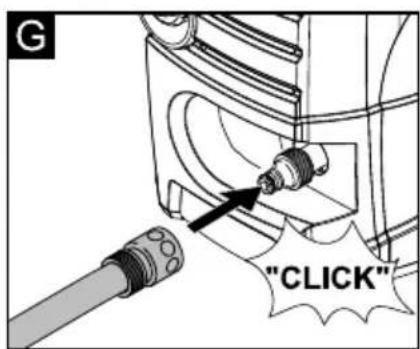

Illustration G
→ Attach the water supply hose to the coupling on the water connection.
→ Connect the water supply hose to the water supply.
→ Completely open the water tap.
Operation
ATTENTION
Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".
High pressure operation
CAUTION
Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage.
ATTENTION
Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.
→ Unwind the high pressure hose completely from the hose drum. Hold on to the transport handle during this procedure.

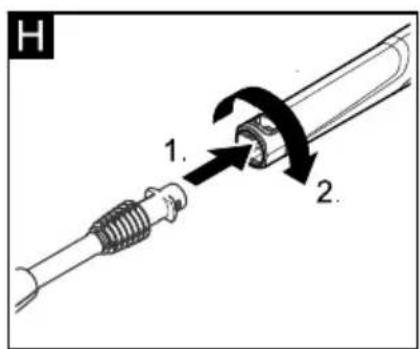

Illustration H
→ Push the spray lance into the trigger gun and fasten it by turning it through 90°.
→ Turn on the appliance "I/ON".

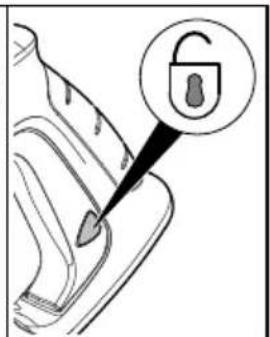

→ Unlock the lever on the trigger gun.
→ Pull on the lever of the trigger gun; the device will switch on.
Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.
Operation with detergent
Note: Detergent can only be added when the device is operated in low pressure mode.
⚠️ DANGER
When using detergents, the material data safety sheet issued by the detergent manufacturer must be adhered to, especially the instructions regarding personal protective equipment.

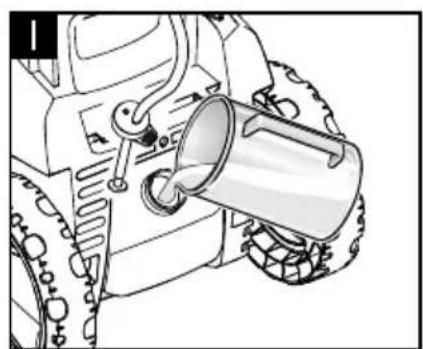

Illustration I
→ Fill the detergent solution in the detergent tank (observe dosage instructions on the packaging of the detergent).
→ Close the detergent tank with the lid.
→ Use spray lance with pressure regulation (Vario Power).
→ Turn the spray lance to "Mix" position.
Note: This will mix the detergent with the water stream.
Recommended cleaning method
→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high pressure jet.
Interrupting operation
→ Release the lever on the trigger gun.

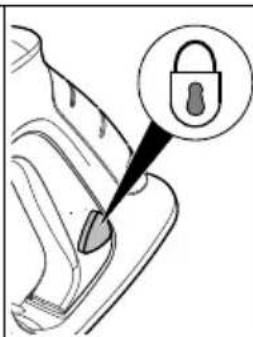

→ Lock the lever on the trigger gun.
→ Insert the trigger gun in its holder.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.
Finish operation
CAUTION
Only separate the high-pressure hose from the trigger gun or the appliance when there is no pressure in the system.
→ After operation with detergent: Run the machine for approximately 1 minute for a clear rinse.
→ Release the lever on the trigger gun.
→ Turn off the appliance "0/OFF".
→ Disconnect the mains plug from the socket.
→ Turn off tap.
→ Press the lever on the trigger gun to release any remaining pressure in the system.
→ Lock the lever on the trigger gun.
→ Detach the appliance from the water supply.
Transport
CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
When transporting by hand
→ Pull the appliance by its transport handle.
When transporting in vehicles
→ Empty detergent tank.
→ Secure the appliance against shifting and tipping over.
Storage
⚠ CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
Storing the Appliance
Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.
→ Park the machine on an even surface.
→ Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
→ Wind the entire high pressure hose onto the hose drum by rotating the hand crank counter-clockwise.
→ Insert the trigger gun in its holder.
→ Stow the power cord and the remaining accessories on the appliance.
Frost protection
ATTENTION
Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:
→ Detach the appliance from the water supply.
→ Detach spray lance from the trigger gun.
→ Switch the appliance on ("I/ON"), press the trigger gun lever until no further water is discharged (approx. 1 min).
→ Turn off the appliance.
→ Store the appliance and the entire accessories in a frost free room.
Care and maintenance
⚠️ DANGER
Risk of electric shock.
■ Prior to all work on the appliance, switch off the appliance and pull the power plug.
Clean the sieve in the water connection
Clean the sieve in the water connection regularly.
→ Remove coupling from the water connection.

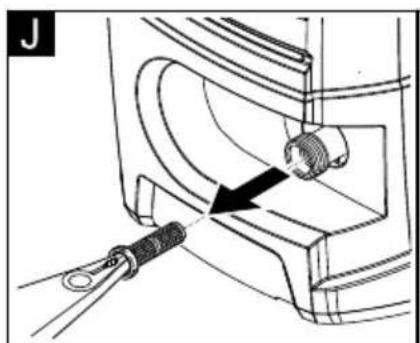

Illustration J
ATTENTION
The sieve must not be damaged.
→ Pull the sieve out using flat pliers.
→ Clean the sieve under running water.
→ Reinsert the sieve into the water connection.
Cleaning the detergent filter
Prior to longer periods of storage, e.g. in the winter:
→ Remove filter from suction hose for detergent and clean under running water.
Troubleshooting
You can rectify minor faults yourself with the help of the following overview.
If in doubt, please consult the authorized customer service.
⚠️ DANGER
Risk of electric shock.
→ Prior to all work on the appliance, switch off the appliance and pull the power plug.
Appliance is not running
→ Pull on the lever of the trigger gun; the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.
Pressure does not build up in the appliance
→ Check setting at the spray lance.
→ Check water supply for adequate delivery rate.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
→ Remove air from appliance before operation.
Switch on the appliance without connection the HP hose (max. 2 minutes) and run it until the water discharging from the HP outlet is free of bubbles.
Switch off appliance and reconnect HP hose.
Strong pressure fluctuations
→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.
Appliance is leaking
→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.
No detergent infeed
→ Use spray lance with pressure regulation (Vario Power).
Turn the spray lance to "Mix" position.
→ Clean the detergent suction hose filter.
Accessories and Spare Parts
Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com.
Warranty
The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.
Please submit the proof of purchase.
Addresses can be found under:
www.kaercher.com/dealersearch
Technical specifications
| Electrical connection | |
| Voltage 220-240 | V1~50-60 Hz |
| Connected load 1,7 kW | |
| Protection class IP X5 | |
| Protective class II | 回 |
| Mains fuse (slow-blow) 10 A | |
| Water connection | |
| Max. feed pressure 1,2 MPa | |
| Max. feed temperature 40 °C | |
| Min. feed volume 8 l/min | |
| Performance data | |
| Working pressure 10 MPa | |
| Max. permissible pressure 13 MPa | |
| Water flow rate 5,5 l/min | |
| Max. flow rate 7,0 l/min | |
| Detergent flow rate 0,3 l/min | |
| Recoil force of trigger gun | 13 N |
| Dimensions and weights | |
| Length | 333 mm |
| Width | 405 mm |
| Height | 870 mm |
| Weight, ready to operate with accessories | 9,1 kg |
| Values determined as per EN 60335-2-79 | |
| Hand-arm vibration value | <2,5 m/s2 |
| Uncertainty K | 0,7 m/s2 |
| Sound pressure level LpA | 73 dB(A) |
| Uncertainty KpA | 3 dB(A) |
| Sound power level IWA + Uncertainty KWA | 89 dB(A) |
Subject to technical changes.
EU Declaration of Conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: High pressure cleaner
Type: KHP 4
Relevant EU Directives
2000/14/EC
2014/30/EU
2006/42/EC (+2009/127/EC)
2011/65/EU
Applied harmonized standards
EN 50581
EN 55014-1:2017
EN 55014-2: 2015
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 87
Guaranteed: 89
The signatories act on behalf of and with the authority of the company management.
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Documentation supervisor:
S. Reiser
Alfred Kärcher SE & Co. KG
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Table des matières
Sécurité FR 4
www.kaercher.com/REACH
3 Interrupteur principal "0/OFF" / "I/ON"
4 Flexible haute pression
5 Dévidoir de flexible haute pression
www.kaercher.com/dealersearch
2006/42/CE (+2009/127/CE)
2011/65/UE
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Indice
Sicurezza. I T
7 www.kaercher.com/REACH
www.kaercher.com/dealersearch
Dati tecnici
2006/42/CE (+2009/127/CE)
2011/65/UE
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Inhoud
Veiligheid ....NL 4
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Technische gegevens
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Datos técnicos
Conexión eléctrica
| Tensión 220-240 | V |
| 1~50-60 Hz |
2006/42/CE (+2009/127/CE)
2011/65/UE
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Índice
Segurança PT4
www.kaercher.com/REACH
3 Interruptor do aparelho "0/OFF" / "I/ON"
www.kaercher.com/dealersearch
Dados técnicos
Ligação eléctrica
2006/42/CE (+2009/127/CE)
2011/65/UE
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Indholdsfortegnelse
Sikkerhed DA 4
www.kaercher.com/dealersearch
Tekniske data
El-tilslutning
2006/42/EF (+2009/127/EF)
2011/65/EU
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Innholdsfortegnelse
Sikkerhet N O
www.kaercher.com/REACH
Materialet i emballasjen kan resirkuleres. Kvitt deg med emballasjen på miljøvennlig måte.
3 Apparatbryter "0/OFF" / "I/ON"
4 Høytrykksslange
www.kaercher.com/dealersearch
Tekniske data
2006/42/EF (+2009/127/EF)
2011/65/EU
2000/14/EF: Vedlegg V
Lydeffektnivå dB(A)
Målt: 87
Garantert: 89
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
www.kaercher.com/dealersearch
Tekniska data
www.kaercher.com/dealersearch
Tekniset tiedot
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
www.kaercher.com/REACH
www.kaercher.com/dealersearch
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
İçindekiler
Güvenlik T R
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Teknik Bilgiler
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Технические данные
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Müszaki adatok
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Obsah
Bezpečnost CS4
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Technické údaje
2006/42/ES (+2009/127/ES)
2011/65/EU
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Vsebinsko kazalo
Varnost SL 4
Namenska uporaba .... SL 4
Varstvo okolja SL4
Opis naprave .... SL 5
Montaža. S
Zagon SL 5
Obratovanje. SL6
Transport S
Skladiščenje SL6
Vzdrževanje. SL7
www.kaercher.com/REACH
Embalažni materiali so primerni za recikliranje. Embalažo zavrzite okolju prijazno.
Stare naprave vsebujejo dragocene za recikliranje primerne materiale, ki jih je treba odvesti za ponovno uporabo. Stare naprave zavrzite okolju prijazno.
www.kaercher.com/dealersearch
Tehnični podatki
2006/42/ES (+2009/127/ES)
2011/65/EU
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Spis treści
Bezpieczeństwo PL 4
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Dane techniczne
2006/42/WE (+2009/127/WE)
2011/65/UE
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Cuprins
Siguranța R O
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Date tehnice
Directive UE respectate:
2000/14/CE 2014/30/UE 2006/42/CE (+2009/127/CE) 2011/65/UE
Norme armonizate utilize:
EN 50581 EN 55014-1:2017 EN 55014-2:2015 EN 60335-1 EN 60335-2-79 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 62233:2008
www.kaercher.com/dealersearch
Technické údaje
2006/42/ES (+2009/127/ES)
2011/65/EÚ
Uplatňované harmonizované normy:
EN 50581
EN 55014-1:2017
EN 55014-2: 2015
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 62233: 2008
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Pregled sadržaja
Sigurnost.... H R
7 www.kaercher.com/REACH
Materijali ambalaže se mogu reciklirati. Ambalažu odložite na otpad u skladu s propisima o očuvanju okoliša.
Stari uređaji sadrže vrijedne materijale koji se mogu reciklirati te bi ih stoga trebalo predati kao sekundarne sirovine. Stare uređaje odložite na otpad u skladu s propisima o očuvanju okoliša. Električni i elektronički dijelovi često sadrže sastavne dijelove koji pri pogrešnom rukovanju ili pogrešnom zbrinjavanju mogu predstavljati potencijalnu opasnost za ljudsko zdravlje i okoliš. Ipak, ti sastavni dijelovi nužni su za propisani pogon uređaja. Uređaji označeni ovim simbolom ne smiju se odlagati u komunalni otpad.
www.kaercher.com/dealersearch
Tehnički podaci
| Električni priključak | |
| Napon 220-240 | V1~50-60 Hz |
| Priključna snaga 1,7 kW | |
| Stupanj zaštite IP X5 | |
| Klasa zaštite II | 回 |
| Strujna zaštita (inertna) 10 A | |
| Priključak za vodu | |
| Dovodni tlak (maks.) 1,2 MPa | |
| Dovodna temperatura (maks.) 40 °C | |
| Dovodni protok (min.) 8 l/min | |
| Podaci o snazi | |
| Radni tlak 10 MPa | |
| Maks. dozvoljeni tlak 13 MPa | |
| Protok vode 5,5 l/min | |
| Maksimalni protok 7,0 l/min | |
| Protok sredstva za čišćenje 0,3 l/min | |
| Povratna udarna sila ručnog pištolja za prskanje | 13 N |
| Dimenzije i težine | |
| Duljina 333 mm | |
| Širina | 405 mm |
| Visina | 870 mm |
| Težina u stanju pripravnosti za rad,s priborom | 9,1 kg |
| Utvrdene vrijednosti prema EN 60335-2-79 | |
| Vrijednost vibracije na ruci | <2,5 m/s2 |
| Nepouzdanost K | 0,7 m/s2 |
| Razina zvučnog tlaka LpA | 73 dB(A) |
| Nepouzdanost KpA | 3 dB(A) |
| Razina zvučne snage LWA+ nepouzdanost KWA | 89 dB(A) |
2006/42/EZ (+2009/127/EZ)
2011/65/EU
Chairman of the Board of Management
Director Regulatory Affairs & Certification
Opunomoćeni za izradu dokumentacije: S. Reiser
Alfred Kärcher SE & Co. KG
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Pregled sadržaja
Sigurnost S R
Namensko korišćenje .... SR 4
Zaštita životne sredine ....SR 4
Opis uređaja ....SR5
Montaža. S R
Stavljanje u pogon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SR 5
Rad SR 6
Transport S R
www.kaercher.com/REACH
Ambalaža se može ponovo preraditi. Ambalažu odložite u otpad ekološki primereno.
Stari uređaji sadrže vredne materijale sa sposobnošću recikliranja i treba ih dostaviti na ponovnu preradu. Stare uređaje odložite u otpad ekološki primereno.
Električni i elektronski uređaji sadrže često sastavne delove koji, u slučaju nepravilnog rukovanja ili nepravilnog odlaganja u otpad, mogu da predstavljaju potencijalnu opasnost za zdravlje ljudi i okolinu. Ipak, ovi sastavni delovi su neophodni za pravilan rad uređaja. Uređaji koji su označeni ovim simbolom ne smeju da se odlažu u kućni otpad.
Radovi na čišćenju kod kojih nastaju uljne otpadne vode, kao što su pranje motora, pranje donjeg dela vozila, smeju da se izvode samo u perionicama sa separatorom ulja.
S deterdžentima se sme raditi samo na vodonepropusnim radnim površinama koje su priključene na kanalizacioni sistem. Ne dozvolite da deterdženti prodru u površinske vode ili tlo.
Opis uređaja
Obim isporuke uređaja (u zavisnosti od modela) je prikazan na ambalaži. Ovo uputstvo za rad opisuje sve moguće opcije.
Slike pogledajte na stranici 2
www.kaercher.com/dealersearch
Tehnički podaci
2006/42/EZ (+2009/127/EZ)
2011/65/EU
Primenjene uskladene norme:
EN 50581
EN 55014-1:2017
EN 55014-2: 2015
EN 60335-1
EN 60335-2-79
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 62233: 2008
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Съдържание
Сигурност......BG4
Употреба по предназначение ..... BG 4
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Технически данни
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Sisukord
Ohutus.... ET 4
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Tehnilised andmed
Elektriühendus
| Pinge 220-240 | V |
| 1~50-60 Hz |
Toode: Körgsurvepesur
Tüüp: KHP 4
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Satura rādītājs
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Tehniskie dati
Chairman of the Board of Management
Director Regulatory Affairs & Certification
Pilnvarotais sagatavot dokumentāciju: S. Reiser
Alfred Kärcher SE & Co. KG
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Turinys
Sauga LT 4
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Techniniai duomenys
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
3MICT
Безпека. U K
www.kaercher.com/REACH
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
Мазмуны
Қауіпсіздік. K K
www.kaercher.com/REACH
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/08/01
MERCI! DANKE! iGRACIAS!
Register your product and benefit from many advantages.
www.kaercher.com/welcome
Rate your product and tell us your opinion.
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
