STE 350 - Electric saw EINHELL - Free user manual and instructions

Product type	Electronic jigsaw
Brand	Einhell
Model	STE 350
Power consumption	350 W
Cycles per minute	0 – 3000 min⁻¹ (continuously adjustable)
Stroke	18 mm
Cutting depth – wood	55 mm
Cutting depth – plastic	10 mm
Cutting depth – metal	6 mm
Bevel cut	0° – 45° (left and right)
Weight	1.7 kg
Power supply	Mains, 230 V ~ 50 Hz
Double insulation	Yes
Sound pressure level LPA	89 dB(A)
Sound power level LWA	99.6 dB(A)
Vibration (handle)	3.2 m/s²
Speed adjustment	Electronic via wheel and trigger
Adjustable base plate	Yes, tiltable and retractable
Eye protection device	Included
Chip extraction	Vacuum cleaner connection
Blade change	Tool-free (hexagon screw)
Impulse and continuous operation	Yes, with stop button
Warranty	6 months (material/manufacturing defects)

Frequently Asked Questions - STE 350 EINHELL

How do I change the blade on the Einhell STE 350 jigsaw?

Unplug the tool. Loosen the two sliding block screws using the supplied hex key. Slide the blade into the guide groove until it stops. Ensure the teeth are facing the cutting direction. Tighten the screws. Check that the blade is securely held in the guide roller groove.

What is the maximum cutting depth in wood?

The maximum cutting depth in wood is 55 mm. For plastic it is 10 mm and for metal 6 mm.

How do I adjust the speed of the saw?

The speed can be adjusted in two ways: by the trigger (variable pressure) or by the thumb wheel on the switch (electronic presetting). Turn the wheel in the '+' direction to increase cycles per minute, in the '-' direction to decrease.

Can I make bevel cuts with this saw?

Yes, the saw base plate can be tilted up to 45° left or right. Loosen the two screws under the base plate, set the desired angle (markings at 15°, 30° and 45° are indicated) and retighten the screws.

How do I use the dust extraction feature?

The saw is equipped with a vacuum cleaner connection at the rear. Connect a suitable vacuum cleaner (possibly via a specific adapter) to extract chips during sawing.

What are the essential safety instructions?

Always wear safety goggles, ear protection and a dust mask. Unplug the tool before any adjustment or blade change. Do not work with a damaged blade. Use dust extraction for dusty materials. Hold the saw firmly and maintain a stable position.

How do I make a plunge cut (pocket cut)?

For a pocket cut in wood or chipboard without drilling a pilot hole, tilt the saw forward, place the base plate on the workpiece, then lower the blade gradually while exerting firm pressure against the workpiece. Move the saw slowly in the cutting direction.

What is the warranty period?

The warranty is 6 months from the date of purchase. It covers material, operational and manufacturing defects. Replacement parts and labor are included. Consequential damages are not covered.

How do I clean and maintain the saw?

Unplug the tool. Clean the ventilation slots and housing with a dry cloth. Remove chips from the blade holder and roller. Do not use solvents. Regularly check the condition of the cable and blade.

What should I do if the saw does not start?

Check that the plug is properly inserted and the socket works. Ensure the ON/OFF switch is not blocked. If the problem persists, have the tool repaired by a qualified electrician. Only use original spare parts.

USER MANUAL STE 350 EINHELL

Technical line drawing of a mechanical device with no visible text or symbols

STE350

m

©Bitte vor Montage und Inbetriebnahme die Betriebsanleitung aufmerksam lesen
©Please read the operating instructions carefully before assembling and using
④Veuillez lire attentivement ce mode d'emploi avant de procéder au montage et à la mise en service
④Gelieve vóór montage en ingebruikneming de gebruiksaanwijzing aandachtig te lezen
©Sírvase a leer atentamente estas instrucciones antes del montaje y de la puesta en servicio
⑤Queira ler atentamente as instruções de serviço antes da montagem e colocação em funcionamento
⑤Var god läs bruksanvisningen noggrant före montering och driftstart
Pyydämme Teitä lukemaan käyttöohjeen tarkkaavaisesti ennen asennusta ja käyttöönottoa
®Vennligst les denne brukerveiledningen nøye før montering og idreftsettelse
©ΕΠριν την συναρμολόγηση και να την θέσετε σε λειτουργία διαβάστε παρακαλώ την οδηγία χρήσεως.
①Si prega, prima di assemblare ed avviare il trapano, di leggere attentamente le istruzioni sul funzionamento
Læs driftsvejledningen grundigt inden montage og idrifttagning

©Bitte Seite 2 ausklappen
©Please pull out page 2
©Veuillez ouvrir les page 2
©Gelieve bladzijden 2 te ontvouven
©Desdoble las página 2
©Desdobre as página 2
⑤Fäll upp sidorna 2
FIN Käännä sivut 2 auki
©Slå opp på side 2
©Παρακαλούμε ξεδιπλώσετε τις σελίδες 2.
①Aprire le pagine dalle 2
©Fold siderne 2 ud

©Seite 4 - 6
©Page 7 - 9
⑤Page 10 - 12
NLBlz. 13 - 15
©Página 16 - 18
©Página 19 - 21
⑤sidan 22 - 24
Sivu 25 - 27
⑨Side 28 - 30
©Σελίδα 31-33
①Pagina 34 - 36
Side 37 - 39

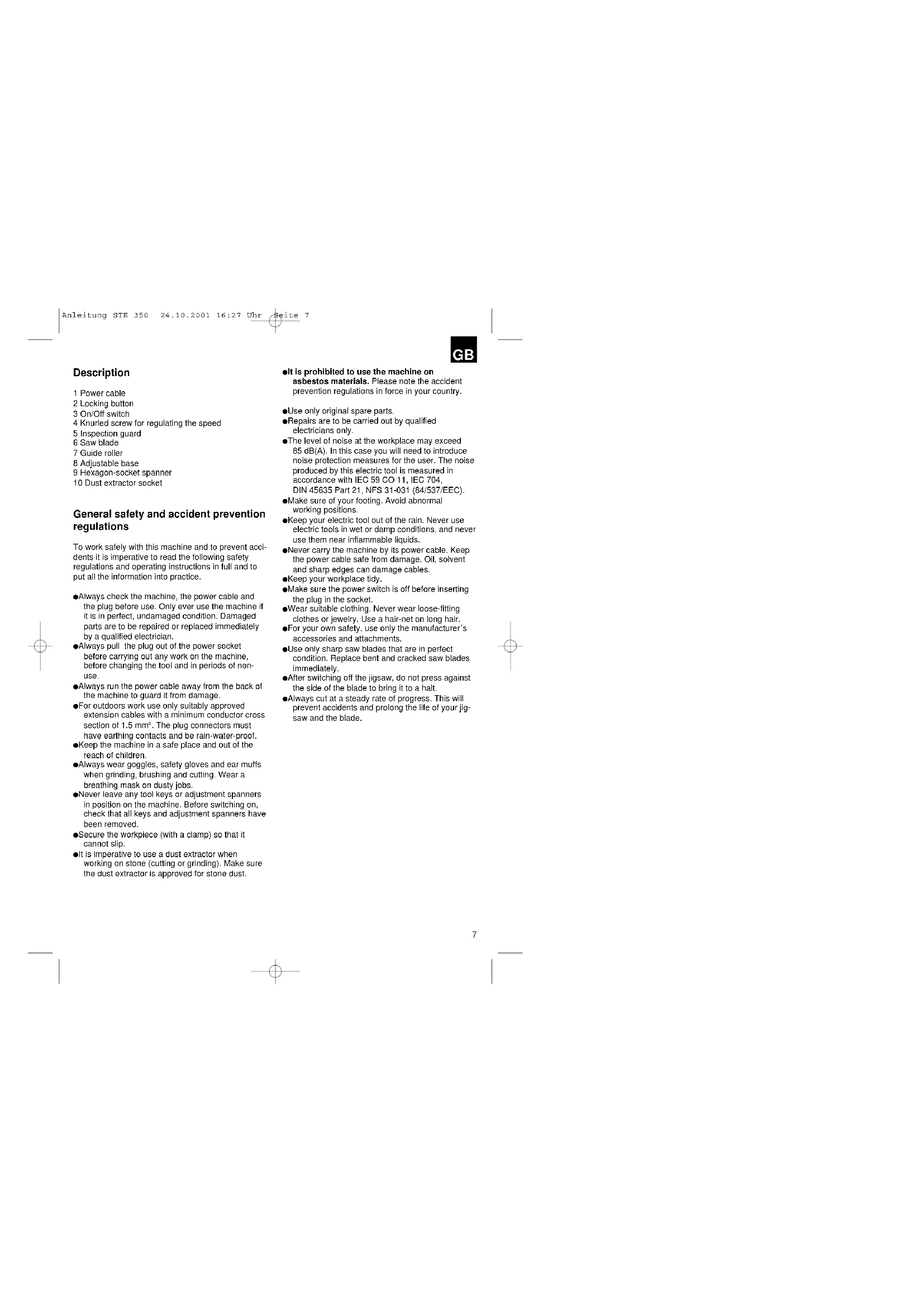

1 Power cable
2 Locking button
3 On/Off switch
4 Knurled screw for regulating the speed
5 Inspection guard
6 Saw blade
7 Guide roller
8 Adjustable base
9 Hexagon-socket spanner
10 Dust extractor socket

General safety and accident prevention regulations

To work safely with this machine and to prevent accidents it is imperative to read the following safety regulations and operating instructions in full and to put all the information into practice.

●Always check the machine, the power cable and the plug before use. Only ever use the machine if it is in perfect, undamaged condition. Damaged parts are to be repaired or replaced immediately by a qualified electrician.
●Always pull the plug out of the power socket before carrying out any work on the machine, before changing the tool and in periods of non-use.
●Always run the power cable away from the back of the machine to guard it from damage.
- For outdoors work use only suitably approved extension cables with a minimum conductor cross section of 1.5mm^2 . The plug connectors must have earthing contacts and be rain-water-proof.
- Keep the machine in a safe place and out of the reach of children.
●Always wear goggles, safety gloves and ear muffs when grinding, brushing and cutting. Wear a breathing mask on dusty jobs.
●Never leave any tool keys or adjustment spanners in position on the machine. Before switching on, check that all keys and adjustment spanners have been removed.
- Secure the workpiece (with a clamp) so that it cannot sllp.
- It is Imperative to use a dust extractor when working on stone (cutting or grinding). Make sure the dust extractor is approved for stone dust.

●It is prohibited to use the machine on asbestos materials. Please note the accident prevention regulations in force in your country.
●Use only original spare parts.
●Repairs are to be carried out by qualified electricians only.
●The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise produced by this electric tool is measured in accordance with IEC 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (84/537/EEC).
●Make sure of your footing. Avoid abnormal working positions.
- Keep your electric tool out of the rain. Never use electric tools in wet or damp conditions, and never use them near inflammable liquids.
●Never carry the machine by its power cable. Keep the power cable sale from damage. Oil, solvent and sharp edges can damage cables.
●Keep your workplace tidy
●Make sure the power switch is off before inserting the plug in the socket.
●Wear suitable clothing. Never wear loose-fitting clothes or jewelry. Use a hair-net on long hair.
- For your own safety, use only the manufacturer's accessories and attachments.
- Use only sharp saw blades that are in perfect condition. Replace bent and cracked saw blades immediately.
●After switching off the jigsaw, do not press against the side of the blade to bring it to a halt.
●Always cut at a steady rate of progress. This will prevent accidents and prolong the life of your jigsaw and the blade.

GB

Operating instructions for the STE 350 electronic jigsaw

STARTING UP

Instant response operation (Figure 3) Switching on: Press the On/Off switch Switching off: Release the On/Off switch

Continuous operation

Switching on: Press the On/Off switch, keep pres sed and lock with the locking button Switching off: Press the On/Off switch and release

Speed control

Infinite variation of the speed is possible by applying more or less pressure to the On/Off switch 10. Slight pressure on the On/Off switch results in low speed. Heavy pressure on the On/Off switch results in high speed. You are thus able to adjust the cutting rate to suit the job in question.

Electronic speed control setting (Figure 4)

Using the knurled screw on the On/Off switch you can pre-set any speed. Turn the knurled screw in PLUS direction for a higher speed and turn it in MINUS direction for a lower speed. The ideal cutting rate depends on the specific material and working conditions.

The general rules for tool speed in cutting operations apply.

Changing the saw blade (Figure 2)

Switch off the jigsaw and remove the plug from the power socket before changing the blade or carrying out any other work on the jigsaw.

Use the supplied hexagon-socket spanner to undo the two screws on the ram (Figure 2). Slide the saw blade into the guide slot and up to the stop between the piston rod and the retention clip. Use the supplied hexagon-socket spanner to tighten the two screws. The teeth of the saw blade must face in cutting direction. Make sure that the saw blade sits properly in the guide slot of the ram and roller.

Adjusting the base

(for mitering and sawing near edges, Figure 5) For miltre and bevel cuts you can swivel the base by up to 45^ in either direction after undoing the two screws on the bottom. The angles 15^ , 30^ and 45^ are marked but you can adjust the saw to any angle between these markings as required.

To adjust the cutting angle, undo the two screws (Figure 5) until you can just about move the blade. Adjust to the required angle and re-tighten the two screws.

To enable you to saw right up to the edge, the base can be pushed backward. To do so, undo the two screws underneath (Figure 5) and push the base to the back. Re-tighten the two screws.

Dust extraction

The Jigsaw is equipped with a dust extractor socket. Any vacuum cleaner can be connected to the socket at the rear of the jigsaw. If you require a special adapter, please contact the manufacturer of your vacuum cleaner.

TECHNICAL DATA

Nominal voltage: 230 V ~ 50 Hz

Power consumption: 350 W

Cutting rate: infinitely variable, max. 3000 strokes/min.

Stroke height: 18 mm
Cutting depth in wood: 55 mm
Cutting depth in plastic: 10 mm
Cutting depth in iron: 6 mm
Mitre cuts: up to 45° (left and right)
Sound pressure level LPA: 89 dB(A)
Sound power level LWA: 99.6 dB(A)
Vibration a_w
3,2 m/s ^4
Double isolation
Weight 1,7 Kg
Vibration measured on the handle acc. to ISO 5349.

GB

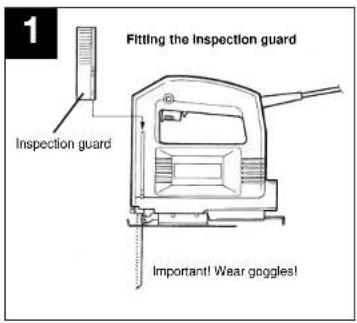

1 Fitting the Inspection guard Inspection guard Important! Wear goggles!

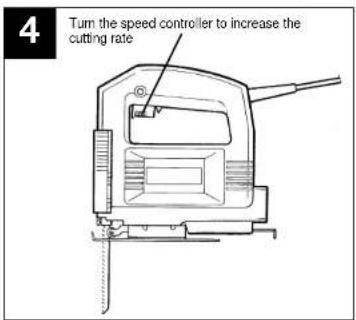

Turn the speed controller to increase the cutting rate

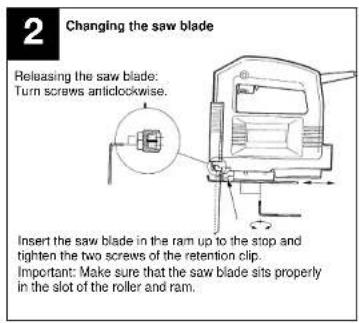

2 Changing the saw blade Releasing the saw blade: Turn screws anticlockwise. Insert the saw blade in the ram up to the stop and tighten the two screws of the retention clip. Important: Make sure that the saw blade sits properly in the slot of the roller and ram.

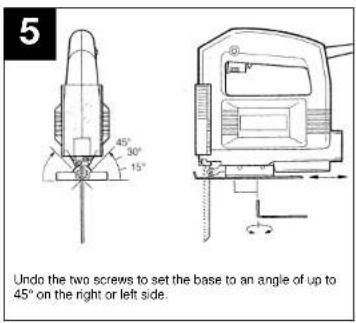

5 45° 30° 15° Undo the two screws to set the base to an angle of up to 45° on the right or left side.

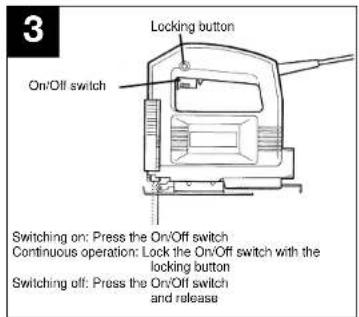

3 Locking button On/Off switch Switching on: Press the On/Off switch Continuous operation: Lock the On/Off switch with the locking button Switching off: Press the On/Off switch and release

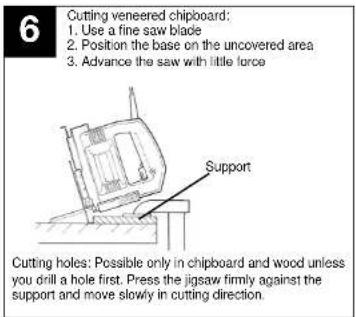

6 Cutting veneered chipboard: 1. Use a fine saw blade 2. Position the base on the uncovered area 3. Advance the saw with little force Support Cutting holes: Possible only in chipboard and wood unless you drill a hole first. Press the jigsaw firmly against the support and move slowly in cutting direction.

F

Description

Technical line drawing of a mechanical device with no visible text or symbols

2
Remplacement de la lame de sciage

m = 311

Descrizione

Technical line drawing of a mechanical device with no visible text or symbols

2

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view diagram of a mechanical assembly with numbered parts for identification

⑤ EINHELL GARANTIBEVIS

© EINHELL-GARANTIDOKUMENT

The guarantee period begins on the sales date and is valid for 1 year.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.
