USER MANUAL GMSE 2245 Gardol

1. Safety regulations

2. Layout and items supplied

5. Before starting the equipment

7. Cleaning, maintenance, storage and ordering of spare parts

8. Disposal and recycling

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

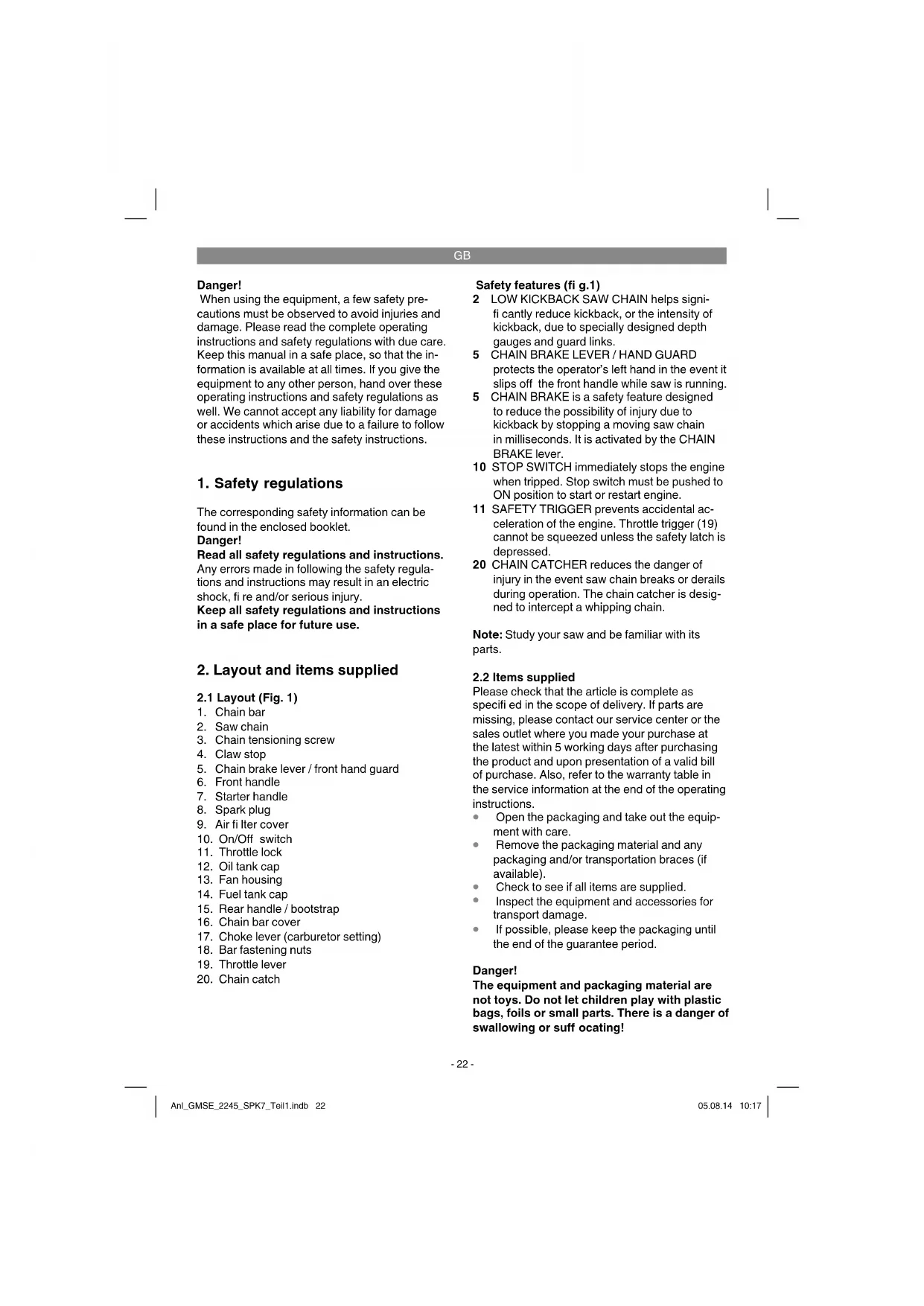

2. Layout and items supplied

3. Chain tensioning screw

5. Chain brake lever / front hand guard

Safety features (fi g.1) 2 LOW KICKBACK SAW CHAIN helps signi- fi cantly reduce kickback, or the intensity of kickback, due to specially designed depth gauges and guard links.

5 CHAIN BRAKE LEVER / HAND GUARD

protects the operator’s left hand in the event it slips off the front handle while saw is running. 5 CHAIN BRAKE is a safety feature designed to reduce the possibility of injury due to kickback by stopping a moving saw chain in milliseconds. It is activated by the CHAIN BRAKE lever. 10 STOP SWITCH immediately stops the engine when tripped. Stop switch must be pushed to ON position to start or restart engine. 11 SAFETY TRIGGER prevents accidental ac- celeration of the engine. Throttle trigger (19) cannot be squeezed unless the safety latch is depressed. 20 CHAIN CATCHER reduces the danger of injury in the event saw chain breaks or derails during operation. The chain catcher is desig- ned to intercept a whipping chain. Note: Study your saw and be familiar with its parts.

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating! Anl_GMSE_2245_SPK7_Teil1.indb 22Anl_GMSE_2245_SPK7_Teil1.indb 22 05.08.14 10:1705.08.14 10:17GB

Original operating instructions

The chain is designed exclusively for sawing wood. You may only fell trees if you have received the appropriate training. The manufacturer cannot be held liable for damage caused by improper or incorrect usage. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Before starting the equipment

Danger: Do not start the engine until the saw is

fully assembled. Caution: Wear protective gloves at all times when handling the chain.

5.1 Fit the chain bar

To ensure that the bar and the chain are supplied with oil, USE ONLY THE ORIGINAL BAR. The oi- ling hole (Fig. 2/Item A) must be kept clear of dirt and any build-up of residue.

1. Make sure the Chain brake lever is pulled

back into the DISENGAGED position (Fig. 3A)

2. Remove the two bar fastening nuts (B). Re-

move the cover (Fig. 3B).

3. Run the adjustment screw (D) COUNTER-

CLOCKWISE until the TANG (E) (projecting prong) is to the end of its travel toward the clutch drum and sprocket (Fig. 3B/3C).

4. Fit the open end of the chain bar over the bar

pins (F). Align the bar such that the HINGE fi ts into the hole (G) in the chain bar (Fig. 3C/3D).

5.2 To install saw chain

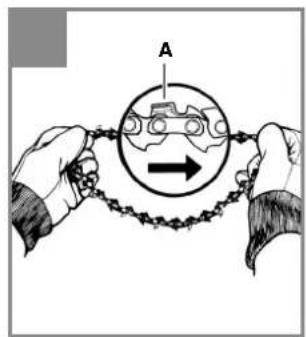

1. Spread chain out in a loop with cutting edges

(A) pointing CLOCKWISE around loop (Fig. 4A).

2. Slip the chain around the sprocket (B) behind

the clutch (C). Make sure the links fi t between the sprocket teeth (Fig. 4B).

3. Guide the drive links into the groove (D) and

around the end of the bar (Fig. 4B). NOTE: The saw chain may droop slightly on the lower part of bar. This is normal.

4. Pull the chain bar forward until the chain is

closely seated. Make sure that all the drive links are in the groove of the bar.

5. Fit the coupling cover and fasten it with 2

screws. The chain must not slip off the bar when you do this. Make sure that the pin (Fig. 3C/Item E) fi ts into the hole in the chain bar (Fig. 3D/Item G). Tighten the two nuts by hand and then follow the instructions for adjusting the tension in the section ADJUSTING THE CHAIN TENSION.

5.3 Saw chain tension adjustment

Proper tension of saw chain is extremely impor- tant and must be checked before starting, as well as during any cutting operation. Taking the time to make needed adjustments to the saw chain will result in improved cutting per- formance and prolonged chain life. Caution: Always wear heavy duty gloves when handling saw chain or making saw chain adjust- ments.

1. Hold nose of guide bar up and turn adjust-

ment screw (D) CLOCKWISE to increase chain tension. Turning screw COUNTER- CLOCKWISE will decrease amount of tensi- on on chain. Ensure the chain fi ts snugly all the way around the guide bar (Fig. 5).

2. After making adjustment, and while still hol-

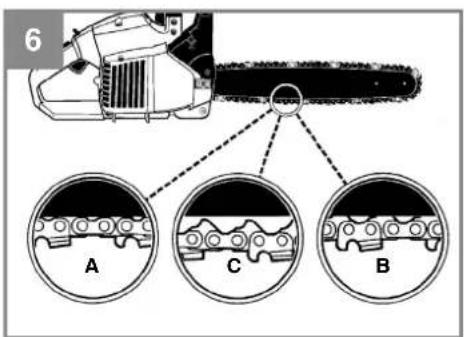

ding nose of bar in the uppermost position, tighten the bar retaining nuts securely. Chain has proper tension when it has a snug fi t all around and can be pulled around by gloved hand. NOTE: If chain is diffi cult to rotate on guide bar or if it binds, too much tension has been applied. This requires minor adjustment as follows: A. Loosen the bar retaining nut so they are fi n- ger tight. Decrease tension by turning the bar adjustment screw COUNTERCLOCKWISE slowly. Move chain back and forth on bar. Continue to adjust until chain rotates freely, but fi ts snugly. Increase tension by turning bar adjustment screw CLOCKWISE. B. When saw chain has proper tension, hold nose of bar in the uppermost position and tighten the bar retaining nut securely. Note: A new saw chain stretches, requiring ad- justment after as few as 5 cuts. This is normal with a new chain, and the interval between future adjustments will lengthen quickly. Note: If the saw chain is TOO LOOSE or TOO TAUT, the drive wheel, chain bar, chain and crank shaft bearing will suff er premature wear. Fig. 6 shows the correct tension A (when cold) and ten- sion B (when warm). Fig. C shows a chain that is too loose.

5.4 Chain break mechanical test

Your chain saw is equipped with a Chain brake that reduces possibility of injury due to kickback. The brake is activated if pressure is applied against brake lever when, as in the event of kick- back, operator’s hand strikes the lever. When the brake is actuated, chain movement stops abruptly.

Danger: The purpose of the chain brake is to

reduce the possibility of injury due to kickback; however, it cannot provide the intended measure of protection if the saw is operated carelessly. Always test the chain brake before using your saw and periodically while on the job. To test chain brake

1. The Chain brake is DISENGAGED (chain

can move) when BRAKE LEVER IS PULLED BACK AND LOCKED (Fig. 7A).

2. The chain brake is ENGAGED (the chain is

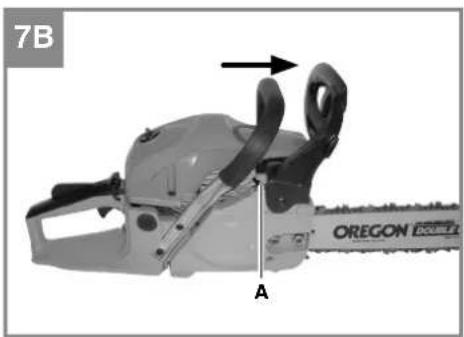

locked) when the brake lever is pulled forward and the mechanism (Fig. 7B/Item A) can be seen. It should not be possible to move the chain (Fig. 7B).

Danger: The brake lever should snap into both

positions. If strong resistance is felt, or lever does not move into either position, do not use your saw. Take it immediately to a professional Service Center for repair.

5.5 Fuel and lubrication

Fuel Use regular grade unleaded gasoline mixed with 40:1 custom 2-cycle engine oil for best results. Mixing fuel Mix fuel with 2 cycle oil in an approved container. Shake container to ensure thorough mix. Note: Never use straight gasoline in your unit. This will cause permanent engine damage and void the manufacturer’s warranty for that product. Never use a fuel mixture that has been stored for over 90 days. Note: If 2-cycle lubricant is to be used, it must be a premium grade oil for 2-cycle air cooled engi- nes mixed at a 40:1 ratio. Do not use any 2-cycle oil product with a recommended mixing ratio of Anl_GMSE_2245_SPK7_Teil1.indb 24Anl_GMSE_2245_SPK7_Teil1.indb 24 05.08.14 10:1705.08.14 10:17GB

100:1. If insuffi cient lubrication is the cause of en- gine damage, it voids the manufacturer’s engine warranty for that occurrence. Gasoline and Oil Mix 40:1 Oil Only Recommended fuels Some conventional gasolines are being blended with oxygenates such as alcohol or an ether com- pound to meet clean air standards. Your engine is designed to operate satisfactorily on any gasoline intended for automotive use including oxygenated gasolines. It is recommended to use unleaded petrol as fuel. Lubrication of chain and chain bar Whenever you refi ll the fuel tank with petrol you must also top up the level of chain oil in the chain oil tank. It is recommended to use standard chain oil. Engine pre-start checks

Danger: Never start or operate the saw unless

the bar and chain are properly installed.

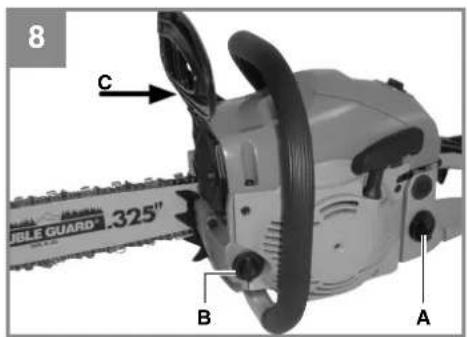

1. Fill the fuel tank (A) with correct fuel mixture

2. Fill the oil tank (B) with chain oil (Fig. 8).

3. Be certain the chain brake is disengaged (C)

before starting unit (Fig. 8). Once you have fi lled the chain and oil tank, tigh- ten the tank cover securely by hand. Do not use any tools to do so.

Before you use the equipment, check it for dama- ge. If you discover any damage, do not use it. The equipment may be started only when the chain brake is engaged. The chain brake is engaged when the brake lever is pressed forward and the mechanism (Fig. 7B/Item A) is visible.

6.1 Starting the engine

1. Set the On/Off switch (A) to “On (I)” to start

the machine (Fig. 9A).

2. Pull out the throttle lever (B) (Fig. 9B) until it

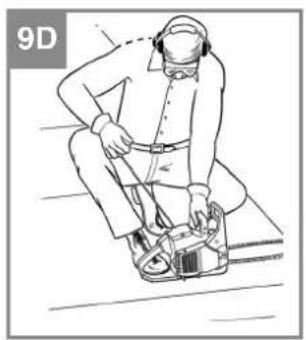

4. Place saw on a fi rm, fl at surface. Hold saw

fi rmly as shown. Pull starter rapidly 2 times. Beware of moving chain! (Fig.9D)

5. Push in the throttle lever (B) as far as it will go

6. Hold saw fi rmly and pull starter rapidly 4

times. Engine should start (Fig. 9D).

7. Let the engine run for 10 seconds to warm up.

Press the throttle lever (D) briefl y, the engine will go to “idling” speed (Fig. 9E). If engine failed to start, repeat these instructions. Note: Always pull the starter cable slowly until you feel the initial resistance before you then pull it quickly to start the engine. Do not allow the star- ter cable to whip back of its own accord.

6.2 Restarting a warm engine

1. Make sure the switch is in the ON position.

2. Pull the starter rope rapidly 6 times. The engi-

1. Release trigger and allow engine to return to

2. Move STOP switch down to stop engine.

Note: To stop the engine in an emergency, activa- te the chain brake and switch the ON/OFF switch to “Stop (0)”.

6.4 General cutting instructions

Danger: Felling trees is prohibited without the

necessary training! Felling

Felling is the term for cutting down a tree. Small trees up to 6-7 inches (15-18cm) in diameter are usually cut in a single cut. Larger trees require notch cuts. Notch cuts determi- ne the direction the tree will fall.

A retreat path (A) should be planned and cleared as necessary before cuts are started. The retreat path should extend back and dia- gonally to the rear of the expected line of fall, as illustrated in Fig. 11. Anl_GMSE_2245_SPK7_Teil1.indb 25Anl_GMSE_2245_SPK7_Teil1.indb 25 05.08.14 10:1705.08.14 10:17GB

If felling a tree on sloping ground, the chain saw operator should keep on the uphill side of the terrain, as the tree is likely to roll or slide downhill after it is felled.

Direction of fall (B) is controlled by the not- ching cut. Before any cuts are made, consider the location of larger branches and natural lean of the tree to determine the way the tree will fall (Fig. 11).

Do not cut down a tree during high or chan- ging winds or if there is a danger to property. Consult a tree professional. Do not cut down a tree if there is a danger of striking utility wi- res; notify the utility company before making any cuts. General guidelines for felling trees (Fig. 12) Normally felling consists of 2 main cutting opera- tions, notching (C) and making the felling cut (D).

Start making the upper notch cut (C) on the side of the tree facing the felling direction (E). Be sure you don t make the lower cut too deep into the trunk. The notch (C) should be deep enough to create a hinge (F) of suffici- ent width and strength. The notch should be wide enough to direct the fall of the tree for as long as possible.

Never walk in front of a tree that has been notched. Make the felling cut (D) from the other side of the tree and 1.5 - 2.0 inches (3-5 cm) above the edge of the notch (C). Never saw completely through the trunk. Always leave a hinge. The hinge guides the tree. If the trunk is completely cut through, control over the felling direction is lost. Insert a wedge or felling lever in the cut well before the tree becomes unstable and starts to move. This will prevent the guidebar from binding in the felling cut if you have misjudged the falling direction. Make sure no bystanders have en- tered the range of the falling tree before you push it over.

Before making the final cut, always recheck the area for bystanders, animals or obstac- les. Felling cut

Use wooden or plastic wedges (A) to pre- vent binding the bar or chain (B) in the cut. Wedges also control felling (Fig. 13).

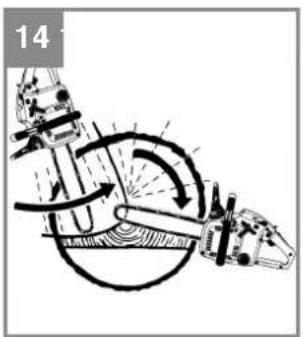

When diameter of wood being cut is greater than the bar length, make 2 cuts as shown (Fig. 14).

As the felling cut gets close to the hinge, the tree should begin to fall. When tree begins to fall, remove saw from cut, stop engine, put chain saw down, and leave area along retreat path (Fig. 11). Limbing

Limbing a tree is the process of removing the branches from a fallen tree. Do not remove supporting limbs (A) until after the log is bucked (cut) into lengths (Fig. 15). Branches under tension should be cut from the bottom up to avoid binding the chain saw.

Never cut tree limbs while standing on tree trunk. Bucking

Bucking is cutting a fallen log into lengths. Make sure you have a good footing and stand uphill of the log when cutting on sloping ground. If possible, the log should be suppor- ted so that the end to be cut off is not resting on the ground. If the log is supported at both ends and you must cut in the middle, make a downward cut halfway through the log and then make the undercut. This will prevent the log from pinching the bar and chain. Be care- ful that the chain does not cut into the ground when bucking as this causes rapid dulling of the chain. When bucking on a slope, always stand on the uphill side.

1. Log supported along entire length: Cut

from top (overbuck), being careful to avoid cutting into the ground (Fig. 16A).

2. Log supported on 1 end: First, cut

from bottom (underbuck) 1/3 diameter of log to avoid splintering. Second, cut from above (overbuck) to meet first cut and avoid pinching (Fig. 16B).

3. Log supported on both ends: First, over-

buck 1/3 diameter of log to avoid splintering. Second, underbuck to meet first cut and avo- id pinching (Fig. 16C).

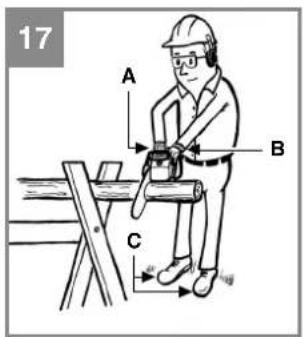

The best way to hold a log while bucking is to use a sawhorse. When this is not possible, the log should be raised and supported by the limb stumps or by using supporting logs. Be sure the log being cut is securely supported. Bucking using a sawhorse (Fig. 17) For personal safety and ease of cutting, the cor- rect position for vertical bucking is essential A. Hold the saw fi rmly with both hands and keep the saw to the right of your body while cutting. B. Keep the left arm as straight as possible. C. Keep weight on both feet. Anl_GMSE_2245_SPK7_Teil1.indb 26Anl_GMSE_2245_SPK7_Teil1.indb 26 05.08.14 10:1705.08.14 10:17GB

Caution: When working with the saw, always make sure that the saw chain and chain bar are suffi ciently lubricated.

7. Cleaning, maintenance, storage

and ordering of spare parts Disconnect the spark plug boot before doing any cleaning and maintenance work!

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. En- sure that no water can seep into the device.

Warning: All maintenance work on the chainsaw

apart from the work described in this manual may only be carried out by authorized after-sales ser- vice personnel.

7.2.1 Chain brake operational test

Test the chain brake periodically to ensure proper function. Perform a chain brake test prior to initial cutting, following extensive cutting, and defi nitely fol- lowing any Chain brake service. Test chain brake as follows (Fig. 10) :

1. Place saw on a clear, fi rm, fl at surface.

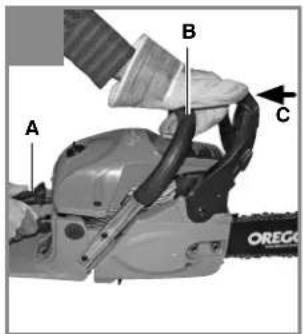

3. Grasp the rear handle (A) with your right

4. With your left hand, hold the front handle (B)

[not chain brake lever (C)] fi rmly.

5. Squeeze the throttle trigger to 1/3 throttle,

then immediately activate the chain brake lever (C).

Warning: Activate the chain brake slowly and de-

liberately. Keep the chain from touching anything; don’t let the saw tip forward.

6. Chain should stop abruptly. When it does, im-

mediately release the throttle trigger.

Warning: If chain does not stop, turn engine off

and take your unit to the nearest Talon Authorized Service Center for service.

7. If chain brake functions properly, turn the

engine off and return the chain brake to the DISENGAGED position.

Note: Never operate saw without the air fi lter. Dust and dirt will be drawn into engine and dama- ge it. Keep the air fi lter clean! The air fi lter must be cleaned or replaced after every 20 hours of service. Cleaning the air fi lter (Fig. 18A/18B)

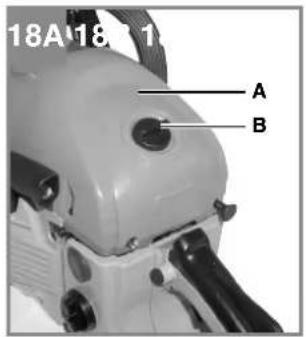

1. Remove the top cover (A) by undoing the co-

ver fastening screw (B) on the cover. You can then remove the cover (Fig. 18A).

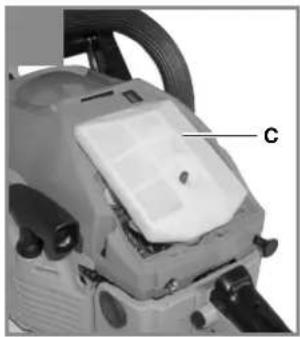

2. Lift out the air fi lter (C) (Fig. 18B).

3. Clean air fi lter. Wash fi lter in clean, warm,

soapy water. Rinse in clear, cool water. Air dry completely. Note: It is advisable to have a supply of spare fi lters.

4. Insert the air fi lter. Fit the cover for the engine/

air fi lter. Make sure that the cover fi ts perfectly when you do so. Tighten the fastening screw for the cover.

Note:Never use the saw without a fuel fi lter. After 100 hours in operation the fuel fi lter should be cleaned or, in case of damage, replaced. Be sure to empty the fuel tank before changing the fi lter.

1. Remove the fuel tank cap.

2. Bend a piece of soft wire.

3. Reach into fuel tank opening and hook fuel

line. Carefully pull the fuel line toward the ope- ning until you can reach it with your fi ngers. Note: Do not pull hose completely out of tank.

4. Lift fi lter (A) out of tank (Fig. 19).

5. Pull off the fi lter with a twist and clean it; if the

fi lter is damaged, dispose of it.

6. Insert a new fi lter. Place one end of the fi lter

into the tank opening. Make sure that the fi lter is seated in the lower corner of the tank. If ne- Anl_GMSE_2245_SPK7_Teil1.indb 27Anl_GMSE_2245_SPK7_Teil1.indb 27 05.08.14 10:1705.08.14 10:17GB

cessary, use a long screwdriver to move the fi lter to its correct position, taking care not to damage in the process.

7. Fill tank with fresh fuel / oil mixture. See Sec-

Note: To ensure that the saw’s engine retains its power, the spark plug must be clean and have the correct electrode gap (0.6 mm). The spark plug must be cleaned or replaced after every 20 hours of service.

1. Set the On/Off switch to Stop (0)”.

2. Remove the top cover (A) by undoing the co-

ver fastening screw (B) on the cover. You can then remove the cover (Fig. 18A).

3. Remove the air fi lter (Fig. 18B/Item C)

4. Disconnect the ignition cable (D) from the

spark plug by pulling and twisting it simulta- neously (Fig. 18B).

5. Remove the spark plug using a spark plug

wrench. DO NOT USE ANY OTHER TOOLS.

6. Clean the spark plug with a copper wire brush

The carburetor has been set to its perfect adjust- ment at the factory. If it requires adjusting, take the saw to your nearest authorized after-sales service outlet. Setting the idling speed: Note: Set the idling speed when the machine is warm. If the engine stalls when the throttle is not pressed and you have ruled out all the other cau- ses listed in section 9 Troubleshooting, the idling speed must be adjusted. To do this turn the idling speed screw (Fig. 19/Item B) clockwise until the machine runs smoothly at idling speed. If the idling speed is so fast that the cutting tool turns as well, it has to be reduced by turning the idling speed screw counter-clockwise (Fig. 19/ Item B) for as long as is required for the cutting tool to stop turning as well.

7.2.6 Chain bar maintenance

Regular lubrication of the chain bar (guide rail for the chain and teeth) is essential. The chain bar needs the maintenance described in the following section in order for the saw to work at an optimum level of performance. Note: The sprocket tip on your new saw has been pre-lubricated at the factory. Failure to lubricate the guide bar sprocket tip as explained below will result in poor performance and seizure, voiding the manufacturer’s warranty. Tools for lubrication The Lube Gun (optional) is recommended for applying grease to the guide bar sprocket tip. The Lube Gun is equipped with a needle nose tip which is necessary for the effi cient application of grease to the sprocket tip. To lubricate sprocket tip Lubrication of the sprocket tip is recommended after 10 hours of use or once a week, which ever occurs fi rst. Always thoroughly clean guide bar sprocket tip before lubrication. Note: The saw chain does not have to be remo- ved in order to lubricate the teeth of the chain bar. Lubrication is possible during work, with the engine switched off . Caution: Wear heavy duty work gloves when handling the bar and chain.

nose into the lubrication hole and inject grea- se until it appears at outside edge of sprocket tip (Fig .20).

4. Rotate saw chain by hand. Repeat lubrication

procedure until the entire sprocket tip has been greased. Most guide bar problems can be prevented me- rely by keeping the chain saw well maintained. Insuffi cient guide bar lubrication and operating the saw with chain that is TOO TIGHT will contri- bute to rapid bar wear. To help minimize bar wear, the following guide bar maintenance procedures are recommended. Caution: Always wear protective gloves during maintenance operations. Do not carry out mainte- nance when the engine is hot. Turning the chain bar The bar should be reversed every 8 working hours to ensure uniform wear. Keep the bar groove and lubrication hole clean using the bar groove cleaner supplied optional. (Fig. 21A) Check the bar rails frequently for wear and, if ne- cessary, remove the burs and square-up the rails using the fl at fi le. (Fig. 21B) Anl_GMSE_2245_SPK7_Teil1.indb 28Anl_GMSE_2245_SPK7_Teil1.indb 28 05.08.14 10:1705.08.14 10:17GB

Caution: Never fi t a new chain to a worn chain bar. Oil passages Oil passages on the bar should be cleaned to en- sure proper lubrication of the bar and chain during operation. Note: The condition of the oil passages can be easily checked. If the passages are clear, the chain will automatically give off a spray of oil within seconds of starting the saw. Your saw is equipped with an automatic oiler system. Automatic chain lubrication. The chain saw is equipped with an automatic oil lubrication system with a toothed wheel drive. It automatically supplies the bar and the chain with the right quantity of oil. The moment the engine is accelerated, the oil also starts to fl ow through the bar plate more quickly as well. The chain lubrication system has been set to its perfect adjustment at the factory. If it requires adjusting, take the saw to your nearest authorized after-sales service outlet. A setting screw for adjusting the chain lubrication (Fig. 26/ Item A) is located on the underside of the chain saw. Turning the screw counter-clockwise increases the chain lubrication, turning it clockwi- se decreases the chain lubrication. To check the chain lubrication, hold the chain saw, with the chain, over a piece of paper and run it at full speed for a few seconds. You will be able to judge the set amount of oil from the paper.

7.2.7 Chain maintenance

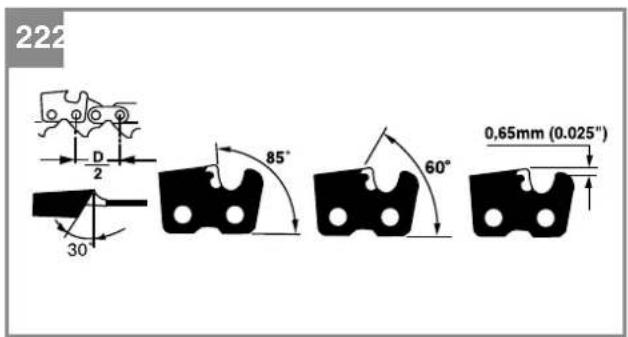

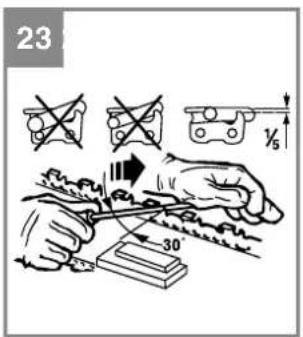

Chain sharpening Chain sharpening requires special tools to ensure that cutters are sharpened at the correct angle and depth. For the inexperienced chain saw user, we recommend that the saw chain be professio- nally sharpened by the nearest professional Ser- vice Center. If you feel comfortable sharpening your own saw chain, special tools are available from the professional Service Center. Chain sharpening (Fig. 23) Sharpen the chain using protective gloves and a round fi le of ø3/16” (4.8mm). Always sharpen the cutters only with outward strokes (Fig. 23) observing the values given in Fig. 22. After sharpening, the cutting links must all have the same width and length. Note: A sharp chain produces well-defi ned chips. When your chain starts to produce sawdust, it is time to sharpen. After the blades have been sharpened 3-4 times, check the height of the depth limiter and if neces- sary lower it with a fl at fi le and then round off the front corner (Fig. 24). Chain tension Check the chain tension frequently and adjust as often as necessary to keep the chain snug on the bar, but loose enough to be pulled around by hand. (see also point 5.3) Breaking in a new saw chain A new chain and bar will need chain readjustment after as few as 5 cuts. This is normal during the break-in period, and the interval between future adjustments will begin to lengthen quickly. Note: Never have more than 3 links removed from a loop of chain. This could cause damage to the sprocket. Chain lubrication Always make sure the automatic oiler system is working properly. Keep the oil tank fi lled with Chain, Bar and Sprocket Oil. Adequate lubrication of the bar and chain during cutting operations is essential to minimize friction with the guide bar. Never starve the bar and chain of lubricating oil. Running the saw dry or with too little oil will de- crease cutting effi ciency, shorten saw chain life, cause rapid dulling of chain, and lead to exces- sive wear of bar from overheating. Too little oil is evidenced by smoke or bar discoloration.

Note: Never put a chain saw into storage for longer than 30 days without carrying out the fol- lowing steps. Storing a chain saw Storing a chain saw for longer than 30 days re- quires storage maintenance. Unless the storage instructions are followed, fuel remaining in the carburetor will evaporate, leaving gum-like depo- sits. This could lead to diffi cult starting and result in costly repairs. Anl_GMSE_2245_SPK7_Teil1.indb 29Anl_GMSE_2245_SPK7_Teil1.indb 29 05.08.14 10:1705.08.14 10:17GB

1. Remove the fuel tank cap slowly to release

any pressure in tank. Carefully drain the fuel tank.

2. Start the engine and let it run until the unit

stops to remove fuel from carburetor.

3. Allow the engine to cool (approx. 5 minutes).

4. Remove the spark plug (7.2.4).

5. Pour 1 teaspoon of clean 2-cycle oil into the

combustion chamber. Pull starter rope slowly several times to coat internal components. Replace spark plug (Fig. 25). Note: Store the unit in a dry place and away from possible sources of ignition such as a furnace, gas hot water heater, gas dryer, etc. Puttig the saw back into operation

1. Remove spark plug (see also point 7.2.4).

2. Pull starter rope briskly to clear excess oil

from combustion chamber.

3. Clean the spark plug and check that the elec-

trode gap is correct.

4. Prepare unit for operation.

5. Fill fuel tank with proper fuel / oil mixture. See

Fuel and Lubrication Section.

7.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces. Anl_GMSE_2245_SPK7_Teil1.indb 30Anl_GMSE_2245_SPK7_Teil1.indb 30 05.08.14 10:1705.08.14 10:17GB

Problem Probable cause Corrective Action Unit won’t start or starts but will not run. - Incorrect starting procedures. - Incorrect carburetor mixture adjust- ment setting. - Fouled spark plug. - Fuel fi lter plugged. - Follow instructions in the User Ma- nual. - Have carburetor adjusted by an Au- thorized Service Center. - Clean / gap or replace plug. - Replace fuel fi lter. Unit starts, but engi- ne has low power. - Incorrect lever position on choke. - Dirty air fi lter. - Incorrect carburetor mixture adjust- ment setting. - Move to RUN position. - Remove, clean and reinstall fi lter. - Have carburetor adjusted by an Au- thorized Service Center. Engine hesitates. - Incorrect carburetor mixture adjust- ment setting. - Have carburetor adjusted by an Au- thorized Service Center. No power under load. - Incorrectly gapped spark plug. - Clean / gap or replace plug. Runs erratically. - Incorrect carburetor mixture adjust- ment setting. - Have carburetor adjusted by an Au- thorized Service Center. Smokes excessi- vely. - Incorrect fuel mixture. - Use properly mixed fuel (40:1 mix- ture). Poor performance when operated - Blunt chain - Loose chain - Sharpen or replace the chain - Tension the chain Engine dies - Empty petrol tank - Fuel fi lter in the wrong position in the tank - Fill up the petrol tank - Completely fi ll the petrol tank or or re-position the fuel fi lter in the petrol tank Insuffi cient chain lubrication (the cutter rail and chain get hot) - Empty oil tank for the chain - Oil lubrication openings moved - Top up the oil tank for the chain - Clean the oil lubrication hole in the cutter bar (Fig. 2/Item A) Clean the groove in the cutter bar The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_GMSE_2245_SPK7_Teil1.indb 31Anl_GMSE_2245_SPK7_Teil1.indb 31 05.08.14 10:1705.08.14 10:17GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Cutter bar, spark plug, air fi lter, petrol fi lter Consumables* Saw chain Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the fol- lowing terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims

are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suff ered by the device which have been verifi ably caused by a

material or manufacturing fault and is limited to the rectifi cation of such defects or the replacement of the device at our discretion. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GMSE_2245_SPK7_Teil1.indb 33Anl_GMSE_2245_SPK7_Teil1.indb 33 05.08.14 10:1705.08.14 10:17FR

2. De kettingrem is INGEKOPPELD (ketting is

Annex V Annex VI Noise: measured L
