USER MANUAL AZOR S2 Cameo

COMPACT SPOT MOVING HEAD

INFORMATION ON THIS USER MANUAL 6

SETUP AND INSTALLATION 20

MANUFACTURER’S DECLARATIONS 26

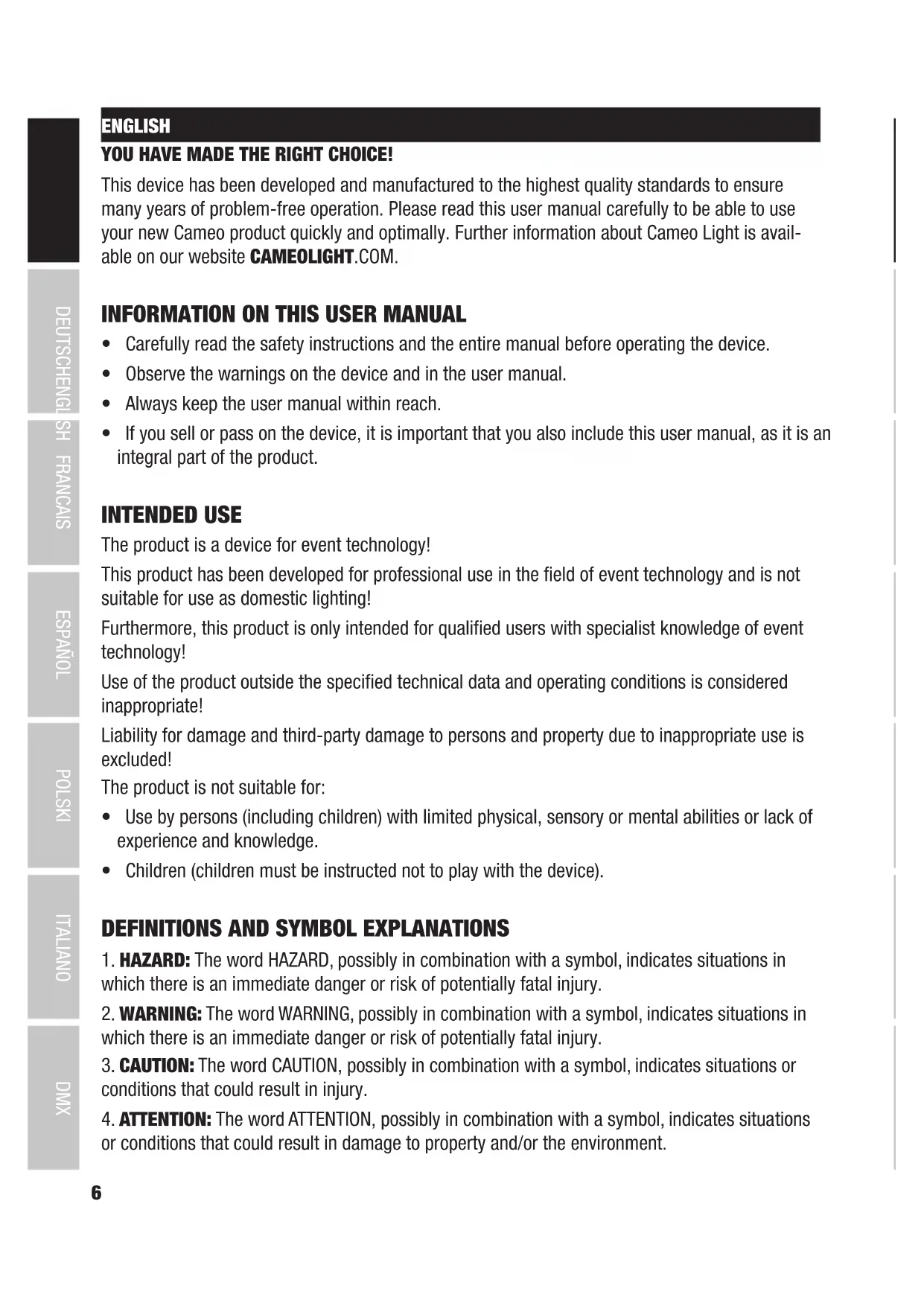

DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH ENGLISH YOU HAVE MADE THE RIGHT CHOICE! This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is avail- able on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.

• Observe the warnings on the device and in the user manual.

• Always keep the user manual within reach.

• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product. INTENDED USE The product is a device for event technology! This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting! Furthermore, this product is only intended for qualified users with specialist knowledge of event technology! Use of the product outside the specified technical data and operating conditions is considered inappropriate! Liability for damage and third-party damage to persons and property due to inappropriate use is excluded! The product is not suitable for:

• Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.

• Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in

which there is an immediate danger or risk of potentially fatal injury.

2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in

which there is an immediate danger or risk of potentially fatal injury.

3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or

conditions that could result in injury.

4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations

or conditions that could result in damage to property and/or the environment.7 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI This symbol identifies hazards that can cause electric shock. This symbol identifies hazardous areas or hazardous situations. This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards caused by intense light sources. This symbol indicates a device in which there are no user-replaceable parts. This symbol indicates additional information on the operation of the product. SAFETY INSTRUCTIONS HAZARD:

1. Do not open the device and do not perform any modifications.

2. If your device no longer functions properly, if liquids or objects get inside it or if it

has been damaged in any other way, switch it off immediately and unplug it from the power source. The device may be repaired only by authorised repair techni- cians.

3. For devices of protection class 1, the protective conductor must be connected

correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.

4. Ensure that live cables are not kinked or otherwise mechanically damaged.

5. Never bypass the device fuse.

1. The device may not be operated if it shows obvious signs of damage.

2. The device may only be installed in a voltage-free state.

3. If the device's power cable is damaged, the device may not be used.

4. Permanently connected power cables may only be replaced by a qualified person.8

DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH ATTENTION:

1. Do not switch on the device if it has been exposed to extreme temperature fluctu-

ations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature.

2. Ensure that the voltage and frequency of the mains supply match the values spec-

ified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables.

3. To disconnect the device from the mains on all poles, it is not sufficient to press the

on/off switch on the device.

4. Make sure that the fuse used corresponds to the type printed on the device.

5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning

6. Observe the specified maximum output current on devices with a Power Out con-

nection. Ensure that the total current consumption of all connected devices does not exceed the specified value.

7. Replace plug-in power cables with original cables only.

1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons

(including children) with reduced physical, sensory or mental capabilities.

2. Risk of falling! Make sure that the device is securely installed and will not fall

down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

1. Use the device in the prescribed manner only.

2. Operate the device using only accessories of the type recommended and supplied

by the manufacturer.

3. Observe safety regulations applicable in your country during installation.

4. After connecting the device, ensure that all cables are routed so as to avoid dam-

age or accidents, such as from tripping.

5. Always observe the specified minimum distance to normally flammable materials!

Unless explicitly stated, the minimum distance is 0.3m.9 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI CAUTION:

1. Moving components such as mounting brackets may become jammed.

2. In the case of devices with motor-driven components, there is a risk of injury due

to the movement of the device. Sudden movement of the device can cause shock reactions.

3. The housing surface of the device can become very hot during regular operation.

Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work and charging etc. ATTENTION:

1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or

other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.

2. Do not place any ignition sources, such as burning candles, near the device.

3. Ventilation openings must not be covered and fans must not be blocked.

4. For transport, use the original packaging or packaging provided by the manufactur-

5. Avoid any impacts to or shaking of the device.

6. Observe the IP rating and the ambient conditions such as temperature and humidi-

ty according to the specifications.

7. Devices can be continuously further developed. In the event of deviating informa-

tion on operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always has priority.

8. The device is not suitable for tropical climate zones or for operation over 2,000 m

9. Unless explicitly stated, the device is not suitable for operation under marine

conditions. PLEASE NOTE: For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the instructions included.10 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.

2. Never look into the beam of light using optical devices such as a magnifying glass.

3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

4. Permanently installed lamps are built into these lighting units. These may not be

replaced by the user. The lamps contained in this lighting unit may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

NOTES FOR MOBILE INDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary

2. Continuous operation or permanent installation can impair the functioning of the

device and cause premature ageing. INCLUDED Remove the product from the packaging and remove all packaging material. Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged. Product includes: X 1 x AZOR S2 LED moving head X 2 x Omega mounting brackets X 1x power cable X User manual INTRODUCTION

CLAZORS211 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI CONTROL FUNCTIONS: 21-channel basic, 24-channel standard, 28-channel extended DMX control DMX512 W-DMX™ via optionally available Cameo iDMX stick RDM Master / slave operation Standalone functions FEATURES: 300 W cool white LED. CMY colour mix. Colour wheel with 8 colours plus open. 2 gobo wheels with 8 rotating gobos and 11 fixed gobos plus open. Zoom, Focus, Iris, Prism and Frost functions. DMX512. Connection for optional iDMX stick for wireless control via W-DMX™. 5-pin DMX con- nections. 2 x Omega mounting brackets included. The spotlight features the RDM standard (Remote Device Management). Remote device manage- ment allows the user to view the status and configuration of RDM terminals via an RDM-capable controller, such as the optionally available Cameo UNICON (product number CLIREMOTE). Cameo UNICON also provides access to the entire spotlight menu.

POWER OUT TRUE1-compatible mains output socket. Facilitates power supply to other CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value.

FUSE Fuse holder for 5 x 20mm fuses. IMPORTANT: Replace the fuse only with a fuse of the same type and value. In the event of repeated fuse failure, please contact an authorised service centre.

DMX IN Male 5-pin XLR socket for connection to a DMX control device (e.g. DMX console).

DMX OUT Female 5-pin XLR socket for sending the DMX control signal.

IDMX STICK Connection for the optional iDMX stick for W-DMX™ connection (plug in the iDMX stick with the antenna facing upwards). Note the settings under Wireless in the Settings menu.

VENTILATION OPENINGS To avoid damage to the device, do not cover the ventilation openings on the rear and ensure that air can circulate freely.

OLED DISPLAY The OLED display shows the currently activated mode (main display), the menu items in the menu and the numerical value or operational status in certain menu items. If there is no input for approx. one minute, the display automatically returns to the main display. Note regarding the main display in operating modes with external control: As soon as the control signal is interrupted, the characters in the display begin to flash. When there is a control signal again, the flashing stops.

CONTROL KEYS MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main display. Pressing MENU without confirming a value or status change with ENTER restores the previously confirmed value or status.13 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI ENTER – press ENTER to access the menu levels, to make value changes, and to access the submenus. Confirm value or status changes by pressing ENTER. and – Select individual menu items in the main menu (DMX address, DMX mode etc.) and in the submenus. Allows you to change the value of a menu option, such as the DMX address, as desired (long press = quick value change).

RECESSED GRIPS In addition to the two transport handles on the base of the unit, there are practical recessed grips at the top of the inner sides of the two device arms.

PAN LOCK Mechanical locking device used to prevent the rotation of the head in the horizontal direction during transport. Disconnect the unit from the mains, move the head parallel to the base (8 possible positions) and push the locking lever up- wards and then in the direction of the pan rotation axis (LOCK) to lock it in position. Unlock the device before startup (UNLOCK).

TILT LOCK Mechanical locking device used to prevent rotation of the head in the vertical direction during transport (7 possible positions). Disconnect the unit from the mains and slide the locking lever in the direction of the tilt rotation axis, moving the head of the unit vertically until one of the 7 locking positions is found and the locking lever engages (LOCK). Unlock the device before startup (UNLOCK). - Similar to image -14 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH OPERATION NOTES When the spotlight is started, “Update Wait” briefly appears on the display, then “Welcome to Cameo”, the model name and the software version. The motors are then reset (Motor Reset Please Wait). After this process, the spotlight is operational and the previously activated operating mode is launched.

MAIN DISPLAY IN DMX MODE

The main display in DMX mode shows the currently set DMX start address (see illustration). If the spotlight has no DMX signal, the characters on the display flash. DMX Address

Service ------ Settings ------ DMX Address DMX Mode Stand Alone Slave Settings System Info -------- Menu -------- This will take you to the submenu for setting the submenu items (see table, select with and , confirm with ENTER, change value or status with and , confirm with ENTER). Settings (Bold = Factory Settings) Wireless Wireless settings (iDMX stick optional) iDMX State Off Wireless control disabled On Wireless control enabled Signal routing To XLR Signal -> DMX OUT Backup by XLR Backup via DMX IN with W-DMX signal interruption Receive only W-DMX reception only17 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI Display Display settings Display Reverse Off No display rotation On Display is rotated by 180° (e.g. for overhead installation) Display Off Timer Always

On permanently Off after 20 s Deactivates after approximately 20 seconds of inactivity Autolock Off Autolock function disabled On Operating elements LOCKED after approx. 30 seconds without input. Unlock: Around Press MENU for 3 seconds. Dimmer Dimmer settings Dimmer Curve Linear Light intensity increases linearly with DMX value Exponen- tial Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values Logarith- mic Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values S-curve Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medi- um DMX values Dimmer Response LED Lamp responds abruptly to changes in DMX value Halogen The spotlight behaves like a halogen spotlight with slight brightness changes PWM Fre- quency 650 Hz, 1530 Hz, 3600 Hz, 12 kHz,

25 kHz Select LED PWM frequency Move- ment Adjust head move- ments Pan Reverse Off Does not reverse pan direction On Reverses pan direction Tilt Reverse Off Does not reverse tilt direction On Reverses tilt direction Pan Angle 540° Pan angle 540° 630° Pan angle 630° Position Feed- back Off Automatic position correction is disabled On Automatic position correction is enabled Move in Black Off No blackout during head movement On Blackout during head movement Silent Move- ment Off Function disabled On Slow motor movements for quieter operation18 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH Wheels Adjust the gobo wheels and colour wheel Gobo Wheel Position Clockwise Gobo wheel always turns clock- wise Shortest way Gobo wheel turns the shortest distance Move- ment Snap Gobo wheel jumps directly back to the desired gobo when the relevant value is reached Scroll Continuous rotation of the gobo wheels Colour Wheel Position Clockwise Colour wheel always turns clock- wise Shortest way Colour wheel turns the shortest distance Move- ment Snap Colour wheel jumps directly back to the desired colour filter when the relevant value is reached Scroll Continuous rotation of the colour wheels Move in Black Off No blackout in the event of value changes in the colour and gobo wheels On Blackout in the event of value changes in the colour and gobo wheels Fan Set Fan settings Auto Automatic fan control Fan Off Deactivated fan with greatly reduced brightness Constant Low Constantly low fan speed with reduced brightness, if neces- sary Constant Mid Constant average fan speed with reduced brightness, if necessary Constant High Constant high fan speed Signal Fail Operating status when DMX signal fault occurs Hold Last command is retained Blackout Activates blackout Fade Out 10 s 10-second fade to blackout User Preset 1 User Preset 1 is activated19 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI Service Reset settings Store Default User default A Save user settings A User default B Save user settings B User default C Save user settings C Load Default Factory Default Reset to factory settings: Perform reset with EN- TER, cancel with MENU User default A Reset to User A: Perform reset with ENTER, cancel with MENU User default B Reset to User B: Perform reset with ENTER, cancel with MENU User default C Reset to User C: Perform reset with ENTER, cancel with MENU Reset Pan/Tilt Reset pan and tilt motors Head Reset all motors in the spotlight head All func- tions Resets all motors Password For service purposes only SYSTEM INFORMATION (System Info) Starting from the main display, press MODE to enter the main menu. Now use or to select the menu item System Info and confirm with ENTER. Firmware Sensor Operation Hours Errors ---- System Info ---- DMX Address DMX Mode Stand Alone Slave Settings System Info -------- Menu -------- This will take you to the submenu for accessing the system information (see table, selection with or , confirm with ENTER, change status with and , confirm with ENTER). Info Firmware 1U V1.x.x 2U V1.x.x 3U V1.x.x 4U V1.x.x 5U V1.x.x 6U V1.x.x20 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH Sensor Temperature LED xx°C / xx°F Base xx°C / xx°F Temperature unit °C degrees Celsius °F degrees Fahrenheit Fan Speed LED Fan revolutions LED xxxxRPM Motor Fan revolutions motors xxxxRPM Base Fan revolutions device base xxxxRPM Operation Hours Operation Time xxxx:xx h Total operating time LED Time xxxx:xx h LED unit operating time Errors Error display in case of malfunction

SETUP AND INSTALLATION

HAZARD: Overhead mounting requires extensive experience, including the calculation of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. Thereis a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death. Thanks to its integrated rubber feet, the lamp can be positioned in a suitable location on a level surface. Traverse installation can be achieved with the help of two Omega brackets, which are attached to the base of the device (A). 2 x Omega brackets are included. Suitable beam clamps are available as an option. Ensure firm connections and secure the spotlight to the securing lug (B) with a suitable safety cable.

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used. We generally recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited in the event of defects resulting from inadequate maintenance. CARE (carried out by user) WARNING! Before carrying out any maintenance work, the power supply and, if possible, all device connections must be unplugged. PLEASE NOTE! Improper care can lead to impairment of the device or even destruc- tion.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can

penetrate the device.

2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used,

make sure that damage to the device is prevented (e.g. fans must be blocked in this case).

3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.

5. Devices must generally be stored dry and protected from dust and dirt.

MAINTENANCE AND REPAIR (by qualified personnel only) HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, e.g. due to charged capacitors. PLEASE NOTE! There are no user-serviceable components in the device. PLEASE NOTE! Maintenance and repair work may only be carried out by qualified specialist personnel authorised by the manufacturer. If in doubt, consult the manufac- turer. PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.22 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH DIMENSIONS (mm)23 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI TECHNICAL DATA

PRODUCT NUMBER: CLAZORS2

Product type: LED moving light Type: Spot LED colour spectrum: Cool white 6800 K Number of LEDs: 1 LED type: 300 W Beam angle (half-peak divergence): 5° – 50° Colour mixing system: CMY Number of colours: 8 + open and continuously variable colour wheel positioning Number of gobos: 11 fixed + 8 rotatable & indexable + open PWM frequency: 650 Hz; 1530 Hz; 3600 Hz; 12 kHz; 18.9 kHz; 25 kHz DMX input: 5-pin male XLR DMX output: 5-pin female XLR DMX mode: 21-CH Basic, 24-CH Standard, 28-CH Extended DMX functions: Pan/Tilt, Pan/Tilt fine, Dimmer, Dimmer fine, Strobe, Cyan, Magen- ta, Yellow, Colour Wheel, Gobo Wheel 1, Gobo Wheel 1 Rotation, Gobo Wheel 1 Rotation fine, Gobo Wheel 2, Zoom, Zoom fine, Focus, Focus fine, Iris, Prisma Selection, Prisma 1, Prisma 2, Frost, Device Settings Standalone functions: User Preset 1–4, master/slave mode Control: DMX512, RDM, iDMX stick compatible Pan angle: 540°/630° Tilt angle: 270° Operating controls: MENU, ENTER, arrow up, arrow down Display elements: OLED display Operating voltage: 100–240 V AC/50–60 Hz Power consumption: 470 W Luminous flux: 13 000 lm Power supply connection: True1 compatible input and output (max. output current 12 A) Fuse: T4 AL 250 V (5 x 20 mm) Ambient temperature (in operation): 0°C to 40°C Relative air humidity: < 85%, non-condensing Minimum distance to illuminated surface: 3 m24 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

PRODUCT NUMBER: CLAZORS2

Minimum distance to normally flammable materials:

Housing material: Metal, ABS Housing colour: Black IP protection class: IP20 Housing cooling: Temperature-controlled fan Dimensions (W x H x D, without bracket): 372 x 601 x 238 mm Weight: 19.7 kg Additional features: 1 m power cable with True1 compatible plug and 2 x Omega mounting brackets included with the appliance

This symbol with distance specification in metres (m) indicates the minimum distance between the light head and the illuminated surface. In this example, the distance is 0.5 m. The value applicable for this unit can be found in the technical data in this manual and the imprint on the unit housing!

This symbol with distance specification in metres (m) indicates the minimum distance between the light head and normally flammable materials. In this example, the distance is 0.5 m. The value applicable for this unit can be found in the technical data in this manual!25 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DISPOSAL Packaging:

1. Packaging can be fed into the reusable material cycle using the usual disposal

2. Please separate the packaging in accordance with the disposal laws and recy-

cling regulations in your country. Device:

1. This device is subject to the European Directive on Waste Electrical and Electronic

Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equip- ment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!

2. Observe all disposal laws and regulations applicable in your country.

3. As a private customer, you can obtain information on environmentally-friendly dis-

posal options from the seller of the product or the appropriate regional authorities.26 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

MANUFACTURER’S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach, Germany / E-mail [e-mail] / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf Contact your distribution partner for service. CE CONFORMITY Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applica- ble)

EC DECLARATION OF CONFORMITY

006 - 010 Strobe closed

Random Strobe effect, slow -> fast

Strobe Break effect, 5s…..1s (short burst with break)

Colour Wheel rotation slow -> fast, bwd

Gobo Wheel rotation slow -> fast, bwd Gobo

Gobo rotation, slow -> fast ->, bwb Gobo

192 - 200 Pulse, slow -> fast (with Dim)

Pulse, slow -> fast (without Dim)

Pulse Random, slow -> fast (without Dim)

Ramp up, slow -> fast (with Dim)

Ramp up, slow -> fast (without Dim)

Ramp down, slow -> fast (with Dim)

246 - 255 Ramp down, slow -> fast (without Dim)

Prism rotation, slow -> fast, bwd 19 22 26 Prism 2

Prism rotation, slow -> fast, bwd 20 23 27 Frost 000 - 255 0% to 100% Frost

Device settings (please read remark 1*)

Device settings (please read remark 1*)

Blackout while wheels moving on (hold 3s) Device Settings

Blackout while wheels moving off (hold 3s)

Device settings (please read remark 1*)

Silent movement (slow) on (hold 3s)

142 - 143 Display off after 20s (hold 3s)

Dimmer Curve S-Curve (hold 3s)

Device settings (please read remark 1*)
