USER MANUAL AURO SPOT Z300 Cameo

CONNECTIONS, CONTROLS, AND DISPLAY ELEMENTS 5-6

SETUP AND INSTALLATION 13

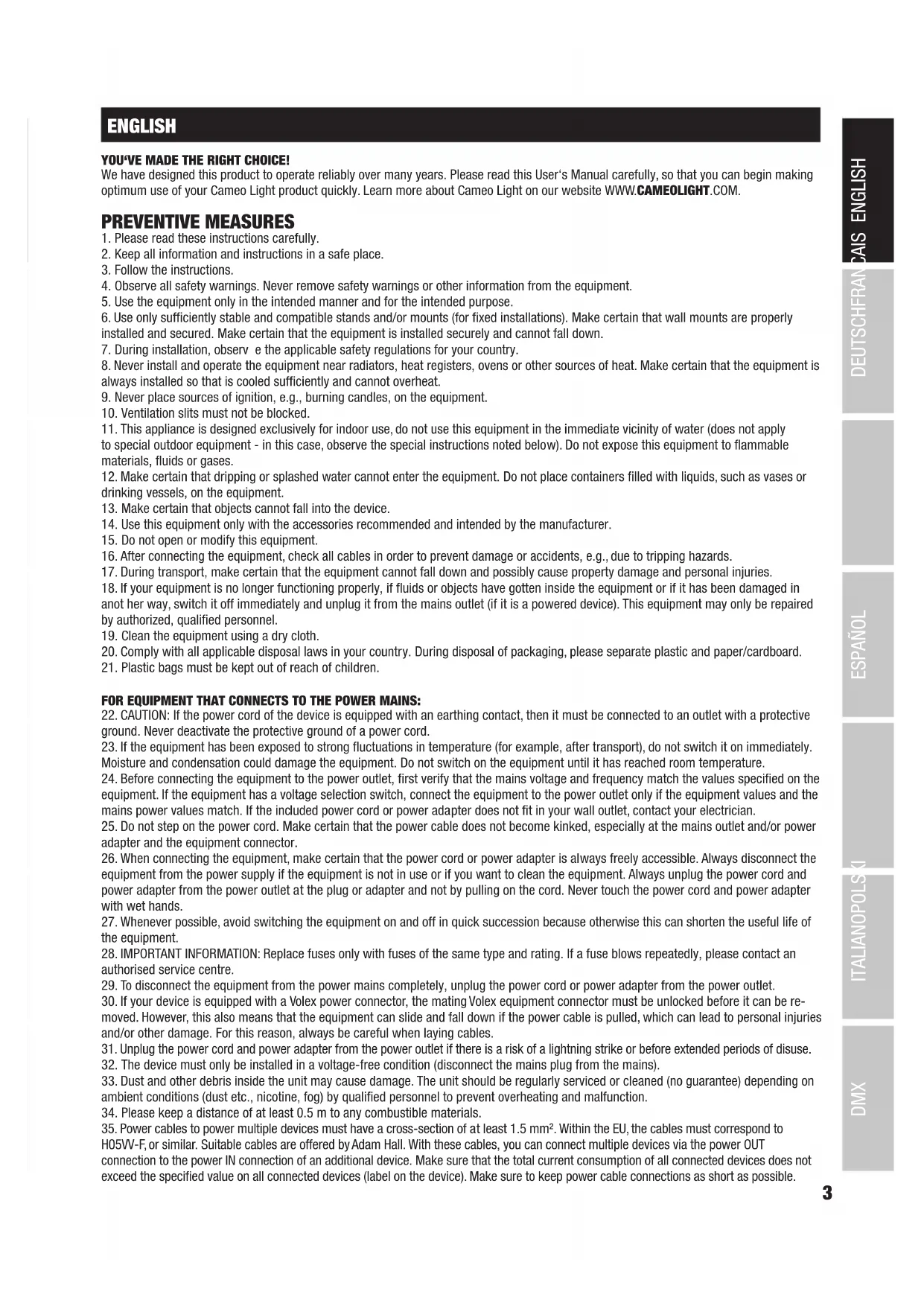

DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI ENGLISH YOU‘VE MADE THE RIGHT CHOICE! We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM. PREVENTIVE MEASURES

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufﬁciently stable and compatible stands and/or mounts (for ﬁxed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufﬁciently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to ﬂammable materials, ﬂuids or gases. 12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers ﬁlled with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards. 17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries. 18. If your equipment is no longer functioning properly, if ﬂuids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualiﬁed personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS: 22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord. 23. If the equipment has been exposed to strong ﬂuctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature. 24. Before connecting the equipment to the power outlet, ﬁrst verify that the mains voltage and frequency match the values speciﬁed on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not ﬁt in your wall outlet, contact your electrician. 25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector. 26. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment. 28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre. 29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet. 30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be re- moved. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables. 31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

32. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).

33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualiﬁed personnel to prevent overheating and malfunction.

34. Please keep a distance of at least 0.5 m to any combustible materials.

35. Power cables to power multiple devices must have a cross-section of at least 1.5 mm². Within the EU, the cables must correspond to H05VV-F, or similar. Suitable cables are offered by Adam Hall. With these cables, you can connect multiple devices via the power OUT connection to the power IN connection of an additional device. Make sure that the total current consumption of all connected devices does not exceed the speciﬁed value on all connected devices (label on the device). Make sure to keep power cable connections as short as possible.4 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualiﬁed service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device. Warning! This device is designed for use below 2000 metres in altitude. Warning! This product is not intended for use in tropical climates. Caution! Intense LED light source! Risk of eye damage. Do not look into the light source. CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS! 1. The product has been developed for professional use in the ﬁeld of event technology and is not suitable as household lighting.

2. Do not stare, even temporarily, directly into the light beam.

3. Do not look at the beam directly with optical instruments such as magniﬁers.

4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should deﬁnitely avoid places where strobes are used.5 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI

CONNECTIONS, CONTROLS, AND DISPLAY ELEMENTS

POWER IN Neutrik powerCON mains input socket. Operating voltage: 100–240 V AC / 50–60 Hz. A suitable power cable is included in delivery.

POWER OUT Neutrik powerCON mains output socket. Serves to provide power to additional CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value.

FUSE HOLDER IMPORTANT NOTE: Exclusively replace the fuse with a fuse of the same type and values. If a fuse trips repeatedly, please contact an autho- rized service center.

DMX IN Male three-pin XLR connector to connect a DMX control device (e.g. DMX console).

DMX OUT Female three-pin XLR connector to transmit the DMX control signal.

DMX OUT Female ﬁve-pin XLR connector to transmit the DMX control signal. INTRODUCTION

LED MOVING HEAD AURO SPOT ZOOM 300

CLASZ300 CONTROL FUNCTIONS: 17-channel and 20-channel DMX control Master/Slave mode Stand-alone functions: PROPERTIES: LED moving head with 200 W LED. Color wheel and two gobo wheels. Zoom function. Focus. Frost ﬁlter. Two prisms. Two DMX modes. DMX- 512 control. Master/Slave mode. Stand-alone functions. Two omega mounting brackets included. Operating voltage: 100V–240 V AC / 50–60 Hz. Power consumption: 320 W. The spotlight complies with the RDM standard (Remote Device Management). This device manager allows the user to request the status of and conﬁgure RDM end devices via an RDM-capable controller.

Displays the currently activated operating mode, the options menu, and other system information. The display automatically switches to the main screen after approx. one minute of inactivity.

CONTROL KEYS MODE You can access the options menu by pressing MODE. Pressing it again will return you to the main screen. If you press the MODE button without having ﬁrst pressed ENTER to conﬁrm a value or status change, the previously conﬁrmed value or status shall be restored.

Select the individual menu options in the options menu (DMX address, operating mode, etc.) and in the sub-menus. ENTER Pressing ENTER will take you to the menu level where you can change values and access one of the submenus. You can also conﬁrm value adjustments by pressing ENTER.

Allows you to change the value of a menu option, such as the DMX address, as desired. BATTERY-POWERED DISPLAY The battery-powered display allows you to change settings even when the device is not connected to a power supply. Press and hold MODE for approx. 4 seconds to do so. The spotlight’s DMX unit will not activate in this case. This means that the display will show that there is no DMX signal present, even if a DMX signal is present in the DMX input. OPERATION NOTE When the spotlight is correctly connected to the power, the following message is displayed during the boot process and the motor reset process: “Software Update Please Wait...” (only for service purposes) and the Cameo logo appears in the display. The spotlight is ready after this process, and the operating mode that was previously selected will activate.

MAIN SCREEN DMX MODE

The DMX mode (DMX 17CH, 20CH) is shown in the display’s top row, and the DMX start address is clearly displayed in the middle. As soon as the DMX signal is interrupted, the display’s background color changes to red and “No DMX” is shown. If the DMX signal is restored, the display returns to the main screen. The display can also be rotated 180° by pressing the key.7 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI

MAIN SCREEN STAND-ALONE MODE

“Operating Mode” is shown in the display’s top row, and the stand-alone operating mode (e.g. Static User Macro 1) is clearly displayed in the middle. The display can also be rotated 180° by pressing the key. SETTING THE DMX START ADDRESS (DMX Address) You can access the options menu (System Settings) by pressing MODE. Using the and arrow keys, now select the “DMX Address” menu option (dark background) and conﬁrm with ENTER. The three digits indicating the DMX start address will change red. You can then use the and arrow keys to select the desired DMX start address (hold down the arrow keys to quickly change the value). Conﬁrm the process with ENTER and press MODE to return to the main screen. SETTING THE OPERATING MODE (Mode) You can access the options menu (System Settings) by pressing MODE. Using the and arrow keys, now select the “Mode” menu option (dark background) and conﬁrm with ENTER. The symbols indicating the operating mode (e.g. DMX 20CH) will change red. You can then use the and keys to select the desired operating mode. Conﬁrm the process with ENTER and press MODE (repeatedly, if necessary) to return to the main screen. Operating modes: DMX 17CH, DMX 20CH, Slave, Auto, Static. DMX OPERATING MODE (DMX) Two different DMX operating modes are available: 17-channel and 20-channel (DMX 17CH, 20CH). The DMX operating modes can be selected as previously described in the section “SETTING THE OPERATING MODE”. DMX tables and channel assignments can be found in these instructions under the section “DMX CONTROL”.8 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH SLAVE MODE (Slave) The Slave mode can be selected as previously described in the section “SETTING THE OPERATING MODE”. Connect the slave and master unit (same model, same software version) using a DMX cable (Master DMX OUT – Slave DMX IN), and activate one of the stand-alone modes (Auto or Static) on the master unit. The slave unit will now follow the master unit. AUTO MODE (Prog1–Prog4) The four different Auto programs each consist of a sequence of hard-coded processes for changing the color, gobo, movement, etc. The Auto mode can be selected as previously described in the section “SETTING THE OPERATING MODE”. After conﬁrming the selection with ENTER, use and to select the “Auto” menu option and conﬁrm with ENTER. Now use and to select one of the four Auto programs (Prog1– Prog4) and then conﬁrm with ENTER. Use and to select the “Auto Speed” menu option to conﬁgure the desired program operating speed. Press ENTER and then use and to select a value between 000 and 100 (000 = minimum, 100 = maximum speed). Conﬁrm with ENTER and then press MODE three times to return to the main screen. STATIC MODE (Static) As with a DMX control device, the Static mode makes it possible to conﬁgure all functions, such as Pan, Tilt, Color Wheel, Gobo Wheel, and Strobe, with values between 000 and 255 directly on the device. This allows the user to create individual scenes without needing an additional DMX controller. Four user macros are available for creating individual settings (User Macro 1–4). The Static mode can be selected as previously described in the section “SETTING THE OPERATING MODE”. After you have conﬁrmed the entry with ENTER, select one of the four available macros and then conﬁrm with ENTER. Now you can use the and control keys to select functions and effects (see Static list). Press ENTER. Now use and to select the value (hold down the arrow keys to quickly change the values). Always conﬁrm entries with ENTER. After you’ve conﬁgured all the functions and effects as desired, press MODE four times to return to the main screen.9 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI Static Pan 000 - 255 0% to 100% Tilt 000 - 255 0% to 100% Dimmer 000 - 255 0% to 100% Strobe (multifunctional strobe)

000 - 005 Strobe open

006 - 010 Strobe closed

103 - 127 Strobe break effect, 5s…..1s (short burst with break)

Gobo 1 (Gobo Wheel 1)

Zoom 000 - 255 Narrow -> wide Focus 000 - 255 0% to 100% Prism (prism selection)

000 - 005 Prism off (open)

Prism Rot (prism rotation)

P/T Macro (Pan/Tilt auto movement)

006 - 040 Pan small -> large

041 - 075 Tilt small -> large

076 - 110 Pan/Tilt small -> large

111 - 145 Pan/Tilt (invers) small -> large

146 - 180 Circle small -> large

181 - 215 Circle (invers) small -> large

216 - 255 Random small -> large

P/T Speed (Pan/Tilt auto movement speed) 000 - 255 Pan/Tilt fast -> slow11 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DEVICE SETTINGS (Settings) You can access the options menu by pressing MODE. Using the and control keys, now select the “Settings” menu option (dark back- ground) and conﬁrm with ENTER. This will take you to the sub-menu for setting the following sub-menu options (select using and , conﬁrm with ENTER, change the value or status using and , and conﬁrm with ENTER): Settings (bold = factory setting) Display Rev = Flip Display Off Display does not rotate On Display rotates by 180° (e.g. when installed overhead) Display = Display Backlight Off Deactivates after approx. 30 seconds of inactivity On Permanently on DMX Fail = Operating mode for DMX signal interruption Hold Last command is kept Blackout Activates blackout DimCurve = Dimmer Curve Linear Light intensity increases linearly with DMX value “Exp (exponential)” Light intensity can be ﬁnely adjusted at lower DMX values and broadly adjusted at higher DMX values “Log (logarithmic)” Light intensity can be broadly adjusted at lower DMX values and ﬁnely adjusted at higher DMX values S-curve Light intensity can be ﬁnely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values Pan Angle = Pan Angle 540 Pan angle 540° 630 Pan angle 630° Pan Rev = Pan Reverse Off Pan movement direction does not reverse On Pan movement direction reverses Tilt Rev = Tilt Reverse Off Tilt movement direction does not reverse On Tilt movement direction reverses PWM freq = LED PWM Frequency 800 Hz / 1200 Hz / 2000 Hz / 3600 Hz / 12 kHz / 25 kHz Sets the LED PWM frequency Fan = Sets fan control Auto Automatic fan control Silent Extra quiet fan with reduced brightness, if required Feedback = Position correction On Automatic position correction activated Off Automatic position correction deactivated Mov Blackout

Step-by-step function test of the LED and all motors (pan, tilt, gobo, etc.) Factory Reset = Reset to factory settings Reset? Reset to factory settings: Conﬁrm with ENTER, cancel with MODE Reset = Reset the motors Pan&Tilt Reset the pan and tilt motors Head Reset all head motors (color wheel, gobo well, prism, etc.) All Reset all motors12 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH SYSTEM INFORMATION (System info) You can access the options menu by pressing MODE. Using the and control keys, now select the “System Info” menu option (dark background) and conﬁrm with ENTER. This will take you to the sub-menu for displaying the device information (select using and , press ENTER to display information): System Info Firmware = Displays the device ﬁrmware 1U: Vx.xx 2U: Vx.xx 3U: Vx.xx Tempera- ture = Temperature display LED Temp xxx°C/°F Temp Unit Celsius Fahrenheit Fan = Speed display Fan1: xxxx RPM Fan2: xxxx RPM Time Info = Displays operating time Total: Displays the total operating time in hours and minutes Current: Displays the current operating time in hours and minutes Last: Displays the last operating time in hours and minutes Error Info = Functional error display If it is not possible to eliminate a functional error by resetting or restarting, the faulty unit must be repaired by an authorized service center. PAN Solution: Reset Pan&Tilt TILT Solution: Reset Pan&Tilt Gobo Wheel 1 Solution: Reset head. If necessary, check that it is secured and positioned properly Gobo Wheel 1 Rot Solution: Reset head. If necessary, check that it is secured and positioned properly Gobo Wheel 2. Solution: Reset head Color Wheel Solution: Reset head Focus Solution: Reset head Zoom Solution: Reset head Prism Red Solution: Reset head Fan 1 Solution: Restart Fan 2 Solution: Restart Temperature Solution: Allow to cool, restart if necessary. Check maximum ambient temperature (40°C) Dimmer curves Linear DMX value Light intensity Exponential DMX value Light intensity Logarithmic DMX value Light intensity S-curve DMX value Light intensity13 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI

SETUP AND INSTALLATION

The integrated rubber feet allow the spotlight to be placed in a suitable position on a level surface. Install on a crossbeam using two omega brackets that are attached to the bottom of the device’s base (A). Two omega brackets are included in the scope of delivery; suitable crossbeam clamps are available as needed. Make sure that the spotlight is ﬁrmly attached and secure it to one of the designated locations (B) with a suitable safety cable. Important safety information:Overhead installation requires extensive experience, which includes calculating the limit values of the working load, of the installation material to be used, and regularly conducting safety inspections of all installation materials and spotlights. If you do not have these qualiﬁcations, do not attempt to carry out the installation yourself; contact a professional company.14 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH DMX TECHNOLOGY DMX-512 DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor). DMX CONNECTION DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller). 2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units. The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables. DMX CABLES When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions. Pin Assignment DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used): Shield

Shield DMX TERMINATORS (TERMINATING RESISTORS) To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt). 3-pin XLR connector with a terminating resistor: K3DMXT3 5-pin XLR connector with a terminating resistor: K3DMXT5 Pin Assignment 3-pin XLR connector: 5-pin XLR connector:

DMX ADAPTER The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters. Pin Assignment DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020 Pins 4 and 5 are not used. Pin Assignment DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020 Pins 4 and 5 are not used.15 DMX DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI Article number: CLASZ300 Product type: LED moving light Type: Moving head LED color spectrum: Cold white 19500 K Number of LEDs: 1 LED type: 200 W Number of colors: 8+ open and continuously adjustable color wheel positions Number of gobos: 6 ﬁxed + 6 rotating and indexable + open Refresh rate: 800 Hz; 1200 Hz; 2000 Hz; 3600 Hz; 12 kHz; 25 kHz Beam angle: 10°–20° DMX input: 3-pin XLR male 5-pin XLR male DMX output: 3-pin XLR female 5-pin XLR female DMX mode: 17-channel, 20-channel DMX functions: Pan/Tilt, Slight Pan/Tilt, Dimmer, Strobe, Color Wheel, Fixed Gobo Wheel, Rotating Gobo Wheel, Shaking Gobo, 2 x Prisms, Focus, Frost, Zoom, Moving Macro, Auto Programs, Device Settings Stand-alone functions: Auto Program, User Macros, Master/Slave Mode Controller: DMX512, RDM-enabled Pan angle: 540°/630° Tilt angle: 270° Control elements: Mode, Enter, four arrow keys Display elements: Backlit color LC display, battery-powered to conﬁgure system settings without being connected to power (automatic battery recharging) Operating voltage: 100–240V AC / 50–60 Hz Power consumption: 320 W Illuminance (@ 1 m): 162000 lx Luminous ﬂux: 7500 lm Power supply connection: Neutrik powerCON in and out (max. output current 9 A) Fuse: T4AL / 250 V (0.2 x 0.8 inches) Ambient temperature (running): 32°F–104°F Relative humidity: < 85%, non-condensing Housing material: Metal, ABS Housing color: Black Housing cooling: Temperature-controlled fans Dimensions (W x H x D, without mounting bracket):

11.1 x 18.5 x 73.2 inches

Weight: 25 lbs Additional features: 1 m power cord with Neutrik powerCON plug and two omega mounting brackets included in delivery, one exchangeable gobo wheel TECHNICAL SPECIFICATIONS16 DMX ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

146 - 180 Circle small -> large

181 - 215 Circle (invers) small -> large

216 - 255 Random small -> large

006 - 010 Strobe closed

103 - 127 Strobe break effect, 5s…..1s (short burst with break)

12 Zoom 000 - 255 Narrow to wide Zoom 13 Focus 006 - 255 0% to 100% Focus 14 Prism selection

000 - 005 Prism off (open)

Device settings (please read remark 1*)

006 - 010 Strobe closed

000 - 005 Prism off (open)

Pan/Tilt Auto Movement

006 - 040 Pan small -> large

041 - 075 Tilt small -> large

076 - 110 Pan/Tilt small -> large

111 - 145 Pan/Tilt (invers) small -> large

146 - 180 Circle small -> large

181 - 215 Circle (invers) small -> large

216 - 255 Random small -> large

Device settings (please read remark 1*)
