PEALS 36 Li Basic - Blower Pattfield - Free user manual and instructions

Product type	Cordless leaf blower / vacuum
Brand	Pattfield
Model	PEALS 36 Li Basic
Weight	3,3 kg
Air speed	210 km/h
Suction flow rate	720 m³/h
Collection bag capacity	Approximately 45 litres
Idle speed	8 000 – 13 000 tr/min
Power supply	2 lithium-ion 36 V batteries (not included)
Protection rating	III
Sound power level (LWA)	92,68 dB(A)
Sound pressure level (LpA)	83,1 dB(A)
Vibrations (ahv)	2,354 m/s²
Main functions	Blowing, vacuuming, and shredding leaves
Maintenance and cleaning	Clean the bag after use; wipe the body with a damp cloth; no solvents
Safety	Safety goggles and ear protection required; keep bystanders at a distance
Spare parts and repairability	Spare parts available; contact HORNBACH
Warranty	3 years (private use)
General information	108-page manual available in several languages

Frequently Asked Questions - PEALS 36 Li Basic Pattfield

What is the capacity of the collection bag?

The collection bag has a capacity of approximately 45 liters.

Which batteries to use?

The device requires two lithium-ion 36 V batteries (not included). Make sure they have the same charge level.

How to switch from blowing to vacuum mode?

Turn the selector (10) to the desired position. You can do this even when the device is running.

What is the maximum air speed?

The air speed reaches 210 km/h.

How to clean the collection bag?

Turn the bag inside out and clean the inside thoroughly. In case of heavy soiling, use soap and water.

What is the noise level of the device?

The guaranteed sound power level is 98 dB(A); the measured level is 92,68 dB(A).

Can I use the device in the rain?

No, the device must be protected from rain and not used in wet weather.

How to empty the collection bag?

Open the zipper at the bottom of the bag to empty it.

What to do if the device does not start with charged batteries?

Have the device checked by a qualified technician. Never use a defective device.

How to adjust the speed?

Turn the speed control (12) to the desired position. Do not set a higher speed than necessary.

USER MANUAL PEALS 36 Li Basic Pattfield

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

≤ 33 % ≤ 66 % ≤ 100 %

Pflege und Wartung

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

HET APPARAAT PLAATSEN

Pattfield® ERGO TOOLS

36 V draadloze bladblazer PE-ALS 36 Li Basic

geproduceerd voor:

HORNBACH Baumarkt AG Hornbachstraße 11 76879 Bornheim / Duitsland

Pattfield® ERGO TOOLS

36 V batteriblås/-sug

PE-ALS 36 Li Basic

tillverkad för

Pattfield® ERGO TOOLS

INSTRUCTIUNI DE LUCRU

Pattfield® ERGO TOOLS

We are convinced that this appliance will exceed your expectations and wish you joy while using it.

Please read this user manual completely and observe the safety instructions.

Scope of delivery

1x Leaf blower vac
1x Rear suction tube, front suction tube
1x Wheel support and castors
1x Handle
1x Additional handle and star screw
1x Catch bag and shoulder belt
2x Long screws
3x Short screws

If any parts are missing or damaged, please contact your HORNBACH Store.

Table of content

Scope of delivery 97

Symbols 98

Safety instructions 99

Product overview 102

Intended use 102

Mounting the device 102

Using the appliance 103

Technical data 104

Noise & Vibration 104

Battery 104

Care & Maintenance 105

Replacement parts 105

Declaration of conformity 106

Warranty 107

Disposal 108

Symbols

Please read this user manual carefully and keep it for further reference.

Wear hearing protection and hearing protection for protection of your eyes and ears.

Warning of accident and injury to persons and serious damage to property.

Keep third parties away from danger area! Always maintain a safe distance from the tool when it is working!

Ejected objects and rotating parts can cause serious injuries.

Protect the device from rain and do not leave it outdoors in the rain!

The guaranteed sound power level is 98 dB

Don't touch any rotating parts within the appliance. Risk of serious injury.

Warning! Before performing any work on the tool, remove the battery.

Safety Instructions

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1) TRAINING

a) Read the instructions carefully. Become familiar with the controls and the correct use of the machine before attempting to operate the machine.

b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.

c) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

d) Never operate the machine when you are tired, ill or under the influence of alcohol, drugs or medicine.

2) PREPARATION

a) This machine can cause serious injuries. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the machine. Become familiar with all controls and the proper use of the machine.

b) Never operate while people, especially children, or pets are nearby.

c) Dress properly! Do not wear loose clothing or jewellery and take care of long hair, they can be sucked into the ventilation slot. Use sturdy gloves, long trousers, nonskid footwear and safety glasses.

d) Do not operate the machine on a paved or gravel surface, where ejected material could cause injury.

3) OPERATION

a) This machine should not be used for any other purpose than described.

b) While operating, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Wear protective glasses.

c) Thoroughly inspect the area where the machine is to be used and remove all objects which can be thrown by the machine.

d) Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.

e) Never operate the machine with damaged guards or without the guards in place.

f) Never allow children or people unfamiliar with the instructions to use the machine.

g) Stop using the machine while people, especially children, or pets are nearby.

h) Only use the machine in daylight or good artificial light.

i) Stop the machine before cleaning or when cleaning blockage.

j) Stop the machine before checking, carrying out maintenance or working on the machine.

k) Stop the machine before leaving the machine unattended.

I) Operate the machine in a recommended position and only on a firm, level surface.

m) While operating the machine, always ensure that the operating position is safe and secure. Keep the balance at all time. Always be sure of the footing on slopes. Walk, never run.

n) To reduce fire hazards, keep the machine free of debris, leaves and excessive lubricant.

o) Always ensure that the blow pipe is fitted when using the machine. Never attempt to use an incomplete machine or one fitted with an unauthorised modification.

p) Always use two hands to operate a machine with two handles.

q) Always be aware of your surroundings and stay alert for possible hazards of which you may not be aware due to the noise of the machine.
r) Always ensure that ventilation slots are kept clear of debris.
s) Avoid using the machine in bad weather conditions. especially if there is a risk of lightning.
t) Always stand clear of the discharge zone when operating this machine.
4) Maintenance and Storage
a) When the machine is stopped for servicing, inspection, transporting or storage, shut off the machine, remove the battery and make sure all moving parts have come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc.
b) Always allow the machine to cool down before storing.
c) When not in use, store the machine out of the reach of children.
d) Use only manufacturers recommended replacement parts and accessories.
e) Store the product in a dry, clean place protected from direct sunlight and only after the battery has been removed.
5) Residual risks
Even if the machine is operated in accordance with the provision, residual risks will always still remain. The following dangers can arise in connection with the structure and design of the machine:
a) Health defects resulting from vibration emission if the machine is being used over longer period of time or not adequately managed and properly maintained.
b) Injuries and damage to property due to broken accessories or hidden objects that are suddenly dashed.
c) Injuries and damage to property due to thrown objects.

6) Emergency
Familiarize yourself with the use of this machine by means of this instruction manual. Memorize the safety directions and follow them to the letter. This will help to prevent risks and hazards:
a) Always be alert when using this machine so that you can recognize and handle risks early. Fast intervention can prevent serious injury and damage to property.
b) Stop the machine and remove the battery if there are malfunctions. Have the machine checked by a qualified professional and repaired, if necessary, before it is put into operation again.
c) In case of fire stop the machine and remove the battery.

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operation modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks:

a) Only use the machine as intended by its design and these instructions.
b) Ensure that the machine is in good condition and well maintained.
c) Use correct application tools for the machine and ensure they are in good condition.
d) Keep tight grip on the handles/grip surfaces.
e) Maintain this machine in accordance with these instructions and keep it well lubricated (when appropriate).
f) Plan your work schedule to spread any high vibration machine use across a number of days.

For safety instructions for the battery charger please refer to the manual of the charger.

For safety instructions for Li-ion batteries please refer to the manual of the battery.

ADDITIONAL SAFETY INSTRUCTIONS ON RISKS DUE TO VIBRATION

a) The declared vibration data represents the main applications of the appliance, but different uses of the appliance or poor maintenance can result in different vibration data. This may significantly increase the vibration level over the total working period.
b) Additional safety measure shall be taken to protect the user from effects of vibration. Maintain the appliance and its accessories, keep hands warm and organize work patterns and periods.

FOR USE OF BATTERIES

a) Do not open, dismantle, shred or short-circuit batteries. Danger of explosion.
b) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Protect from mechanical shock. Keep dry and clean. Keep away from children.
c) Dispose of properly. Pay attention to environmental aspects of battery disposal. Do not dispose of in household waste.
d) Remove batteries when not using the tool for a longer period of time.
e) In case of battery leakage, remove the batteries and clean the battery compartment thoroughly. Avoid contact with skin and eyes.
f) In case of damage and improper use of the battery, Vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.

Product overview

1 Additional handle
2 Star screw
3 Body
4 Rear suction tube
5 Front suction tube
6 Wheel support
7 Castors
8 Catch bag
9 Catch bag socket
10 Selector switch
11 Insertion slot for battery
12 Speed control
13 On/Off switch
14 Handle

Intended use

This garden tool is intended exclusively to handle foliage and garden refuse such as grass and small branches according to the descriptions and safety instructions indicated in this operating manual. The tool is not intended for commercial use.

Any use not compliant to the description in this manual or any modification to the tool is considered as improper use and could cause considerable dangers. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.

MOUNTING THE DEVICE

1 Push the rear and front tube together and secure with two long screws. Push wheel support on the front tube and secure with a short screw.

2 Push handle on body until it clicks into place and secure with two short screws

3 Mount additional handle. Select position by loosening star screw. Tighten star screw to fix position..

4 Open the knurled screw, feed the belt strap through the opening and close the knurled screw again.

Caution! Make sure there are no batteries in the battery slot.

INSERT BATTERIES

1 Press two charged batteries (not included) into the insertion slot 11 until it clicks into place.

level.

Caution! Make sure the batteries are always charged to the same

2 To remove, press the release buttons and pull out the batteries.

SWITCHING ON/ OFF

1 Press the On/Off switch 13 to switch on the device. Release to switch it off again.

SUCTIONING

3 Turn selector switch 10 to indicated position. This can also be done while the device is operating.

2 Turn the speed control 12 to the required speed. Do not turn it faster than necessary..

BLOWING

4 Turn selector switch 10 to indicated position. Empty catch bag 8 before blowing.

CATCH BAG

1 Hang the hooks on the suction tube and the housing. Push the catch bag 8 over the catch bag socket 9 until it clicks into place.

2 To empty the catch bag 8, open the zip fastening at the bottom.

WORKING INSTRUCTIONS

1 When blowing, make sweeping movements from side to side and walk slowly forwards.

Caution! Keep the collected pile of refuse in front of you and blow around the outer edge. Do not blow in the center of the pile!.

Technical Data

Idle speed 8,000 - 13,000 rpm

Protection Class III

Air speed 210 kph

Suction power 720 m ^3 /h

Volume of catch bag approx. 45 liters

Sound power level (LWA) 92.68 dB(A)

Uncertainty K 3 dB(A)

Sound pressure level ( L_pA ) 83.1 dB(A)

Vibrations ahv 2.354 m/s

Uncertainty K 1.5 m/s ^2

Weight 3,3 kg

Please observe the article number on the type plate of the appliance. The trade names of the individual appliance may vary.

Noise & Vibration

The values given in these instructions have been measured in accordance with a standardized measurement procedure specified in EN 60335 and can be used to compare appliances.

It may be used for a preliminary assessment of exposure.

Warning! The vibration emission during actual use can differ from the declared total value depending on the use of the appliance.

Battery (not included)

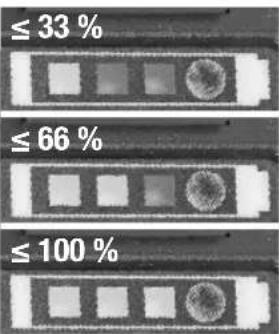

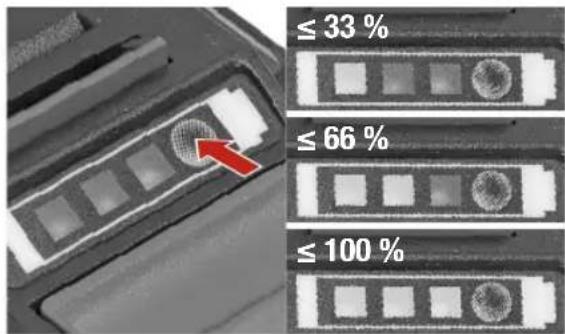

STATE OF CHARGE

Press the button to check the state of charge on LED indicator. To charge consult the user manual of the charger.

≤ 33 % ≤ 66 % ≤ 100 %

Care & Maintenance

Warning! Make sure the appliance is switched off and the batteries are ed.

• Turn the catch bag inside out after emptying and clean it thoroughly. In case of heavy soiling use soap and water.
• Always keep the appliance clean, dry and free of oil or grease.
• Wear safety glasses and gloves to protect your eyes and hands whilst cleaning.
• For safe and proper working, always keep the machine and ventilation slots clean.
• Regularly check for obvious defects and/or damaged components.
• Periodically check all fixings. These could become loose with time due to vibration.
• Check the catch bag regularly for signs of wear. If the zipper becomes difficult to pull, rub a bar of dry soap across the zipper teeth.
• Replace any worn or damaged parts.
• If the body of the appliance needs cleaning, wipe it with a brush or a soft damp cloth. A mild detergent can be used but nothing like alcohol, petrol or other cleaning agent.
• Never use caustic agents to clean plastic parts.
• Store the appliance in a dry place.

Warning! If the appliance does not work in spite of charged and well batteries, have it checked by a quali-chnician.

Warning! Never use a defective appliance!

Declaration of conformity

CE We declare, that the product described in Technical Data:

Pattfield® ERGO TOOLS

36 V Cordless Blower Vac PE-ALS 36 Li Basic

manufactured for:

is in conformity with the following directives:

Machinery Directive 2006/42/EC Outdoor Directive 2000/14/EC EMC Directive 2014/30/EU RoHS 2011/65/EU

and in accordance to the following applicable harmonized standards:

EN 60335-1:2012 EN 62233:2008 EN 50636-2-100:2014 EN 55014-1:2011 EN 55014-2:2008

The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the conformity assessment procedure according to annex V, and the Directive 2005/88/EC.

Measured sound power level: 92.68 dB(A) Guaranteed sound power level: 98 dB(A)

A. Judas Fale

Andreas Back Head of Quality Management, environment & CSR Person authorised to compile the technical file

This Pattfield item has been produced according to state-of-the-art production methods and is subject to ongoing strict quality control. HORNBACH Baumarkt AG, Hornbachstrasse 11, 76879 Bornheim, Germany, guarantees the quality of the machines according to the following terms and conditions.

1. Warranty Period

The warranty period is 3 years. The warranty period starts on the date of purchase. Please retain the original receipt or invoice in order to be able to furnish evidence of the date of purchase.

2. Warranty Scope

The warranty applies exclusively to production or material defects. The warranty applies only in the case of private use of the item.

The warranty does not apply to defects resulting from

• misuse or improper use,
• use of force or external influences,
• damage due to failure to observe the installation instructions or instructions for use,
• connecting to an incorrect grid voltage or current type,
  • unprofessional installation,
  • overloading the device,
• use of non-approved attachments or accessories,
• failure to observe the maintenance and safety instructions,
• entry of foreign matter into the device,
• wear and tear due to normal use or
• commercial use.

Furthermore, the warranty does not cover damage to parts subject to wear and tear, which is caused by normal wear and tear. The warranty does not comprise any collateral or consequential damage or possible installation and dismantling costs in the event of a warranty incident.

3. Warranty Services

During the warranty period, the warrantor will inspect the defective item in order to determine whether a warranty incident is on hand. If a warranty incident is on hand, the warrantor will repair or replace the item at his own expense. If the item is no longer available at the time of the warranty incident, the warrantor may replace the item with a similar product. The replaced item or part shall become property of the warrantor.

Warranty services (repair or replacement) do not extend the warranty period. Warranty services do not result in any new warranty.

4. Warranty Claims

For warranty claims, please contact the nearest HORNBACH DIY store.

You can find it at www.hornbach.com.

Warranty claims will only be accepted if the original receipt or invoice is produced.

5. Statutory Rights

The warranty does not restrict your statutory rights regarding warranty and product liability.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may contain dangerous and hazardous substances. These appliances must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.

Used batteries must be disposed of properly. Battery selling stores and municipal collection points offer special containers for battery disposal.
