| Product type | LED flashlight |
| Brand | Abus |
| Model | TL525 |
| Dimensions (L x W x H) | Approx. 260 x 44 x 31.7 mm |
| Net weight (without batteries) | Approx. 380 g |
| Power supply | 3 C 1.5 V alkaline batteries |
| Protection rating | IP44 (protected against water splashes) |
| Lighting modes | High, Low, Red light, Strobe |
| Max luminous flux | 500 lumens |
| Max beam distance | 200 meters |
| Lighting duration (500 lm) | Approx. 3 hours |
| Lighting duration (250 lm) | Approx. 5.5 hours |
| Operating temperature | -20°C to +40°C |
| Storage temperature | +10°C to +35°C |
| Material | Aluminum and polycarbonate (PC) |
| Zoom function | Rotate the head for wide or narrow beam |
| Care and cleaning | Soft dry cloth; do not immerse; no abrasive products |
| Safety instructions | Do not look directly into the light; risk of reflector burns; keep out of reach of children |
| Warranty | Legal warranty against material and manufacturing defects |
| Repairability | Repairs only by the manufacturer (ABUS) |
| Disposal | Electronic device and batteries separately according to local regulations |
Frequently Asked Questions - TL525 ABUS
User questions about TL525 ABUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Flashlight in PDF format for free! Find your manual TL525 - ABUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TL525 by ABUS.
USER MANUAL TL525 ABUS
GB Operating instructions 10 - 15
FR Instructions d'utilisation 16 - 22
NL Gebruikshandleiding 23 - 29
IT Istruzioni di uso 30 - 36
ES Instrucciones de funcionamiento ..... 37 - 43
PT Instruções do usuário 44 - 50
DK Betjeningsvejledning 51 - 56
SE Bruksanvisningar 57 - 62
NO Bruksanvisning 63 - 68
FI Käyttöohjeet 69 - 74
PL Instrukcja obsługi 75 - 81
CZ Návod k použití 82 - 87
SK Návod na obsluhu 88 - 93
HU Használati utasítás 94 - 99
RO Manual de utilizare 100 - 105
ABUS August Bremicker Söhne KG
D 58292 Wetter | Germany.
Tel.: +49 (0) 23 35 63 40
www.abus.com|info@abus.de

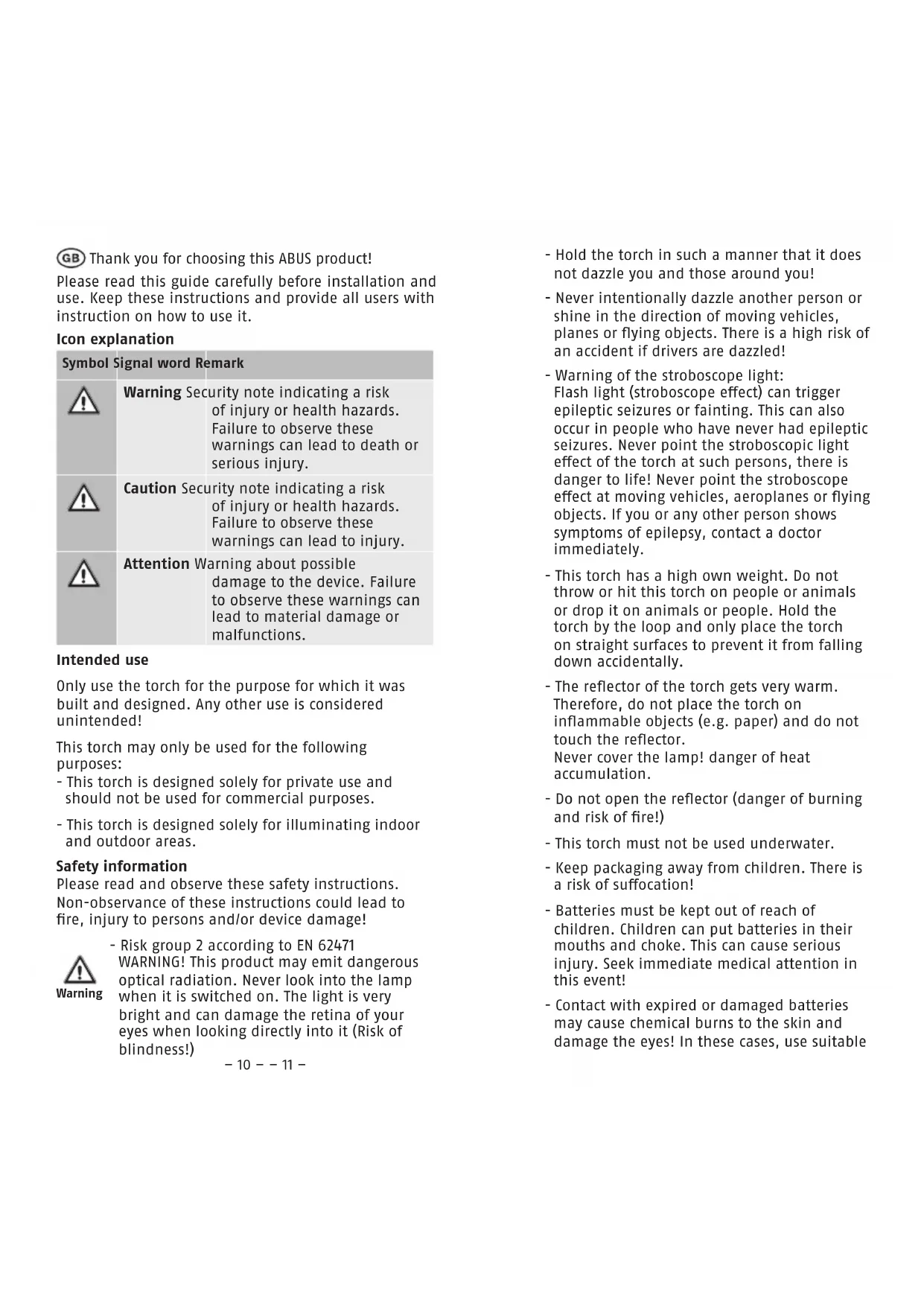

GB Thank you for choosing this ABUS product!
Please read this guide carefully before installation and use. Keep these instructions and provide all users with instruction on how to use it.
Icon explanation
| Symbol | Signal word | Remark |
 | Warning | Security note indicating a risk of injury or health hazards.Failure to observe these warnings can lead to death or serious injury. |
 | Caution | Security note indicating a risk of injury or health hazards.Failure to observe these warnings can lead to injury. |
 | Attention | Warning about possible damage to the device. Failure to observe these warnings can lead to material damage or malfunctions. |
Intended use
Only use the torch for the purpose for which it was built and designed. Any other use is considered unintended!
This torch may only be used for the following purposes:
- This torch is designed solely for private use and should not be used for commercial purposes.
- This torch is designed solely for illuminating indoor and outdoor areas.
Safety information
Please read and observe these safety instructions. Non-observance of these instructions could lead to fire, injury to persons and/or device damage!
- Risk group 2 according to EN 62471 WARNING! This product may emit dangerous optical radiation. Never look into the lamp when it is switched on. The light is very bright and can damage the retina of your eyes when looking directly into it (Risk of blindness!)
- Hold the torch in such a manner that it does not dazzle you and those around you!
- Never intentionally dazzle another person or shine in the direction of moving vehicles, planes or flying objects. There is a high risk of an accident if drivers are dazzled!
- Warning of the stroboscope light: Flash light (stroboscope effect) can trigger epileptic seizures or fainting. This can also occur in people who have never had epileptic seizures. Never point the stroboscopic light effect of the torch at such persons, there is danger to life! Never point the stroboscope effect at moving vehicles, aeroplanes or flying objects. If you or any other person shows symptoms of epilepsy, contact a doctor immediately.
- This torch has a high own weight. Do not throw or hit this torch on people or animals or drop it on animals or people. Hold the torch by the loop and only place the torch on straight surfaces to prevent it from falling down accidentally.
- The reflector of the torch gets very warm. Therefore, do not place the torch on inflammable objects (e.g. paper) and do not touch the reflector. Never cover the lamp! danger of heat accumulation.
- Do not open the reflector (danger of burning and risk of fire!)
- This torch must not be used underwater.
- Keep packaging away from children. There is a risk of suffocation!
- Batteries must be kept out of reach of children. Children can put batteries in their mouths and choke. This can cause serious injury. Seek immediate medical attention in this event!
- Contact with expired or damaged batteries may cause chemical burns to the skin and damage the eyes! In these cases, use suitable
Caution
protective gloves and clean the battery compartment with a dry cloth.
- Batteries must not be dismantled, pierced, damaged, short-circuited, heated or thrown into an open fire (risk of explosion!).
- Do not use the torch if it is visibly damaged or is malfunctioning.
- Make sure the torch is kept out of reach of children and people who are not able to use it correctly.
- This torch is not a toy.
- This torch is not suitable for household room illumination.
- Repair of this torch is only permitted by the manufacturer (ABUS).
Attention
- Keep the torch away from salt water. Salt water can damage the lamp and batteries and cause the product to malfunction.
- Since this is an electronic product, please consider the wanted environment of use similar to the one of your smartphone.
- Store the torch in an area that is dry, protected against direct sunlight and excessive heat, and inaccessible to children.
- Do not use any harsh cleaning agents!
- Never submerge the torch in water, cleaning fluid or other liquids. Never clean the torch under running water.
- Brushes with nylon bristles, metallic brushes or other hard surfaces and tools, such as coarse cleaning sponges, blades, scrapers and other similar items may damage the surface of the torch and cause it to malfunction or stop working.
- We recommend using a soft, dry cloth or a slightly damp cloth to remove dust and dirt from the torch.
- Remove the batteries if the torch is not used for an extended period of time.
First commissioning
- Insert 3 C type batteries (D) into the battery compartment. Make sure the polarity is correct when inserting them (see figure and note in the battery compartment)!
- Screw the cover back onto the battery compartment.
Operation
- Press the ON / OFF button (A). The lamp shines with full luminous intensity.
- By pressing the on/off button again each time you switch to > lower brightness > red light > off.
- Press and hold (approx. 2 seconds) the button to switch on the flash light function (stroboscope effect). Press the on / off button to switch the flash light off again.
- By moving the lamp head (B), you can enlarge or reduce the light cone (zoom). With a large light cone you illuminate the close-up range, with a small light cone you illuminate the distance.
When the battery power runs low, the light starts to flicker and becomes weaker. Replace the batteries immediately with three new 1,5 V Alkaline C batteries. Only use high-quality brand-name batteries, for example Panasonic, Varta or Duracell.
Technical data
| Battery type | 3x 1,5 V | Alkaline C |
| Protection class | IP44 | |
| Mode | High / low / off // press and hold: flash light | |
| Illumination time | 500 Lumen: approx. 3h, 250 Lumen: approx. 5,5h | |
| max. beam range | 200 m | |
| Storage temperature range | +10° to +35°C | |
| Operating temperature range | -20° to +40°C | |
| Material | Aluminium and PC | |
| Dimensions | approx. 260 x 44 x 31,7 mm | |
| Net weight | approx. 380 g (without batteries) | |
Declaration of Conformity
ABUS August Bremicker Söhne KG, Altenhofer Weg 25, 58300 Wetter hereby declares that the torch TL-525 is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2011/65/EU. The full EU Declaration of Conformity can be requested at: info@abus.de
Disposal
Dispose of the packaging sorted by type. Add paperboard and cardboard to the waste paper, foils and plastic parts in the collection of recyclables.
Dispose of the device in accordance with EU Directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the municipal authority responsible for disposal. You can get information on collection points for waste equipment from your local authority, from local waste disposal companies or your dealer.
Do not dispose of batteries in domestic waste.
ABUS products are designed, manufactured and tested in accordance with applicable regulations with great care. The warranty exclusively covers faults that are caused by material or manufacturing defects. If a material or manufacturing defect can be proven, the product will be repaired or replaced at the discretion of the warrantor. In such cases, the warranty ends with the termination of the original warranty period. Any further claims are expressly excluded.
ABUS assumes no liability for defects or damage that has been caused by external influences (e.g. transport, external forces), improper use, normal wear and tear or non-compliance with this operating and installation instructions document. If a warranty claim is asserted, the product must be returned with the original receipt with date of purchase and a brief written description of the fault.
Subject to technical alterations. No liability for mistakes and printing errors.
© ABUS 2020
