USER MANUAL LPMCSR02EU LA PAVONI

Instructions for use of models CASABAR PID Dear Customer, Thank you for having purchased one of our products, which has been manufactured using the latest technological innovations. By carefully following some simple instructions regarding the correct use of our product in compliance with the essential safety instructions indicated in this manual, you will be able to obtain the best performance and enjoy the remarkable reliability of this product over the years. In case of faults, please contact one of our Service Centres that are at your disposal from now on.

SYMBOLS USED IN THIS MANUAL

Important information is indicated by these symbols. It is imperative that you comply with these instructions. Please read the instructions manual carefully before using the appliance. Caution! Particularly important and / or dangerous operations. Information (useful for using the appliance). Advice. Operations that can be carried out by the user. Operations that should only be carried out by a qualied technician.14

2–1. SAFETY INSTRUCTIONS 16

2–2. INTENDED USE OF THE MACHINE 18

2–3. PRODUCT END-OF-LIFE INSTRUCTIONS 18

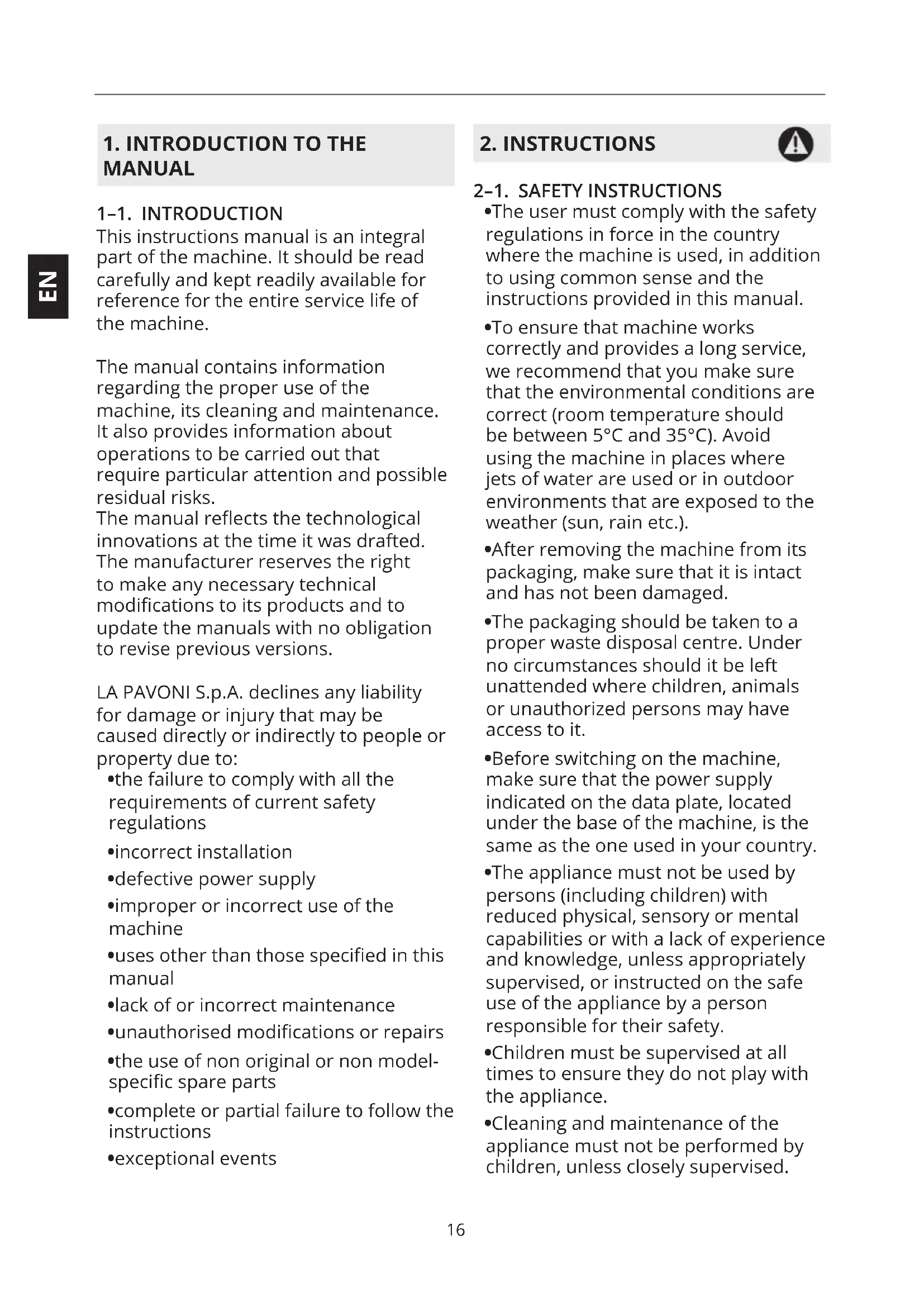

MANUAL 1–1. INTRODUCTION This instructions manual is an integral part of the machine. It should be read carefully and kept readily available for reference for the entire service life of the machine. The manual contains information regarding the proper use of the machine, its cleaning and maintenance. It also provides information about operations to be carried out that require particular attention and possible residual risks. The manual reects the technological innovations at the time it was drafted. The manufacturer reserves the right to make any necessary technical modications to its products and to update the manuals with no obligation to revise previous versions. LA PAVONI S.p.A. declines any liability for damage or injury that may be caused directly or indirectly to people or property due to:

• the failure to comply with all the requirements of current safety regulations

• incorrect installation

• defective power supply

• improper or incorrect use of the machine

• uses other than those specied in this manual

• lack of or incorrect maintenance

• unauthorised modications or repairs

• the use of non original or non model- specic spare parts

• complete or partial failure to follow the instructions

2–1. SAFETY INSTRUCTIONS

• The user must comply with the safety regulations in force in the country where the machine is used, in addition to using common sense and the instructions provided in this manual.

• To ensure that machine works correctly and provides a long service, we recommend that you make sure that the environmental conditions are correct (room temperature should be between 5°C and 35°C). Avoid using the machine in places where jets of water are used or in outdoor environments that are exposed to the weather (sun, rain etc.).

• After removing the machine from its packaging, make sure that it is intact and has not been damaged.

• The packaging should be taken to a proper waste disposal centre. Under no circumstances should it be left unattended where children, animals or unauthorized persons may have access to it.

• Before switching on the machine, make sure that the power supply indicated on the data plate, located under the base of the machine, is the same as the one used in your country.

• The appliance must not be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, unless appropriately supervised, or instructed on the safe use of the appliance by a person responsible for their safety.

• Children must be supervised at all times to ensure they do not play with the appliance.

• Cleaning and maintenance of the appliance must not be performed by children, unless closely supervised.16

• Never submerge the appliance in water.

• This appliance is intended for household use. Moreover, it cannot be used: - in kitchen areas provided for employees in shops, oces and other work environments - in farms/farm accommodation - by guests in hotels, motels and other types of residential accommodation - in bed and breakfast accommodation.

• If the power cord is damaged, contact technical support to arrange for this to be replaced in order to avoid any possible hazards.

• Only for European markets: This appliance may be used by children from the age of 8 provided they are supervised or instructed on the safe use of the appliance and they understand the associated risks.

• Cleaning and maintenance may be performed by children from the age of 8 as long as they are appropriately supervised.

• Keep the appliance and its cord out of reach of children under the age of 8 years.

• Children must never play with the appliance.

• The appliance may be used by persons with reduced physical,

• sensory or mental capabilities or with a lack of experience and knowledge, if they are supervised or instructed on the safe use of the appliance and if they understand the hazards involved.

• Disconnect the appliance from the power socket before

• assembly, disassembly and cleaning.

• For this appliance: Read this user manual carefully before using the appliance.

• Switch o the appliance immediately after use.

• Do not leave the coee machine unattended during use.

• Always disconnect the coee machine from the power socket if it is left unattended and before assembly/ disassembly of components or cleaning.

• Before connecting or disconnecting the machine, make sure that the ON/ OFF switch is in the OFF position.

• Unplug the coee machine before cleaning it and if you notice any fault.

• Let the coee machine cool down before cleaning.

• Do not use the coee machine without the tank tted or if there is no water in the tank.

• Leave at least 3 cm of space between the coee machine and any walls to the rear or side, and 15 cm clearance above the coee machine.

• Danger of burns! The coee machine generates heat and produces hot water and steam during its operation.

• Danger of burns! Do not touch the cup warmer shelf while the appliance is running.

• The surfaces of the appliance remain very hot after use due to residual heat. Do not touch the hot surfaces in order to avoid burns.

• Do not use the coee machine with parts or accessories of other manufacturers.

• Only use original spare parts. The use of spare parts not approved by the manufacturer could lead to res, electric shocks or personal injury.

• Only place the coee machine on level and dry surfaces.

• Avoid getting the coee machine wet and do not spray liquids onto it. In the event of contact with liquid, immediately switch o the power at18

the socket or main breaker and dry the appliance thoroughly: Electric shock hazard!

• Do not use harsh detergents or sharp objects to clean the coee machine.

• Do not make any modications to the appliance.

• Never try to put out a re or ames with water: turn o the appliance and remove the plug from the socket, and smother the ames with a re blanket or other appropriate cover.

• Prevent the power cord from coming into contact with sharp edges.

• Never position the appliance above or near gas or electric hob burners when they are hot or in use, inside an oven or near other heat sources.

• Do not position the appliance near sinks or taps.

2–2. INTENDED USE OF THE MACHINE

• This machine has been designed for the home preparation of espresso coee using coee blends, the production of hot water and/or steam, and the preparation of hot milk.

• In order to use the machine properly, the user must carefully read and understand the instructions provided in this manual.

• Any improper use of the machine will void the warranty and relieve the manufacturer of all liability for damage to property and / or injury to persons.

• Improper use includes: - any use other than the one specied in the instructions manual - any intervention carried out on the appliance that does not comply with the instructions given in this manual - any use following unauthorized modications to components or safety devices - use of the appliance outdoors 2–3. PRODUCT END-OF-LIFE INSTRUCTIONS Electrical appliances must not be disposed of together with household waste. Devices marked with this symbol are subject to European Directive 2012/19/ EU All waste electrical and electronic appliances must be disposed of separately from domestic waste and taken to authorised waste disposal facilities. Disposing of the used appliance correctly, will help to safeguard the environment and human health. For further information regarding the disposal of used appliances, please contact your local authority waste disposal department or the shop where the appliance was purchased.18

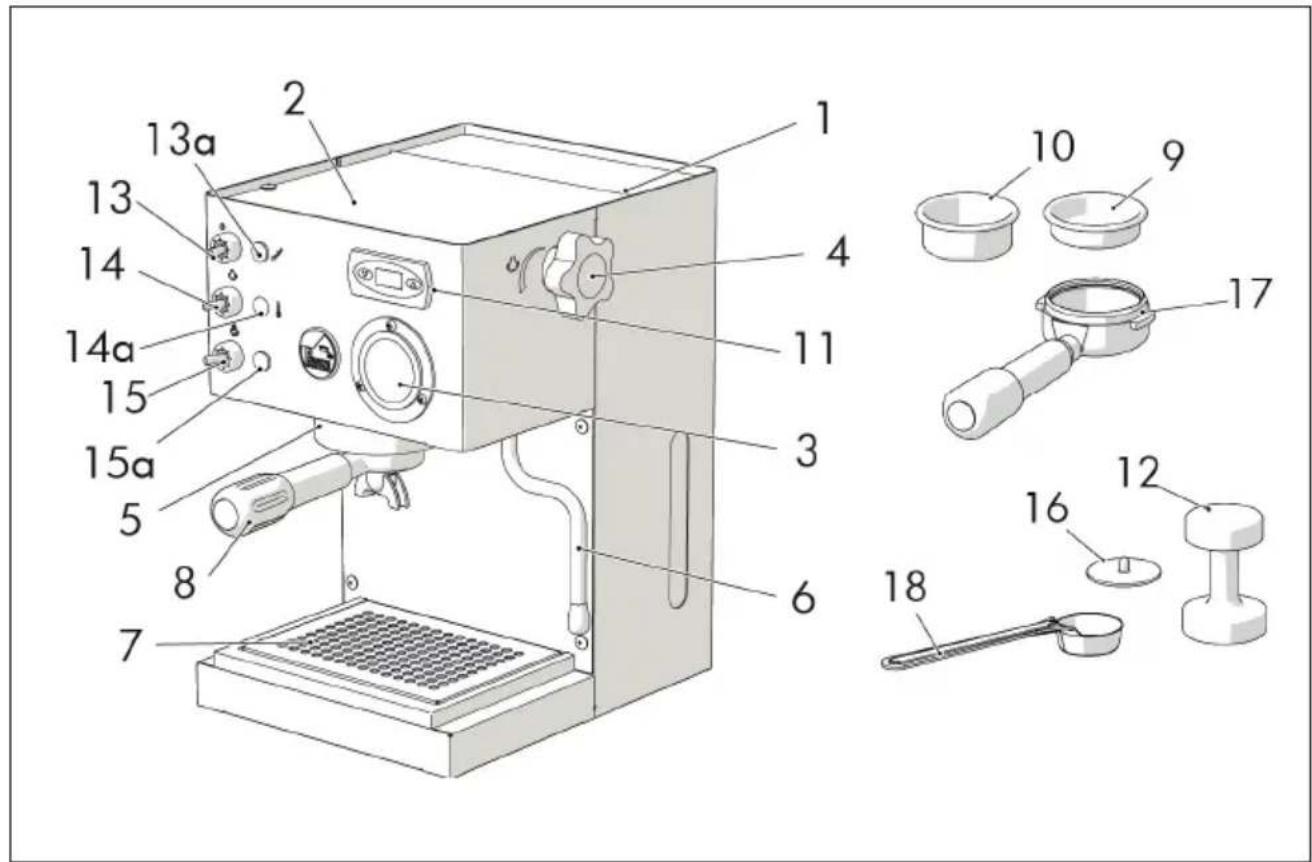

4. Hot water / steam knob

6. Steam / hot water supply nozzle

7. Removable drip tray grid

4–1. STARTING THE APPLIANCE

• Open the cover and ll the tank (1) with fresh clean water, taking care not to exceed the maximum level of the tank.

• Turn on the machine by placing the on / o switch (13) to position "I". The lamp (13a) lights up to indicate that the machine is powered.

• Insert the lter holder (8 or 17) into the group head (5).

• Open the steam / hot water knob (4).

• Move the co ee / hot water switch lever (15) to position “I”. When water starts to come out of the steam nozzle (6), turn the hot water/co ee switch lever (15) to position “0” and close the knob (4). After having done this, rinse the internal circuits:

dispensing spouts and press the coee / hot water dispensing button (14).

• Repeat this process 5 times.

• After rinsing, wait for the machine to reach operating temperature.

• The machine is ready for use when the PID temperature controller (11) reaches the pre-set temperature of 92°C, the ideal temperature for preparing coee (if you wish to change the temperature of the PID temperature controller, follow the instructions in section 4.5) and the light (14a) remains on. To avoid having to repeat this procedure, we recommend that you check the level of water in the tank (1) to prevent emptying the machine's water circuit. If it does happen, repeat the above procedure The operating temperature light (14a) will continue to switch on and o automatically during heating. After having switched on the machine, wait about 6 minutes for it to heat up before making the rst coee. For subsequent cups, the machine will always be ready.

4–2. PREPARING ESPRESSO COFFEE

• Make sure that you have carried out all the operations indicated in section 4.1 “starting the machine”.

• To obtain a good cup of coee, it is important that you use a good quality, well roasted and correctly ground coee. The pump type espresso coee machine requires nely ground coee. If the coee is too coarsely ground, the coee will be light coloured and weak without froth and if the coee is too nely ground the espresso will be dark and strong and have little froth.

• We recommend that you grind the coee beans with a grinder immediately before making the coee since the coee quickly loses its aroma after it has been ground.

• Warm cups help maintain the coee at the right temperature. We therefore recommended that you place the cups on the cup warmer shelf (2) before using them. PRE-HEATING

• Make sure there is enough water in the tank (1).

• Depending on the number of cups of coee you wish to make, place a one- cup lter (9) or a two-cup lter (10) into the lter-holder (8 or 17) and insert the lter holder into the group head (5).

• Turn on the main switch (13), the power on light (13a) will come on to indicate that the machine is in operation.

• Wait until machine reaches the operating temperature in order to dispense a coee, light (14a) lit.

PREPARING ESPRESSO COFFEE

• Remove the lter holder (8 or 17), ll the lter with one or two measures of ground coee (one measure per cup) then level and press the coee using the tamper (12).

• Remove any coee residues from the edge of the lter using the palm of your hand and insert the lter holder (8 or 17) into the group head (5), moving it towards the right to secure it.

• Place one or two pre-warmed cups on the drip tray grid (7) under the lter holder.

• Turn on the coee / hot water switch (15), the coee will start to come out from the spouts of the lter holder (8). Once the required amount of coee20

has been dispensed, stop delivery by turning o the switch (15) but do not remove the lter holder.

• Remove the cups and serve immediately.

• After having made the coee, remove the lter holder, empty the coee grounds and rinse the lter holder under running water.

• After having switched on the machine, wait about 6 minutes for it to heat up to the operating temperature before dispensing the rst coee

• We recommend that you dispense steam for a maximum of 30 seconds.

• Do not touch the hot surfaces (boiler, group head, lter holder, steam supply nozzle) to avoid burns.

• Do not remove the lter holder while coee is being dispensed to avoid possible burns.

• Under no circumstances place your hands under the group head or the steam supply nozzle as the liquids or steam delivered are hot and may cause burns.

• Do not remove the lter holder immediately after having dispensed coee, wait for a few seconds to allow any residual pressure to be released in order to avoid possible burns. 4–3. DISPENSING STEAM

• Steam can be used for frothing the milk for making cappuccinos or to warm up drinks. Caution! Danger of burns! Spurts of hot water may be ejected when you rst start to dispense steam. The nozzle can become extremely hot. Do not touch it directly with your hands.

• Prepare the espresso coee in large cups as indicated in the previous sections.

• When the machine is ready to dispense coee, direct the steam nozzle towards the drip tray (7) and open the “Hot water / steam knob” (4) for a few seconds in order to remove any residual water from the steam nozzle. After a few second only steam will come out.

• When only steam starts to come out, close the steam / hot water knob (4)

• Move the steam lever switch (14) to position “I”.

• After about 15-20 seconds and when the machine ready light (14a) comes on, place the container of cold milk under the steam nozzle (6).

• Slowly turn the steam knob (4) anticlockwise so that steam comes out.

• Once the volume of milk has doubled, immerse the frothing nozzle completely and heat the milk to 60- 65°C.

• Once the milk has been frothed, turn the steam knob anticlockwise to stop dispensing steam and remove the milk container.

• Move the steam lever switch (14) to position “0”.

• Pour the frothed milk into the coee.

• The more you turn the knob, the greater will be the steam pressure.

• We recommend that you dispense steam for a maximum of 60 seconds.

• To prepare another coee, ll the22

boiler with water and bring the machine to the correct operating temperature. Otherwise, the coee may have a burnt taste.

• Place an empty cup on the grid. Do not insert the lter holder. Fill the cup with water by moving the lever switch (15) to position “I”. Once the cup is full, move the coee lever switch (15) to position “0”. It is now possible to brew more coee. 4–4. HOT WATER

• Make sure that you have carried out all the operations in section 4.1.

• Place a container under the hot water / steam nozzle

• Open the knob (4) and move the coee / hot water lever switch (15) to position “I”; water will immediately come out of the steam/hot water nozzle (6).

• Once the required amount of water has been dispensed, move the coee / hot water lever (15) back to position “0” and close the knob (4).

• After dispensing hot water, make sure that there is still water in the tank (1).

• The LPSCSR02 model is tted with a PID temperature controller (11).

• PID temperature controllers regulate the boiler temperature.

• The PID temperature controller is factory set to 92°C.

• To adjust the setting proceed as follows: - press the button

; as soon as “PRG” appears on the display, press the button

- when the temperature of the boiler appears on the display, use the buttons

and to set the temperature, from a minimum of 80°C to a maximum of 120°C. - 3 seconds after having pressed the last button, the value is memorized and the display indicates the temperature. If the temperature threshold is set too high, the display will start to ash when coee is dispensed.

5. CLEANING AND MAINTENANCE

• Before carrying out any cleaning or maintenance, unplug the power cable from the power outlet without pulling the cable.

• Do not immerse the coee machine in water or other liquids.

• Let the coee machine cool down before cleaning.

• Regularly check the holes in the lters in order to remove any coee deposits.

• Place approximately one litre of boiling water and four teaspoons of coee machine cleaner in a suitable container. Immerse the lters and lter holders in the solution for 20-30 minutes. Then rinse thoroughly under running water.

CLEANING THE STEAM NOZZLE

• To avoid altering the taste of the drinks to be heated and to prevent the hole at the end of the steam nozzle (6) from becoming clogged, after use, turn the steam knob to dispense a small amount of steam and remove any milk from the inside of the nozzle.

• Then clean thoroughly with a damp cloth.22

CLEANING THE OUTSIDE OF THE

MACHINE To keep the outer surface of the coee machine in good condition, it should be cleaned regularly after use. Let the appliance cool down rst. Clean with a soft, damp cloth.24

The machine does not work and the light of the ON/OFF switch does not turn on

2. The machine is not

plugged in correctly

3. The power cable is

1. Switch the power back on

2. Insert the plug correctly

into the power socket

3. Contact the SERVICE

CENTRE for replacement The light on the ON/OFF switch is lit and the water does not heat up

2. The heating element is

CENTRE No coffee is dispensed 1. No water in the tank

2. The coffee is too finely

3. There is too much coffee

4. The coffee has been

6. The circuit has not been

1. Put water in the tank

2. Replace with a coarser

3. Reduce the amount of

coffee in the filter basket

4. Tamp the coffee with less

5. Turn off the steam switch

Loud noise coming from the pump

1. No water in the tank

2. The pump is not primed

1. Put water in the tank

The coffee is dispensed too quickly

1. The coffee is too coarsely

2. There is not enough

3. The coffee has not been

4. The coffee is stale or

1. The coffee should be

2. Increase the amount of

3. Tamp the coffee more

No froth forms on the coffee 1. The coffee blend is not suitable for this type of machine

2. The grinding is unsuitable

3. There is not enough

2. Adjust the coffee grind

3. Increase the amount

of coffee and compact it properly The coffee is too cold 1. The machine had not reached the correct temperature

2. The filter holder had not

3. The cups have not been

4. The thermostat is not

working within the required range

5. The PID temperature

controller (11) is not working within the required range

1. Follow the instructions

given in section 4.1– 4.2

2. The filter holder should

be heated at the same time as the water, see section 4.1

3. Heat the cups properly on

temperature controller The coffee is too hot 1. The PID temperature controller (11) is not working within the required range

1. Set the value for the PID

temperature controller The machine does not dispense steam

1. The circuit has not been

2. The hole at the end of the

steam nozzle is clogged

3. No water in the tank

4. The turbo steam nozzle

has not been inserted properly

2. Clean the hole with a

nozzle properly The coffee leaks between the boiler unit and the filter holder

1. The filter holder is not

2. There is too much coffee

in the filter basket

3. The edge of the filter

holder has not been cleaned

4. The group head gasket is

2. Reduce the amount of

from the edge of the filter holder and clean the group head gasket

4. Contact the SERVICE

CENTRE The coffee is dispensed in drops

1. The coffee is too finely

2. There is too much coffee

3. The coffee has been

1. The coffee should be

ground more coarsely

2. Reduce the amount of

3. Tamp the coffee less26

1. INTRODUCTION AU MANUEL 28

1. INTRODUCTION AU MANUEL

4–3. STOOMAFGIFTE 57

4–4. AFGIFTE VAN HEET WATER 58

2–1. VEILIGHEIDSWAARSCHUWINGEN

2. Passieve kopjeswarmer

4–4. AFGIFTE VAN HEET WATER

INNEHÅLLSFÖRTECKNING

4–3. MATA UT ÅNGA 93

4–1. SETTE APPARATET I DRIFT 153

13. Strømbryter on/o

4–1. SETTE APPARATET I DRIFT
