USER MANUAL SHVW 1050 A1 SILVERCREST

PDF ONLINE www.lidl-service.com

White portable hairdryer with black cord and gray handle, no visible text or symbols

HAND-DAMPFREINIGER MIT VERLÄNGERUNG UND WISCHFUNKTION/HANDHELD STEAM CLEANER WITH EXTENSION & MOP FUNCTION/NETTOYEUR VAPEUR À MAIN AVEC RALLONGE ET FONCTION ESSUYAGE SHVW 1050 A1

DE AT CH

GB/IE User manual Page 19

Diagram illustrating the step-by-step folding of a device into a device, with 180° angle标注 and directional arrows indicating process flow.

Warnings and symbols used Page 20

Introduction Page 21

Intended use....Page 21

Scope of delivery....Page 21

Description of parts ...... Page 22

Technical data Page 22

Safety instructions....Page 22

Before first use Page 25

Accessories and areas of application Page 25

Assembly Page 26

Operation....Page 27

Filling the water tank....Page 27

Turning on/off Page 28

Child safety lock....Page 28

Steaming Page 28

Cleaning and care Page 28

Cleaning the main unit....Page 28

Cleaning the accessories....Page 28

Removing limescale Page 29

Storage Page 29

Disposal Page 29

Warranty Page 29

Warranty claim procedure....Page 30

Service Page 30

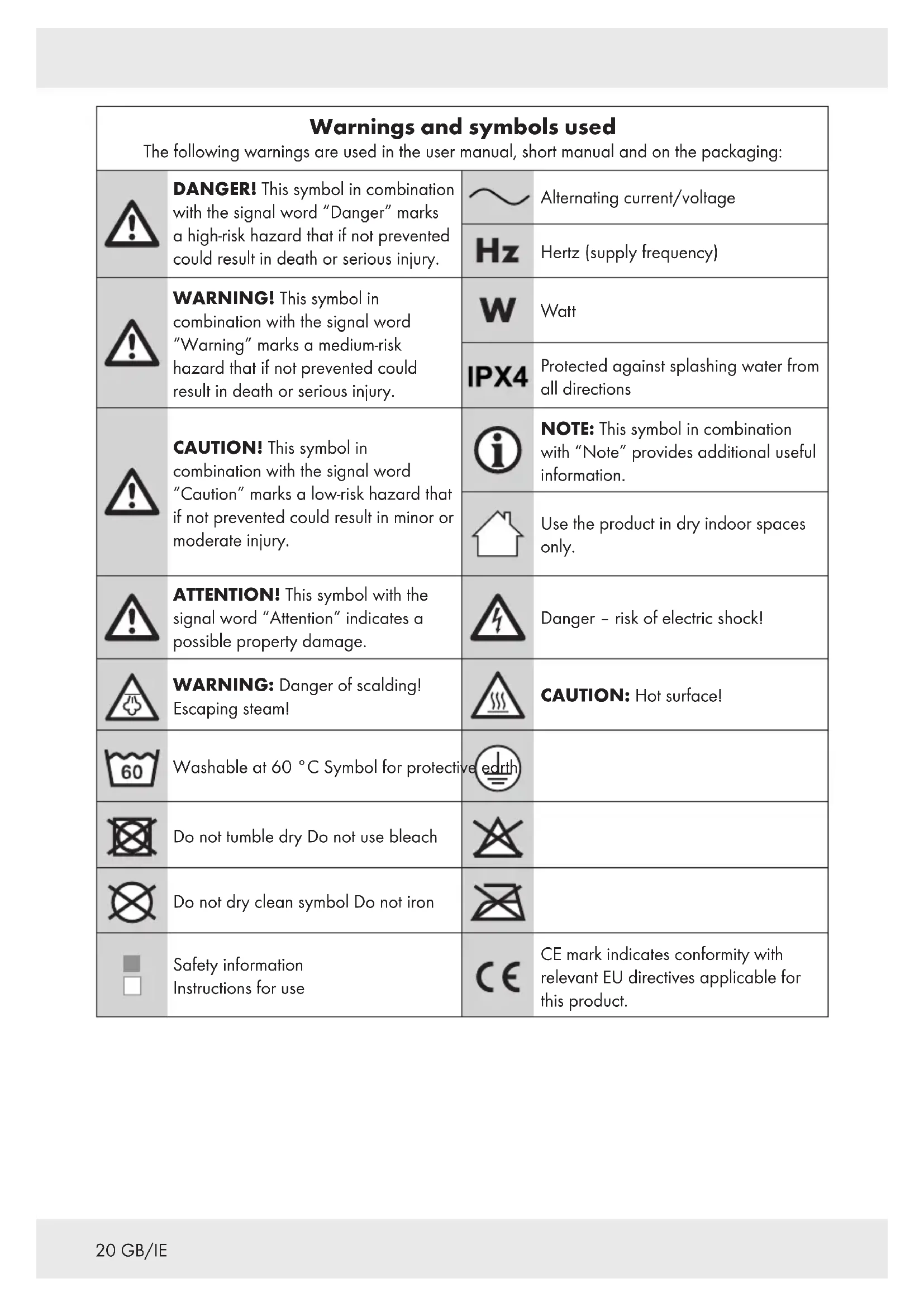

Warnings and symbols usedThe following warnings are used in the user manual, short manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Alternating current/voltage
		Hz	Hertz (supply frequency)
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.	W	Watt
		IPX4	Protected against splashing water from all directions
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		NOTE: This symbol in combination with “Note” provides additional useful information.
			Use the product in dry indoor spaces only.
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Danger - risk of electric shock!
	WARNING: Danger of scalding! Escaping steam!		CAUTION: Hot surface!
	Washable at 60 °C Symbol for protective earth
	Do not tumble dry Do not use bleach
	Do not dry clean symbol Do not iron
[X9A2]	Safety information Instructions for use	CE	CE mark indicates conformity with relevant EU directives applicable for this product.

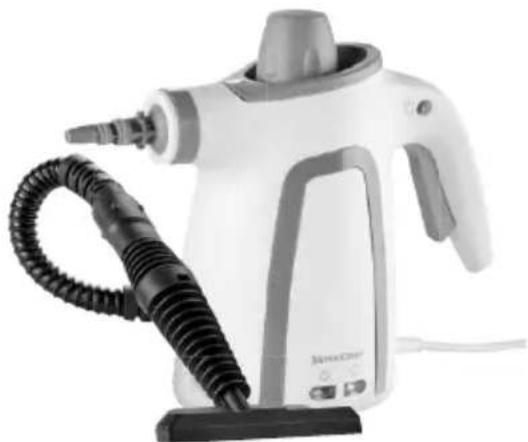

HANDHELD STEAM CLEANER

WITH EXTENSION & MOP

FUNCTION

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed only to clean indoor surfaces that withstand prolonged exposure to hot steam.

Suitable for: Tiles, work surfaces, glazed tiles, mirrors and windows, blinds, WC's, bathroom fittings, curtains, cushions, clothing, car seats.
Not suitable for: Leather, polished furniture, waxed floors, synthetic fabrics, velvet or other delicate, steam sensitive materials. Use on waxed or some unwaxed floors may result in diminished glossiness.
Before use: We recommended to perform a material test on an isolated area of the working surface.
For best cleaning results: Check the care instructions from the corresponding manufacturer (if any).
- Do not use the product for any other purpose.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

Before use: Carry out a test on an isolated area. Thus you may ascertain that the material is suitable for steam cleaning. Examples:

• Painted/varnished wood or leather can be bleached by steam.
  ■ Unprotected wood can swell up because of steam.
• Protective wax coatings can be dissolved by steam.
  ■ Plastics can become tarnished from the effects of steam.
  ■ Soft plastics can deform when exposed to steam.
• Cold glass or mirror surfaces can crack when sprayed with hot steam.
  ■ Acrylics, velvet and silk react sensitively to hot steam.
  If you wish to clean windows, preheat them first: Apply the steam over large areas from a greater distance. Then, move in progressively closer.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Hand-held steam cleaner
1 Extension hose
1 Extension nozzle
1 Upholstery nozzle
1 Angle nozzle
1 Round brush
1 Puller
1 Funnel
1 Fiber cover
1 Measuring cup
1 Short manual
1 Floor nozzle
2 Extension pole
1 Extension pole with plug connection
1 Fiber cover for floor nozzle
1 Floor nozzle connector
1 Floor sets straight nozzle

• Description of parts

Before reading, unfold the page containing the illustrations and familiarise yourself with all the functions of the product.

1 Steam outlet
2 Closure
3 Water inlet and water tank
4 Safety valve
5 Child safety lock
6 Steam trigger
7 Handle
8 Power cord with power plug
9 Puller
10 Upholstery nozzle
11 Fiber cover
12Funnel
13 Extension hose
14Measuring cup
15Angle nozzle
16 Extension nozzle
17 Round brush
18Power indicator(red)
19Steam indicator (green)
20 Extension pole
21 Extension pole with plug connection
22 Floor nozzle connector
23 Floor nozzle
24 Fiber cover for floor nozzle
25 Floor sets straight nozzle

Technical data

Rated voltage/frequency: 220-240 V\~, 50/60 Hz

Power consumption: 900–1050 W

Water tank capacity: 350 ml (250 ml fill capacity)

Measuring cup capacity: 250 ml fill capacity

Protection class: I

Ingress protection class: IPX4 (splash proof)

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material.

The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
■ Children shall not play with the product.
■ Cleaning and user maintenance shall not be made by children without supervision.
- Keep the product and its cord out of reach of children when it is energized or cooling down.

Intended use

⚠ WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions.
⚠ Do not attempt to modify the product in any way.

Use the product only on floors that have been well sealed and treated and are impervious to water.

- With any steam power setting: on marble, stone, tile flooring. - With lowest steam power setting and with damp fiber cover for floor nozzle 24: on laminate, parquet or hardwood flooring.

Never use the product:

-on untreated or permeable floors,
-on wax polished furniture or floors,
-on carpets with wool content,
-on steam sensitive materials.

Electrical safety

⚠️ DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
⚠ WARNING! Risk of electric shock! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.
⚠ WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

⚠ WARNING! Risk of

injury! The product has to be unplugged after use and before carrying out user maintenance on the product.

The product is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
Before connecting the product to the power supply, check that the voltage and current rating corresponds with the power supply details shown on the product's rating label.
- Regularly check the power plug and the power cord for damages. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Protect the power cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the power cord away from hot surfaces and open flames and ensure that nobody can pull on or trip over it unintentionally.
The product must not be left unattended while it is connected to the power supply.

The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.
The filling aperture must not be opened during use.

Burn hazards

⚠️ DANGER! Risk of burns!

Do not touch hot surfaces and beware of escaping steam. Hold the product by its handle only.

■ Steam is very hot. Never put your hands in front of the steam jet.

Operation

■ Only use the product in dry indoor rooms.
The power plug must be removed from the power supply before the water tank is filled with water.
The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A. Lay cords in such a way that they may not be tripped over or otherwise damaged.

• Do not operate the product with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
  ■ Use only accessories recommended by the manufacturer.
• Do not operate the product with an empty water tank.
  ■ Never direct the steam toward people or animals. Hot steam can cause serious injuries!
• Do not add cleaning solutions, scented perfumes, oils or any other chemicals to the water tank as this may damage the product.
  No action is needed from users to shift the product between 50 and 60 Hz. The product adapts itself for both 50 and 60 Hz.

Cleaning and storage

■ Always turn off the product before disconnecting it from the power supply.
- Do not pull the power plug out of the electrical outlet by the power cord. Do not wrap the power cord around the product.

■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.
■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.
■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.

Before first use

☐ Remove all packaging materials. Check if all parts are complete.

● Accessories and areas of application

Accessory		Function
Puller	9	For cleaning windows, mirrors, and other smooth surfaces.Move the puller from top to bottom.
Upholstery nozzle	10	To disperse the flow of steam over a wider area for more gentle cleaning.
Fiber cover	11	Designed to absorb excess moisture. The fiber cover also helps to prevent water spotting. This allows an effective steaming of fabrics and upholstery.
Extension hose	13	Useful for hard-to-reach areas.

Accessory	Function
Angle nozzle 15	For precision cleaning of items with hard-to-reach areas (faucets, sinks, etc.).
Extension nozzle 16	Useful for hard-to-reach areas.
Round brush 17	For scrubbing especially tough stains. Ideal to use on ceramic tile, grouting, and other similar surfaces.
Extension pole 20	Useful for hard-to-reach areas and for connecting the floor nozzle 23 to the product.
Extension pole with plug connection 21
Floor nozzle connector 22	For connecting the extension poles 20 with the floor nozzle 23.
Floor nozzle 23	For cleaning washable walls and floor coverings (e.g. stone floors, tiles and PVC floors).ATTENTION! Damage due to build-up of steam!Heat and moisture can lead to damage.Use a minimal volume of steam prior to use to check the heat resistance and steam effect on an inconspicuous area.
	NOTES:☐ Detergent residue or care emulsions on the surface to be cleaned can lead to streaks during steam cleaning. The streaks disappear once the floor nozzle has been used several times.

Accessory	Function
	☐ Sweep or vacuum clean the floor before using the product. In this way the floor is free of dirt and loose particles before the wet cleaning commences.☐ Work slowly on surfaces that are heavily soiled.
Fiber cover for floor nozzle 24	Designed to be used together with the floor nozzle. The fiber cover also helps to prevent water spotting.
Floor sets straight nozzle 25	For connecting the extension pole with the extension nozzle.

Assembly

(Fig. B)

Accessory	Assembly
Puller9	□ Fit the hooks (at the back of the puller 9) into the slots of the upholstery nozzle 10. □ Press the puller 9 against the upholstery nozzle 10 until locked
Fiber cover11	□ Fix the fiber cover 11 on the upholstery nozzle 10.
Upholstery nozzle 10 Extension hose 13 Extension nozzle 16	□ Attach the intake to the steam outlet 1 of the product/extension hose 13. □ Screw in a clockwise direction until tight.
Angle nozzle 15Round brush 17	□ Attach the intake to the steam outlet 1 of the product, extension hose 13 or extension nozzle 16.
Extension poles 20Extension pole with plug connection 21	□ Attach the intake to the steam outlet 1 of the product/extension pole with plug 21.□ Screw in a clockwise direction until tight.□ Attach extension pole 20 to extend the length.
Floor nozzle 23Floor nozzle connector 22Fiber cover for floor nozzle 24	□ Attach the floor nozzle connector 22 downward pointed and insert it completely into the floor nozzle 23, turn the floor nozzle connector 22 upwards pointed and joint the extension pole with the product together (Fig. C)□ Fix the fiber cover for floor nozzle 24 on the floor nozzle 23.
Floor sets straight nozzle 25Extension nozzle 16Angle nozzle 15Round brush 17	□ Attach round brush 17 or angle nozzle 15 to the extension nozzle 16□ Attach the floor sets straight nozzle 25 between the extension pole 20 and the extension nozzle 16

Accessory	Assembly
Floor sets straight nozzle 25Extension nozzle 16Upholstery nozzle 10Puller 9	□ Fit the hooks (at the back of the puller 9) into the slots of the upholstery nozzle 10. □ Press the puller 9 against the upholstery nozzle 10 until locked. Attach the floor sets straight nozzle 25, between extension pole 20 and upholstery nozzle 10

☐ Dismount all the accessories in a reverse order.

NOTE: Dismounting the puller 9: Unlock the clip first.

Operation

● Filling the water tank

⚠️ DANGER! Risk of electric shock!

Before filling the water tank 3: Disconnect the power plug 8 from the mains socket.

CAUTION! Fill the water tank 3 with tap water or distilled water without any additives. If your tap water is hard: Use distilled water. If your tap water is moderately hard: Mix distilled water and tap water (ratio of 1:1).

i NOTES:

As long as there are steam and pressure in the water tank 3 you cannot open the safety valve 4. To open the water tank: -Release steam or -wait until the product has cooled down.
Do not exceed the water tank's 3 maximum fill capacity of 250 ml.

1. Slowly open the safety valve 4. Before fully opening, wait a few seconds until the steam stops hissing.

2. Use the measuring cup 14 and the funnel 12 to fill the water tank 3 through the water inlet 3.

3. Close the safety valve 4.

Turning on/off

☐ Connect the power plug 8 to a suitable mains socket.
☐ The power indicator 18 lights up. The product starts to produce steam immediately.
☐ The product is ready to use when the steam indicator 19 lights up.
☐ Turning off the product: Disconnect the product from the mains socket.

i NOTES:

The product takes around 3 minutes to preheat.
The product has to be unplugged —after use, —before cleaning, and —before maintenance.

Child safety lock

(Fig. A)

This product is equipped with a child safety lock 5:

Child safety lock
Activate (position: 📁)	Fully push in the Symbol of the child safety lock 5.The steam trigger 6 can now no longer be pressed down.
Deactivate (position: 📁)	Fully push in the Symbol of the child safety lock 5.The steam trigger 6 can now be used again.

Steaming

⚠ WARNING! The product has to be maintained in an upright position
-while being used, -under pressure or -filled with water.

☐ Hold the product by its handle 7.

i NOTES:

■ Controlling the steam output: Gradually press the steam trigger 6.
- Stop steaming when the steam indicator goes off. Wait until the steam indicator lights up again. You may now resume with the work.
If there is no steam output, although the steam indicator 19 is on: Disconnect the power plug 8 from the mains socket. Refill the water tank 3.

● Cleaning and care

- Cleaning the main unit

⚠️ DANGER! Risk of electric shock!

Before cleaning and maintenance: Disconnect the power plug 8 from the mains socket.

WARNING! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

☐ Wipe down the product with a slightly damp cloth.
☐ Do not let any water or other liquids enter the product interior.
☐ Do not use any abrasive, aggressive cleaners or hard brushes to clean the product.
□ After cleaning: Let all parts dry completely.

- Cleaning the accessories

□ Clean the accessories in warm, soapy water.
□ After cleaning: Let all accessories dry completely.

Cleaning the fiber cover 11 and fiber cover for floor nozzle 24

60

☐ The fiber cover 11 and fiber cover for floor nozzle 24 can be hand-washed in water with temperature up to 60 °C.

☐ After cleaning: Let the fiber cover 11 and fiber cover for floor nozzle 24 dry completely. You may also use a tumble dryer at a low level (55 °C).

- Removing limescale

If the steam power reduces drastically, it may be needed to remove the limescale from the water tank 3/accessories:

Water tank 3:

1. Disconnect the power plug 8 from the mains socket.
2. Fill the water tank 3 with a mixture of tap water and vinegar (ratio of 2:1).
3. Wait 24 hours.
4. Drain the mixture into a sink.
5. Flush the water tank 3 with fresh water (see "Filling the water tank").

Accessories:

1. Disconnect the power plug 8 from the mains socket.
2. Fill the water tank 3 with a mixture of tap water and vinegar (ratio of 2:1).
3. Install the accessory you wish to remove the limescale from.
4. Secure the position of the product to ensure that the steam is aimed away from the surrounding objects and surfaces.
5. Turn on the product. Operate the product until all the mixture is used up.

Storage

☐ Store the product in the original packaging when it is not in use.
☐ Store the product at a dry location out of the reach of children.
☐ Store the product with an emptied water tank 3 only.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

Diagram showing recycling process with recycling symbol, plus recycling bin, plus blank rectangle, plus open book, and recycling bin icon

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 412123_2207) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

CE IPX4

Diagram showing recycling, recycling of plastic boxes, adding a pencil, adding a blank box, and adding an open book with a recycling symbol.

TRANSFIERE ESTE PRODUCTO,

HÁGALO CON TODA LA

DOCUMENTACIÓN!

Diagram showing recycling process with recycling bin, plus recycling cup, plus blank box, and open book icon

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Diagram showing five icons: a box, a cup, a rectangle, an open book, and a recycling symbol.
