Product type	Pedestal fan
Brand	CasaFan
Model	TV36 II
Dimensions (Ø x H)	Approx. 355 x 470 mm
Weight	Approx. 2.2 kg
Rated voltage	220-240 V ~ 50 Hz
Rated power	40 Watts
Protection class	II
Number of speeds	3
Oscillation function	Yes, with friction clutch
Usage	Indoor, on a flat and stable surface
Maximum installation height	80 cm above the ground
Protection grille	Yes, front and rear
Rotor material	Plastic (estimated)
Maintenance and cleaning	Unplug before cleaning; clean with a dry cloth or soft brush; do not use flammable products
Safety	Do not use in bathrooms or showers; do not insert objects into the grille; do not use with wet hands
Repairability	Entrust to an approved service; power cord replaced only by a specialized workshop
Ambient conditions	Do not expose to rain, intense sunlight
Commercial use	Yes, according to protection degree IPX0

Frequently Asked Questions - TV36 II CasaFan

How to assemble the CasaFan TV36 II fan?

Follow the illustrations in the manual (figures 1 to 9). First mount the base, then the rear grille, the rotor, the front grille with the locking ring. Only operate the device when fully assembled.

How to use the oscillation?

Oscillation is activated by pressing the switch downwards, and stops by pulling it upwards. The friction clutch protects the mechanism in case of jamming.

The fan does not turn, what to do?

Check that the speed is not set to '0'. Make sure the fan is plugged in and the socket is powered. If the problem persists, unplug and contact an approved service.

Can I use the fan in a bathroom?

No, this fan is not designed for damp rooms. Never use it in a bathroom, shower, or near water.

How to clean the fan?

Unplug the device before any cleaning. Use a dry cloth or soft brush to remove dust. Do not use gasoline or flammable cleaners. Fully reassemble the fan after cleaning.

Can the fan be used by children?

Yes, from 8 years old under supervision. Children must not play with the device. Cleaning and maintenance must not be done by children without supervision.

What to do if the power cord is damaged?

Do not use the device. The cord must be replaced only by a repair workshop approved by the manufacturer, as special tools are required.

Should I turn off the fan at night?

It is recommended not to leave the fan running unattended for long periods. Turn it off and unplug it if you leave the room.

Where should I place the fan?

On a flat and stable surface, at a maximum height of 80 cm from the ground. Keep away from curtains and objects that could be sucked in. Avoid damp or exposed to weather places.

How to dispose of the fan at end of life?

Do not throw it in household waste. In accordance with the European directive, take it to a selective collection center for electrical appliances or to your retailer when purchasing a new one.

USER MANUAL TV36 II CasaFan

Line drawing of a vintage office lamp with a circular fan and base (no text or symbols)

Close-up of a hand adjusting a mechanical component with directional arrows indicating motion (no text or symbols)

Hand operating a small electronic device with a circular dial and labeled components (no text or symbols visible)

Close-up of a hand operating a fan blade with directional arrows indicating rotation (no text or symbols)

Hand operating a small fan on a stand, with an arrow pointing to the blade (no text or symbols visible)

Close-up of a desktop fan with a hand operating it, showing blade and base (no text or symbols visible)

Close-up of a mechanical fan or propeller device with directional arrows indicating motion (no text or symbols visible)

Close-up of a desktop fan with a hand pointing to the side panel, showing a curved arrow indicating rotation (no text or symbols present)

About this operating instructions

Original instructions

Before using the CasaFan fan, read the operating instructions carefully. Keep the operating instructions within reach. Never pass the fan onto another person without the operating instructions.

Explanation of symbols:
Dangerous electric voltage	Careful
Warn the user of the dangers caused by electricity	Particular note for the user.

Describing the CasaFan-Ventilator

The fan is for circulating room air. Their use in machines which are outside and unprotected, in garages, in moist or wet rooms or rooms in danger of fire or explosion, is not permitted. All units are fitted with an oscillation function. This can be switched off even when fan is in use, and/or the blade is revolving. The oscillation is fitted with a slip clutch. This product is suitable for use in the commercial in accordance with the degree of protection (IPX0).

Technical data:
	TV 36 II
Mains voltage: 220 - 240 V/AC 50 Hz
Power: 40 Watt
Protection clas: II

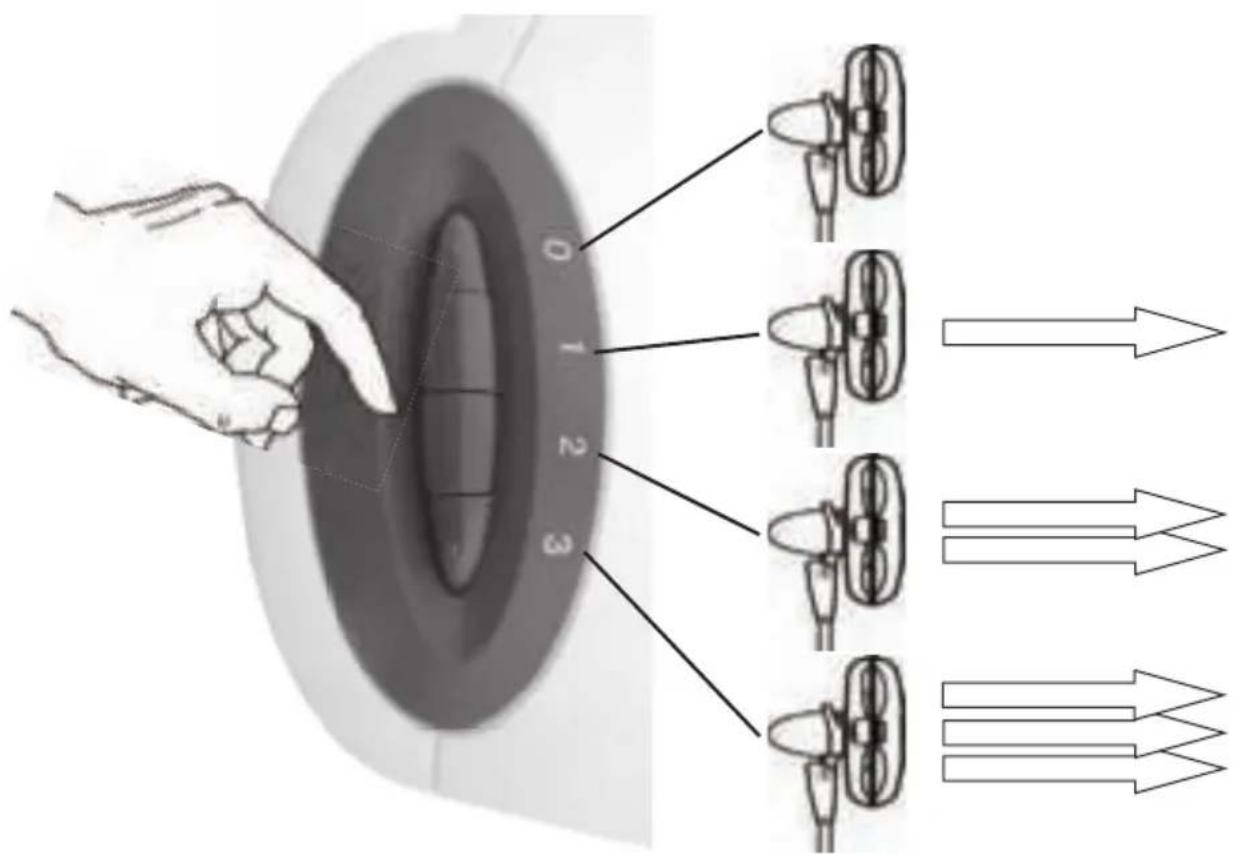

No of speeds: 3
Dimensions ∅ x H (mm) approx. 355 x 470
Weight (kg): approx. 2.2

Caution! Only operate the unit when completely assembled!

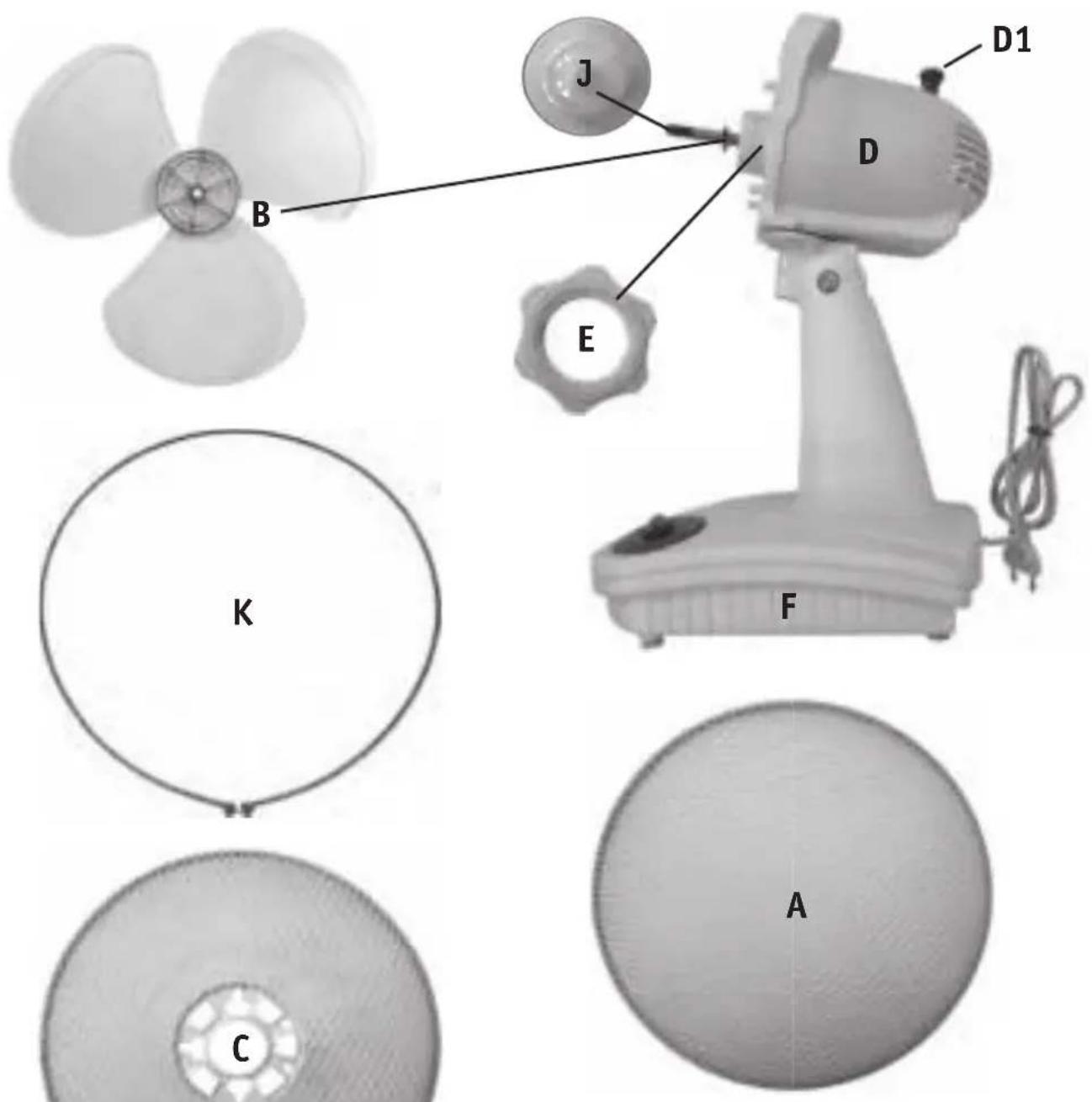

- Unpack the CasaFan fan, check if everything is present (see Figure) and for visible signs of damage.
A. Front guard F. Base
B. Blade J. Wing nut
C. Rear guard K. Guard ring
D. Motor
E. Adjustment screw

- Dispose of packaging taking the environment into account and keep out of the reach of children.

Assembly

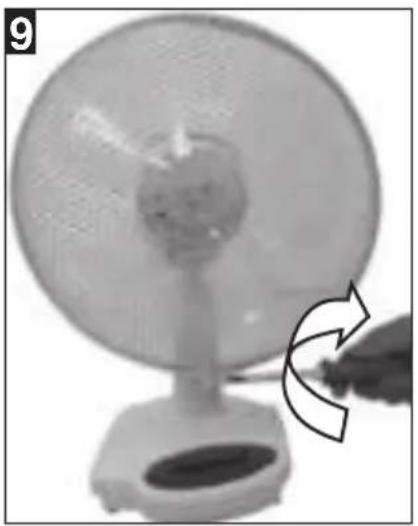

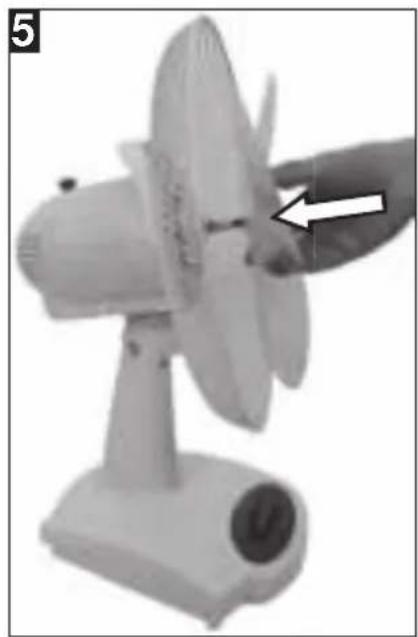

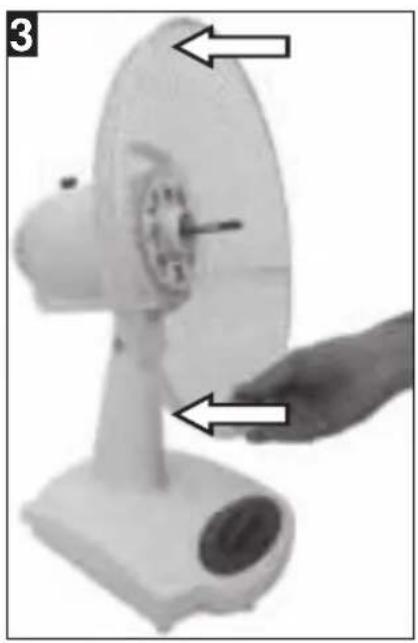

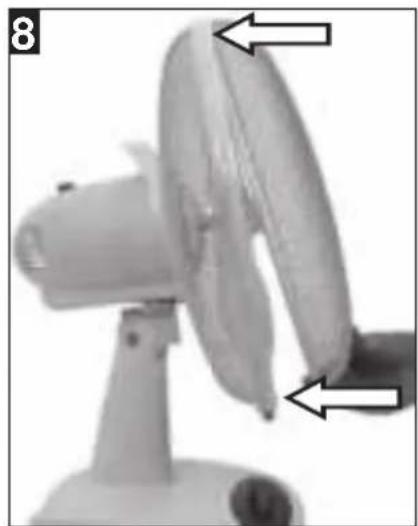

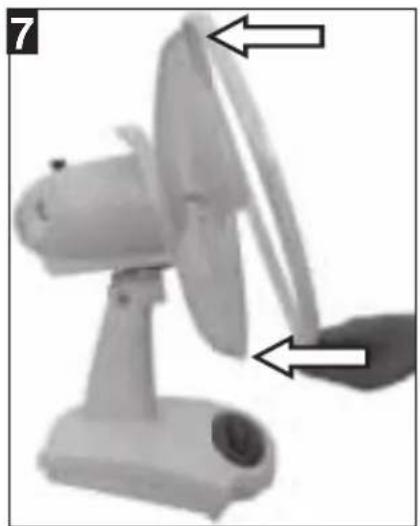

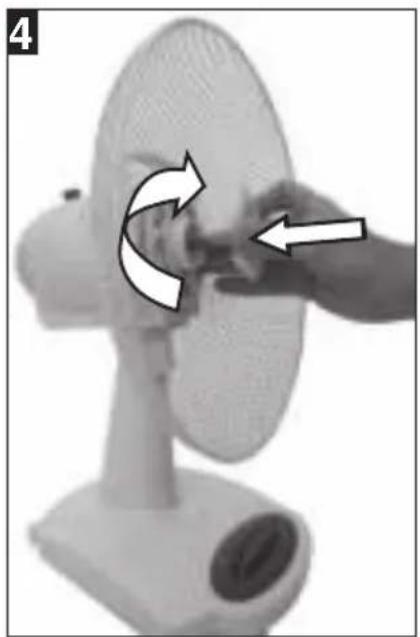

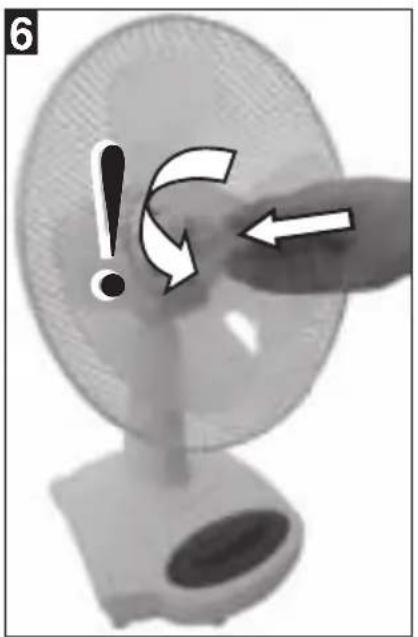

Please proceed as per figure 1 - 9 on page 4 of these operating instructions.

GB

When dealing with electricity, just conforming to all the safety and precautionary measures can not describe every danger situation. They do not replace sensible procedures and care, which you have to take into account when first initiating and then running your fan.

When using any electric units, several basic rules have to always followed, as detailed below:

General

• The voltage details on the nameplate are to conform with the available mains voltage.
• The building mains must be earthed!
• Only operate the unit when completely assembled!

Operation

• The unit is to be operated on a level, stable base. Maximum altitude on firm surface: 80 cm above the ground!
• Position the mains cable such that no danger of tripping is possible in order to avoid throwing, or pulling the unit over.
• Do no push objects through the guard. Any loose objects which could be sucked in are to be removed from the suction area before switching the fan on. Keep loose clothing, such as scarves with fringes, away from the guard.
• The units are never be touched when having wet or moist hands.
• The units are never be used if you are barefooted.
• The units are never be used in a the bathroom or shower connected to an extension cord unless you take exceptional care.
• Do not pull on the cable or unit in order to separate the plug from the socket.
• Do not subject the unit to detrimental environmental influences (rain, strong sunlight etc).
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understands the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never immerse an electrical device in water.
• Always take note of the general safety rules when using electrical equipment.

Oscillation

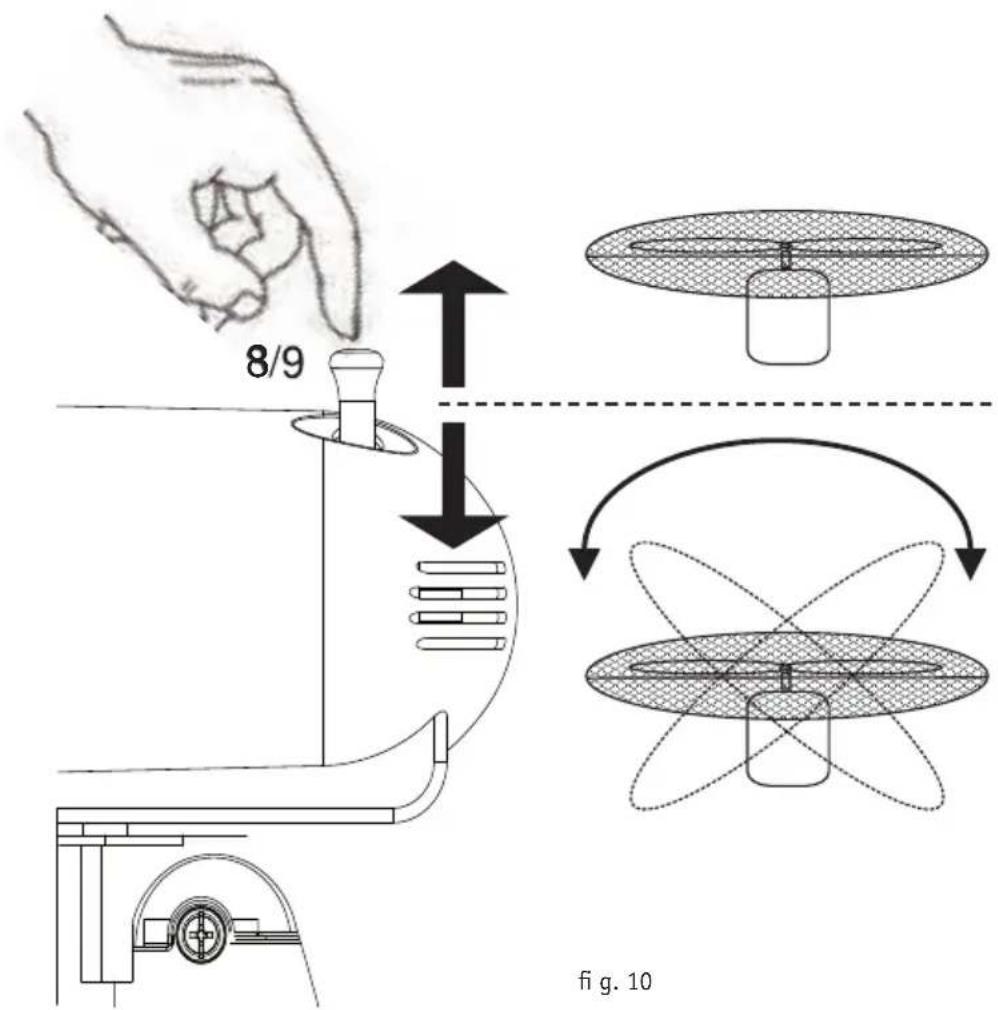

Oscillation is switched on by pushing the knob (Pos. 8/9 fig. 10) downwards and off by pulling it upwards.

Maintenance/cleaning notes

- Before carrying out any cleaning or maintenance work, remove the plug or switch off the electrical equipment!

• The appliance shall be disconnected from its power source during service and when replacing parts.

• The removal of the plug has to be such that an operator can check from any of the points to which he has access that the plug rmeians removed.

• Check regularly, but most definitely before every use, the mains cable and mains plug for damage.

• If any damage is visible, then further use of the unit must not be made.
• If any damage and/or reduced functioning occurs, switch off and do not manipulate the unit.
• If, in such as event, a repair is necessary, contact an authorised by the manufacturer customer service point.
• Clean the surface of the housing and the guard with a dry cleaning cloth and a damp brush.
• Do not use petrol or any similar light flammable cleaning material.
• After cleaning, the fan must be completely re-assembled.

Storage

• If the fan is not to be used for some time, then store it in a dry room.
• In addition, you could put a cover on your unit to protect it from dust or dirt deposits.

Disposal

• Remove mains plug.
• Cut through the mains cable at the plug.
• Dispose of the unit in a proper manner.

Help with faults
Fault Cause Remedy
Blade does not turn. Speed	setting to „0“ Switch on	unit.
	Mains plug not correctly inserted.	Insert mains plug.
	Household fuse blown/ trip defective.	Check household fuse/trip.
	Fuse has blown due to overload (motor overheating).	Remove unit from mains supply. Pull plug from the socket and have the unit repaired by a specialist or customer service.
Oscillation does not function.	Oscillation not switched on.	Switch on oscillation.
	Slip clutch has not responded because the unit is rubbing up against objects	Remove objects from the oscillation radius or place the unit elsewhere.
If the fault can not be remedied using the above listed remedies, then the plug has to be removed from the socket.A specialist must now establish the cause and carry out the repair work accordingly.If the mains cable to this unit is damaged, then it can only be repaired by a repair workshop named by the manufacturer, due a special tool being needed.Note:Opening the unit and repairs may only be carried out by a specialist!

Opis wentylatora CasaFan

This product conforms to EU Directive 2002/96/EC. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement. It is the user's responsibility to dispose of this appliance through the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials sed in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating collective systems.

FR ATTENTION

Data according EU Commission Regulation No 206/2012

	Reference parameter	Unit of measurement	Value #3036X
Maximum fan flow rate F m3/min 48.61
Fan power input P W 35
Service value SV (m3/min)W 1.47
Fan sound power level L	WA	dB(A) 52.5
Standy power consumption P	SB	W 0.00
Max. air velocity C m/sec	2.87
Measurement standards for service value	IEC 60879; EN62301: UNI EN ISO 3741

Informative:

Sound pressure Lp (-3m)		dB(A) 35.6
Maximum airflow		m^3/h	2,917

EN Manufacturer and empowered to compile the relevant technical documentation:

CasaFan GmbH

Otto-Hahn-Str. 3

63594 Hasselroth (GERMANY)

EN declares at its own risk, that the following product/s:

Greyhound TV 36-II

EN to which this declaration applies, complies with all of the relevant requirements in the following directives:

EN Low Voltage Directive & Machinery Directive 2006/42/EC:

2006/95/EC & 2006/42/EC

DE EMV-Richtlinie:

EN EMC Directive:

2004/108/EC

DE EU Verordnung

EN EU Regulation

206/2012

EN The following standards are used:

EN 60335-2-80:2003+A1:2004+A2:2009

EN 60335-1:2012

EN 62233:2008

Hasselroth, den

01.08.2014

Wolfgang Kißling

Produktänderungen, die der Verbesserung dienen, behalten wir uns ohne besondere Ankündigung vor. CasaFan reserves the right to make improving changes on products on sale. CasaFan se réserve d'apportertous changements susceptibles d'améliorer les produits en vente. CasaFan si riserva di apportare tutte le varianti migliorative ai prodotti in corso di vendita.

CasaFan GmbH, Otto-Hahn-Str. 3, D-63594 Hasselroth
