USER MANUAL GSS 1601 A Multi Professional BOSCH

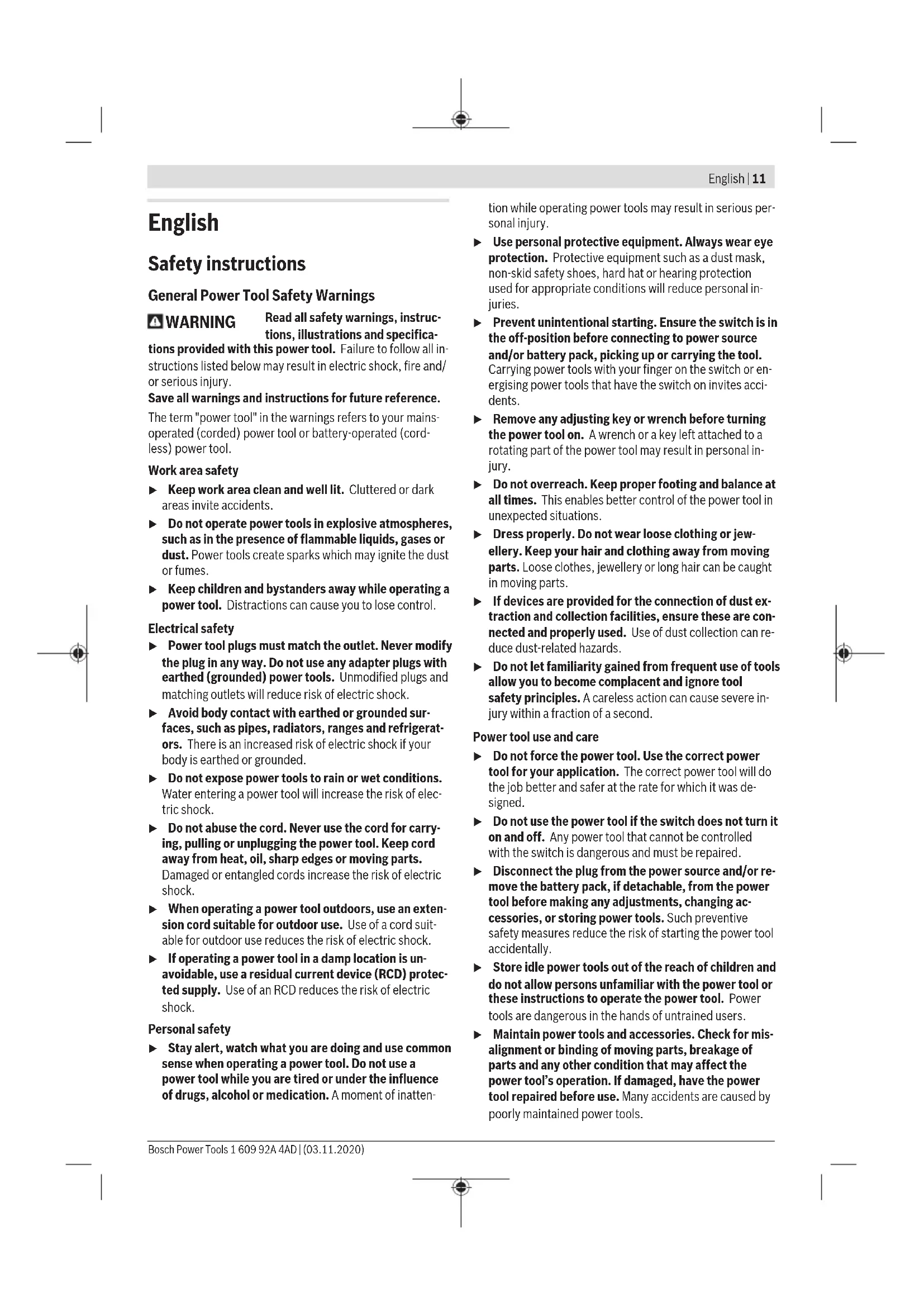

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical data Orbital sander GSS 140-1 A GSS 160-1 A GSS 160-1 A Multi Article number 3 601 BA2 1.. 3 601 BA2 2.. 3 601 BA2 2.. Rated power input W 180 180 180 No-load speed min

24,000 24,000 24,000 Orbit diameter mm 1.6 1.6 1.6 1 609 92A 4AD | (03.11.2020) Bosch Power ToolsEnglish | 13 Orbital sander GSS 140-1 A GSS 160-1 A GSS 160-1 A Multi Sanding sheet dimensions Square – Hook-and-loop backing mm 115 x 107 – 115 x 107 – Clamping tension mm 115 x 140 – 115 x 140 Rectangular – Hook-and-loop backing mm – 133 x 80 133 x 80 Triangular – Hook-and-loop backing mm – – 150 x 100 Sanding plate dimensions – Square mm 110 x 100 – 110 x 100 – Rectangular mm – 128 x 78 128 x 78 – Triangular (sanding sheet length from corner to corner) mm – – 150 x 100 Weight according to EPTA-Procedure01:2014 kg 1.2 1.2 1.2 Protection class / II / II / II The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models. Noise/Vibration Information Noise emission values determined according toEN62841-2-4. Typically, the A-weighted sound pressure level of the power tool is 76dB(A). Uncertainty K=3dB. The noise level when working can exceed the volume stated. Wear hearing pro- tection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN62841-2-4:

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Assembly u Pull the plug out of the socket before carrying out any work on the power tool. Fitting the base plate (GSS160-1AMulti) (see figure A) Unscrew the four screws (8) completely. Put a suitable base plate on and retighten the screws. Changing the sanding plate (see figure A) If necessary, the sanding plate (6) can be replaced. Unscrew the four screws (8) completely and remove the sanding plate (6). Fit the new sanding plate (6) and retighten the screws. Changing the sanding sheet Remove dirt and dust from the sanding plate (6), e.g. with a brush, before attaching a new sanding sheet. To ensure optimum dust extraction, make sure that the punched holes in the sanding sheet are aligned with the drilled holes in the sanding plate. Sanding sheets with hook-and-loop backing (see figureB) If the sanding plate (6) is fitted with a hook-and-loop fasten- ing, sanding sheets with a hook-and-loop backing can be se- cured quickly and easily. Tap the hook-and-loop fastening of the sanding plate (6) be- fore fitting the sanding sheet (9) to facilitate maximum adhe- sion. Position the sanding sheet (9) so that it is flush with one side of the sanding plate (6), then place the sanding sheet on the sanding plate and press it on firmly. Bosch Power Tools 1 609 92A 4AD | (03.11.2020)14 | English To remove the sanding sheet (9), take hold of it by a corner and pull it away from the sanding plate (6). Sanding sheets without hook-and-loop backing (see figures C–E)

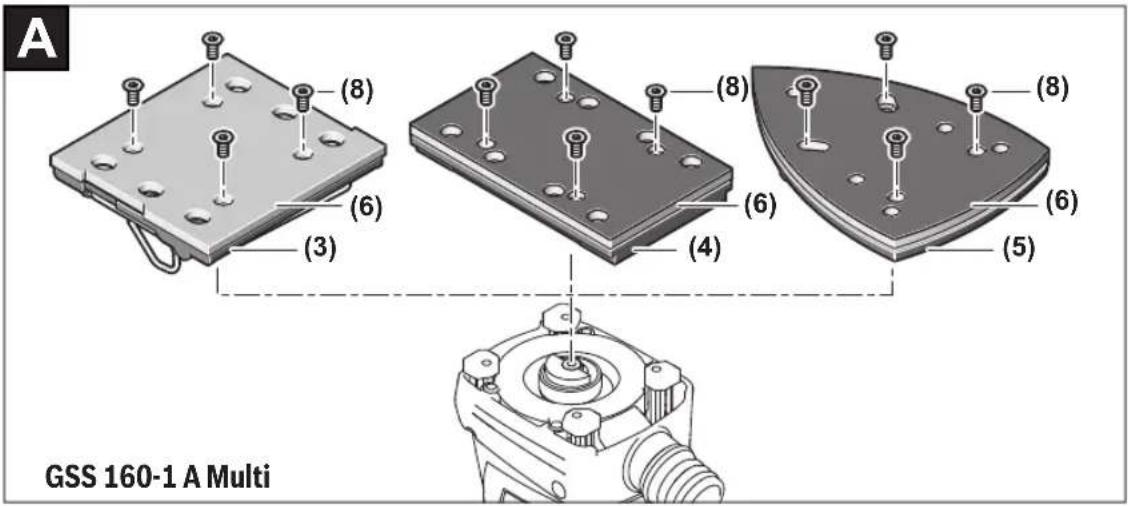

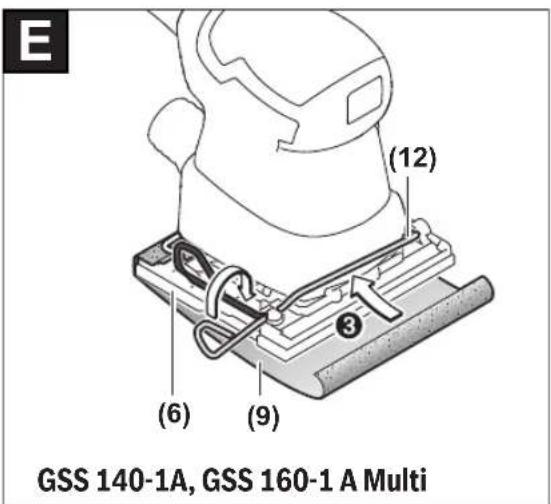

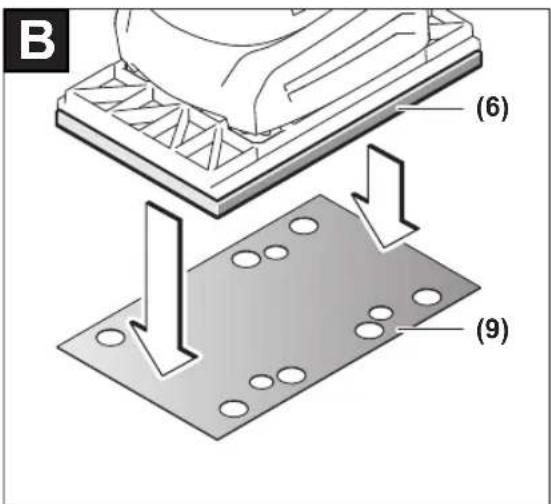

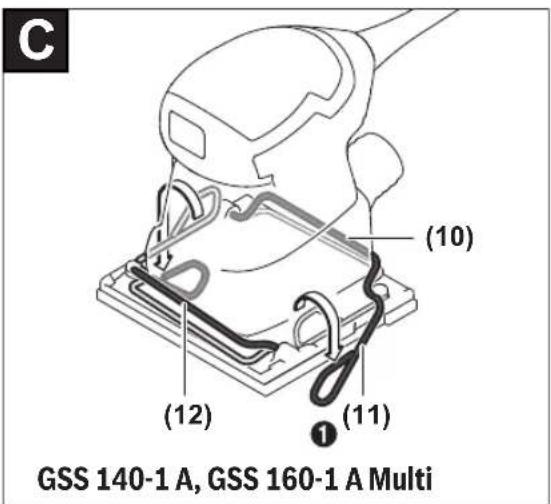

Unlock both sanding-sheet clamps (11) and swivel them downwards.

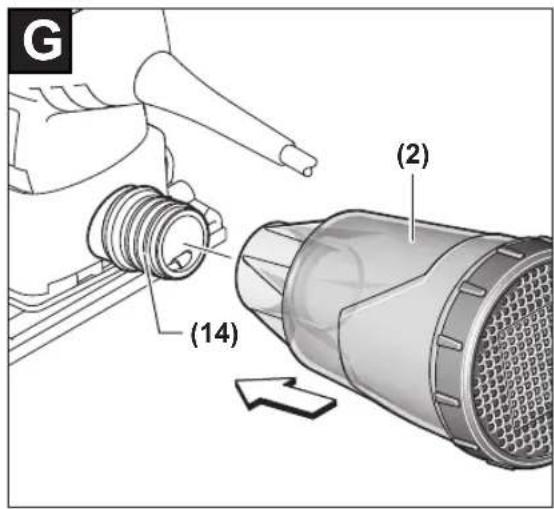

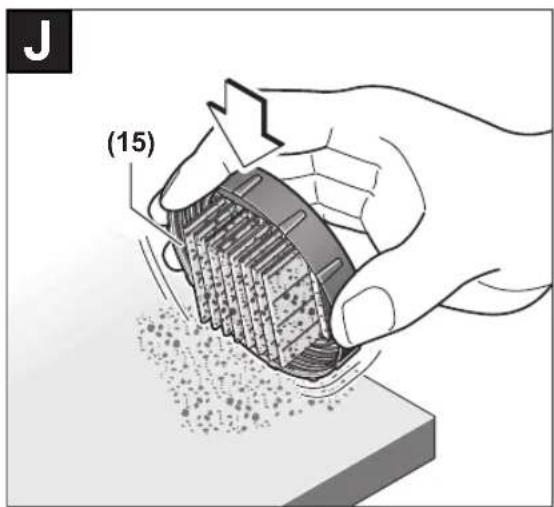

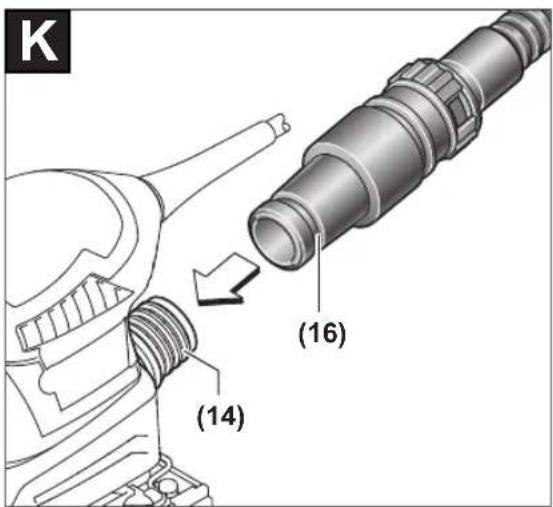

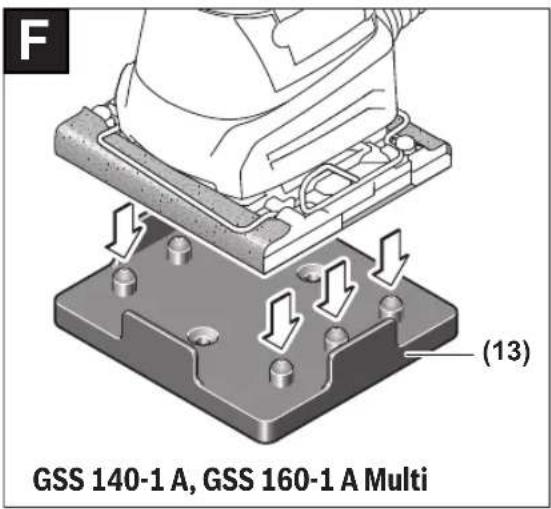

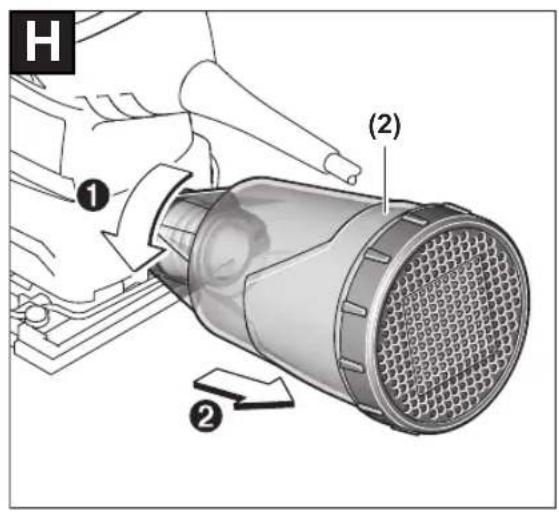

mm 110x100 – 110x100

www.bosch-pt.com/serviceaddresses

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Orbital Sander Article number
