Product type	Random orbital sander
Brand	Bosch
Model	0 601 2A2 300
Dimensions (L x W x H)	200 x 120 x 150 mm
Weight	1.5 kg
Power consumption	250 W
Supply voltage	220-240 V AC, 50/60 Hz
No-load speed	6,000 - 12,000 rpm
Pad diameter	125 mm
Orbital stroke diameter	1.5 mm
Category	Sander
Main functions	Sanding wood, metal, plastic; electronic speed control; integrated dust extraction system
Maintenance and cleaning	Clean dust container after each use; replace worn abrasives; check brushes regularly
Safety	Safety shut-off in case of overload; anti-restart; lockable switch
Spare parts and repairability	Available via Bosch after-sales service; pad, brushes, abrasives
Included accessories	Dust bag, abrasive pad, 3 sheets of sandpaper
Sound level	78 dB(A)
Vibrations	5.5 m/s²

Frequently Asked Questions - 0 601 2A2 300 BOSCH

How to replace the sandpaper on the Bosch 0 601 2A2 300 sander?

Detach the abrasive pad by turning the locking knob. Place the new sheet aligning the suction holes, then retighten the knob. Make sure the paper is taut.

What is the ideal speed for sanding wood?

For wood, set the speed controller between 6,000 and 9,000 rpm. Use a higher speed for roughing and a lower speed for finishing.

How to clean the dust container?

Empty the container regularly. You can rinse it with clear water, but let it dry completely before reinstalling. Do not use solvents.

What to do if the sander does not start?

Check that the anti-restart switch is fully pressed and the plug is in good condition. If the problem persists, the motor brushes may be worn: replace them through a Bosch authorized service center.

Can I use the sander on metal surfaces?

Yes, use an abrasive suitable for metal (fine to medium grit) and a moderate speed (around 7,000 rpm). Make sure to vacuum metal dust to avoid overheating.

How to adjust the speed of the sander?

Turn the adjustment knob located on top of the device. The positions are numbered 1 to 6, corresponding to a range of 6,000 to 12,000 rpm.

Does the abrasive pad turn freely?

Yes, the pad rotates on a bearing. If you feel abnormal resistance, lightly grease the bearing with silicone grease after disassembly.

What type of dust bag is compatible?

Use exclusively the original Bosch dust bag (ref. 2 609 005 687). Generic bags may clog the suction system.

How to change the abrasive pad?

Unscrew the center screw under the pad (counterclockwise). Remove the old pad and place the new one. Tighten firmly. Make sure the pad is well centered.

Does the sander vibrate a lot?

The vibration level is about 5.5 m/s² (standard value for this range). To reduce vibrations, hold the machine firmly and use anti-vibration gloves.

USER MANUAL 0 601 2A2 300 BOSCH

OBJ_BUCH-2217-003.book Page 1 Tuesday, September 27, 2016 3:51 PM

3D rendering of three identical mechanical components with textured surfaces, mounted on a base platform (no text or symbols visible)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1 609 92A 368 (2015.08) AS / 166 EURO

1 609 92A 368

GSS Professional

140-1A|160-1A|160-1AMulti

BOSCH

tr Original Isletine talimab

OBJ_BUCH-2247-003.book Page 2 Tuesday, September 27, 2016 3:54 PM

21

Deutsch.... Seite 6

English Page 11

Français Page 16

OBJ_BUCH-2247-003.book Page 3 Tuesday, September 27, 2016 3:54 PM

3

1 609 92A 368 | (27.9.16) Bosch Power Tools

OBJ_BUCH-2247-003.book Page 4 Tuesday, September 27, 2016 3:54 PM

4|

1 609 92A 368 | (27.9.16) Bosch Power Tools

51

6|Deutsch

Deutsch

Sicherheitshinweise

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montage

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If deves are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

12 | English

Safety Warnings for Sander

▶ Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.
Caution, fire hazard! Avoid overheating the object being sanded as well as the sander. Always empty the dust collector before taking breaks. In unfavourable conditions, e.g., when sparks emit from sanding metals, sanding debris in the dust bag, micro filter or paper sack (or in the filter sack or filter of the vacuum cleaner) can self-ignite. Particularly when mixed with remainders of varnish, polyurethane or other chemical materials and when the sanding debris is hot after long periods of working.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and in structions may result in electric shock, fire and/or serious injury.

While reading the operating instructions, unfold the graphics page for the machine and leave it open.

Intended Use

The machine is intended for dry sanding of wood, plastic, filler and coated surfaces.

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 On/Off switch

2 Dust box, complete (Microfilter System)

3 Square base plate (GSS 140-1 A/GSS 160-1 A Multi)

4 Rectangular base plate (GSS 160-1 A/GSS 160-1 A Multi)

5 Triangular base plate (GSS 160-1 A Multi)

6 Sanding plate

7 Handle (insulated gripping surface)

8 Screws for base plate (4x)

9 Sanding sheet*

10 Rear clamping bracket

11 Sanding-sheet clamps (2x)

12 Front clamping bracket

13 Perforating tool*

14 Extraction outlet

15 Filter element (Microfilter System)

16 Vacuum hose*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Orbital sander		GSS 140-1 A	GSS 160-1 A	GSS 160-1 A Multi
Article number		3 601 BA2 1.. 3 601 BA2 2.. 3 601 BA2 2..
Rated power input	W 180 180 180
No-load speed	min^-1	12000 12000 12000
No-load orbital stroke rate	min^-1	24000 24000 24000
Orbit diameter	mm 1.6 1.6 1.6
Sanding sheet dimensions
- square
- Adhesion via Velcro backing	mm	115 x 107	-	115 x 107
- Attachment via clamping	mm	115 x 140	-	115 x 140
- rectangular
- Adhesion via Velcro backing	mm - 133 x 80 133 x 80
- triangular
- Adhesion via Velcro backing	mm --	150 x 100

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
1 609 92A 368 | (27.9.16) Bosch Power Tools

Orbital sander		GSS 140-1 A	GSS 160-1 A	GSS 160-1 A Multi
Sanding plate dimensions
- square	mm	110 x 100	-	110 x 100
- rectangular	mm	-	128 x 78	128 x 78
- triangular (sanding sheet length from corner to corner)	mm	-	-	150 x 100
Weight according to EPTA-Procedure 01:2014	kg 1.2 1.2 1.2
Protection class		☐/II /II /II	☐	☐

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.

Noise/Vibration Information

Sound emission values determined according to EN 60745-2-4.

Typically the A-weighted sound pressure level of the product is 76 dB(A). Uncertainty K=3 dB.

The noise level when working can exceed 80 dB(A).

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-4: a_h=5.0m/s^2, K=1.5m/s^2 .

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Declaration of Conformity

CE

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with all relevant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-4, EN 50581.

Technical file (2006/42/EC) at: Robert Bosch Power Tools GmbH, PT/ECS, 70538 Stuttgart, GERMANY

Henk Becker

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Assembly

▶ Before any work on the machine itself, pull the mains plug.

Fitting the base plate (GSS 160-1 A Multi) (see figure A)

Unscrew the four screws 8 completely. Put a suitable base plate on and retighten the screws.

Replacing the Sanding Plate (see figure A)

The sanding plate 6 can be replaced, if required.

Unscrew the four screws completely 8 and remove the sanding sheet 6. Put the new sanding sheet 6 on and retighten the screws.

Replacing the Sanding Sheet

When attaching a new sanding sheet, remove any dust or debris from the sanding plate 6 (e. g. with a brush).

To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate.

Sanding Sheets with Velcro Backing (see figure B)

Sanding plates 6 fitted with Velcro backing can be used to fasten sanding sheets with Velcro adhesion quickly and easily.

Before attaching the sanding sheet 9, free the Velcro backing of the sanding plate 6 from any debris by tapping against it in order to enable optimum adhesion.

Position the sanding sheet 9 flush alongside one edge of the sanding plate 6, then lay the sanding sheet onto the sanding plate and press firmly.

To remove the sanding sheet 9, grasp it at one of the tips and pull it off from the sanding plate 6.

14| English

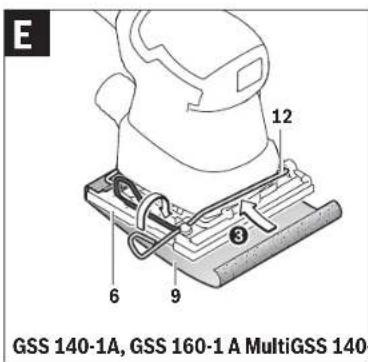

Sanding Sheets without Velcro Backing (see figures C - E)

① Unlock both sanding-sheet clamps 11 and swivel them downwards.
② Insert the sanding sheet 9 under the rear clamping bracket 10. Ensure that the sanding sheet 9 is not too short and that it is correctly clamped. Swivel the sanding-sheet clamp 11 back into the starting position and lock it there.
Place the sanding paper taut around the sanding plate 6. Clamp the front part of the sanding sheet under the front clamping bracket 12. Ensure that the sanding sheet 9 is not too short and that it is correctly clamped. Swivel the sanding sheet clamp 11 back into the starting position and lock it there.

Sanding sheets without holes, e. g. from rolls or by the metre, can be punctured with the perforating tool 13. For this, push the power tool with the sanding sheet mounted onto the perforating tool (see figure F).

To remove the sanding sheet 9, unlock both sanding-sheet clamps 11 and pull the sanding sheet out of its holder.

Selecting the Sanding Sheet

Depending on the material to be worked and the required rate of material removal, different sanding sheets are available:

Grain size

red:Wood

40 - 240

For the working of all wooden materials

For coarse sanding, e. g. of rough, unplaned beams and boards coarse 40, 60

For face sanding and planing small irregularities medium 80, 120

For finish and fine sanding of hard woods fine 180, 240

white:Paint

40 - 240

For the working of paint/enamel coats or primers and fillers

For sanding off paint coarse 40, 60

For sanding primer medium 80, 120

For final sanding of primers before coating fine 180, 240

Dust/Chip Extraction

Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

- As far as possible, use a dust extraction system suitable for the material.

1 609 92A 368 | (27.9.16) Bosch Power Tools

- Provide for good ventilation of the working place. - It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked.

▶ Prevent dust accumulation at the workplace. Dust can easily ignite.

Integrated Dust Extraction with Dust Box (see figure G-J)

Slide the dust box 2 onto the extraction outlet 14.

The filling level of the dust box 2 can easily be checked through the transparent container.

To empty the dust box 2, pull it off toward the rear with a slight twisting motion.

Unscrew the filter element 15 from the dust box 2. Empty the dust box.

To loosen the dust, gently strike or tap the filter element 15 against a firm surface. Clean the lamellas of the filter element 15 with a soft brush.

Note: To ensure optimum dust extraction, empty the dust box 2 in good time and clean the filter element 15 at regular intervals.

When working vertical surfaces, hold the power tool in such a manner that the dust box 2 faces downward.

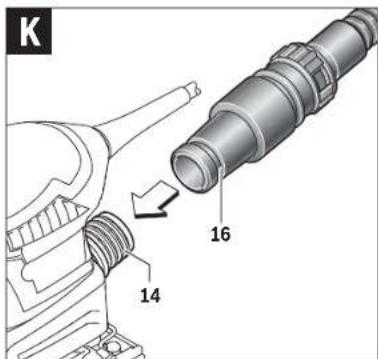

External Dust Extraction (see figure K)

Attach the vacuum hose 16 (accessory) to the extraction outlet 14. Connect the vacuum hose 16 to a vacuum cleaner (accessory).

The vacuum cleaner must be suitable for the material being worked.

When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.

When working vertical surfaces, hold the power tool in such a manner that the vacuum hose faces downward.

Operation

Starting Operation

▶ Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230 V can also be operated with 220 V.

Switching On and Off

To start the machine, tilt the On/Off switch 1 toward the right to the "I" position.

To switch off the machine, tilt the On/Off switch 1 toward the left to the "0" position.

To save energy, only switch the power tool on when using it.

Working Advice

▶ Wait until the machine has come to a standstill before placing it down.
▶ Before any work on the machine itself, pull the mains plug.

English | 15

The removal capacity during sanding is mainly determined by the selection of the sanding sheet.

Only flawless sanding sheets achieve good sanding capacity and extend the service life of the machine.

Pay attention to apply uniform sanding pressure; this increases the working life of the sanding sheets.

Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to increased wear of the machine and the sanding sheet.

A sanding sheet that has been used for metal should not be used for other materials.

Use only original Bosch sanding accessories.

Maintenance and Service

Maintenance and Cleaning

▶ Before any work on the machine itself, pull the mains plug.

▶ For safe and proper working, always keep the machine and ventilation slots clean.

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax:[phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools into household waste!

Only for EC countries:

According to the European Directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

16 | Français

Français

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage

Robert Bosch (France) S.A.S.

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Bosch Power Tools 1 609 92A 368 | (27.9.16)

24| Español

Montaje

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

jus Bao i.v. k:m

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montagem

a_n=5,0m/s^2,K=1,5m/s^2

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ECS

jus Bao i.v. k.m.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaggio

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

jiv. i.v. k.m.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montage

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. k·w—

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart 01 01 2017

Stuttgart, 01.01.2017

Montering

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. k.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montage

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Avfallshantering

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

A. 200 i.v. k.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montering

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Asennus

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Συναρμολόγηση

a_n=5,0m/s^2,K=1.5m/s^2

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaj

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaż

Robert Bosch Sp. z o.o.

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

jiv. i.v. k.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montáž

Bosch Service Center PT

KVápence 1621/16

692 01 Mikulov

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ECS

A. 2010 i.v. k.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montáž

a_n=5,0m/s^2,K=1,5m/s^2

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

A##300 i.v. k.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Összeszerelés

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

jou Bao i.v. k.w.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Сборка

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

i.v. k.m.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Українська|97

Монтаж

OBJ_BUCH-2247-003.book Page 99 Tuesday, September 27, 2016 3:54 PM

Українська|99

Україна

ТОВ «Роберт Бош»

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

if we see i.v. k.m.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Жинау

OBJ_BUCH-2247-003.book Page 105 Tuesday, September 27, 2016 3:54 PM

Казакша|105

a_1=5,0m/s,K=1.5m/s^2

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montare

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Монтиране

a_0=5,0m/s,K=1.5m/s^2

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ECS

i.v. k·w—

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

1 609 92A 368 | (27.9.16) Bosch Power Tools

Македонски|119

Монтажа

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. k.m.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Montaža

- Izvucite pre svih radova na električnom alatu mrežni utikač iz utičnice.

Executive Vice President

Head of Product Certification

Engineering

PT/ECS

A. 200 i.v. h.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaža

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Slovensko | 129

Executive Vice President

Head of Product Certification

Engineering

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY Stuttgart 01 01 2017

Stuttgart, 01.01.2017

Montaža

- Prije svih radova na električnom alatu izvucite mrežni utikać iz utičnice.

Montaža osnovne ploče (GSS 160-1 A Multi) (vidjeti sliku A)

Odvrnite 4 vijka 8 do kraja. Postavite prikladnu osnovnu ploču i ponovno pritegnite vijke.

1 609 92A 368 | (27.9.16) Bosch Power Tools

a_n=5,0m/s,K=1.5m/s^2

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montaž

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

A. 2010 i.v. k.m.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montāža

a_n=5,0m/s^2,K=1,5m/s^2

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

i.v. k·w

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Montavimas

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. k=mc

Robert Bosch Power Tools GmbH 70535 Stuttgart, GERMANY Stuttgart, 01.01.2017

조립

OBJ_BUCH-2247-003.book Page 152 Tuesday, September 27, 2016 3:54 PM

152|한국어

Mechanics and Electronics Ltd, PT/SAX-ASA

298 Bojeong-dong Giheung-gu Yongin-si, Gyeonggi-do, 446-913

Republic of Korea 080-955-0909

1 609 92A 368 | (27.9.16) Bosch Power Tools

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ECS

i.v. h·w

Robert Bosch Power Tools GmbH,

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

التركيب

Henk Becker Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

نصب

ابزار الكTürkiye;

OBJ_BUCH-2247-003.book Page 164 Tuesday, September 27, 2016 3:54 PM

164

1 609 92A 368 | (27.9.16) Bosch Power Tools

OBJ_BUCH-2247-003.book Page 165 Tuesday, September 27, 2016 3:54 PM

|165

2605411240

2605411241

2608601443

2608601446

2608601444

2608601447

2608601445

2608601448

2608190059

Bosch Power Tools 1 609 92A 368 | (27.9.16)
