BC.041N - Coffee machine Beper - Free user manual and instructions
Find the device manual for free BC.041N Beper in PDF.
| Product type | Programmable coffee maker |
| Brand | Beper |
| Model | BC.041N |
| Power | 400 W |
| Power supply | 220-240 V ~ 50/60 Hz |
| Capacity | Up to 3 cups (approx. 300 ml) |
| Backup battery | CR2032 3 V (not included) |
| Delayed programming | Yes, up to 24 hours in advance |
| Keep warm function | Yes, up to 30 minutes |
| Automatic shutdown | Yes, after 30 minutes |
| Key lock | Yes, child safety |
| Safety valve | Yes |
| Removable filter | Yes, with adapter for 1 cup |
| Maintenance | Manual cleaning, do not immerse |
| Supplied accessories | Funnel filter, 1-cup adapter, dispenser |
| Warranty | 24 months |
| After-sales service | assistenza@beper.com or retailer |
Frequently Asked Questions - BC.041N Beper
User questions about BC.041N Beper
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee machine in PDF format for free! Find your manual BC.041N - Beper and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BC.041N by Beper.
USER MANUAL BC.041N Beper
For further information and/or for instructions for use in other languages, please visit: beper.com
Fig.A
Class I
Fig.B
Fig.E

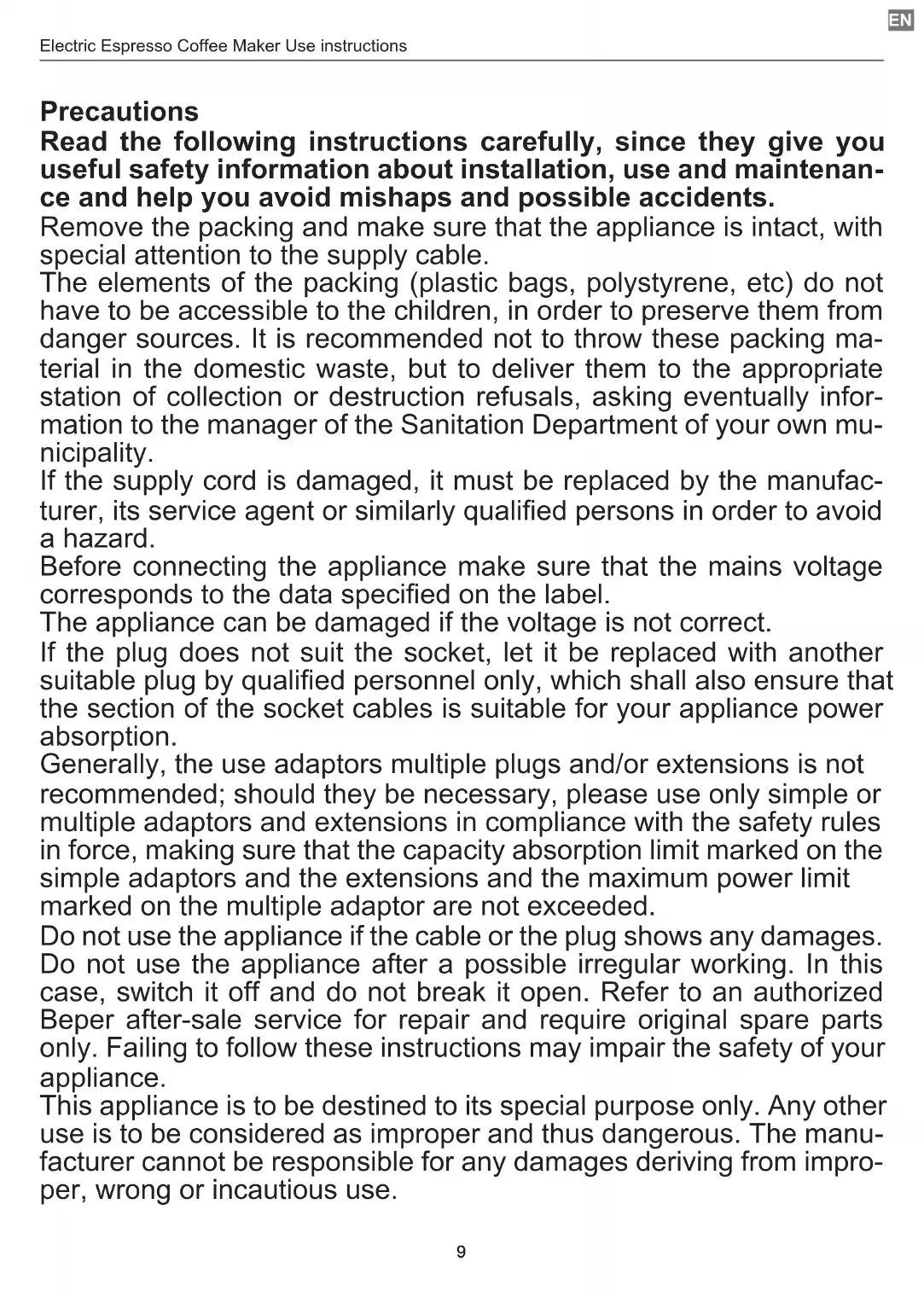

Avvertenze generali
Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.
Remove the packing and make sure that the appliance is intact, with special attention to the supply cable.
The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources. It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.
The appliance can be damaged if the voltage is not correct.
If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.
Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.
Do not use the appliance if the cable or the plug shows any damages. Do not use the appliance after a possible irregular working. In this case, switch it off and do not break it open. Refer to an authorized Beper after-sale service for repair and require original spare parts only. Failing to follow these instructions may impair the safety of your appliance.
This appliance is to be destined to its special purpose only. Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.
This appliance is for household use only.
To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.
Do not use the appliance near explosives, highly flammable materials, gases or burning flames.
Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.
Safety warnings
This machine has been manufactured to “make coffee”. Never use other extracts, cocoa powder, chamomile, other infusions or soluble substances: these may block the holes in the filter.
During cleaning, never immerse the base and the boiler in water: this is an electrical appliance.
Be careful to avoid being scalded by spraying water or steam or due to the improper use of the appliance.
When using the appliance do not touch the hot surfaces. Use the buttons or handles.
Fill the boiler with water before placing the coffee maker on the support structures.
Do not let the power cord come into contact with the metal parts of the coffee maker when it is running.
The support base and the boiler become very hot during operation, do not touch these parts to avoid the risk of scalding.
Do not lift the lid while the coffee maker is running; wait a few minutes after switching off before lifting the lid as the sudden release of steam could cause burns.
Do not leave the power cord plugged in unnecessarily, always unplug it when not using the coffee machine.
Do not pull on the power cable to unplug it.
If the cable is damaged, replace it by contacting authorized centres only.
Do not immerse the coffee maker in water or other liquid and avoid letting liquids infiltrate.
Do not expose the coffee maker to sources of humidity and do not use it outdoors.
In the event of liquid infiltration into the body of the coffee maker, immediately disconnect the plug from the electrical socket and have the coffee maker repaired by qualified personnel.
Do not touch the coffee maker and the power cord with wet hands.
The coffee maker is designed to be used exclusively for home use, it is not designed for commercial use.

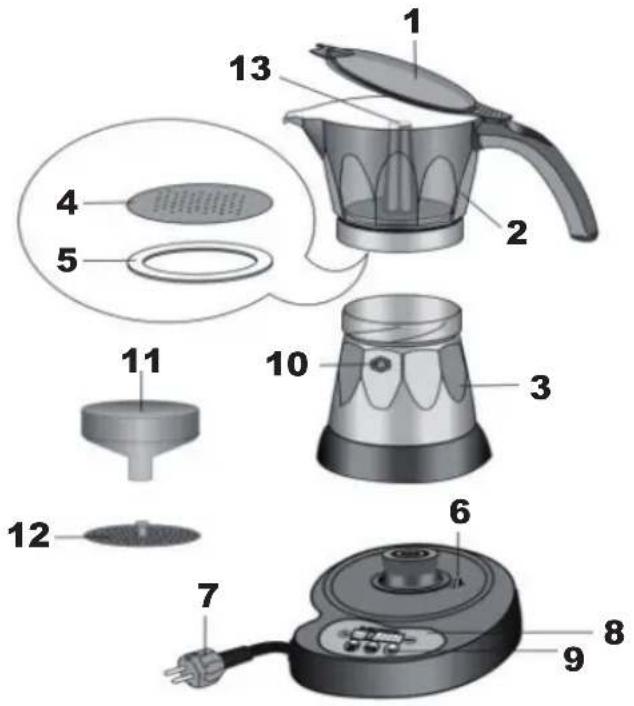

Product description Fig. A
- Pitcher lid
- Pitcher
- Boiler
- Disk filter
- Gasket
- Support base
- Power cable
- Control panel
- Pilot light
- Safety valve
- Funnel filter
- 1 Cup adapter
- Tube

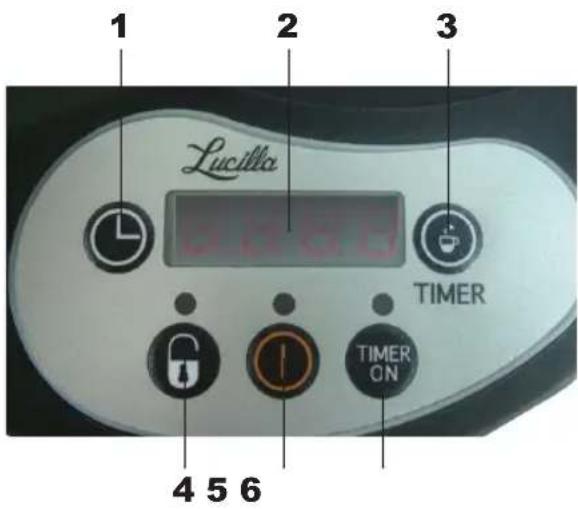

Description of the display Fig. B
- Time: Press and hold to set current time.
- Display: Format hour : minute.
- Timer: Press and hold to set the desire time you want to start brewing.
- Hold key: Synchronization started with on/off, by pressing this key all the other keys do not work, for unlock hold it for 3 seconds.
- On/Off: Press to start brewing directly, synchronization started with key lock, the coffee maker switches off automatically after 30 minutes.
- Timer on: Press and the timer turns on, the light turns on. Synchronization started with key lock.
⚠️ Important: the first time that the coffee maker is used, all the accessories should be washed with hot water. Then make a few batches of coffee to throw away.

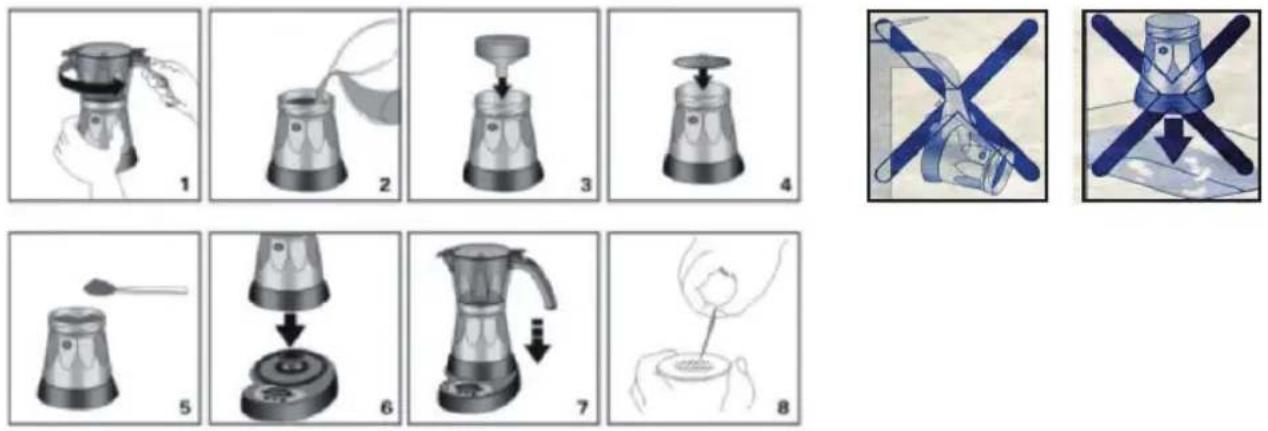

Preparing the coffee maker Fig. C
Place the appliance on a stable and flat surface away from water taps and sinks.
Check that the voltage of the mains power supply corresponds to the value indicated on the appliance's rating plate.
Only connect the appliance to a power outlet properly earthed. The manufacturer declines all liability for any accidents caused if the system is not correctly earthed.
If the power outlet does not match the plug on the appliance, use an adequate adaptor.
When connecting the base to the mains, the electronic control emits an acoustic signal; when the flashing dashes appear on the display, you can set the time of day or prepare coffee immediately.
Follow the instructions as shown in figure C
1) Check that the coffee maker is cold, and then unscrew it by holding the boiler with one hand and turning the pitcher anticlockwise with the other and remove the funnel.
2) If you want to prepare 3 cups of coffee, fill the boiler with fresh water until reaching the safety valve (visible inside the boiler), without exceeding it. Or, to prepare 1 cup, fill the boiler with water to the mark (aprox. 2 centimetres) below the safety valve.
Tip: use fresh and soft water. Salty or hard water will weaken the flower.
⚠️ Important: do not use the coffee maker without water in the boiler and moreover do not use hot water for faster operation.
3) Insert the funnel filter in the boiler.
4) To prepare one cup of coffee, also insert the adapter in the funnel filter.
5) Fill the funnel filter with ground coffee, without pressing it. Fill it a little at a time to prevent spilling the ground coffee. Distribute the ground coffee uniformly and remove any excess coffee from the edge of the filter.
⚠️ Important: use good quality, medium-ground coffee, for moka coffee makers. Do not use barley coffee.
6) Tighten the coffee maker securely, without exaggerating, holding the boiler with one hand and turning the pitcher clockwise with the other, without pushing on the handle.
7) Close the lid and place the coffee maker on the base.
8) Every so often check that the holes in the disk filter are not blocked; if necessary, clean it by using a pin.
Manual ignition
Press the “on/off” button. The on/off light indicates that the coffee maker is working, while the “key lock” light indicates that the key lock function is active.
The coffee will start to come out after a few minutes.
Brewing will be completed in 4-5 minutes. The coffee maker will automatically turn off after the “on / off” light has been on for 30 minutes.
Programmed self-ignition
This function allows you to program the self-start time of the appliance, for example in the evening for the following morning. Operate as follows:
Set the exact time
Press and hold the "time" button to set the exact time. (Each short press will advance the time by one minute, hold down to advance the time quickly).
Set the switch-on time
Press the "timer" button, and keep it pressed until the desired switch-on time is reached.
At any time it is possible to view the programmed time by pressing the "timer" button, after a few seconds the current time reappears on the display.
Once the coffee maker has been prepared and the desired ignition time has been programmed, press the “timer on” button; the programmed power-on light and the “key lock” light come on.
At the programmed time, the programmed on light will go out and the “on/off” light and the “key lock” light will come on to signal that the appliance starts to heat the water.
Brewing will be completed in 4-5 minutes. The coffee maker will turn off after the “on/off” light has been on for 30 minutes.
if you want to turn off the "key lock" function, just hold the key in question for 3 seconds; now you can turn off the coffee maker.
At the end of the brewing
When the brewing is complete, stir the coffee before serving.
Note: the time will start again from scratch when it reaches 24:00, which means that the timer can run for up to 24 hours.
Memory function: if 7.00 is set as a time for coffee preparation, at 7.00 every morning the coffee will be prepared, without resetting it every day (unless the user does not change it).
Practical example
Let's say it's 9:00 pm. if you want to drink coffee at 07:00 am the following morning, simply set the timer programmed as follows:
Connect the coffee maker to the electrical outlet.
Press and hold "time" to set the time to 21:00.
Hold "timer" to set the time for 07:00.
Press the "timer on" button to activate the timer.
Coffee brewing starts automatically when the clock on the display is at "07:00", the "timer on" indicator goes off, in the meantime the "on / off" indicator lights up. When it is 07:30, the coffee maker turns off and the lights go out.
Keep warm function
With the keep warm function can be drunk hot coffee at the right temperature for more than half an hour after switching on the machine.
This function is automatically activated each time the unit will be switched on.
Cleaning and maintenance
Before performing the cleaning operations after use, wait for the machine to cool down.
Clean the inside of the dispenser periodically.
Regularly check the funnel and the gasket. Replace if there are signs of wear or deterioration. Use only original spare parts.
Occasionally check that the filter holes are not blocked, if necessary, clean with a pin (Fig. C, point 8).
Do not wash the coffee machine in the dishwasher.
Do not use solvents or abrasive detergents to clean the boiler. It is sufficient to clean it with a sponge, keeping attention not to wet the electrical parts.
When removing the disc filter for cleaning or to replace the gasket, remember to reinsert it correctly to avoid dangerous splashes of hot water.
Do not rinse the boiler under the water tap and do not immerse in water. (Fig. D)
Battery
Under the base of the coffee maker there is a battery compartment, in which it is possible to insert a 3V CR2032 button battery (not included).
The battery is used to keep the settings set once the plug is removed from the socket. The timer continues to operate, even if no writing appears on the display.
Example: if at this moment the display shows 8.00 and I remove the plug for an hour, when I put the plug in the socket the display will automatically show 9.00.

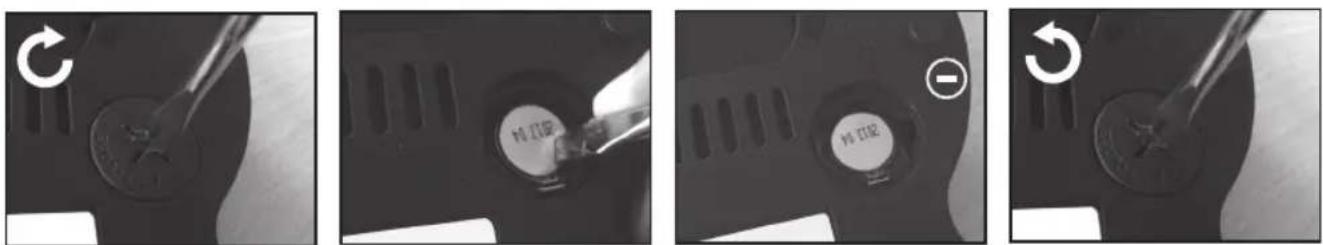

To replace the battery, follow the instructions below (Fig. E):
Insert a screwdriver into the battery cover and turn anticlockwise to open the compartment.
Remove the exhausted battery and insert the new battery paying attention to respect the polarity.
Replace the battery cover and tighten it tightly to close it.
Technical data
Power: 400 W
Power supply: 220-240V \~ 50/60Hz
Use battery CR2032, 3V (not included)
For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.
The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.
GUARANTEE CERTIFICATE
This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.
The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance
For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.
GUARANTEE CONDITIONS
If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:
- The appliance has been used properly and for the purpose for which it has been intended.
- The appliance has not been tampered with, otherwise it is not maintainable.
- The purchase receipt shall be presented.
- The appliance showing a fair wear and tear shall not be covered by this guarantee.
Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.
For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.
In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product
Contact your distributor in your country or after sales department Beper.
E-mail assistenza@beper.com which will forward your enquiries to your distributor.
