90.494 - Crepe maker Beper - Free user manual and instructions

Product type	Electric crêpe maker
Brand	Beper
Model	90.494
Power	1200 W
Power supply	220-240 V ~ 50/60 Hz
Plate diameter	30 cm
Coating	Non-stick
Adjustable thermostat	Yes, with indicator light
Dimensions (L x W x H)	35 x 35 x 10 cm
Weight	2.5 kg
Cord length	1.5 m
Plate material	Aluminum
Heat-insulated handle	Yes
Cleaning	Damp cloth, do not immerse
Safety	Safety thermostat
Included accessories	Wooden spatula
Warranty	2 years
Repairability	Spare parts available on request
Color	Black

Frequently Asked Questions - 90.494 Beper

How to use the Beper 90.494 crêpe maker?

Plug in the appliance, set the thermostat to the desired temperature (indicator light turns off when ready). Pour a ladle of batter, spread with the included spatula. Flip the crêpe after about 1 minute.

Can the temperature be adjusted?

Yes, the thermostat is continuously adjustable, with an indicator light showing the temperature rise.

How to clean the plate?

Allow to cool, wipe with a damp cloth. Do not use abrasive products. Never immerse the appliance in water.

Is the plate removable?

No, the plate is fixed. Cleaning is done directly on the appliance after cooling.

What batter to use?

Any classic crêpe batter (flour, eggs, milk, butter). You can also prepare pancakes or galettes.

Does the appliance turn off automatically?

No, there is no automatic shut-off. Unplug the appliance after use and never leave it unattended.

How long does it heat up?

About 3 to 5 minutes to reach optimal temperature. The light then turns off.

Can a metal spatula be used?

No, to preserve the non-stick coating, use only the provided wooden or silicone spatula.

Is the crêpe maker suitable for all hobs?

No, it is a standalone electric appliance. It does not require a hob, it plugs directly into the mains.

Where to find the full manual?

The manual is available for free download on our site notice-facile.com in PDF format.

USER MANUAL 90.494 Beper

ITALIANO pag. 3

ENGLISH pag. 10

FRANÇAIS pag. 16

DEUTSCH pag. 22

ESPAÑOL pag. 28

For further information and/or for instructions for use in other languages, please visit: beper.com

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO.

ISTRUZIONI D'USO

Fig.2

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.

Make sure that children do not play with this appliance.

If you decide not to use the appliance any longer, make it unserviceable by simply cutting the supply cable after disconnecting the plug from the socket. Also make any dangerous parts unserviceable, especially for children who could play with the appliance.

DESCRIPTION Fig.1

1. Light indicator
2. Temperature light indicator
   3.Non-stick coking plate
   4.Switch on/off
   5.Temperature selector
   6.Unit
3. Wooden rack

USE INSTRUCTION

Before first use, remove the packing and stickers from the unit and clean the cooking plate with a wet cloth, and wipe carefully.

Connect the appliance to the socket, press switch on/off (4). The light indicator (1) lights up.

Select the desired temperature. When the cooking plate reach the desired temperature, the green light temperature indicator (2) lights up.

When cooking crepes, preheat the cooking plate, set the temperature level 2, then pour a small quantity of batter (see receipt) in the middle of the cooking plate. Spread the batter quickly in a circular motion using the wooden rack (7) until the desired diameter crepes. Leave the crepe cook for about 1 minute, crepe can then be moved more easily on the cooking plate.

Place a spatula under the crepe and return it to cook on the other side.

Cook until the crepe is lightly golden.

Remove the crepe from the cooking plate with the spatula. If the crepe is too cooked, set the temperature selector before making crepes.

When cooking is complete, turn off the appliance with the switch on/off. Disconnect from the socket.

Leave the appliance cool down, and clean before storing.

CLEANING AND CARE

Always clean the appliance after use. Make sure the unit is disconnected from the socket. Wait until the unit is completely cool down.

Clean the cooking plate with a wet cloth. If food residue on the cooking plate, use this method: put some oil on it. Leave it for about 5 minutes, and remove with a wet soft, and wipe carefully. Wipe the appliance before storing it.

HOW TO KEEP IT LONGER

Unroll the cord under the unit base, and stand the appliance on its base. Do not put objects on the appliance.

TECHNICAL DATA

Power 900W

Power supply 220-240V \~ 50/60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defected appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

SWEET CREPES

SAVORY CREPES

150 gr of flour or 200 gr of buckwheat flour

250 ml of water

250 ml of milk

4 eggs

100 gr of butter

30 gr of salt

Cooking : Fig.2

Put the flour previously sifted into a bowl, (add sugar for sweet crepes), 1 pinch of salt and milk (1). Mix the ingredients (you can use a hand mixer) until the batter is completely smooth and without lamps.

Then in another bowl beat the eggs, and add them to the batter (2) and mix all, add melted butter, cover and leave for at least 30 minutes into the fridge.

Preheat the cooking plate, when hot pour a ladle of batter (3) to cover the plate: put the batter in the middle of the plate and spread quickly in a circular motion using the wooden rack.

Cook for a minute, when it is getting golden (5) return and cook the other side until it is getting golden too.

When ready, remove the crepe from the cooking plate and put it into a plate, (6) and proceed with the rest of batter.

Advice :

If you do not serve the crepes promptly, you can keep them warm, then drizzle with jam, cream, sugar, ice-cream or with savory preparation, and serve.

Fig.2

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIERE UTILISATION DE L'APPAREIL.

DESCRIPTION DU PRODUIT Fig.1

INSTRUCTIONS D'UTILISATION

Assistance technique

Fig.2

GEBRAUCHSANWEISUNG

Fig.2

INSTRUCCIONES DE USO

Fig.2

90.497R Waffle maker

90.602 Waffle maker

90.600 Popcake maker

90.601 Donut maker

90.603 Biscuit maker

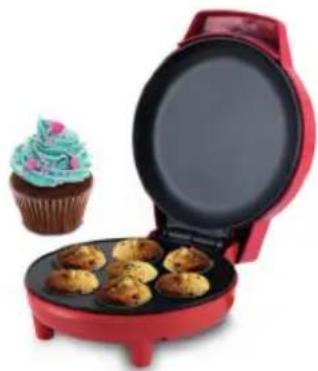

90.498 Cupcake maker

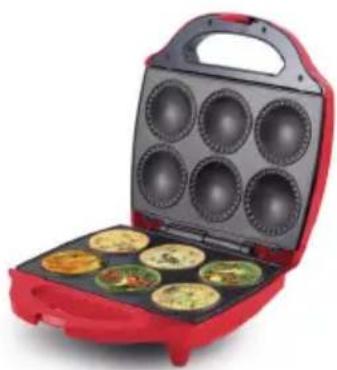

90.605 Quiche maker
