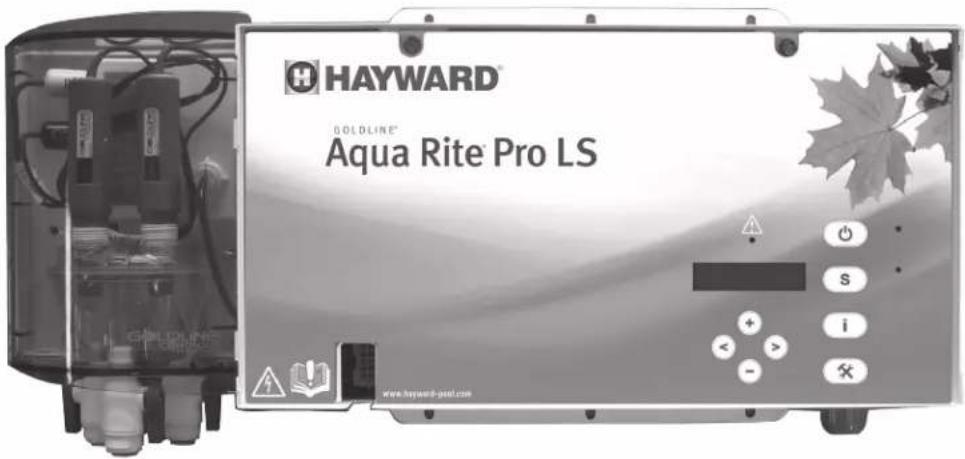

AQUARITE® PRO LS

GUIDE DE L'UTILISATEUR

CONSERVEZ CE MANUEL POUR UNE CONSULTATION ULTÉRIEURE

Abstract geometric logo with stylized letter H inside a dark circular frame (no text or symbols)

HAYWARD®

HAYWARD® GOLDLINE® Aqua Rite Pro LS www.hayward-gotel.com

CE i

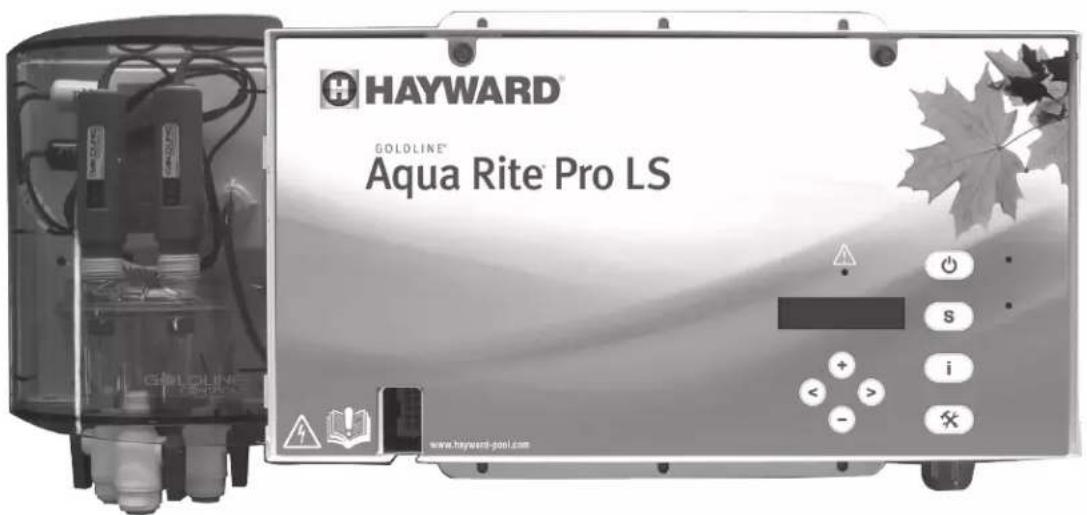

AQUARITE® PRO LS

USER GUIDE

KEEP THIS MANUAL FOR FUTURE REFERENCE

WARNING: Electrical Hazard. Failure to follow instructions can result in serious injury or death.

FOR USE WITH SWIMMING POOLS

⚠ WARNING - Read the instructions in this manual and on the appliance carefully. Failure to comply with the instructions may cause serious injury or death. This document must be given to all pool users who must keep it in a safe place.
⚠ WARNING – The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
⚠ WARNING – Do not allow children to play with the appliance.
⚠ WARNING – Keep all foreign bodies, fingers and any other parts of the body away from openings and moving parts.
⚠ WARNING – Only use genuine Hayward spare parts.
⚠ WARNING – The installation of any electric swimming pool pump must be carried out in accordance with industry practices and with the standards currently applicable.

F N F C 15-100 GB BS7671:1992
D D N VDE 0100-702 EW EVHS-HD 384-7-702
A ÖVE 8001-4-702		H	MSZ 2364-702:1994 / MSZ 10-533 1/1990
E UNE 20460-7-702 1993, REBT ITC-BT-31 2002		M	MSA HD 384-7-702.S2
IRL IS HD 384-7-702		PL	PN-IEC 60364-7-702:1999
I CEI 64-8/7		CZ	CSN 33 2000 7-702
LUX 384-7.702 S2		SK	STN 33 2000-7-702
NL NEN 1010-7-702		SLO	SIST HD 384-7-702.S2
P R SIUEE		TR T$ IEC 60364-7-702

⚠ WARNING – If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or persons with a similar qualification to avoid any danger.
⚠ WARNING – Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
⚠ WARNING – Disconnect all AC power during installation.
⚠ WARNING – A green colored terminal marked “Ground” is located inside the wiring compartment. To reduce the risk of electric shock, this terminal must be connected to the grounding means provided in the electric supply service panel with a continuous copper wire equivalent in size to the circuit conductors supplying the equipment.
⚠ WARNING – Unit should be kept locked.
⚠ WARNING – The unit shall not be operated when there is no water flow in the cell.
⚠ WARNING – The cell shall be located in a well ventilated environment so hazardous accumulation of hydrogen gas does not occur.
⚠ WARNING Chemical Hazard – Chemicals can cause burns both internally and externally. To avoid death, serious injury or property damage: Wear eye and skin protection while maintaining or servicing this unit. Do not inhale fumes from the unit.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

REGISTRATION

Hayward thanks you for buying this product. This manual contains important information regarding the operation and maintenance of your product. Keep it carefully for future reference.

TO REGISTER YOUR PRODUCT, GO TO:

http://www.hayward.fr/en/services/register-your-product

For your information

Record the following information future reference, if necessary:

1) Date of purchase
2) Name
3) Address ____
4) Post Code ____
5) Email
6) Part number ____ Serial number ____
7) Dealer
8) Address
9) Post code ____ Country ____

Note

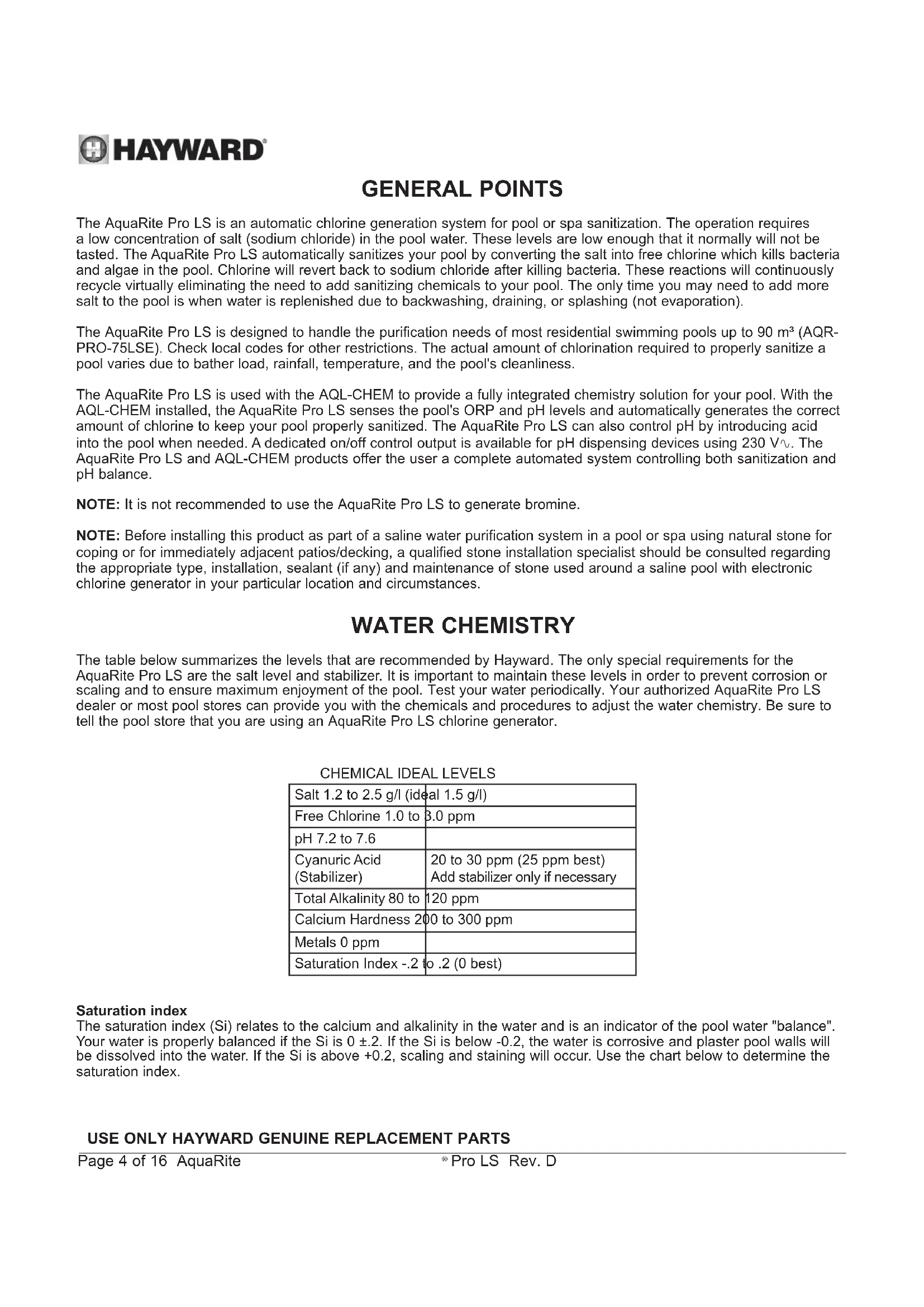

GENERAL POINTS

The AquaRite Pro LS is an automatic chlorine generation system for pool or spa sanitization. The operation requires a low concentration of salt (sodium chloride) in the pool water. These levels are low enough that it normally will not be tasted. The AquaRite Pro LS automatically sanitizes your pool by converting the salt into free chlorine which kills bacteria and algae in the pool. Chlorine will revert back to sodium chloride after killing bacteria. These reactions will continuously recycle virtually eliminating the need to add sanitizing chemicals to your pool. The only time you may need to add more salt to the pool is when water is replenished due to backwashing, draining, or splashing (not evaporation).

The AquaRite Pro LS is designed to handle the purification needs of most residential swimming pools up to 90 m ^3 (AQR-PRO-75LSE). Check local codes for other restrictions. The actual amount of chlorination required to properly sanitize a pool varies due to bather load, rainfall, temperature, and the pool's cleanliness.

The AquaRite Pro LS is used with the AQL-CHEM to provide a fully integrated chemistry solution for your pool. With the AQL-CHEM installed, the AquaRite Pro LS senses the pool's ORP and pH levels and automatically generates the correct amount of chlorine to keep your pool properly sanitized. The AquaRite Pro LS can also control pH by introducing acid into the pool when needed. A dedicated on/off control output is available for pH dispensing devices using 230 V ^√ . The AquaRite Pro LS and AQL-CHEM products offer the user a complete automated system controlling both sanitization and pH balance.

NOTE: It is not recommended to use the AquaRite Pro LS to generate bromine.

NOTE: Before installing this product as part of a saline water purification system in a pool or spa using natural stone for coping or for immediately adjacent patios/decking, a qualified stone installation specialist should be consulted regarding the appropriate type, installation, sealant (if any) and maintenance of stone used around a saline pool with electronic chlorine generator in your particular location and circumstances.

WATER CHEMISTRY

The table below summarizes the levels that are recommended by Hayward. The only special requirements for the AquaRite Pro LS are the salt level and stabilizer. It is important to maintain these levels in order to prevent corrosion or scaling and to ensure maximum enjoyment of the pool. Test your water periodically. Your authorized AquaRite Pro LS dealer or most pool stores can provide you with the chemicals and procedures to adjust the water chemistry. Be sure to tell the pool store that you are using an AquaRite Pro LS chlorine generator.

CHEMICAL IDEAL LEVELS

Salt 1.2 to 2.5 g/l (ideal 1.5 g/l)
Free Chlorine 1.0 to	3.0 ppm
pH 7.2 to 7.6
Cyanuric Acid (Stabilizer)	20 to 30 ppm (25 ppm best)Add stabilizer only if necessary
Total Alkalinity 80 to	120 ppm
Calcium Hardness 200 to 300 ppm
Metals 0 ppm
Saturation Index -.2 to .2 (0 best)

Saturation index

The saturation index (Si) relates to the calcium and alkalinity in the water and is an indicator of the pool water "balance" Your water is properly balanced if the Si is 0 ± .2 . If the Si is below -0.2, the water is corrosive and plaster pool walls will be dissolved into the water. If the Si is above +0.2, scaling and staining will occur. Use the chart below to determine the saturation index.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

How to use: Measure pool pH, temperature, calcium hardness, and total alkalinity. Use the chart above to determine Ti, Ci and Ai into the above equation. If Si equals 0.2 or more, scaling and staining may occur. If Si equals -0.2 or less corrosion or irritation may occur.

Salt Level

Use the chart on page 6 to determine how much salt in kgs need to be added to reach the recommended levels. Use the equations below if pool size is unknown.

	M^3 (pool size in meters)
Rectangular	Length x Width xAverage Depth
Round	Diameter x Diameter xAverage Depth x 0.785
Oval	Length x Width xAverage Depth x 0.893

The ideal salt level is between 1.2 - 2.5 g/L with 1.5 g/L being optimal. If the level is low, determine the number of M³ in the pool and add salt according to the chart on page 6. A low salt level will reduce the efficiency of the AquaRite Pro LS and result in low chlorine production. A high salt level can cause the AquaRite Pro LS to shutdown and may begin to give a salty taste to your pool. The salt in your pool/spa is constantly recycled and the loss of salt throughout the swimming season should be small. This loss is due primarily to the addition of water because of splashing, backwashing, or draining (because of rain). Salt is not lost due to evaporation.

Type of Salt to Use

It is important to use only sodium chloride (NaCl) salt that is greater than 99% pure (EN 16401). Use only salt for electronic chlorine generator usually available in 25 kg bags. Do not use rock salt, salt with yellow prussiate of soda, salt with anti-caking additives, or iodized salt.

How to Add or Remove Salt

For new plaster pools, wait 10-14 days before adding salt to allow the plaster to cure. Turn the circulating pump on and add salt directly into the pool. Brush the salt around to speed up the dissolving process. Do not allow salt to pile up on the bottom of the pool. Run the filter pump for 24 hours with the suction coming from the main drain (use pool vac if there is no main drain) to allow the salt to evenly disperse throughout the pool. The salt display may take 24 hours to respond to the change in salt concentration.

The only way to lower the salt concentration is to partially drain the pool and refill with fresh water.

Always check stabilizer (cyanuric acid), when checking salt. These levels will most likely decline together. Use the chart on page 6 to determine how much stabilizer must be added to raise the level to 25 ppm. Use stabilizer only if necessary.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

WEIGHT OF SALT (kg) NEEDED FOR 1.5 g/l

Current salt level g/l	M^3 of Pool water
	20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
0 30 37.5	45 52.5	60 67.5	75	82.5 90	97.5 105	1	2.5 120	127.5 135
0.2 26 32.5	39 45.5	62 58.5	65	71.5 78	84.5 91	97	5 104	110.5 117
0.4 22 27.5	33 38.5	44 49.5	55	60.5 66	71.5 77	82	5 88	93.5 99
0.6 18 22.5	27 31.5	36 40.5	45	49.5 54	58.5 63	67	5 72	76.5 81
0.8 14 17.5	21 24.5	28 31.5	35	38.5 42	45.5 49	52	5 56	59.5 63
1 10 12.5	15 17.5	20 22.5	25	27.5 30	32.5 35	37	5 40	42.5 45
1.2 6 7.5 9	10	5 12	13.5	15 16.5	18 19.5	21	22.5 24	25.5 27
1.4 2 2.5 3	3.5 4 4.5	5 5.5	6 6	5 7 7.5	8 8.5	9
1,5	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale	Ideale
1.6	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
1.8	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
2.5 & +	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute	Dilute

WEIGHT OF STABILIZER (CYANURIC ACID in kg) NEEDED FOR 25 PPM

Current Stabilizer level in ppm	M^3 of Pool water
	20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
0 ppm	0.50	0.63	0.75	0.88	1.00	1.13	1.25	1.38	1.50	1.63	1.75	1.88	2.00	2.13	2.25
10 ppm	0.30	0.38	0.45	0.53	0.60	0.68	0.75	0.83	0.90	0.98	1.05	1.13	1.20	1.28	1.35
20 ppm	0.10	0.13	0.15	0.18	0.20	0.23	0.25	0.28	0.30	0.33	0.35	0.38	0.40	0.43	0.45
25 ppm	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0

CONTROLS

Keypad Buttons

RUN/STOP: The AquaRite Pro LS will toggle back and forth between RUN and STOP with each push of the RUN/STOP button.

RUN: When in RUN mode, the AquaRite Pro LS will produce chlorine according to the desired output % or ORP setting (when AQL-CHEM is used) for the entire filtering/pumping cycle. The AquaRite Pro LS can only produce chlorine when RUN is selected and the filter pump is running.

STOP: When in STOP mode, the AquaRite Pro LS is prevented from energizing the electrolytic cell. In this position there is no chlorine generation. NOTE: To service any of the pool equipment or the AquaRite Pro LS, the power must be turned off at the circuit breaker.

SUPER CHLORINATE: (if AQL-CHEM sensing is NOT used) When you have an abnormally high bather load, a large amount of rain, a cloudy water condition, or any other condition which needs a large amount of purification to be introduced, SUPER CHLORINATE should be selected. This electronically “super chlorinates” (shocks) the water for a user selectable period of 1-96 hours (filter pump must be on during this time) or until the power has been turned off, whichever comes first. The AquaRite Pro LS will automatically revert back to the previous desired output % setting at the end of the super chlorinate period.

INFO: Push the INFO button to enter the Information Menu.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

SETTINGS: Push the SETTINGS button to enter the Settings Menu.

CURSORS (+, -, <, >): Use these buttons to scroll through submenus, make selections and adjust values.

Indicator LED's

RUN/STOP: When illuminated, the AquaRite Pro LS is in automatic mode and will produce chlorine based on the desired output % or ORP setting (when AQL-CHEM is used). When the LED is off, the AquaRite Pro LS has been manually turned off. It will not produce chlorine until RUN has been selected.

SUPER CHLORINATE: When illuminated, the Super Chlorinate feature is active.

CHECK SYSTEM: When Check System is illuminated, an error has occurred that requires attention. Refer to the Troubleshooting section of this manual for possible errors and solutions.

Information Menu

The Information Menu displays valuable system and pool information. The AquaRite Pro LS will default to displaying a portion of the Information Menu when no buttons have been pushed for 2 minutes. The unit will automatically scroll through several status displays. To access all of the Information Menu items, push the INFO button on the front panel. Advance through the various menu items using the "<" or "> " buttons. A list of the Information Menu items is shown below.

If ORP Auto Sensing is not used

The AquaRite Pro LS desired output % is shown here. If Super Chlorinate is active, the display will show the time remaining until the AquaRite Pro LS will return to the desired output %. This menu is disabled if an AQL-CHEM is used and ORP Auto Sensing is enabled (see AQL-CHEM manual).

If AQL-CHEM is used

This display will be shown only if chemical sensing is enabled. This display shows both pH and ORP levels/status when chemistry sensing is enabled via the Chemistry Configuration Wizard (requires the use of AQL-CHEM Sensing Kit). The AquaRite Pro LS will refer to these levels to determine how much chlorine to generate (ORP) and how much acid to dispense (pH). Refer to the AQL-CHEM manual for specific information about these levels as well as the recommended ranges.

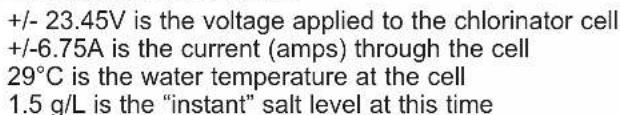

+/- 23.45V is the voltage applied to the chlorinator cell +/-6.75A is the current (amps) through the cell 29°C is the water temperature at the cell 1.5 g/L is the "instant" salt level at this time

For the chlorinator to be operating, several conditions must exist: the filter pump must be running, the flow switch must be detecting flow, the chlorinator setting must be set greater than 0%, the water temperature at the cell must be between 12°C and 60°C, and the salt level must be within the operating range. If any of these conditions are not met, the chlorinator diagnostic display will tell you the reason. It's possible to have more than one reason, in which case after you rectify what was displayed the first time, a second display will appear.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

If the current (amps) display is 0.00 A, then the chlorinator is operating normally but is in the off part of its normal operating cycle. Simply press either the “+” or “-” key to start a new cycle

The AquaRite Pro LS periodically reverses the polarity of the voltage applied to the cell in order to automatically clean off any calcium deposits that may have built up on the cell. It is important that you check the chlorinator operation in both polarities. To do this, press either the “+” or “-” buttons and the chlorinator will turn off, wait for 15 seconds and then turn on in the opposite polarity.

Salt Level

1.5 g/L

No Function

<> Move to previous/next menu item

This is the average "Salt Level" in the pool. This value is calculated over time and minimizes the effects of spikes or dips that may naturally occur.

Instant Salt

1.5 g/L (+=save)

Press to load the "Instant Salt" into the averaged salt display

Move to previous/next menu item

The “Instant Salt” is calculated based on the voltage, current (amps), and water temperature at the cell at that instant. There are a number of reasons why instant and average salt readings may differ. Some of these include salt having just been added to the pool and not yet thoroughly mixed, calcium buildup on the cell, and cell aging.

Press the "+" button to enter the instant salt value into the average salt level. The average salt level will use this new value for its calculations.

Flow Switch

Flow

No Function

<> Move to previous/next menu item

The current status of the flow switch is displayed. There is a short delay when transitioning from flow to no-flow and a longer delay on the transition from no-flow to flow. The delay time is displayed.

Main Software

Revision 1.00

No Function

< > Move to previous/next menu item

Display Software

Revision 1.00

No Function

< > Move to previous/next menu item

Chemistry Sense

Software r1.00

No Function

<> Move to previous/next menu item

Available displays depend on configuration. These displays show the software revisions of various components.

Inspect Cell

hold + to reset

Press to reset

<> Move to previous/next menu item

For optimum operation, you will need to inspect the AquaRite Pro LS chlorinator cell approximately every 3 months and clean the cell if necessary. The AquaRite Pro LS will automatically remind you and display "Inspect Cell, hold + to reset" as part of the rotating Information Menu. Clean the cell and then press the "+" button during the "Inspect Cell" display to reset the timer.

Check System

Low Salt

Function depends on displayed menu item

< > Move to next Check System condition or previous/next menu item

Refer to the Troubleshooting section for information about error conditions and possible causes.

Settings Menu

The Settings Menu is used to configure the AquaRite Pro LS and adjust various settings. Access this menu by pushing the Settings Menu button. Refer to the information below when setting system operating parameters.

To access the Settings Menu

<> Press BOTH buttons SIMULTANEOUSLY for 5 seconds to unlock

<> Move to settings menus

NOTE: To prevent unauthorized access, the settings menu automatically "locks" after 2 minutes of no buttons being pressed.

Language English

+ - Rotates between available languages < > Move to previous/next settings menu

Language

The AquaRite Pro LS can display the following languages: English (default), French, Spanish, Italian, German, Portuguese and Dutch. Select the desired language.

Chlor. Config. to view/change

+ Push to access Chlorinator option <> Move to previous/next menu item

+ - Toggle between Pool and Spa <> Move to next menu item

+ - Toggle between Salt (default) and Minerals < > Move to next menu item

+ - Toggle between available cell types < > Move to previous/next menu item

Body of Water Type

Select Pool or Spa. "Pool" should be selected for bodies of water over 4M^3 . The AquaRite Pro LS will adjust its operation according to this selection.

Display

Allows for the display of salt (default) or mineral values.

Cell Type Selection

Ref. AquaRite Pro LS T-Cell provided Cell Type	Selection in the menu
AQR-PRO-75LSE T-CELL-LS15-E T-CELL-15
AQR-PRO-50LSE T-CELL-LS9-E T-CELL-9

Note that the unit will not function properly if the wrong cell is selected.

If AQL-CHEM is used

Chemistry Config. Wizard + to enter

• Push to access Chemistry Config. Wizard
  <> Move to previous/next menu item
• • Toggle between Enabled and Disabled (default) <> Move to next menu item

Sensing System Enabled

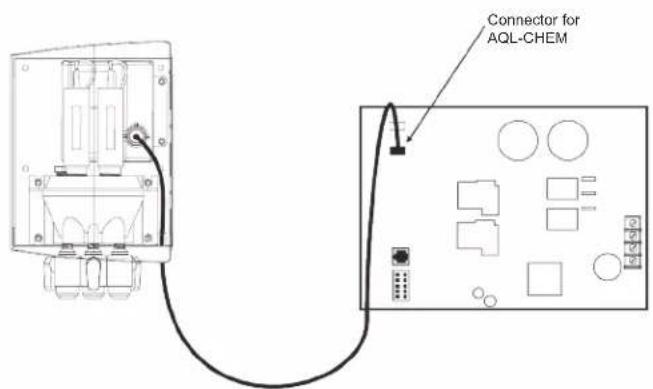

Requires use of the AQL-CHEM Sensing Kit. Following the steps of the Chemistry Config. Wizard will set up the AQL-CHEM to sense ORP and pH levels. The AquaRite Pro LS will generate the correct amount of chlorine to properly sanitize the pool based on the AQL-CHEM sensing function. Refer to the AQL-CHEM manual for more detailed information.

If ORP Auto Sensing is not used

Chlorinator 50%

+ - Adjust the desired output % for the pool < > Move to previous/next menu item

The desired output % is used to control the amount of chlorine the AquaRite Pro LS generates. Raise this setting to increase chlorine level and lower it to decrease chlorine level. If an AQL-CHEM is being used and ORP Auto Sensing is enabled (see AQL-CHEM manual), the AquaRite Pro LS will override the desired chlorinator output % setting and generate chlorine based on the pool's ORP level.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

If ORP Auto Sensing is not used

Super Chlorinate 22 hours

+− Adjust Super Chlorinate period (1-96 hours) <> Move to previous/next menu item

Use the Super Chlorinate feature when there is an unusually high bather load, a large amount of rain, a cloudy water condition, or any other condition that requires a large amount of chlorine to be introduced to the pool. Note that the filter pump must be running for the entire time during the Super Chlorinate period. Set the actual time based on the size of the pool; larger pools require more hours, smaller pools require less

If AQL-CHEM is used

Wizard + to enter

+ Push to access pH Calibration Wizard < > Move to previous/next menu item

Use this Wizard to calibrate the AQL-CHEM's pH probe. This requires a manual pH test of the pool water using a dependable red phenol test kit (see AQL-CHEM manual).

If AQL-CHEM is used

Clean Probe Wizard + to enter

+ Push to access Clean Probe Wizard < > Move to previous/next menu item

Use this Wizard to clean the AQL-CHEM's ORP and pH probes. The probes must be clean and free from oil, chemical deposits and contamination to function properly. Slow response, increased need to calibrate, and inconsistent readings are indications that the probes need to be cleaned (see AQL-CHEM manual).

Units Metric

+ - Toggle between Metric and English < > Move to previous/next menu item

The AquaRite Pro LS can display temperature and units in Metric (°C and g/L) or English (°F and PPM). Make the desired selection here.

Display Light On for 60 sec

+ - Toggle between Always On and On for 60 sec.
< > Move to previous/next menu item

This function controls the backlight on the display. Select between "Always On" and "On for 60 seconds". If "On for 60 seconds" option is selected, then the backlight will automatically turn off 60 seconds after the last key is pressed and will stay off until next time a key is pressed.

Beeper Enabled

+ - Toggle between Enabled (default) and Disabled Beeper < > Move to previous/next menu item

When "Enabled", the keypad will beep every time a key is pressed. If this audible indication is not desired, select "Disabled".

Reset Config. to Default Press +

+ Initiate reset of all configuration parameters <> Move to previous/next menu item (config, not reset)

Are you sure? + to proceed

+ Reset all configuration parameters <> Move to previous/next menu item (config. not reset)

Config. reset Confirmed

<> Move to previous/next menu item

Use this function to erase all previous system configuration and reset all configuration parameters back to the factory default values. This function is NOT reversible, be careful

OPERATION

Assuming that the water chemical levels are in the recommended range, there are three factors that you can control which directly contribute to the amount of chlorine the AquaRite Pro LS will generate:

1. filter run time each day (hours)
2. the desired output % setting or ORP setting (when using AQL-CHEM)
3. the amount of salt in the pool

The filter pump timer should be set so that entire volume of pool water passes through the filter each day. For pools with high chlorine demand, the timer may have to be set longer to generate enough chlorine.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

If AQL-CHEM sensing is NOT used. To find the optimum desired output % setting, start at approximately 50%. Test the chlorine level every few days and adjust the setting up or down accordingly. It usually takes 2-3 adjustments to find the ideal setting for your pool/spa and after that, it should only take minor, infrequent adjustments. Because the chlorine demand of the pool increases with temperature, most people find they have to adjust the desired output up at the peak of the summer and down during the colder periods.

The AquaRite Pro LS automatically stops generating when the pool water temperatures drops below 12^ C. This is usually not a problem because bacteria and algae stop growing at this temperature. You can override this low temperature cutoff by using the Super Chlorinate function for a day.

Prevent overchlorination during cold weather: Check chlorine levels periodically. Most pools require less chlorine during cold weather and the desired output % setting should be lowered accordingly.

MAINTAINING THE AQUARITE PRO LS SYSTEM

To maintain maximum performance, it is recommended that you open and visually inspect the cell every 3 months or after cleaning your filter. The AquaRite Pro LS will remind you to do this by displaying the message “Inspect/Clean Cell” after approximately 500 hours of operation.

The AquaRite Pro LS electrolytic cell has a self cleaning feature incorporated into the electronic control's logic. In most cases this self cleaning action will keep the cell working at optimum efficiency. In areas where water is hard (high mineral content) and in pools where the water chemistry has been allowed to get "out of balance", the cell may require periodic cleaning.

Servicing and Cleaning the AquaRite Pro LS Cell

Turn off power to the AquaRite Pro LS before removing the electrolytic cell. Once removed, look inside the cell and inspect for scale formation (light colored crusty or flaky deposits) on the plates and for any debris which has passed through the filter and caught on the plates. If no deposits are visible, reinstall. If deposits are seen, use a high pressure garden hose and try to flush the scale off. If this is not successful, use a plastic or wood tool (do not use metal as this will scratch the coating off the plates) and scrape deposits off of plates. Note that a buildup on the cell indicates that there is an unusually high calcium level in the pool (old pool water is usually the cause). If this is not corrected, you may to have to periodically clean the cell. The simplest way to avoid this is to bring the pool chemistry to the recommended levels as specified.

Mild Acid Washing: Use only in severe cases where flushing and scraping will not remove the majority of deposits. To acid wash, turn off power to AquaRite Pro LS. Remove cell from piping. In a clean plastic container, mix a solution of water to acetic or phosphoric acid (Like descaler for coffee machine). ALWAYS ADD ACID TO WATER - NEVER ADD WATER TO ACID. Be sure to wear rubber gloves and appropriate eye protection. The level of the solution in the container should just reach the top of the cell so that the wire harness compartment is NOT submerged. It may be helpful to coil the wiring before immersing the cell. The cell should soak for a few minutes and then rinse with a high pressure garden hose. If any deposits are still visible, repeat soaking and rinsing. Replace cell and inspect again periodically.

WINTERIZING

The AquaRite Pro LS electrolytic cell and flow detection switch will be damaged by freezing water just as your pool plumbing would. In areas of the country which experience severe or extended periods of freezing temperatures, be sure to drain all water from the pump, filter, and supply and return lines before any freezing conditions occur. The electronic control is capable of withstanding any winter weather and should not be removed.

Spring Start-up

DO NOT turn the AquaRite Pro LS on, until the pool water chemistry has been brought to the proper levels. This information can be found on page 4.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

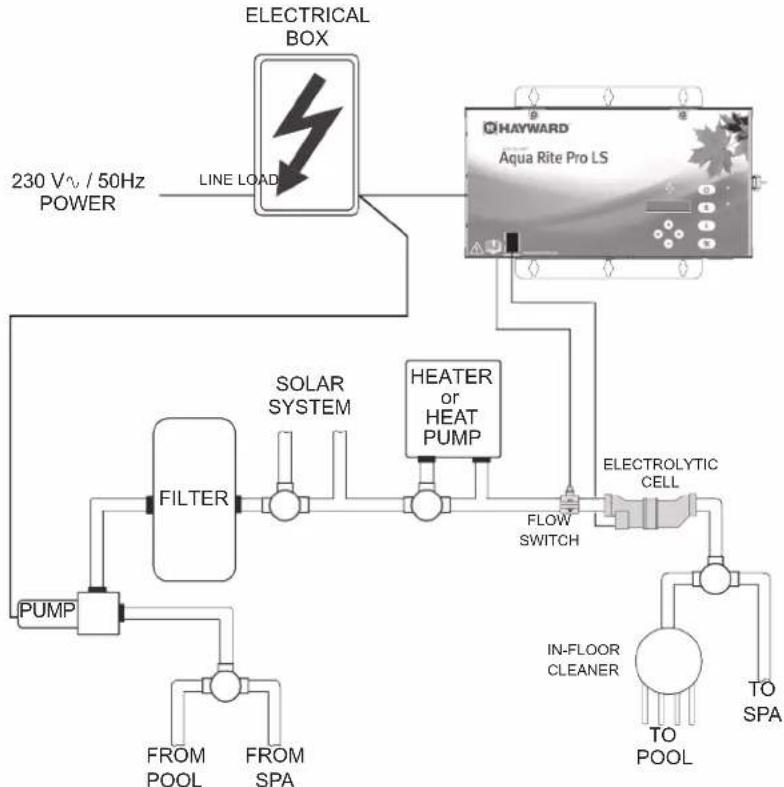

INSTALLATION

Installation must be performed in accordance with Local codes.

Preparing Pool Water

Refer to page 4 for recommended chemical levels. The pool's chemistry must be balanced BEFORE activating the AquaRite Pro LS. NOTE: If the pool does not have new water, add 1 liter of metal remover and 1 liter of non-copper based algaecide to the pool, per manufacturer's instructions. This ensures a quick, troublefree transfer to the AquaRite Pro LS system.

Mounting the AquaRite Pro LS Control

The AquaRite Pro LS is contained in a raintight enclosure that is suitable for outdoor mounting. The control must be mounted a minimum 3.5 meters horizontal distance (or more, if local codes require) from the pool/spa.

The control is designed to mount horizontally on a flat surface with the knockouts facing downward. Because the enclosure also acts as a heat sink (disperses heat from inside the box), it is important not to block the four sides of the control. Do not mount AquaRite Pro LS inside a panel or tight enclosed area.

If an AQL-CHEM kit will be used, take into consideration the space necessary for mounting the unit as well as running the plumbing lines from the AQL-CHEM's probe cell to the pool plumbing. Refer to the AQL-CHEM manual for specific mounting instructions.

Plumbing

Ensure that the AquaRite Pro LS installation does not constitute a cross connection with the local potable water supply. Consult local plumbing codes.

The AquaRite Pro LS is packaged with a flow switch that installs into the supplied 50 mm saddle clamp. The chlorinator cell, sold separately, installs into the supplied 50 mm cell unions.

The flow switch and cell should be plumbed in the return line to the pool/spa. The preferred installation is after (downstream) all the pool equipment (filter, heater, solar, etc.). For proper plumbing, refer to the overview diagram above.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

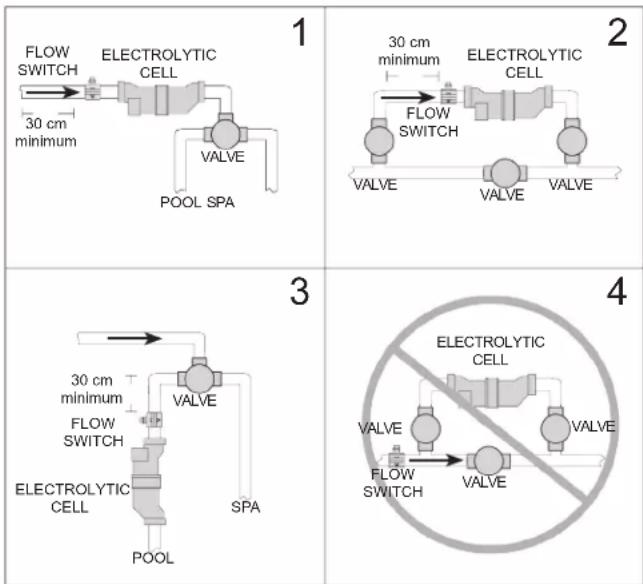

Below, alternate configuration #1, #2 and #3 shows the flow switch must be in front of the cell. Never use configuration #4. The #2 is the best configuration.

Flow Switch: IMPORTANT: There must be at least a 30 cm straight pipe run before (upstream) the flow switch. The flow switch must be plumbed before the cell. To ensure proper operation, verify that the arrow on the flow switch (located on top of gray hex) points in the direction of water flow. Refer to the diagram below.

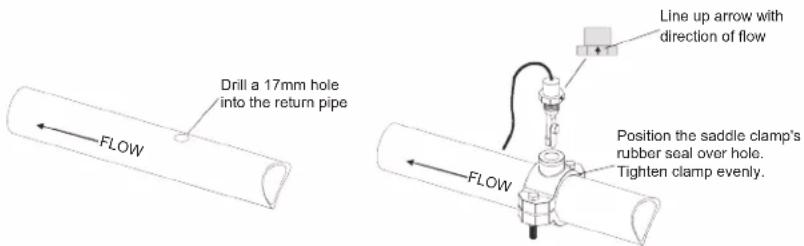

Drill a 17mm hole into the return pipe FLOW Line up arrow with direction of flow Position the saddle clamp's rubber seal over hole. Tighten clamp evenly. FLOW

Electrolytic Cell: Install using the unions provided. Tighten unions BY HAND for a watertight seal. For pool/spa combination systems with spillover, use configurations #2 or #3 above to allow chlorination of both the pool and spa during spillover but preventing overchlorination when operating the spa only.

Wiring

Power must be shut off at the circuit breaker before performing any wiring. Be sure to follow Local electrical codes. To provide safe operation, the AquaRite Pro LS must be properly grounded. All metal equipments of the pool must be at the same electrical potential (ground).

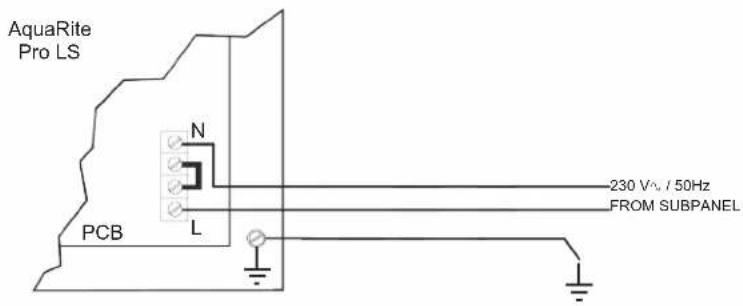

Input Power:

Wire the AquaRite Pro LS to the 230 V ^v from the subpanel.

This circuit must be protected by a differential protection device that protects against no more than 30ma leakage current.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Input power to the AquaRite Pro LS must be 230 V/50Hz. Refer to the wiring label on the AquaRite Pro LS as well as the diagram below for correct wiring connections.

TYPICAL 230 V\~ / 50Hz WIRING

AquaRite Pro LS N PCB L -230 V/50Hz FROM SUBPANEL

Electrolytic Cell and Flow Switch:

The electrolytic cell and flow switch cables are terminated with connectors which plug into the AquaRite Pro LS for easy attachment and removal. The door of the AquaRite Pro LS must be open and the front panel removed to access the cell cable and flow switch connectors. Route the flow switch cable through one of the knockouts. A cutout in the enclosure is provided for the cell cable. The diagram below shows the location of these connections.

Flow Switch Connector Cell Connector

AQL-CHEM Chemistry Kit

Plug the connector from the AQL-CHEM into the designated connector on the AquaRite Pro LS PCB as shown below. For detailed installation and operation information, refer to the AQL-CHEM instructions.

Connector for AQL-CHEM

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

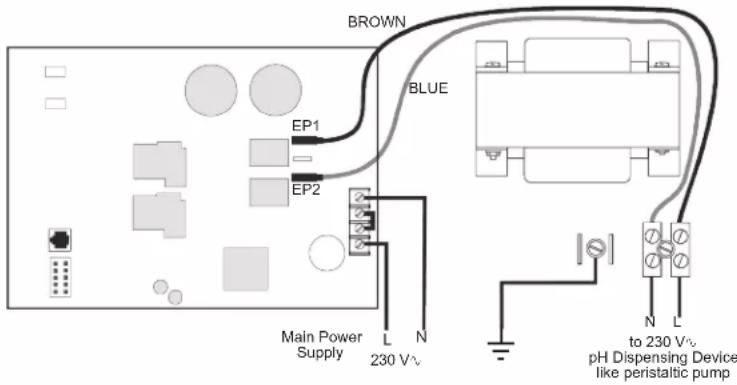

pH Dispense Wiring

A screw terminal block located on the enclosure surface below the transformer is provided for connection to a 230 V/pH related dispensing device (peristaltic pumps). After properly installing and configuring the AQL-CHEM and the pH dispensing device, the AquaRite Pro LS will turn on the dispensing device when pH correction is required.

230 V\~ pH Dispensing Device

BROWN BLUE EP1 EP2 Main Power Supply L N 230 V~ to 230 V~ pH Dispensing Device like peristaltic pump

TROUBLESHOOTING

The "CHECK SYSTEM" LED will alert you when the AquaRite Pro LS detects any of the following conditions that are abnormal and require attention for optimal operation of your pool. Press "<" or "> " to view all of the existing "Check System" conditions.

• Inspect Cell -- For optimum operation, you will need to inspect the AquaRite Pro LS chlorinator cell approximately every 3 months and clean the cell if necessary. The AquaRite Pro LS will automatically remind you when it is time and display “Inspect Cell, + to reset” as part of the rotating Default Menu. Clean the cell (see instructions, page 11) and then press the “+” button during the “Inspect Cell” display to reset the timer.
• High Salt/Amps -- The AquaRite Pro LS will stop generating chlorine under certain high salt conditions in order to protect the internal electronics from damage. The only way to lower the salt level is to partially drain the pool and add fresh water.
• Chlorinator Cell Sensor -- The cell sensor is either an open or short circuit.
• Low Volts -- If the chlorinator cell voltage is too low.
• No Cell Power -- If no chlorinator cell power is detected on the printed circuit board.
• Check Flow Switch -- If the flow switch input is invalid.
• Cell Power Error -- If a chlorinator cell power error is detected on the printed circuit board.
• Cell Missing -- If the chlorinator is enabled but no cell is detected.
• CSM Comm Error -- If Chemistry Sensing is enabled and the Chemistry Sense Module (CSM) is not responding.
• pH Probe Error -- If the CSM indicates that there is a problem with the pH probe.
• pH Low - Check Feeder -- If a pH level of 6.9 or less is detected, check the feeder for proper operation

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

HAYWARD®

• pH High - Check Feeder -- If a pH level of 8.1 or higher is detected, check the chemical supply and the feeder for proper operation
• pH Timeout - Check Feeder -- If the unit has been dispensing for more than the selected timeout without reaching the desired level. Check the chemical supply and the feeder. If both are OK, the timeout may need to be increased. Press the “+” button to reset the alarm and resume dispensing.
• pH Calibration Error -- When using the pH Calibration Wizard and the entered test result was different from the measured pH level by ± 1.0 or more. The pH probe may need to be cleaned or replaced.
• ORP Probe Error -- If the CSM indicates that there is a problem with the ORP probe.
• ORP Low - Check Chlor -- If an ORP level of 350mV or less is detected. Check the chlorinator for proper operation. Check the salt level (> 1.2 g/l)
• ORP High - Check Chlor -- If an ORP level of 950mV or higher is detected. Check the chlorinator for proper operation.
• ORP High - Chlor Off -- If an ORP level of 950mV or higher is detected and the chlorine feed mode is ORP Auto Sensing, the chlorinator has been turned off. Check the chlorinator for proper operation.
• ORP Timeout -Chlor Off -- If the unit has been chlorinating for more than the selected sanitizer timeout without reaching the desired level, the chlorinator has been turned off. Press the “+” button to reset the alarm and resume chlorination.
• Ambient Sensor -- If the internal (ambient) sensor is either open or short circuit.

Abstract geometric logo with stylized letter H inside a dark circular frame (no text or symbols)

HAYWARD®

HAYWARD® GOLDLINE® Aqua Rite Pro LS www.hayward-pool.com

CE i

AQUARITE® PRO LS

MANUAL DEL USUARIO

CONSERVE ESTE MANUAL PARA CONSULTARLO POSTERIORMENTE

Abstract geometric logo with stylized letter H inside a dark circular frame (no text or symbols)

HAYWARD®

HAYWARD® GOLDLINE® Aqua Rite Pro LS www.hayward-gotel.com

CE i

AQUARITE® PRO LS

ANWENDER - HANDBUCH

30 cm Minimum ZELLE FLOW SWITCH VENTIL VENTIL VENTIL 2

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD GOLDLINE® Aqua Rite Pro LS www.hayward-gotel.com

CE i

AQUARITE® PRO LS

GEBRUIKERSHANDBOEK

DIT HANDBOEK BEWAREN VOOR TOEKOMSTIG GEBRUIK

OPGELET: Risico op elektrische schok.

http://www.hayward.fr/en/services/register-your-product

Voor uw informatie

Assistant chloor-con-

30 cm minimum Flow SWITCH CEL KLEP KLEP KLEP 2

4 KLEP FLOW SWITCH CEL KLEP

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

HAYWARD® GOLDLINE® Aqua Rite Pro LS www.hayward-gotel.com

CE i

AQUARITE® PRO LS

MANUALE PER L'USO

http://www.hayward.fr/en/services/register-your-product

Dati da conservare

Cella e "flow switch":

All HAYWARD products are covered for manufacturing defects or material defects for a warranty period of 2 years as of date of purchases. Any warranty claim should be accompanied by evidence of purchase, indicating date of purchase. We would therefore advise you to keep your invoice.

The HAYWARD warranty is limited to repair or replacement, as chosen by HAYWARD, of the faulty products, provided that they have been subjected to normal use, in compliance with the guidelines given in their user guides, provided that the products have not been altered in any way, and provided that they have been used exclusively with HAYWARD parts and components. The warranty does not cover damage due to frost and to chemicals. Any other costs (transport, labour, etc.) are excluded from the warranty.

HAYWARD may not be held liable for any direct or indirect damage resulting from incorrect installation, incorrect connection, or incorrect operation of a product.

In order to claim on a warranty and in order to request repair or replacement of an article, please ask your dealer.

No equipment returned to our factory will be accepted without our prior written approval.

Wearing parts are not covered by the warranty.

Wear parts are : gasket and plate coating of cell

GARANTÍA LIMITADA

BESCHRÄNKTE GARANTIE
