USER MANUAL AquaRite NEO LS HAYWARD

Abstract geometric logo with stylized letter H inside a dark circular frame (no text or symbols)

HAYWARD®

Exterior view of a modern air conditioner unit with digital display and control buttons (no visible text or symbols)

® Neo

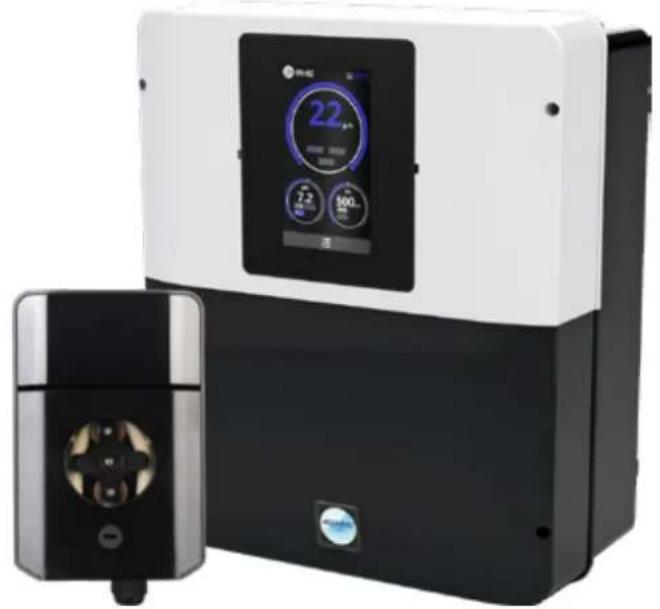

Exterior view of two industrial water treatment devices with digital displays (no visible text or symbols)

AquaRite ^® Neo pHAqua

CE EAC UK CA

Two simple line drawings: an open book icon with an information symbol, and an open book with a closed section (no text or symbols)

GUIDE DE L'UTILISATEUR OWNER'S MANUAL MANUAL DEL USUARIO MANUAL DO UTILIZADOR ANWENDERHANDBUCH GEBRUIKERSHANDLEIDING MANUALE D'USO

ISAQRNEO Rev A 2025

HAYWARD®

Exterior view of a modern industrial air purifier unit (no visible text or symbols)

AquaRite® Neo AquaRite

Exterior view of a modern industrial air purifier unit with digital display and control panel (no visible text or symbols)

Neo pH

CE EAC UK CA

GUIDE DE L'UTILISATEUR

CONSERVEZ CE MANUEL POUR UNE CONSULTATION ULTÉRIEURE

HAYWARD POOL EUROPE - 1070 Allée des Chênes - CS 20054 Saint Vulbas - 01154 Lagnieu Cedex - France

HAYWARD

HAYWARD

1. CONDITIONS DE GARANTIE ET EXCLUSIONS

POUR LES PAYS DE L'UNION EUROPÉENNE 17

1. INFORMATIONS ENVIRONNEMENTALES

2. DÉCLARATION DE CONFORMITÉ

HAYWARD

1. DESCRIPTION DE L'APPAREIL

Kit solutions tampons

Sonde température

Porte Sonde Presse étoupé Bouchon 1/2" Joint 1/2"

* Neo AquaRile

3b. Installation murale

The quick brown fox jumps over the lazy dog.

Exterior view of a modern industrial air purifier unit with control panel (no visible text or symbols)

AquaRite® Neo AquaRite

Exterior view of a modern appliance with digital display and control panel (no visible text or symbols)

Neo pH

CE EAC UK CA

AquaRite Neo

OWNER'S MANUAL

KEEP THIS GUIDE FOR FUTURE REFERENCE

* Neo

WARNING: Electrical hazard

Failure to comply with these instructions can result in serious injuries or death.

THE EQUIPMENT IS INTENDED TO BE USED ONLY IN SWIMMING POOLS

⚠ WARNING – Carefully read the instructions that appear in this manual and on the device. Failure to comply with the instructions can cause injuries. This document must be given to every pool user, who should keep it in a safe place.

⚠ WARNING – Disconnect the equipment from the mains supply before any intervention.

⚠ WARNING – All electrical connections must be carried out by a qualified approved electrician in accordance with the standards currently in force in the country of installation or, failing this, in accordance with the international standard IEC 60334-7-702.

⚠ WARNING - Check that the device is plugged into a power outlet that is protected against short-circuits. The device must also be powered via an isolating transformer or a residual current device (RCD) with a nominal operating residual current not exceeding 30 mA.

⚠ WARNING – Ensure that children cannot play with the device. Keep your hands and any foreign object away from openings and moving parts.

⚠ WARNING – Check that the supply voltage required by the product corresponds to the voltage of the distribution network and that the power supply cables are suitable for the product power supply.

⚠ WARNING – Chemicals can cause internal and external burns. To avoid death, serious injury and/or damage to equipment, wear personal protective equipment (gloves, goggles, mask, etc.) when servicing or maintaining this device. This device must be installed in an adequately ventilated place.

⚠ WARNING – The unit must not be operated when there is no water flow in the cell.

⚠ WARNING – The cell must be located in a well ventilated environment so hazardous accumulation of hydrogen gas does not occur.

⚠ WARNING – To reduce the risk of electric shock, do not use an extension cable to connect the device to the mains. Use a wall socket.

⚠ WARNING – Use, cleaning or maintenance of the device by children over 8 years of age or by people with impaired physical, sensory or mental capacities, or a lack of experience or expertise, should only take place once they have received appropriate instruction and under adequate supervision of an adult who is responsible for them, to ensure the device is handled safely and avoid all risk of danger. This device must be kept out of reach of children.

⚠ WARNING – Use only original Hayward® parts.

⚠ WARNING – If the power supply cable is damaged, it must be replaced by the manufacturer, the after-sales service or similarly qualified persons to avoid danger.

⚠ WARNING – The device must not be used if the power cord is damaged. An electric shock could occur. A damaged power cord must be replaced by the after-sales service or similarly qualified persons to avoid danger.

* Neo AquaRile

Page 2 on 16 Page 3 on 18AquaRite

Only use spare parts supplied by Hayward brands®

HAYWARD

1. DESCRIPTION OF THE DEVICE 4

2. PACK CONTENTS 4

3. INSTALLING THE DEVICE 5

3a. General view of installation and electricity use 5

3b. Installation on a wall 6

3c. Connecting the electronic circuit board 6

3d. Cabling the box 7

3e. Installing the cell and the mechanical flow switch 8

4a. View and description of the home screen 9

4b. Electrolysis / hydrolysis menu 9

4c. Configuring the box 10

1. CONNECTING AND CONFIGURING THE OPTIONS 11

5a. Installation and start-up of the pH option 11

5b. Installation and start-up of the Rx (ORP) option 12

5c. Installation and start-up of the temperature option 13

5d. Installation and start-up of the WIFI module 14

1. DESCRIPTION OF MESSAGES / ALARMS 15

2. CHEMICAL WATER BALANCE 15

3. TROUBLESHOOTING GUIDE 16

4. APPENDICES 16

9a. Configuring the cell safety feature 16

1. WARRANTY CONDITIONS

AND EXCLUSIONS FOR EUROPEAN UNION COUNTRIES 17

1. ENVIRONMENTAL INFORMATION 17

2. DECLARATION OF CONFORMITY 17

* Neo

Only use spare parts supplied by Hayward brands ^®

HAYWARD

1. DESCRIPTION OF THE DEVICE

Control system:

The pool salt chlorinator AquaRite® Neo (LS included) is a chemical water treatment system, water disinfection system, and automatic pH regulator. Remote management is possible using the WiFi or Ethernet options.

Water treatment:

AquaRite® Neo: Chlorine is produced by electrolysis of water at a low salt concentration. The electrolysis cell produces sodium hypochlorite (liquid chlorine) starting at 3g of salt per litre. The chlorine combats and eliminates the bacteria, viruses and pathogenic agents, and oxidises the organic matter present in the water. The sodium hypochlorite used recombines into salt after a few hours.

AquaRite ^® Neo Low Salinity: It is an effective water treatment method for your pool that uses electrolysis and hydrolysis of salt water. To operate, the salt chlorinator requires a very low concentration of salt (1.5 g salt per litre) in the pool water. The cell produces sodium hypochlorite (liquid chlorine) and free radicals with more powerful disinfection capabilities than sodium hypochlorite. The chlorine and the free radicals combat and eliminate the bacteria, viruses and pathogenic agents, and oxidises the organic matter present in the water. The sodium hypochlorite used recombines into salt after a few hours.

The quantity of aerobic required to treat a pool correctly varies depending on the number of swimmers, the number of hours of filtration, precipitation levels, the water temperature, and the water cleanliness and maintenance of its chemical balance.
Before installing this product on the filtration system of a pool or of a spin with an adjacent clock or clock made up of radial stones, except a qualified controller, who will select you about the type. Installation, underweight (if required) and maintenance of the stones placed around a pool containing salt.
① Chlorine production (g/h or %), claims, the measured pH. Fix and temperature values are visible and updated on the screen.

12 inch flow switch

4 ancho 4 wall mountin 4 keyhole h 4 screws for

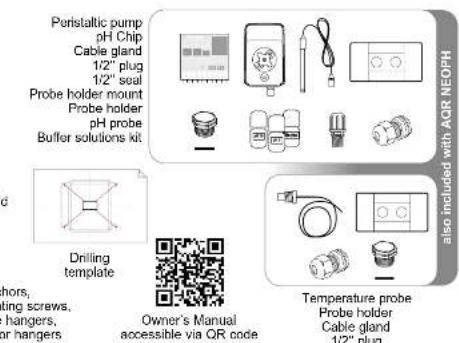

2. PACK CONTENTS

Peristaltic pump pH Chip Cable gland 1/2" plug 1/2" seal Probe holder mount Probe holder pH probe Buffer solutions kit Drilling template Owner's Manual accessible via QR code Temperature probe Probe holder Cable gland 1/2" plug also included with AQR NEOPH

* Neo AquaRite Page 4 on 18 Page 5 on 18AquaRite
Only use spare parts supplied by Heyward brands

HAYWARD

3. INSTALLING THE DEVICE

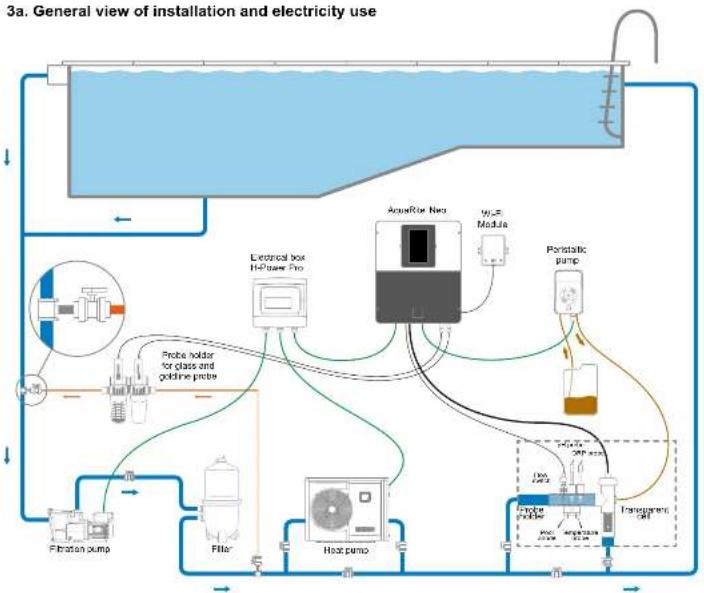

3a. General view of installation and electricity use

Maximum consumption and generation

△ Use of a 16 A time-delay circuit breaker is recommended for the box.

Product Maximum consumption g CIVh
AQR-NEOPH-08 65W 8
AQR-NEO-16 / AQR-NEOPH-16 120W 18
AQR-NEO-22 / AQR-NEOPH-22 130W 22
AQR-NEO-33 / AQR-NEOPH-33 150W 33
AQR-NEO-50 / AQR-NEOPH-50 150W 50
AQR-NEO-1LS	120W	Equity 15
AQR-NEO-2LS	150W	Equity 30
AQR-NEO-3LS	150W	Equity 45

Neo
Only use spare parts supplied by Hayward brands*

HAYWARD

3b. Installation on a wall

• Without opening the lid, screw the 4 keyhole hangers to the back of the box.
• Locate the position of the 4 keyhole hangers using the drilling template.
• Drill 4 holes in the wall and insert the 4 anchors into them.
• Screw the 4 mounting screws to the wall and hang the device vertically with the cell connector positioned at the bottom.

The box must be installed in the plant room (dry, temperate conditions, ventilated). Take care, acidic vapour can irreversibly damage your device. Take this into account in the positioning of the treatment product storage containers. Unplug the pool filter pump before you begin the installation. The installation must be performed in compliance with the regulations in effect in the country of installation. The box must be installed at a minimum horizontal distance of 3.5 metres (or more, if local legislation requires it) from the pool, at less than 1 metre from a protected socket, and at less than 4.5 metres from the planned position of the cell. The box must be installed vertically, on a flat surface, with the cables orientaled downwards. Given that the box is also used for evacuating heat (heat dissipation from the internal components), it is important for space to be left around the four sides of the box. Don't mount the box behind a partition wall or in a closed environment. Before you fix the control box in place in the planned position, check that the power supply cord reaches the protected socket and that the cell cable reaches the planned cell installation position. All metal pool components can be connected to the same earth in accordance with local regulations.

Technical line drawing of a heat exchanger or radiator unit with no visible text or symbols

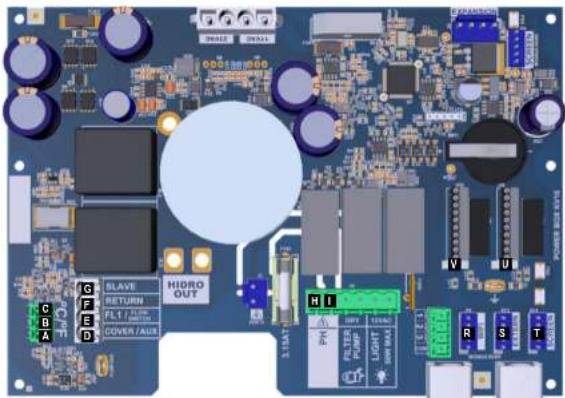

3c. Connecting the electronic circuit board

Remove the black lid by unscrewing the 4 screws using a screwdriver.

△ Connect the sensors with great care. A bad connection may irreparably damage the device.

G S F E D C B A SLAVE RETURN FL:1 / FL:2 COVER / FAIR HIDRO OUT R I PH FILTER PUMP LIGHT RUN MAX V U R S T

Neo AquaRile
Page 6 on 18 Page 7 on 18AquaRite
Only use spare parts supplied by Hayward brands

HAYWARD

Connection of inputs:

Board Label Description Terminals Input / output type
Main	PC	Temperature probe	A-B-C	Red, yellow, black
Main	COVER / AUX	Closed shutter defector	D-F	Dry contact
Main	FL1 / FLOW SWITCH	Mechanical flow switch	E-F	Unpowered dry contact
Main	SLAVE	Terminal for master or slave unit	G-F	Dry contact
Main	PH	Perisatilic or electromagnetic closing pump	H-I	Output voltage 230 VAC 5 A max
Main SCREEN	Remote screen (option)	R		Modbus RS465 Pin top to bottom and free yellow green block
Main	WiFi	WiFi or Ethernet module (as an option)	S	Modbus RS465 Pin top to bottom and free yellow green block
Main	EXTERN	Standard communication connector	T	Modbus RS465 Pin top to bottom and free yellow green block
Main	PH	pH chip connection, annotation and LED on the left	U	5 VDC
Main	RX	FX chip (option) connection, annotation and LED on the left	V	5 VDC

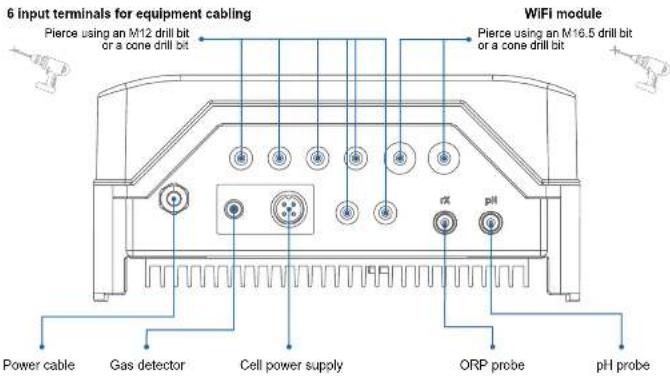

3d. Cabling the box

6 input terminals for equipment cabling Pierce using an M12 drill bit or a cone drill bit WiFi module Pierce using an M16.5 drill bit or a cone drill bit Power cable Gas detector Cell power supply ORP probe pH probe

*Neo
Only use spare parts supplied by Hayward brands*

HAYWARD

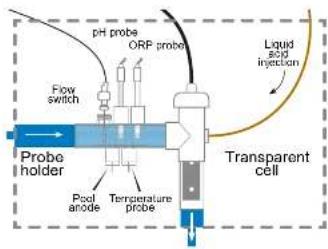

3e. Installing the cell and the mechanical flow switch

pH probe ORP probe Flow switch Probe holder Pool anode Temperature probe Liquid SOD injection Transparent cell

△
The installation has 2 safety features: the mechanical flow switch and the gas detector in the cell.
①
If the device is being installed with 50 mm diameter pipework, please consult the spare parts sheet for the slip adaptor fittings.

Installing and connecting the cell (see diagram):

• Install the cell mount vertically (if it is installed horizontally, please read the technical information sheet appendices to correctly adapt the box programming).
  • Install the cell in a bypass.
• Connect the power supply cable underneath the box using the 4-pin socket, and the gas detector to the RCA socket.

Installing and connecting the mechanical flow switch:

• Install the flow switch mount before the cell and on the bypass.
- Screw the flow switch onto the 14 " male thread.
- Connect the red and black cables to the electronic circuit board terminals Ⓤ and Ⓔ

HAYWARD

The device is designed to be permanently plugged in to a protected socket. The AquaRite Neo must not be unplugged except to carry out pool equipment maintenance or if the pool must be closed (wintering).

When the water parameters are within the recommended ranges, you can start up the device.

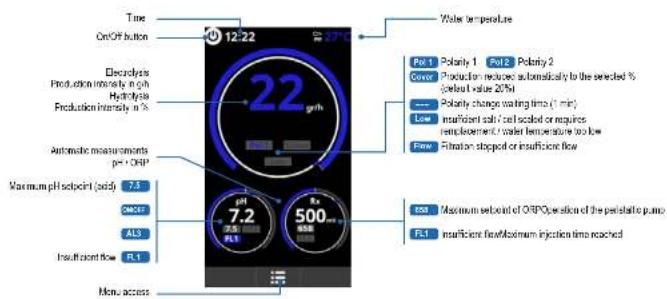

4a. View and description of the home screen

Time On/OFF button Electrolysis Production intensity in g/h Hydrolysis Production intensity in % Automatic measurements pH x OBP Maximum pH spotpoint (sod) CMCF AL3 Insufficient flow RL1 Menu access 12:22 22 gr/h 7.5 7.2 PL1 Rx 500 R× Water temperature Pot 1 Pot 2 Pot 2 Cover Production reduces automatically to the selected % (least value 20%) Potarity change waiting time (min) Low insufficient salt/cell scaled or requires remplacement/water temperature too low Flow Filtration stopped or insufficient flow 650 Maximum sebond of OBP/Oxation of the parietal pipe FL1 Insufficient flow/maximum injection time reached

4b. Electrolysis / hydrolysis menu
△ Chlorine production depends on the gas detector and the mechanical flow switch.

Electrolysis / Hydrolysis: Programming of electrolysis/ hydrolysis functions.

Level Production of chlorine (g/m) desired for electrolysis Production of chlorine (%) desired for hydrolysis.

Shock treatment: Continuous filtration for 24 hours at maximum intensity. Automatic return to the programmed filtration mode. During the shock treatment, ORP control can be deactivated.

Cover: Recuperin in % chlorine production when the cover is closed. When the cover is closed, Ile not necessary for the electrolysis to operate at 100%. Adjust the % reduction in chlorine production.

Neo AquaRile

Page 6 on 18 Page 9 on 18AquaRite

Only use spare parts supplied by Hayward brands

* Neo

Only use spare parts supplied by Hayward brands*

HAYWARD

4c. Configuring the box

Language: setting of the preferred language. Data and time: setting of the day and time. Screen: adjustment of screen brightness (0-100%); programming of screen on/off times and of display of the main screen.

Time Info: the system registers the secret hours of operation of the cell and displays this value on the screen. The number in test cells corresponds to the number of counter results. System Info: information should the available software version of the TFT screen and the power module. The node ID required for configuration of the system WiFi connection is also indicated.

Neo AquaRile

Page 10 on 16 Page 11 on 18AquaRite

Only use spare parts supplied by Hayward brands

HAYWARD

5. CONNECTING AND CONFIGURING THE OPTIONS

5a. Installation and start-up of the pH option

• Open the lid, and connect the pH CHIP card to the PH slot (see section 3C).
  Connect the dosing pump to the pH terminal using a cable gland (see sections 3C and 3D)
  and close the lid
  Install the probe and its mount in the pipework, and connect the probe to the box (see section 3D).
• Follow the pH kit instructions to inject liquid.
  ● Tum the box off and on using the switch.
  The Measures menu appears automatically to enable the setpoint to be configured and to perform the calibration.

The lifetime of the probable 1 year. We recommend that you change it every year.

Operation of the liquid pH dosing pump:

• The pump starts up according to the setpoint set in the Measures - Setpoints - pH acid menu (setpoint < pH of water).
• By default, the maximum dosing time is 120 mins to avoid acidification of the water (Al. 3).
• A proportional injection method is used: 10 minutes ON (variable as a function of the difference between the value measured and the setpoint) + 5 minutes OFF (fixed).
  • A change of dosing mode from acid to alkali is possible (contact your installer).
  • The pump is equipped with a stop/start switch.

The Bartoprene tube of the peristallic pump has a lifetime of 2 years.

We recommend that you change it once a year.

① We recommend injection of sulphuric acid to avoid confection and pose

Configuring the pH setpoint:

Measures:

Adjustment of asipants

Setpoints

Setpoints for each of the measurements.

Determination of setpoints:

Comparison of the English text in Chinese. The default value is 7.2.

* Neo

Only use spare parts supplied by Hayward brands*

HAYWARD

Calibrating the pH probe:

△ Always begin the calibration procedure with a calibration reset.

pH calibration:

Calibration of the oil probe; recommended every 2 months during the session the pool is in use.

Buffer:

Calibration using buffer solutions (pH7 / pH10 / neutral buffer solutions); follow the 7-seep instructions which appear on the screen (the Step 1/7 screen corresponds to step 1). Reset call:

The Reset Cal option deletes all calibrations performed previously.

C/ffwd:

Manual calibration: with this method the probes can be calibrated using 1 point (no buffer solution) - recommended only in the case of small measurement differences.

Without remaining the probe from 5-water, adjust the measure displayed using the plasiminus buttons so that it concludes with the reference value (photometry or other measurement device).

5b. Installation and start-up of the Rx (ORP) option

- Open the lid, and connect the RX CHIP card to the Rx slot (see section 3C).

Install the probe and its mount in the pipework, and connect the probe to the box (see section 3D) and close the lid.

- Turn the box off and on using the switch.

- The Measures menu appears automatically to enable the setpoint to be configured and to perform the calibration.

The lifetime of the proof is 1 year. We recommend that you change it every year.

Operation of the ORP module:

- When the redox (ORP) option is connected, the electrolysis cell starts up whenever the measured redox value drops below the setpoint.

Configuring the rX setpoint:

Measures:

Adjustment of selpoints.

Setprints

Sequoia 34 mars of the mislabelleda

Determination of setpoints: Configuration of the deal levels for each parameter

The default sepcert value is 700 mV.

Neo AquaRile

Page 12 on 16 Page 13 on 18AquaRite

Only use spare parts supplied by Heyward brands

HAYWARD

Calibrating the Rx (ORP) probe:

△ Always begin the calibration procedure with a calibration reset.

5c. Installation and start-up of the temperature option

- Open the lid and connect the temperature probe using a cable gland (see sections 3C and 3D) and close the lid.

Configure the temperature probe in the box.

The value of the temperature appears at the top right of the screen.

Configuring the temperature probe in the box:

Go to System settings

Go to Service Menu
and pink OK

Enter the password:
Counsel your existing

Go to Extra Settings and
ринки ОК

Go to the Temperature.
men, select Standard
the selection

Neo

Only use spare parts supplied by Hayward brands*

HAYWARD

5d. Installation and start-up of the WiFi module

• Open the lid and pierce the box with a 16.5 drill bit (see section 3D).
  ③ Pass the WiFi cable connector through this, position the cable gland.
• Connect the white WiFi connector to the WiFi slot (see section 3C) and close the lid.
  The Network menu appears automatically in the System settings menu.
• Configure the WiFi connection in the box and on your telephone or on the website.

Check that the 2 LEDs of the WiFi module are continuously on before connecting via the sign or the website.

WIFI:
Select WIFI to scan the networks within reach of the module. The search is done automatically. Select the desired networks that is within reach of the WIFI module.
Enter the password for this network using the setup. To confirm, press OK
Enter AP
If the network is not found automatically, manually enter the name and the password of the desired network.
System settings:
If you use to configure the settings in more detail. By default, leave DHCP = ON.
Status:
Verify the status of your connection. Display the exchanges of data received from and sent to the servers.

Configuring the connection on your telephone and/or the website:

△ Once the module is connected to the WiFi network with the low LEDs continuously on (hand), you can register yourself at broadcast by us and use a proxy.
Make sure you have your Node ID (in the power module menu) and follow the registration process. You can scan the QR code and copy/paste it into the registration form. Once you have registered, you can supervise and manage all the parameters in your box remotely with Hayward Pool/Watch.

① The Hayward Feewatch app is available on the App Store and Google Play and is free.

△ Only WiFi networks with a frequency of 2.4 GHz are accepted by the module

Neo AquaRile

Page 14 on 16 Page 15 on 18AquaRite

Only use spare parts supplied by Hayward brands

HAYWARD

1. DESCRIPTION OF MESSAGES / ALARMS

P1/P2	Cell operation polarity. The cell automatically reverses its polarity to perform self-cleaning.
COV	The cover detector indicates that the cover is closed. Production is automatically reduced to the value registered in the Electrolysis menu.
FL1/FLOW	Lack of flow through the installation. Check the mechanical flow switch and the gas detector and make sure the pressure is correct. · Check the mechanical flow switch and the gas detector. · Check that the filtration pump works. · Check that nothing is obscuring the pipes (valve is closed, strainer or filter are full, etc.). · Check that the 4A fuse is not faulty.
LOW	The device is not reaching the desired level of production. This may be due to several factors. · a lack of salt. · sealed salt. · exhausted cell (check the line counter) · low water temperature
AL3	The maximum allowable time for the pH setpoint to be reached has ended. The acid pH dosing pump has been stopped to avoid excess dosage and acidification of the water. Make the following checks: · Check that the liquid pH container is not empty. · Check that the pH value read on the machine corresponds to the pH of the pool (use a pH analysis kit). If this is not the case, calibrate the pH probe or change it, if necessary. · Check that the pH pump is operating normally. · Check the correction time selling. To make this message dispatcher and re-start the dosing, press and hold "back" for 3 seconds.

7. CHEMICAL WATER BALANCE

The water must be balanced manually BEFORE the device is started up.

The following table summarizes the concentrations recommended by Hayward. Your water should be checked regularly to maintain these concentrations and minimize surface corrosion or deterioration.

Chemistry Recommended concentrations
Salt 3 g/L 1.5 g/L for low acidity modes
Free oil line 0.5 to 2.5 gpm
≤7.2 to 7.6
Cyanuric acid (Selenzene)	20 to 30 ppm max.(Add sebizen only if necessary)6 ppm in either pool
Tolu alkaliety 80 to 120 ppm
Water hardness 200 to 300 ppm
Motals 9 ppm
Langifer index (0.2 to 0.2 preferably 9)

Neo

Only use spare parts supplied by Hayward brands*

HAYWARD

8. TROUBLESHOOTING GUIDE

No display

Check the connection cable between the display and the control box.

Check that the 4A fuse is not defective (located inside the control box).

Check the power supply: 220-230 V, 50/60 Hz. If the problem persists, contact your pool installer/builder.

Excessive chlorine

Check and/or adjust the chlorine production setting. If your pool has an automatic ORP control system, check the ORP setting. Check the ORP probe and calibrate, if necessary.

Salt chlorination does not reach the required production rate

Check the concentration of salt in the water (depending on the model).

Check the condition of the cell (it may be dirty or covered in scale).

Clean the cell according to instructions.

Check the flow switch and clean if necessary. Check that the cell is not worn (contact your pool installer/builder).

Cell scaled up in under a month

Very hard water with high pH and total alkalinity (balance and adjust the pH and total alkalinity of the water). Check that the system automatically changes polarity (see display).

Impossible to attain a free chlorine level of 1 ppm

Increase the filtration time.

Increase the chlorine production rate of the electrolysis. Check the concentration of salt in the water (see table Chemical water balance).

Check the level of isocyanuric acid in the pool (see table Chemical water balance).

Check that the reactive agents in your test kit are not out of date.

Adjust the chlorine production according to the temperature and the number of pool users.

Adjust the pH to ensure that it is always below 7.8.

White flakes in the pool

This occurs when the water is unbalanced and very hard. Balance the water, check the cell and clean it, if necessary.

Changing the battery

Unscrew the cover using the 4 screws and locate the

battery (see image)

Change the battery (CR2032 type). Screw the cover back on using the 4 screws.

9. APPENDICES

9a. Configuring the cell safety feature

If the cell is installed horizontally, the cell on detector safety feature must be deactivated. Follow these steps:

Go to System settings and press OK

Go to Service Menu and press OK

Enter the password: Contact your installer

Go to Extra perm. and press OK.

Go to the Flow ctrl menu and select Paddle (2). Press OK to confirm the selection. By default, the box is set to Paddle or gas (3).

* Neo AquaRite Page 16 on 18 Page 17 on 18AquaRite

Only use spare parts supplied by Hayward brands®

HAYWARD

10. WARRANTY CONDITIONS

AND EXCLUSIONS FOR EUROPEAN UNION COUNTRIES

All HAYWARD ^2 products are covered for manufacturing defects or material defects for a warranty period of 3 years as of date of purchase. Proof of purchase, indicating the date of purchase, must be provided with all warranty claims. We would therefore advise you to keep your invoice.

The HAYWARD warranty is limited to repair or replacement, as chosen by HAYWARD ^6 , of the faulty products, provided that they have been used in compliance with the instructions given in the corresponding user guides, provided that the products have not been altered in any way, and provided that they have been used exclusively with HAYWARD parts and components. The warranty does not cover damage due to frost and to chemicals. Any other costs (transport, labour, etc.) are excluded from the warranty.

HAYWARD ^® may not be held liable for any direct or indirect damage resulting from incorrect installation, incorrect connection, or incorrect operation of the product.

In order to claim on a warranty and in order to request repair or replacement of an article, please ask your dealer. Equipment returned to our factory will not be accepted unless prior approval has been given.

Wearing parts are not covered by the warranty.

The following wearing parts of the salt chlorinator must be maintained in accordance with their estimated lifetime: - Titanium cell: 8,000 hours

- Set of seals (titanium cell, probe mount): 2 years

- Santoprene tube (peristaltic pump) - Membrane (electromagnetic pump): 2 years

- Probe (pH, ORP, conductivity, free chlorine): 1 year (warranty 6 months)

11. ENVIRONMENTAL INFORMATION

Provision regarding professional waste from electrical and electronic equipment (WEEE). In compliance with directive 2012/19/EU regarding the management of waste from electrical and electronic equipment, this device must be disposed of at a waste sorting site.

Good management of waste from electrical and electronic equipment contributes to the prevention of damage to the environment and human health.

In compliance with Regulation (EU) 2023/1542 of the European Parliament and of the Council of 12 July 2023 on batteries and accumulators and waste batteries and accumulators, amending Directive 2008/98/EC and Regulation (EU) 2019/2020 and repealing Directive 2006/66/EC, the symbol that accompanies this manual indicates that the battery incorporated into the device must be disposed of via waste sorting.

When the battery reaches the end of its life, it must be removed and disposed of at a waste sorting site. Instructions for replacement of the battery are given on the previous page.

12. DECLARATION OF CONFORMITY

This product complies with the following regulations:

- LVD Directive 2014/35/EU, IEC 60335-1:2020, EN IEC 60335-1:2023+A11:2023. EN 62233:2008 + IPX4.

- EMC Directive 2014/30/EU, EN IEC55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021+AC:2022-01.

- RoHS 2011/65/EU

- Amendment (EU) 2015/863, Regulation (EU) 2024/1781

- WEEE

In compliance with Regulation (UE) 2023/988 on general product safety, Hayward® provides its customers with the following email address as a contact address for all questions and problems relating to the safety of its products: [e-mail].

*Neo

Only use spare parts supplied by Hayward brands ^4

HAYWARD

ISAQRNEO Rev A 2025

HAYWARD®

Exterior view of a modern appliance with a digital display and control buttons (no visible text or symbols)

AquaRite® Neo AquaRite

Exterior view of a modern industrial appliance with digital display and control panel (no visible text or symbols)

Neo pH

CE EAC UK CA

AquaRite Neo

MANUAL DEL USUARIO

CONSERVE ESTE MANUAL PARA CONSULTAS ULTERIORES

* Neo

Page 16 on 16AquaRile

Only use spare parts supplied by Hayward brands

HAYWARD POOL EUROPE - 1070 Allée des Chênes - CS 20054 Saint Vulbas - 01154 Lagnieu Cedex - Francia

HAYWARD

HAYWARD

Technical line drawing of a rectangular fan or radiator component with no visible text or symbols

Set points (ajustes):

[e-mail].

*Neo

Technical line drawing of a heat exchanger or fan assembly (no text or symbols)

Technical line drawing of a heat exchanger or fan with grid pattern and ventilation slots (no text or symbols)

Circuit board diagram with labeled components and connectors, including Hidro OUT, LED indicators, and control buttons

Exterior view of a modern appliance with a black and white casing, featuring a digital display and control buttons (no visible text or symbols)

AquaRite® Neo AquaRite

Exterior view of a modern industrial air purifier unit with digital display and control panel (no visible text or symbols)

Neo pH

CE EAC UK CA

AquaRite Neo

GEBRUIKERSHANDLEIDING

BEWAAR DEZE HANDLEIDING VOOR TOEKOMSTIG GEBRUIK

* Neo

1. WERKING VAN HET APPARAAT 9

1. BESCHRIJVING VAN HET APPARAAT

Besturingssysteem:

3. INSTALLATIE VAN HET APPARAAT

Technical line drawing of a heat exchanger or cooling unit with fan and vent (no text or symbols)

8. PROBLEEMOPLOSSING

Geen beeld

Go rear Extra Instell, sc drink op OK

Exterior view of a modern industrial air purifier unit with control panel (no visible text or symbols)

AquaRite® Neo AquaRite

Exterior view of a modern industrial air purifier unit with digital display and control panel (no visible text or symbols)

Neo pH

CE EAC UK CA

AquaRite Neo
MANUALE D'USO

CONSERVARE IL PRESENTE MANUALE PER FUTURA CONSULTAZIONE

HAYWARD

HAYWARD

Technical line drawing of a heat exchanger or cooling unit with fan and vent (no text or symbols)

Inseire a password:
Cumbellare Transitions.

Andare in Reg extra e
1000000

Арсаге на писло Температы, веделяте Standard а претаре OK при избетлен и якили

Neo

Actions in Configurations a preterm OK

Anderson Service Media primera OK

I don't in a resenance Comattare Installations

Anders in Regesee premara OK

[e-mail].

Neo

www.hayward-pool.co.uk

JOIN US AND

FOLLOW US ON OUR

SOCIAL NETWORK
