Product Type	Charger for Li-Ion batteries
Brand	Fein
Model	CCG 18125 BLPDSEC (ALG80 / ALG80BC)
Input Voltage	100 – 240 V AC, 50/60 Hz
Output Voltage	10.8 – 18 V DC (battery nominal)
Max. Output Current	Up to 2.5 A (depending on battery)
Compatible Battery Type	Li-Ion Fein, ≥ 3 cells, capacity ≥ 1000 mAh (except 2.4 Ah 10.8/14.4/18 V)
Charging Temperature	5 °C to 45 °C
LED Indicators	Green (ready/charging), Yellow (temperature), Red (fault), Blue (Bluetooth)
Bluetooth Functionality	Yes (ALG80BC), compatible with FEIN Service App
Weight	Approx. 0.5 kg
Dimensions (L × W × H)	Approx. 150 × 80 × 70 mm
Protection	Double insulation, IP20
Maintenance	Clean contacts with dry cloth; do not open; repair only by Fein
Safety Instructions	Do not expose to water; use indoors; supervise children
Included Accessories	Power cord, instruction manual
Warranty	Compliant with legal regulations and Fein manufacturer's declaration
Recycling	Take to recycling center; discharge battery before disposal

Frequently Asked Questions - CCG 18125 BLPDSEC Fein

What type of battery can I charge with this charger?

This charger is designed for Fein Li-Ion batteries with a voltage of 10.8 to 18 V, at least 3 cells and a capacity ≥ 1000 mAh. Batteries of 2.4 Ah (10.8 V / 14.4 V / 18 V) are not compatible.

How long does it take to charge a battery?

The charging time depends on the capacity and condition of the battery. For example, a 2.0 Ah battery can be charged in about 45 minutes. The charger automatically adjusts the current.

What does the solid green LED mean?

A solid green light indicates that the charger is ready for use and mains voltage is present. If a battery is inserted, it means charging is complete.

The red LED is on, what should I do?

A solid red light indicates a fault. Clean the contacts by inserting and removing the battery several times. If the problem persists, the battery is likely defective and must be replaced.

Can I use the charger outdoors?

No, the charger is designed for indoor use only. Do not expose it to rain or moisture. Ensure adequate ventilation and avoid temperatures above +45 °C.

How do I use the Bluetooth function of the charger?

Download the FEIN Service App on your mobile device (iOS ≥ 5.0, Android ≥ 6.0). The ALG80BC charger emits a Bluetooth signal; follow the app instructions to pair and access charging data.

What should I do if the charger does not start?

Check that the mains socket is powered and the cable is not damaged. Make sure the battery is properly inserted. If the light remains off, contact Fein customer service.

Can I charge batteries of other brands?

No, only use original Fein Li-Ion batteries. Charging batteries of other brands or counterfeit ones poses a risk of fire or explosion.

How to clean the charger?

Unplug the charger before cleaning. Clean the contacts with a dry cloth. Do not use solvents. Ensure no metal shavings enter the interior.

Where can I get spare parts?

Spare parts (power cord, etc.) are available from Fein customer service or an authorized workshop. Do not open the charger yourself.

USER MANUAL CCG 18125 BLPDSEC Fein

Illustration of a portable electronic device with control panel and display (no readable text or symbols)

ALG80 9 26 04 180 01 0

ALG80 9 26 04 185 01 0

ALG80 9 26 04 186 01 0

ALG80 9 26 04 187 01 0

ALG80 9 26 04 188 01 0

ALG80 9 26 04 189 01 0

ALG80BC 9 26 04 210 01 0

ALG80BC 9 26 04 211 01 0

ALG80BC 9 26 04 212 01 0

ALG80BC 9 26 04 213 01 0

ALG80BC 9 26 04 214 01 0

ALG80BC 9 26 04 215 01 0

ALG80 ALG80 ALG80BC ALG80BC
9 26 04 .... 180 01 0	... 188 01 0 ... 210 01 0	... 212 01 0
	... 185 01 0	... 211 01 0
	... 186 01 0	... 213 01 0
	... 187 01 0	... 214 01 0
	... 189 01 0	... 215 01 0

$$ U _ {1} \quad \mathrm{V} 2 2 0 - 2 4 0 1 2 0 2 2 0 - 2 4 0 1 2 0 $$

$$ f \mathrm{Hz} 5 0 / 6 0 5 0 / 6 0 5 0 / 6 0 5 0 / 6 0 $$

$$ P _ {1} \quad \text { W } 2 4 0 2 4 0 2 4 0 2 4 0 $$

Li-Ion Li-Ion Li-Ion Li-Ion

U_2	V---	10,8-18	10,8-18	10,8-18	10,8-18
I_max	mA	8000	8000	8000	8000
USB I_max	mA	2000	2000	2000	2000
C	Ah	2,0-12,0	2,0-12,0	2,0-12,0	2,0-12,0
t	min	20-60	20-60	20-60	20-60
T	°C	5-45	5-45	5-45	5-45
	°F	41-113	41-113	41-113	41-113
	kg	0,65	0,65	0,65	0,65

Bluetooth®		-	-	Bluetooth®4.1 (low energy)A)	Bluetooth®4.1 (low energy)A)
*	m	-	-	≤ 30^B)	≤ 30^B)

de 4 pt 37 tr 68 sl 99 et 132 th 164 en 9 el 42 hu 73 sr 104 lt 137 ja 170 fr 15 da 48 cs 78 hr 109 lv 142 hi 175 it 21 no 53 sk 83 ru 114 zh (CM) 148 ar 184 nl 26 sv 58 pl 88 uk 120 zh (CK) 154 es 31 fi 63 ro 94 bg 126 ko 159

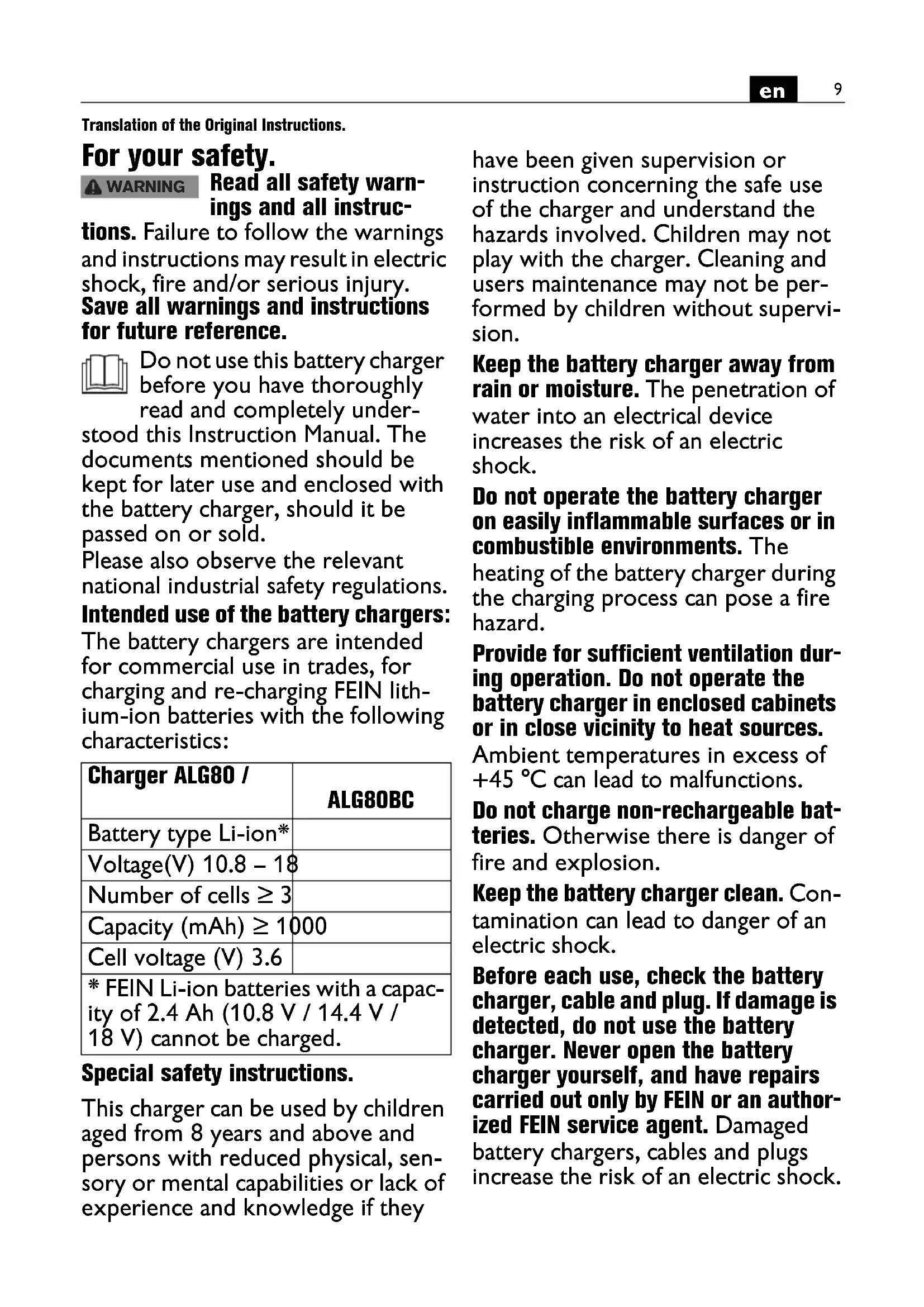

Translation of the Original Instructions.

For your safety.

Read all safety warnings and all instruc-

tions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this battery charger before you have thoroughly read and completely understood this Instruction Manual. The documents mentioned should be kept for later use and enclosed with the battery charger, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the battery chargers:

The battery chargers are intended for commercial use in trades, for charging and re-charging FEIN lithium-ion batteries with the following characteristics:

Charger ALG80 /	ALG80BC
Battery type Li-ion*
Voltage(V) 10.8 – 18
Number of cells ≥ 3
Capacity (mAh) ≥ 1000
Cell voltage (V) 3.6
* FEIN Li-ion batteries with a capacity of 2.4 Ah (10.8 V / 14.4 V / 18 V) cannot be charged.

Special safety instructions.

This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning the safe use of the charger and understand the hazards involved. Children may not play with the charger. Cleaning and users maintenance may not be performed by children without supervision.

Keep the battery charger away from rain or moisture. The penetration of water into an electrical device increases the risk of an electric shock.

Do not operate the battery charger on easily inflammable surfaces or in combustible environments. The heating of the battery charger during the charging process can pose a fire hazard.

Provide for sufficient ventilation during operation. Do not operate the battery charger in enclosed cabinets or in close vicinity to heat sources.

Ambient temperatures in excess of +45 °C can lead to malfunctions.

Do not charge non-rechargeable batteries. Otherwise there is danger of fire and explosion.

Keep the battery charger clean. Contamination can lead to danger of an electric shock.

Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself, and have repairs carried out only by FEIN or an authorized FEIN service agent. Damaged battery chargers, cables and plugs increase the risk of an electric shock.

Remove the battery from the charger and pull the mains plug when not using for extended periods. Saving energy helps to save the environment.

When cleaning the battery charger, pull the mains plug out of the socket.

There is danger of electric shock.

Do not rivet or screw any name-plates or signs onto the battery charger. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Charge only intact original FEIN batteries that are intended for your power tool. When charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Caution! Using the charger with Bluetooth® may cause interference with other devices and systems, aircraft and medical devices (e.g., cardiac pacemakers, hearing aids). Also, the possibility of humans and animals in direct vicinity being harmed cannot be completely exempt. Do not use the charger with Bluetooth® near medical devices, chemical plants, areas with explosion hazards (e.g. petrol stations), in blasting areas and in aircraft. Avoid operation in direct vicinity of the body over longer periods.

The Bluetooth ^® word mark and logos are registered trademarks of the Bluetooth SIG, Inc. The use of this word mark and the logos by C. & E. Fein GmbH is under license.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Before commencing this working step, pull the mains plug out of the socket.
	Confirms the conformity of the battery charger with the Guidelines of the European Community.
	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Recycling symbol: designates recyclable materials
	Worn out battery chargers and other electro-technical and electrical products should be collected separately and sorted for environment-friendly recycling.
	Product with double or reinforced insulation
	Battery type
	Weight according to EPTA-Procedure 01
	Time-lag device fuse, whereby X represents the character for the time/power characteristic acc. to IEC 60127.
	Use the device only in rooms and do not subject it to rain.
	Direct current
	Dangerous voltage
	Warning! Electrical voltage
	USB charging port
	Bluetooth®functionality
A) The mobile devices must be compatible with Bluetooth®low energy devices (version 4.1) and support the Generic Access Profile (GAP).
B) The operating range can vary greatly depending on external conditions, including the receiver being used. Within enclosed spaces and through metal barriers (e.g. walls, shelves) the Bluetooth®operating range can be significantly reduced.

Character Unit of	measurement, international	Unit of measurement, national	Explanation
U_1	V V Rated supply voltage
U_2	V-V Rated output direct voltage		(rated battery voltage)
P_1	W W Power input
fHz Hz Frequency
I_max	mA mA Maximum rated direct output current		(max. rated charging current)
C	Ah Ah Capacity
t	min min Charge duration
T	°C/ °F °C/ °F Temperature
	m	m	M®operating range x
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	Basic and derived units of measurement from the international system of units SI.

Operating Instructions.

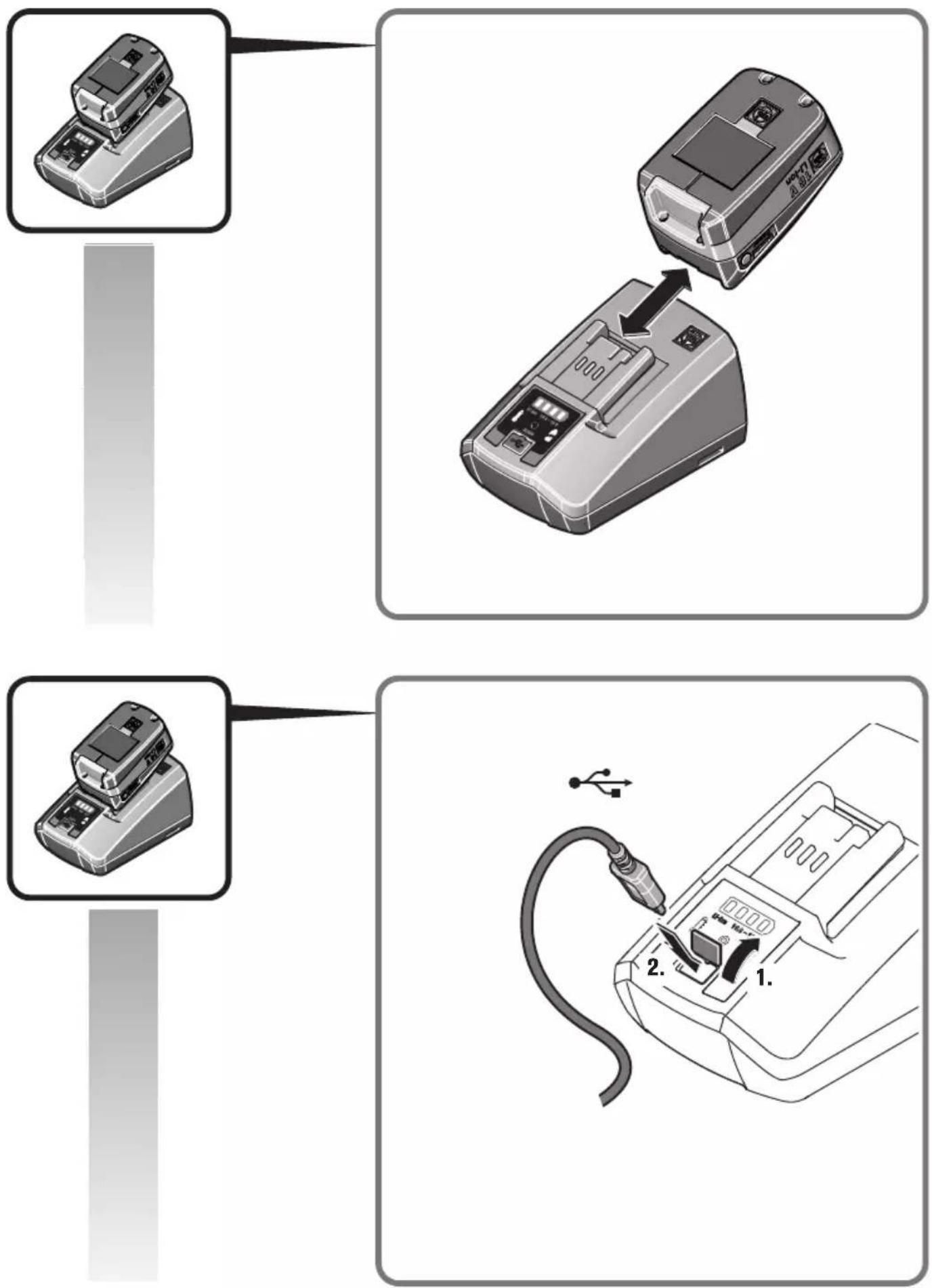

Connect the battery charger to the socket outlet without a battery inserted. The green LED indicator lights up and signals operational readiness.

Insert the battery.

The monitoring of the charge procedure is signalled by a flashing green light.

The end of the charge procedure is indicated by continuous green lighting.

The rapid charging starts automatically as soon as the battery temperature is within the charge-temperature range of 5 °C to 45 °C.

When lithium-ion batteries are fully charged, the battery charger switches off automatically.

Repeated inserting of a charged battery leads to over-charging and affects the service life of the battery.

If the battery becomes discharged within a short time despite being charged correctly, it has reached the end of its service life.

The installed fan starts and stops depending on the charger's internal temperature.

On the ALG80BC, alternate flashing of the green and blue LED indicates connection readiness of the Bluetooth® module. If the blue LED lights up continuously, an active Bluetooth® connection exists.

Meaning of the LED indications

LED indicator Meaning
Continuous green light The	battery charger is ready for operation; mains voltage is given.
ALG80BC: Continuous blue light	The battery charger is ready for operation; mains voltage is given.TheBluetooth®module is coupled with a mobile device.Note:TheBluetooth®module automatically switches to energy saving mode after a longer period of inactivity. By inserting a Li-ion battery, theBluetooth®module is activated again.
Continuous yellow light	The battery temperature is not within the charge-temperature range of 5 °C to +45 °C. The rapid charging starts as soon as the battery reaches the allowable charging-temperature range.
Continuous red light Charging	not possible due to the following possible reasons:- Contacts contaminated. Improvement measure: Clean the contacts by inserting and removing the battery several times.- The battery is defective. Improvement measure: Replace the battery!
	Charging procedureContinuous green lightflashing LED
	Rapid charging starts.
	The rapid charging is active.Charge condition of battery ≤ 25%
	The rapid charging is active.Charge condition of battery ≤ 50%
	The rapid charging is active.Charge condition of battery ≤ 75%
	Rapid charging is over.Charge condition of battery ≥ 75%
	LED continuously OFF while battery is attached on charger:Rapid charging is over.Battery fully charged for more than 1 hour on the charger.
The charge indication of charger and battery may temporarily vary for technical reasons.

Bluetooth® Connection

By coupling the charger with a Bluetooth ^® low-energy capable mobile device, data can be transferred between the charger and the mobile device. For this, download the FEIN Service App onto your mobile device and follow the instructions of the FEIN Service App.

The FEIN Service App enables:

• the registration of FEIN power tools
• the management of FEIN power tools
• the status check of charger and battery
• access to further information.

The QR Code for the FEIN Service App is available below:

iOS > V5.0

Android > V6.0

Note:

If fully charged battery packs are inserted into the battery charger, the battery charger remains inactive and the battery pack is not recognized by the my.FEIN app. Please try inserting again once the battery pack is partially discharged.

For battery packs with a production date prior to 01.01.2021, the serial number may occasionally be displayed incorrectly in the my.FEIN app. In this case, you can only read out the current charge condition. Displaying the number of charging cycles of the inserted battery pack is not possible.

Repair and customer service.

Once per week; more often in case of frequent usage:

• Keep the contacts in the slide-on shoe clean.
• Only dry-clean electrical contacts.
• Ensure that metal chips do not enter the battery-charger housing.

If the charger's power cord is damaged, it must be replaced by a special power cord, available from the manufacturer or their representative.

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your battery charger may include only a part of the accessories described or shown in this Instruction Manual.

Environmental protection, disposal.

Packaging, worn out battery chargers and accessories should be sorted for environment-friendly recycling. Dispose of batteries only when discharged.

For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Miljøvern, deponering.

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表
