Product type	Photo lens
Brand	Olympus
Model	825mm F4.0 PRO (M.Zuiko Digital ED 8-25mm F4.0 PRO)
Mount	Micro Four Thirds
Focal length	8 - 25 mm (35 mm equivalent: 16 - 50 mm)
Maximum aperture	f/4.0
Minimum aperture	f/22
Angle of view	107° - 47°
Optical construction	10 groups, 16 lenses
Focusing	Autofocus / Manual (AF/MF) with manual override
Minimum focusing distance	0.23 m
Maximum diameter	77 mm
Length	88.5 mm
Weight	411 g (without lens hood or cap)
Filter diameter	72 mm
Lens hood	Bayonet (petal)
L-Fn button	Yes, customizable
Retractable	Yes
Maintenance	Blow and clean with optical cloth
Safety	Do not look at the sun, do not leave without cap
Included accessories	Front cap, rear cap, lens hood

Frequently Asked Questions - 825mm F4.0 PRO OLYMPUS

How to clean the lens?

To clean the lens, use a blower to remove dust, then gently wipe with lens cleaning paper or a microfiber cloth. Avoid solvents.

What is the minimum focusing distance?

The minimum focusing distance is 0.23 m (23 cm) from the sensor. This allows close-ups with a wide angle.

Can I use thick filters or multiple filters at once?

Using multiple filters or thick filters can cause vignetting (dark corners). It is recommended to use a single standard filter.

What to do if autofocus does not work?

Check the position of the focus ring. If the distance indicator is visible, the lens is in MF (manual) mode. Turn the ring to hide the indicator and return to AF mode.

How to retract the lens?

Turn the zoom ring until the retraction mark (④) is aligned with the « — » line. Make sure the lens is retracted before storing.

What is the L-Fn button for?

The L-Fn (Lens Function) button allows you to stop autofocus when pressed. You can assign other functions depending on the camera body (refer to your camera manual).

Is the lens weather-sealed?

The manual does not mention any weather sealing. For use in wet conditions, it is advisable to take extra precautions.

What is the 35 mm equivalent focal length?

Thanks to the crop factor of Micro Four Thirds (x2), the focal range of 8-25 mm is equivalent to 16-50 mm in 35 mm format.

How to attach the lens hood?

Align the mark on the lens hood with that on the lens and turn it clockwise until it clicks. To remove it, press the unlock button and turn counterclockwise.

Can I use this lens with a flash?

Yes, but the flash light may be blocked by the lens or hood, especially at short focal lengths. It is recommended to use a off-camera flash or remove the hood if necessary.

USER MANUAL 825mm F4.0 PRO OLYMPUS

date of issue 2021.01

WD734400

© 2021 OM Digital Solutions Corporation

Printed in Vietnam

OLYMPUS

MICRO FOURTHIRDS

M.ZUIKO DIGITAL

ED 8-25mm f4.0 PRO

Model No.:IM023

04 - J 取扱説明書
07 - E INSTRUCTIONS
12 - F: MODE D'EMPLOI
16 - E INSTRUCCIONES
19 - D BEDIENUNGSANLEITUNG
22 - E ИНСТРУКЦИИ
25 - C NÁVOD K POUŽITI
28 - D BETJENINGSVEJLEDNING
31. ΕΟΛΗΓΙΕΣ
34. IJHISED
37. E KÄYTTÖOHJEET
40. H. UPUTE
43.- HASZNÁLATIÚTMUTATÓ
46 - IT ISTRUZIONI
49. INSTRUKCLIA
52. NOBAPLIWI
55 AANWUZINGEN
55 - M AANWIZZINGEN 50 - W INSTRUKO/ONE

61 - PL INSTRUKCJA
64 - PT INSTRUÇÕES
67 - RG INSTRUCTIONI
70 - R1 ИНСТРУКЦИЯ
73 - ŠNÁVOD NA POUŽITIE
76 - S1 NAVODILA
79 - SV BRUKSANVISNING
82 - TALMATLAR
85.59 使用说明
88 - ตําแนะนําการใช้งาน

Technical diagram showing exploded and assembled views of a camera lens with numbered parts and component labels

JP 取扱説明書

https://cs.olympus-imaging.jp/en/support/img/digicamera/download/notice/notice.cfm

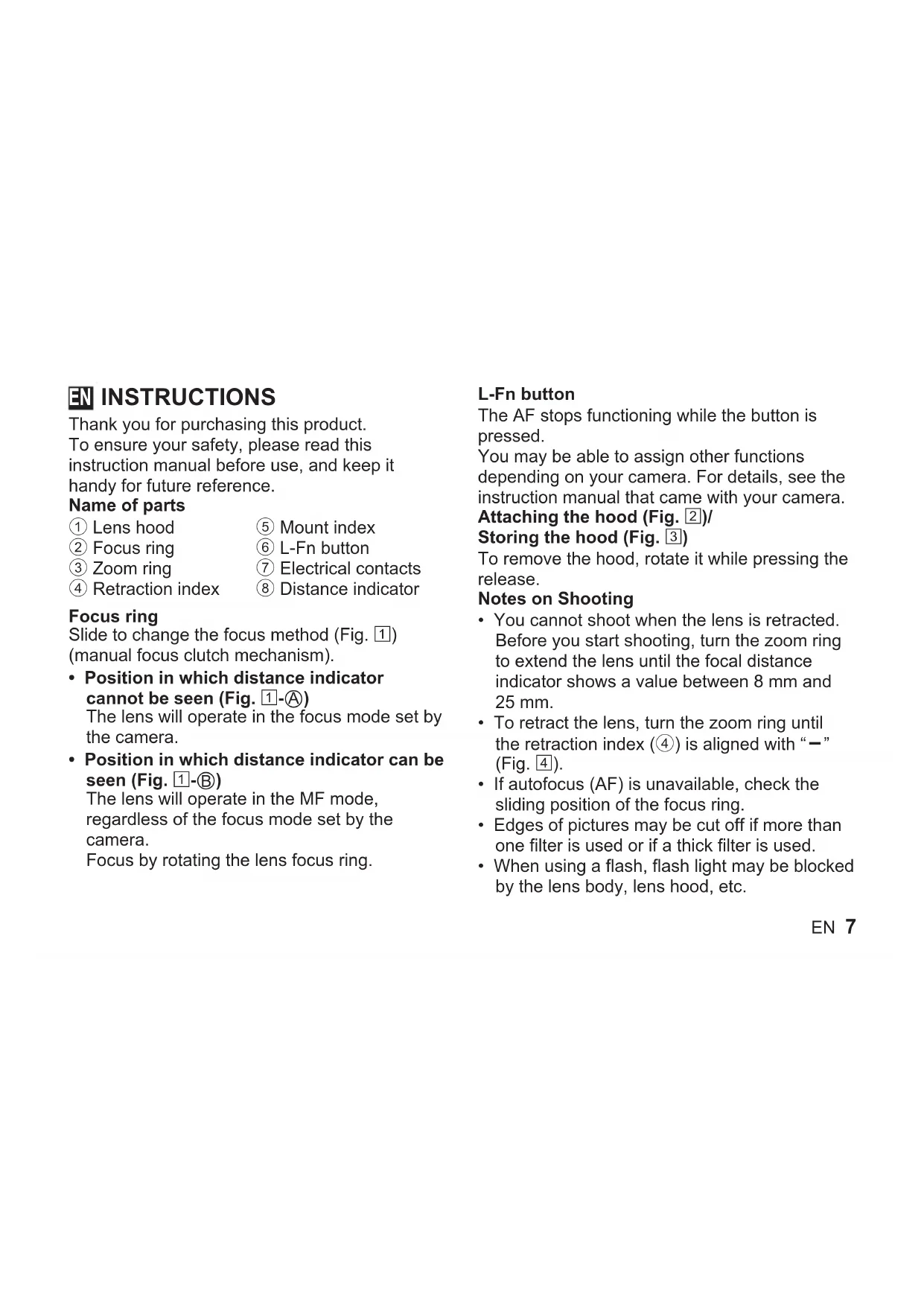

EN INSTRUCTIONS

Thank you for purchasing this product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Name of parts

① Lens hood

⑤ Mount index

② Focus ring

⑥ L-Fn button

③ Zoom ring

⑦ Electrical contacts

④ Retraction index

⑧ Distance indicator

Focus ring

Slide to change the focus method (Fig. 1) (manual focus clutch mechanism).

- Position in which distance indicator cannot be seen (Fig. 1-A)

The lens will operate in the focus mode set by the camera.

- Position in which distance indicator can be seen (Fig. 1-B)

The lens will operate in the MF mode, regardless of the focus mode set by the camera.

Focus by rotating the lens focus ring.

L-Fn button

The AF stops functioning while the button is pressed.

You may be able to assign other functions depending on your camera. For details, see the instruction manual that came with your camera.

Attaching the hood (Fig. 2)/

Storing the hood (Fig. 3)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• You cannot shoot when the lens is retracted. Before you start shooting, turn the zoom ring to extend the lens until the focal distance indicator shows a value between 8 mm and 25 mm.
• To retract the lens, turn the zoom ring until the retraction index (④) is aligned with “—” (Fig. ④).
• If autofocus (AF) is unavailable, check the sliding position of the focus ring.
• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.

• When using a flash, flash light may be blocked by the lens body, lens hood, etc.

• The focus distance may change when the focusing method is switched from MF to AF/MF and then back to MF. Readjust the focus distance.

• The distance indicator is intended as a guide only.
• Do not touch electric contacts on cameras.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 8 mm – 25 mm

(equivalent to 16 mm - 50

mm on a 35 mm camera)

Max. aperture : f4.0

Image angle : 107^ - 47^

Lens configuration : 10 groups, 16 lenses

Iris control : f4.0 to f22

Shooting range : 0.23 m (9.1 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Dimensions : ∅ 77.0 mm/3.1 in.

(maximum diameter) ×

88.5 mm/3.5 in. (length)

Weight : 411 g (14.5 oz.)

(excluding hood and cap)

Filter size : ∅ 72 mm

Lens hood :Bayonet

8 EN

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OM Digital Solutions Corporation.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Only the USB cable supplied by the manufacturer should be used to connect the camera to USB enabled personal computers.

FCC Caution

Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

For customers in North America, Central America, South America and the Caribbean

Declaration of Conformity

Model Number : IM023

Trade Name : OLYMPUS

Responsible Party : OM Digital Solutions Americas, Inc.

Address : 3500 Corporate Parkway, P. O. Box 610, Center Valley,

PA 18034-0610, USA

Telephone Number: 1-800-622-6372

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3(B)/NMB-3(B)

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

The manufacturer will not be held liable for violations of local regulations arising from use of this product outside the country or region of purchase.

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at https://cs.olympus-imaging.jp/en/support/img/digicamera/download/notice/notice.cfm
