Product Type	Electric Lawn Mower
Brand	Grizzly
Model	ERM 16373
Power Input	1600 W
Supply Voltage	220-240 V~, 50 Hz
Protection Class	II (double insulation)
Protection Type	IPX4
No-Load Speed	3450 min⁻¹
Cutting Diameter	37 cm
Cutting Height	25 to 75 mm (6 positions)
Weight	Approx. 15 kg
Grass Collector Volume	35 L
Guaranteed Sound Level (LWA)	96 dB(A)
Sound Pressure Level (LpA)	88 dB(A)
Vibrations (ah)	≤ 2.5 m/s²
Height Adjustment	Via central lever (6 notches)
Functions	Cutting, collecting, mulching (kit included)
Handle	Foldable for compact storage
Fill Indicator	Yes, on basket (flap)
Application Area	Home lawns
Maintenance	Clean after use, grease wheels
Safety	Double insulation, motor stop on releasing lever, impact protection
Spare Parts	Blade, mulching kit, etc. (available online)
Warranty	24 months (domestic use)

Frequently Asked Questions - ERM 16373 Grizzly

What are the minimum and maximum cutting heights?

The cutting height is adjustable from 25 mm (minimum) to 75 mm (maximum) via a central lever offering 6 positions.

How to use the supplied mulching kit?

Remove the grass collector, lift the impact protection, then insert the mulching kit (red button engaged). To remove it, lift the protection, push the button down and remove the kit.

How to start and stop the mower?

Press the unlock button (17) and hold down the start lever (2). Release the button. To stop, release the start lever.

What to do if the mower does not start?

Check the mains voltage (socket, cable). If the start lever or unlock button is defective, contact the after-sales service. Worn carbon brushes or a defective motor require professional repair.

How to maintain the blade?

To change the blade, unplug the appliance, wear thick gloves, hold the blade (20) and loosen the screw (21) counterclockwise. Mount the new blade in the opposite direction. Have the blunt blade sharpened by a professional.

What type of power cable should I use?

Use a cable type H05RN-F with a cross-section of at least 2.5 mm² and a maximum length of 75 m. Fully unroll the cable before use.

How to store the mower after use?

Clean it, fold the handle by unscrewing the upper and lower quick-release levers, then fold it onto the housing. You can also store it upright (Stow function). Store in a dry place out of reach of children.

What are the essential safety precautions?

Never use in rain or on wet grass. Unplug the appliance before any adjustment or cleaning. Wear sturdy shoes and long trousers. Keep children and animals away. The blade continues to rotate after stopping – wait for it to stop completely.

How to empty the grass collector and interpret the indicator?

The fill indicator (7a) on the side of the basket: flap open = empty, flap closed = empty (function during mowing). To empty, lift the impact protection, unhook the basket and dispose of the grass in the compost.

Where to find spare parts?

Spare parts (blade, mulching kit, etc.) are available on the website www.grizzly-service.eu or by contacting the Grizzly after-sales service.

USER MANUAL ERM 16373 Grizzly

Red and black lawn mower with 'Grizzly' branding, no visible text or symbols on the device itself

ERM 1637-3 Stow

Translation of the original instructions for use

Grizzly Service-Center 127

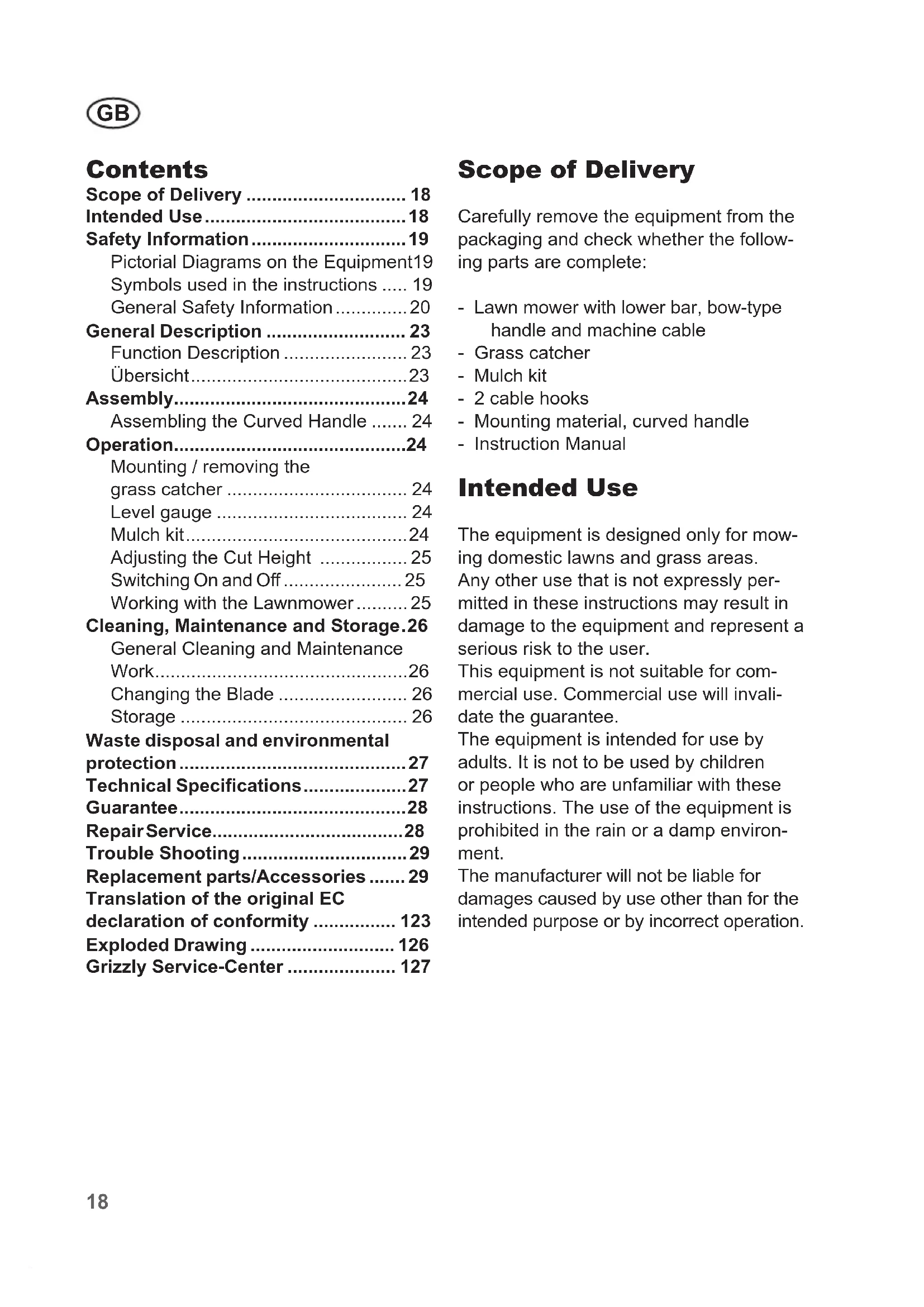

Lieferumfang

Scope of Delivery 18

Intended Use....18

Safety Information....19

Pictorial Diagrams on the Equipment19

Symbols used in the instructions ..... 19

General Safety Information......20

General Description 23

Function Description ...... 23

Übersicht....23

Assembly....24

Assembling the Curved Handle ..... 24

Operation....24

Mounting / removing the

grass catcher 24

Level gauge 24

Mulch kit....24

Adjusting the Cut Height 25

Switching On and Off 25

Working with the Lawnmower 25

Cleaning, Maintenance and Storage.26

General Cleaning and Maintenance

Work....26

Changing the Blade 26

Storage 26

Waste disposal and environmental protection....27

Technical Specifications....27

Guarantee....28

Repair Service....28

Trouble Shooting....29

Replacement parts/Accessories ..... 29

Translation of the original EC declaration of conformity .... 123

Exploded Drawing 126

Grizzly Service-Center 127

Scope of Delivery

Carefully remove the equipment from the packaging and check whether the following parts are complete:

- Lawn mower with lower bar, bow-type handle and machine cable

- Grass catcher

- Mulch kit

- 2 cable hooks

- Mounting material, curved handle

- Instruction Manual

Intended Use

The equipment is designed only for mowing domestic lawns and grass areas.

Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment.

The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.

Safety Information

This section covers the basic safety regulations when working with the electric lawnmower.

Pictorial Diagrams on the Equipment

Caution!

Read the operating instructions carefully.

Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass.

Risk of injury from parts being thrown up.

Keep nearby people away from the mower.

Caution!

The lawnmower blade continues to run after switching off.

Caution – sharp cutting blade! Keep feet and hands away. Risk of injury!

Switch off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged.

Wear eye and ear protection.

Danger of damaged power cable.

Keep the power cable away from the cutting blade!

Protection class II

Noise level specification L_WA in dB.

not dispose of electrical equipment in domestic waste.

Cutting circle

Symbols used in the instructions

Hazard symbols with in- formation on prevention of personal injury and pro- erty damage.

Precaution symbol (explanation of precaution instead of exclamation mark) with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

General Safety Information

Important! Please read the operating instructions carefully and keep the manual for future reference.

This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.

Preparation:

• This device is not intended for use by people with restricted physical, sensory or mental capabilities, or those who do not have sufficient experience and/or knowledge of using it unless they are supervised by an individual responsible for their safety, or receive instructions from this person on how to use the device.
• Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
• Do not use the equipment when people and particularly children or pets are nearby.
  • Children must be supervised in order to ensure that they do not play with the equipment.
• Check the terrain on which the equipment is to be used and remove stones, sticks, wires

and other foreign objects that could become caught and thrown up.

• Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Do not wear loose clothing or clothes that straps or belts suspend from.
• Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets.
  • Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.
• Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.
• Prior to use, always check the cord and extension cord for signs of damage or wear. Immediately disconnect the cord from the mains in case it is damaged in use. Do not touch the cord until it is unplugged. Do not operate the appliance if the cord is worn or damaged.

Working with the Equipment:

Do not place feet or hands near or under rotating parts when working. Risk of injury!

Observe the noise protection and local regulations.

• Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools.
• Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
• Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.
• When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.
• Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.
• Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades.
• Do not tilt the equipment when starting other than if it is ne-

cessary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.

• Do not work without the grass bag or collision guard. Keep away from the ejection hole at all times.
• Do not start the motor while standing in front of the discharge duct.

Caution! Danger! The blade continues to run after switching off.

There is a risk of injury.

• The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.
• Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.
• Do not leave the equipment unattended in the workplace.
• Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such

as deflection and/or grass collection devices.

• Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.
• Do not use the equipment near inflammable liquids or gases. Non-observance will result in a risk of fire or explosion.
• Do not lift or carry the equipment when the motor is running.

• Turn off the appliance, unplug it from the mains and check that all moving parts are at rest:

• Whenever you leave the machine,

• Before cleaning the ejection hole or removing blockages,
• When the equipment is out of use,
• Before checking, cleaning or working on the equipment,
• If the power cable is damaged or frayed,
• If the equipment has hit a foreign object or if strange vibrations occur during work. In this case, check the equipment for damage and have it repaired if applicable.

- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sick-le mowing.

Maintenance and Storage:

When servicing the blades, remember that they can move even if the power source is off.

• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
• Check the mower for any damages.
• Repair damaged parts as appropriate.
• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.
• Keep the equipment in a dry location and out of reach of children.
• Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.
• Wear protective gloves when changing the cutting device.
• Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.
• Check that only replacement tools authorised by the manufacturer are used.

Electrical Safety:

• Ensure that the mains voltage matches the specifications on the rating plate.
• Connect the equipment only to a socked with a residual current-operated protective device (RCD) with a release current of more than 30 mA.
• Avoid bodily contact with earthed parts (e.g. metal fences, metal posts).
• Use only authorised power cables of type H05RN-F, which are no more than 75 m long and suitable for outdoor use. The power cable wire cross section must be at least 2.5 mm ^2 . Always completely unroll cable drums before use. Check the cable for damage.
• To fix on the power cable, use the cable suspension intended for the purpose.
• Keep the power cable away from the cutting tool when working. The cutting blades may damage the power cable and result in contact with live parts. Always run the power cable behind the operator.
• Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges.
• Switch off the equipment and disconnect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the customer services of the same, or a qualified person, in order to avoid hazards.

- Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.

General Description

Function Description

The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It features a powerful electrical drive, a sturdy plastic casing, a safety switch, a collision guard as well as a grass catcher with level gauge. Additionally, the equipment is height adjustable to six levels and has smooth-running wheels.

For the function of the operating parts, please refer to the descriptions below.

The illustration how to handle the appliance can be found on page 2-3..

Übersicht

1 Curved handle

2 Start lever

3 2 quick-release levers above to fasten bow-type handle

4 Lower bar

5 Collision guard

6 2 quick-release levers below to fasten bar

7 Grass catcher

8 Back wheels

9 Front wheels

10 Housing

11 Cutting height adjuster

12 2 carrying handles

13 Connection cable

GB

14 Cable holder

15 Cable strain relief

16 Power inlet

17 Release button

18 Mulch kit

Assembly

Disconnect the plug before any work on the equipment. There is a risk of injury.

Assembling the Curved Handle

B

Install lower bar:

1. Open the lower bar (4) and move it to the desired inclination.

2. Fix the lower bar by means of the pre-mounted quick-release levers (6). There are three possible positions.

C

Mounting the bow-type handle:

1. Fasten the bow-type handle (1) with the enclosed screws, washers and quick-release lever (3) to the right and left of the lower bar (4). Two positions are possible.

4. Clipping in the cable holders

Clip the cable holders (14) onto the bar to fix the machine cable (13) in position

Operation

Attention: Do not operate the appliance until the collision guard and grass catcher are fully installed. Risk of injury!

Mounting / removing the grass catcher

1. Lift the collision guard (5).

2. Place the grass catcher (7) on the mounting bracket (24) provided at the back of the lawn mower.

3. Lower the collision guard (5) onto the grass catcher (7) - it will keep it in place.

4. To remove the grass catcher (7), lift the collision guard (5) and unhook the grass catcher from the mounting bracket. Flap down the collision guard to the housing.

On emptying the grass catcher also refer to section “Disposal/environment”.

D

Level gauge

The level gauge is located on the side of the grass catcher. The aerodynamic air guidance provided by the flap also optimises the filling

Flap open: grass catcher empty

Flap closed: grass catcher full

Mulch kit

E

Attaching mulch kit

1. Remove the collection box (A 7), if used.
2. Lift the impact protection (5).
3. Insert the mulch kit (18). The red locking button clicks into place.

Remove mulch kit

1. Lift the impact protection (5).
2. Insert the red locking button downwards and remove the mulch kit (18).

Adjusting the Cut Height

Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of injury

Hold the cutting height adjuster (11) and move it to the correct cutting height, as appropriate.

There are six different cutting heights: 25 - 75 mm

The correct height is around 30 – 45 mm for a decorative lawn and around 30 – 65 mm for a used lawn.

A higher cut height should be selected for the first cut of the season.

Switching On and Off

1. Insert the mains cable plug into the device's mains socket (16).

2. Make a loop in the end of the mains cable and suspend this in the cable strain relief (15).

3. Connect the machine to the power supply.
4. Before switching the apparatus on, make sure that it is not touching any objects.

5. To switch on, press the release button (17) on the handgrip while holding down the start handle (2). Let go of the release button (17).

6. To switch the apparatus off, release the start handle (2).

The blade will keep rotating for a few seconds after the device has been switched off. Do not touch the running blade. There is a risk of personal injury.

Working with the Lawnmower

Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn.

The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.

The two handles (see 12) make it easier to carry the appliance.

• Start mowing near the socket and work away from the socket.
  • Always keep the extension cable behind you and when you turn, move it to the side that has already been mowed.
• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
• Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.
• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.

GB

- Clean the equipment after each use, as described in the chapter on “Cleaning, Maintenance and Storage”.

Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.

Cleaning, Maintenance and Storage

Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.

Wear gloves when handling the blade

Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops.

General Cleaning and Maintenance Work

Do not hose down the lawnmower with water.

• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
- Oil the wheels from time to time.

• Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
• Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.

Changing the Blade

If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").

1. Turn the equipment over.

2. Use sturdy gloves and hold the blade firmly (20). Turn the blade screw (21) anticlockwise off of the motor spindle using a screwdriver.

3. Install the new blade in the reverse order. Ensure that the blade is positioned correctly and the screw tightened firmly.

Storage

The device features the following storage options to save space:

1. Release the upper and lower quick-release levers (3+6).

2. Fold out the bow-type handle (1) and the lower bar (4) over the device housing (10).

Make sure that the cables do not become trapped.

1. You can also place the device upright in the stow position with the bow-type handle (1) folded either in or out

2. Keep the equipment dry and out of reach of children.

3. Allow the motor to cool before storing the equipment in a confined space.
4. Do not cover the equipment with nylon bags as moisture could build up.

We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.

Waste disposal and environmental protection

Do not dispose of used oil in the sewage system or drains. Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center. Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

• The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.
• Defective units returned to us will be disposed of for free.

Technical Specifications

Electric Lawnmower..ERM 1637-3 Stow

Motor input power 1600 W

Mains voltage....220-240 V\~, 50 Hz

Protection class.....II □

Protection type IPX4

Idling speed....3450 min ^-1

Cutting circle....37 cm

Cut height....25-75 mm

Weight ......ca. 15 kg

Lawn bag volume....35 l

Sound pressure specification

(L_pA) 88 dB(A), K_pA = 3 dB

Noise level specification ( L_WA )

guaranteed.... 96 dB(A)

measured.....93,1 dB(A), K_WA = 2.05 dB

Vibration ( a_h )....≤2.5m/s ^2

This device is designed for operation on a power supply network with a system impedance Z_max at the transfer point (domestic connection) of a maximum of 0.313 Ohms.

The user must ensure that the device is operated only on a power supply network that fulfils this requirement.

If necessary, the local power supply company can be asked for the system impedance.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protec-

ting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

The noise and vibration values have been determined in accordance with the standards and regulations specified in the declaration of conformity.

Technical and visual modifications may be made without notice in the course of further development. All dimensions, information and specifications in these operating instructions are therefore not guaranteed. As such, no assertion of legal claims can be enforced on the basis of the operating instructions.

Guarantee

• This appliance has a 24-month guarantee. Commercial use will invalidate the guarantee.
• Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In particular, these include: blade.
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.
  This requires that the appliance is re-

turned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

- Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.

We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.

- Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

- Defective units returned to us will be disposed of for free.

Trouble Shooting

Problem Possible	Cause Fault Fixing
Equipment does not start	Power is off	Check the socket, cable, wire and plug and have any repairs carried out by an electrician
	Defective start lever (2) or release button (17)	Repair by customer services
	Worn carbon brushes
	Defective motor
	Grass too long	Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar.
Motor stops Blockage by foreign object Remove the foreign object
Result unsatisfactory or motor labours	Cut height too low Set a higher cut height
	Blade (J 20) blunt	Have the blade sharpened or replace it
	Blade area blocked Clean the equipment
	Blade (J 20) assembled incorrectly	Install the blade correctly
Blade fails to turn	Blade (J 20) blocked by grass	Remove the grass
	Blade screw (J 21) loose	Tighten the blade screw
Strange noises, rattling or vibrations	Blade screw (J 21) loose	Tighten the blade screw
	Blade (J 20) damaged	Replace the blade

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre (see "Grizzly Service-Center"). Please have the order number mentioned below ready.

Inhoud

Grizzly Service-Center 127

Nettoyage/Maintenance/Stockage .... 52

Grizzly Service-Center 127

Grizzly Service-Center 127

Volume di fornitura

Grizzly Service-Center 127

Zakres dostawy

Grizzly Service-Center 127

Objem dodávky

Grizzly Service-Center 127

1637-3 Stow

ERM 1637-3 Stow
informativ • informative • informatief • informatif • pouczający • informační • informatívny • информативен, , informatīvs

Grizzly Service-Center

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

SAV03

ZA de la verrerie

03210 Souvigny
