Product Type	2-in-1 Cordless Stick Vacuum
Brand	Koenic
Model	KVR 22221
Rated Voltage	22.2 V
Maximum Suction Power	150 W
Protection Class	III
Battery Charging Time	4 hours
Runtime (Low Speed)	24 minutes
Runtime (High Speed)	17 minutes
Dust Container Capacity	0.5 L
Battery Type	Integrated Lithium-ion (non-replaceable)
Power Adapter	Model RKGSDČ2800600, input 100-240 V~, output 28 V / 0.6 A
Included Accessories	Floor nozzle, crevice nozzle, upholstery nozzle, charging base, adapter
Filters	Dust filter and fabric filter (washable)
Motorized Brush	Motorized roller brush integrated into the floor nozzle
Usage	Household only

Frequently Asked Questions - KVR 22221 Koenic

How to charge the KVR 22221 vacuum?

Place the stick vacuum on the charging base (fig. 7). Plug the power adapter into a wall outlet. The blue LED light flashes during charging and stays continuously lit when the battery is fully charged. The charging time is about 4 hours.

What is the battery runtime?

The runtime is approximately 24 minutes at low speed and 17 minutes at high speed (tolerance ±10%). Runtime may vary depending on usage and battery condition.

How to clean the vacuum filters?

Remove the dust container, then the dust and fabric filters. Tap or brush them off. If very dirty, rinse them with water and dry them completely before reassembling. Never use solvents or sharp objects.

Why is my vacuum losing suction power?

This may be due to clogged filters or a full dust container (exceeding the MAX mark). Clean or replace the filters, and empty the dust container after each use.

Is this vacuum suitable for hard floors (parquet, tile)?

Yes, the floor nozzle is designed for hard floors and carpets. However, regularly check the condition of the nozzle: excessive wear may scratch delicate floors like parquet or linoleum. Use the vertical position during breaks to avoid damaging the floor.

How to empty the dust container?

Remove the handheld vacuum, press the dust container release button and take it out. Empty the contents. If necessary, wash the container with water and dry it before reassembling with the filters.

The roller brush does not spin, what to do?

Check that the brush is not blocked by threads or hair. Press the brush ejection button to remove it, cut the wrapped items with scissors, and remove them. Reassemble.

Can I use the handheld vacuum alone?

Yes. Press the release button to detach the handheld vacuum from the stick vacuum. Use it with or without the nozzles (crevice, upholstery) as needed.

What to do if the device does not turn on?

Check that the battery is charged. Plug the device into the charging base. If still no response, check the charging contacts (clean them if necessary). If the problem persists, contact the manufacturer.

How to maintain the floor nozzle?

Clean the floor nozzle regularly by removing the roller brush. Cut any threads or hair wrapped around the rollers. Periodically inspect the underside of the nozzle for excessive wear (sharp edges) that could damage floors.

USER MANUAL KVR 22221 Koenic

2 In 1 Rechargeable Vacuum Cleaner

Exploded view diagram of a vacuum cleaner with labeled parts in Chinese

Instructional steps for using a vacuum cleaner, showing step-by-step usage and change in device placement.

Sicherheitshinweise

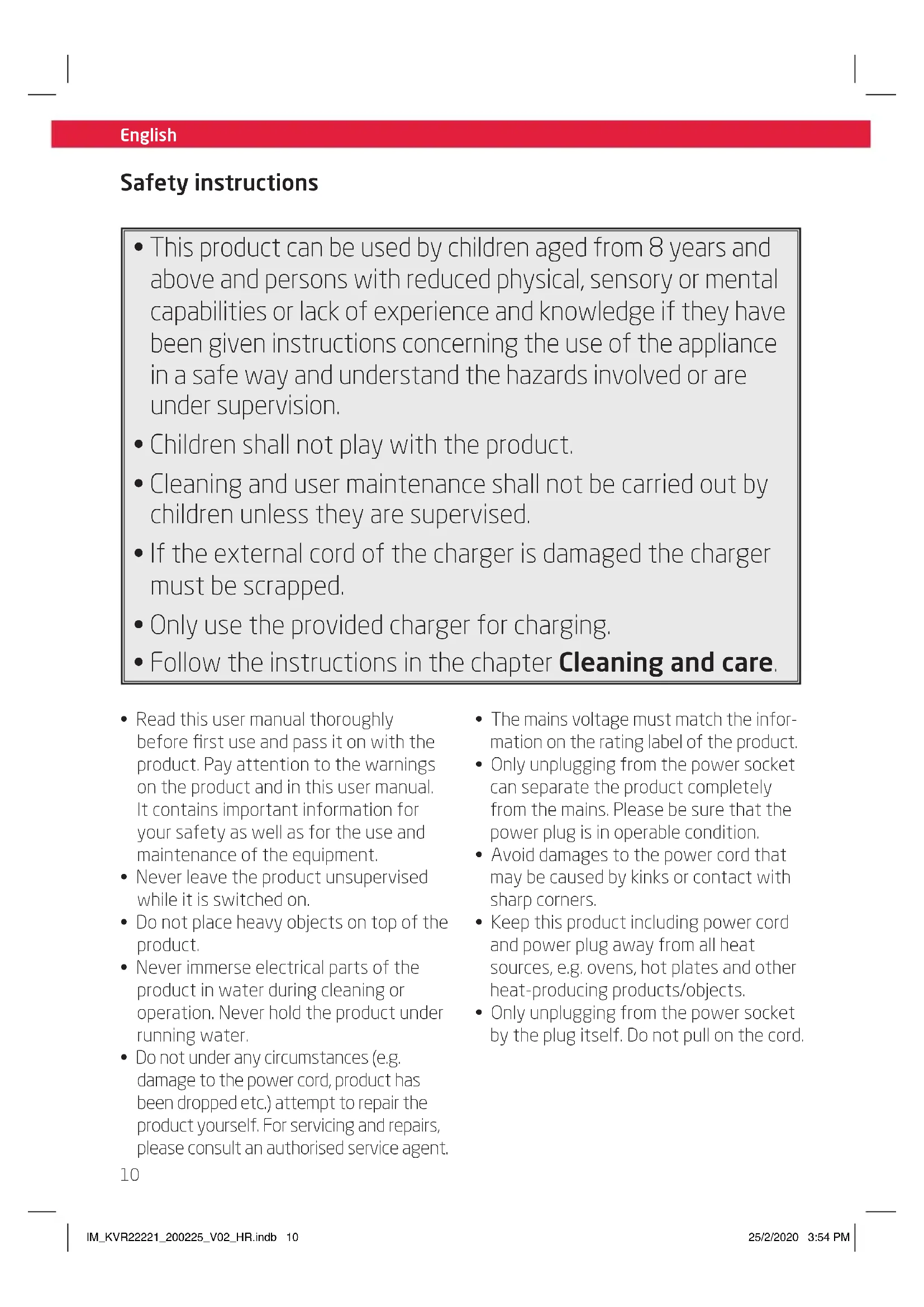

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instructions concerning the use of the appliance in a safe way and understand the hazards involved or are under supervision.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• If the external cord of the charger is damaged the charger must be scrapped.
• Only use the provided charger for charging.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances (e.g. damage to the power cord, product has been dropped etc.) attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

- The mains voltage must match the information on the rating label of the product.

- Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

- Keep this product including power cord and power plug away from all heat sources, e.g. ovens, hot plates and other heat-producing products/objects.

- Only unplugging from the power socket by the plug itself. Do not pull on the cord.

Safety instructions

• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
• Make sure that the motor unit and supply cord do not become wet.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
• Let the product cool down sufficiently before storing.
• Do not cover the product while in use. Fire hazard!
• Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
• Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms that contain explosive gases or liquids.
• Be especially careful when cleaning any kind of stairs.
• When in use, keep the product away from clothes and body parts (fingers, hair, face).
• Do not try to clean people or animals with the product.

• Only use the charging adapter provided to charge the product.

• Never expose the product/rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.

• The rechargeable battery is firmly mounted into the product and cannot be replaced
• Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!
• Never charge the rechargeable battery of the product unattended.

English

Congratulations!

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Before first time use the built-in batteries must be charged for at least 4 hours, please refer to chapter Charging batteries.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste.

Please use the return and collection systems in your community or contact the dealer where you purchased the product.

12

Content

1 x Handstick vacuum cleaner
1 x Handheld vacuum cleaner
1 x Floor nozzle
1 x Crevice nozzle
1 x Upholstery nozzle
1 x Charging base
1 x Adaptor
1 x User manual
1 x Warranty card

Controls and components

A Handstick: On/Off/ Speed button
B Handheld vacuum cleaner: On/Off/Speed button
c Power indicator
D Release button
ε Textile filter
F Dirt filter
G Dust container
H Floor nozzle
Power indicator on floor noozle
J Floor support part front
K Brush release button
Back floor support part
M Charging base
N Crevice noozle
0 Upholstery noozle
Q Release button for folding handstick
R Adaptor

P Release button for handheld vacuum cleaner

Assembly

Floor support

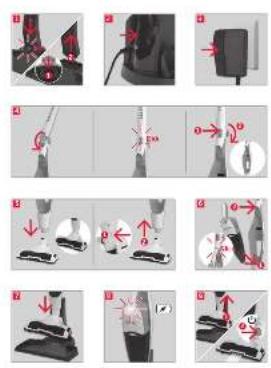

Fig. 1 Attach both floor support parts together and put on the charging base.
Fig. 2 Plug one end of the adapter into the DC IN jack of the charging base.
Fig. 3 Connect the adaptor to an electrical outlet.

Handstick vacuum cleaner

Fig. 4 Raise the handle and lock into place. To fold back the handle, press the unlocking knob and release the handle.
Fig. 5 Plug the handstick vacuum cleaner into the floor nozzle and lock into place. To release the floor nozzle, press the unlocking knob and pull the handstick vacuum cleaner out of the nozzle.
Fig. 6 Insert the handheld vacuum cleaner into the handstick vacuum cleaner and lock into place.

Note: Make sure that the contacts of the handheld vacuum cleaner and handstick vacuum cleaner are not dirty. Clean the contacts if necessary.

Charging batteries

Fig. 7 Insert the handstick vacuum cleaner into the charging base.

Note:

• Make sure that the contacts of the handstick vacuum cleaner and charging base are not dirty. Clean the contacts if necessary.
• When the handstick vacuum cleaner is inserted into the charger, the product is automatically switched off, should it have still been left on by accident.
• It is normal for the charging base and vacuum cleaner to become hot. It's not a cause for concern.
• The vacuum cleaner can be charged at any time when it is not in use.

Fig. 8 The LED indicator flashes in blue and indicates the battery is being charged. The indicator turns on steady blue, when the battery is fully charged.

LED indicator

LED color Condition
Red flashing	During operation, when battery level is low
Blue flashing	During charging
Blue steady	Charging completed. Fully charged

English

Vacuuming

Using handstick vacuum cleaner

Fig. 9 Remove the handstick vacuum cleaner from the charging base. Press the On/Off button to turn on. The operation indicators on the floor nozzle light up and indicate that the brush roller is turning.

Vacuum Power

On/Off button	Function/Power
1 x On/ High power
2 x Low power
3 x Off

Fig. 10 During short pause while vacuuming, the handstick vacuum cleaner can be left standing upright anywhere in the room. Tilt the vacuum cleaner slightly forwards in the direction of the nozzle until it locks into place.

Warning!

When the handstick vacuum cleaner is left standing, it must be switched off, because if the brush is turning while the product is standing, it could cause damage to the floor surface.

Fig. 11 After vacuuming, press the On/Off button to turn off the product and return it to the charging base.

Using handheld vacuum cleaner

Fig. 12 Press the release button to unlock the handheld vacuum cleaner and take it from the handstick vacuum cleaner.

Fig. 13 Press On/Off button to turn on/off the handheld vacuum cleaner.

Fig. 14 For charging, return the handheld vacuum cleaner back to the handstick vacuum cleaner and ensure it locks into place.

Upholstery and Crevice nozzle

Fig. 15 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc., insert the upholstery nozzle into the air intake opening of the handheld vacuum cleaner. For vacuuming folds, crevices and corners, insert the crevice nozzle into the air intake opening of the handheld vacuum cleaner.

Cleaning and care

Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

Emptying dust container and cleaning filters

Note: The dust container should be emptied every time after vacuuming.

Fig. 16 Remove the handheld vacuum cleaner from the handstick vacuum cleaner. Press the release button to unlock the dust container and remove it from the suction unit.
Fig. 17 Remove the dirt filter and textile filter from the dust container and clean them by tapping out or brushing out the dirt. If heavily soiled, the dirt filter can be washed out. Ensure to dry it completely before re-assembly.
Fig. 18 Empty the dust container. If heavily soiled, the dust container can be rinsed under running water. Wipe and dry the container with a dry cloth.

Assembly dust container and filters

Fig. 19 Insert the dirt filter and textile filter into the dust container. Place the dust container onto the suction unit and lock into place.

Cleaning floor nozzle

Fig. 20 The floor nozzle should be cleaned at regular intervals. To clean it, release the floor nozzle from the handstick vacuum cleaner. Press the unlock button to release the brush roller.

Fig. 21 Take out the brush roller from the nozzle. Cut through threads and hairs wounded round the rollers using scissors and remove them.

Note: If the wheels are blocked with threads and hairs, use a flat screw driver to remove them carefully.

Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Note:

• Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor nozzle at regular intervals.
• Worn undersides of floor nozzles may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. Imtron does not accept any responsibility for damage caused by worn floor nozzles.

English

Technical data

Re-chargeable vacuum cleaner

Rated voltage: 22.2 V

Vacuum power : Max. 150 W

Protection class : III

Battery charging time : 4 hrs.

Operation time (±10%): 24 minutes at low speed/17 minutes at high speed

Dust container capacity : 0.5 L

Power adaptor

Manufacturer : Changzhou Taiyu Electric Co., Ltd.

Model : RKGSDC2800600

Input voltage: 100 - 240 V\~

Input AC frequency : 50/60 Hz

Output voltage : 28.0 V

Output current: 0.6 A

Output power: 16.8 W

Average active efficiency : 85.6 %

Efficiency at low load (10 %): 72.5 %

No-load power consumption : 0.08 W

Protection class : II

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem	Possible causes	Solution
Product does not work	Interrupted power supplyBattery is empty	Check the power supplyRe-charge battery
Product cannot absorb dust or loose suction power	Filters are blocked with dirtDust container full, exceed MAX marking	Clean and wash the filtersEmpty dust container
Rolling brush does not work	Brush is blocked with threads and hairs	Cut and remove the threads and hairs from the brush
Floor nozzle difficult to move or get jammed	Wheels are blocked with threads and hair	Remove them carefully by using a flat screwdriver
