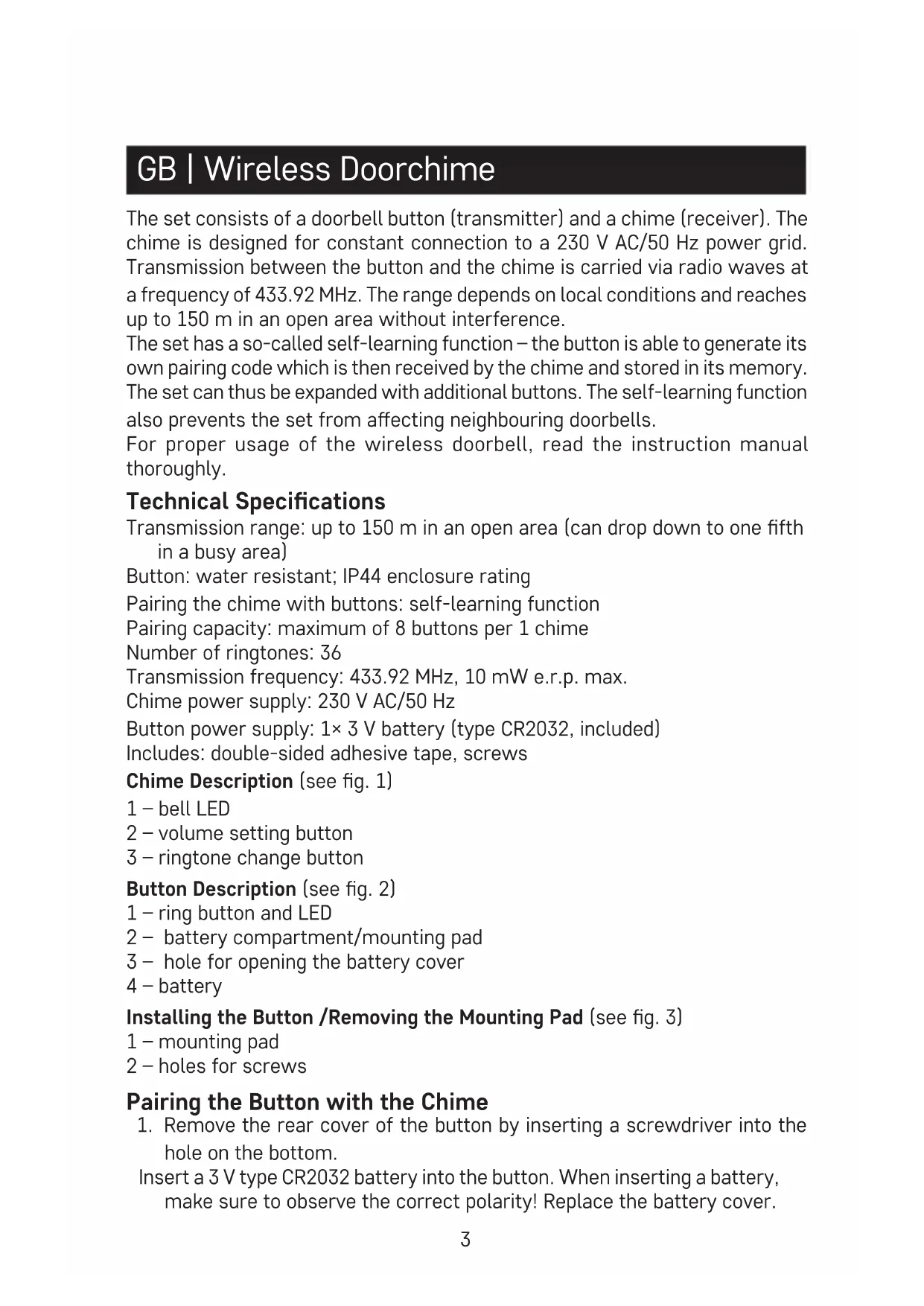

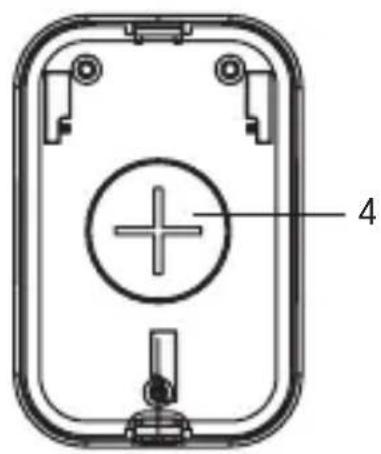

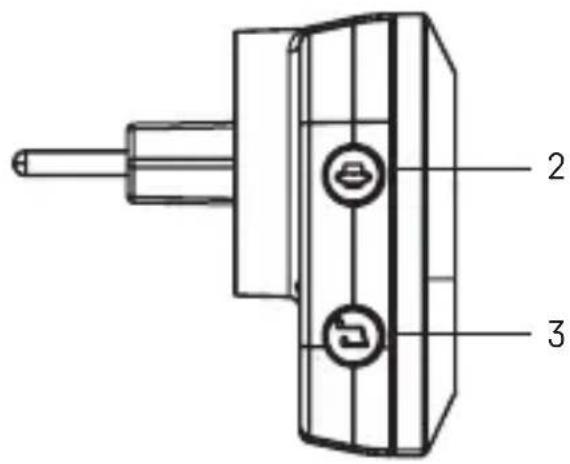

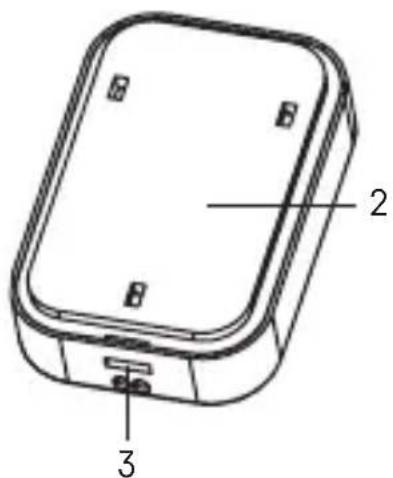

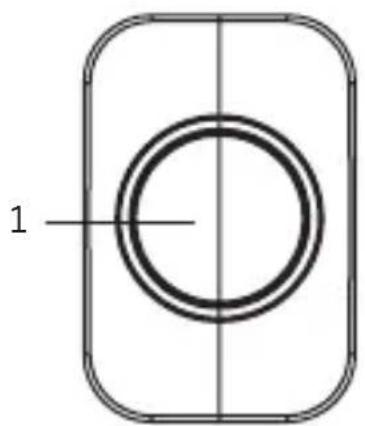

GB | Wireless Doorchime The set consists of a doorbell button (transmitter) and a chime (receiver). The chime is designed for constant connection to a 230 V AC/50 Hz power grid. Transmission between the button and the chime is carried via radio waves at a frequency of 433.92 MHz. The range depends on local conditions and reaches up to 150 m in an open area without interference. The set has a so-called self-learning function – the button is able to generate its own pairing code which is then received by the chime and stored in its memory. The set can thus be expanded with additional buttons. The self-learning function also prevents the set from aecting neighbouring doorbells. For proper usage of the wireless doorbell, read the instruction manual thoroughly. Technical Specications Transmission range: up to 150 m in an open area (can drop down to one fth in a busy area) Button: water resistant; IP44 enclosure rating Pairing the chime with buttons: self-learning function Pairing capacity: maximum of 8 buttons per 1 chime Number of ringtones: 36 Transmission frequency: 433.92 MHz, 10 mW e.r.p. max. Chime power supply: 230 V AC/50 Hz Button power supply: 1× 3 V battery (type CR2032, included) Includes: double-sided adhesive tape, screws Chime Description (see g. 1) 1 – bell LED 2 – volume setting button 3 – ringtone change button Button Description (see g. 2) 1 – ring button and LED 2 – battery compartment/mounting pad 3 – hole for opening the battery cover 4 – battery Installing the Button /Removing the Mounting Pad (see g. 3) 1 – mounting pad 2 – holes for screws Pairing the Button with the Chime

1. Remove the rear cover of the button by inserting a screwdriver into the

hole on the bottom. Insert a 3 V type CR2032 battery into the button. When inserting a battery, make sure to observe the correct polarity! Replace the battery cover.4

2. Plug the chime unit into a 230 V AC/50 Hz socket.

3. Then, long-press the volume button

on the chime for ca. 5 seconds.

4. The chime LED will light up; release the button.

The chime will switch to self-learning pairing mode which lasts for 30seconds. During this time, press the ring button. The chime will ring and the button is now paired with the chime. This automatically ends self-learning mode.

5. To pair multiple buttons, repeat the process for each button from step 1.

Note: The chime has an internal memory where it stores the codes of the currently paired buttons for the event of a power failure. There is thus no need to pair buttons again after a power cut. Wiping the Memory of Paired Buttons Press and hold the volume button on the chime. Plug the chime into a socket. The LED of the chime will light up after ca. 5 seconds. Release the button. The LED will turn o. The memory of all paired buttons will be erased. Selecting a Ringtone

1. Repeatedly press the ringtone change button located on the chime.

2. Each press of the button will play a dierent ringtone. The last ringtone

played is the one that will be used. Setting Dierent Ringtones when Paired with Multiple Buttons If you use 2 or more buttons, you can set a dierent ringtone for each paired button to better identify which button was pressed to ring the chime.

1. Plug the chime unit into a 230 V AC/50 Hz socket.

2. Then, long-press the volume button on the chime for ca. 5 seconds.

3. The chime LED will light up; release the button.

4. The chime will switch to self-learning pairing mode which lasts for 30

5. During this time, repeatedly press the ringtone change button

; the ringtone that plays last is the one set. Then press the ring button; the chime will ring and the button is now paired with the chime.

6. This automatically ends self-learning mode.

Repeat the process from step 2 for every button. If you later want to change the ringtone of already paired buttons, it is rst necessary to wipe the memory of paired buttons. Setting the Bell Volume

1. Repeatedly press the button on the chime.

2. Each press will set a dierent volume level in the following order:

100 % – 75 % – 50 % – 25 %.5 Installing the Doorbell Button (Transmitter)

1. Begin by pairing the button with the chime.

2. Before installation, check that the pair works reliably in the chosen spot.

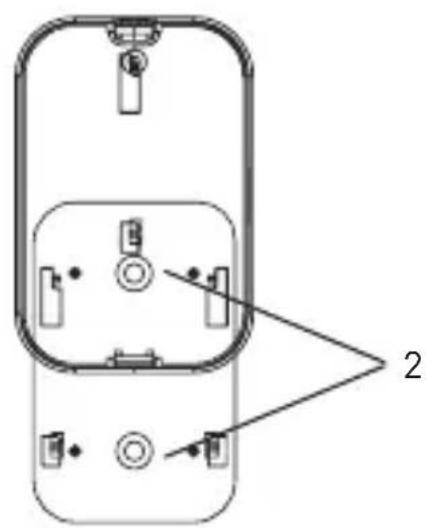

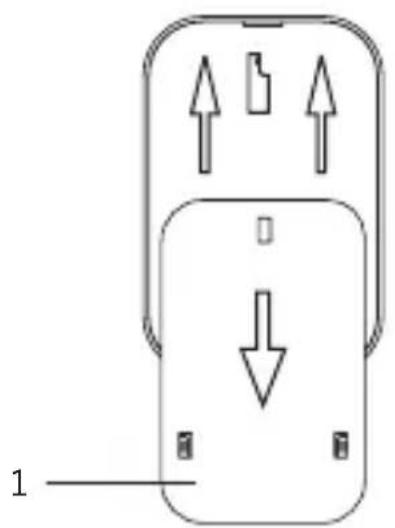

3. Remove the mounting pad from the battery cover, see g. 3.

4. Use the double-sided adhesive tape (included) or two screws to x the back

of the mounting pad to the wall. Although the button is weather resistant, choose a location where it is protected, e.g. in a wall recess.

5. Fit the mounting pad back onto the button.

6. Press the button to ring the chime. Pressing is accompanied by LED

illumination indicating the button has sent a radio signal. The chime plays the selected ringtone. Note: The doorbell button (transmitter) can be placed on wood or brick walls without issue. However, never place the button directly onto metal objects or materials containing metal, such as plastic windows or doors that have a metal frame. In such cases, the transmitter will not work properly. Installing the Chime (Receiver)

1. The doorbell is intended for indoor use only. When running, it must be

plugged in a 230 V AC/50 Hz socket and with free space around it so that it is always accessible.

2. The transmission range (max. 150 m) is inuenced by local conditions,

such as the number of walls through which the signal passes, metal door frames and other elements which aect the transmission of radio signals (presence of other radio devices operating at a similar frequency, such as wireless thermometers, gate controls etc.). Transmission range can decrease drastically due to these factors. Troubleshooting The chime does not ring:

• The chime may be out of range.

• Change the distance between the button and the chime; the range may be aected by local conditions.

• The button battery may be drained.

• Replace the battery. Make sure it has the correct polarity. Pair the button with the chime again.

• The chime is not powered.

• Make sure the chime is properly plugged into the socket and that power is on or the fuse/circuit breaker for the branch is on. Upkeep and Maintenance The wireless digital doorchime is a sensitive electronic device. Therefore, it is necessary to observe the following precautions:

• The chime (receiver) is designed for indoor use in dry environments only.

• The chime must be located in an easily accessible location for ease of handling and unplugging.6

• Periodically check the functioning of the doorbell button and replace the battery in a timely manner. Use only quality alkaline batteries with the prescribed parameters.

• When the doorchime is not used for a long time, remove the battery from the button.

• Do not subject the button or chime to excessive vibrations and shocks.

• Do not subject the button or chime to excessive heat and direct sunlight or moisture.

• When cleaning the chime, unplug it from the socket.
