Maxim’s plus - Grill plate TAURUS - Free user manual and instructions

Product type	Grill plate / Electric barbecue
Brand	Taurus
Model	Maxim's plus
Use	Indoor and outdoor
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W (estimated)
Thermostat	Adjustable, MIN to MAX position
Indicator light	Yes, heating indicator
Grill	Chrome-plated steel, 2 height positions (high and low)
Water tray	Removable, with MIN and MAX marks
Legs	Removable, supplied for the Maxim's plus model
Body material	Steel and heat-resistant plastic
Safety	Thermal safety device, mandatory grounding
Cleaning	Grill and removable tray hand washable; body cleaned with a damp cloth
Warranty	In compliance with current legislation; contact the authorized service
Included accessories	Grill, water tray, legs (Maxim's plus model)

Frequently Asked Questions - Maxim’s plus TAURUS

How to install the legs on the Maxim's plus barbecue?

To install the legs, follow the steps in figure 3 of the manual: place the covers at the bottom of the legs, attach the upper part of the leg to the grill support with a screw and a wing nut, then attach the lower part. Finally, insert the assembled group into the barbecue body and position the grill.

How to adjust the grill height?

The grill can be placed at two heights: for the high position, insert the grill feet into the right hole; for the low position, insert them into the left hole (see figures 2a and 2b of the manual).

Why does the indicator light turn on and off during use?

The light turns on when the appliance heats up and turns off when the set temperature is reached. It automatically turns back on to maintain the temperature, which is normal.

Can I use charcoal or other fuel?

No, this appliance is an electric barbecue. Never use charcoal or any other fuel, as this poses a fire risk.

How to clean the grill plate after use?

Unplug the appliance and wait for it to cool completely. Remove the water tray and grill to wash them with soapy water. Clean the body with a damp cloth. Never immerse the appliance in water.

What to do if the appliance no longer heats up?

First check that the power outlet works and that the cord is not damaged. If the problem persists, the appliance has a thermal safety protector; wait for it to cool down. If nothing works, contact an authorized technical support service.

Can I use the appliance indoors?

Yes, this appliance can be used indoors or outdoors. Place it on a stable, heat-resistant surface, away from water or flammable materials.

What is the maximum power of this appliance?

The power is not explicitly stated in the manual, but for this type of appliance, it is estimated at around 2000 W. Plug it into a grounded outlet supporting at least 16 amps.

How to get spare parts or repair?

For any repair or spare part, contact an authorized Taurus technical support service. Do not attempt to repair the appliance yourself. The list of authorized centers is available at http://taurus-home.com/.

Is the appliance under warranty?

Yes, this product comes with a warranty in accordance with current legislation. To exercise your rights, contact an authorized technical support service or visit http://taurus-home.com/.

USER MANUAL Maxim’s plus TAURUS

Line drawing of a portable electric heater with mesh grille and ventilation slots (no text or symbols)

Line drawing of a four-legged outdoor table with a gridded top and metal grate base (no text or symbols)

Technical diagram of a portable heater with labeled components and cross-sectional views

(II) x4 Fig.3 (III) x4 (VI) (I) x4 (IV)(x4) x8

① x4

② x4

Fig. 3.1 ③ x4

Line drawing of a four-legged outdoor table with a grater and two downward arrows indicating compression or cooling zones (no text or symbols)

Español

Barbacoa

Maxim's / Maxim's Plus

Maxim's / Maxim's Plus

Dear customer,

Many thanks for choosing to purchase a Taurus brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less

than 8 years of age.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- The temperature of the accessible surfaces may be high when the appliance is in use.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

- CAUTION: Do not use charcoal or other fuel with this appliance.

- As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30 mA. Ask for advice from a competent installer.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- Do not use the appliance if the cable or plug is damaged.

- Appliance is suitable for outdoor use.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to

avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

- The appliance must be connected to a socket-outlet having an earthing contact.

- Respect the MAX and MIN levels.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not allow the power cord to come into contact with the appliance's hot surfaces.

- Do not touch the plug with wet hands.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.

- Do not store the appliance outdoors.

- Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

- Do not touch the heated parts of the appliance, as it may cause serious burns.

- Do not touch metal parts or the body when it is operating, as it may cause serious burns.

USE AND CARE:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if the tray is not properly fitted underneath the heating element.

- Do not use the appliance if its accessories are not properly fitted.

- Do not switch the appliance on without water.

- Do not move the appliance while in use. - Do not use the appliance if it is tipped up and do not turn it over.

- Do not turn the appliance over while it is in use or connected to the mains.

- Do not cover the cooking surface or food with aluminium foil and other similar materials.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Do not store or transport the appliance if it is still hot.

- Only use water with the appliance.

- Turn the thermostat control to the minimum (MIN) setting. This does not mean that the appliance is switched off permanently.

SERVICE:

- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

- CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

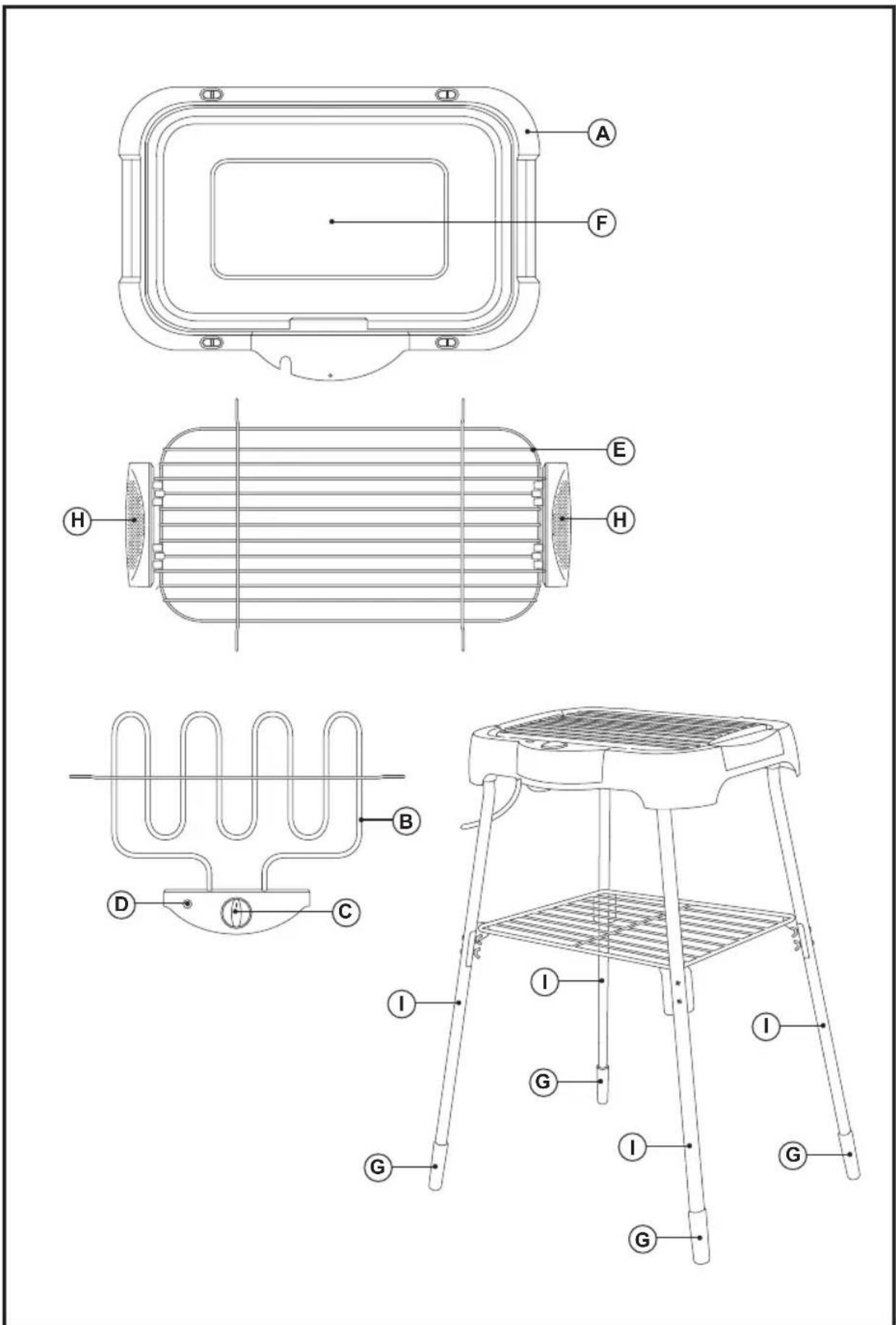

DESCRIPTION

A Barbecue body

B Heating element

C Thermostat knob

D Pilot light

E Grid

F Water tray

G Anti-slip feet

H Handles

(*) I Legs

(*) Only available in the model Maxim's Plus

INSTRUCTIONS FOR USE BEFORE USE:

- Make sure that all products' packaging has been removed.

- Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

- Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

INSTALLATION OF THE LEGS (FOR MAXIM'S PLUS MODEL):

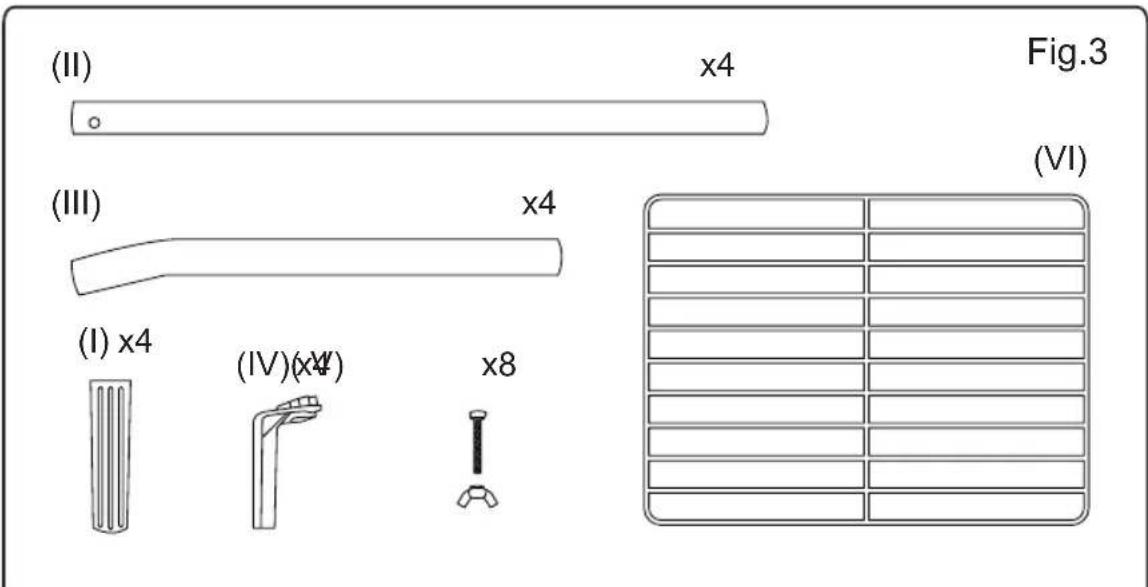

For the installation of the legs follow the following steps and the drawings of figure 3:

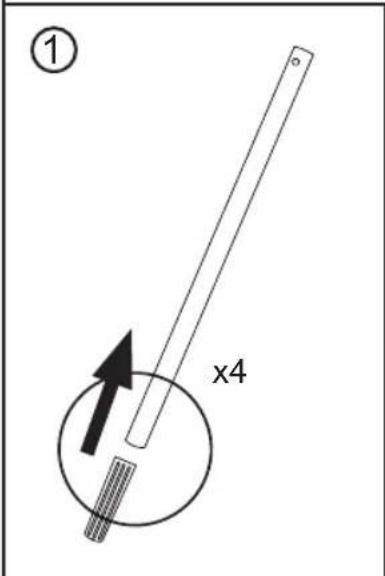

1. Place the leg covers (I) on the bottom of the legs (II).
   NOTE: You must enter them on the side that does not have the hole for the screw.

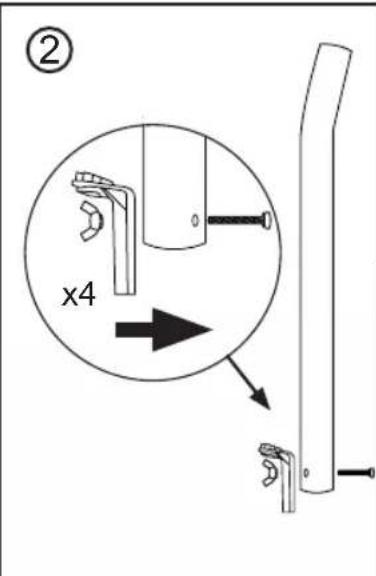

2. Fix the upper part of the leg (III) with the support for the grid (IV) introducing the screw on the outside and fixing it with the wing nut.

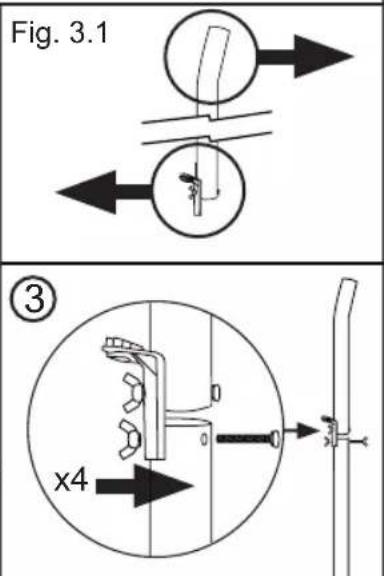

   NOTE: The inclination of the upper part of the leg (III) must be opposite the grid support (Fig.3.1).
3. Also attach the lower part of the leg (II) to the grid support and upper part.

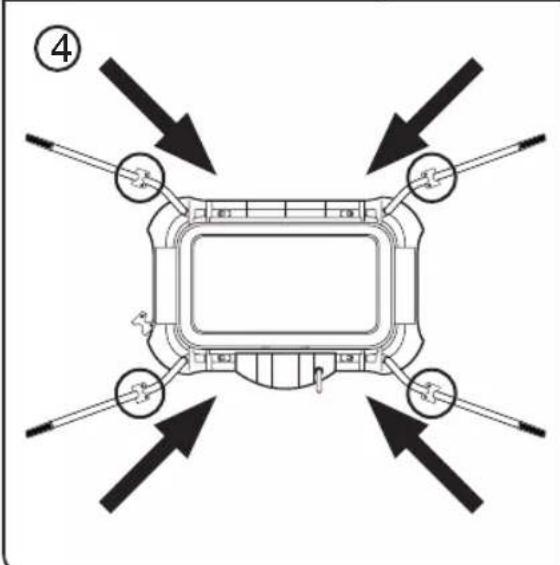

4. Place the body of the barbecue against the floor and insert the previously assembled assembly taking into account that the grid support must be on the inside.

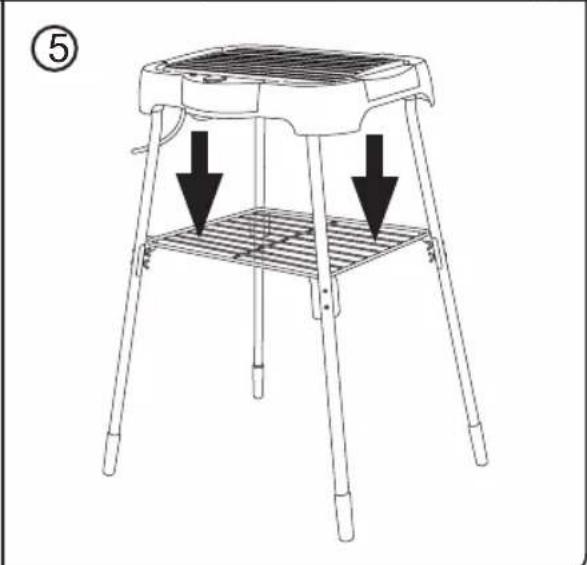

5. Put the stand assembly and place the grid (VI). NOTE: This barbecue can be used with or without legs, both indoors and outdoors.

USE:

• Unroll the cable completely before plugging it in.
• Fill the tray with water, respecting the MAX and MIN levels.
• Place the grid in one of the 2 optional heights. To place it in the highest position, insert the legs of the grid into the right hole (Fig. 2a). To place it in the lower position, insert them in the left hole (Fig. 2b)
• Connect the appliance to the mains.
• Turn the thermostat control to the desired temperature position.
• The pilot light (D) comes on.
• Wait until the pilot light has gone out which will indicate that the appliance has reached an adequate temperature.
• During the appliance's use the pilot light will come on and off automatically, indicating the heating elements are working, and therefore maintaining the desired temperature.
• Place carefully on the grill the food to be cooked.

• In order to minimize the generation of acrilamida during the cooking process, avoid reaching dark brown colours on the foodstuffs.

• The water will evaporate during the appliance's use, so that it will be necessary to refill the water tray.

• When refilling, avoid dropping water on the heating element.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

- Select the minimum position (MIN) using the thermostat control.

- Unplug the appliance from the mains.

- Clean the appliance.

SAFETY THERMAL PROTECTOR:

- The appliance has a safety device, which protects the appliance from overheating.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

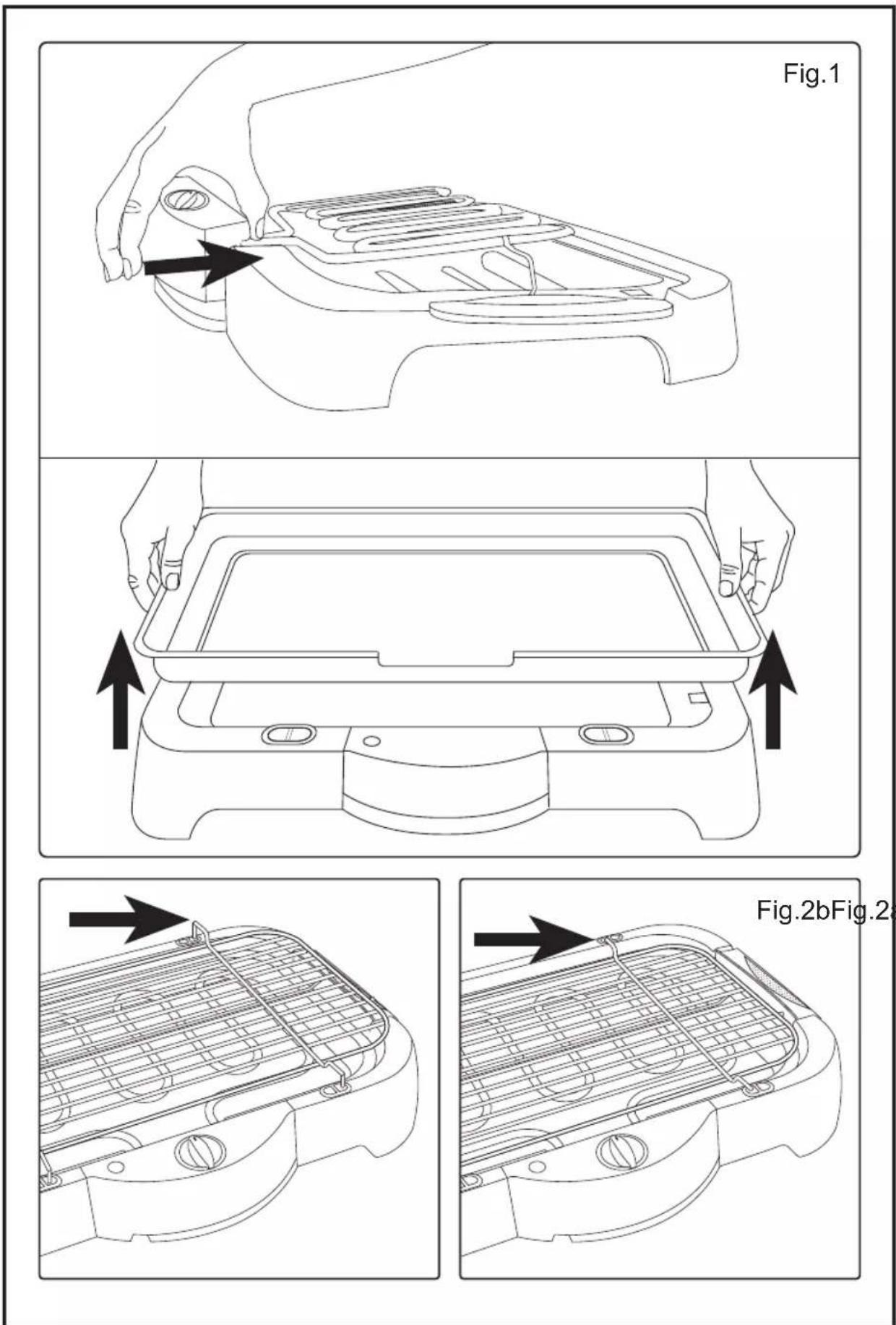

• Remove the tray as indicated in (Fig. 1), to facilitate cleaning.
• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate

public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
