TC-60 - Juicer TAURUS - Free user manual and instructions

Product Type	Juicer
Model	TC-60
Brand	Taurus
Power Supply	220-240V, 50/60Hz
Power Consumption	500W
Dimensions (approx.)	30 x 20 x 40 cm
Weight (approx.)	3.5 kg
Juice Container Capacity	1.5 L
Pulp Container Capacity	2.0 L
Speed Settings	2 speeds (low/high)
Material	Stainless steel micro-mesh filter, BPA-free plastic
Safety Features	Safety locking arm, non-slip feet, overload protection
Cleaning	Detachable parts dishwasher safe
Cord Length	1.2 m
Warranty	2 years

Frequently Asked Questions - TC-60 TAURUS

How do I assemble the Taurus TC-60 juicer?

Place the bowl over the motor unit, insert the stainless steel filter, attach the lid, and lock it with the safety arm. Ensure the pulp container and juice jug are properly positioned.

Can I juice citrus fruits like oranges and lemons?

Yes, the TC-60 can juice citrus fruits. For best results, peel thick-skinned fruits and use low speed.

How do I clean the juicer?

Disassemble the parts and rinse immediately after use. Most parts are dishwasher safe. Use the cleaning brush for the filter mesh.

What is the power consumption of the TC-60?

The juicer has a power consumption of 500W, suitable for efficient juice extraction.

Why does the juicer stop during operation?

The juicer has built-in overload protection. If it stops, turn it off, remove some produce, wait a few minutes, and restart.

Is the filter dishwasher safe?

Yes, the stainless steel filter and other detachable parts are dishwasher safe for easy cleaning.

Can I juice leafy greens like spinach or kale?

Yes, use the high speed setting and feed leaves gradually with other fruits for best results.

How should I store the juicer?

Clean and dry all parts thoroughly. Assemble the unit loosely to allow air circulation, and store in a dry place.

What is the warranty period for the Taurus TC-60?

The TC-60 comes with a 2-year warranty covering manufacturing defects. Keep your purchase receipt.

Where can I buy spare parts for the TC-60?

Spare parts are available from Taurus authorized service centers. Contact customer support for assistance.

USER MANUAL TC-60 TAURUS

Line drawing of a stylized water tap with a handle and spout (no text or symbols)

Color gradient bar with a central crosshair symbol (no text or labels)

Fig. 1

Español

Juicer with continuous pouring TC-60

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Protective cover
B Large cone
C Small cone
D Sieve
E Sieve holder
F Juice spout
G Base stem
H Motor Base
I Cable storage

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

Electrical safety:

- Do not use the appliance if the cable or plug is damaged.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Only use the appliance with the specific electric connector provided.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not wrap the power cord around the appliance.

- Do not clip or crease the power cord.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- If using the appliance outdoors, use a suitable cord extension.

- Do not touch the plug with wet hands.

Use and care:

- Fully unroll the appliance's power cable before each use.

- Do not move the appliance while in use.

- Unplug the appliance from the mains when not in use and before

undertaking any cleaning task.

- This appliance is for household use only, not professional, industrial use. - This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.

- This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- This appliance should be stored out of reach of children and/or the disabled.

Instructions for use

Before use:

- Remove the appliance's protective film.

Use:

• Unroll the cable completely before plugging it in.
• Attach the appliance to its base making sure that it is correctly fitted into place.
• Connect the appliance to the mains.
• Remove the protective cover.
• Cut the citrus fruit/s to be squeezed in half.
• Place the glass at the appliance's

juice exit.

• Select the large or small squeezing cone, depending on the fruit to be juiced.
• Turn on the appliance by pushing down on the piece of citrus fruit, once it has been placed on the juicing cone.
• To stop the appliance, simply stop applying pressure to the cone.
• Remove the cone/filter unit so you can empty the jug.
• Empty the jug of juice, tipping its contents into whatever table service receptacle you like.
• Remark: If you process a large quantity of fruit, you must periodically clean the filter and remove the remains of the pulp.

Once you have finished using the appliance:

• Unplug the appliance from the mains.
• Clean the appliance.

Cable compartment

- This appliance has a cable compartment situated on its underside.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Disassemble the appliance in accordance with the following steps:
  Remove the cone, sieve and sieve holder from the appliance (Fig. 1).

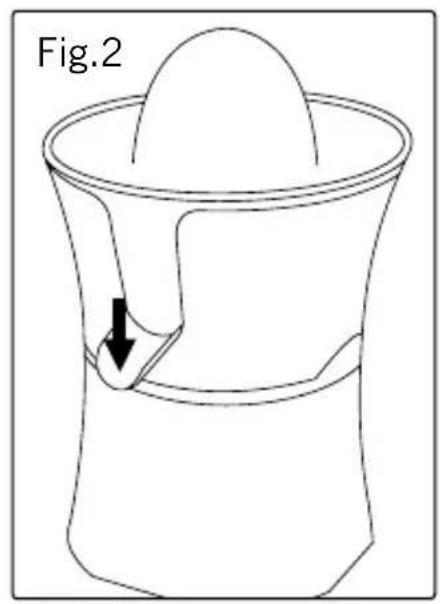

  Push down the spout completely to make sure it will be clean properly

(Fig. 2).

- Except for the power unit and the mains connection, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent.

- Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

- It is advisable to clean the appliance regularly and remove any food remains.

- The following pieces may be washed in a dishwasher (using a soft cleaning program):

- The cones.

- Sieve.

- Sieve holder.

- Protective cover

Anomalies and repair

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

- If the connection to the mains has

been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of

Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

Français

I Compartiment câble

Pure color gradient bar with no text or symbols, showing grayscale intensity bands and a central crosshair (no text or symbols)

Abstract color gradient bar with a central crosshair and horizontal lines (no text or symbols)

NIE ZANURZAĆ NIGDY W WODZIE ANI W INNEJ CIECZY.

Abstract color gradient bar with a central crosshair and horizontal lines (no text or symbols)

I Compartiment cablu

!

Pure color gradient bar with no text or symbols, showing grayscale intensity bands and a central crosshair (no text or symbols)

Gross weight: 1,25 Kg
