Citrus Glass - Juicer TAURUS - Free user manual and instructions

Product type	Juice extractor (electric citrus press)
Brand	Taurus
Model	Citrus Glass
Power supply	220-240 V ~ 50/60 Hz
Nominal power	100 W
Juice container capacity	700 ml
Bowl material	Glass
Main functions	Bidirectional cone rotation, maximum juice extraction
Included accessories	Motor unit, tray, juice container, seals, cones, filter, shaft
Dishwasher-safe parts	Tray, cones, filter, juice container
Motor unit maintenance	Clean with a damp cloth, do not immerse
Max continuous use time	5 minutes
Safety device	Automatic stop when pressure on cone is released
Important precautions	Do not use if glass is broken, do not use a plug adapter
Warranty	Legal warranty, authorized Taurus after-sales service
Repairability	Entrust to an authorized technical service, do not disassemble yourself
Compliance standards	CE, directives 2014/35/EU, 2014/30/EU, 2011/65/EU, 2009/125/EC
Use	Household use only

Frequently Asked Questions - Citrus Glass TAURUS

How to start the Citrus Glass juice extractor?

Plug in the appliance, cut the citrus fruit in half, place the half fruit on the cone and press. The cone rotates in both directions to extract the juice. Release the pressure to stop.

What is the maximum continuous use time?

Do not use the extractor for more than 5 minutes continuously. Prolonged use may damage the motor.

Can I wash the parts in the dishwasher?

Yes, the tray, cones, filter and juice container are dishwasher safe. The motor unit must be cleaned with a damp cloth and never immersed.

What to do if the container glass is broken?

Do not use the appliance if the glass is broken or cracked, as this poses a risk of cuts. Contact after-sales service for replacement.

How to clean the motor unit?

Unplug the appliance. Clean the motor unit with a damp cloth, then dry it. Do not use solvents, abrasives or acidic products. Do not immerse in water.

Is the extractor suitable for all citrus fruits?

Yes, it is designed to press all citrus fruits: oranges, lemons, grapefruits, etc. Simply cut the fruit in half.

Why is the cone not turning?

Check that the appliance is plugged in and the fruit is correctly placed. If the cone is blocked, excessive pressure may stop it. Reduce the pressure or clean the filter if clogged.

What are the signs of a clogged filter?

The juice flow decreases or the motor seems to struggle. Regularly clean the filter to remove pulp, especially for large quantities of fruit.

Can I use a plug adapter?

No, never use a plug adapter. The appliance plug must match the mains socket to avoid electrical risks.

Where can I get spare parts or have my appliance repaired?

Contact an authorized Taurus technical support service. Do not attempt to repair the appliance yourself. Visit taurus-home.com to find the nearest center.

USER MANUAL Citrus Glass TAURUS

Line drawing of a simple water heater with a handle and spout, no text or symbols present

Español

Exprimidor de cítricos

CITRUS GLASS

Citrus juicer CITRUS GLASS

Dear customer,

Many thanks for choosing to purchase a TAU-RUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

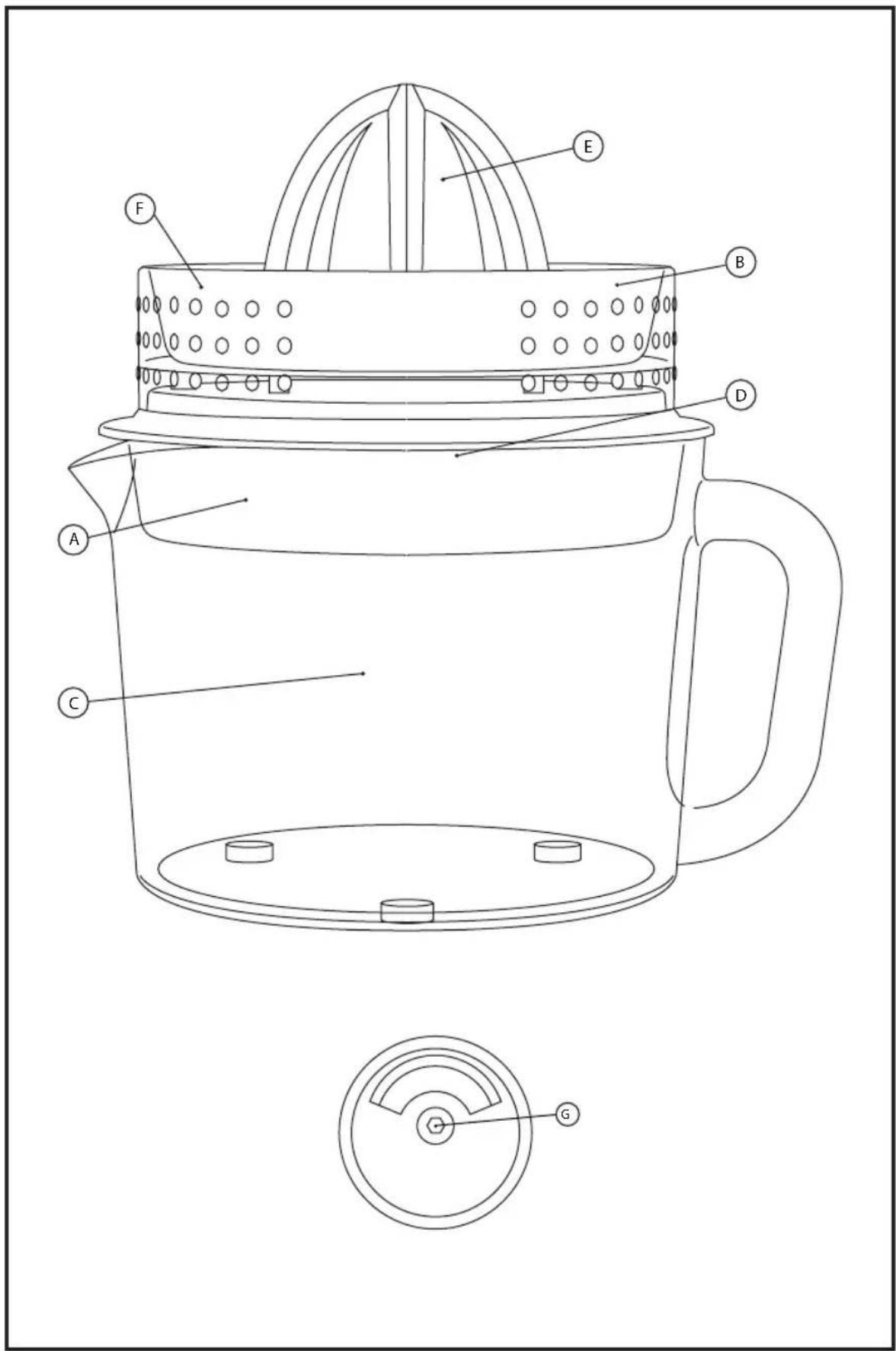

Description

A Motor body
B Tray
C Juice container
D Body sealing gasket
E Cones
F Filter
G Axis

Safety advice and warnings

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenant-

ce shall not be made by children unless they are older than 8 and supervised

• Keep the appliance and its cable out of reach of children under the age of eight.
• This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Disconnect the appliance and unplug the mains if you leave it unattended and before changing the accessories or nearby moving parts, assembling, dismantling or cleaning.

• If the connection is damaged it must be replaced. Take the appliance to an authorised Technical Assistance Service. Do not try to dismantle or repair without assistance, as this may be dangerous.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Keep the working area clean and well lit. Clutte-

red and dark areas invite accidents.

• The appliance should be used and kept over a flat and stable surface.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Check the condition of the electrical connection cable. Damaged or tangled cables increase the risk of electric shock.
• This appliance is not suitable for outdoor use.
• The power cord must be regularly examined for signs of damage and if damaged, the appliance must not be used.
• Do not touch the plug with wet hands.
• Take the necessary measures to avoid starting the appliance involuntarily.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not move the appliance while in use.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• This appliance is for household use only, not professional or industrial use.
• Store this appliance out of the reach of children and/or those with reduced physical, sensory or mental abilities or those unfamiliar with its use
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

CAUTION: Do not use the appliance if the glass is cracked or broken.

Instructions for use

Before use:

• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean

the parts that will come into contact with food in the manner described in the cleaning section.

Use:

• Connect the appliance to the mains.
• Cut the citrus fruit/s to be squeezed in half.
• Turn on the appliance by pushing down on the piece of citrus fruit, once it has been placed on the juicing cone.
  -In order to achieve an ideal extraction, the cone turns in both directions.
  -Excessive pressure on the cone may block rotation.
  -Do not use the extractor continuously for more than five minutes.
• To stop the appliance, simply stop applying pressure to the cone.
• Remove the motor body unit so you can empty the jug.
• Remark: If you process a large quantity of fruit, you must periodically clean the filter and remove the remains of the pulp.

Once you have finished using the appliance:

• Unplug the appliance from the mains.
• Clean the appliance.

Cleaning

• Disconnect the appliance from the mains before undertaking any cleaning task.
• Clean the motor base with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the motor base in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

• The following pieces may be washed in a dishwasher (using a soft cleaning program):

• Tray

• Cones
• Filter
• Juice container

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and

electronic equipment (WEEE)

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products

Français

Presse-agrumes

CITRUS GLASS

Cher Client,

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110
