Brand	Gardigo
Model	60050
Product Type	Ultrasonic repellent for dogs and cats
Intended Use	Repel dogs and cats with ultrasound
Detection Method	Infrared sensor (motion and heat)
Ultrasonic Frequency	20,000 - 27,000 Hz
Detection Angle	70°
Detection Range	Up to 7 meters
Effective Range	Up to 7 meters
Sound Pressure	90 dB
Power Supply	6 AA 1.5 V batteries (non-rechargeable) or 9 V DC min 100 mA mains adapter (ref. 60052)
Operating Temperature	0°C to +50°C, ≤90% RH
Storage Temperature	0°C to +50°C, ≤90% RH
Protection Rating	IP44
Main Functions	Infrared detection, ultrasonic emission, automatic frequency change, manual test, indicator LED
Mounting	Wall, tree, fence, or table mounting (bracket included)
Package Contents	Repellent, mounting kit, user manual
Cleaning and Maintenance	Clean with a dry cloth; do not immerse in water
Safety	Do not use near ear; keep out of reach of children; IP44 for outdoor use (batteries only)
Customer Service	[e-mail]
Standards	Compliant with CE regulations

Frequently Asked Questions - 60050 Gardigo

Why don't I hear any sound from the device?

The device emits ultrasound between 20,000 and 27,000 Hz, while the human ear can perceive up to 18,000 Hz. Use the Test button to check operation: you will then hear a test tone.

The red LED is flashing, is the device defective?

No, that's normal. The LED flashes during frequency change to prevent animals from getting used to it.

I hear an unusual noise coming from the device, what should I do?

This noise indicates that the batteries are low. Replace the 6 AA batteries with new alkaline batteries, observing polarity.

What is the battery life?

It ranges from 4 weeks to 6 months depending on battery type and activation frequency. Alkaline batteries are recommended, and frequent activation reduces their life.

Can I use rechargeable batteries?

No, it is not recommended to use rechargeable batteries because their voltage is generally lower, which can impair the operation of the device.

Does the device work outdoors?

Yes, the protection rating IP44 allows it. However, when using the mains adapter, it is not suitable for outdoor use. Use batteries for outdoor use.

How to install the device?

Attach the supplied wall mount to the desired location (wall, tree, fence) using screws. Then insert the device onto the mount. Orientation can be upside down without affecting operation.

What is the effectiveness time of the device?

Animals leave the area after a few days to a few weeks. The frequency change prevents habituation. You need to be patient.

Is the device harmful to animals?

No, the emitted ultrasound is harmless but uncomfortable for dogs and cats. They will seek another more hospitable place.

What to do if the device does not detect animals?

Check that the infrared detector field is clear, the batteries are in good condition, and the device is on. The detector reacts to body heat movements.

USER MANUAL 60050 Gardigo

Gray 3D-printed device with circular vent and 'GARDIGO' logo, no visible text or symbols on body

DE Gebrauchsanweisung 3
Instruction manual 9
(FR) Notice d'utilisation 15
ES Manual de instrucciones 21
IT Istruzioni per l'uso 27
NL Instructies 33
CZ Návod k používání 39

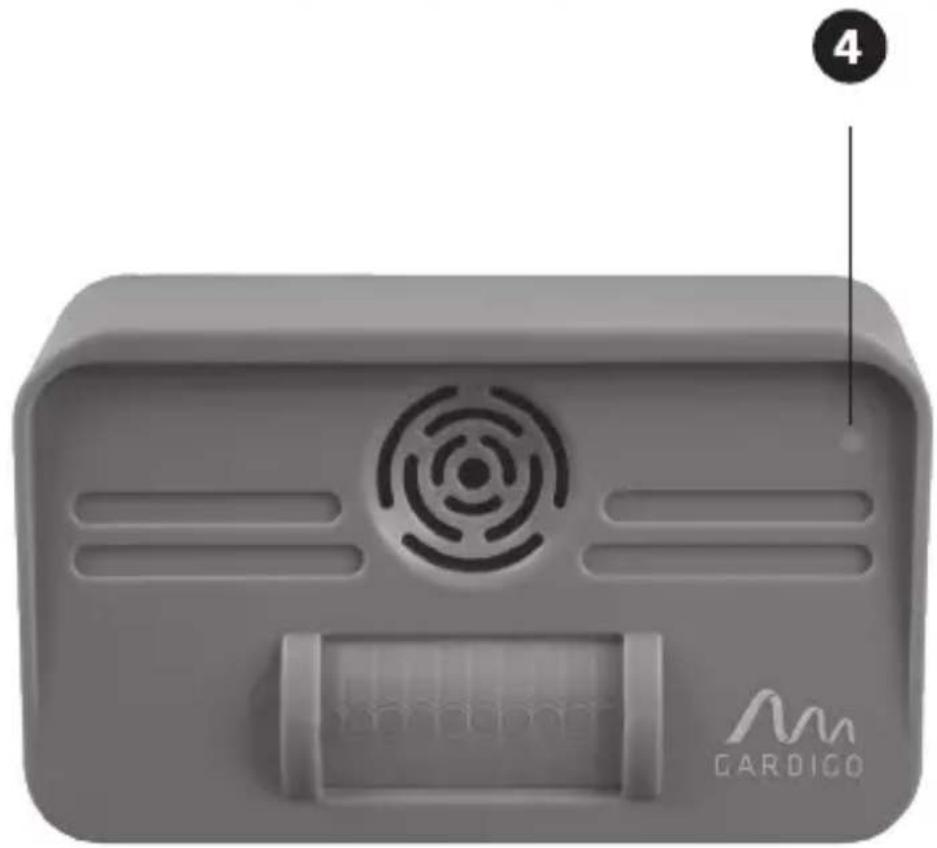

PRODUKTZEICHNUNG

3D rendered image of a gray medical device with ventilation grille and 'CARDIGO' logo (no readable text or symbols beyond branding)

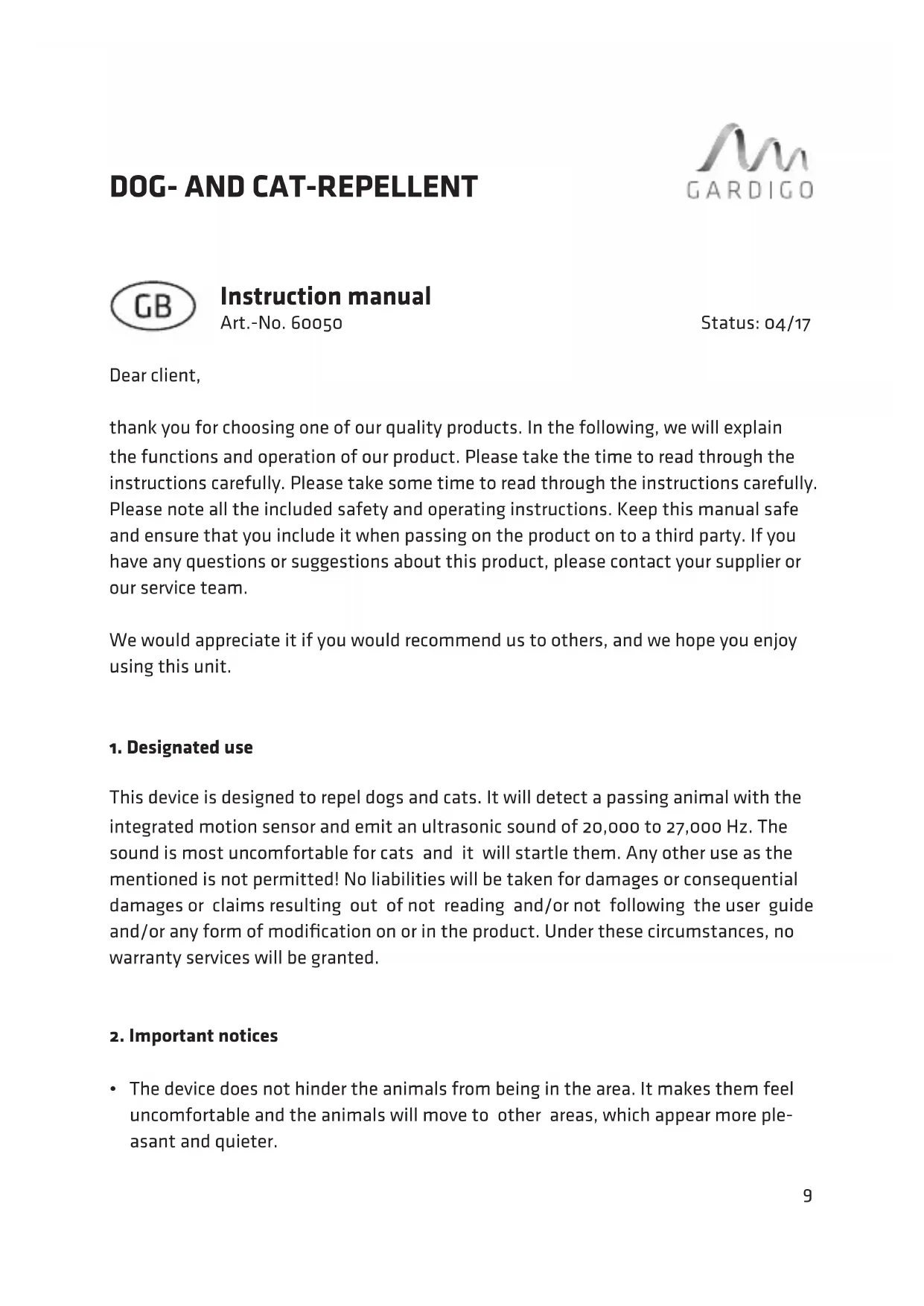

Gebrauchsanweisung

Art.-Nr. 60050

Stand: 04/17

thank you for choosing one of our quality products. In the following, we will explain the functions and operation of our product. Please take the time to read through the instructions carefully. Please take some time to read through the instructions carefully. Please note all the included safety and operating instructions. Keep this manual safe and ensure that you include it when passing on the product on to a third party. If you have any questions or suggestions about this product, please contact your supplier or our service team.

We would appreciate it if you would recommend us to others, and we hope you enjoy using this unit.

1. Designated use

This device is designed to repel dogs and cats. It will detect a passing animal with the integrated motion sensor and emit an ultrasonic sound of 20,000 to 27,000 Hz. The sound is most uncomfortable for cats and it will startle them. Any other use as the mentioned is not permitted! No liabilities will be taken for damages or consequential damages or claims resulting out of not reading and/or not following the user guide and/or any form of modification on or in the product. Under these circumstances, no warranty services will be granted.

2. Important notices

- The device does not hinder the animals from being in the area. It makes them feel uncomfortable and the animals will move to other areas, which appear more pleasant and quieter.

• It may take a few days or weeks until the effect fully takes place.
• The dispersion of the sound is related to the local surroundings.
• The product can be mounted quickly and immediately provides an optimum protection against animals.
• The motion sensor registers the movement of warm bodies. This also includes human beings. In order to conserve the batteries, we recommend switching the device off when many people are in the area.
• The ultrasonic frequencies are not harmful to the animals.
• If you should have your own pets in the covered area, we recommend switching the device off.

3. Safety instructions

Note: Damage caused by not adhering to the operating instructions is not covered by guarantee. Gardigo accepts no liability whatsoever for any resulting consequent damages.

• For safety and certification reasons (CE) the unauthorised conversion and/or modification of the product is not permitted. This will void the warranty/guarantee.
• Only operate the device at its intended voltage.
  • In case of repairs, only use original spare parts, to avoid serious damage.
• Check feed cables and conducting cables connected to the device for breaks or insulation defects. If you find a defect, or there is visible damage do not use the device.
• Repairs or other works, e.g. changing a fuse, etc. may only be carried out by an appropriately trained, skilled person.
• It must be noted that operator or connecting errors lie outside the influence of Gardigo and we cannot accept any liability for resulting damages.
• Always check whether the device is suitable for the respective place where you intend using it.
• The use of this device is not designed for use by persons (including children under 8 years) with reduced physical, sensory or mental capabilities, or the lack of experience or lack of knowledge, unless they are supervised or have been instructed in the use of the device by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Never hold the device directly to your ear. Humans cannot hear ultrasonic frequencies, but they might the device emits at a high volume and then therefore it might be harmful, if the ear is exposed to them over a longer period.

4. Contents

• Dog- and Cat-Repellent
- Mounting material
- Instruction manual

5. Getting started

Dogs and cats are most popular pets and are always around the house and the garden. But there are always some areas that they should not be in, such as larders, bedrooms or sand pits. The Gardigo Cat-Repellent registers all animals passing by within a distance of 7 m and at an angle of 70^ . As soon as the motion sensor is triggered, the device will emit an ultrasonic sound varying between 20 and 27 kHz. These frequencies are uncomfortable and disturbing to dogs and cats. Within a short period of time, they will avoid the area.

Putting in the batteries

Of the device requires 6 x Mignon (AA, 1,5 V) batteries. Please do not use rechargeable batteries, as these very often have a lower voltage. This can strongly influence the performance of the device.

• Open the battery compartment at the back of the device with a screw driver.
• Insert 6 pieces of 1,5 V AA batteries. Please pay attention to the polarity. The minus end of the battery always connects to the spring in the battery compartment.
• Close the battery compartment again.
  • The device is now ready for use.

The Cat-Repellent can also be powered with a power supply. A 9 V, 100 mA power supply can be purchased through our store (Accessory No. 60052). The power supply is connected to the power input socket 3.

Attention! If you are using a power supply with the device, then the device may not be installed or used outside the house!

Mounting

The device can be mounted to a wall, a tree or a fence or can be placed onto the table or a shelf. To place it on the table, just turn it upside down. This does not have any effect on the function. We recommend installing the device, so that it cannot be reached by the animals, as they might find an interest in the source of the uncomfortable noise and try to destroy it.

Installing the device with the bracket

• Release the mounting bracket from the housing by pushing it upwards. The mounting bracket can be found at the back of the housing.
• Screw the mounting bracket with the supplied screws to a wall, a fence, a tree or any similar place.
  • After mounting, the device will easily slip into the bracket.

Use

• The device is switched on with the I/O switch. When the motion sensor recognises movement, the red control LED will light up.
• Put the device into the bracket or onto a table or shelf. To place it on table, turn the device 180° around. This will have no influence on the performance, as is the detection angle is 70° in all directions.
  • Make sure that the motion sensor has a clear view of the area it is intended to cover.
• The test button 1llows you to check, if the device is fully functioning. You cannot hear the ultrasonic sound, but the device will emit a functional test sound that is audible to humans. Do not hold the device directly to your ear.

6. Specifications

• Frequency response: 20.000 - 27.000 Hz
• Detection angle: 70°, 7 m range
• Effectivecoverage: up to 7 m
• Sound pressure: 90 dB
• Power supply: 6 x AA 1,5 V Mignon batteries
• Power supply: DC 9 V, 100 mA
- Working temperature: 0^ C to +50^ C und ≤ 90 % R.H.
- Storage temperature: 0^ C to +50^ C und ≤ 90 % R.H.
- Protection: IP44

7. FAQ

Why can I not hear any sound?

The device emits varying frequencies between 20.000 - 27.000 Hz. The human range usually does not exceed 18.000 Hz. Therefore humans cannot hear these ultrasonic frequencies. You can check the function of the device by pressing the test button (chapter 5).

I can hear an unusual sound. Is the device broken?

If the device emits audible, unusual sounds, then it is an indicator that the batteries are becoming flat. Please change the batteries.

How long can the batteries last?

Depending on the battery type and the frequency of activation, the batteries will last between four weeks and six months. We recommend the use of alkaline batteries. The quality of the batteries and the frequency of activation are the main factors influencing the battery life.

8. General information

1. The CE conformity has been proven and the declarations are deposited with us.
2. Electric appliances, packaging material etc. should be kept away from children.
3. Dispose packaging and worn out material correctly and in an environmentally friendly way.
4. Do only pass on the device including the operation manual.
5. Subject to change of design and technical data without notice for the sake of constant product improvement.

9. Guarantee

The guarantee covers the elimination of all shortcomings, which can be attributed to imperfect materials or manufacturing errors. As Gardigo has no influence on the correct and proper assembly or operation, we can only guarantee the quality of the components – and that the product is complete. We assume neither a guarantee nor liability for damage or resulting damage in connection with this product. This applies in particular when amendments or attempts to repair the product have been conducted, circuits have been modified or other components have been used or damage has been caused through operator errors, negligent handling or misuse.

Service Hotline: Phone [phone] Your Gardigo-Team

Environmental protection notice

At the end of its life span this product may not be disposed as normal household waste but must be disposed of at a collecting place for recycling of electrical and electronic equipment. The icon on the product, in the manual, or on the packing points to this fact. The materials are recyclable according to their labelling. Through reusing, material recycling, or other forms of utilisation of old devices you make an important contribution to the protection of the environment. Please ask the local administration for the responsible waste disposal centre.

Do not throw batteries or rechargeable batteries into household waste!

Consumers are legally obligated to return used and rechargeable batteries, whether they contain harmful substances* or not, to designated recycling areas, disposal sites, or stores where batteries/rechargeable batteries can be bought. By doing so, you are fulfilling all legal battery recycling and disposal obligations and are contributing to a better environment. Make sure batteries are completely discharged before disposing!

*marked with: Cd = cadmium, Hg = mercuric, Pb = lead
