Smart Air Conditioner 9000

Smart Air Conditioner 12000

01.352900.01.001 / 01.353200.01.001

PARTS DESCRIPTION / ONDERDELENBESCHRIJVING / DESCRIPTION DES PIÈCES / TEILEBESCHREIBUNG / DESCRIPCIÓN DE LAS PIEZAS / DESCRIÇÃO DOS COMPONENTES / DESCRIZIONE DELLE PARTI / BESKRIVNING AV DELAR / OPIS CZĘŚCI / POPIS SOUĆASTÍ / POPIS SÚĆASTÍ / ОПИСАНИЕ ЗАПЧАСТИ

Exploded view diagram of a portable air conditioner with numbered parts labeled for identification.

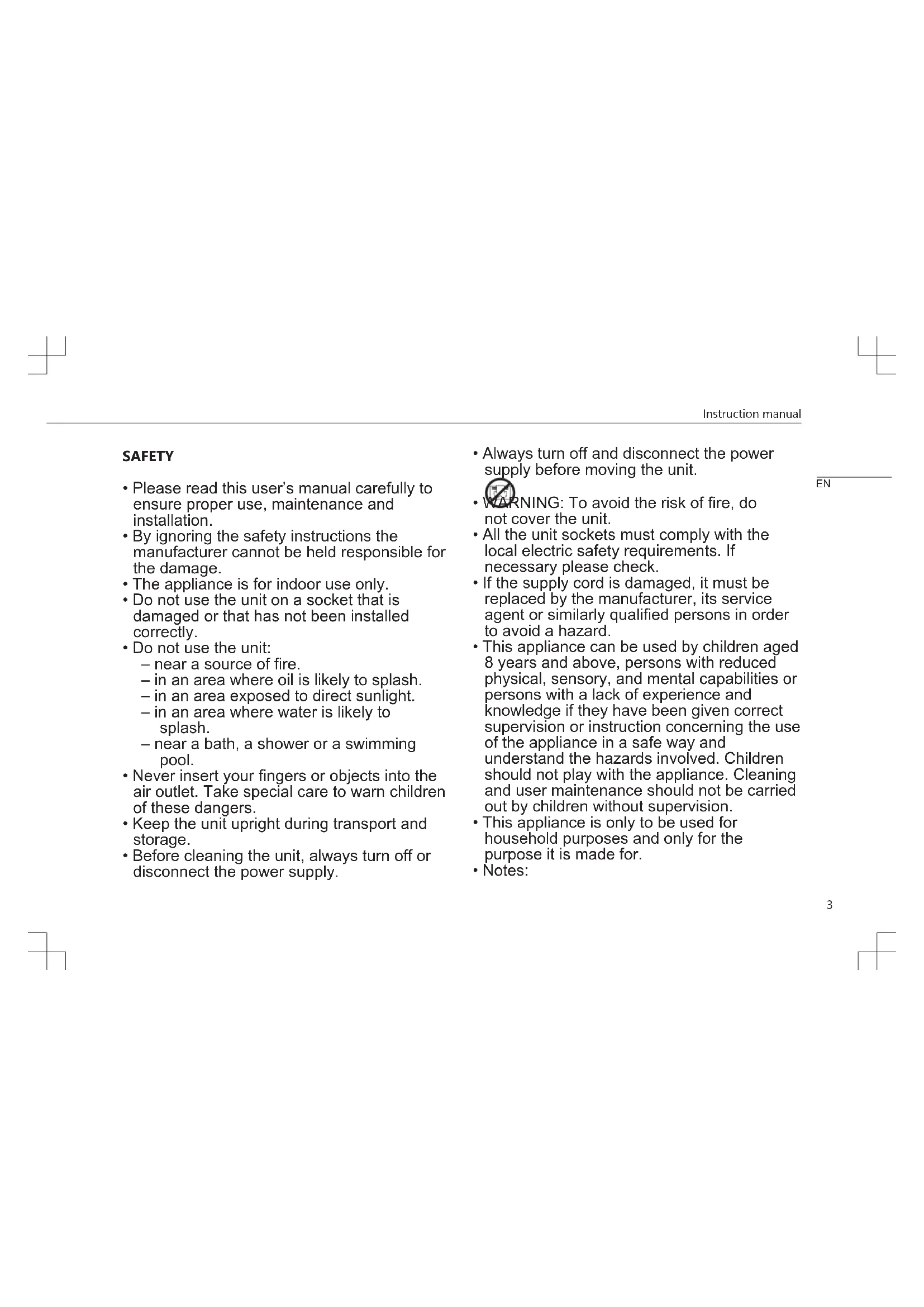

SAFETY

• Please read this user's manual carefully to ensure proper use, maintenance and installation.
• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
  • The appliance is for indoor use only.
• Do not use the unit on a socket that is damaged or that has not been installed correctly.
• Do not use the unit:
• near a source of fire.
  – in an area where oil is likely to splash.
  – in an area exposed to direct sunlight.
  – in an area where water is likely to splash.
• near a bath, a shower or a swimming pool.
• Never insert your fingers or objects into the air outlet. Take special care to warn children of these dangers.
• Keep the unit upright during transport and storage.
• Before cleaning the unit, always turn off or disconnect the power supply.

• Always turn off and disconnect the power supply before moving the unit.
- WARNING: To avoid the risk of fire, do not cover the unit.
- All the unit sockets must comply with the local electric safety requirements. If necessary please check.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- This appliance can be used by children aged 8 years and above, persons with reduced physical, sensory, and mental capabilities or persons with a lack of experience and knowledge if they have been given correct supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.
- This appliance is only to be used for household purposes and only for the purpose it is made for.
- Notes:

Instruction manual

– In the case of any damage, please disconnect the power supply and contact the dealer or a designated repair shop.
– In any case, the power cord shall be firmly grounded.
- To avoid the possibility of danger, if the power cord is damaged, please disconnect the power supply. It must be replaced by the dealer or a designated repair shop.

Warning

• Please use the recommended defrosting and cleaning process from the manufacturer only. Do not accelerate the defrosting or cleaning process in any other way.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odor.

• The appliance should be installed, operated and stored in a room with a floor area larger than X m2. (X=12 for 9000Btu/h; X=15 for 12000Btu/h)

• Only contact an authorized service technician for repair or maintenance of this unit.

• Do not pull, deform or modify the power supply cord or immerse in water. Pulling or misuse of the power supply cord could result in damage to the unit and cause an electrical shock.
• Compliance with national gas regulations should be observed.
• Keep ventilation openings clear of obstructions.
• Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of a person(s) competent in the use of flammable refrigerants.
• Do not stop the unit by pulling out the power plug whilst in operation as this may cause an electric shock or fire due to heat generation unless strange sounds are heard or if strange smells or smoke appear from the unit.

Specific information regarding appliances with R 290 refrigerant gas.

• Thoroughly read all of the warnings.
- When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.
- The appliance should not be stored in a room with continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
- Do not puncture and do not burn.
- This appliance contains Y g (see rating label back of unit) of R290 refrigerant gas.
- R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.

• If the appliance is installed, operated or stored in a non-ventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks that could result in a fire risk or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
• The appliance must be stored in such a way as to prevent mechanical failure.
• Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organization that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.
• Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

Batteries

• Do not expose the battery to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!
• Keep batteries away from children. Batteries are not a toy!
• Do not open the batteries by force.
• Avoid contact with metallic objects.(Rings, nails, screws et cetera) there is a danger of short-circuiting!
• As a result of a short-circuit batteries may heat up considerably or even catch fire. This may result in burns.
• For your safety the battery poles are covered with adhesive strips during transport.
• Do not touch a ruptured and/or leaking battery. If the liquid from the battery gets into your eyes, rinse your eyes as soon as possible with clean water, without rubbing your eyes. Immediately go to the hospital. If it is not treated properly, it can cause eye problems.

Refrigerant

(CE) N 842/2006: This unit contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your appliance does not have been refilled with refrigerant if used properly and has an undamaged coolant circuit. GWP: R290: 3

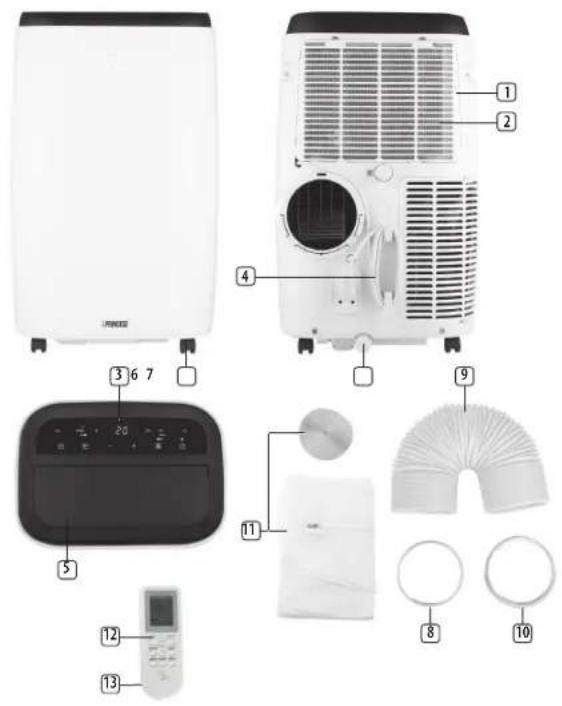

PARTS DESCRIPTION

1. Air inlet 8. Hose connector (window end)

2. Air filter 9. Hot-air exhaust hose

3. Control panel 10. Hose connector (Air conditioner end)

4. Power cord 11. Window seal + Velcro

5. Air outlet 12. Remote control

6. Castor 13. Batteries

7. Drainage hole

FUNCTION OF CONTROL PANEL

8 7 10 9 12 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1 Power on/off 8 Sleep mode
2 Fan speed 9 Cooling indicator
3 Temperature up 10 Dehumidifying indicator
4 Temperature down 11 Fan indicator
5 Mode button 12 WiFi indicator
6 Timer on/off 13 High/Medium/Low fan		speed indicator
7 Swing on/off 14 Water full indicator

REMOTE CONTROL WITH LCD DISPLAY

26°C T 70°F 5 6 7 8 9 10 SPEED SWING MODE SPEED SLIPP THER 1 2 3 4 5

1 Power on/off

2 Timer on/off

3 Mode

4 °C / F° selector

5 Temperature up

6 Temperature down

7 LED display

8 Auto swing

9 Fan speed

10 Sleep mode

EN

Instruction manual

1 2 3 4 10 26°C 9 5 8 7 6 24 hr

1 Receiving signal
2 Cooling
3 Dehum difying
4 Fan
5 Auto swing
6 Timing
7 Timer on/off
8 Sleep mode
9 Fan speed
10 Temperature display

• 2xAAA size batteries are required.
• Ensure batteries are inserted in the correct direction.
• When replacing, ensure both batteries are changed simultaneously.
• Press the corresponding buttons as explained in the control panel part to operate the fan.

BEFORE THE FIRST USE

Before starting operations in this section:

• Find a place where there is power supply nearby.
• Install the exhaust hose and adjust the window position well.
- Insert the power cord into a grounded AC220\~240V/50Hz socket.
- Press the power button to turn on the air-conditioner.
- Check whether the exhaust hose has been mounted properly.
- Set the temperature range: 16^ - 31^ .
- When using functions on cooling and dehumidifying, allow at least 3 minutes between powering off and powering on.

USING THE ON DEVICE BUTTONS

Cooling operation

• Press the "Mode" button till the "Cool" icon appears.
• Press the + or - button to select a desired room temperature.
• Allow around 5 minutes for the cooling to start.
• Press the "Fan speed" button to adjust airflow speed.

Dehumidifying operation

- Press the "Mode" button until the "Dehumidify" icon appears.

• The temperature will automatically be selected.
- The fan speed will automatically be selected.

Fan operation

• Press the "Mode" button till the "Fan" icon appears.
• Press the "Fan speed" button to adjust airflow speed.

Timer operation

Timer ON setting

• When the air-conditioner is OFF, press the "Timer" button and select a desired ON time and adjust by using the and buttons.
• The ON time can be adjusted to anytime in 0-24 hours.

Timer OFF setting

• When the air-conditioner is ON, press the "Timer" button and select a desired OFF time and adjust by using the and buttons.
• The OFF time can be adjusted to anytime in 0-24 hours.

Swing operation (oscillation mode)

- Press this button to start the oscillation mode, the louver will swing continuously up and down. Press button again to stop the operation.

Sleep operation

• In cooling mode, press the "Sleep" button to set the temperature. The set temperature is increased by 1 degree within one hour to a maximum of 2 degrees after 2 hours.
• Press "Sleep" button to cancel the operation.

Drainage

• After a lengthy operation and before storage, you will need to drain the water that has been collected. Please prepare a suitable location or tray to collect the water and remove the

rubber stop from the drainage hole at the bottom of the unit. The water will then begin to drain. After this has stopped, you can insert the drain stop.

Internal Tank Water Full Alarm Function

- The inner water tank in the air-conditioner has one water level safety switch that controls the water level. When the water level reaches an anticipated height, the water full indicator lamp lights up. Follow previous steps to drain the water.

INSTALLATION

• The air-conditioner should be installed on a flat and stable surface. Do not block the air outlet and allow at least 30cm around the unit.
• Socket wiring should be in accordance with the local electric safety requirements.

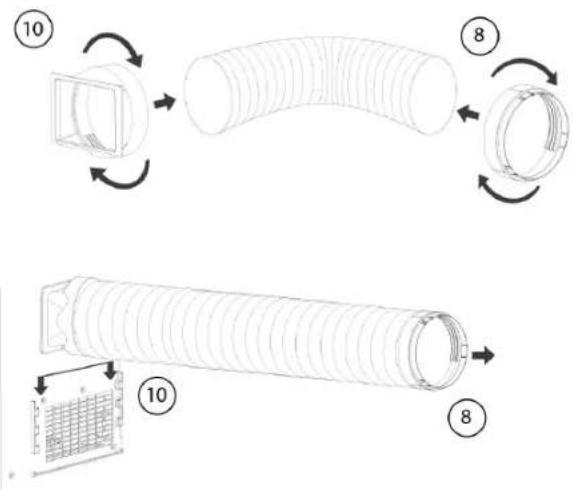

Exhaust Hose Installation

• Twist both ends of the hot-air exhaust hose(9) into the hose connector window end(8) and the hose connector air conditioner end(10).
• Insert the hose connector air conditioned end(10) into the openings at the back of the air conditioner.
• Fix the hose connector window end(8) to the nearest windowsill.

Instruction manual

Technical diagram showing assembly steps of a flexible hose with labeled components and directional arrows

Universal Window Kit Installation

• Clean the window and window frame with soap or detergent and make sure the entire window frame is dust and grease free.

• Cut the Velcro to the dimensions of the window with scissors.

• Attach the Velcro around the entire window. Note: don't stick the Velcro onto the glass.

• Attach the cloth to the Velcro tape. Start with the narrow part and work from the center towards the rest of the Velcro tape, which is attached on the window frame and around the window.
• It may be useful to open the window while attaching the cloth. Make sure to leave enough room in the corners so the cloth won't get stuck in the window.
• Open the window kit's zipper by about 50 centimeters.
• Place the air conditioning hose in the opening of the cloth. After that, close the zipper until the air condition hose is placed.

Diagram showing airflow between a window and a vertical air duct (no text or symbols)

USING THE APPLIANCE WITH CLIMATE APP

The appliance can be used manually with its built-in controls, remote control or you can use a smart phone or voice to control it. Before you begin, ensure the Homewizard Climate app is downloaded. The Homewizard Climate app is available on Android and iOS. Pair your appliance to HomeWizard Climate app

• Make sure the appliance is powered.
• Open HomeWizard Climate APP.
• Create an account or if you already have a HomeWizard account, please log in using those details.
• Click "Add new Climate Device" to add a new device.
• Select the device you want to connect.
• Follow the instructions on the app to connect the appliance.

CLEANING MAINTENANCE

• Before cleaning, disconnect the unit from any electric supply outlet.
• First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.
• Do not use gasoline or other chemicals to clean the unit.
• Do not wash the unit directly.
• The air filter should be cleaned once every two weeks.

Air filter

• Open the air inlet grille and take off air filter.
• Clean the air filter with neutral detergent in lukewarm 40°C water and allow to dry (not in direct sunlight).
• Re-install the air filter into the inlet grille.

TROUBLESHOOTING

Troubles Possible Causes Suggested		Remedies
The unit does not start when pressing power button.	Water full indicator lamp blinks and water tank is full.Room temperature is higher than the setting temperature.(Electric heating mode)Room temperature is lower that the setting temperature.(Cooling mode)	Drain the water out of the water tank.Adjust the temperature.

Instruction manual

The unit doesn't cool enough.	The doors or windows are not closed.There are heat sources inside the room.Hot air exhaust hose is not connected or blocked.Temperature setting is too high.Air inlet in blocked.	Make sure all the windows and doors are closed.Remove the heat sources if possible.Connect or clean the hot air exhaust hose.Reset the temperature.Clean the air inlet.
Noisy. • The ground is not level or not flat enough.The sound comes from the flowing of the refrigerant inside the air conditioner.		Place unit on a flat, level ground if possible.
E0 Code • Room	temperature sensor failed.	Replace room temperature sensor.

E1 Code • Condenser	temperature sensor failed	• Replace condenser temperature sensor.
E2 Code • Water tray full when cooling	• Take off rubber stopper and empty the water.
E3 Code • Pipe temperature sensor failed.	• Replace pipe temperature sensor.
E4 Code • Water tank full • Please empty the water tank.

THE PRODUCT OR EQUIPMENT CONTAINS FLUORINATED GREENHOUSE GAS.

Art.nr. 352900
Coolant: R290
Quantity in kg: 0.212
Global Warming Potential: 3
CO2 Equivalent in tonnes: 0.000636
Art.nr. 353200
Coolant: R290
Quantity in kg: 0.226
Global Warming Potential: 3
CO2 Equivalent in tonnes: 0.000678

DECLARATION OF CONFORMITY

• Hereby, Smartwares Europe declares that the radio equipment type 352900 / 353200 are in compliance with Directive 2014/53/EU
• The full text of the EU declaration of conformity is available at the following internet address: www.princesshome.eu/doc

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances

you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

The European directive for batteries (2006/66/EC) states that it is not permitted to throw batteries away with the household waste. They may contain substances which are harmful to the environment. Empty batteries can be handed over to a local, public collection point or a local recycling centre. To avoid overheating as a result of a short circuit, lithium batteries must be removed from the product and the poles must be protected using insulation tape or some other means against short-circuiting.

VEILIGHEID

Technical diagram of a cylindrical mechanical component with labeled parts and directional arrows

Montage van universele raamset

Diagram showing two different indoor air ducts: one with a window opening, the other with a cylindrical device (no text or symbols present)

HET APPARAAT GEBRUIKEN MET DE CLIMATE-APP

DÉCLARATION DE CONFORMITÉ

Technical diagram showing a cylindrical component with labeled parts and directional arrows, including section 10 and section 8.

Diagram showing two views of a window with coiled tubing, one open and one compressed (no text or symbols)

BENUTZUNG DES GERÄTS MIT DER CLIMATE-APP

Technical diagram of a cylindrical mechanical component with labeled parts and directional arrows

Diagram showing two different indoor air ducts: one with a curved pipe opening, the other with a cylindrical device attached (no text or symbols)

Technical diagram of a cylindrical mechanical component with labeled parts and directional arrows

Diagram showing two different indoor air ducts: one with a window opening, the other with a cylindrical device (no text or symbols)

Technical diagram of a cylindrical mechanical component with labeled parts and directional arrows

Diagram showing two methods of airflow from a window to an air conditioner unit (no text or symbols present)

USO DEL APPARECCHIO CON L'APP CLIMATE

Technical diagram of a cylindrical pipe with labeled components and directional arrows indicating flow or movement.

Diagram showing two methods of installing or maintaining a window frame, one with a coiled cable and the other with a cylindrical device (no text or symbols present)

Technical diagram of a cylindrical mechanical component with labeled parts and dimensions

Diagram showing two views of a window with a coiled air duct and a cylindrical device connected to the right (no text or symbols)

UŻYWANIE URZĄDZENIA Z APLIKACJĄ DO STEROWANIA KLIMATEM

Technical diagram of a cylindrical mechanical component with labeled parts and directional arrows indicating assembly or assembly.

Diagram showing two methods of ventilation or airflow from a window frame, with no text or symbols present.

POUŽITIE ZARIADENIA S APLIKÁCIOU CLIMATE

Technical diagram of a cylindrical device with labeled components and directional arrows indicating flow or movement.

Diagram showing two window outlines with a coiled piping system attached to the right panel (no text or symbols)

Max. radio-frequency power: 20.5dBm

www.princesshome.eu

© Princess 2019
