Product type	Air humidifier
Brand	Princess
Model	360001
Category	Air conditioning
Tank capacity	4.8 liters
Vaporization rate	Approximately 300 ml/h
Vaporization modes	Cold and hot
Power supply	230 V ~ 50 Hz (estimated)
Power	Not specified
Operating time	Up to 16 hours (estimated)
Main functions	Cold and hot vaporization, automatic dry shut-off, water level indicator light, capacity selector
Maintenance and cleaning	Clean weekly, descale regularly, change water daily
Safety	Automatic shut-off when water runs out, do not immerse, keep safety distance of 50 cm
Spare parts and repairability	Not specified, repairs by qualified technician only
General information	Household use, recommended ambient humidity 40-60%, do not use additives in water

Frequently Asked Questions - 360001 PRINCESS

How to fill the water tank?

Remove the tank, unscrew the filling cap, fill with cooled boiled water (max 4.8 L, max temperature 40 °C), screw back on tightly and replace the tank.

What vaporization modes are available?

Two modes: cold vaporization (position 'cold vaporization') for normal use, and hot vaporization (position 'hot vaporization') for accelerated humidification or low ambient temperature.

How to adjust the vaporization capacity?

Turn the dosage selector (mark 10) to the desired capacity. The device can vaporize about 300 ml of water per hour.

What to do if the indicator lights flash?

This indicates the tank is empty. Turn off the device, unplug it, fill the tank with water and follow the startup steps. If you do not fill it, the device turns off automatically.

How often to clean the device?

Clean the device every week. Change the water daily, even if you use the device little, to prevent bacterial growth.

How to descale the humidifier?

Use a suitable descaler following the product instructions. Clean especially the vaporizer and the float. Rinse thoroughly with cold water before reuse.

Can tap water be used?

It is recommended to use cooled boiled water to reduce bacteria and limescale. Tap water can be used but causes more limescale.

What safety precautions to observe?

Never immerse the device, do not use if it has fallen into water, leave a 50 cm clearance around it, do not cover the device, and unplug before cleaning.

Can the device be used in a bathroom?

No, do not use in an extremely humid environment like a bathroom. Use on a flat and stable surface.

How to store the device when not in use?

Clean and dry all components completely. Store away from moisture and dust, in a frost-free place. Never store with water in the tank.

USER MANUAL 360001 PRINCESS

Line drawing of a steam purifier with control knobs and a top handle (no text or symbols)

© Princess 2007

• Gebruiksaanwijzing • User's instructions • Mode d'emploi
  • Bedienungsanleitung • Instrucciones de uso • Istruzioni per l'uso
  • Bruksanvisning • Brugsanvisning • Bruksanvisning • Käyttöohje
• Instruções de uso • Οδηγίες χρήσης •

CE

Nederlands 1

English 6

Français 11

Deutsch 16

Español 21

Italiano 26

Svenska 31

Dansk 35

Norsk 39

Suomi 43

Português 47

Ελληνικά 52

Technical diagram of a coffee maker with numbered parts for identification and assembly reference.

14 15

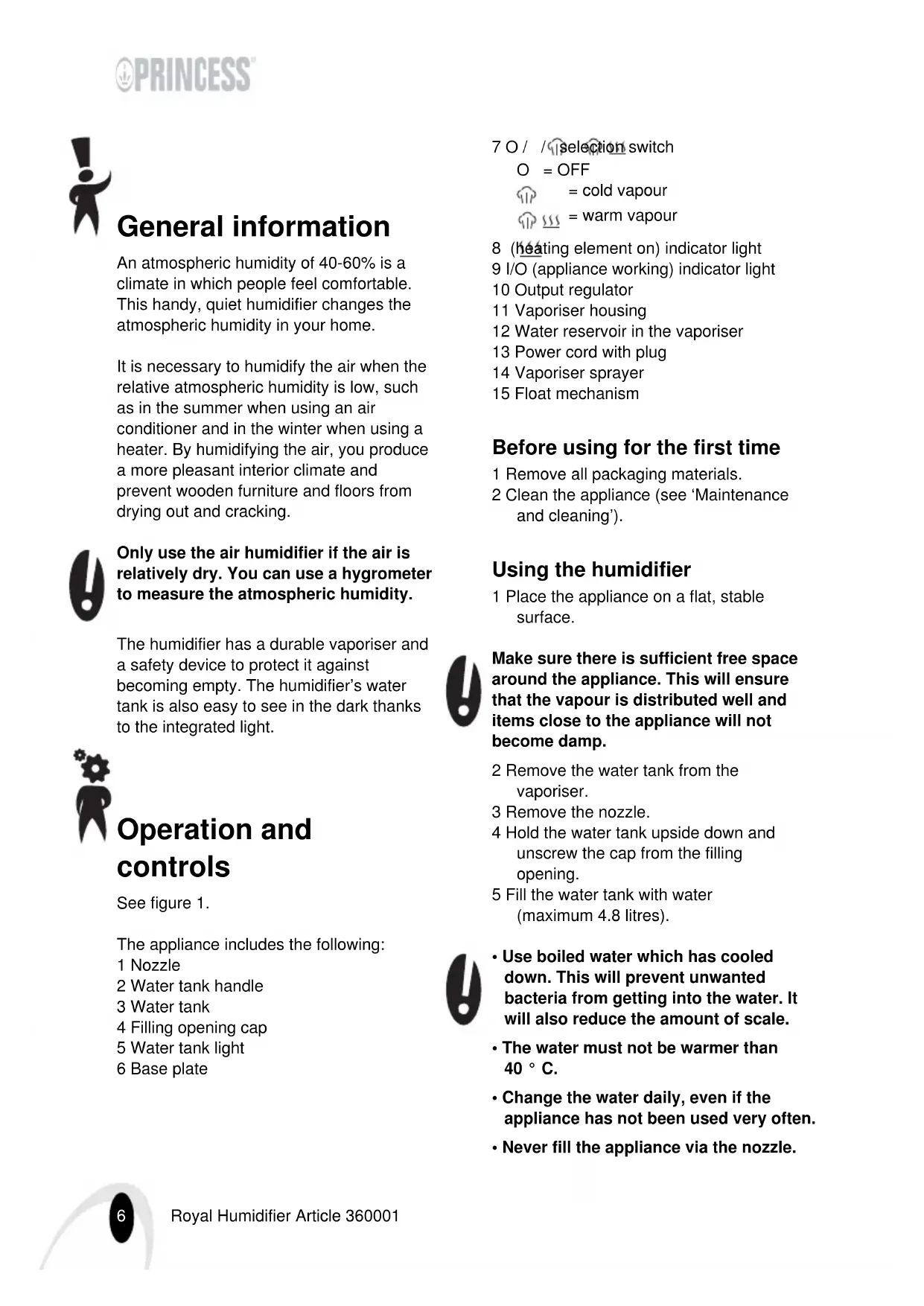

Algemeen

An atmospheric humidity of 40-60% is a climate in which people feel comfortable. This handy, quiet humidifier changes the atmospheric humidity in your home.

It is necessary to humidify the air when the relative atmospheric humidity is low, such as in the summer when using an air conditioner and in the winter when using a heater. By humidifying the air, you produce a more pleasant interior climate and prevent wooden furniture and floors from drying out and cracking.

Only use the air humidifier if the air is relatively dry. You can use a hygrometer to measure the atmospheric humidity.

The humidifier has a durable vaporiser and a safety device to protect it against becoming empty. The humidifier's water tank is also easy to see in the dark thanks to the integrated light.

Operation and controls

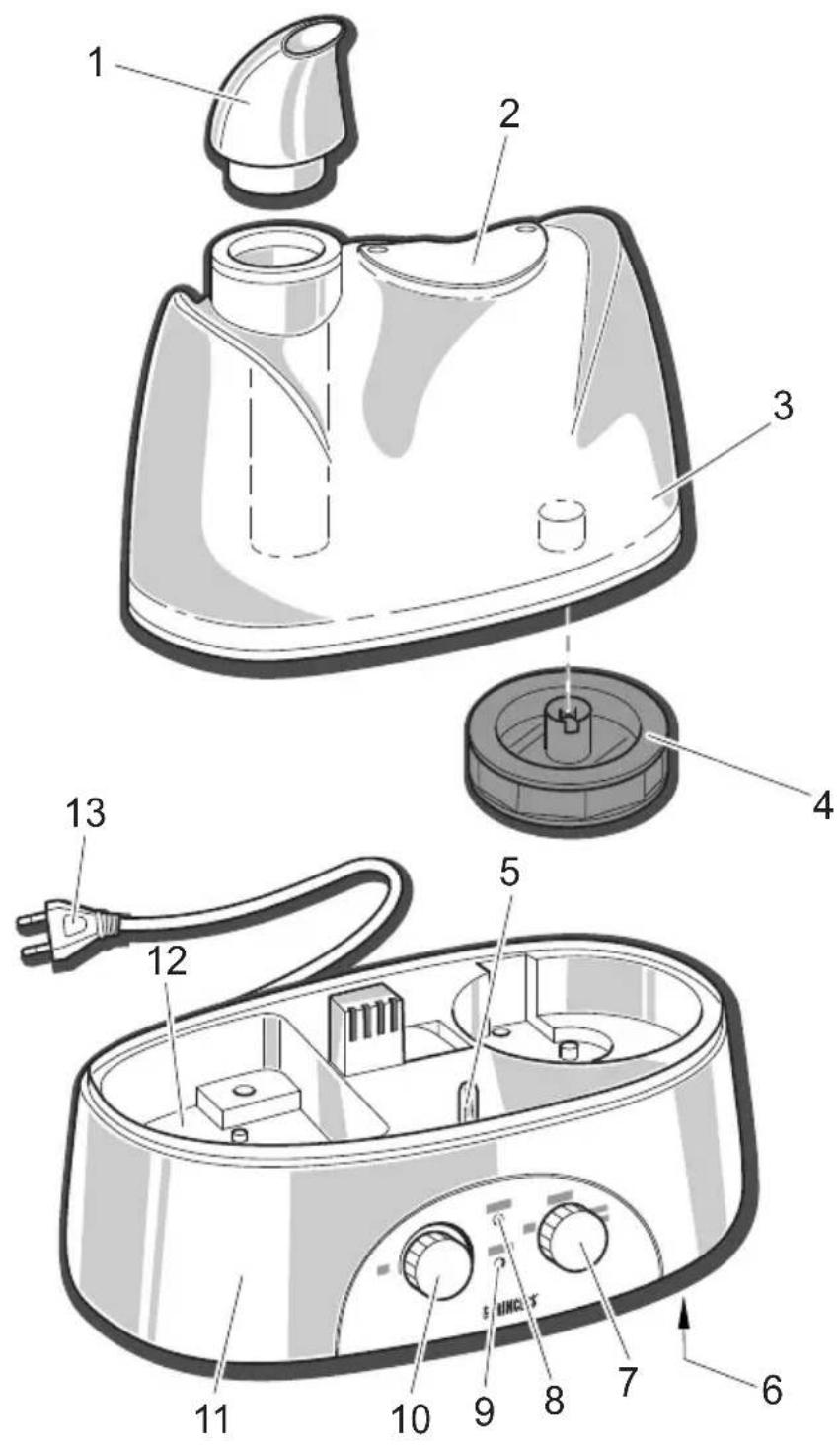

See figure 1.

The appliance includes the following:

1 Nozzle
2 Water tank handle
3 Water tank
4 Filling opening cap
5 Water tank light
6 Base plate

7 O / / selection switch

$$ O = O F F $$

$$ ⓜ = \text { cold vapour } $$

$$ Ⓥ \underline {\underline {{\text { Ⅲ }}}} = \text { warm vapour } $$

8 (heating element on) indicator light
9 I/O (appliance working) indicator light
10 Output regulator
11 Vaporiser housing
12 Water reservoir in the vaporiser
13 Power cord with plug
14 Vaporiser sprayer
15 Float mechanism

Before using for the first time

1 Remove all packaging materials.
2 Clean the appliance (see 'Maintenance and cleaning').

Using the humidifier

1 Place the appliance on a flat, stable surface.

Make sure there is sufficient free space around the appliance. This will ensure that the vapour is distributed well and items close to the appliance will not become damp.

2 Remove the water tank from the vaporiser.
3 Remove the nozzle.
4 Hold the water tank upside down and unscrew the cap from the filling opening.
5 Fill the water tank with water (maximum 4.8 litres).

• Use boiled water which has cooled down. This will prevent unwanted bacteria from getting into the water. It will also reduce the amount of scale.
  • The water must not be warmer than 40^ C.
• Change the water daily, even if the appliance has not been used very often.
• Never fill the appliance via the nozzle.

6 Screw the cap firmly back onto the filling opening.
7 Place the water tank back on the vaporiser. A float mechanism in the vaporiser ensures that a controlled amount of water enters the water reservoir from the water tank.
8 Place the nozzle back on the water tank and aim the nozzle in the desired direction.
9 Insert the plug into the plug socket.
10 Turn the selection switch to the required setting.

The setting (cold vapour) will

normally be used. Select warm vapour) if you wish to produce a vapour more quickly or if the room is cold.

The I/O indicator light will be lit to show

that the appliance is working. The ____ indicator light will be lit if the heating element has been turned on.

Do not turn the appliance on if there is no water in the water tank.

11 Use the regulator to adjust the output. The appliance can vaporise a maximum of approximately 300 ml of water per hour.
12 If the indicator light and/or the I/O indicator light blinks, it indicates that you need to refill the water tank. Turn off the appliance, remove the plug from the plug socket and repeat steps 2 to 10.

If the indicator light and/or the I/O indicator light blinks, and you do not refill the water tank, the appliance will stop working automatically and the indicator lights go out.

Maintenance and cleaning

• Clean the appliance once a week.
• Change the water in the appliance daily, even if the appliance has not been used very often. If this is not done, then bacteria may start to grow in the water, which may be harmful when vaporised.
• Scale may form in the appliance in areas with hard water. If this is the case, regularly clean the appliance, particularly the vaporiser.
• Make sure the plug has been removed from the plug socket before cleaning the appliance.
• Never immerse the appliance in water.
• Make sure no moisture comes into contact with the appliance's electrical parts.
• Never use aggressive or scouring cleaning products or sharp objects (such as a knife or a hard brush) to clean the appliance.

Cleaning the exterior

1 Remove the plug from the plug socket.
2 Clean the exterior of the appliance with a damp cloth and a mild cleaning product.
3 Dry the exterior with a tea towel.

Cleaning the water tank

1 Fill the water tank with warm water and add a couple of drops of washing-up liquid.
2 Place the cap back on the water tank and rigorously shake the water tank.
3 Drain the suds and rinse the water tank three times with cold water.

Cleaning the water reservoir in the vaporiser

1 Use a soft cloth and a drop of washing-up liquid to clean the water reservoir in the vaporiser.
2 Use a soft brush to remove any scale on the vaporiser sprayer and the float mechanism.
3 Rinse the reservoir three times with cold water.

Descaling

Scale may have a negative effect on the appliance's performance. Scale often occurs in areas with hard water. We advise you to use a suitable descaling agent when scale appears. Always follow the descaling agent's instructions. Less scale will form if you use a water purification appliance.

• Use a descaling agent to clean, in particular, the vaporiser and the float mechanism.
• Make sure there is no descaling agent in the water when you use the appliance again.
• Complaints or defects as a result of furring or scale are not covered by the warranty.

Storage

1 Clean the appliance as described above.
2 Allow the appliance to dry thoroughly.
3 Store the appliance in a place that is free of dust.

• Do not store the appliance whilst is still has water in it. Bacteria can develop in the water.
• Do not store the appliance in a location where it may freeze. This may cause the appliance to become faulty.

Safety

General information

• Read these instructions carefully and keep them in a safe place.
• Only use this appliance in accordance with these instructions.
• Only use this appliance for domestic purposes.
• The use of this appliance by children or persons with a physical, sensory, mental or motor disability or with a lack of the necessary knowledge and experience may cause a hazard. Persons responsible for the safety of these people should give explicit instructions or supervise the use of the appliance.
• Keep an eye on children to make sure they do not play with the appliance.
  • Repairs may only be carried out by a qualified service technician. Never try to repair the appliance yourself.

Heat and electricity

• Before use, verify that the mains voltage is the same as that indicated on the appliance's type plate.
• Always remove the plug from the plug socket when the appliance is not in use.
• Always remove the plug from the plug socket by pulling the plug, not the power cord.
• Never pull the power cord to move the appliance.
• Regularly check the appliance's power cord to make sure it is not damaged. Do not use the appliance if the power cord shows signs of damage. Have a

damaged power cord replaced by a qualified electrician.

• Make sure the appliance, the power cord and the plug do not come into contact with heat sources, such as a naked flame.
• Make sure the appliance, the power cord and the plug do not come into contact with water or chemicals.
• Never immerse the appliance, the power cord or the plug in water or any other liquid.
• Avoid exposing the appliance to direct sunlight.
• In order for the appliance to work correctly, it must be able to get rid of the heat that it produces. Avoid overheating and the risk of fire. Always keep the ventilation openings free and prevent the appliance from coming into contact with inflammable materials. Make sure there is sufficient free space around the appliance: keep a distance of 50 cm around the appliance free of objects. The appliance must not be covered.

During use

• Do not use the appliance where the temperature is 0^ or less.
• Never use the appliance in a very damp room (such as a bathroom).
• Place the appliance on a stable, flat surface where it cannot fall over.
• Never use the appliance in the vicinity of other electrical appliances.
• Do not allow the power cord to hang over the edge of a kitchen surface, a work surface or a table.
  • Always make sure the power cord has been fully unwound.

• Make sure your hands are dry before you touch the appliance, the power cord or the plug.

• Do not touch the vaporiser when it is in use.

• Never move the appliance whilst it is in use.
• Do not add any additives to the water.
• Remove the plug from the plug socket in the event of a malfunction during use, before cleaning the appliance, before fitting or removing an accessory and before storing the appliance after use.
• Do not touch the appliance if it has fallen into water. Remove the plug from the plug socket immediately. Do not use the appliance again.
• Regularly clean the appliance (see 'Maintenance and cleaning').

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: ON NO ACCOUNT SHOULD EITHER THE LIVE OR NEUTRAL WIRES BE CONNECTED TO THE EARTH TERMINAL

The environment

Dispose of packaging materials, such as plastic and boxes, in the appropriate containers.

If you wish to dispose of the appliance whilst it still works properly or can be easily repaired, ensure that the appliance is recycled.

When the appliance reaches the end of its useful life, it should be disposed of in a responsible manner, thereby ensuring the reuse of the appliance or its parts. Do not dispose of the appliance with normal household waste, but hand it over to a recycling collection point. Contact your local authority for information about available disposal and collection systems in your area.

Applicable European guidelines:

• 2002/95/EC
• 2002/96/EC
