Product type	Filter jug (water filter)
Brand	Tefal
Model	Kiara WV207C
Filtration capacity	Up to 150 litres or 30 days (45 days for soft water)
Lifespan indicator	Electronic indicator with litre and time counter (models: litres/time, simple, hard/soft water)
Main functions	Reduces hardness, chlorine, copper and other heavy metals, some pesticides and herbicides
Power supply	Battery(ies) for electronic indicator (battery life approx. 2 years)
Materials	Food-grade plastic, filter resin, activated carbon
Cleaning	Jug washable 1 to 2 times a week with soapy water (avoid abrasive detergents); sediment filter cleaned regularly
Safety	Use only with potable tap water; replace cartridge at 150 L or 30 days; do not place on hot surface
Spare parts	Sterilized TEFAL filter cartridges, replaceable electronic indicator
Warranty	Warranty for manufacturing defects, household use only
Usage	Household only, do not filter liquids other than tap water
Operating temperature	Cold water between +4°C and +30°C
Storage	Preferably store in refrigerator, away from heat and frost

Frequently Asked Questions - Kiara WV207C TEFAL

How to prepare the filter cartridge before first use?

Before any use, wash your hands. Check that the cartridge pouch is not damaged. Immerse the cartridge in cold potable water (4°C-30°C) for 15 minutes while shaking it to remove air bubbles. Then, place it firmly into its compartment. Fill the reservoir with cold water and let it filter without the lid. Discard the first three filtrations (or use them for plants) before drinking the water.

How to activate the electronic cartridge lifespan indicator?

Depending on your indicator model: Litres/time counter: press and hold the RESET button until '0' and a circle with 4 sections appear. Simple counter: hold RESET until 4 black bars appear (3 flashes confirm). Hard/soft water counter: press RESET once, then press and hold until the arrow points to H (hard water) or S (soft water), then release. After activation, immediately filter 1 litre of water to start the countdown.

When should I replace the filter cartridge?

The cartridge must be replaced at the earlier of the two conditions: after filtering 150 litres of water or after 30 days (45 days for models with hard/soft water counter set to soft water). The electronic indicator will flash or display '0' to alert you.

Can I filter other liquids besides tap water?

No, your Tefal jug is designed exclusively for filtering potable tap water. Do not filter other liquids (syrup, juice, etc.), as this could damage the filter and pose a health risk.

How to clean the filter jug?

Clean the jug and its components (except the cartridge) 1 to 2 times a week with soapy water. Do not use abrasive detergents, scouring pads, or powders. Dishwasher is not recommended to preserve the transparency of the jug. The sediment filter should be cleaned regularly with clear water.

Why is the filtered water dark at first?

During the first uses, the water may appear dark due to activated carbon particles dispersed during preparation. This is not dangerous for health. Follow the preparation procedure: discard the first three complete filtrations before drinking.

How to set the indicator for hard or soft water?

Before setting, test your water hardness with the provided test strip. If the strip is green (soft water), set to S (6 bars, 45 days max). If pink (hard water), set to H (4 bars, 30 days max). To set, press RESET, then hold until the arrow points to H or S, then release. Confirm by pressing once more if necessary.

Can the jug go in the dishwasher?

Dishwasher washing is not recommended as it may affect the transparency of the jug. It is better to wash by hand with mild soapy water. The cartridge and sediment filter must never go in the dishwasher.

How to dispose of the used cartridge and electronic indicator?

For the electronic indicator, first remove the battery by hitting the case with a hammer (wear gloves). Dispose of the battery at a designated collection point. Dispose of the indicator as electronic waste at a recycling centre. The used cartridge can be thrown with household waste. The sediment filter should be removed and cleaned or recycled according to local guidelines.

What to do if I don't use the jug for a long time?

If you do not use it for several days, empty the jug, clean it and store it in the refrigerator. Before reusing after a long period, clean all components, replace the cartridge, and repeat the preparation procedure (immerse the new cartridge, discard three filtrations). Always keep the filled jug in the refrigerator if possible.

USER MANUAL Kiara WV207C TEFAL

Line drawing of a coffee maker with lid and side handle (no text or symbols)

www.tefal.com

FR

EN

NL

PT

RO

CS

SK

D11

UK

KK

Technical diagram of a water heater with labeled parts and internal structure, including a detailed inset view.

The TEFAL filtration system reduces hardness, chlorine, copper and other heavy metals, as well as certain pesticides and herbicides if these are present in the tap water.

NOTE: the filter improves the quality of the water. The water must be drinking water and therefore microbiologically safe (Check with your local water authority.).

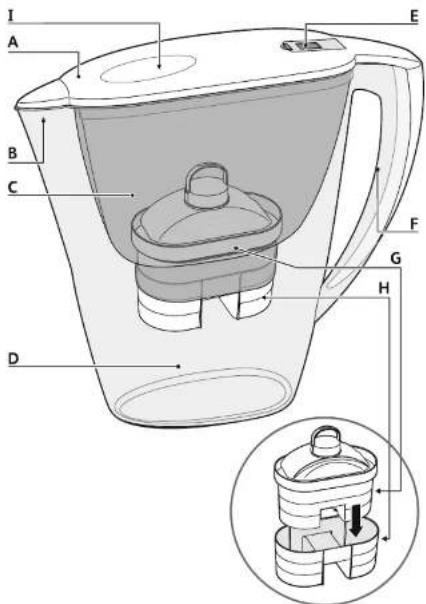

Description

A Lid

F Handle

B Spout with valve

G Cartridge

C Tank

H Sediment filter

D Main unit

I Fill valve

E Electronic cartridge lifetime indicator

Safety instructions

Thank you for purchasing the TEFAL water filter jug. Please read these instructions which are common to all our models and keep them at hand.

- Please read the instructions for use carefully before using your product for the first time: any misuse of the product will release the manufacturer from all liability.

- For your safety, this product complies with the applicable standards and regulations (Electromagnetic Compatibility, Food contact materials, the Environment, etc.)

- This product is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or persons with a lack of experience or knowledge, unless they are supervised or have been given instructions on how to use the appliance by a person responsible for their safety. - Children must be supervised to ensure that they do not play with the product.

- Do not use this product if it is not working correctly or is damaged. In this case, please contact an service centre.

- For your safety, only use the manufacturer's accessories and detachable parts which are suitable for your product.

- Only use your jug to filter tap water. Do not filter other liquids. Do not pour liquids other than tap water into your jug (e.g. concentrated juice).

- The filter must be replaced after 150 litres of water filtered or after 30 days (45 days for models with a meter differentiating between hard/soft water), whichever of these is first.

- Take care not to place the jug on a warm surface such as a hotplate and do not use near a naked flame.

- Do not touch the filter once you have positioned it in the jug.

- Protect the product from moisture and frost.

- If the jug has not been used for a long time, clean all parts and change the cartridge before using.

- If the health authorities state that the tap water is not fit for drinking, do not use your jug and follow their recommendations. In fact, this jug should only be used with drinking water.

- All products are subject to a strict quality control. Practical use tests are conducted with products exposed to risk, which will explain any traces of use you may find.

- Keep the jug away from all sources of heat, all moist or slippery surfaces and sharp angles.

- Do not use your jug if the cartridge is damaged. Replace the cartridge.

- This product has been designed for domestic use only.

- This jug has been designed for domestic use only. It has not been designed for use in the following cases which are not covered by the guarantee:

• In kitchen areas for use by staff in stores, offices and other professional environments,
• On farms,
• For clients in hotels, motels and other residential environments,
• In bed and breakfast type environments.

- It is recommended that you store the filled TEFAL water jug in the fridge. The fridge should be kept clean.

- Water is a foodstuff, it is recommend that the filtered water is used within 48 hours after filtration.

Preparing the filter cartridge

1) Wash hands thoroughly before carrying out the following steps.
2) Check that the cartridge bag is not pierced before opening (fig. 1). Do not use the cartridge if the bag is pierced.
3) Place the cartridge in a container with cold drinking water (+4°C/+30°C) for 15 minutes and shake to remove air bubbles (fig. 2). Leave the cartridge immersed for 15 minutes.
4) After 15 minutes of immersion, place the cartridge in its position by pushing firmly (fig. 3).
5) Fill the tank with cold tap water up to the maximum level and leave it to filter without putting on the lid (fig. 4).
6) Dispose of the water (or use to water plants). The first filtrations can be dark in colour due to the carbon particles dispersed in the water. This is not a health hazard.
7) Repeat this step three times (points 5 to 6) filling the jug up to the maximum level each time and then emptying the water immediately after filtration.
8) Remove the cartridge and place on a clean surface (for example a plate). Clean all components.
9) Place the tank in the main unit. Place the cartridge in the sediment filter. Finally, insert the unit (cartridge + sediment filter) in the tank.

Activating the electronic cartridge lifetime indicator:

TEFAL water filter jugs are equipped with an electronic cartridge lifetime indicator. It advises when the cartridge should be changed and enables you to ensure optimum water filtration.

There are three types of electronic cartridge lifetime indicators.

To activate your electronic indicator, follow the stages below depending on the TEFAL filter jug model you have chosen.

For all types of electronic indicator, the countdown only begins after 1 litre of water has been filtered. It is therefore necessary to filter 1 litre of water immediately after activating the electronic indicator.

1. Filter jug with electronic cartridge lifetime indicator (Litres and time meter)

EN

• Press the “RESET” button for a few seconds until the screen displays the number “0” and a circle composed of four sections (fig.7a): the screen will flash once confirming that the electronic indicator has been activated.
• Filter 1 litre of water immediately after activating the electronic indicator.
• The figures indicate the number of litres filtered (up to a maximum of 150 litres); the circle is composed of four sections and indicates the available time remaining for filtration (up to a maximum of 30 days) (fig. 7a - fig. 7b - fig.7c - fig.7d).
• When you have filtered 150 litres and/or after 30 days, counting from the activation date, the digital indicator automatically returns to “0” and begins to flash: the cartridge needs replacing (fig. 7e).

2. Filter jug with electronic cartridge lifetime indicator (Simple meter)

• Press the “RESET” button for a few seconds until the four black bars are stable (fig. 8a).
• Three successive flashes indicate that the electronic indicator has been activated (four bars correspond to four weeks).
• Filter 1 litre of water immediately after activating the electronic indicator.
• The electronic indicator with a simple meter indicates the remaining filtration capacity for the cartridge (e.g.: remaining filtration capacity = 75% (fig 8b); remaining filtration capacity = 50% (fig 8c).
• When the cartridge needs replacing, the arrow flashes (fig.8d).

3. Filter jug with electronic cartridge Lifetime indicator

"Water hardness/softness meter"

The water hardness changes depending on the region where you live, as a result, the lifetime of your cartridge depends on the water hardness. Thanks to its electronic hard water/soft water indicator,

TEFAL allows you to optimise the lifetime of your cartridge.

Before setting your cartridge lifetime indicator, check the hardness of your tap water. To do this, fill a glass follow "tap" with "water" = amend format. Briefly immerse (for 1 second) one of the strips provided with your jug (fig. 9 and 10). Dry the strip to remove excess water. Wait one minute and compare the colour based on the following indications:

• The strip is a light green colour ("A" fig. 10): the tap water is not very hard, you can set your electronic cartridge lifetime indicator to six bars. The cartridge can be used for up to a maximum of 45 days.
• The strip is a pink colour ("B" fig. 10): the tap water is hard, you can set your electronic cartridge lifetime indicator to four bars. The cartridge can be used for up to a maximum of 30 days.

You can activate your electronic indicator according to water hardness as follows:

• First press the “RESET” button. Then press the “RESET” button again and hold for a few seconds until the arrow ▶ moves to the desired position: H for hard water, S for soft water (fig. 11a).
• HARD WATER SETTING: When the arrow ▶ is beside the letter H, four fixed bars are displayed and the arrow flashes. Release the “RESET” button and wait until the arrow ▼ disappears. Your indicator is then set for hard water (fig. 11b).
• Filter 1 litre of water immediately after activating the electronic indicator.
• SOFT WATER SETTING: When the arrow ▶ is beside the letter S, quickly press the “RESET” button once, six fixed bars are displayed and the arrow ▼ flashes. Release the “RESET” button and wait until the arrow ▼ disappears. Your indicator is then set for soft water (fig. 11a).
• Filter 1 litre of water immediately after activating the electronic indicator.
• When the cartridge needs replacing, the arrow flashes (fig.11c).

NOTE: for electronic meters, at the end of the cartridge lifetime, the display flashes until it is turned off (standby mode) to save battery. When you have replaced the cartridge, reactivate the display as indicated in the paragraph "ACTIVATING THE ELECTRONIC CARTRIDGE LIFETIME INDICATOR".

Important:

• Regardless of the type of electronic cartridge lifetetime indicator, if you hold the “RESET” button for a few seconds, the screen automatically resets the meter and reactivates the total filtration capacity.
• The lifetime for the electronic indicator is approximately two years, after these two years, the electronic indicator will no longer display any symbols. Contact your stockist or approved service centre to obtain a new electronic indicator.

Replacing the electronic indicator:

- To replace the electronic indicator: remove the small lever located on the upper part of the electronic indicator using the appropriate tool.

Filling the filter jug

Your TEFAL water filter jug has a lid with valve which allows easy and fast filling, without the need to remove the lid.

• Place the jug under the tap so that the water flows directly into the lid valve(I).
• Open the tap (the water stream pressure should not be strong, to prevent the water from splashing): the water automatically opens the lid valve and flows directly into the tank.

- When the tank is almost full, the lid valve closes slowly (fig. 5a). Reduce the water flow and close the tap until the lid valve closes (fig. 5b).

Replacing the filter cartridge

- To replace the filter cartridge remove the tank by pulling it upwards using the ring for this purpose (fig. 6).

Note: take care to remove the sediment filter before disposing of the used cartridge. Clean before repositioning on a new cartridge.

Note: the jug can also be used without the sediment filter.

Cleaning

1) Clean the sediment filter regularly with water after removing the cartridge.
2) Wash your filter jug once or twice a week (except for the cartridge) with soapy water, do not use detergents and abrasive pads or scouring powders. To keep your jug clear, it is advisable to limit the number of times you put it in the dishwasher.
3) Never wash the cartridge with soap or detergents.
4) If you are not going to use your filter jug for some time, it is recommended that you do not leave water in the system, remove the cartridge, clean all the parts, replace the cartridge in the tank and keep the jug in the fridge. Before using again, repeat step 9 in "PREPARING THE FILTER CARTRIDGE".
5) Clean the jug and all components every time you change the cartridge.

Important recommendations

1) The original packaged product must be stored away from heat sources and direct sunlight, in a clean environment and at a temperature between 15^ C and 30^ C. During use, the filter jug should preferably stored in the fridge.
2) Use cold water only (+4°C: +30°C).
3) If you have not used the jug for several consecutive days, empty the jug. Completely fill your jug, leave the jug to filter the water and then remove the filtered water. Your jug is now ready to use again.
4) The filter must be replaced after 150 litres of water filtered or after 30 days (45 days for models with a meter differentiating between hard/soft water), whichever of these is first.
5) For your protection, only use TEFAL sterilised filter cartridges.

End of life and guarantee

Help protect the environment!

DISPOSAL PROCEDURE (DIR. 2002/96/CE - WEEE)

EN

The symbol at the base of the product indicates that electric and electronic products should be collected separately. At the end of the product's life, it should be disposed of in a special collection centre in your district or return to the distributor when you buy a new product of the same type and to be used for the same purpose. Electric and electronic products are collected separately in light of a policy to safeguard, protect and improve the quality of the environment and to avoid any possible effects on human health due to the presence of hazardous substances in these products or any non-authorised use of the item or its parts.

Instructions for disposing of the water filter system:

• Before bringing your cartridge usage indicator to a recycling centre, please make sure you first take out the battery. To do this, all you need to do is to tap the indicator's casing with a hammer. Make sure you wear gloves whilst doing this.
  Deposit the battery in a special recycling bin.
• Dispose of the cartridge usage indicator, just as you would for any other electrical appliance, at a special collection centre.
• Dispose of the other components according to their class (plastic, municipal solid waste in the case of the cartridge).
