PIR500 - Detector VELLEMAN - Free user manual and instructions

Product type	PIR motion detector
Brand	Velleman
Model	PIR500
Power supply	220-240 VAC / 50-60 Hz
Switch type	Triac
Detection range	12 m max. (adjustable)
Detection angle	> 140°
Photosensitivity	3 to 1000 lx (adjustable)
Time delay	5 s to 420 s (adjustable)
Output power (triac)	Load min. 15 W, max. 500 W (220-240 VAC)
Installation height	0.4 to 1.8 m
Power consumption	0.45 W (standby 0.1 W)
Detected movement speed range	0.6 m/s to 1.5 m/s
Operating temperature	-20 °C to +40 °C
Operating humidity	< 93% RH
Operating modes	On / Off / PIR detection
Compatible bulbs	Incandescent lamps only
Detection indication	Indicator LED
Installation type	Flush-mount (round or square box)
Color	White (standard)

Frequently Asked Questions - PIR500 VELLEMAN

How to install the PIR500 detector?

Cut the circuit fuse, remove the front panel, connect the wires according to the diagram, insert the device into a flush-mount box, then replace the fuse. Adjust the settings before replacing the front panel.

What are the three operating modes?

The three modes are: On (lamp permanently on), Off (lamp off), and PIR (motion detection with time delay).

How to adjust the detector sensitivity?

Use potentiometer number 3 on the device (PIR sensitivity). Turn it until you get the desired reaction to movements in the detection zone.

How to adjust the lighting duration after detection?

Setting number 6 (output signal duration) allows you to choose a time delay between 5 seconds and 420 seconds (7 minutes).

Why does my lamp stay on permanently?

Check that the selector is not in the 'On' position. If so, switch it to 'PIR'. Otherwise, reduce the PIR sensitivity or move the detector away from heat sources (air conditioner, heater).

Does the detector work during the day?

Yes, thanks to the photosensitivity setting (number 7). Turn it so that the detector reacts to the desired ambient light, even in broad daylight.

What is the maximum range of the detector?

The maximum range is 12 meters, but it is adjustable via the PIR sensitivity. The detection angle is over 140 degrees.

Can I use LED or compact fluorescent lamps?

No, the PIR500 is designed only for incandescent lamps. The use of fluorescent lamps is discouraged.

How to test the operation before final installation?

Set the selector to 'On': the lamp should turn on. Switch to 'Off': it turns off. In 'PIR' mode, move in front of the detector: the indicator LED flashes and the lamp turns on.

What are the installation tips to avoid false detections?

Install the detector away from heat sources (radiators, air conditioners) and constantly moving objects (curtains, animals). Orient it so that intrusions occur perpendicular to the detection field.

USER MANUAL PIR500 VELLEMAN

PIR MOTION DETECTOR - FLUSH MOUNTING PIR BEWEGINGSDETECTOR - INBOUW DETECTEUR DE MOUVEMENT PIR - MONTAGE ENCASTRE DETECTOR DE MOVIMIENTOS PIR - PARA EMPOTRAR PIR-BEWEGUNGSMELDER - EINBAU DETECTOR DE MOVIMENTOS PIR - PARA EMBUTIR CZUJNIK RUCHU PIR - DO ZABUDOWY

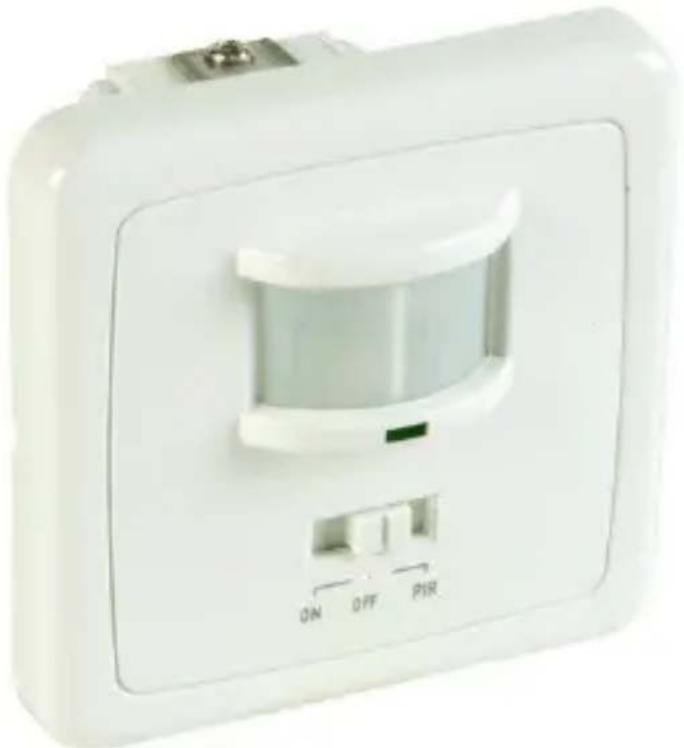

White electrical outlet switch with indicator lights (ON, OFF, PIR) and a central control panel (no text or symbols on the device itself)

USER MANUAL 3 GEBRUIKERSHANDLEIDING 6 MODE D'EMPLOI 9 MANUAL DEL USUARIO 12 BEDIENUNGSANLEITUNG 15 MANUAL DO UTILIZADOR 18 INSTRUKCJA OBSŁUGI 21

CE

1 2 3 4 5 6 7 8 (1)

Simple line drawing of a helmet with radiating blades and an upward arrow, no text or symbols present.

(2)

(3)

Simple line drawing of a helmet with five blades radiating from the head, next to a stylized arrow (no text or symbols)

SENSOR LOAD (4)

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

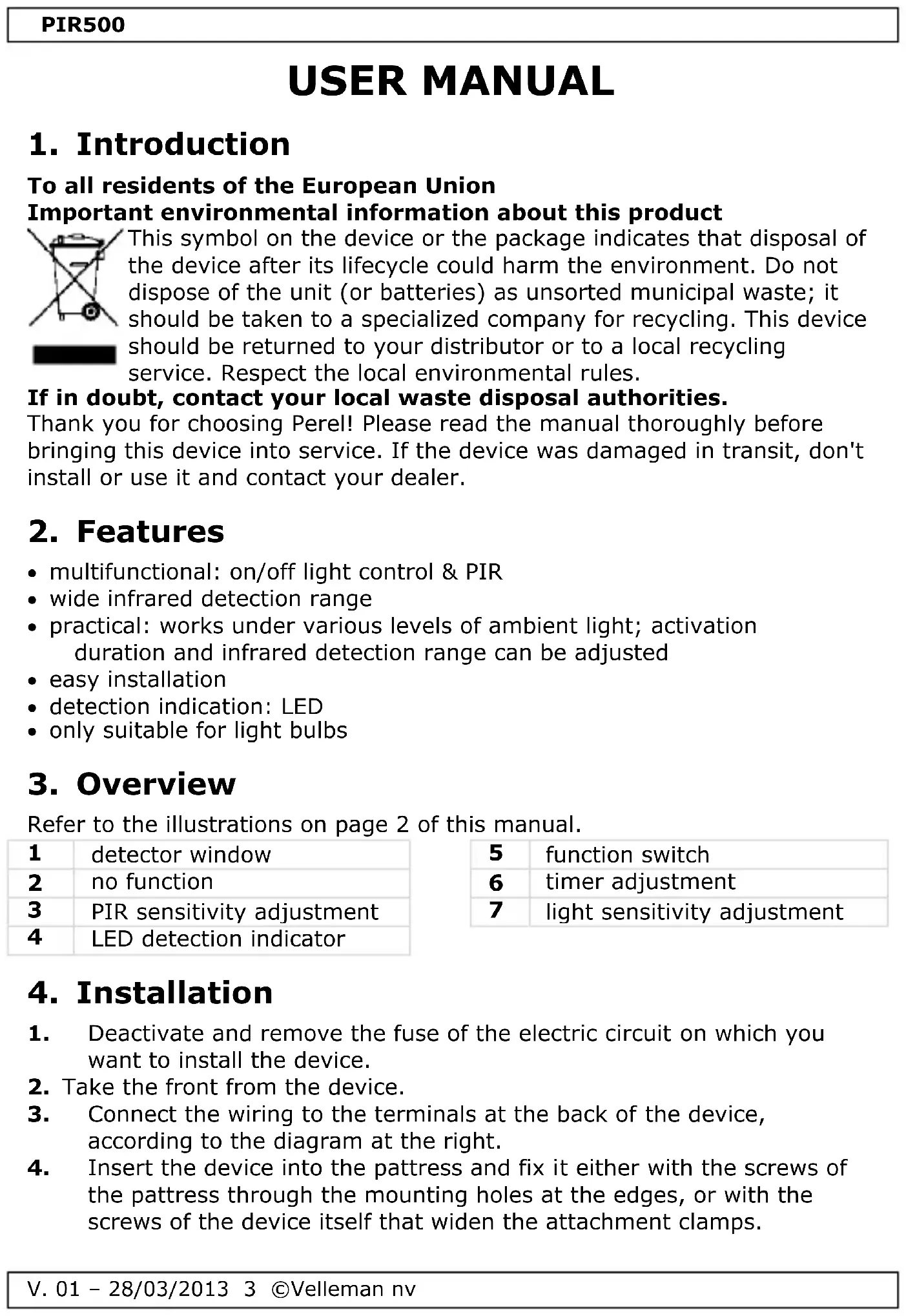

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Features

• multifunctional: on/off light control & PIR
- wide infrared detection range
- practical: works under various levels of ambient light; activation duration and infrared detection range can be adjusted
- easy installation
• detection indication: LED
- only suitable for light bulbs

3. Overview

Refer to the illustrations on page 2 of this manual.

1	detector window
2	no function
3	PIR sensitivity adjustment
4	LED detection indicator

5	function switch
6	timer adjustment
7	light sensitivity adjustment

4. Installation

1. Deactivate and remove the fuse of the electric circuit on which you want to install the device.
2. Take the front from the device.
3. Connect the wiring to the terminals at the back of the device, according to the diagram at the right.
4. Insert the device into the pattress and fix it either with the screws of the pattress through the mounting holes at the edges, or with the screws of the device itself that widen the attachment clamps.

PIR500

1. Reinstall the fuse and switch it on

2. Test and regulate the device (see "Testing and Adjustment") and put the front back on.

5. Testing and adjustment

1. Set the function switch (ill. 1, #5) to 'on', there should be a continuous output signal (the lamp should be on).
2. Set the switch to 'off', there should be no output signal (the lamp should be off).
3. Set the switch to PIR and adjust the PIR and light sensitivity (ill. 1, #3 & 7) until the reaction of the device to fits your needs.
4. Determine how long the output signal should last by means of the timer adjustment (ill. 1, #6).

6. Operation

• The PIR500 has 3 operation modes: on / off / movement detection (PIR).
• The detector is much more sensitive to objects moving across the detection area (ill. 2) than it is to objects coming straight at it (ill. 3). This is a very important consideration when selecting the mounting location.
• The device can operate in both day and night situations, thanks to the adjustability of the PIR sensitivity and the light sensitivity. The duration of the output signal can also be adjusted.
• The device can be installed in round as well as square pattresses.
• The detection indicator flashes once every time the device detects movement.
• Do not use this device to control a fluorescent lamp.
• Do not install the device where it can detect constantly moving objects, or near temperature regulating devices such as air-conditioning and heating devices.
• This device should be installed, maintained and repaired by a qualified person.

7. Technical Specifications

switch type	TRIAC
power supply	220 to 240 Vac / 50 - 60 Hz
detection range	12 m max. (adjustable)
detection angle	>140°
light control	3 to 1000 lx (adjustable)
activation	5 s to 420 s (adjustable)
TRIAC output	min. load: 15 W
	rated load: 500 W (220-240 Vac)

PIR500

installation height	0.4 to 1.8 m
power consumption	0.45 W (0.1 W standby)
motion speed detection range	0.6 m/s to 1.5 m/s
working temperature	-20 °C to +40 °C
working humidity	< 93% RH

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
