USER MANUAL VT3117 LAICA

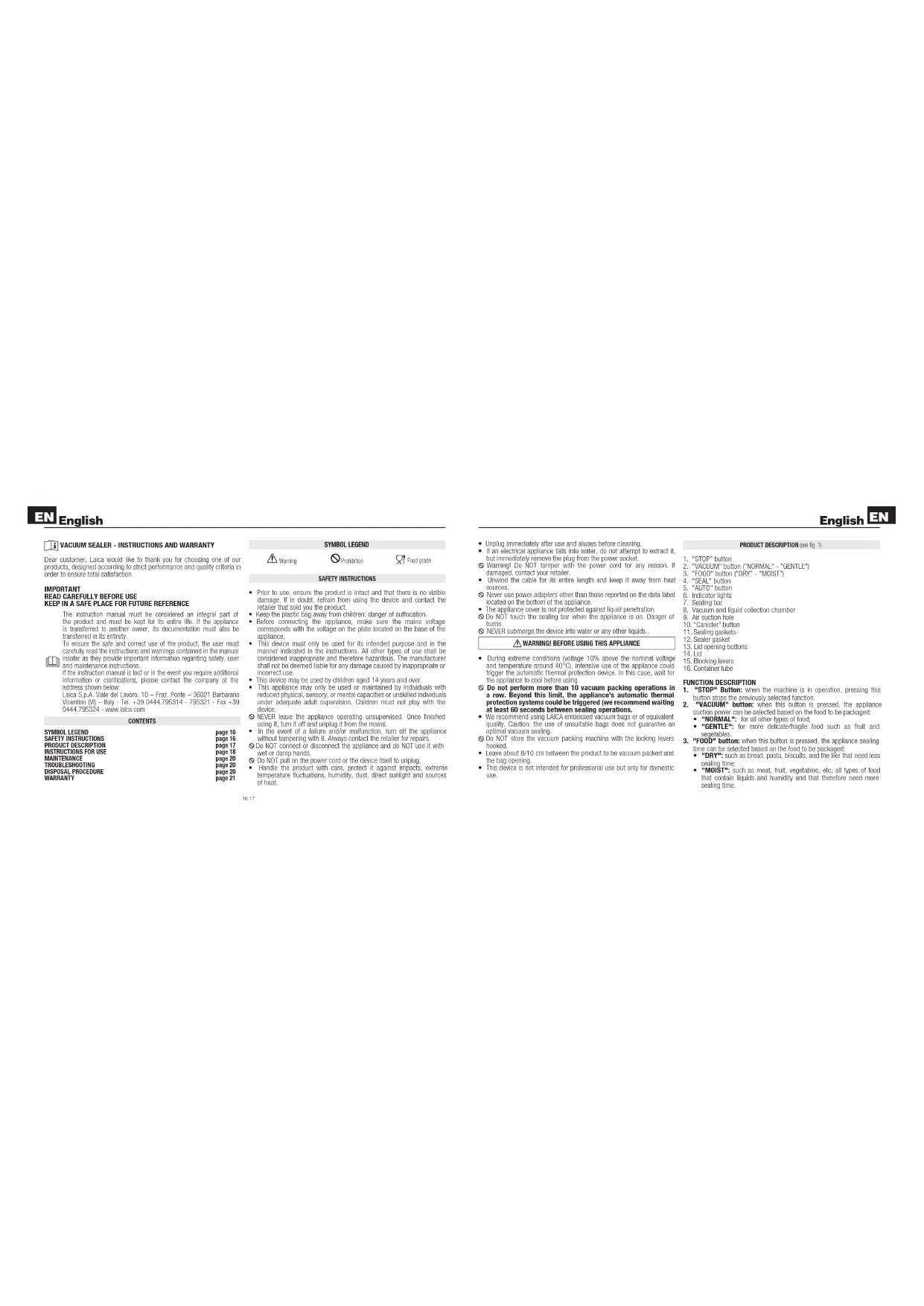

Dear customer, Laica would like to thank you for choosing one of our products, designed according to strict performance and quality criteria in order to ensure total satisfaction. IMPORTANT

READ CAREFULLY BEFORE USE

KEEP IN A SAFE PLACE FOR FUTURE REFERENCE The instruction manual must be considered an integral part of the product and must be kept for its entire life. If the appliance is transferred to another owner, its documentation must also be transferred in its entirety. To ensure the safe and correct use of the product, the user must carefully read the instructions and warnings contained in the manual insofar as they provide important information regarding safety, user and maintenance instructions. If the instruction manual is lost or in the event you require additional information or clarifications, please contact the company at the address shown below: Laica S.p.A. Viale del Lavoro, 10 – Fraz. Ponte – 36021 Barbarano Vicentino (VI) – Italy - Tel. [phone] - 795321 - Fax [phone] - www.laica.com CONTENTS SYMBOL LEGEND SAFETY INSTRUCTIONS PRODUCT DESCRIPTION

• Prior to use, ensure the product is intact and that there is no visible damage. If in doubt, refrain from using the device and contact the retailer that sold you the product.

• Keep the plastic bag away from children: danger of suffocation.

• Before connecting the appliance, make sure the mains voltage corresponds with the voltage on the plate located on the base of the appliance.

• This device must only be used for its intended purpose and in the manner indicated in the instructions. All other types of use shall be considered inappropriate and therefore hazardous. The manufacturer shall not be deemed liable for any damage caused by inappropriate or incorrect use.

• This device may be used by children aged 14 years and over.

• This appliance may only be used or maintained by individuals with reduced physical, sensory, or mental capacities or unskilled individuals under adequate adult supervision. Children must not play with the device. NEVER leave the appliance operating unsupervised. Once finished using it, turn it off and unplug it from the mains.

• In the event of a failure and/or malfunction, turn off the appliance without tampering with it. Always contact the retailer for repairs. Do NOT connect or disconnect the appliance and do NOT use it with wet or damp hands. Do NOT pull on the power cord or the device itself to unplug.

• Handle the product with care, protect it against impacts, extreme temperature fluctuations, humidity, dust, direct sunlight and sources of heat.

• Unplug immediately after use and always before cleaning.

• If an electrical appliance falls into water, do not attempt to extract it, but immediately remove the plug from the power socket. Warning! Do NOT tamper with the power cord for any reason. If damaged, contact your retailer.

• Unwind the cable for its entire length and keep it away from heat sources. Never use power adapters other than those reported on the data label located on the bottom of the appliance.

• The appliance cover is not protected against liquid penetration. Do NOT touch the sealing bar when the appliance is on. Danger of burns. NEVER submerge the device into water or any other liquids.

WARNING! BEFORE USING THIS APPLIANCE

• During extreme conditions (voltage 10% above the nominal voltage and temperature around 40°C), intensive use of the appliance could trigger the automatic thermal protection device. In this case, wait for the appliance to cool before using. Do not perform more than 10 vacuum packing operations in a row. Beyond this limit, the appliance's automatic thermal protection systems could be triggered (we recommend waiting at least 60 seconds between sealing operations.

• We recommend using LAICA embossed vacuum bags or of equivalent quality. Caution: the use of unsuitable bags does not guarantee an optimal vacuum sealing. Do NOT store the vacuum packing machine with the locking levers hooked.

• Leave about 8/10 cm between the product to be vacuum packed and the bag opening.

• This device is not intended for professional use but only for domestic use. PRODUCT DESCRIPTION (see fig. 1)

8. Vacuum and liquid collection chamber

1. "STOP" Button: when the machine is in operation, pressing this

button stops the previously selected function.

2. "VACUUM" button: when this button is pressed, the appliance

suction power can be selected based on the food to be packaged:

• "NORMAL": for all other types of food;

• "GENTLE": for more delicate/fragile food such as fruit and vegetables.

3. "FOOD" button: when this button is pressed, the appliance sealing

time can be selected based on the food to be packaged:

• "DRY": such as bread, pasta, biscuits, and the like that need less sealing time;

• "MOIST": such as meat, fruit, vegetables, etc, all types of food that contain liquids and humidity and that therefore need more sealing time.

4. "SEAL" button: when this button is pressed:

• the appliance makes the seal;

• air suction is stopped and the bag is sealed automatically.

5. "AUTO" button: when this button is pressed the machine

automatically performs bag suction and sealing.

6. Lighted indicators: show the functions selected (suction power and

8.9.Suction and liquid collection chamber: area where the open end

of the bag is positioned to allow air suction and the elimination of any excess liquids.

10. “CANISTER” key: when this key is pressed, the vacuum cycle for

containers (not supplied) begins.

11. Sealing gasket: creates an excellent sealing effect in the suction

chamber to be able to perform the vacuum in the bags.

14. Lid: Creates the sealing effect needed to generate the vacuum in the

16. Container tube: to connect the machine to containers.

TECHNICAL DATA - Voltage: AC 220-240V 50Hz - Electrical absorption: 110W - Vacuum value (approx): -0.8 bar - Environmental operating conditions:+10°C +40°C; relative humidity ≤85% - Environmental storage conditions: +10°C +50°C; relative humidity ≤85% - MAX bag width: 300 mm The bags and rolls included are food grade

• Before each use, thoroughly clean the appliance as described in the section "maintenance".

• Position the machine on a sturdy horizontal surface, being careful to leave the work zone around the appliance free of obstacles and large enough to allow for placing the bags of food to be packaged.

• Connect the appliance to a power outlet and make sure the indicator lights on the "VACUUM-NORMAL" and "DRY-FOOD" button are lit.

• Uniformly insert the food to be stored in the bag. Make sure the bag is about 8 cm longer than the food to be stored.

• Lift the lid. The suction power and sealing time can be selected based on the food being packaged (see section "Function descriptions"). The machine is automatically set to "VACUUM-NORMAL" and "DRY-FOOD". Once the suction power and sealing time has been changed they are stored until the appliance is disconnected from power.

1. Position the open end of the bag inside the vacuum chamber as shown

in figure 2 without covering the air suction hole. With Laica bags codes VT3500, VT3501, VT3502, VT3503, and VT3504 and Laica rolls codes VT3505, VT3508, and VT3509, set the bag with the smooth side facing the bottom. Make sure that the inside of the bag where sealing will be performed is clean and free of any food particles. It must lie flat without folds.

2. Lower the lid and firmly press on the two sides with both hands,

hooking the two blocking levers at the bottom of the appliance until you hear a "click".

3. Press the "AUTO" button to start the air suction procedure.

Wait about 4/5 seconds from the end of suction to allow the machine to seal the bag.

4. Press both lid opening buttons and lift the lid.

5. Make sure the bag is sealed and put it in the refrigerator, freezer, or

The roll lets you make bags in the length desired and that are suited to the food to be stored.

1. Establish the length of the bag considering the length of the food to be

stored and adding at least 8 cm.

2. Cut the roll in the desired measurement using sharp scissors.

3 . Put one of the two open ends of the bag on the sealer gasket. With Laica rolls codes VT3505, VT3508, and VT3509, set the smooth side facing the bottom. Do not allow the bag to extend in the suction and liquid collection chamber or on the sealing gasket. Make sure the bag lies flat and is clean and without folds.

4. Lower the lid and firmly press on the two sides with both hands,

hooking the two blocking levers at the bottom of the appliance until you hear a "click".

5. Press the "SEAL" button to start sealing. The machine sucks air for

about 3 seconds and then seals the bag.

8. Proceed as described in sections "PREPARATION" and "INSTRUCTIONS

Complete air suction using the automatic method tends to crush more delicate/fragile foods (such as berries, breadsticks, vegetables, etc.). In these cases, manual vacuum packing can be used in which the air suction can be interrupted when considered best.

1. Position the open end of the bag inside the vacuum chamber as shown

in figure 2 without covering the air suction hole. With Laica bags codes VT3500, VT3501, VT3502, VT3503, and VT3504 and Laica rolls codes VT3505, VT3508, and VT3509, set the bag with the smooth side facing the bottom. Make sure that the inside of the bag where sealing will be performed is clean and free of any food particles. It must lie flat without folds.

2. Lower the lid and firmly press on the two sides with both hands,

hooking the two blocking levers at the bottom of the appliance until you hear a "click".

3. Press the "AUTO" button to start the air suction. Careful watch the air

suction from the back and when appropriate, stop the vacuum packing process by pressing the "SEAL" button.

4. Wait about 4/5 seconds to allow the machine to seal the bag and

USE WITH CANISTER (not supplied) Only use with Laica canister code VT3304 To vacuum pack in canisters, the machine vacuum power must be set to “VACUUM-NORMAL”. Before using, make sure the lid, canister, and gasket are completely clean and dry.

1. Fill the canister up to a maximum of 3 cm below the top edge.

2. Put the lid on and turn the vent valve to the “•SEAL” position.

3. Connect the B connector on the hose to the vacuum hole on the

machine and insert connector A inside the vent valve on the lid of the vacuum canister.

4. Press the “canister” key on the vacuum machine and wait until it shuts

5. Disconnect the hose from the canister lid, making sure not to turn the

vent valve. Disconnect the hose from the machine and then disconnect the machine from power. The vacuum has now been created; place the canister in the fridge, freezer or pantry.

6. To open the container, release the air by turning the vent valve to the

“•OPEN” position and remove the lid. English English EN EN20 21

VACUUM PACKING FOR LIQUIDS

To vacuum pack liquids they should be pre-frozen. Put the liquid food in a suitable container, put it in the freezer for about 12-18 hours then remove it from the container and put it in the bag for vacuum packing. Remove the air and seal the bag as in section "Instructions for use - use with bags" then put the bag in the freezer. MAINTENANCE

• Wash hands thoroughly before cleaning the appliance.

• Before and after use, clean the appliance with a dry or slightly damp cloth, being careful to not let liquids penetrate inside.

• After each use, remove any nylon (bag) reside from the sealing bar using a soft cloth and being careful not to damage it. Clean the sealing bar only after it has cooled.

• After each use, thoroughly clean the suction and liquid collection chamber with a damp cloth to remove any residues.

• Never use chemicals or harsh products..

• Store the appliance in a cool, dry area.

• Do not store the appliance with the lid hooked to the base using the locking levers so that the sealer and sealing gaskets are not damaged.

• The following parts are available at your retailer: sealer gasket and sealing gasket: code AHI014. TROUBLESHOOTING Problem Possible cause Solution The appliance is not working. The appliance is not plugged in. Plug the product into the electrical socket. The thermoprotector was triggered. Let the appliance cool for at least 30 minutes and turn it back on. Problem Possible cause Solution Let the appliance cool for at least 30 minutes and turn it back on. The bag may be punctured. Make sure the bag is intact or replace it. The bag is not positioned correctly in the suction and liquid collection chamber. Position the bag as described in section "Instructions - use with bags". The sealing bar could be overheated. This happens when several seals are made consecutively and very quickly. Wait a few minutes to allow the sealing bar to cool. Wait at least 60 seconds between seals. The bag doesn't maintain its vacuum after sealing The bag may be punctured. Make sure the bag is intact or replace it. The edge of the bag is not perfectly clean. Make sure there are no impurities along the seal such as crumbs, grease, etc. Open the bag and try again. The bag melts and doesn't seal properly. The bag sealing area is dirty and not flat. Make sure the inside of the bag is clean and the bag lies flat. DISPOSAL PROCEDURE The symbol on the bottom of the device indicates the separated collection of electric and electronic equipment (Dir. 2012/19/Eu- WEEE). At the end of life of the device, do not dispose it as mixed solid municipal waste, but dispose it referring to a specific collection centre located in your area or returning it to the distributor, when buying a new device of the same type to be used with the same functions. If the appliance to be disposed of is less than 25 cm, it can be returned to a retail location that is over 400 m² without having to purchase a new, similar device. This procedure of separated collection of electric and electronic devices is carried out forecasting a European environmental policy aiming at safeguarding, protecting and improving environment quality, as well as avoiding potential effects on human health due to the presence of hazardous substances in such equipment or to an improper use of the same or of parts of the same. Caution! The wrong disposal of electric and electronic equipment may involve sanctions. This product is meant for domestic use. The conformity, certified by the CE-marking on the device, refers to the Directive 30/2014/Eu on electromagnetic compatibility and to the Directive 35/2014/Eu on electric material destined to be used within given voltage limits. This product is an electronic device that was tested to assure, according to the current technical knowledge, that it does not interfere with other nearby located equipment (electromagnetic compatibility) and that it is safe if used according to the advices given in the instructions for use. In case of operation anomalies, do not keep using the device and, if necessary, refer to the manufacturer directly. WARRANTY This equipment is covered by a 2-year warranty starting from the purchase date, which has to be proven by means of the stamp or signature of the dealer and by the fiscal payment receipt that shall be kept enclosed to this document. This warranty period complies with the laws in force and applies only in case the consumer is an individual. Laica products are designed for domestic use only; therefore, their use for commercial purposes is forbidden. The warranty covers only production defects and does not apply, if the damage is caused by accidental events, misuse, negligence or improper use of the product. Use the supplied accessories only; the use of other accessories invalidate the warranty cover. Do not open the equipment for any reason whatsoever; the opening or the tampering of the equipment, definitely invalidate the warranty. Warranty does not apply to parts subject to tear and wear along the use, as well as to batteries, when they are included. Warranty decays after 2 years from the purchase date. In this case, technical service interventions will be carried out against payment. Information on technical service interventions, under warranty terms or against payment, may be requested by writing at [e-mail]. Repair or replacement of products covered by the warranty terms are free of charge. In case of faults, refer to the dealer; DO NOT send anything directly to LAICA. All interventions covered by warranty (including product replacement or the replacement of any of its parts) shall not be meant to extend the duration of the original warranty period of the replaced product. The manufacturer cannot be made liable for any damages that may be caused, directly or indirectly, to people, things and pets resulting from the inobservance of the provisions contained in the suitable user manual, especially with reference to the instructions related to installation, use and maintenance of the equipment. Being constantly involved in improving its own products, Laica reserves the right to modify its product, totally or partially, with reference to any production need, without that this involves any responsibility whatsoever by Laica or its dealers. English English EN EN22 23 MÁQUINA PARA CONSERVAR AL VACÍO - INSTRUCCIONES Y GARANTÍA Estimado cliente, Laica desea agradecerle por haber elegido el presente producto, diseñado según criterios de fiabilidad y calidad para su completa satisfacción. IMPORTANTE
