USLK 22 A1 - Charging cable ULTIMATE SPEED - Free user manual and instructions

Brand	Ultimate Speed
Model	USLK 22 A1
Product type	Charging cable for electric vehicle
Cable length	5 m (500 cm)
Vehicle plug type	Type 2 (EN 62196-2)
Infrastructure plug type	Type 2 (EN 62196-2)
Charging mode	Mode 3 (EN 61851-1)
Rated voltage	230 V~ / 400 V~ (single-phase / three-phase)
Rated frequency	50 Hz – 60 Hz
Number of phases	Three-phase
Max. charging current	32 A
Max. charging capacity	22 kW
Operating temperature	-40 °C to 90 °C
Protection rating	IP65
Material	Plastic and metal (contacts)
Package contents	1 charging cable, 1 instruction manual, 1 storage bag
Maintenance	Clean with a damp cloth or soft brush; do not immerse in water
Warranty	3 years
After-sales service	Ecos Office Forbach, tel. [phone]

Frequently Asked Questions - USLK 22 A1 ULTIMATE SPEED

Which vehicles are compatible with this charging cable?

This charging cable USLK 22 A1 is compatible with electric and hybrid vehicles equipped with a Type 2 plug (EN 62196-2).

Can I use this cable with a single-phase charging station?

Yes, the cable supports a voltage of 230 V~ in single-phase and 400 V~ in three-phase. It automatically adapts to the charging infrastructure.

What is the maximum charging power?

The maximum charging power is 22 kW in three-phase (32 A). In single-phase, the power is limited to approximately 7.4 kW (32 A at 230 V).

Is the cable weather-resistant?

Yes, the protection rating is IP65, which means it is protected against dust and water jets. However, avoid immersing the plugs in water.

How to clean the charging cable?

Clean the cable with a damp cloth or a soft brush. Do not use detergents or solvents. Never immerse the cable in water.

Can I use an extension cord or adapter?

No, it is forbidden to use an extension cord or adapter with this cable. Connect it directly to the charging station and the vehicle for safety reasons.

What to do if the cable is damaged?

If the cable is damaged (cracks, cuts, etc.), disconnect it immediately and do not use it anymore. Contact the after-sales service for repair or replacement.

How to store the cable after use?

After use, put the protective covers back on the plugs, coil the cable without bending it, and store it in the provided bag. Store it in a dry place out of reach of children.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear or damage due to improper use.

How to contact after-sales service?

You can contact after-sales service by phone at 0033 (0) 3 87 84 72 34 or by email at [e-mail]. Have your proof of purchase and IAN number (403813_2201) ready.

USER MANUAL USLK 22 A1 ULTIMATE SPEED

PDF ONLINE www.lidl-service.com

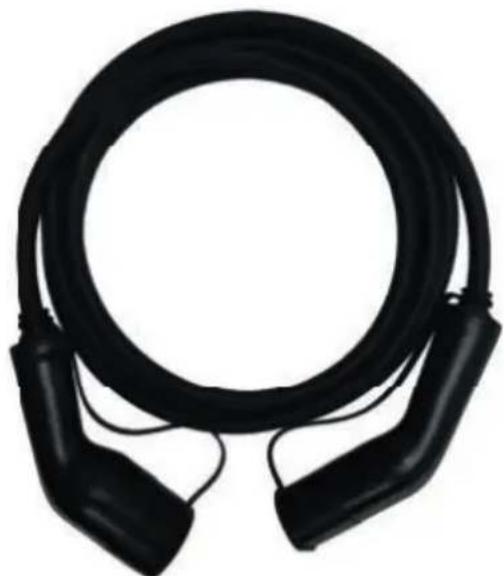

Black rubber cord with two connectors, no text or symbols visible

CHARGING CABLE 5M TYPE 2 USLK 22 A1

LADEKABEL 5M TYP 2 USLK 22 A1

CÂBLE DE CHARGE 5M TYPE 2 USLK 22 A1

GB IE NI CY MT

CHARGING CABLE 5M TYPE 2

Operation and Safety Notes

Translation of the original instructions

FR BE CH

CÂBLE DE CHARGE 5M TYPE 2

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE ATCH

GB/IE/NI/CY/MT Operation and Safety Notes Page 5

DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 17
FR/BE/CH Consignes d’utilisation et de sécurité Page 30
NL/BE Bedienings- en veiligheidsinstructies Pagina 43
CZ	Návod k obsluze a bezpečnostní pokyny	Strana 55
PL	Wskazówki dotyczące montażu, obstugi i bezpieczeństwa	Strona 66
SK	Návod na obsluhu a bezpečnostné upozornenia	Strana 78
ES	Instrucciones de funcionamiento y de seguridad	Página 90
DK	Brugs- og sikkerhedsanvisninger	Side 102
	Istruzioni di montaggio, utilizzo e sicurezza	Pagina 113
HU	Kezelési és biztonsági hivatkozások Oldal 126
SI	Navodila za upravljanje in varnostna opozorila	Stran 139

A

1 2 3 4 5

B

Circular black fabric bag with handles, no visible text or symbols

Table of pictograms used ...... Page 6

Introduction ...... Page 7

Intended use ...... Page 7

Scope of delivery ...... Page 7

Equipment Page 7

Technical Specifications.... Page 8

Safety instructions...... Page 8

Specific safety instructions ...... Page 11

Using the device ...... Page 11

Cleaning Page 12

Storage Page 12

Information about recycling and disposal ...... Page 12

EC Declaration of Conformity ...... Page 13

Warranty and service information ...... Page 14

Warranty conditions ...... Page 14

Warranty period and statutory claims for defects...... Page 14

Extent of warranty.... Page 14

Processing of warranty claims ...... Page 15

Service......Page 16

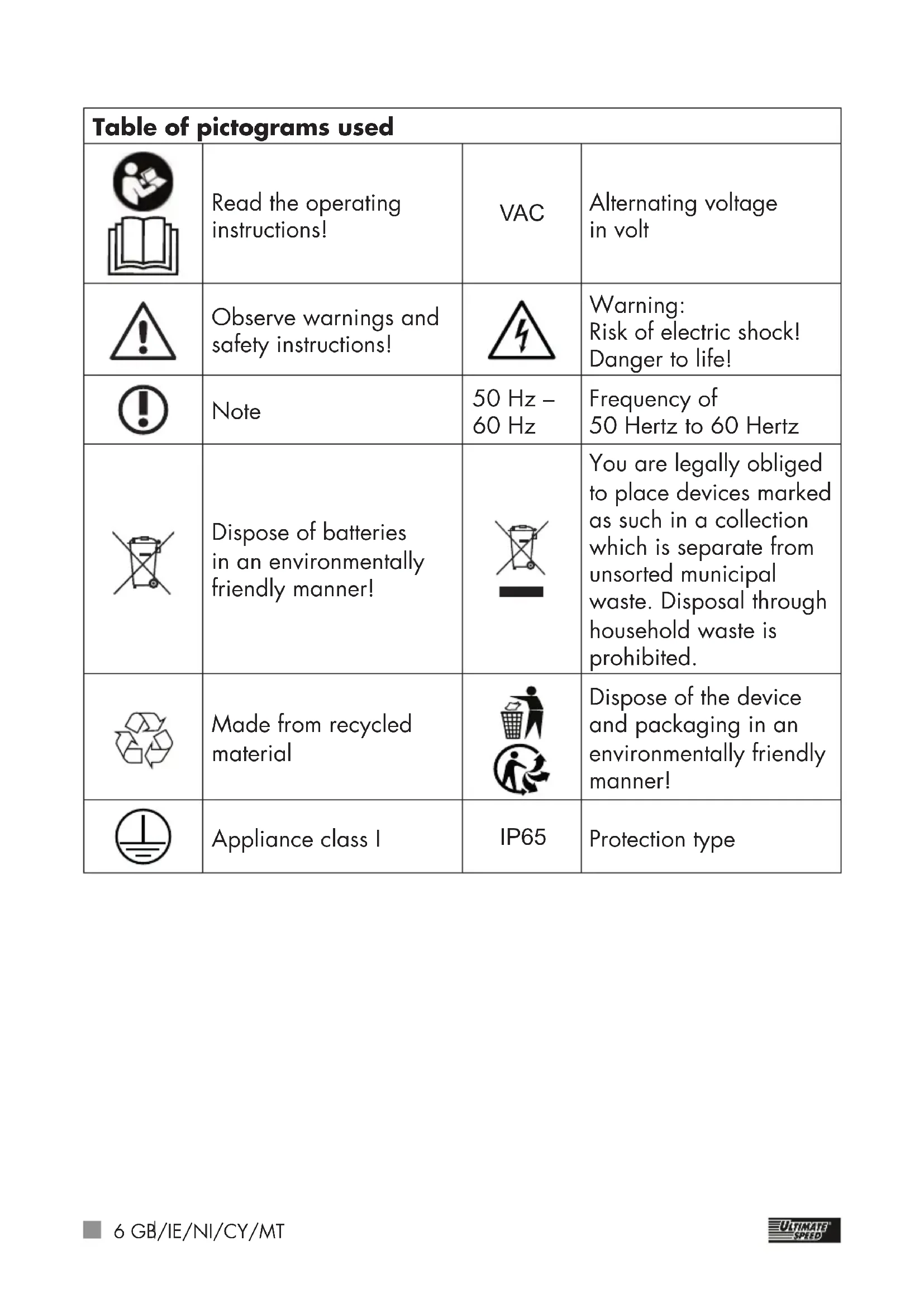

Table of pictograms used
	Read the operating instructions!	VAC	Alternating voltage in volt
	Observe warnings and safety instructions!		Warning: Risk of electric shock! Danger to life!
	Note	50 Hz - 60 Hz	Frequency of 50 Hertz to 60 Hertz
	Dispose of batteries in an environmentally friendly manner!		You are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited.
	Made from recycled material		Dispose of the device and packaging in an environmentally friendly manner!
	Appliance class I	IP65	Protection type

CHARGING CABLE 5M TYPE 2 USLK 22 A1

- Introduction

Congratulations! You have purchased one of our high-quality products. Please familiarise yourself with the product before using it for the first time. To do so, please read through the following operating and safety instructions carefully.

KEEP OUT OF THE REACH OF CHILDREN!

The charging cable is only suitable for electric and hybrid cars with a type 2 plug.

- Intended use

Using the charging cable, electric and hybrid cars, hereafter referred to as "cars", can be charged from a charging infrastructure intended for this purpose. Any other use is not permitted and is therefore regarded as improper use. The charging cable 1 is only safe, if these operating instructions and the documentation for the car are followed.

Before using the charging cable 1, you must read these operating instructions and the documentation for the car.

When the charging cable 1 is being used, observe the instructions as described.

Failure to do this can lead to personal injury or damage to property, such as, for example, electric shock, short circuit or fire.

Any other use may cause damage to the device and expose the user to a risk of serious injury. The manufacturer is not liable for any injury or damage resulting from improper use.

Note: In case of doubt, get a qualified electrician to check that the charging infrastructure is suitable.

The charging cable has been developed for consumer use and is not suitable for use in a commercial or industrial environment. The product must only be started up initially by people who have been trained to do so.

- Scope of delivery

1 Charging cable

1 Operating instructions

1 Bag

- Equipment

To do this see Fig. A, B:

After unpacking the product, please check that all of the package contents are

present and that the charging cable is in perfect condition 1. Do not use the charging cable if it is defective.

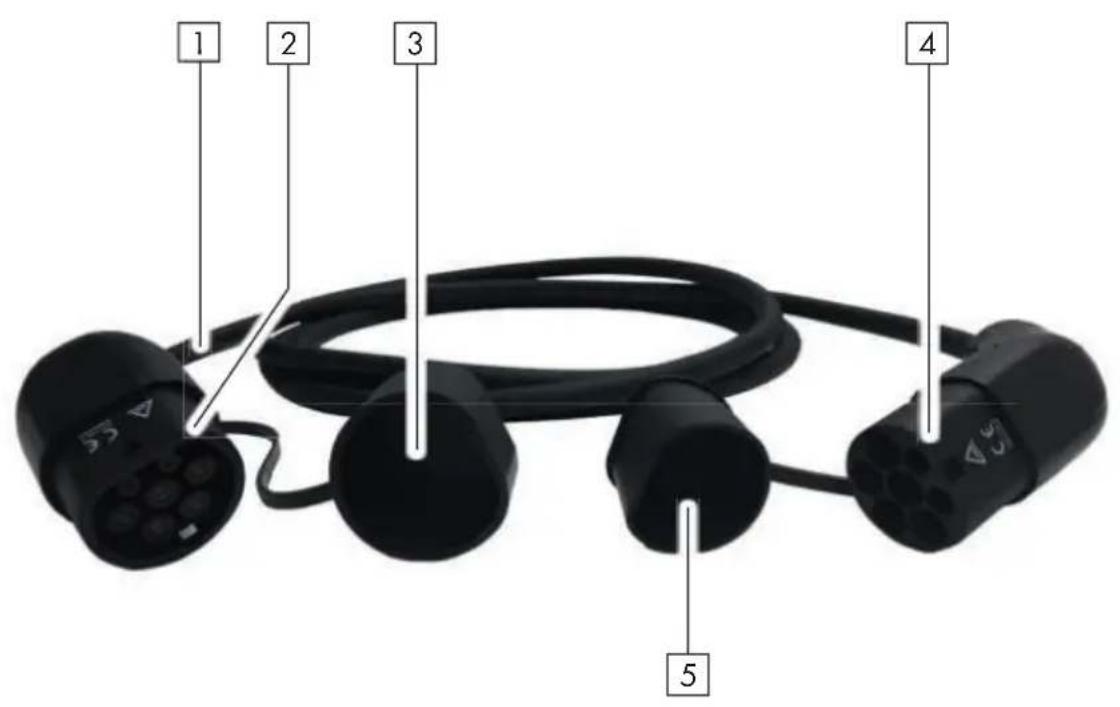

1 Charging cable
2 Type 2 plug - car side
3 Cover cap for the plug – car side
4 Type 2 plug – infrastructure
5 Cover cap for the plug – infrastructure
6 Bag

Note: The use of the term "product" in the following text refers to the charging cable 1 named in these operating instructions.

• Technical Specifications

Model: USLK 22 A1

Operating

temperature: -40 °C – 90 °C

Nominal

voltage: 230 VAC / 400 VAC

Nominal frequency: 50 Hz – 60 Hz

Number of phases: 3 phase

Max. charge current: 32 A

Max. charging capacity: 22 kW

Total length: 500 cm

Housing protection type: IP65

Connector plug: T2

(in accordance with EN 62196-2)

AC charge: Mode 3

(in accordance with EN 61851-1)

Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions.

The operating instructions cannot therefore be used as the basis for asserting a legal claim.

- Safety instructions

PLEASE READ

THROUGH THE OPERATING INSTRUCTIONS CAREFULLY BEFORE USE. THESE FORM PART OF THE PRODUCT AND MUST BE AVAILABLE AT ALL TIMES!

This section covers the basic safety instructions applicable when working with the device.

Personal safety:

• Keep children and animals away from the charging cable 1.
• Do not allow children to play with the charging cable 1. Cleaning and day-to-day maintenance must not be performed by children.
  ■ Children must be supervised to ensure that they do not play with the device.
  ■ Within the working area, the user is responsible for any

damage or injury to third parties that was caused by the use of the device.

During operation, never point the charging cable 1 at yourself or other individuals, and keep the charging cable well way from your ears and eyes. There is a risk of injury!

- Keep the device in a dry location and out of the reach of children.

This helps prevent device damage and possible personal injuries that could result from it:

Working with the device:

- Do not use the charging cable 1 while driving the vehicle.

Before setup or first use, check the charging cable 1 for any damage and do not use unless in perfect working order.

- Do not immerse the charging cable 1 in water. There is a risk of electric shock!

In hot weather, do not leave the charging cable 1 in a car. This could permanently damage the charging cable 1.

The charging cable plug 4 and 2 plug may become warm during operation. There is a risk of burn injuries from touching the hot surfaces.

- Do not operate the charging cable 1 near to flammable liquids or gases. Do not use the device to draw in hot fumes. Failure to do so risks causing a fire or explosion!

■ Unplug the plug from the charging infrastructure and the plug 2 from the car:

• When you are not using the charging cable 1;
• If you are doing cleaning work;
• If the connection cable is damaged;
• If foreign objects have got into the device or you notice unusual noises.

■ Only use the accessories supplied and recommended by the manufacturer.

- Do not disassemble or modify the charging cable 1. The charging cable 1 must only be repaired by a maintenance technician.

- Do not use the charging cable 1 in areas with a risk of explosion, e.g. near

flammable liquids, gases or powders.

• Do not expose the charging cable 1 to any source of heat.
• Do not store in places where Electrical safety:

the temperature may exceed 90 °C.

Do not connect the charging cable 1 to a faulty or unsuitable charging infrastructure, which, for example, is not designed for the continuous use required.

■ Protect the plug connections and plug devices from moisture and liquids.
- Do not step on or drive over plugs, charging cable connecting cables.
- Do not jam or kink charging and connection cables.
- Do not touch plugs with wet hands.
■ When the charging cable is not being used, always put the cover caps 5 and 3 onto the plugs 4 and 3.
The charging cable must not be used if it is not possible to operate it properly in accordance with the instructions. Ask the manufacturer, a responsible dealer or an electrician for advice.

CAUTION: How to avoid accidents and injuries resulting from electric shock:

Electrical safety:

• Do not carry the charging cable 1 by the cable.
  Do not unplug the plug from the charging infrastructure or the car by pulling on the charging cable 1. Protect the cable from heat, oil and sharp edges.
  If the cable is damaged, unplug the plug immediately. A damaged charging cable can lead to death or serious injuries. Before each use, check the charging cable for damage (e.g. cracks). Do not use damaged charging cables.
• Do not shortcircuit the contacts on the T2 plug. This can lead to a hazardous situation!
  ■ Do not put fingers or sharp objects into the plug contacts.
• Do not hold plugs under water or immerse in water.

● Specific safety instructions

- Do not use an adapter plug or extension cable. The charging cable 1 must be plugged directly into the charging infrastructure and the car.

■ Only use the charging cable ① when the ambient temperature is between -40 °C and 90 °C.

■ A slightly higher temperature during charging is absolutely normal and not a malfunction.

■ Protect the charging cable 1 from moisture and high temperatures, including fires.

■ Store the charging cable in a dry place and protect the device from moisture and corrosion.

- Do not drop the charging cable 1 while it is being used.

■ The charging cable is designed for electric cars with a type 2 plug (in accordance with EN 62196-2).

■ When using the charging cable ① make sure that the connector plugs ④ and ② are securely in place.

- Using the device

Start the charging process:

■ Follow the operating instructions for the charging infrastructure (charging station) and the electric car.

• Switch the electric car off.
• Unwind the charging cable.
• Pull the cover cap off the plug 4.
• Plug the plug into the charging station.
• Pull the cover cap off the plug 2.
• Plug the plug into the car.
• Make sure that the plug is fully inserted.
  ■ Start the charging process at the charging station. The charging plug will be locked automatically.
  ■ The charging time depends on the capacity and charge level of the car battery, as well as the capacity of the charging station.

Finish the charging process:

■ Finish the charging process at the charging station and on the car.
■ The lock on the charging plug will be released automatically.
■ Unplug the plug from the car.
- Put the cover cap onto the plug 2.
■ Unplug the plug from the charging station.
- Put the cover cap onto the plug 2.

■ Re-wind the charging cable properly afterwards and when doing this, make sure that the cable is not kinked.
■ Now store the charging cable properly in the bag and keep it in the car.

- Cleaning

Attention: The charging cable must not be submersed in water. There is a risk of injury due to electric shock if moisture enters the device.

■ Do not use cleaners or solvents. These could damage the charging cable beyond repair.
- Keep the charging cable and plugs clean.
■ Use a damp cloth or a soft brush to clean the charging cable.

- Storage

- Keep the charging cable in a dry location and out of the reach of children.

■ To avoid damage, take care to ensure that the charging cable does not become kinked.

● Information about recycling and disposal

Don't throw away - recycle!

According to European Directive2012/19/EU, used electrical devices must be collected separately for environmentally compatible recycling or recovery. Please return this device to an approved waste management company or use your municipal waste collection service. Please ensure you comply with local regulations. If you have any questions, please contact your local authority or waste management company.

Please return this device, accessories and packaging to your local recycling depot.

Do not dispose of electrical appliances in household waste!

As the consumer you are legally obliged (by the German Battery Ordinance) to

return any and all used batteries. Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

Take used batteries to a waste management company in your city or community or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment.

Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.

• EC Declaration of Conformity

We,

C. M. C. GmbH

Responsible for documentation:

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

hereby take sole responsibility for declaring that the product

Charging cable 5m Type 2

IAN: 403813_2201

Art. no.: 2494

Year of

manufacture: 2022/01

Model: USLK 22 A1

meets the basic safety requirements as specified in the European Directives

Electromagnetic Compatibility:

(2014/30/EU)

Low Voltage Directive:

(2014/35/EU)

RoHS Directive:

(2011/65/EU)+(2015/863/EU)

and the amendments to these Directives.

The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This conformity assessment is based on the following harmonised standards:

EN 62196-1:2014

EN 62196-2:2017

EN IEC 61851-1:2019

St. Ingbert, 23 February 2022

C.M.C. GmbH Katharma-Loth-Str. 15 1.A.66786 St.Engleff Telefon: [phone] Telefax: [phone]

pp Dr. Christian Weyler – Quality Assurance –

● Warranty and service information

Warranty from Creative Marketing&Consulting GmbH

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

- Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at

our discretion – free of charge.

This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred. If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

- Warranty period and statutory claims for defects

The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.

• Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to

normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

the cover page of your instructions (bottom left), or the sticker on the back or underside of the device. In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

Note:

You can download this handbook and many more, as well as product videos and software at www.lidl-service.com. With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your operating instructions by entering the article number (IAN) 403813.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below.

Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.

The product number can be found on the type plate, an engraving,

PDF ONLINE www.lidl-service.com

Service

How to contact us:

GB, IE, NI, CY, MT

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 403813\_2201

Please note that the following

address is not a service address.

Please first contact the service point given above.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE - 66386 St. Ingbert

DEUTSCHLAND

[e-mail]

[e-mail]

Telefon: [phone]

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

DUITSLAND

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

ALEMANIA

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

TYSKLAND

Nome: Riku Service snc

Indirizzo Internet: www.riku-service.com

E-Mail: [e-mail]

Telefono: 0039 (0) 4711430103

Sede: Germania

IAN 403813\_2201

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

NEMČIJA
