WS 8013 - Clock TECHNOLINE - Free user manual and instructions

Product Type	Radio-controlled clock with temperature and humidity display
Brand	TECHNOLINE
Model	WS 8013
Power Supply	4 AA batteries (not included)
Display	LCD with icons
Time Reception	DCF signal (radio-controlled)
Time Format	12/24 hours selectable
Calendar	Perpetual until 2099, day of the week in 10 languages
Indoor Temperature	-10 °C to +50 °C, °C/°F units selectable
Indoor Humidity	20% to 99%
Alarm	Daily, adjustable duration 1 or 2 minutes
Snooze Function	Repeat every 5 minutes, up to 7 repetitions
Time Zone	Adjustable from -23 to +23 hours relative to CET
Day Languages	German, English, French, Italian, Dutch, Spanish, Danish, Czech, Polish, Swedish
Wall Mount	Yes, mounting holes on the back
Material	Plastic
Maintenance	Clean with a dry cloth, avoid water and moisture
Battery Safety	Use only non-rechargeable alkaline batteries, observe polarity
Operating Temperature	Indoor only, avoid extremes

Frequently Asked Questions - WS 8013 TECHNOLINE

How to set the time manually if the DCF signal is not received?

Press and hold the MODE button (B1) for 3 seconds to enter setting mode. Use the + (B4) and - (B5) buttons to set the hour, minutes, seconds, year, month, and day. Press MODE to confirm each step.

How to turn the alarm on or off?

Press the ALARM button (B3) to turn the alarm on or off. The alarm icon displays when it is active.

What does 'DST' on the display mean?

DST stands for 'Daylight Saving Time'. It displays automatically during the daylight saving time period.

How to change the day of the week language?

In time setting mode (press and hold MODE), continue until the language blinks. Use + or - to choose from 10 languages (German, English, French, etc.). Press MODE to confirm.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button (B2). The alarm stops for 5 minutes and repeats up to 7 times. The alarm icon flashes during the snooze period.

What to do if the clock does not display the correct time?

Check that the clock receives the DCF signal: the radio-controlled icon should be on. Otherwise, place the clock near a window, away from electronic devices and metal structures. You can also force a manual search by pressing and holding the - button (B5) for 3 seconds.

What are the measured temperature and humidity ranges?

Indoor temperature: from -10 °C to +50 °C. Indoor humidity: from 20% to 99%. Outside these ranges, the display shows 'LL.L' or 'HH.H' for temperature, and '20%' or '99%' for humidity.

How to replace the batteries?

Slide the battery compartment cover [C3] on the back of the clock. Remove the old batteries and insert 4 new AA alkaline batteries, observing polarity (+/-). Close the cover.

Can the clock be mounted on the wall?

Yes, the clock has wall mounting holes [C1] on the back. Use a suitable mounting bracket (not included) to hang it on the wall.

How to clean the clock?

Use a dry, soft cloth to clean the display and housing. Do not use water, solvents, or abrasive cleaners. Avoid excessive moisture.

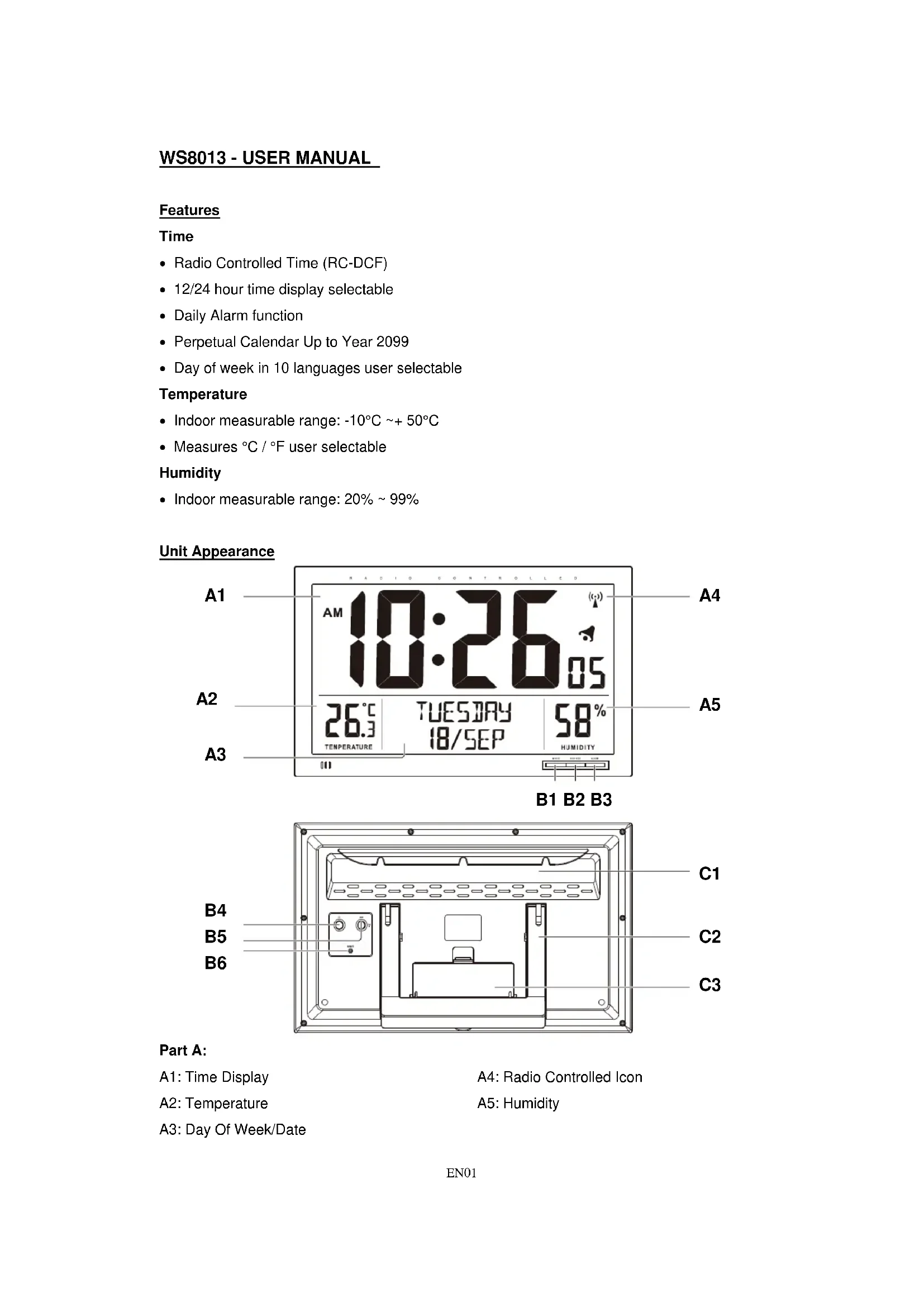

USER MANUAL WS 8013 TECHNOLINE

• Radio Controlled Time (RC-DCF)
• 12/24 hour time display selectable
• Daily Alarm function
• Perpetual Calendar Up to Year 2099
• Day of week in 10 languages user selectable

Temperature

• Indoor measurable range: -10^ +50^
  • Measures °C / °F user selectable

Humidity

- Indoor measurable range: 20% 99%

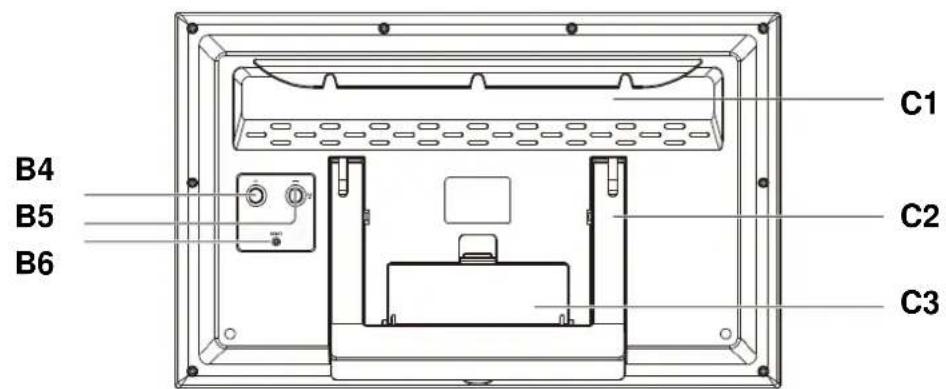

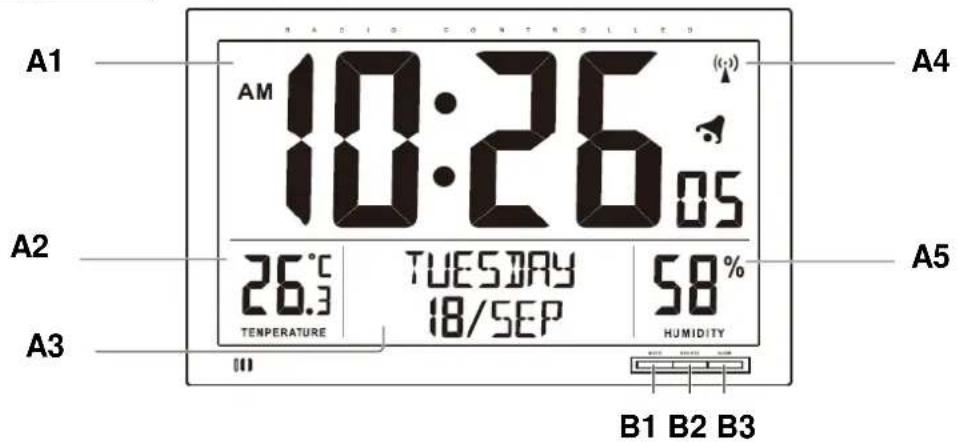

Unit Appearance

RADIO CONTROLLED A1 AM 10:26 05 (°) A4 A2 26.3 TUESDAY 18/SEP 58% A5 A3 HUMIDITY B1 B2 B3

B4 B5 B6 C1 C2 C3

Part A:

A1: Time Display
A2: Temperature
A3: Day Of Week/Date

A4: Radio Controlled Icon

A5: Humidity

Part B:

B1: "MODE" button

B2: "SNOOZE" button

B3: "ALARM" button

B4: "+" button

Part C:

C1: Wall Mount Holes

C2: Stand

B5: “-” button

B6: "RESET" button

C3: Battery Compartment

Getting Started:

Main Unit:

• Slide open battery compartment cover [C3]
• Insert 4 x AA size batteries observing polarity ["+” and “-” marks].
• Replace battery compartment cover [C3]

Time and Alarm Setting

Radio Controlled Clock:

- After batteries inserted, the clock automatically starts to scan the DCF time signal. Radio

Control Icon“” flashes on the LCD.

flashes,Indicating that receiving DCF signal is now

turns on static,Indicating that signal received successfully

disappears,Indicating that signal reception failed

• The clock automatically scans the time signal at 3.00 a.m. every day to maintain accurate timing. If reception fails, scanning stops (“” on LCD disappears)
• Scan the time signal manually by holding “(+)” button (B5) for 3 seconds. Each reception attempt takes about 5 minutes.
• Stop scanning by holding “(▲)” button (B5) for 3 seconds.
• “DST” is displayed on the LCD if it is Daylight Saving Time

Manual Time Setting:

- In time display mode, press the "MODE" button (B1) for 3 seconds to enter time setting mode. 24 Hr is flashing on the display.

• Press the “+” (B4) or the “-” (B5) button to set 12 Hour or 24 Hour time display.
• Press the "MODE" button (B1) to confirm the changes and RCC on is flashing.
• Press the “+” (B4) or the “-” (B5) button to set RCC to on to activate radio controlled time or to RCC off to deactivate radio controlled time.
• Press the "MODE" button (B1) to confirm the changes and time zone 00 (CET) is flashing.
• Press the “+” (B4) or the “-” (B5) button to set a value of +/-23 hours time difference to CET (-01 for UK time).
• Press the "MODE" button (B1) to confirm the changes and the language is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the weekday language from the following options: German, English, French, Italian, Dutch, Spanish, Danish, Czech, Polish, Swedish.
• Press the "MODE" button (B1) to confirm the changes and the hour is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the hour.
• Press the "MODE" button (B1) to confirm the changes and the minute is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the minute.
• Press the "MODE" button (B1) to confirm the changes and the second is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the seconds to 00.
• Press the "MODE" button (B1) to confirm the changes and the year is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the year.
• Press "MODE" button (B1) to confirm the changes and the month is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the month.
• Press "MODE" button (B1) to confirm the changes and the date is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the date.
• Press "MODE" button (B1) to confirm the changes and the temperature unit is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the temperature unit as °C or °F.
• Press "MODE" button (B1) to confirm the changes and the alarm sound duration unit is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the alarm sound duration.
• Press "MODE" button (B1) to confirm the setting and return to time display mode.

Note:

• All Setting mode will automatically exit in 15 seconds without any adjustment
• For Time Zone: If you receive no RC-DCF frequency signal, the time zone should be set to 0. Time Zone is used in countries which can received the DCF frequency signal but the time zone is different from German Time.
• Alarm sound duration: there are two options available, "1 minute" and "2 minutes".
  • Second only can be adjusted to 0.
• By keeping the “+” (B4) or “-” (B5) button pressed, will accelerate the process and reach

Alarm Function:

• Press the "MODE" button (B1) to view alarm time, "ALARM TIME" flashes on the display
• While viewing the alarm time, press the "MODE" button (B1) for 3 seconds to enter alarm time setting, the alarm hour is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the alarm hour.
• Press the "MODE" button (B1) to confirm the changes and the alarm minute is flashing.
• Press the “+” (B4) or the “-” (B5) button to set the alarm minute.
• Press the "MODE" button (B1) to confirm the setting and return to time display mode.

Note:

• All setting modes will automatically exit in 15 seconds without any adjustment
• By keeping the “+” (B4) or “-” (B5) button pressed, will accelerate the process and reach the desired value more quickly

Snooze Alarm Function:

• Press the "ALARM" button (B3) to activate or deactivate the alarm. If the alarm is on, alarm icon " 🔥appears on the display.
• Press the "SNOOZE" (B2) button while the alarm sounds. The alarm snoozes for around 5 minutes, then it alerts again. "💡" flashes on the LCD during the snooze time. This process can be repeated for 7 times.
• Press any buttons except the "SNOOZE" button to stop snooze alarm. Otherwise, base on the previous setting of alarm sound duration, the alarm alerts for 2 minutes or 1 minute, then stops automatically.

Thermometer

• If the temperature is out of the measurable range, LL.L (beyond the minimum temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD.
• If the humidity is lower than 20%, 20% will be shown on the LCD and display 99% when it's higher than 99%.

Hereby, Technotrade declares that this product WS 8013 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC.

The original EU declaration of conformity may be found at:

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings
• inside moving vehicles

- near electrical appliances (computers, TV's, etc) and metallic structures

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-).
  ● Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
