WT 3005 - Clock TECHNOLINE - Free user manual and instructions

USER MANUAL WT 3005 TECHNOLINE

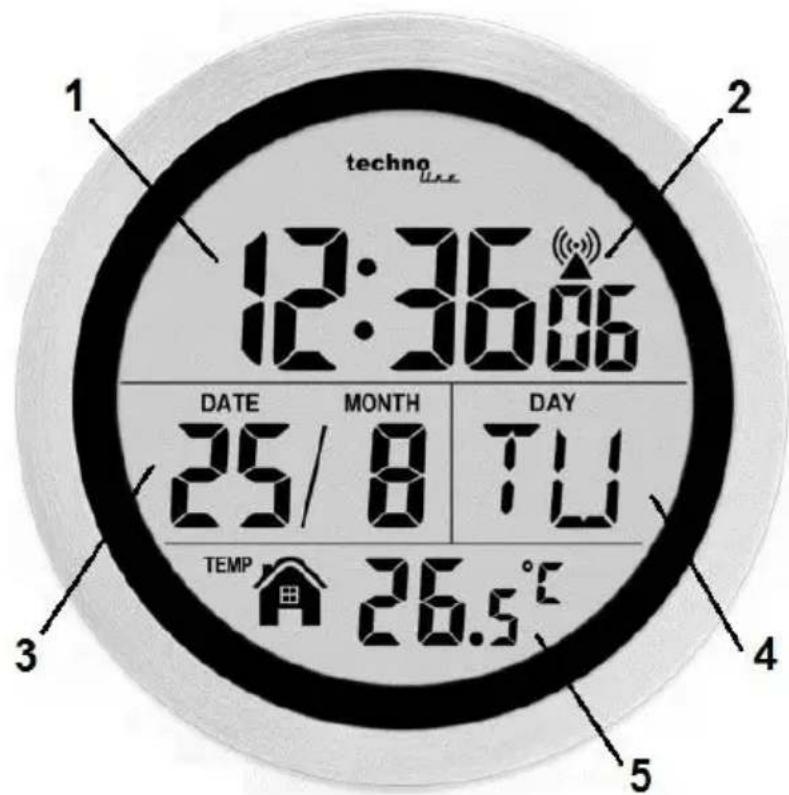

FEATURES DCF-77 Radio controlled clock with manual setting option 12/24 h time display Time zone setting (± 12 h) Date and weekday display (8 languages)8 Indoor temperature display in °C/°F Humidity-proof, ideal for bathrooms Assembly with suction cup, wall mounting or table standing

PUTTING INTO OPERATION

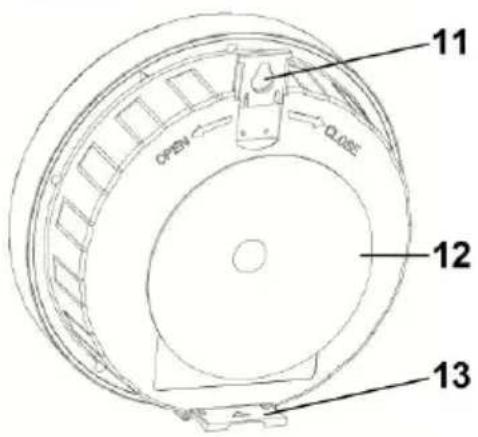

Twist and lift the back cover. Remove the battery compartment cover. Insert 1x AA battery matching the polarity (+/-). Close the battery cover and the back cover.

AUTOMATICALLY TIME SET

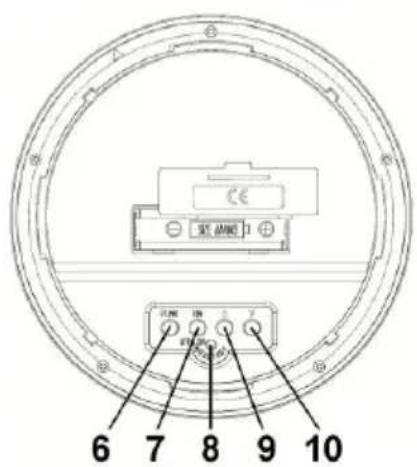

Once the battery is installed, the clock starts searching for the DCF signal. Within 3-8 minutes the clock will receive the DCF signal and set itself to the exact radio controlled time. A permanently displayed reception icon indicates successful signal reception. If a signal is not receivable, press the FUNK button, the clock will start to search again for the DCF signal. The reception symbol flashes during the active signal search. Notes: Press the FUNK button again to stop searching for the time signal and the reception icon is no longer displayed. The "S" symbol is displayed above the time if daylight saving time was received via the radio time signal.

You cannot set the time manually while the automatic time setting function is active. In this case, press the FUNK button first to end the time signal search. Press and hold the EINSTELLEN button for 2 seconds to enter into time setting mode. The figure to be set will be flashing. Press ▲ or to change the settings. Press the EINSTELLEN button to confirm and to switch to the next setting. The setting order is: 12/24-hr format, time zone, hour, minute year, month, day, language. Press the EINSTELLEN again to confirm and exit setting. Weekday display in 8 languages Language English German French Spanish Italian Dutch Hungarian Slovene / Week day

TEMPERATURE DISPLAY The indoor temperature is automatically displayed within 3-8 minutes after setting up. Press button to switch between the temperature display formats °C and °F. POSITIONED METHOD The bathroom clock can be positioned in 3 ways as desired: Pull out the table stand brackets from the rear of the clock, place on table or desk as desired. Hang on the wall by hanging hole. Hang on a smooth place with suction cap. Note: Dampen your fingertip with water and lightly moisten the inner rim of the suction cup. Moistening helps create a tighter seal. RESET Press NEUSTART button to return to the default settings.

DECLARATION OF CONFORMITY

Hereby, Technotrade declares that this product WT 3005 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665030050 SPECIFICATIONS Dimensions: Ø 147 x 50 mm Power requirements: 1 x AA Mignon LR06 1.5V Temperature measuring range: 0°C to +50°C (32°F to 122°F) Resolution: 0.1°C/ 0.1°F Accuracy: ± 1°C/ 1°F PRECAUTIONS This main unit is intended to be used only indoors. Do not subject the unit to excessive force or shock. Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity. Do not immerse in water. Avoid contact with any corrosive materials. Do not dispose this unit in a fire as it may explode.10 Do not open the inner back case or tamper with any components of this unit. Environmental reception effects The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances: long transmitting distance nearby mountains and valleys near freeway, railway, airports, high voltage cable etc. near construction site among tall buildings inside concrete buildings near electrical appliances (computers, TV’s, etc) and metallic structures inside moving vehicles Place the station/ clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances. Batteries safety warnings Please read all instructions carefully before use. Use only alkaline batteries, not rechargeable batteries. Install batteries correctly by matching the polarities (+/-). Always replace a complete set of batteries. Never mix used and new batteries. Remove exhausted batteries immediately. Remove batteries when not in use. Do not recharge and do not dispose of batteries in fire as the batteries may explode. Ensure batteries are stored away from metal objects as contact may cause a short circuit. Avoid exposing batteries to extreme temperature or humidity or direct sunlight. Keep all batteries out of reach from children. They are a choking hazard. Use the product only for its intended purpose! Protection class IP24 This product is protected against solid foreign bodies with diameter ≥ 12.5 mm, against access with a finger and against splashing water from all sides. Consideration of duty according to the battery law Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!11 Consideration of duty according to the law of electrical devices This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.12 WT 3005 – Horloge radio-pilotée de salle de bain Manuel d'instructions
